Scrap Metal Shredder 3D print model
Description

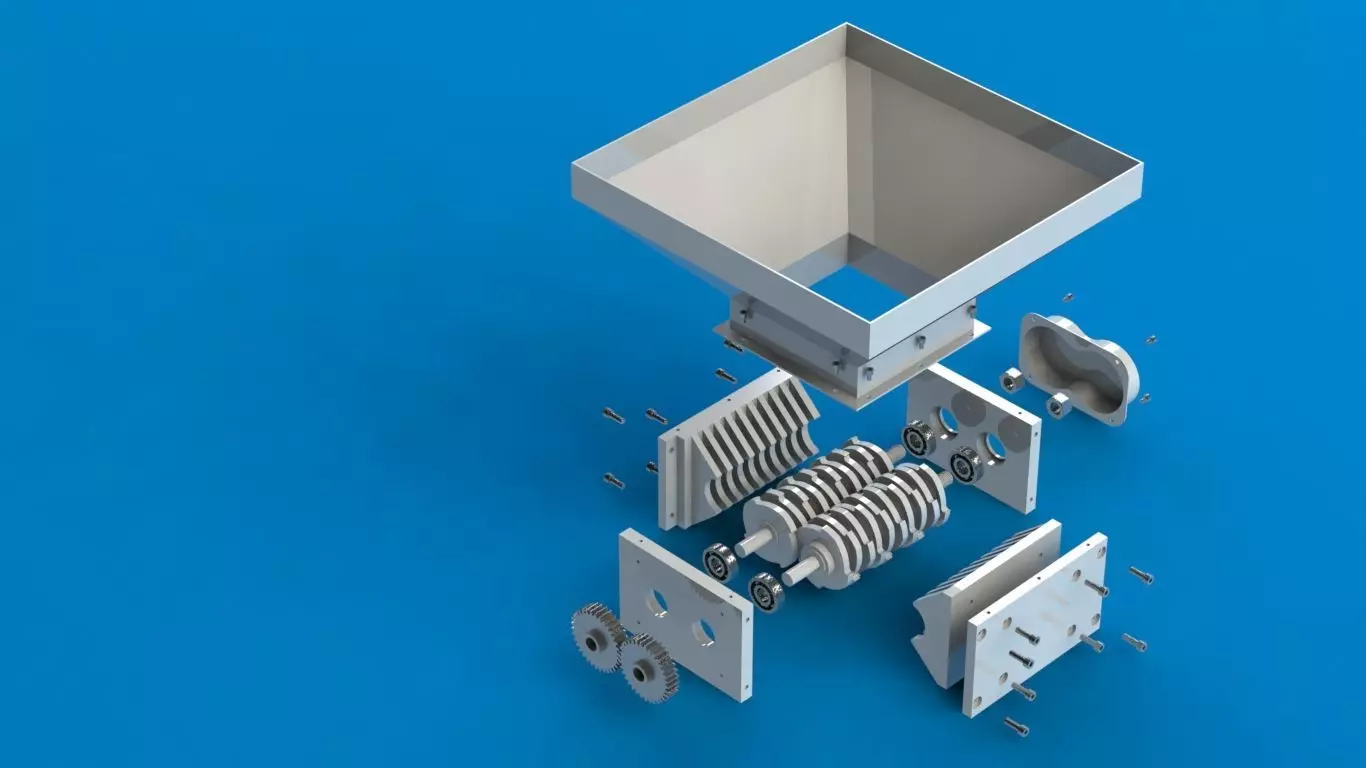

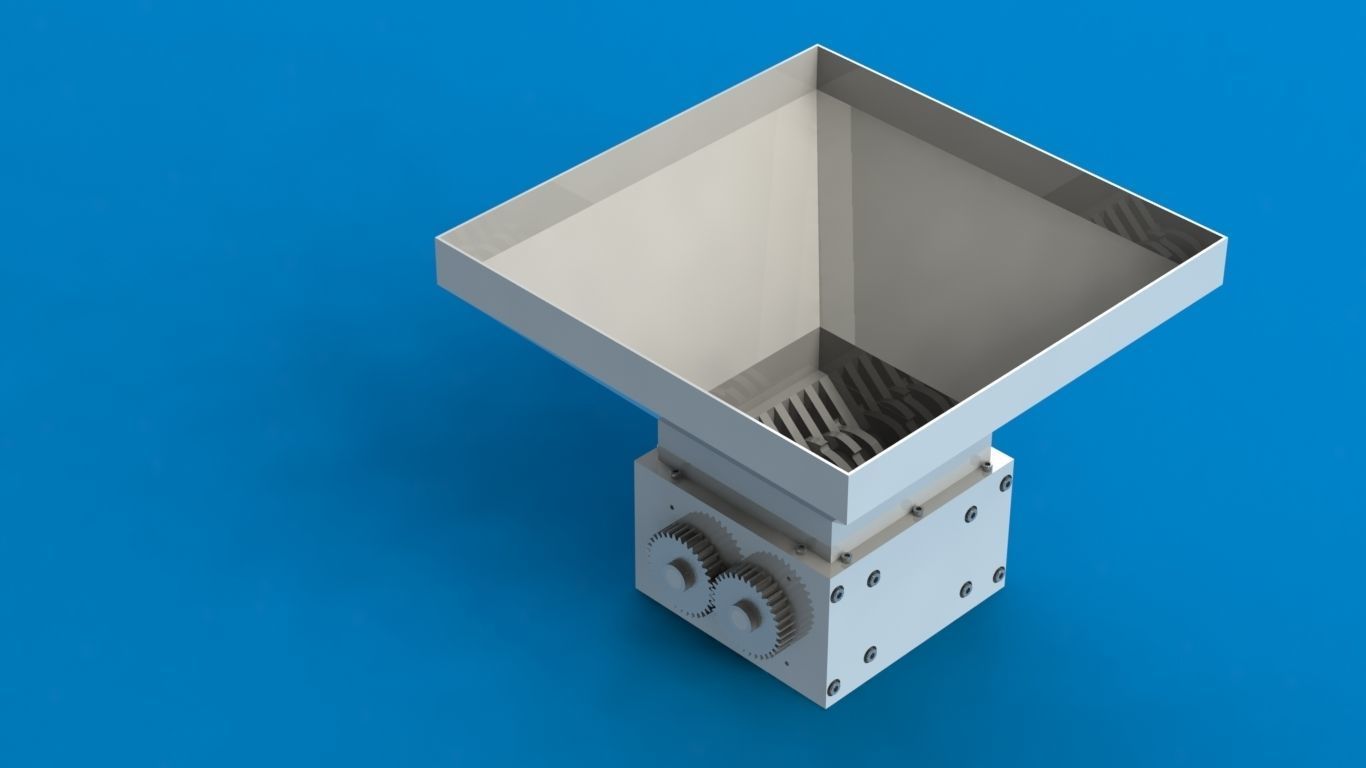

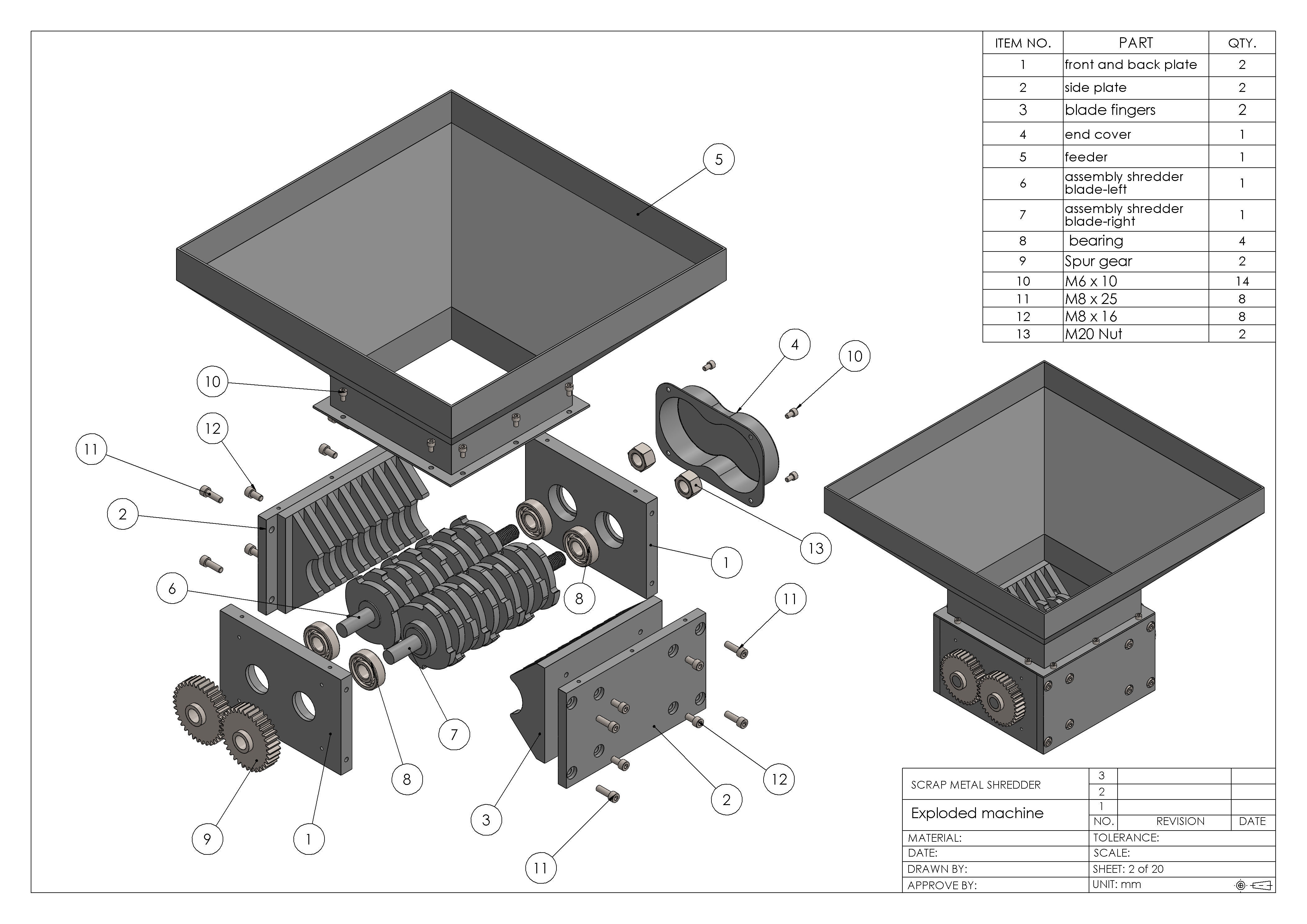

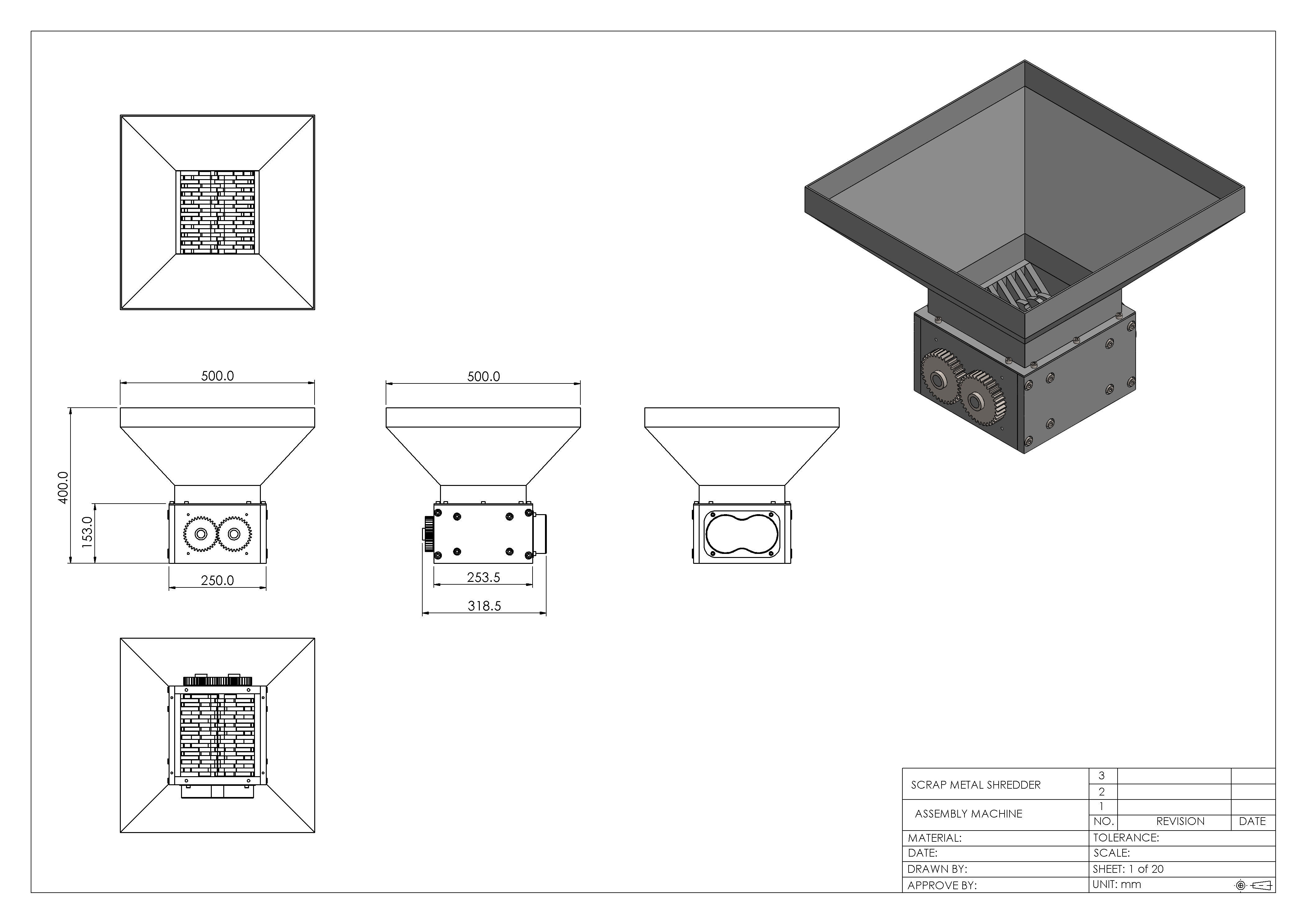

This is a scrap metal shredder. the files provided are Solidworks part files, 2D technical drawings, IGES file, STEP file and Stl. All files are compressed in rar. file type. It's ideal for anyone, who looking for a school or college project. The Solidworks section file provided is the 2018 version. You can refer to 2D technical drawings for dimensions. You can also watch how this machine is modeled in Solidworks on the copycat meowmeow Youtube channel. The height of this machine is 400mm. The overall width and length of this machine are 500mm. The technical drawings given include all machine parts along with important dimensions. Assembly and exploded drawings are included. If you have any problems with this model, please contact us, and we are ready to help you.
A
as9158393 2022-09-05 14:26:06 UTCas9158393
if i buy this design, can i make the machine in laser machine ?
copycat-meowmeow
The files provided are raw files, i.e. Solidworks part files and IGES files. and also included with 2D technical. you can use this file to convert to your laser machining file format. you also can change dimensions if you want by using Solidworks software.
K
kheniss kheniss
Thanks for the effort
G
guexmaxime guexmaxime
Scrap Metal Shredder
Royalty Free License
Scrap Metal Shredder
Royalty Free License
3D Modeling
3D Print Modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)8.44 MB
Exchange
- Stereolithography 2018 (.stl)853 KB
- PDF 2018 (.pdf)444 KB
- IGES 2018 (.ige, .igs, .iges)557 KB
3D Model details
- Publish date2020-10-04
- Model ID#2637591
- Ready for 3D Printing
