Modular Futomaki Sushi 3D print model

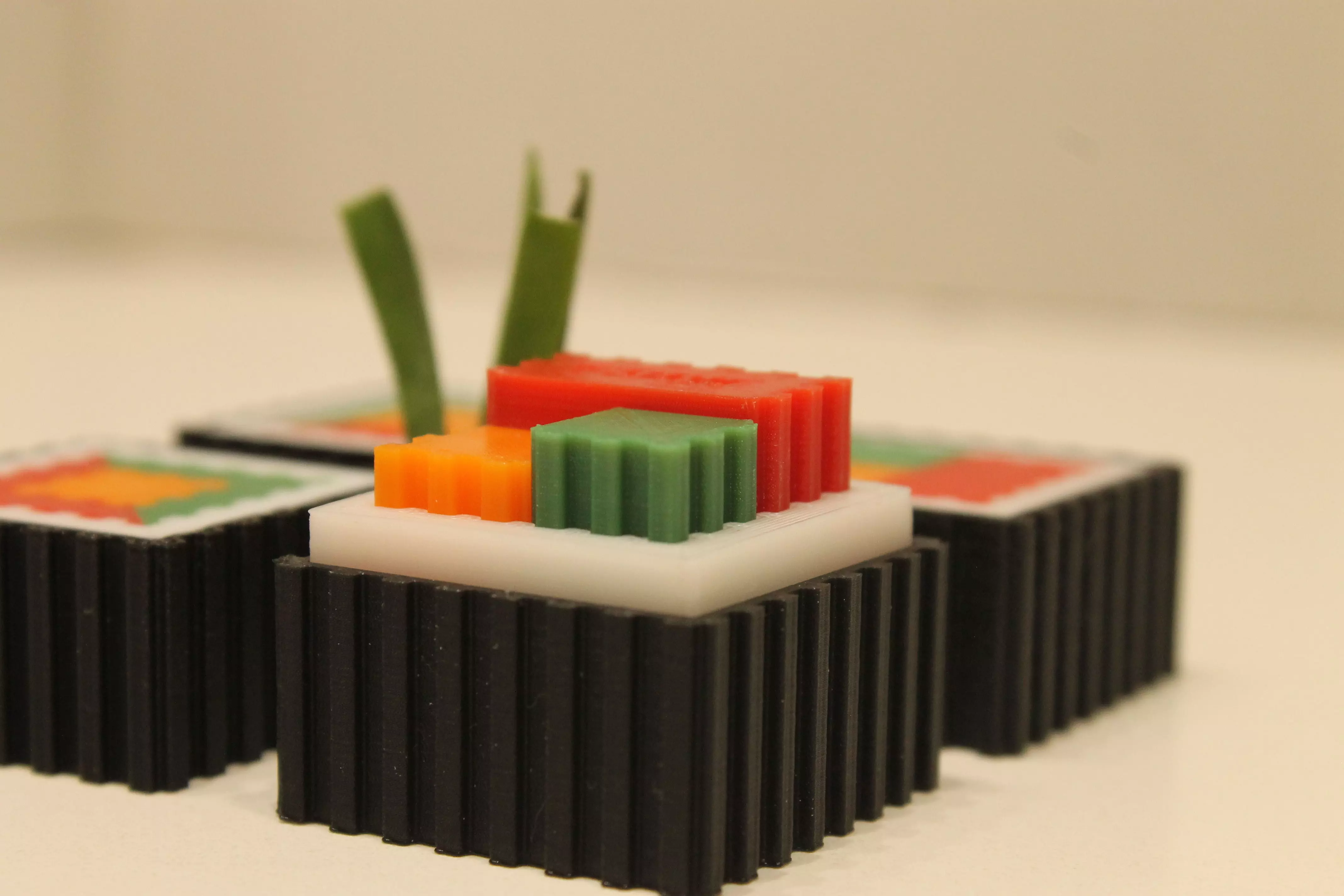

Modular Futomaki Sushi consisting of 5 interlocking parts.Modularity allows you to print separate pieces in different colors thus limiting post-production work related to unique, non-modular models.Inside the .zip file you will find two different settings depending on the relative tolerance of your printer, to ensure the best printing of the piece.If you have an inaccurate printer, I recommend printing the files inside the tolerance-0.2 folder, if you have a very precise printer, you can print the files inside the tolerance-0.1 folder.They do not require supports.I recommend a layer quality of 0.1 mm or 0.2 mm.I recommend slicing according to the guidelines shown in the photo, so that you can print the parts as simply as possible.In summary, a good print setting could be the following:

(Files tolerance-0.1)layer quality / height 0.1mmsupports no

(Files tolerance-0.2)layer quality / height 0.2mmsupports no

Print settings for Ender 3 and Ender 3 Pro:

(Quality 0.1mm)Layer height 0.1Initial layer height 0.2Line width 0.44Initial layer line width 100%ShellWall thickness 1.76Top / bottom layer thickness 0.8Filling the gaps between the walls in all possible pointsFillingDensity 20%Cube filling configurationMaterial (PLA SUNLU)Printing temperature 190Initial layer printing temperature 215Initial print temperature 190Final printing temperature 190Print bed temperature 60SpeedPrint speed 50Travel speed 150Printing speed of the initial layer 20ShiftsEnabling retraction yesRetraction distance 5Retraction speed 50Combing everything modeCooling down100%Support noPrint plan adhesionskirt

(Quality 0.2mm)Layer height 0.2Initial layer height 0.2Line width 0.44Initial layer line width 100%ShellWall thickness 1.76Top / bottom layer thickness 0.8Filling the gaps between the walls in all possible pointsFillingDensity 20%Cube filling configurationMaterial (PLA SUNLU)Printing temperature 190Initial layer printing temperature 215Initial print temperature 190Final printing temperature 190Print bed temperature 60SpeedPrint speed 50Travel speed 150Printing speed of the initial layer 20ShiftsEnable retraction yesRetraction distance 5Retraction speed 50Combing everything modeCooling down100%Support noPrint plan adhesionskirt
