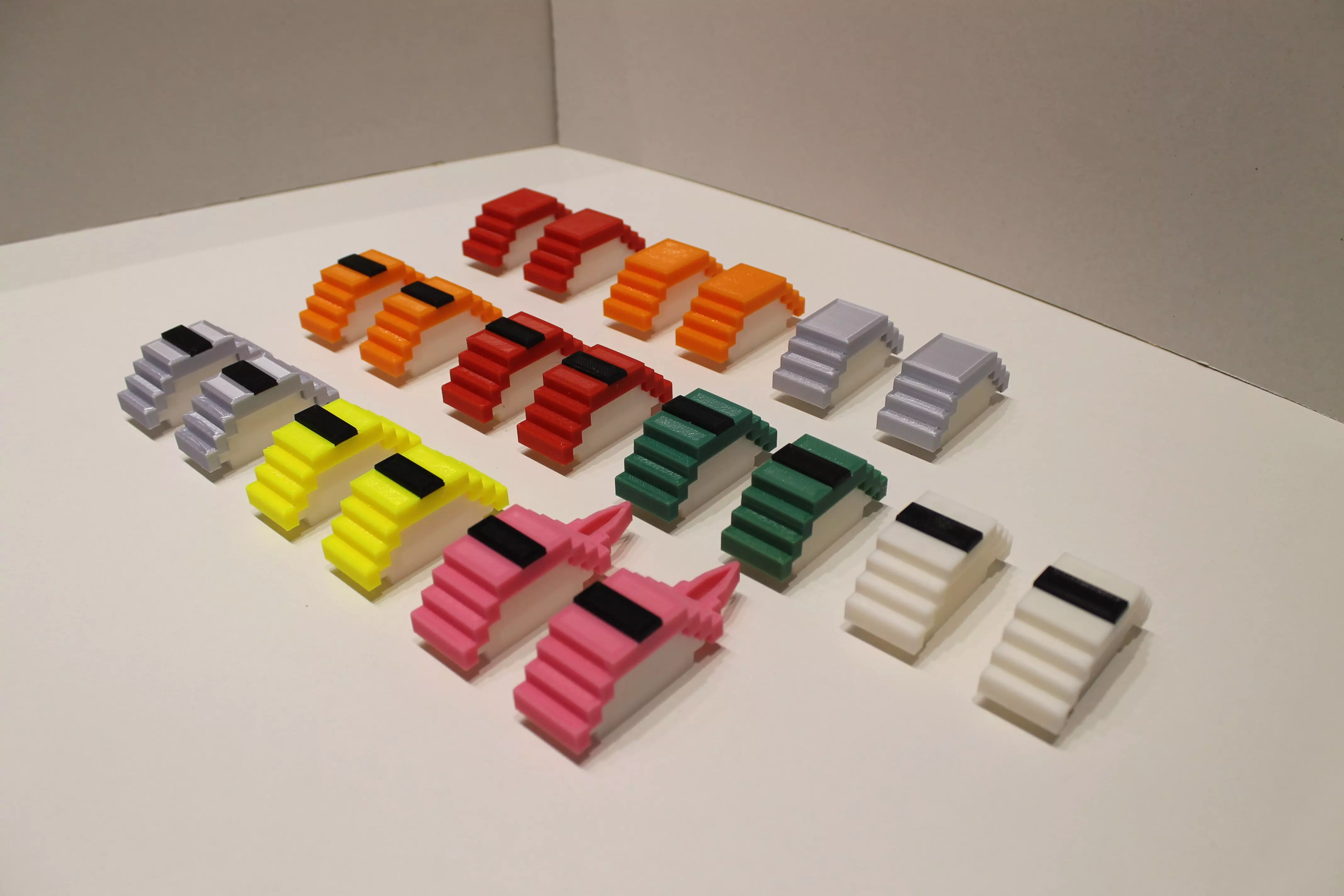

All Modular Nigiri Sushi - complete series 3D print model

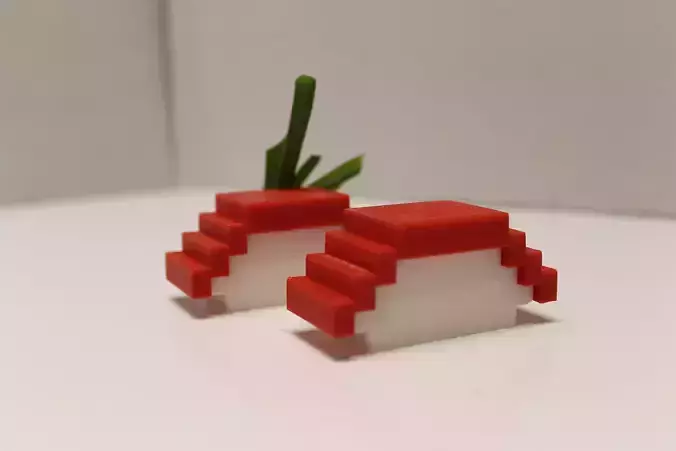

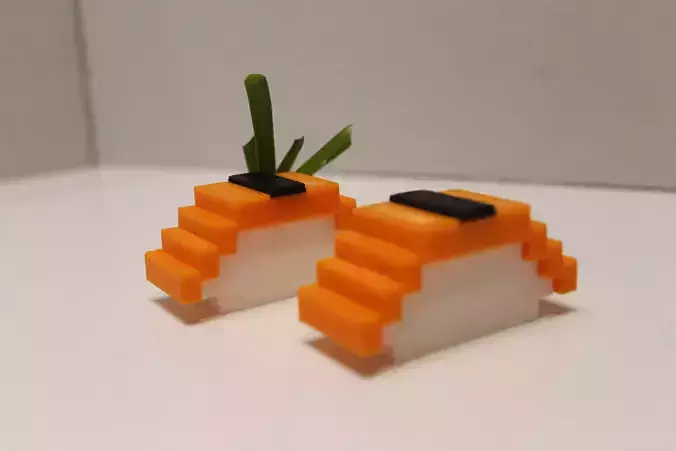

Modular nigiri sushi consisting of 2 or 3 interlocking parts, depending on whether you have chosen nigiri with or without seaweed. Modularity allows you to print separate pieces in different colors thus limiting post-production work related to unique, non-modular models. Inside the .zip file you will find two different settings depending on the relative tolerance of your printer, to ensure the best printing of the piece. If you have an inaccurate printer, I recommend printing the files inside the tolerance-0.2 folder, if you have a very precise printer, you can print the files inside the tolerance-0.1 folder. I recommend using the supports only in contact with the print bed. I recommend a layer quality of 0.1 mm or 0.2 mm. I recommend slicing according to the guidelines shown in the photo, so that you can print the parts in the simplest way possible and you can remove the supports in the shortest time required. In summary, a good print setting could be the following:

(Files tolerance-0.1) layer quality / height 0.1mm media yes but only contact with the print bed

(Files tolerance-0.2) layer quality / height 0.2mm media yes but only contact with the print bed

Print settings for Ender 3 and Ender 3 Pro:

(Quality 0.1mm) Layer height 0.1 Initial layer height 0.2 Line width 0.44 Initial layer line width 100% Shell Wall thickness 1.76 Top / bottom layer thickness 0.8 Filling the gaps between the walls in all possible points Filling Density 20% Cube filling configuration Material (PLA SUNLU) Printing temperature 190 Initial layer printing temperature 215 Initial print temperature 190 Final printing temperature 190 Print bed temperature 60 Speed Print speed 50 Travel speed 150 Printing speed of the initial layer 20 Shifts Enabling retraction yes Retraction distance 5 Retraction speed 50 Combing everything mode Cooling down 100% Support Media positioning Contact with the print bed Stand overhang angle 65 Print bed adhesion skirt

(Quality 0.2mm) Layer height 0.2 Initial layer height 0.2 Line width 0.44 Initial layer line width 100% Shell Wall thickness 1.76 Top / bottom layer thickness 0.8 Filling the gaps between the walls in all possible points Filling Density 20% Cube filling configuration Material (PLA SUNLU) Printing temperature 190 Initial layer printing temperature 215 Initial print temperature 190 Final printing temperature 190 Print bed temperature 60 Speed Print speed 50 Travel speed 150 Printing speed of the initial layer 20 Shifts Enabling retraction yes Retraction distance 5 Retraction speed 50 Combing everything mode Cooling down 100% Support Media positioning Contact with the print bed Stand overhang angle 65 Print bed adhesion skirt
