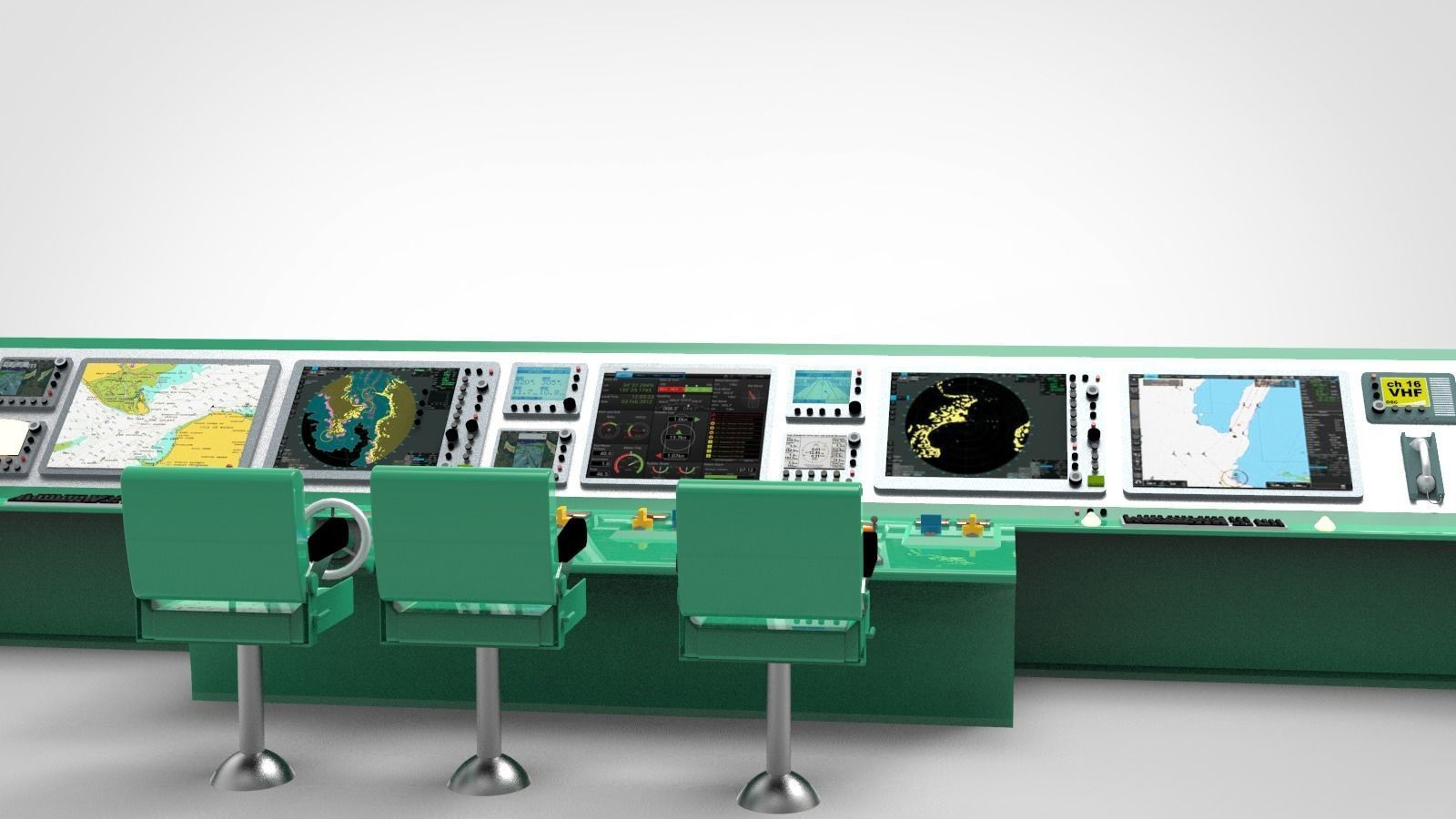

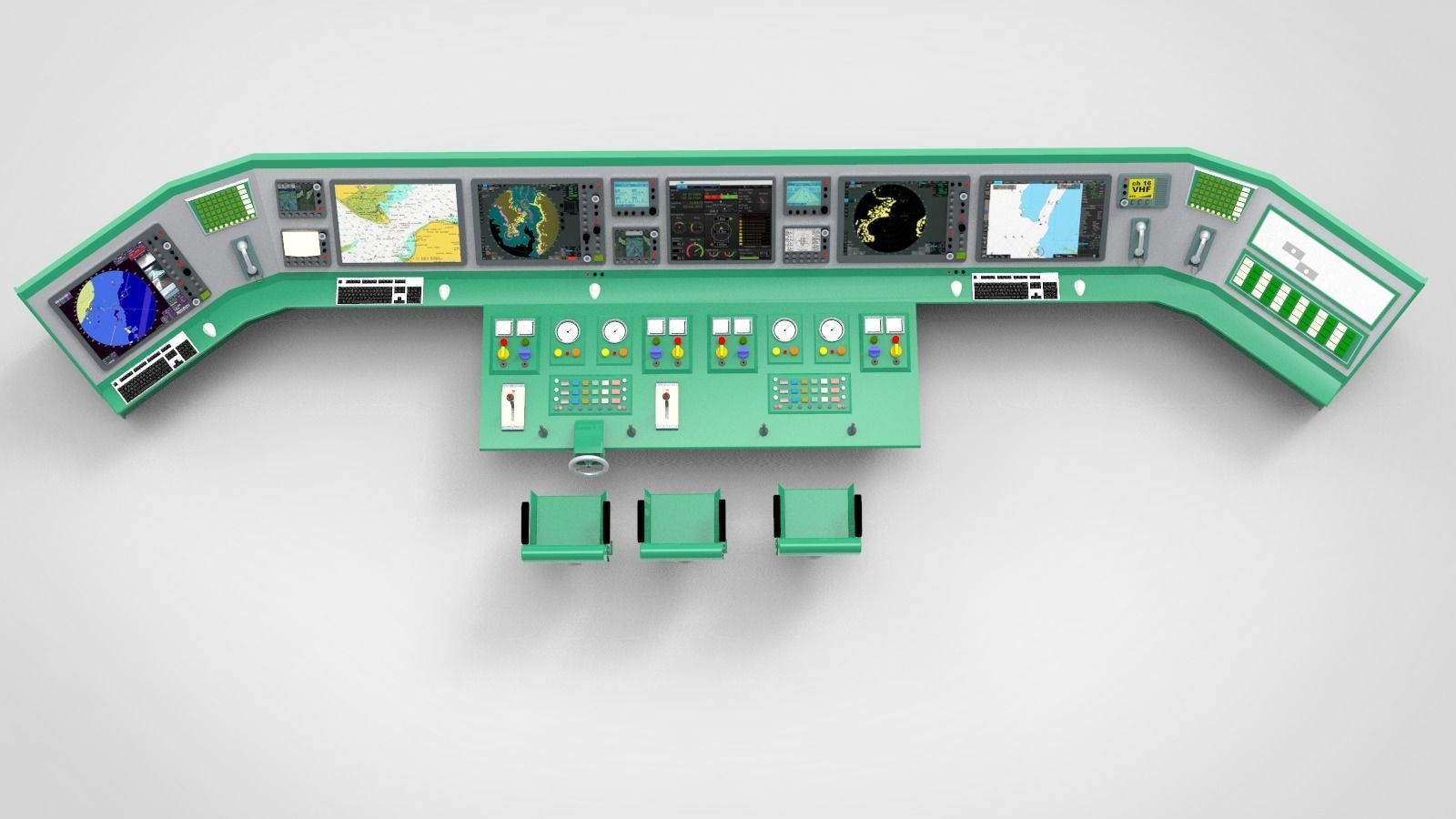

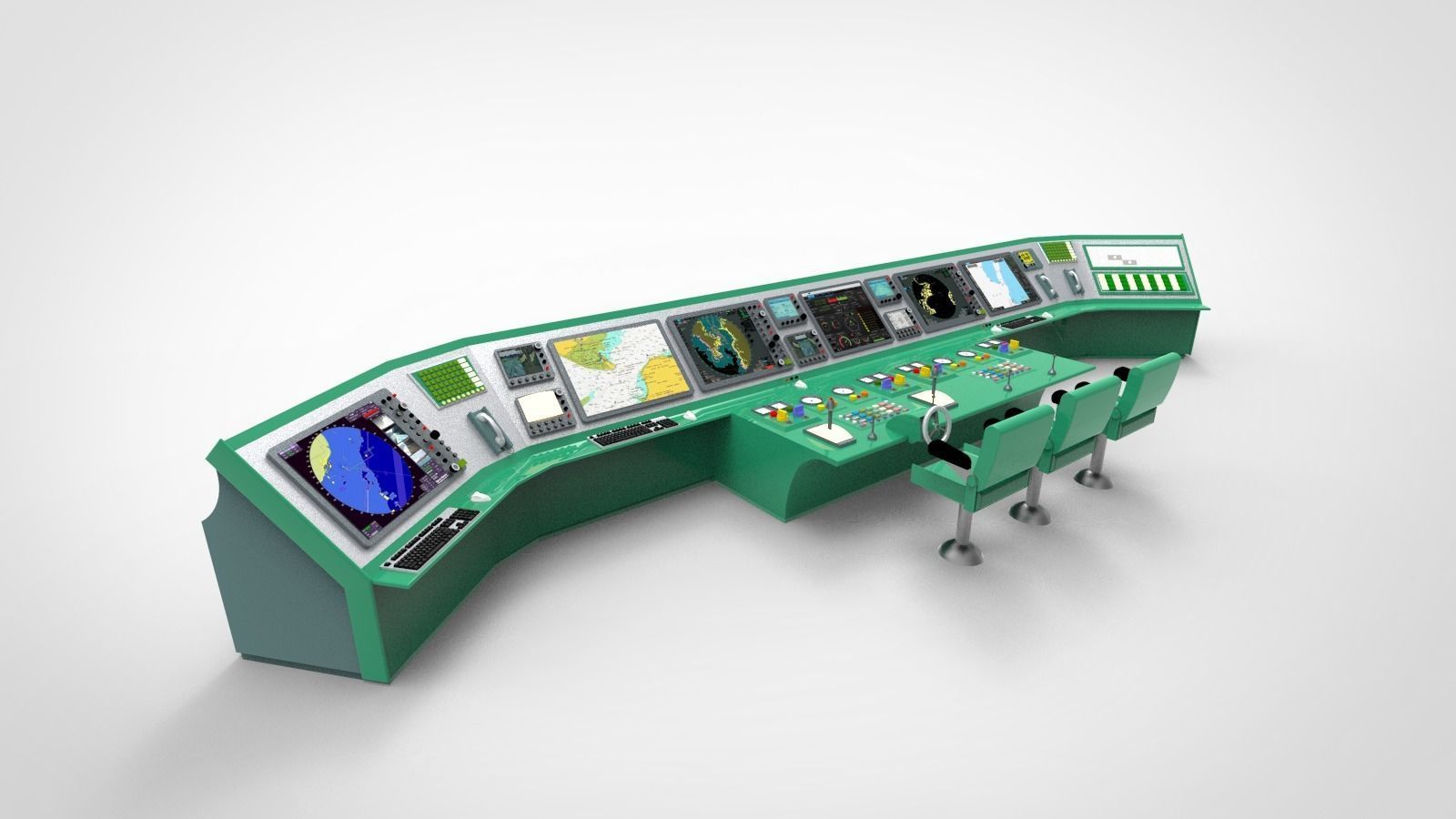

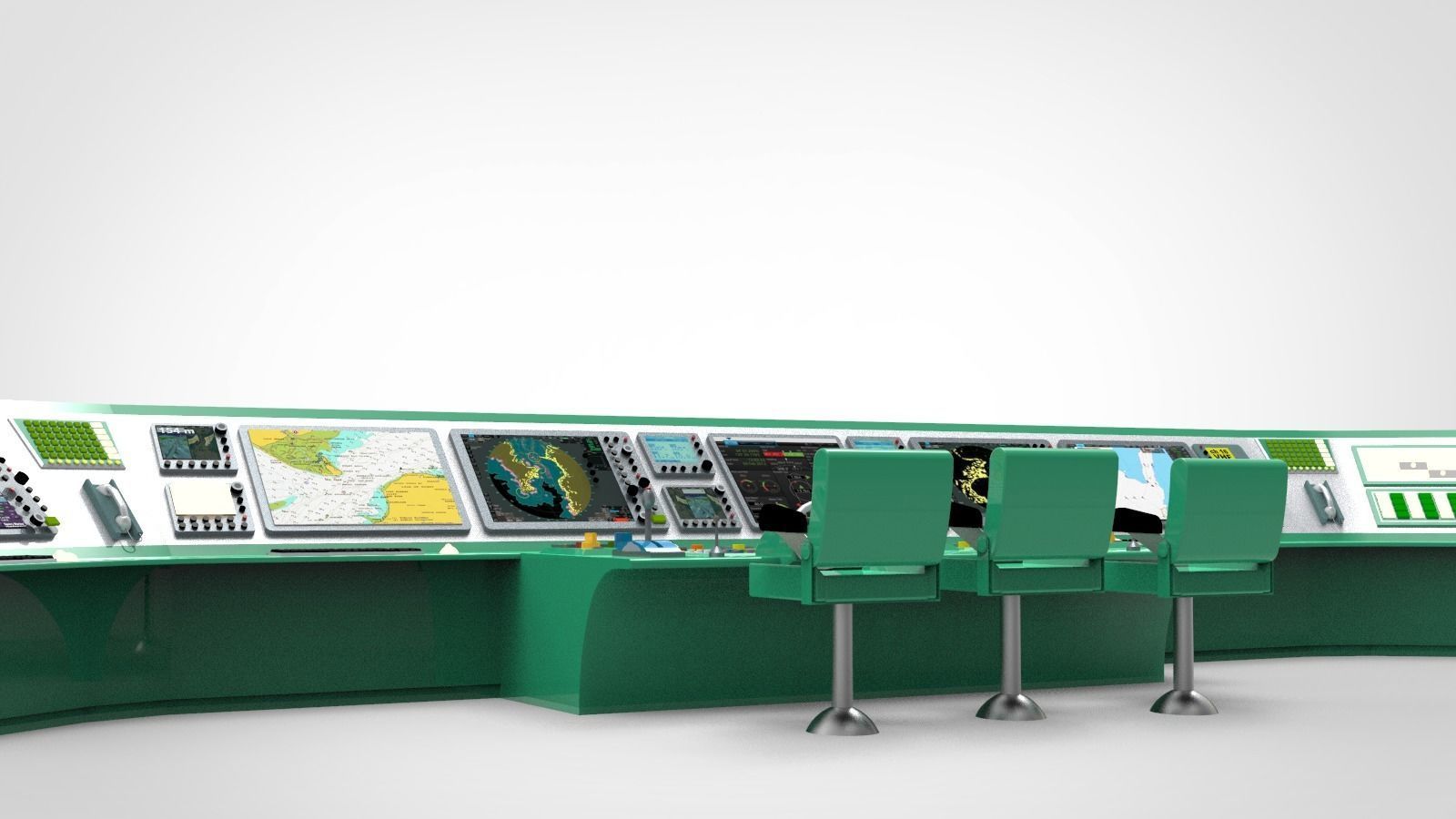

Navigation room ship 3D model

A navigation room on a ship is a dedicated space where navigational activities and operations are carried out. It serves as the central hub for the ship's navigation officers and is equipped with various instruments, systems, and tools necessary for safe and efficient passage.

The primary function of a navigation room is to facilitate the ship's navigation and ensure that it follows the planned route accurately. It is typically located on the bridge, which is the command center of the ship. The navigation room provides a clear view of the surroundings and allows navigational officers to monitor the ship's position, course, and speed.

One of the essential instruments found in a navigation room is the navigational chart table. This table is used to display and study nautical charts, which provide detailed information about the water depths, underwater obstructions, navigational aids, and other crucial aspects of the sea or waterway being traversed. Navigational officers refer to these charts to plan and adjust the ship's route, taking into account factors such as weather conditions, currents, and other vessels in the vicinity.

Modern navigation rooms also feature electronic navigation systems, such as Electronic Chart Display and Information Systems (ECDIS). ECDIS displays electronic navigational charts on screens, offering enhanced capabilities for route planning, real-time positioning, and collision avoidance. These systems integrate data from various sensors, including GPS (Global Positioning System) and radar, to provide accurate and up-to-date information to the navigational officers.

Additionally, a navigation room is equipped with radar systems that allow for the detection and tracking of other vessels, landmasses, and navigational hazards. Radars provide essential information about the distance, bearing, and speed of nearby objects, aiding in collision avoidance and safe navigation. They also help navigational officers in monitoring weather patterns, such as storm cells or dense fog, which may affect the ship's course.

Communication systems play a vital role in the navigation room as well. Radios and satellite communication equipment allow navigational officers to communicate with other ships, shore-based authorities, and the ship's crew. They enable the exchange of important navigational information, weather updates, and emergency communications.

In addition to these core instruments and systems, a navigation room may include other equipment, such as an autopilot system for maintaining a steady course, a speed log for measuring the ship's speed through water, and a depth sounder for determining water depths. It is also common to find various navigational publications, reference materials, and computer terminals that provide access to electronic databases and information resources.

Safety is a critical consideration in a navigation room. The space is designed to ensure good visibility, with windows or screens offering a clear view of the surroundings. The room is typically arranged in an ergonomic manner, allowing navigational officers to work comfortably and efficiently. It is essential for the crew to adhere to proper watchkeeping practices, maintaining vigilance and promptly responding to any navigational challenges or emergencies.

In summary, a navigation room on a ship is a dedicated space where navigational officers carry out their duties to ensure the safe and efficient passage of the vessel. It is equipped with a range of instruments, systems, and tools that aid in route planning, real-time monitoring, collision avoidance, and communication. The navigation room is a critical component of the ship's bridge and plays a crucial role in the overall navigation and safety of the vessel.
