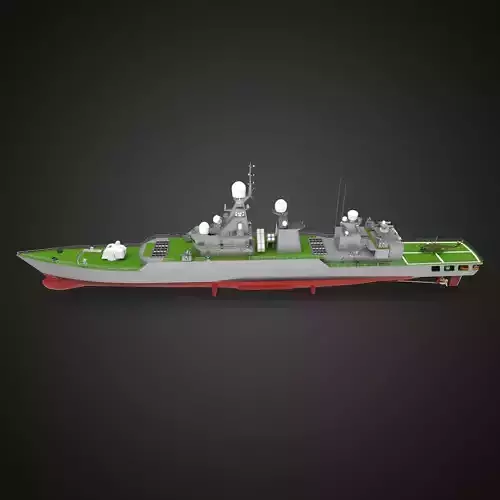

Jiangwei Class frigate 3D model

Type FrigateDisplacement 2,250 tons standard, 2,393 tons full loadLength 112 m (367 ft 5 in)Beam 12.4 m (40 ft 8 in)Draught 4.3 m (14 ft 1 in)Propulsion
CODAD, 2 shaft,2 x 18E390VA diesel at 23,600 hp (17,600 kW)2 x MTU diesel at 8,715 hp (6,499 kW)Speed 28 knots (52 km/h; 32 mph)[2]Range 5,000 nautical miles (9,300 km; 5,800 mi) at 15 to 16 knots (28 to 30 km/h)Complement 168 (with 30 officers)Sensors andprocessing systems
Type 360 Radar (SR60) Surface Search, E/F bandType 517H-1 (Knife Rest) 2D long-range air search, A-bandType 345 Radar (MR35) HQ-7 Surface-to-air missile fire-control, J-bandType 352 Radar (Square Tie) surface search and SSM fire control, I-bandType 343GA (Wasp Head) fire control radar for main gun, G/H-band2 × Type 347G/EFR-1 (Rice Lamp) dual 37 mm AA gun fire control, I-band2 × Racal RM-1290 Navigation radar, I-bandElectronic warfare& decoys
Data link: HN-900 (Chinese equivalent of Link 11A/B, to be upgraded)Communication: SNTI-240 SATCOMCombat Data System: ZKJ-3CRWD-8 (Jug Pair) interceptType 981-3 EW JammerSR-210 Radar warning receiverType 651A IFF2 × Type 946/PJ-46 15-barrel decoy rocket launchersArmament
8 × YJ-83 SSM in 2 x 4-cell box launchers1 × 8-cell HQ-7 Surface-to-air missile system1 × PJ33A dual 100 mm gun (automatic)4 × Type 76A dual 37 mm AA guns2 × 6-tube Type 3200 ASW rocket launchers (36 rockets)2 × DC racks & launcher[1]Aircraft carried Harbin Z-9CAviation facilities Hangar
