ZF 8HP70 Jaguar Land Rover 3D model 3D model

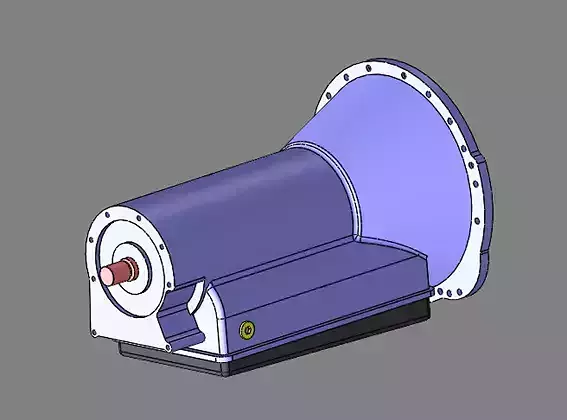

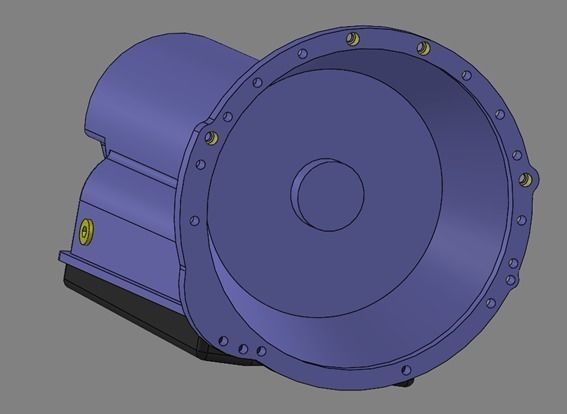

This a 3D model from a ZF 8HP70 gearbox from a SDV6 Land Rover, but the engine bolt pattern is the same for the Jaguar gearbox. The hole coordinates have been measured on a CMM in an ISO certified measuring workshoop with extremely good accuracy. The overal dimensions of the gearbox have been measured with conventional methods. The output shaft is the same as in the BMW 8 speed gearboxes, with 34,75mm OD and 43 spline count.
