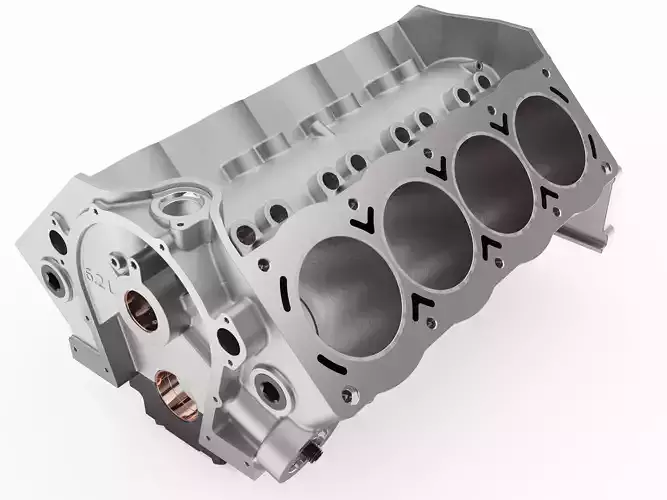

V8 Engine Block 3D model

High quality and extremely detailed V8 Engine Block 3D model. Complete with lubrication oil pipes. Derived from research carried out on the typical engines of American muscle cars. All components have a level of detail similar to reality. The model was created based on research on high performance engines V8. The dimensions reflect the real components.

Main features:

• The model, in the native format, is an assembly consisting of separate parts coupled together, modeled as a multi-body parametric solid in Solidworks 2018. It is not a single solid body.
• Rendering with Keyshot 9.
• Keyshot's scene and environments are included, with all materials applied and ready for rendering.
• Real world scale.
• Model centered at origin.
• Units mm (millimeters).

Model formats included:

• (.sldasm, .sldprt) Solidworks 2018 (Native format)
• (.obj, .mtl) 3D exchange format
• (.fbx) 3D exchange format
• (.ksp) Keyshot 9
• (.igs) 3D exchange format
• (.stp) 3D exchange format
• (.x_t) 3D exchange format
• (.png) Image format
• (.jpg) Image format

All textures applied to the model are contained in the Keyshot package.

The rendered presentation images were created using the model's native format and are included in the package.

Counting polygons OBJ and FBX format, models verified in 3Ds Max 2016 and in Maya 2017 (3 files included for each format):

• OBJ low poly: Faces 70.910 - Vertices 114.003
• OBJ Medium poly: Faces 165.598 - Verices 214.938
• OBJ High poly: Faces 462.600 - Vertices 479.982
• FBX low poly: Faces 70.910 - Vertices 103.786
• FBX Medium poly: Faces 165.598 - Verices 205.442
• FBX High poly: Faces 462.600 - Vertices 473.119

Counting polygons Solidworks 2018 format (Assembly file .SLDASM included):

• SLDASM low poly: Faces 70.888 - Vertices 81.474
• SLDASM medium poly: Faces 165.600 - Vertices 167.664
• SLDASM high poly: Faces 462.477 - Vertices 426.872

Counting polygons STL format, verified in 3dS Max 2016, in Maya 2017 and in Solidworks 2018 (2 files included):

• Low poly: Faces 188.980 - Vertices 94.131
• High poly: Faces 618.114 - Vertices 308.650
• Dimensions: 415x294.28x532 mm (millimeters).
