power steering system 3d model 3D model

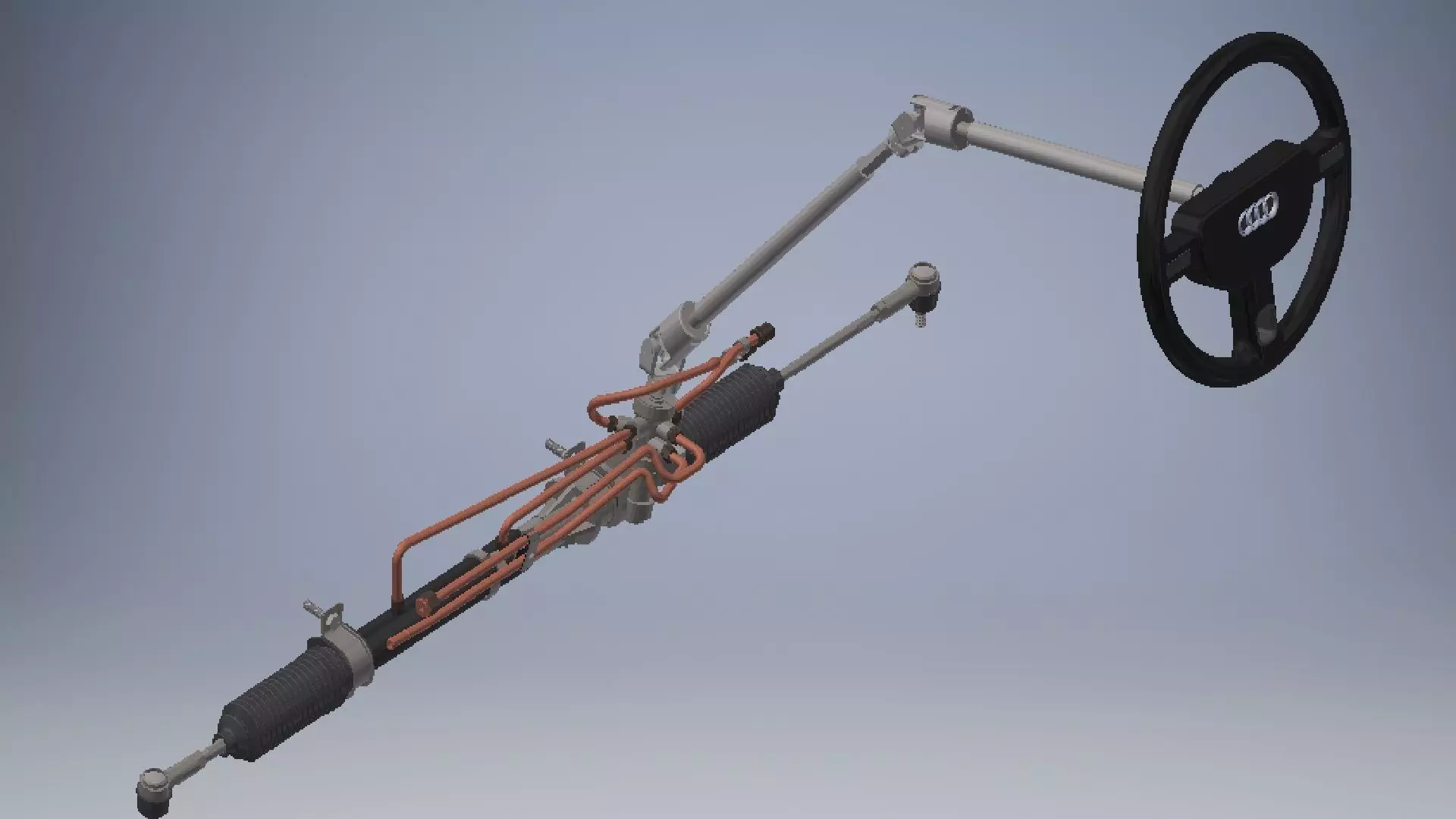

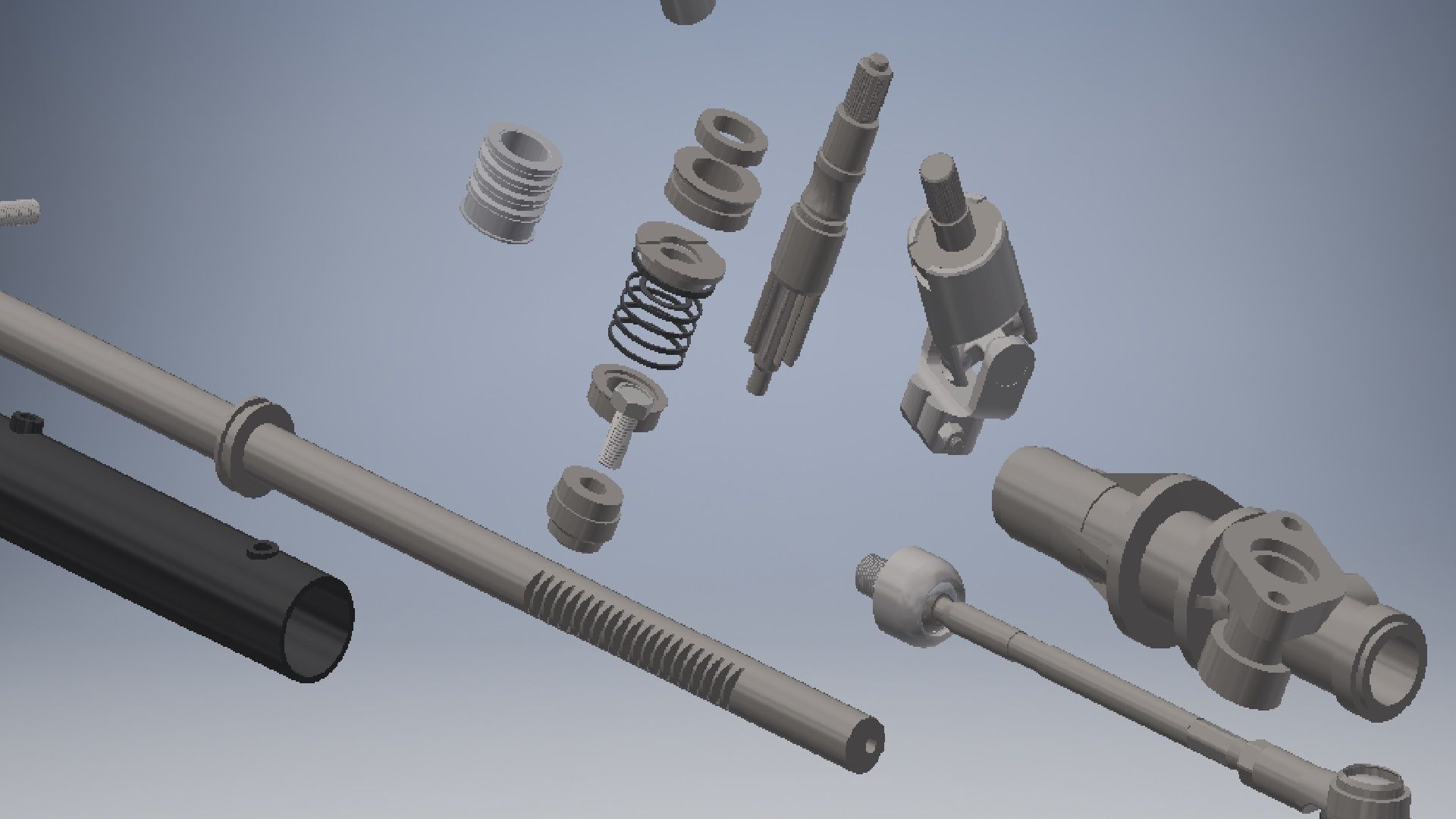

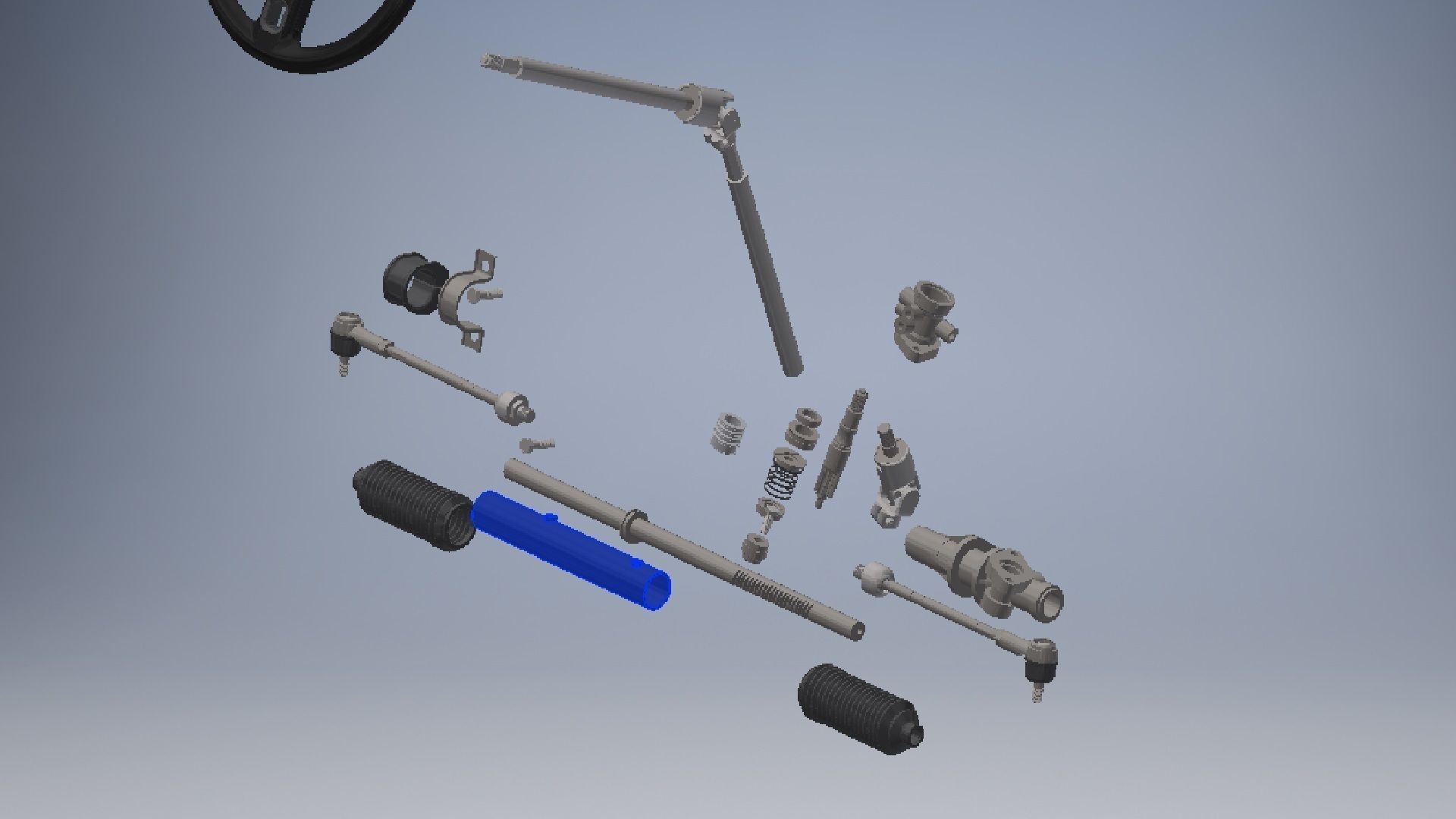

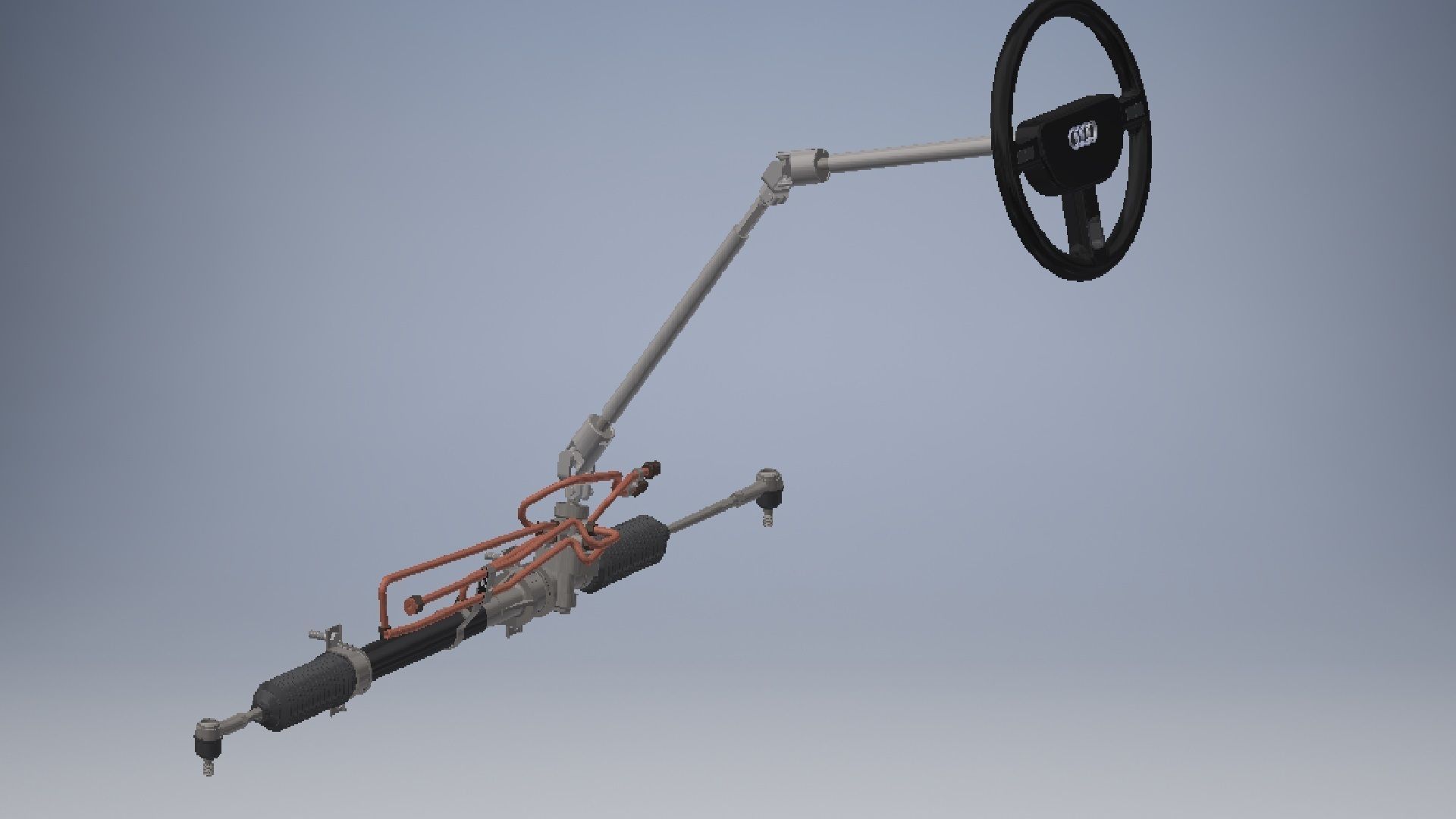

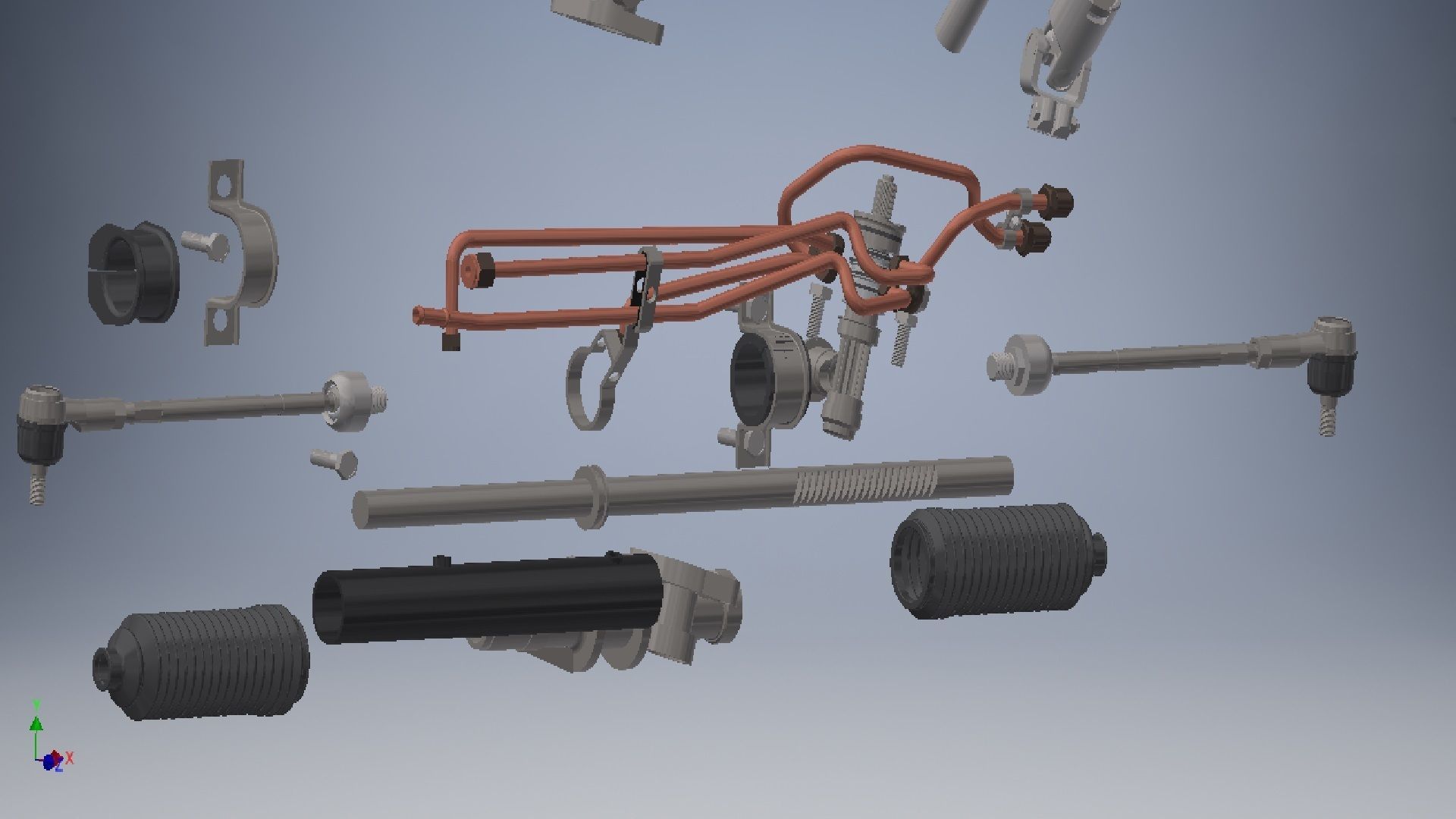

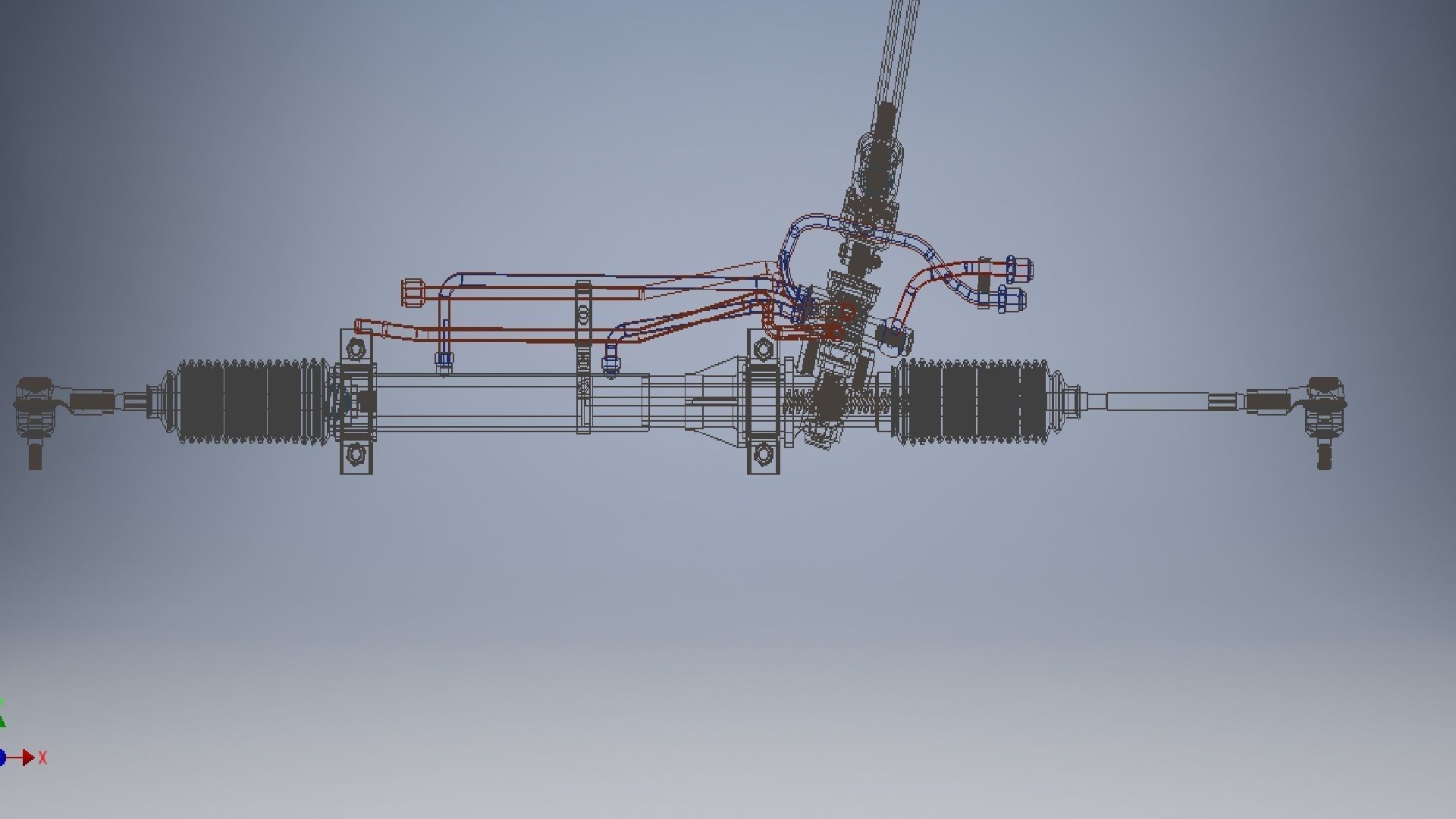

car power steering system 3d model The steering system converts the rotation of the steering wheel into a swivelling movement of the road wheels in such a way that the steering-wheel rim turns a long way to move the road wheels a short way. The steering effort passes to the wheels through a system of pivoted joints. These are designed to allow the wheels to move up and down with the suspension without changing the steering angle. They also ensure that when cornering, the inner front wheel - which has to travel round a tighter curve than the outer one - becomes more sharply angled. The joints must be adjusted very precisely, and even a little looseness in them makes the steering dangerously sloppy and inaccurate. File formats provided:

• OBJ
• STL
• Solidworks
