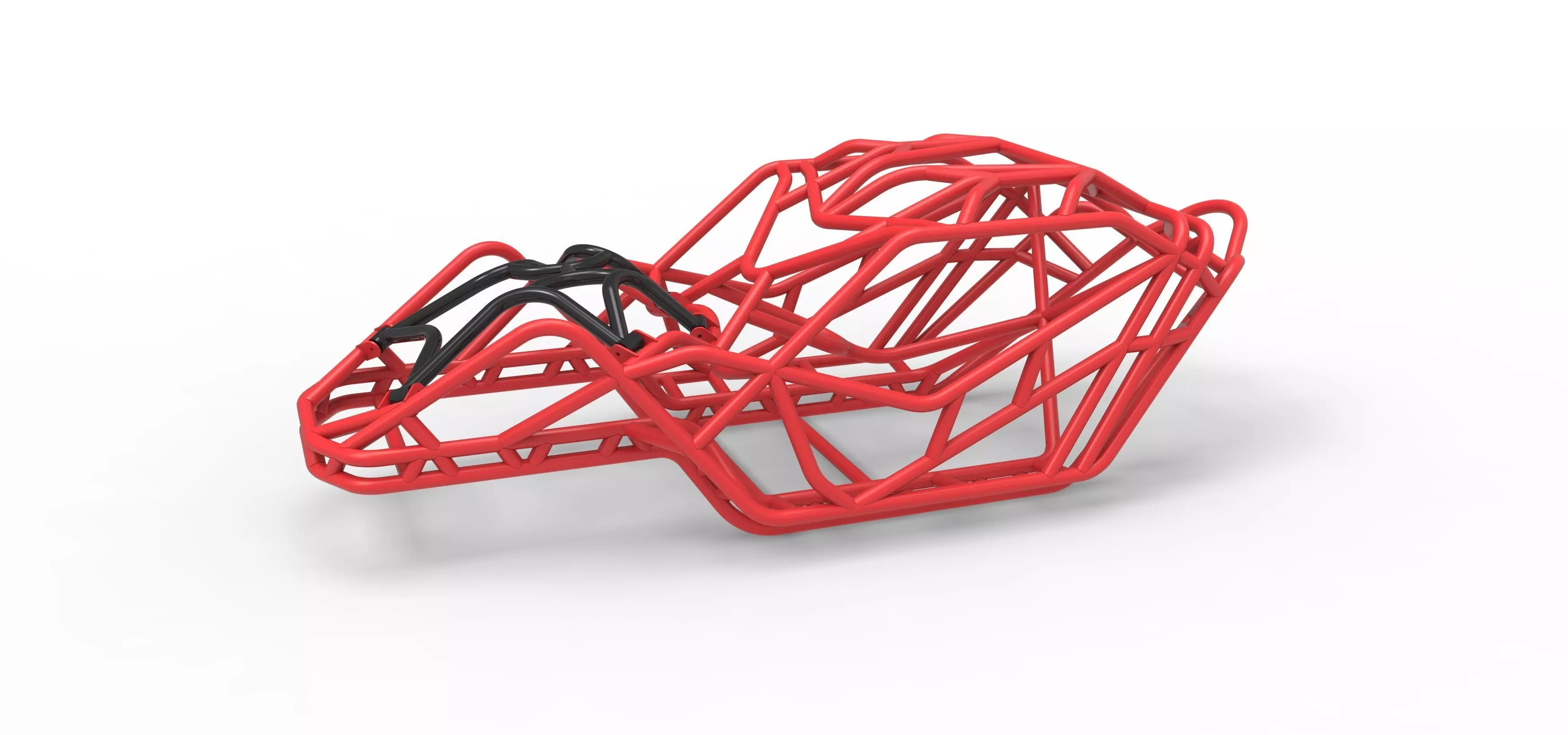

Full-size Frame model of bouncer buggy 3D model

Please, feel free to offer your price. Use the special button at the top right.

It consists of pipes with diameter 50 mm and wall thickness 3.5 mm.Overall estimated weight is 294 kg (excluding welds).There are 154 parts for welding.Estimated wheelbase – 2946 mm.Estimated wheel diameter – 1092 mm.

Frame dimensions:

• length – 3365 mm
• height – 1065 mm
• width – 1450 mm

Frame model was made as one detail file, which consist from 154 separated bodies.There are no mountings for transmission, steering wheel, seats.

Frame model can be used for 3D designing and measurements for your own buggy with your transmission elements and it will look like well known ShowTime buggy.

Attached files to the project:

• Frame model in STEP, IGES, SAT, STL, BIP, OBJ, Parasolid, Parasolid Binary, 3D PDF;
• Frame dimensions in formats JPEG, DWG, DXF, CDW (Kompas 3D V14);
• Frame composition with wheels, axles, engine, seats, driver in STEP, IGES, SAT, BIP, OBJ, Parasolid, Parasolid Binary, 3D PDF.
