DESCRIPTION

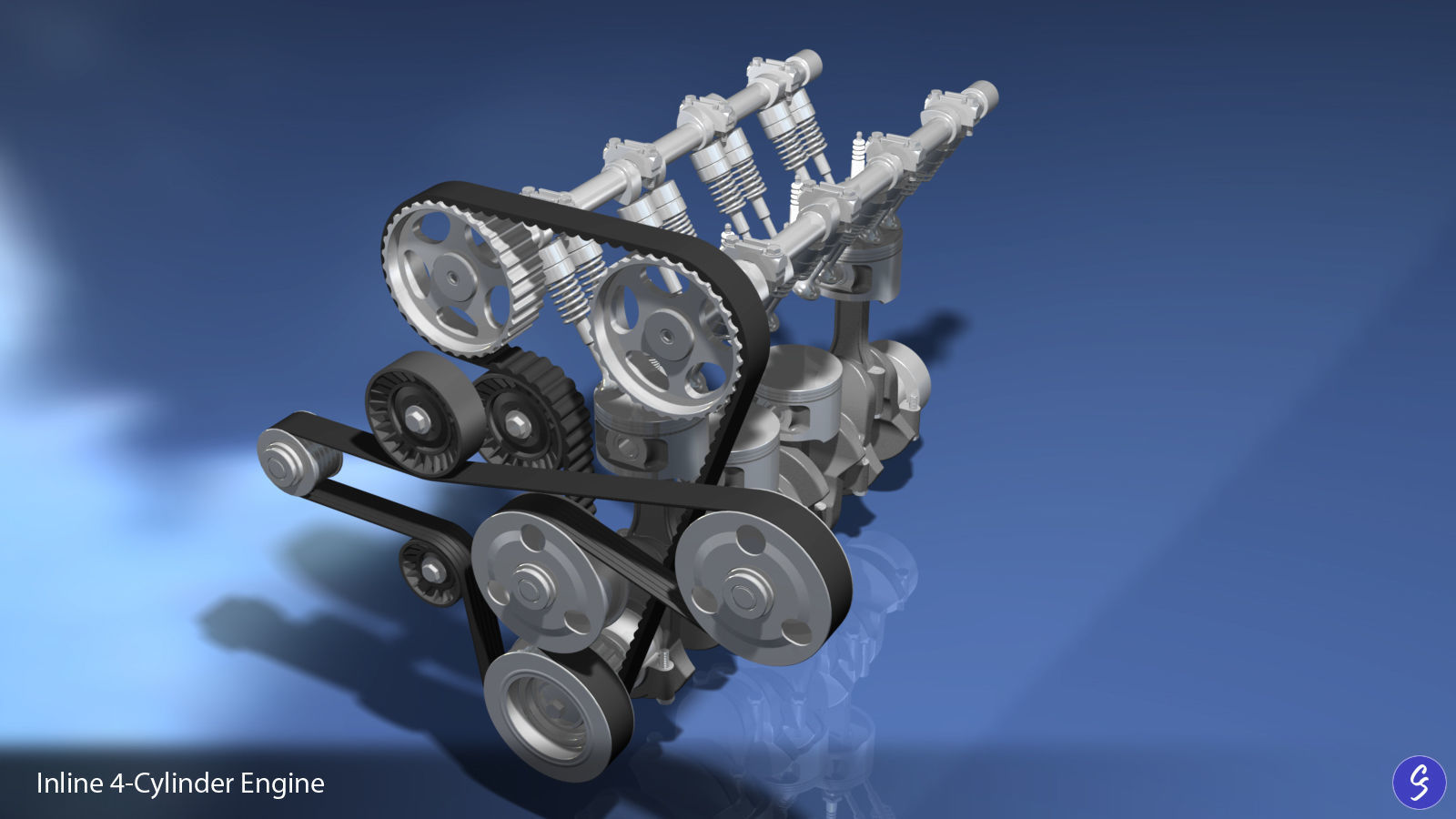

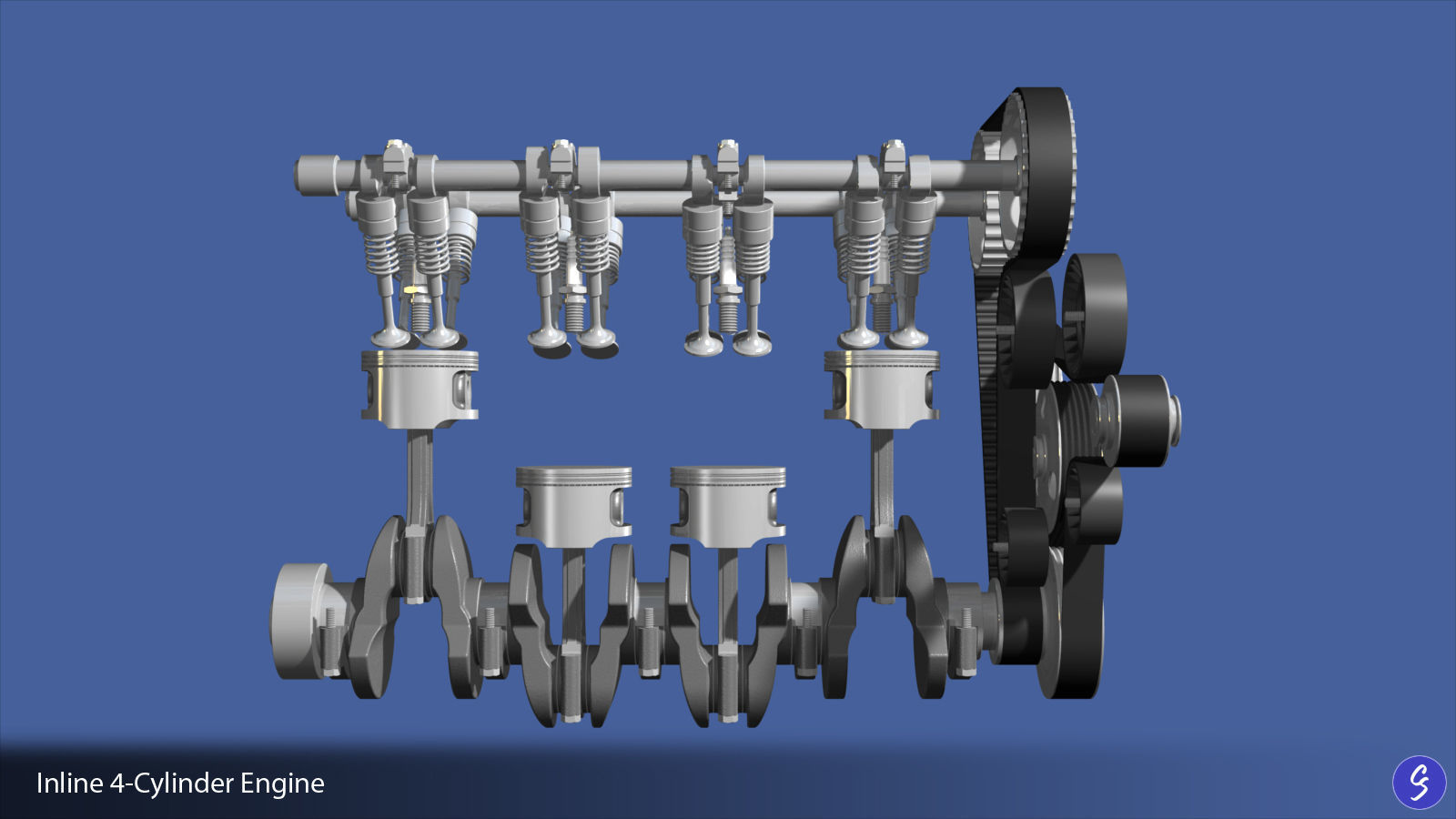

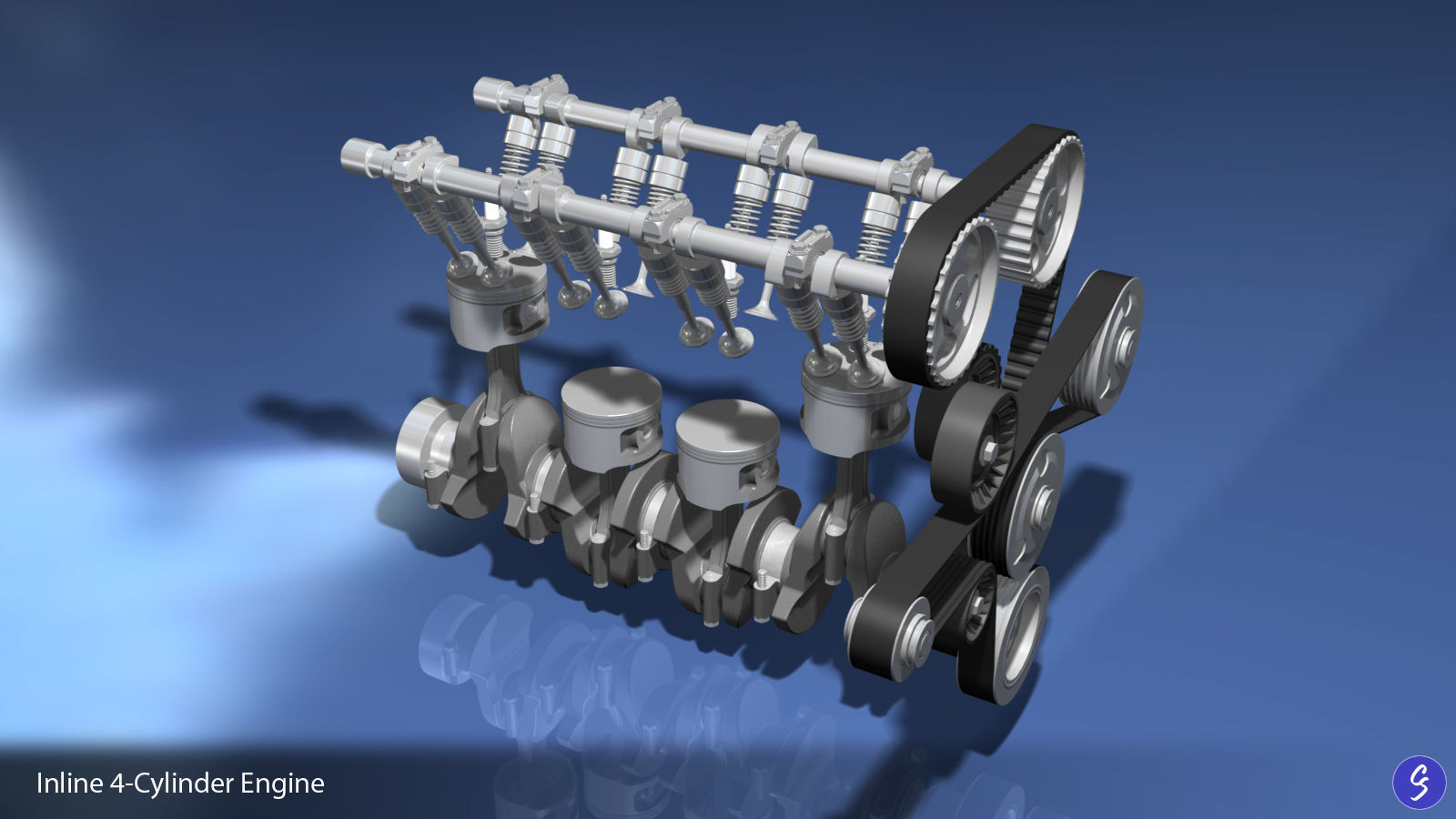

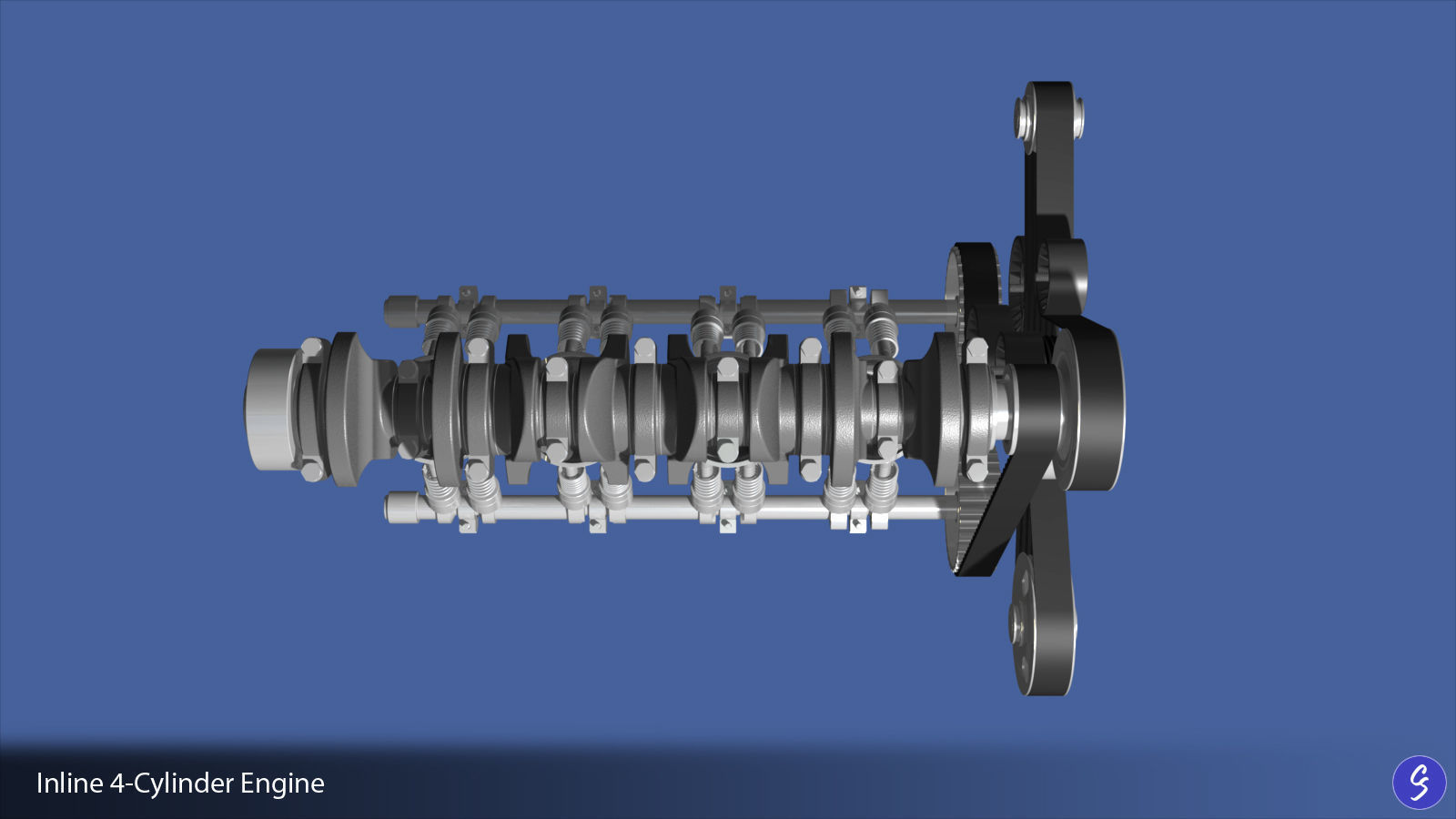

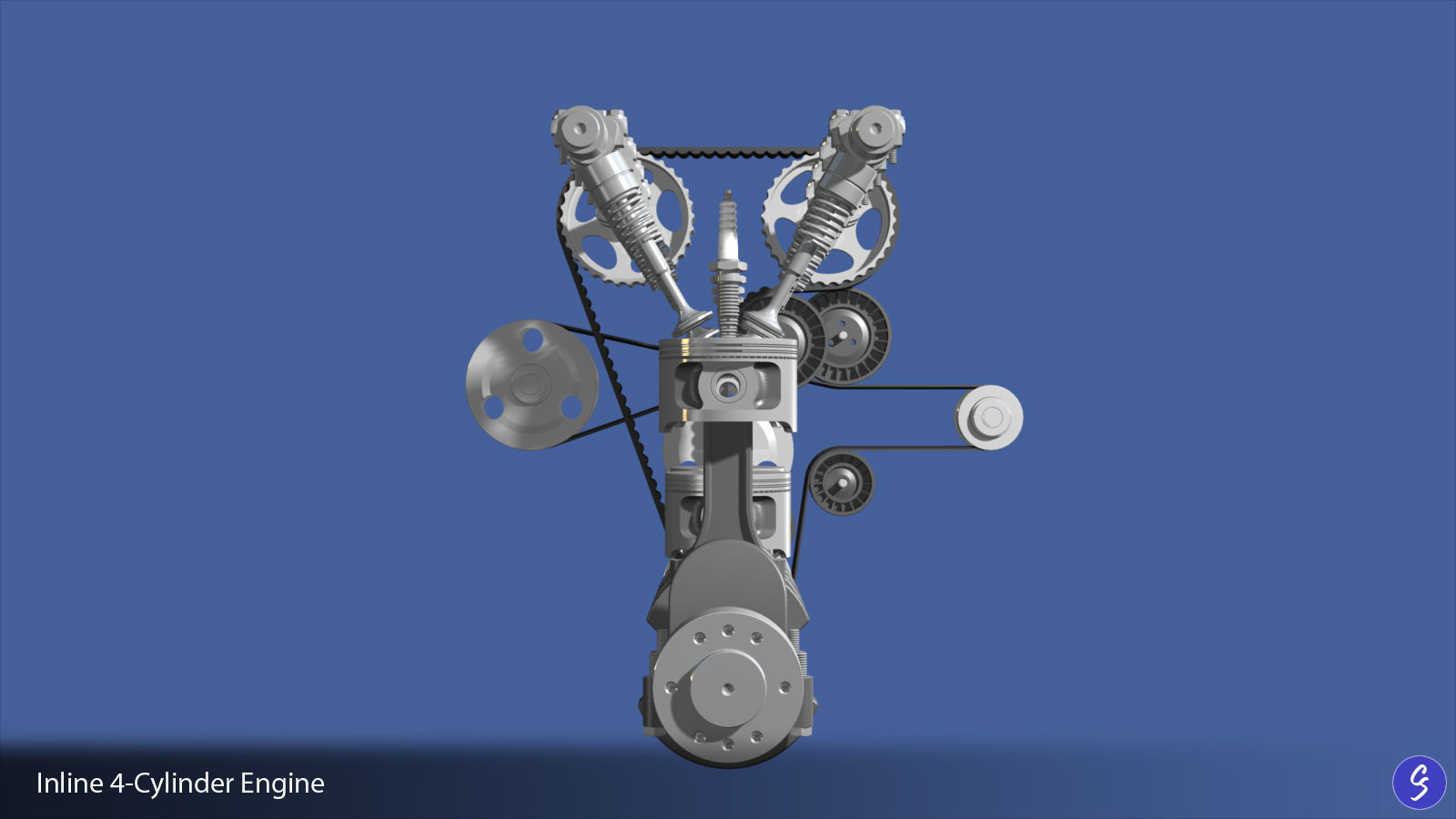

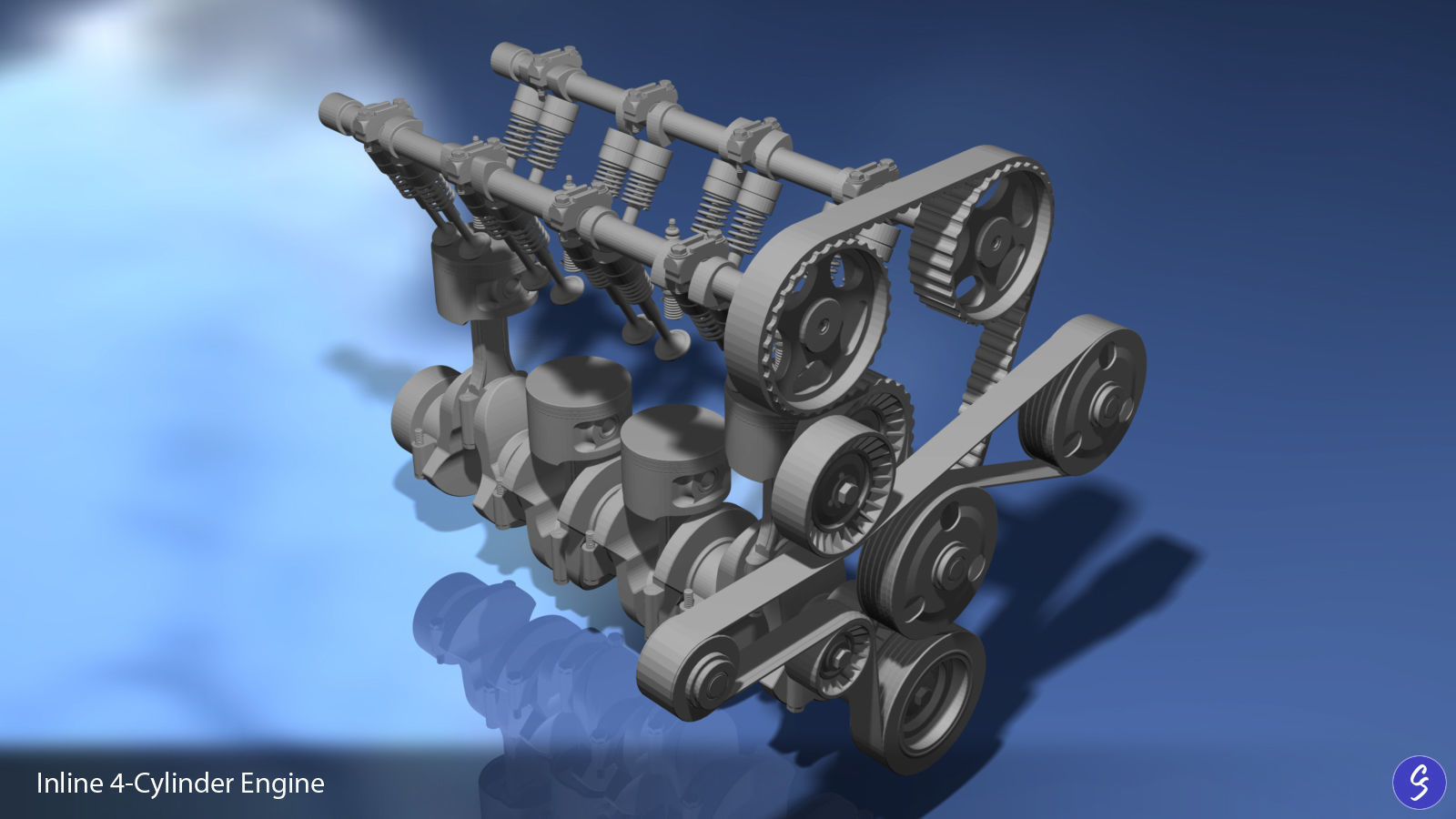

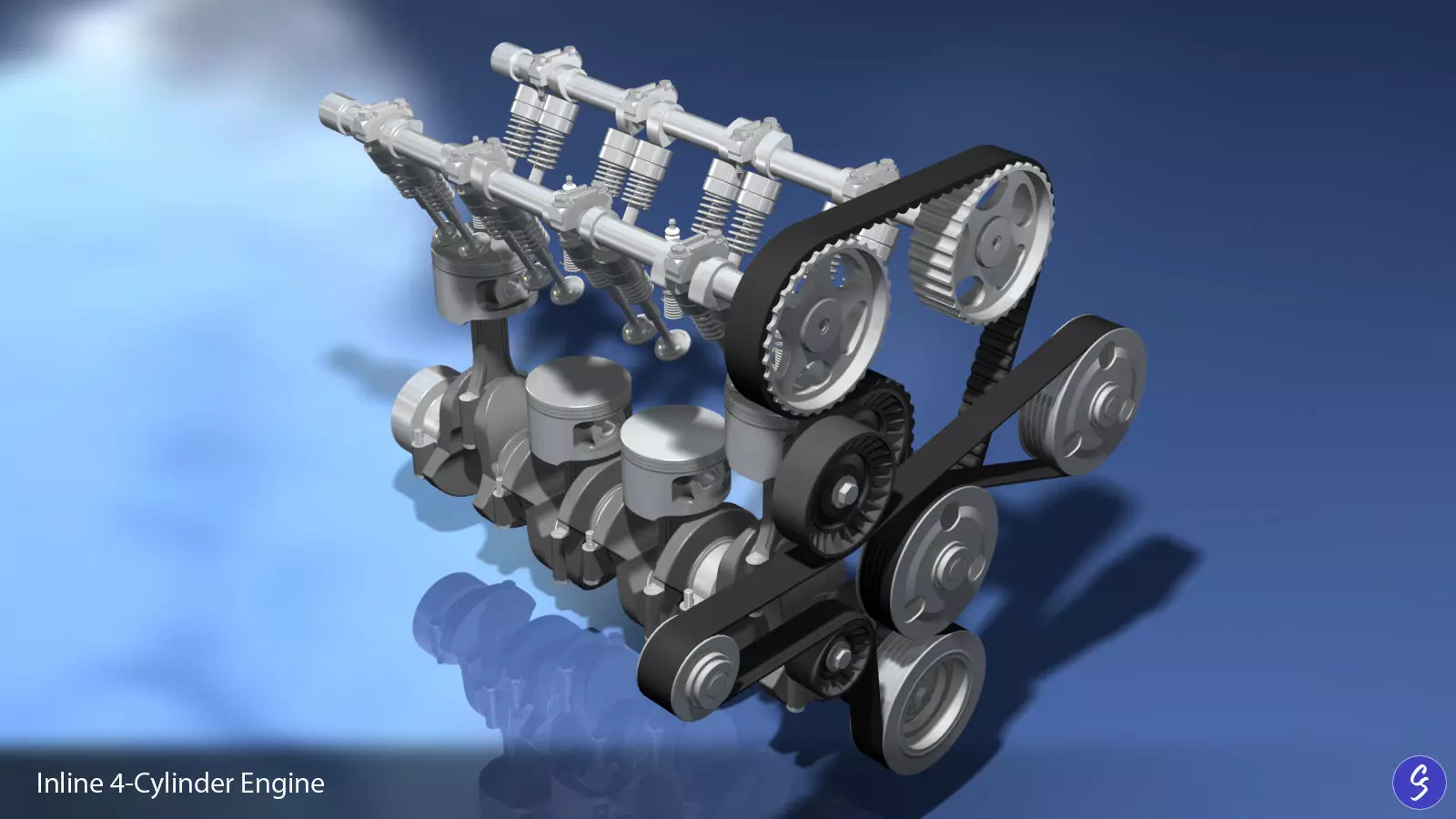

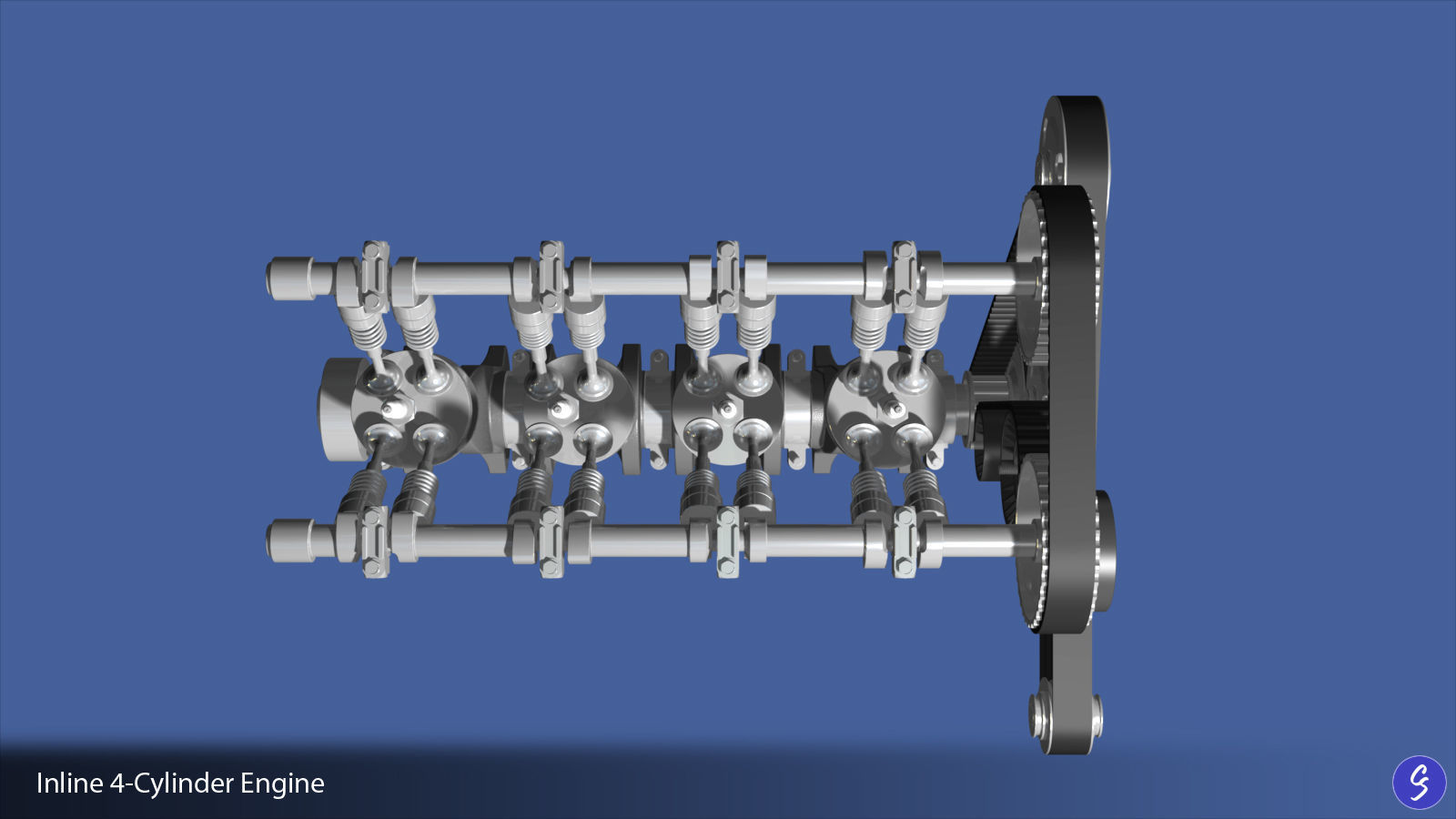

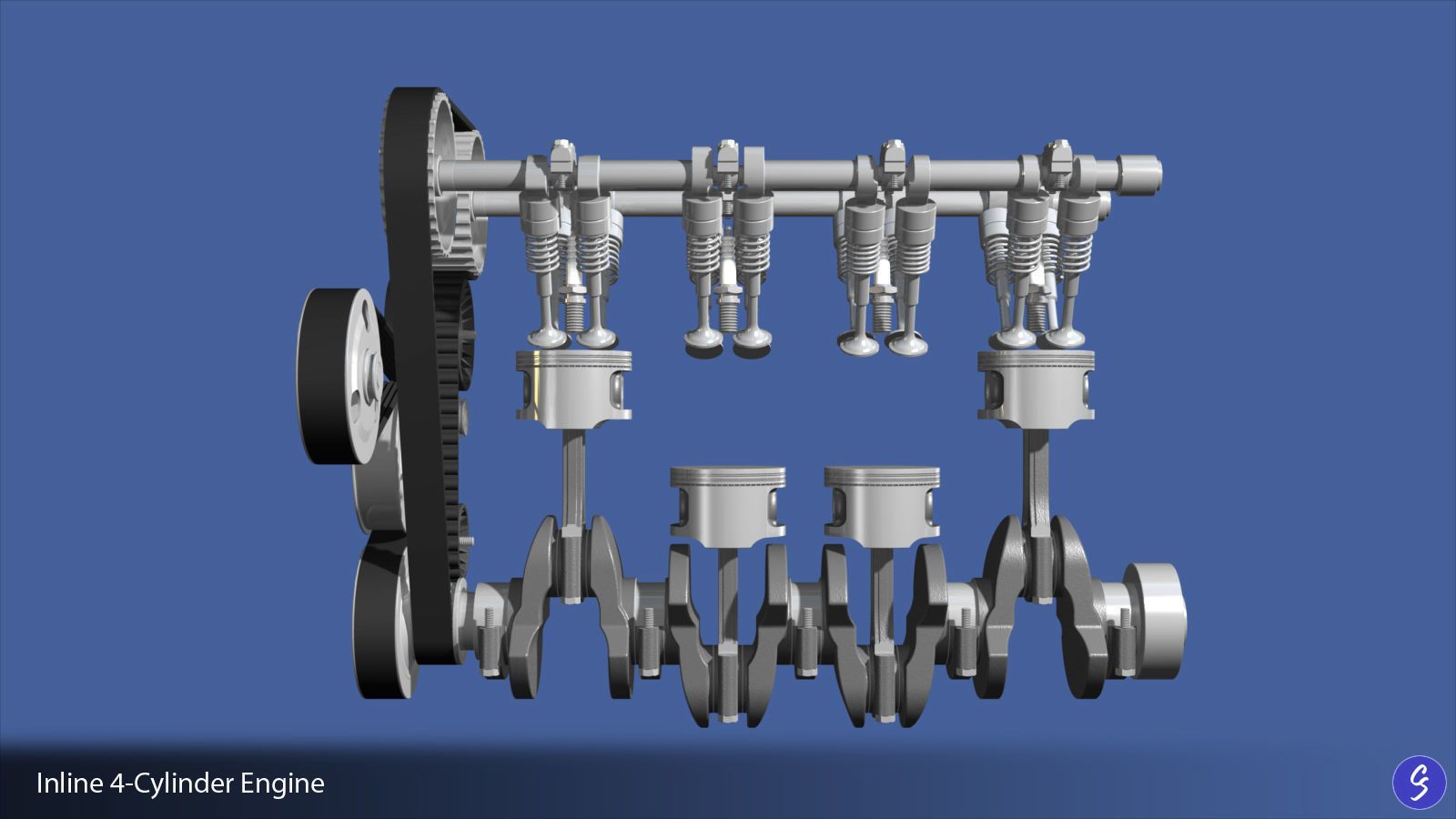

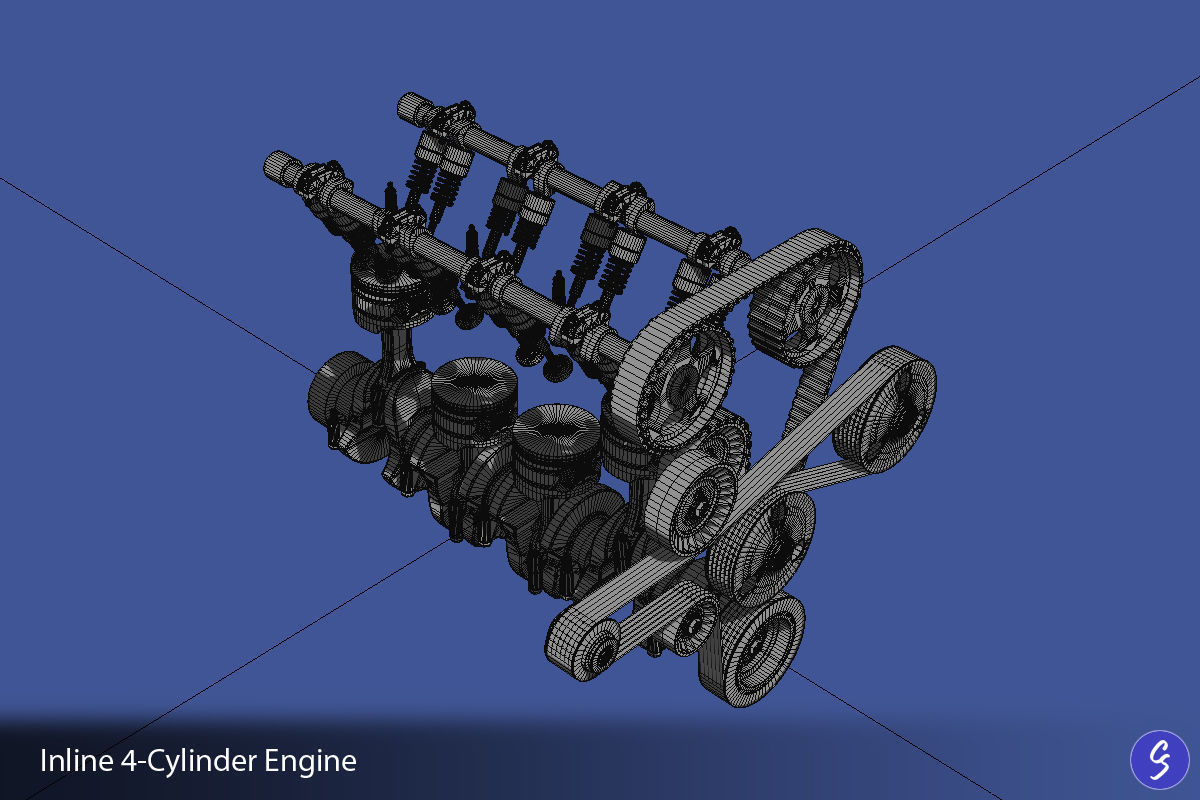

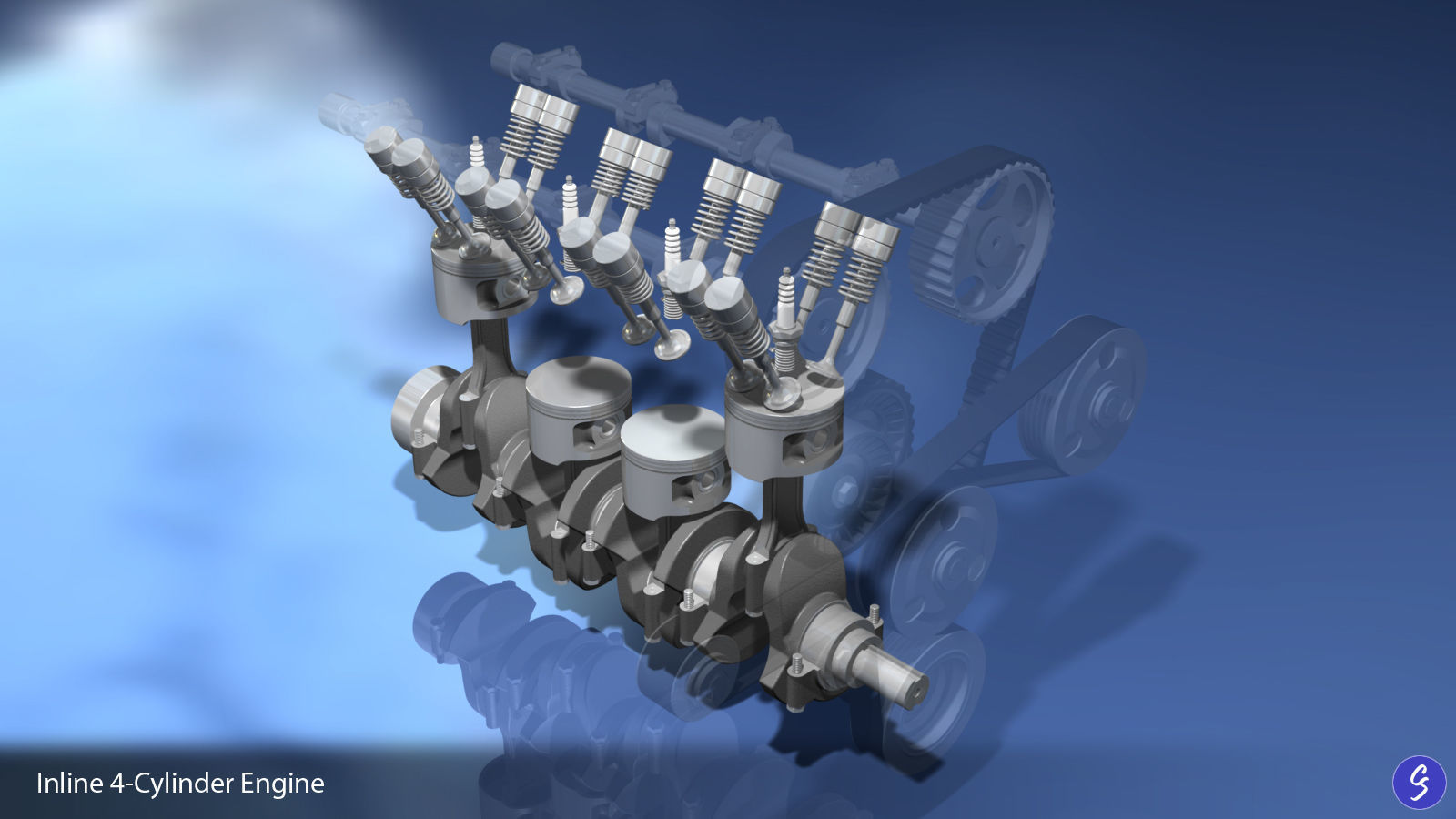

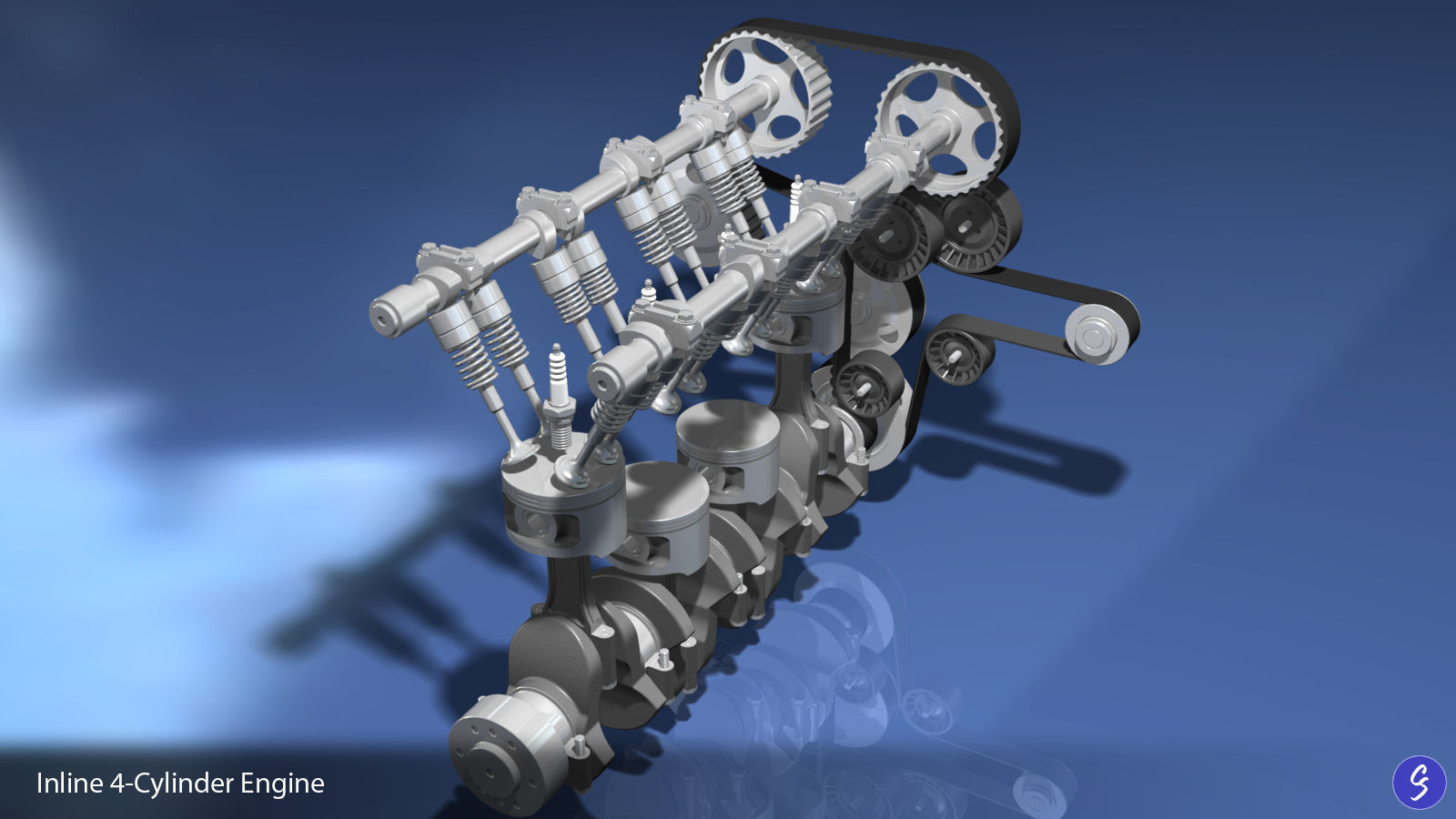

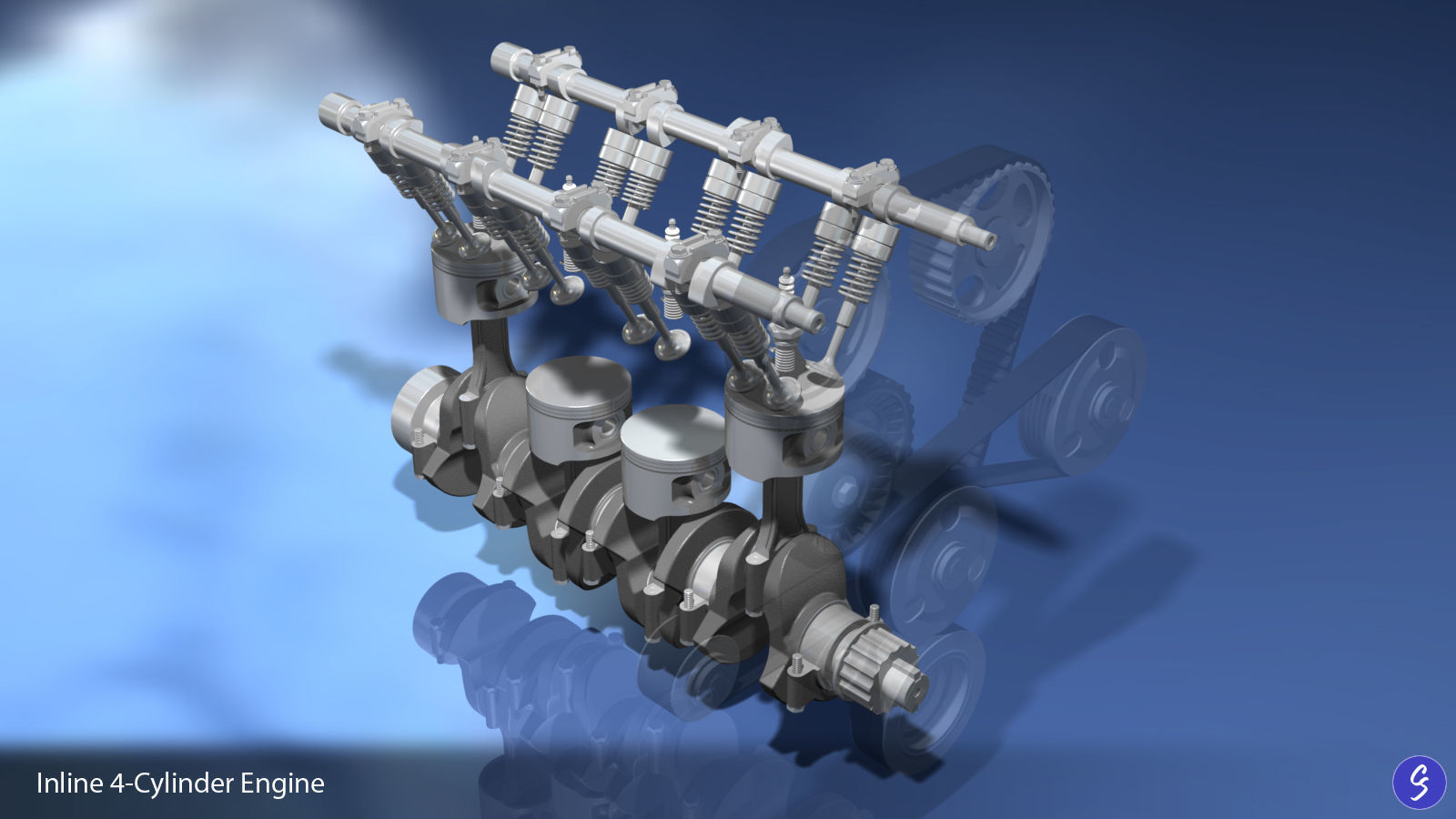

Highly-detailed inline four-cylinder (I4) engine, ready for use in CGI applications. Modeled in Carrara Studio and provided in multiple file formats. Perfect for cutaway mechanical illustrations to show the inner workings of a gasoline-powered internal-combustion engine.

Details include:

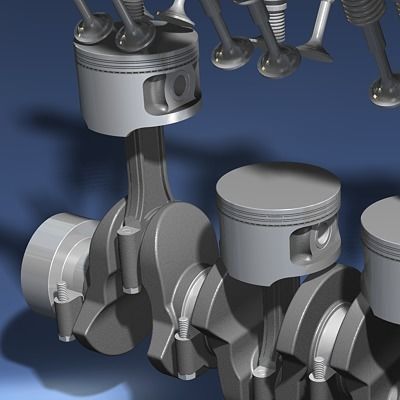

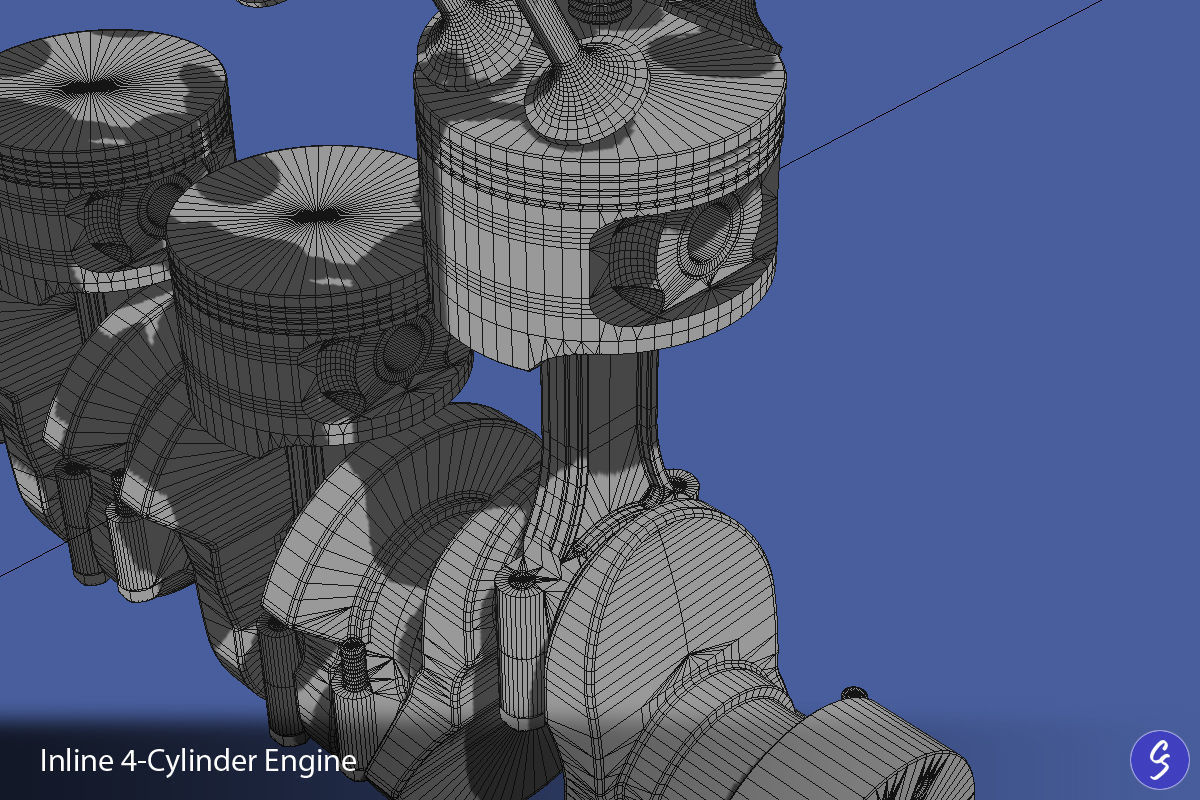

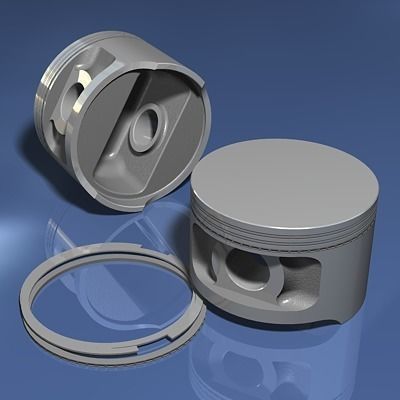

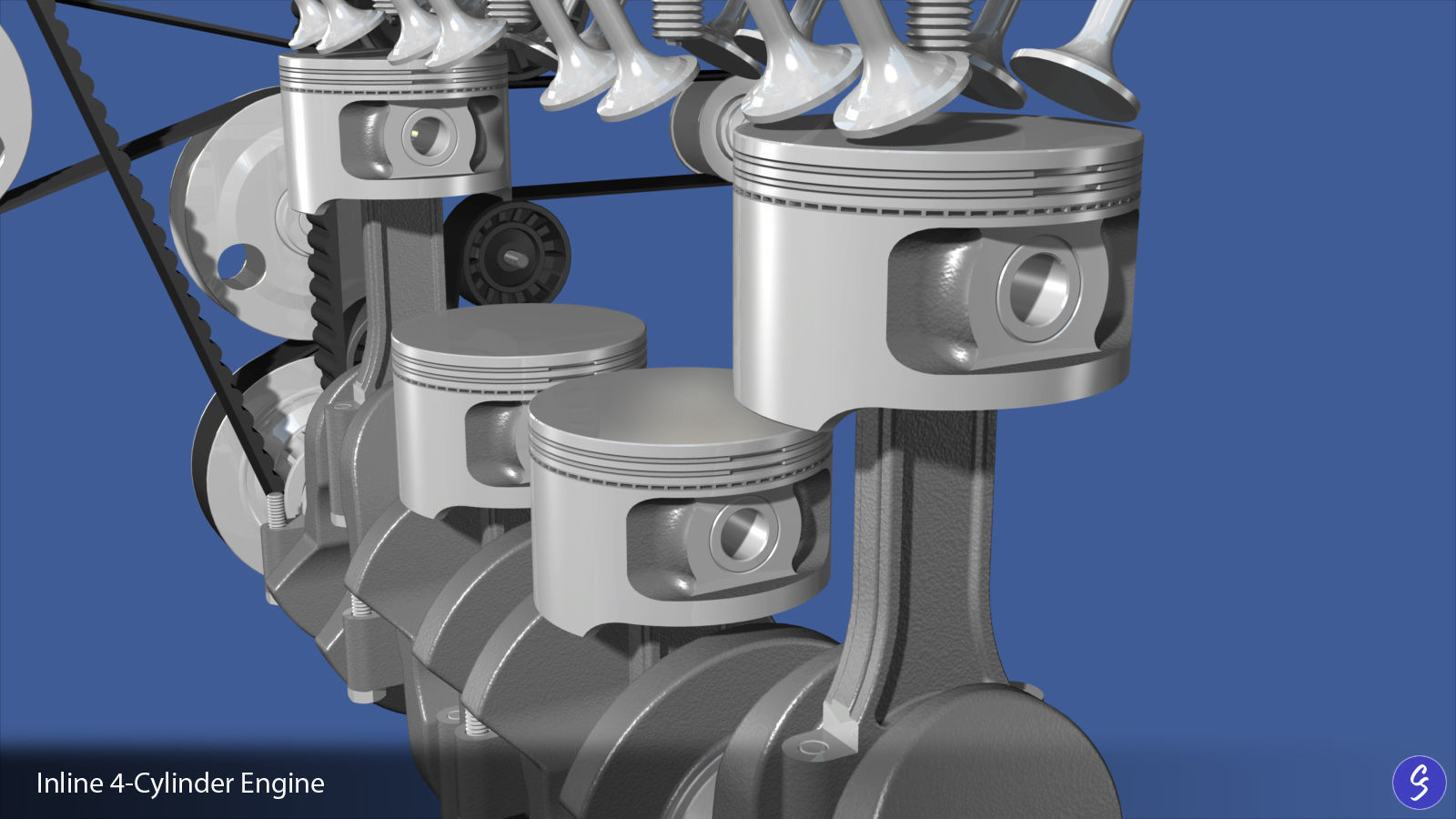

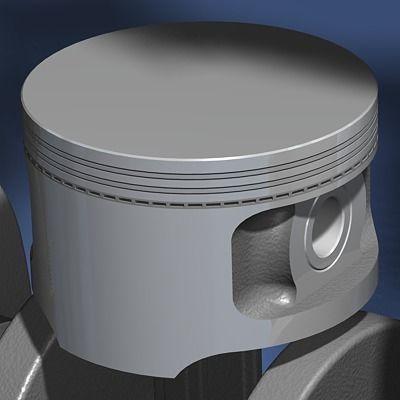

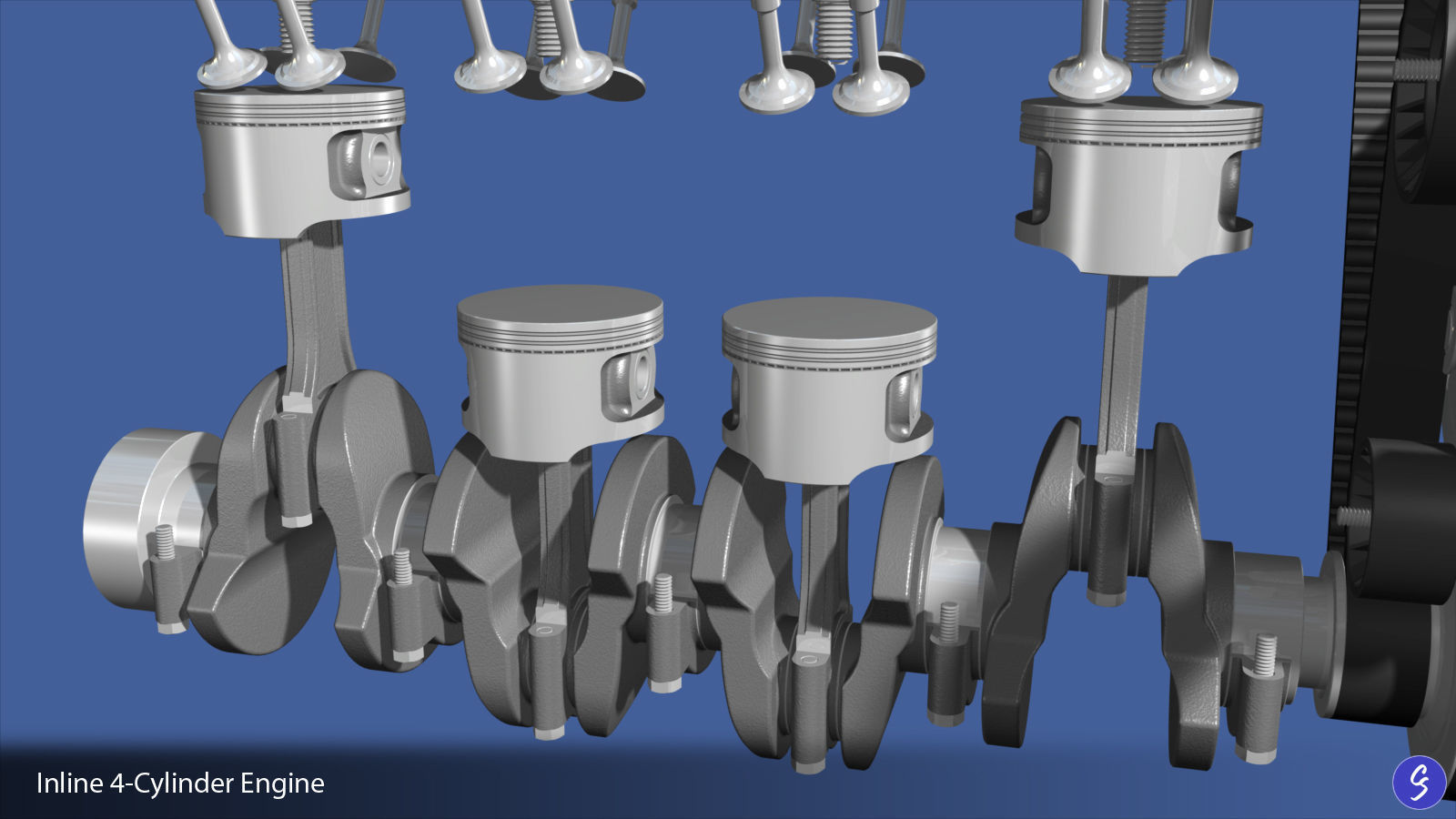

  • Pistons
  • Piston rings
  • Wrist pins

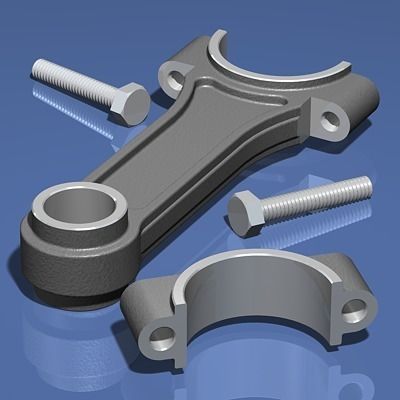

  • Connecting rods

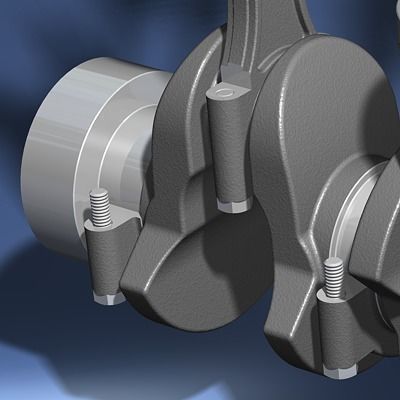

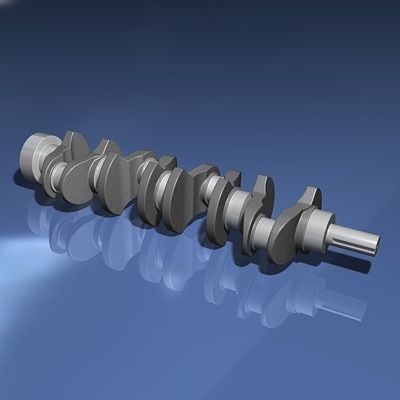

  • Crank shaft

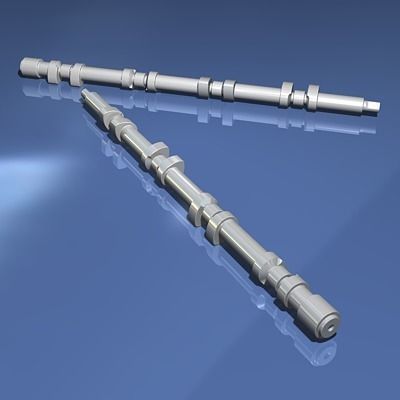

  • Cam shafts

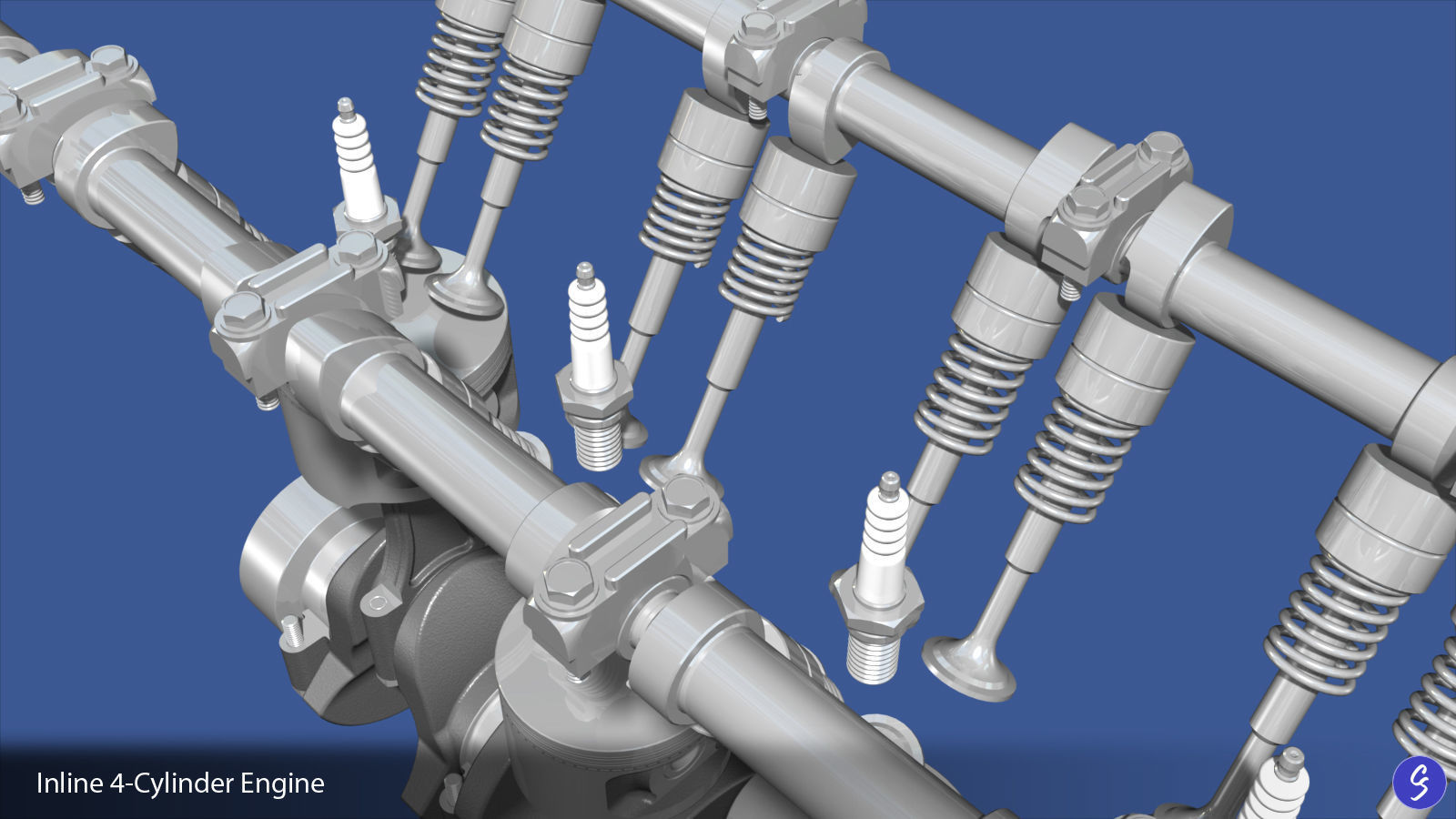

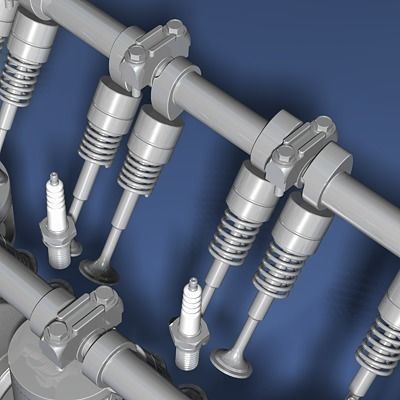

  • Valves

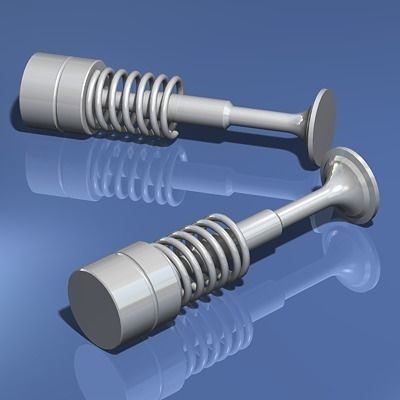

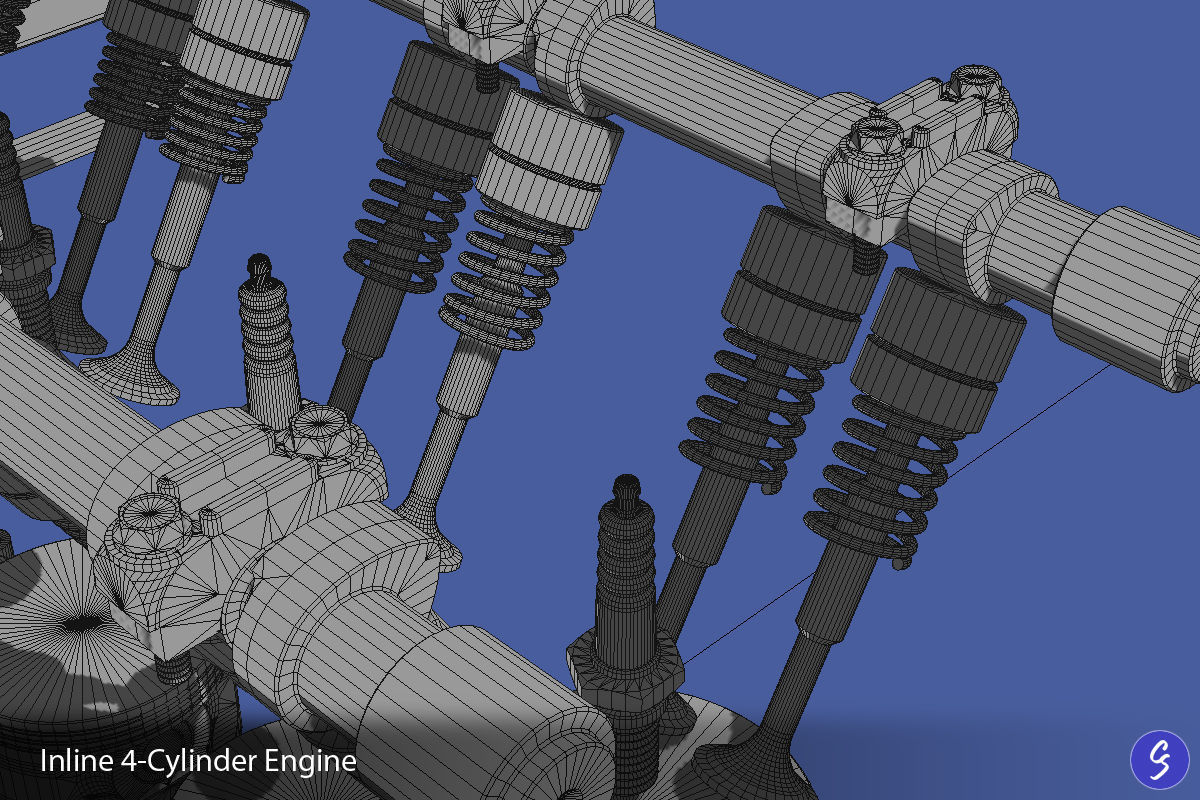

  • Valve springs

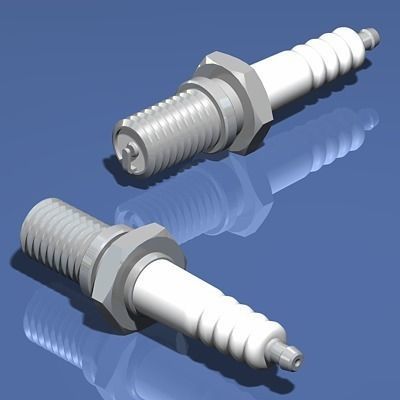

  • Spark plugs

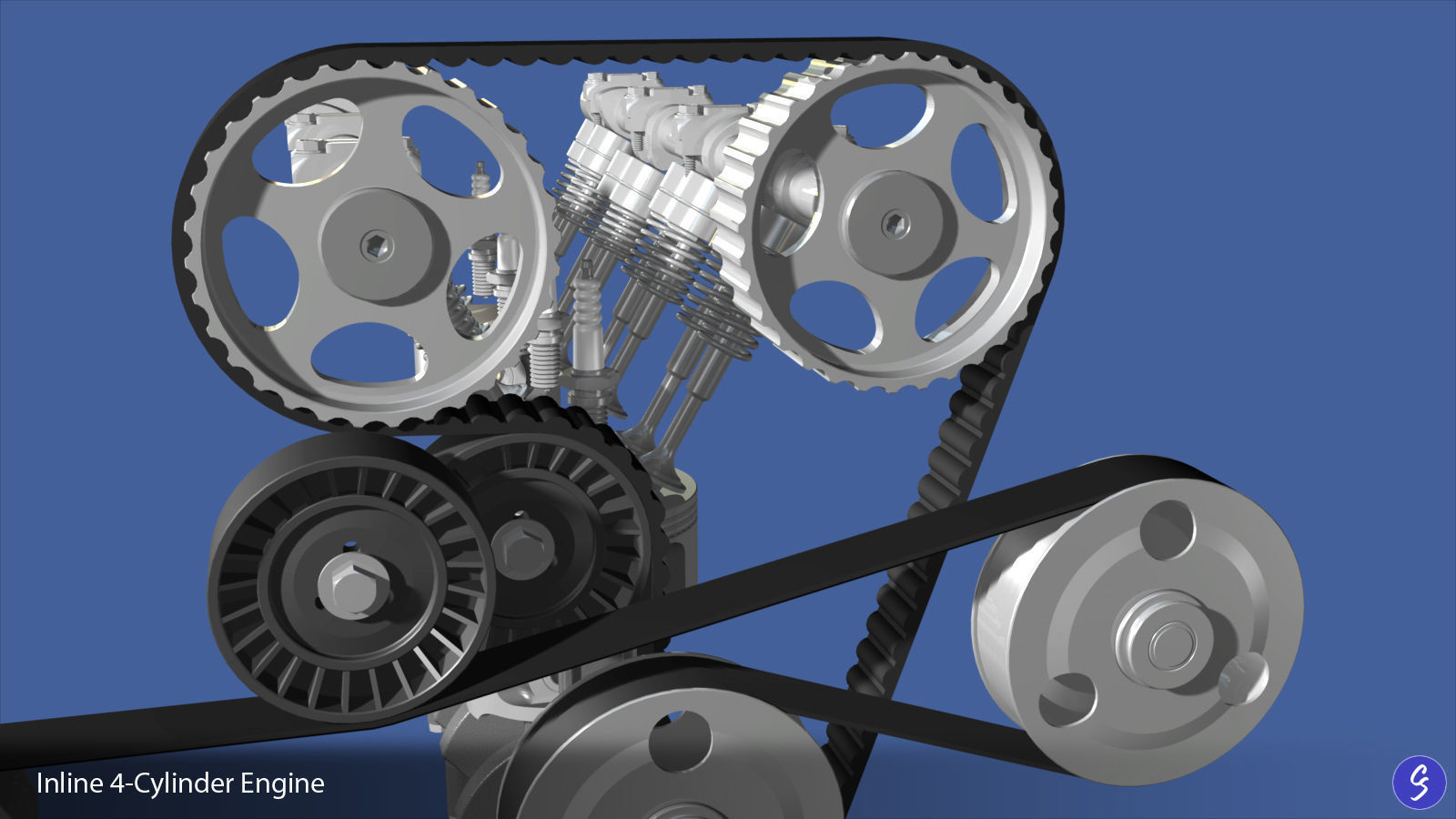

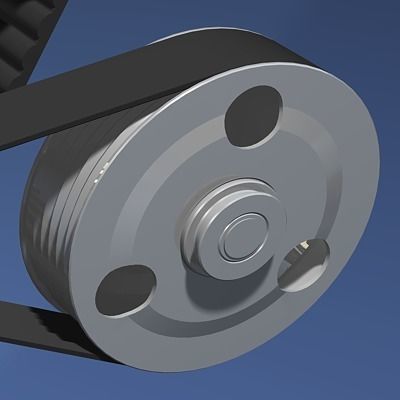

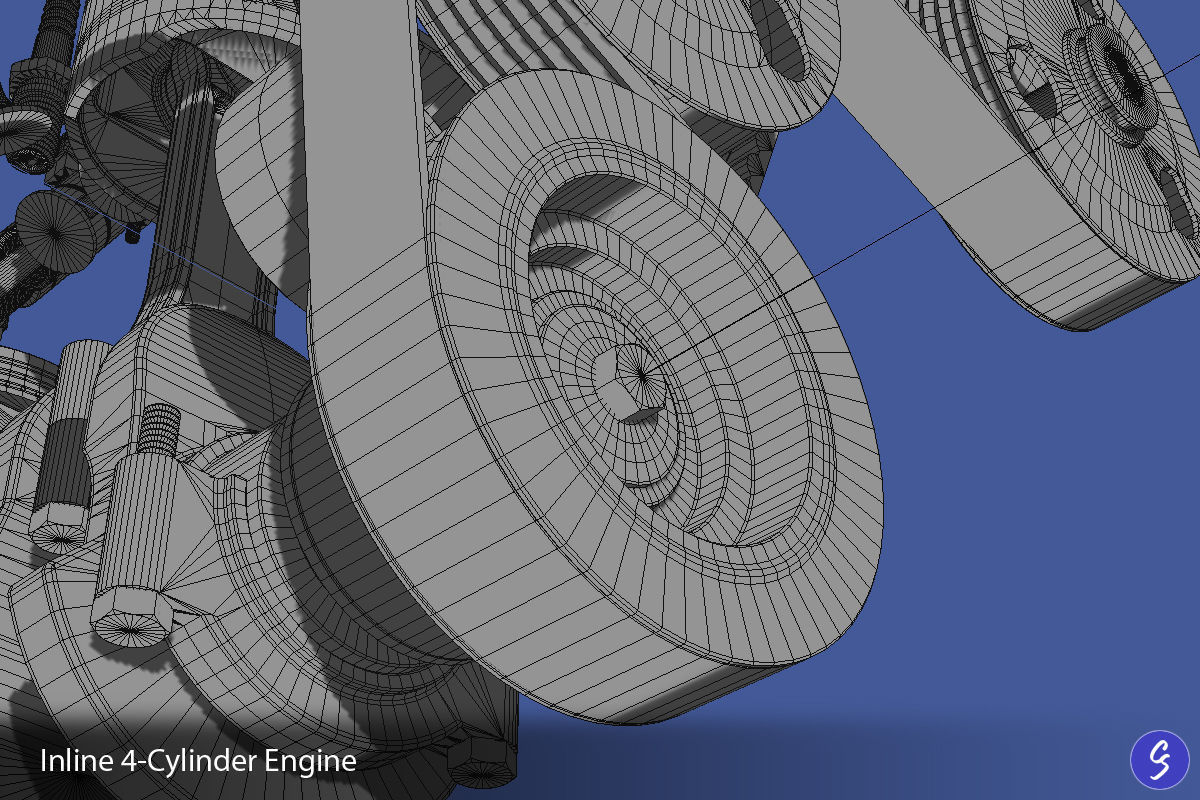

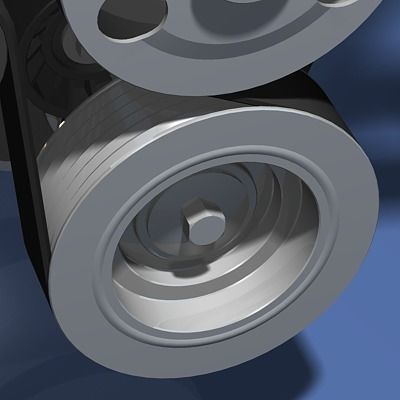

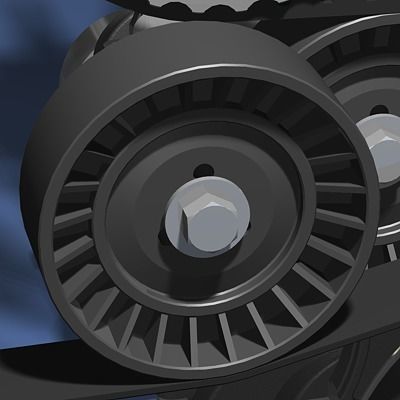

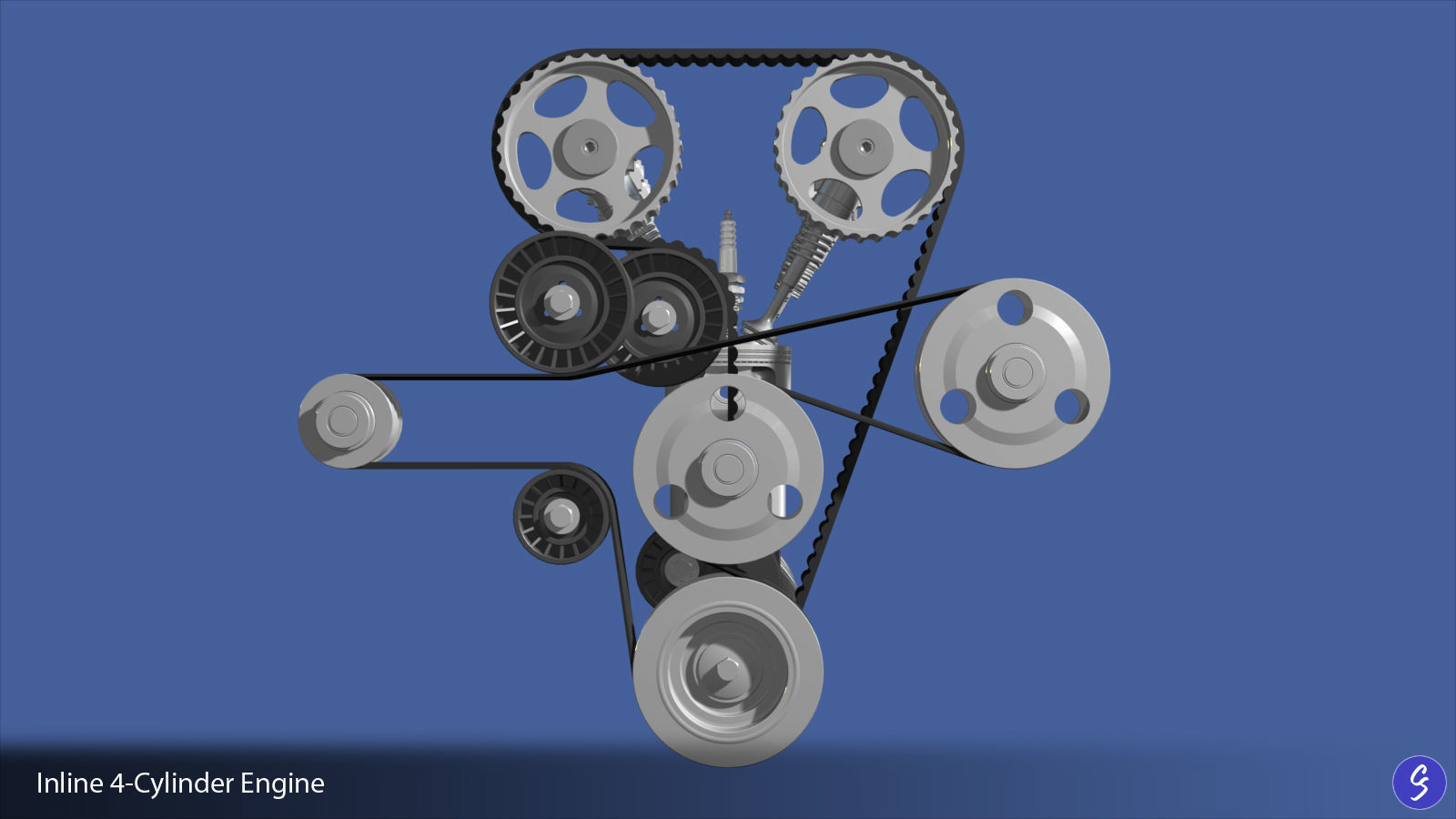

  • Pulleys

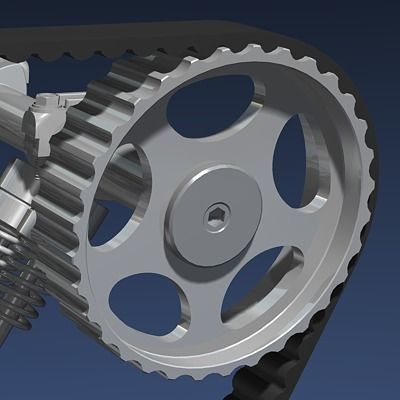

  • Timing belt
  • Fan belt

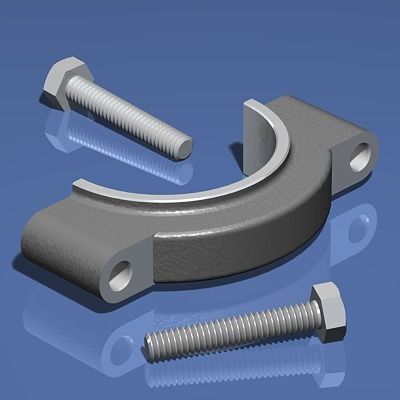

  • Mounts

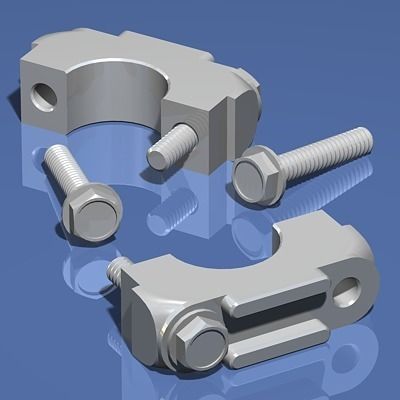

  • Bolts

Bolts and bolt holes feature simplified cosmetic 3D threads. Valve springs are provided in both compressed and relaxed states. Assembly can be broken down into its individual components. Model uses only basic shaders - no texture maps required.

Model specifications:

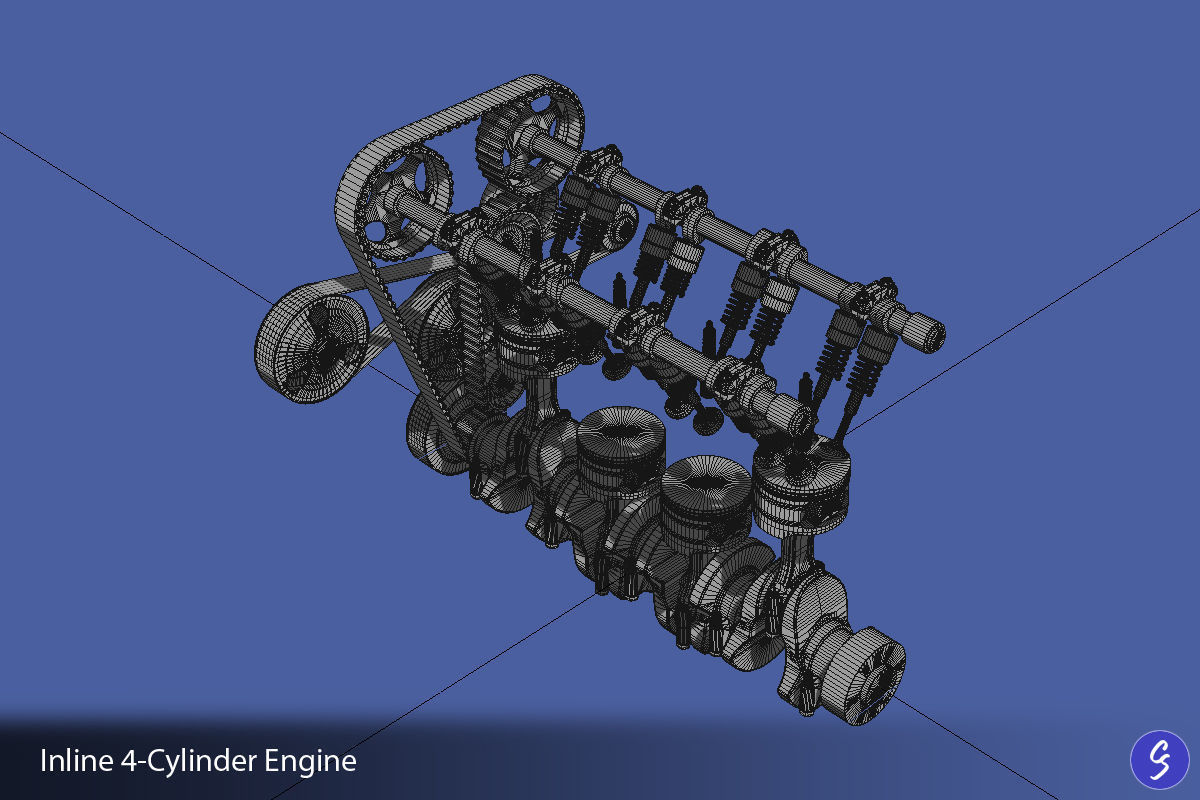

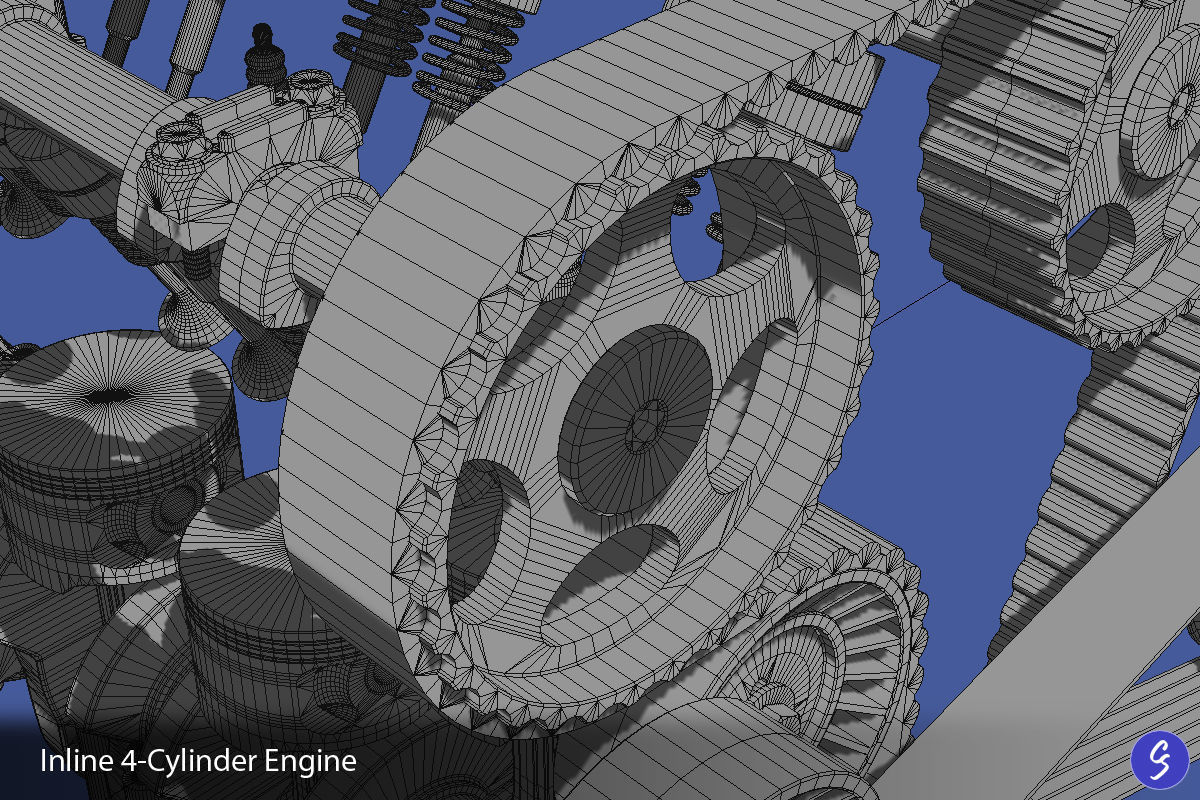

  • Objects: 113
  • Facets: 656,816

Product includes:

  • 1 OBJ model
  • 1 FBX model
  • 1 3DS model
  • 1 STL model - single-piece, not optimized for 3D printing

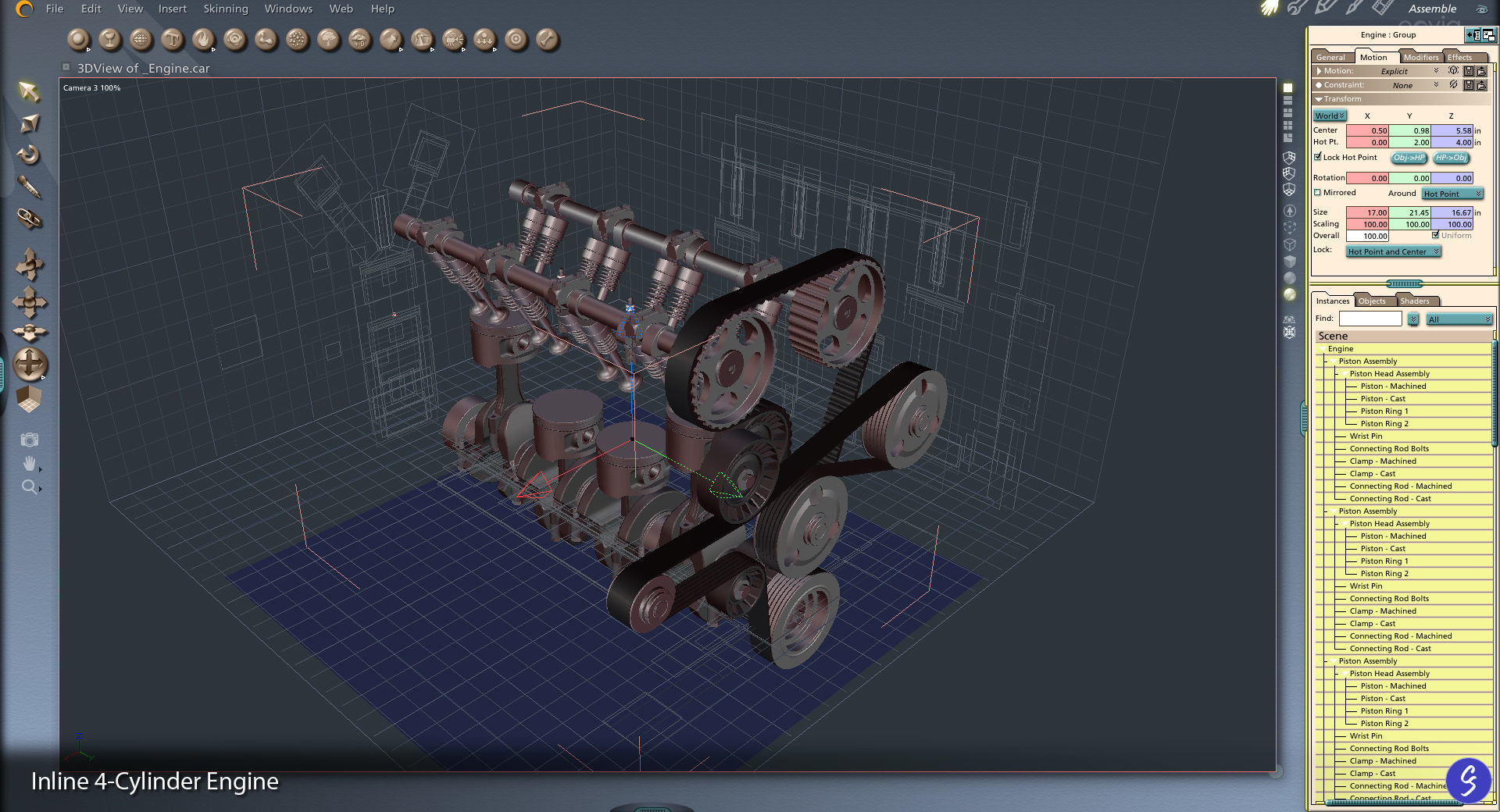

  • 2 Carrara Studio models (CAR format) - animated model and static model
  • 1 Read Me text file (TXT format)

If you have any questions, either before or after purchasing this model, please feel free to contact me here on CGTrader and I will help in any way possible.

CBSpicer
