Diesel exhaust - Urea injection 3D model
Description

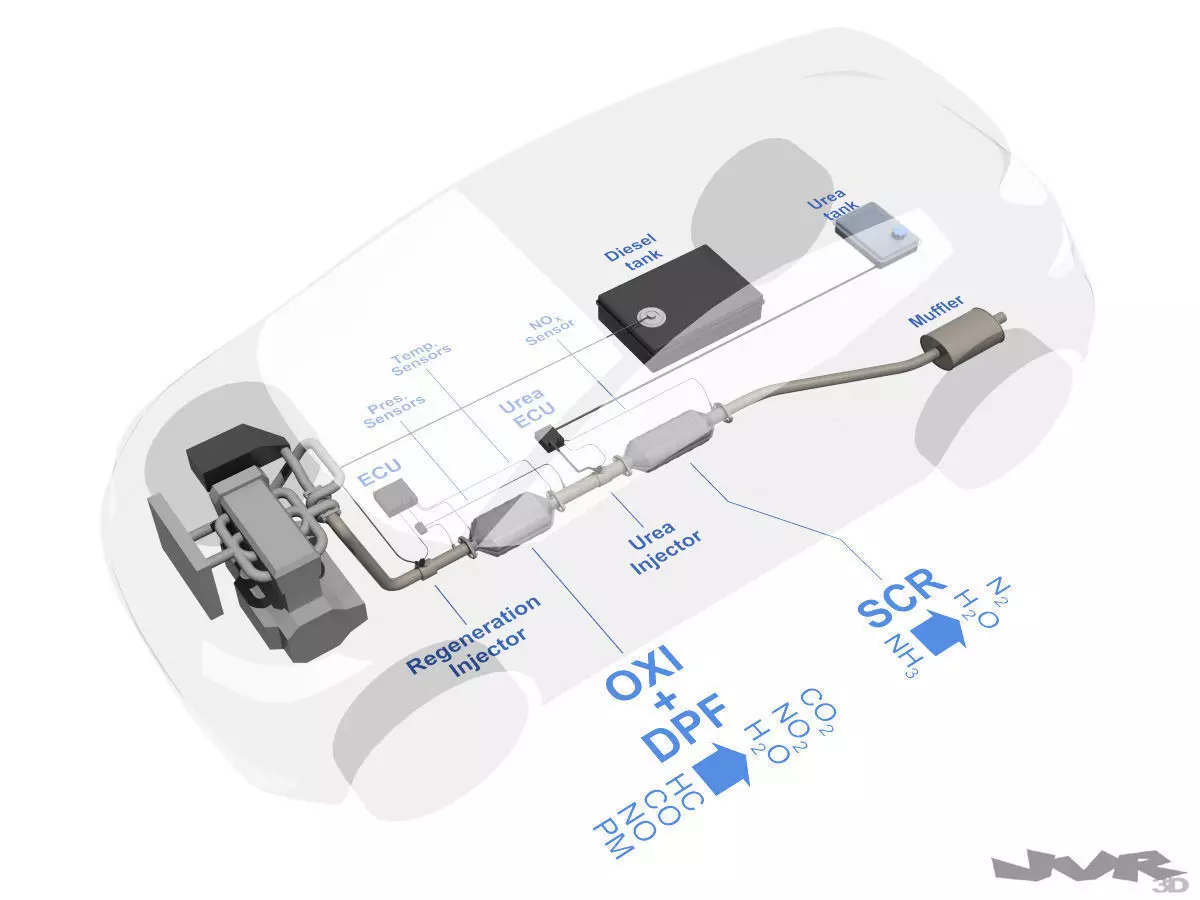

3D Scheme of diesel exhaust including:
- Urea injection with SCR (Selective Catalytic Reduction)- Oxidation and DPF (Diesel Particle Filter)- Schematic four cylinder turbo diesel engine with intercooler.- Generic ghost car- Explanatory text
PDF file with instructions is included.
Notes:- Images generated with native MAX mental ray file. Standard material version also included in MAX format.- 3DS, OBJ and FBX need some material adjustments.- This is a polygonal model and is not prepared to be imported into parametric CAD software.- This model is not optimized for 3D printing.
Diesel exhaust - Urea injection
Royalty Free License
Diesel exhaust - Urea injection
Royalty Free License
3D Modeling
UV mapping
3D Model formats
Format limitations
- 3D Studio (.3ds)1.46 MB
- OBJ (.obj, .mtl)2.22 MB
- Autodesk FBX 200611 (.fbx)3.21 MB
- Autodesk 3ds Max 9 (.max)3.72 MBVersion: 9Renderer: Mental Ray 3.5
3D Model details
- Publish date2014-09-30
- Model ID#81931
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 114,000
- Vertices 64,000
- Textures
- Materials
- UV Mapping
- Unwrapped UVs
- Plugins used
- Ready for 3D Printing
