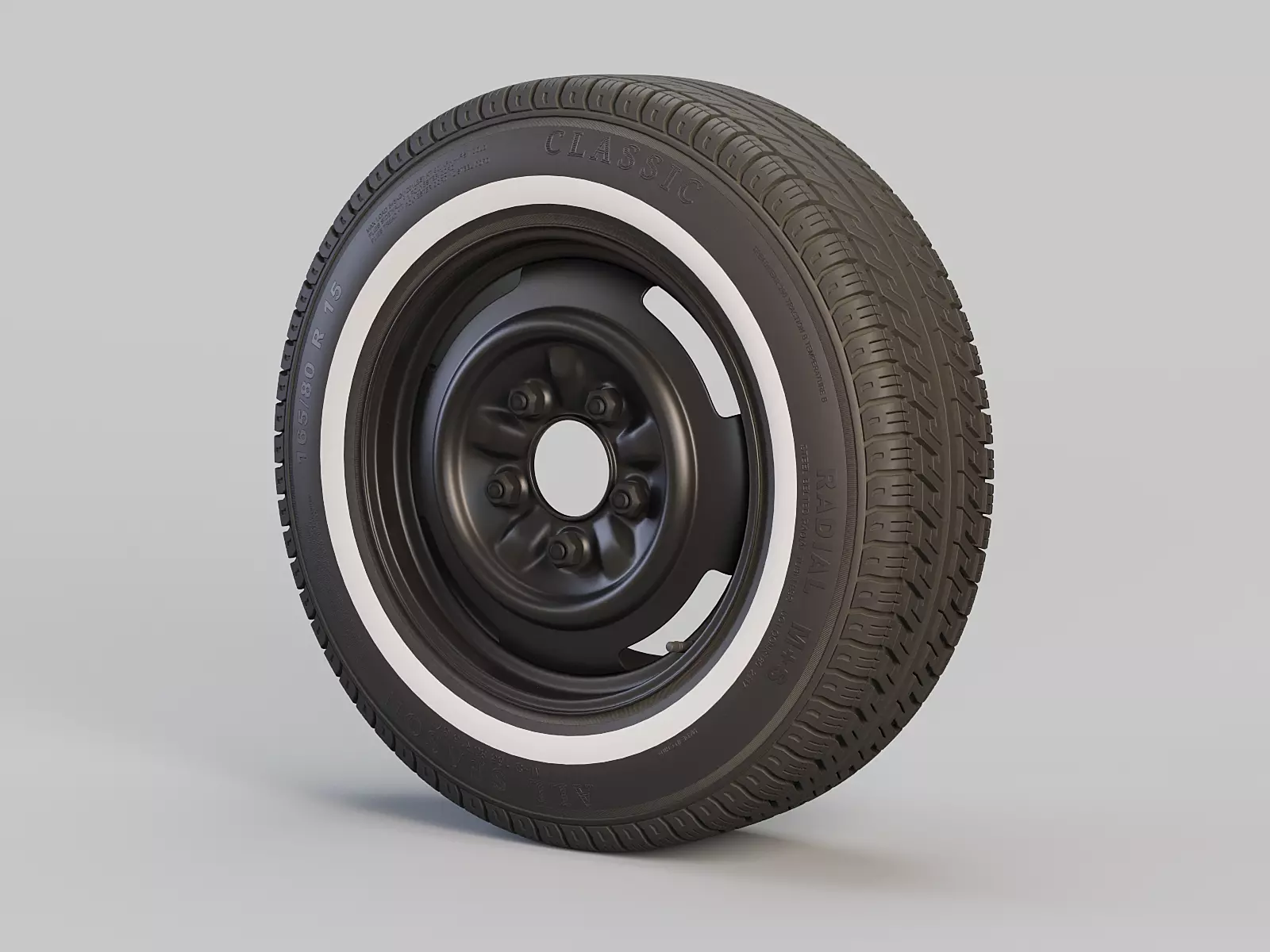

Classic Wheel and Tyre 3D model

Digital 3D model of classic white wall tyre and steel rim.

MODEL

• Model dimensions: LWH 20,5 x 64,4 x 64,4 cm (8.1 x 25.4 x 25.4 in).
• Objects count - 5 polygonal objects, 1 group.
• Part of the model is subdivision ready.
• Model is made mostly of quads and some triangles. No n-gons were used.
• Polycount without subdivision:
• Polys - 55 172
• Verts - 60 021
• Polycount with level 2 subdivision:
• Polys - 145 160
• Verts - 103 631

MATERIALS

• Materials are prepared for Corona renderer.
• The model has basic materials with few textures. Textures are prepared only for sidewall markings.
• Corona version additionally has run-time occlusion applied, to add extra realism.
• Scanline, FBX and OBJ formats has very basic materials and will NOT render the same as in preview images.

UV COORDINATES

• The model is only partially unwrapped ( tyre sidewall), other parts has basic UV mapping only.

TEXTURES

• Format - PNG
• Total count - 2
• Map types - Roughness, Normal (OpenGL, +Y)
• Bit depth - 8 bits
• Resolution - 4096 x 4096 px
• Textures are collected into one archive and are delivered in separate file.

SCENE

• Model is scaled to accurate real world dimensions.
• Objects, materials and textures have meaningful and matching names.
• Transformations has been reset and the model is placed at scene origin [0, 0, 0 XYZ].
• All texture paths are set to relative.

FILE FORMATS

• 3ds Max - Corona
• 3ds Max - Default (Physical)
• FBX
• OBJ

GENERAL

• Modeled in 3ds Max 2023 and saved to 3ds Max 2020 version for backward compatibility.
• Preview images are rendered with Corona renderer.
• Images are straight from rendering app. No post processing was applied.
• Render scenes are not included.

***

Feel free to contact me if you have questions or need assistance with the models.
