Axial Flux Coreless Motor 3D model

Description

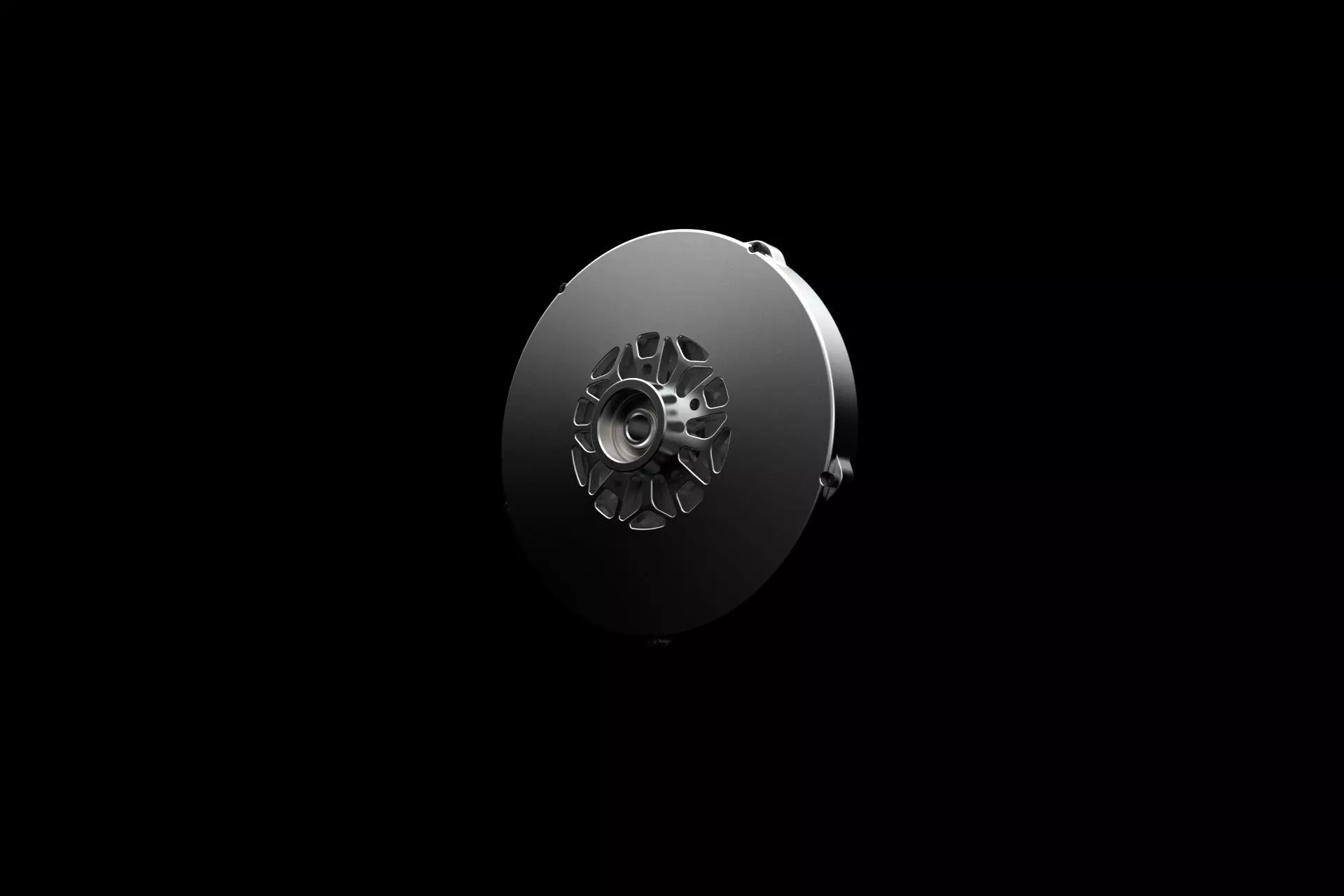

Axial flux engine specially designed for Shell Eco Marathon, Solar Car Racing and Tübitak EC.

It can be revised specifically for UAV and drone projects.

It was analyzed with Ansys Maxwell and modeled with CATIA V5R21.

2 rotors1 statorRated 600wRated 600rpmRated 18Nm torque98% efficiency

The entire mechanical system is designed.

You can contact us for production support. I can provide support for an additional fee.
