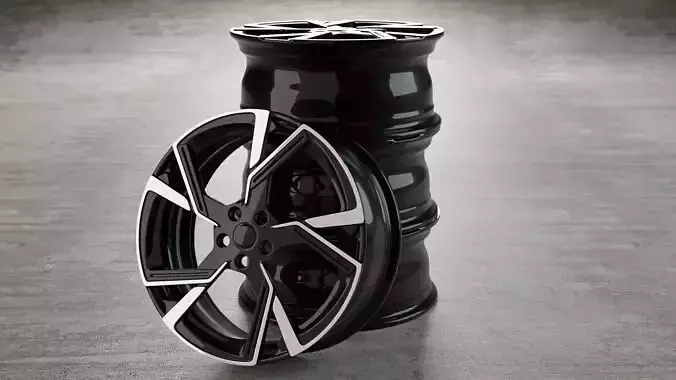

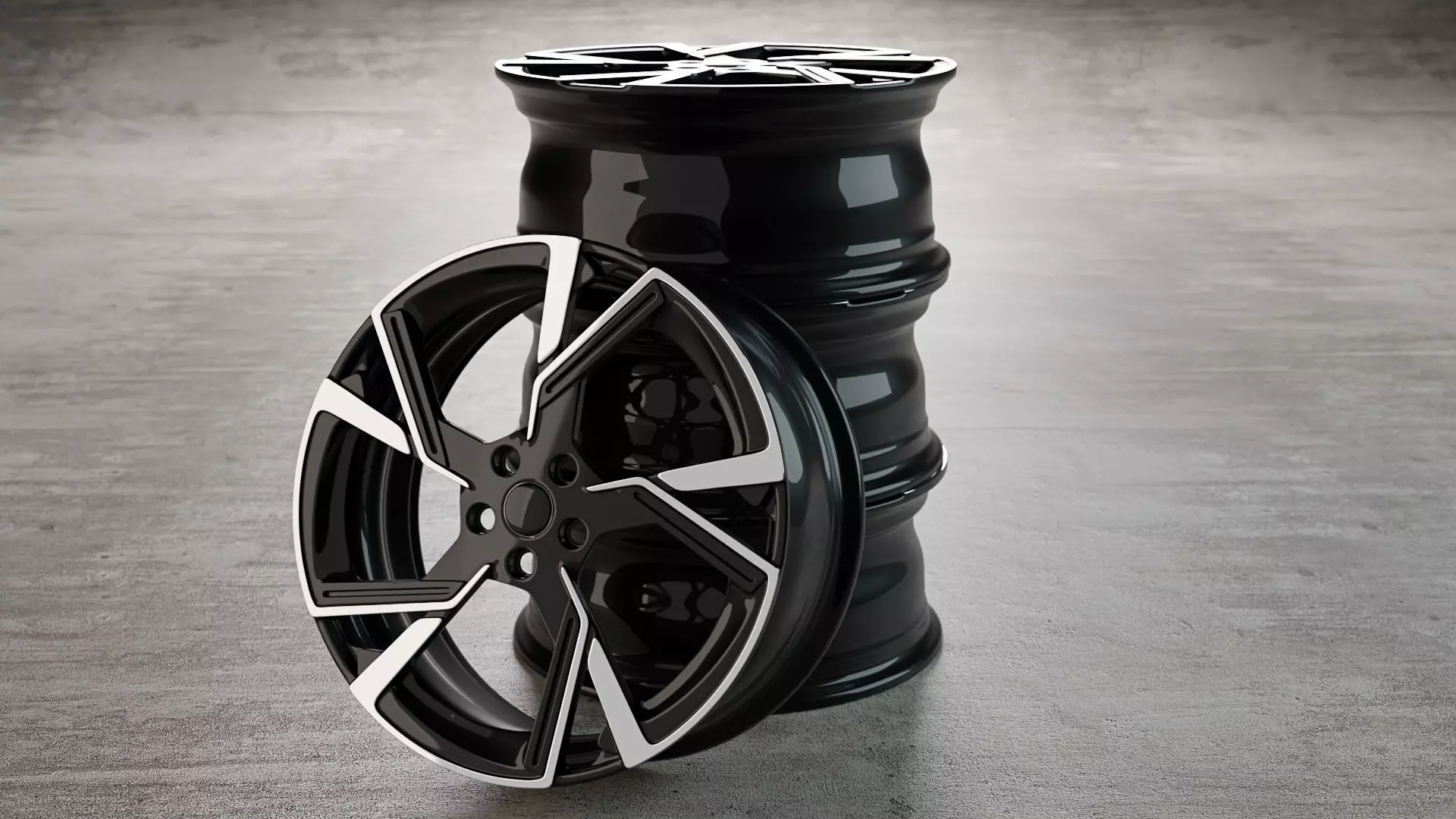

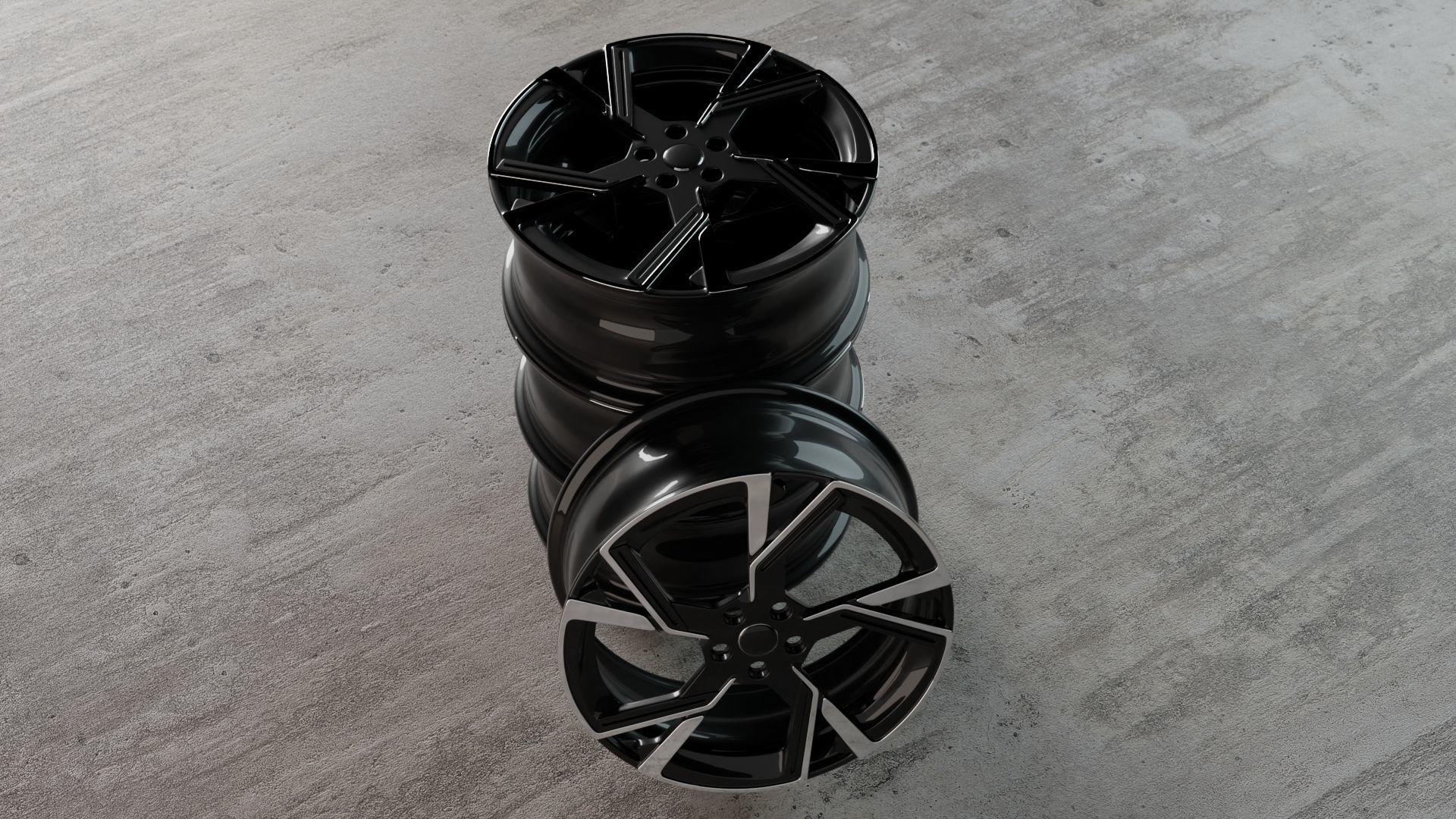

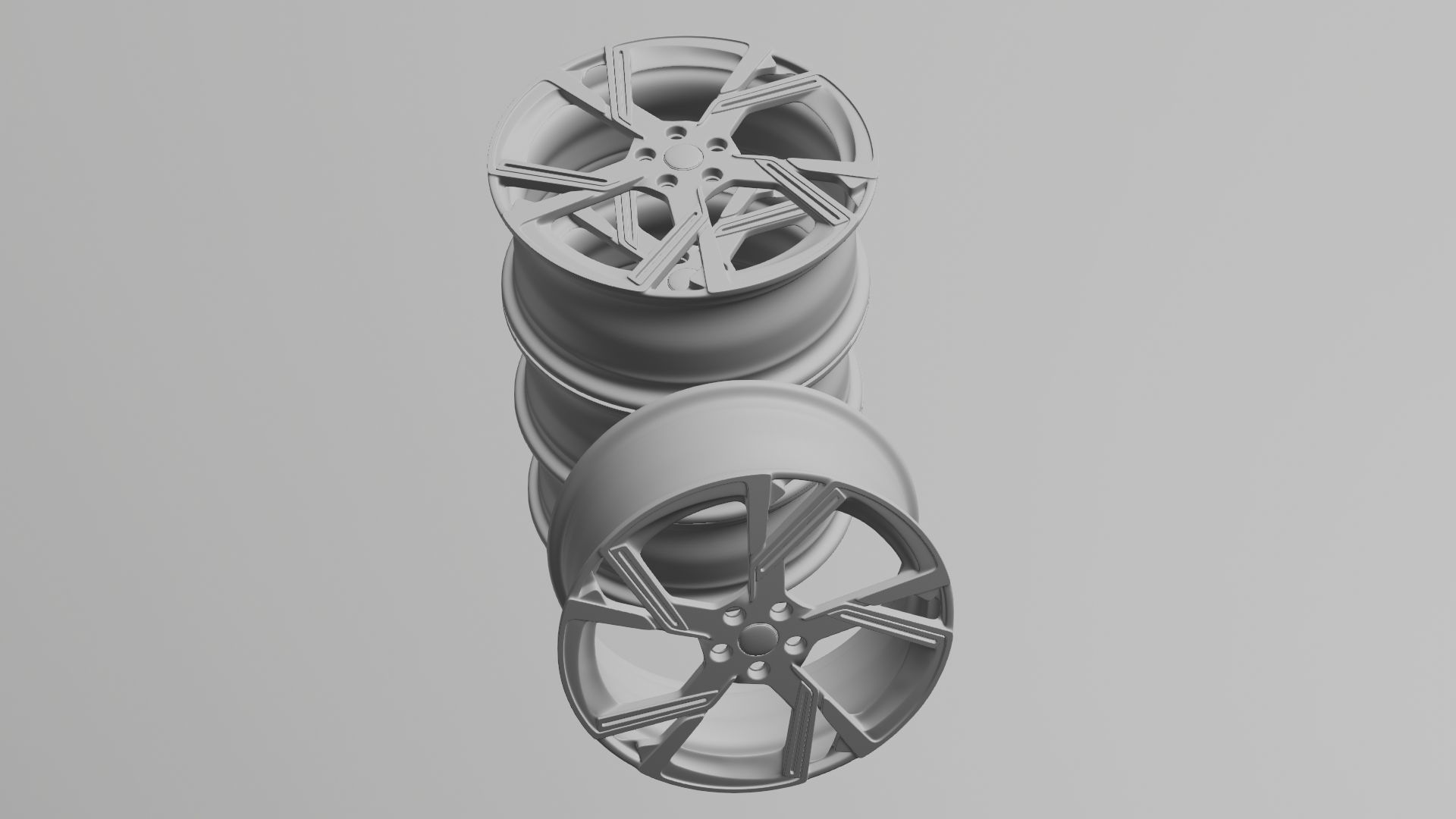

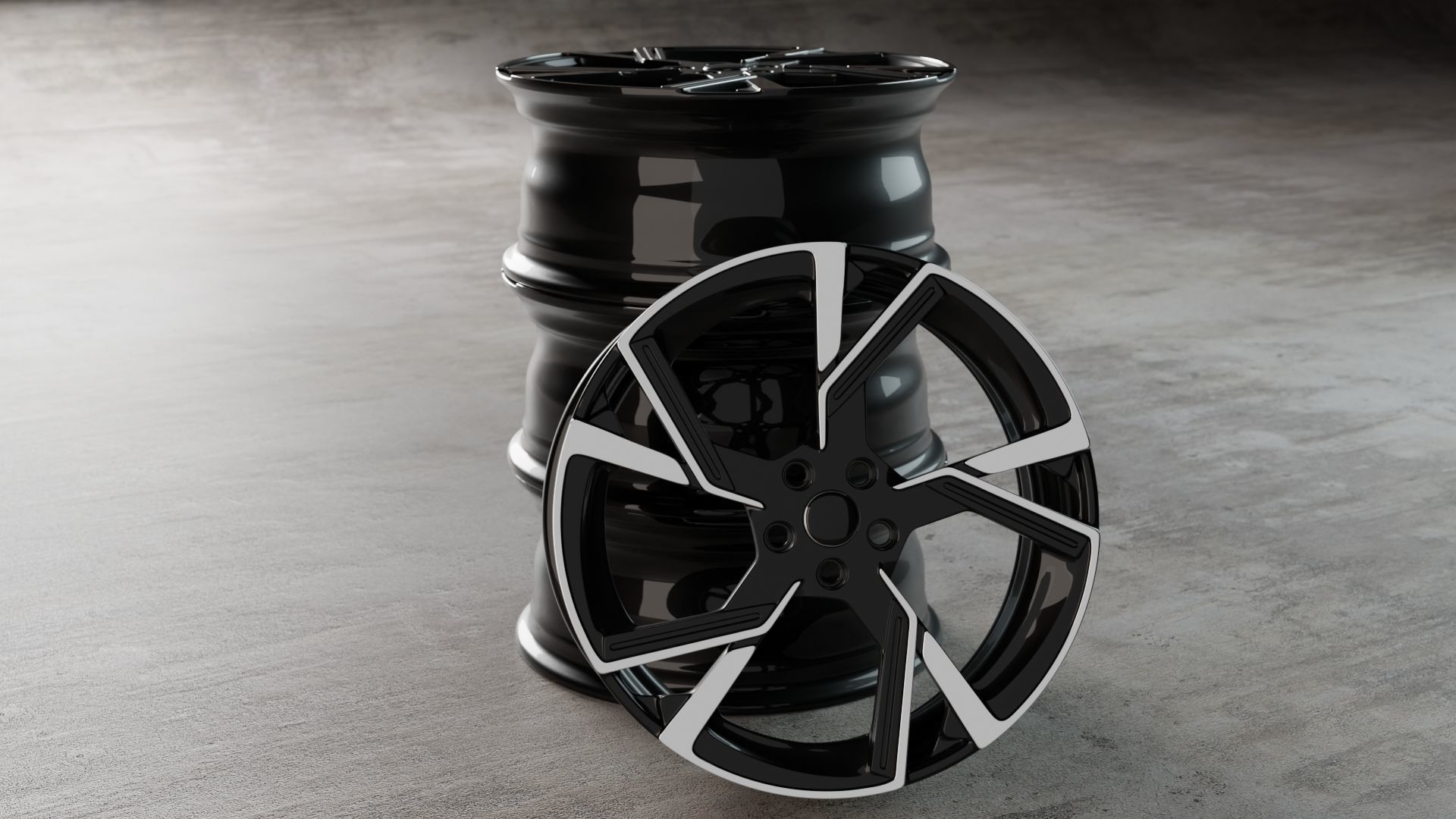

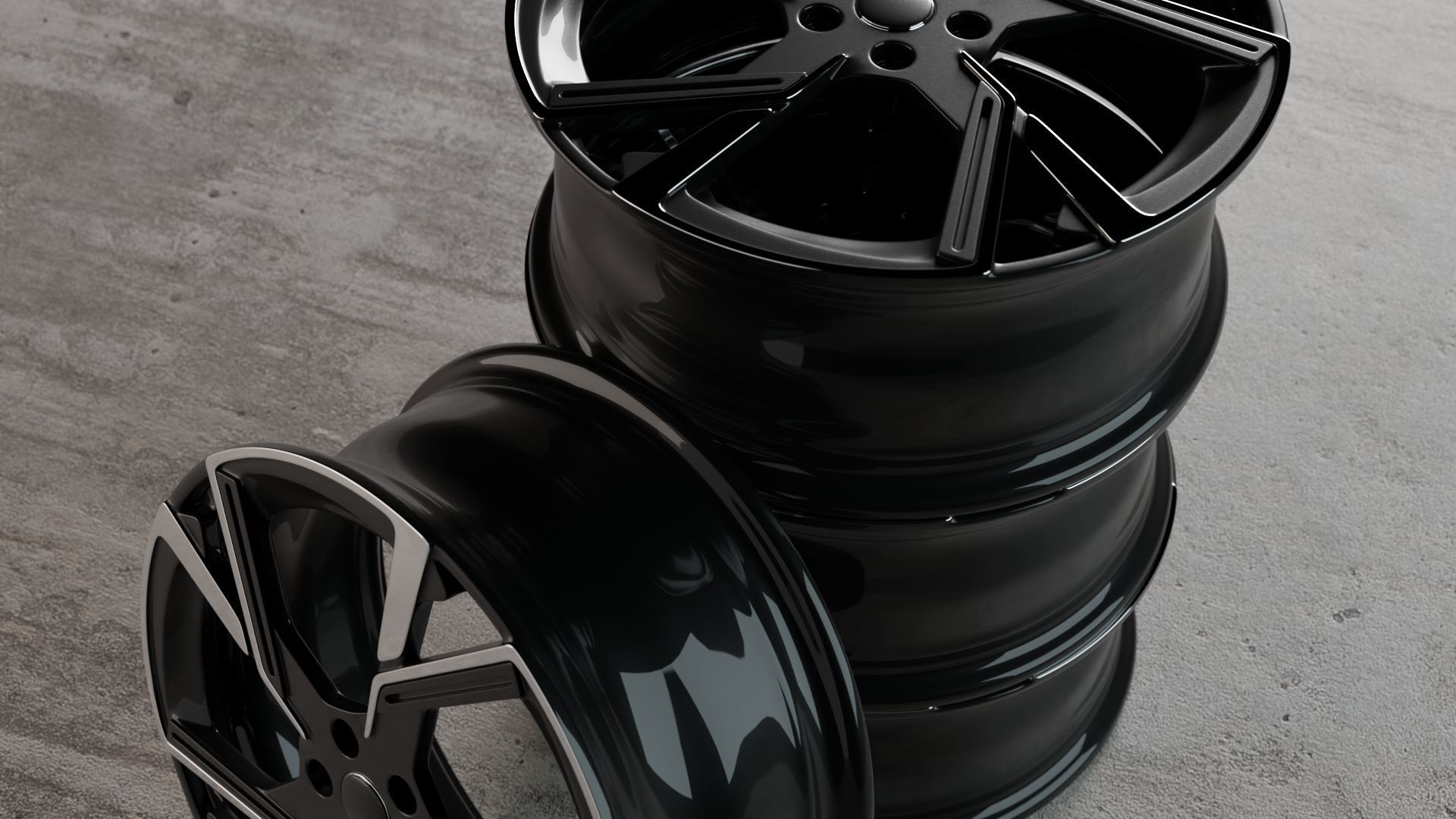

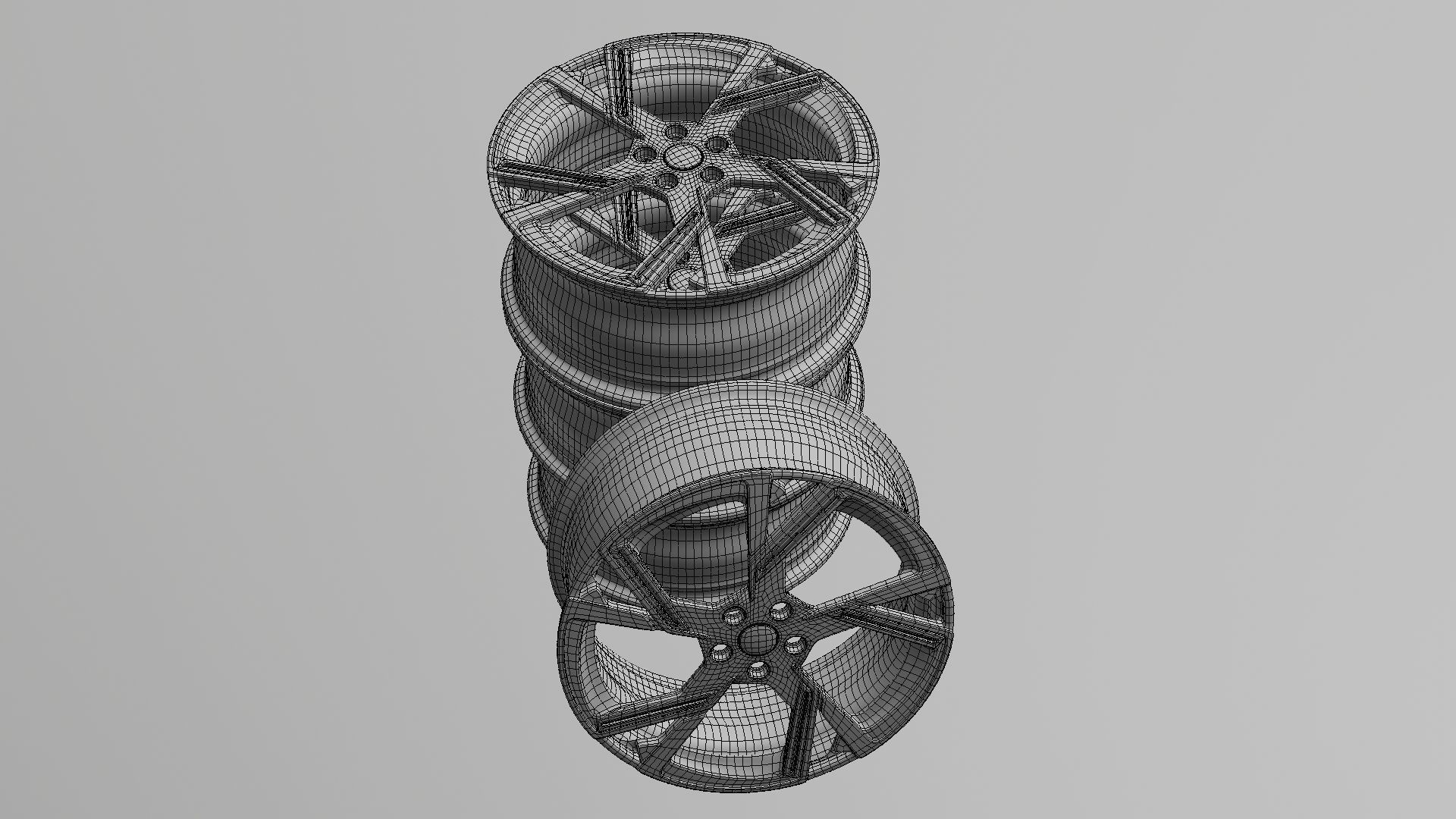

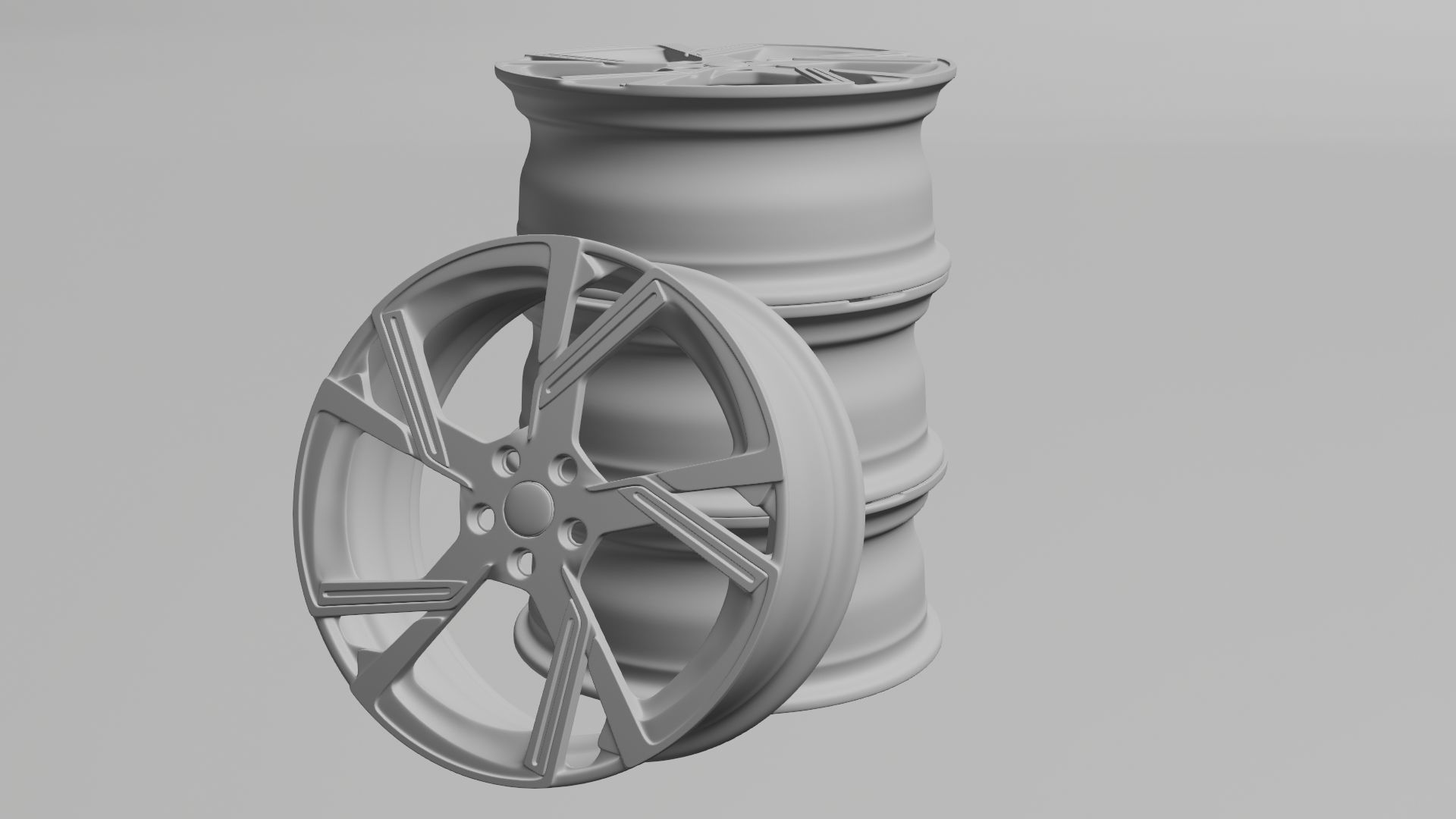

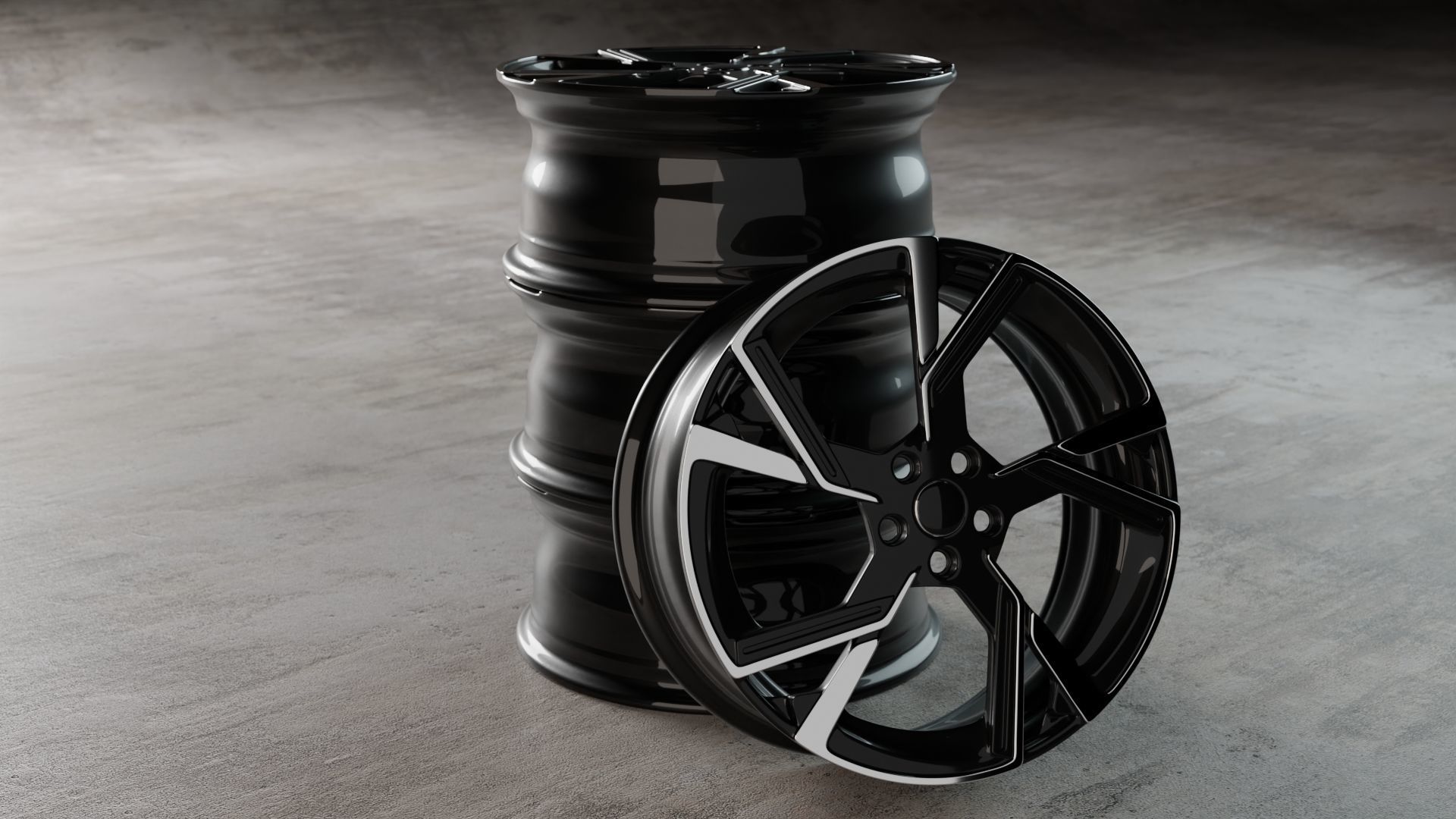

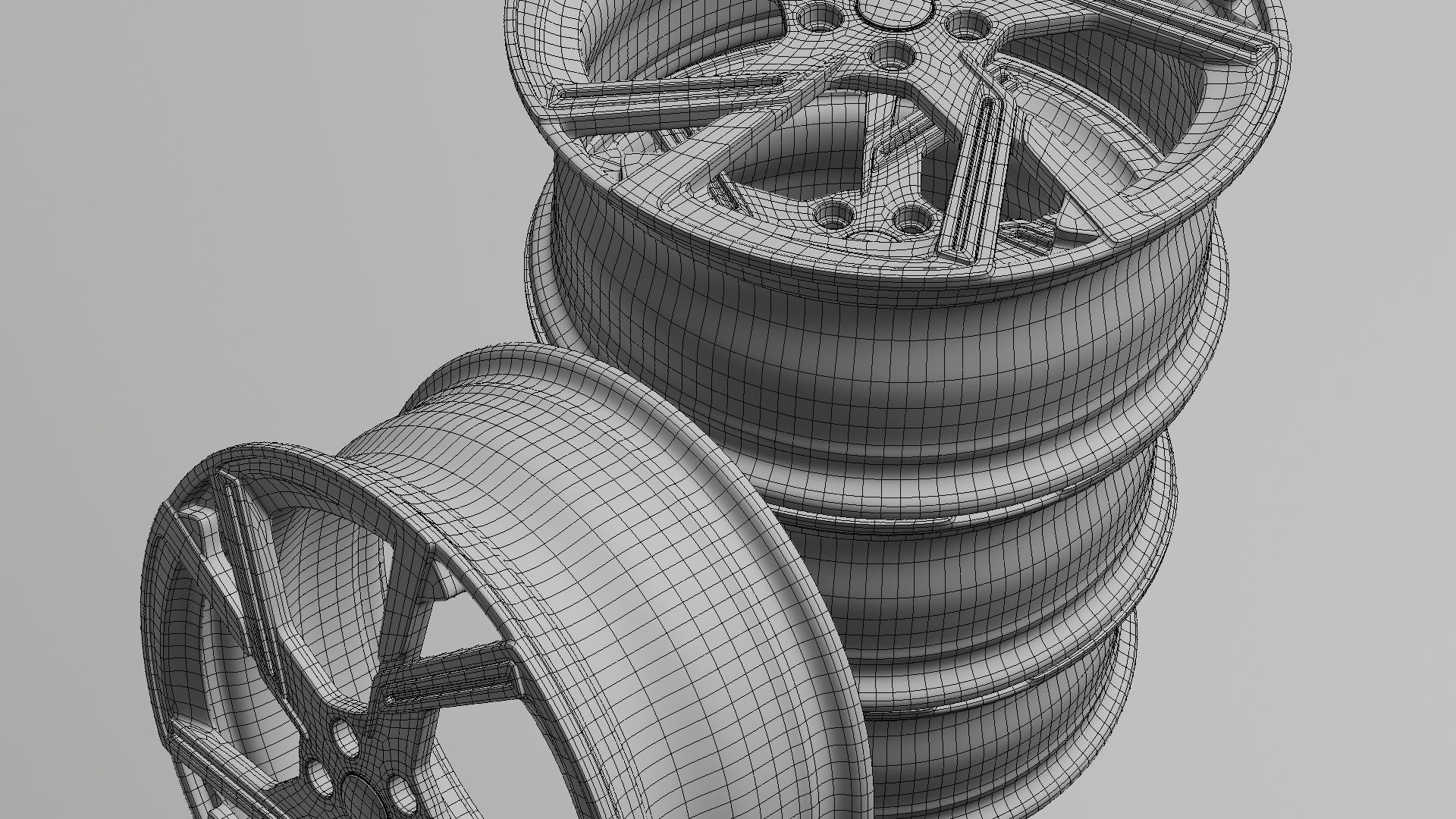

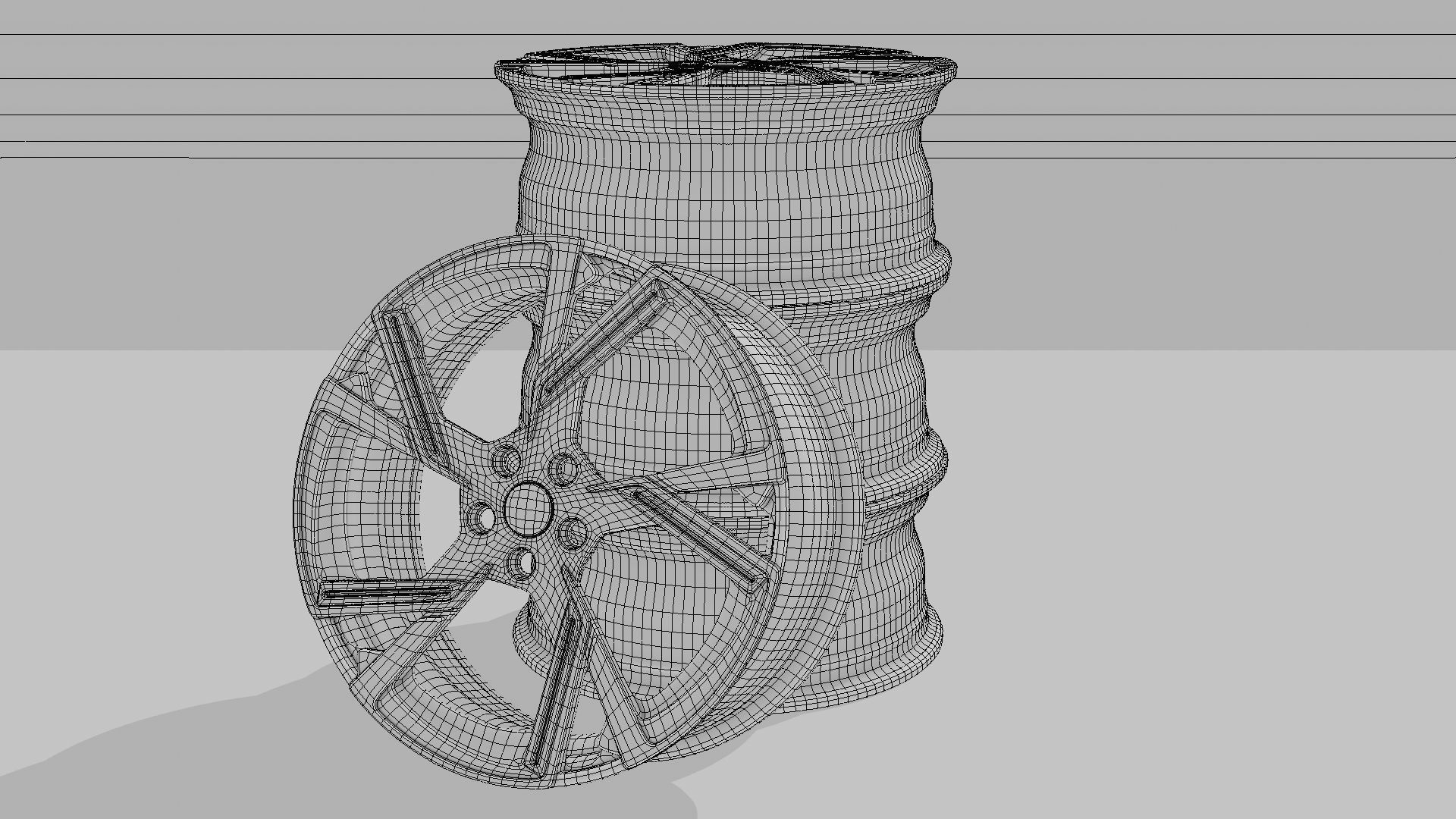

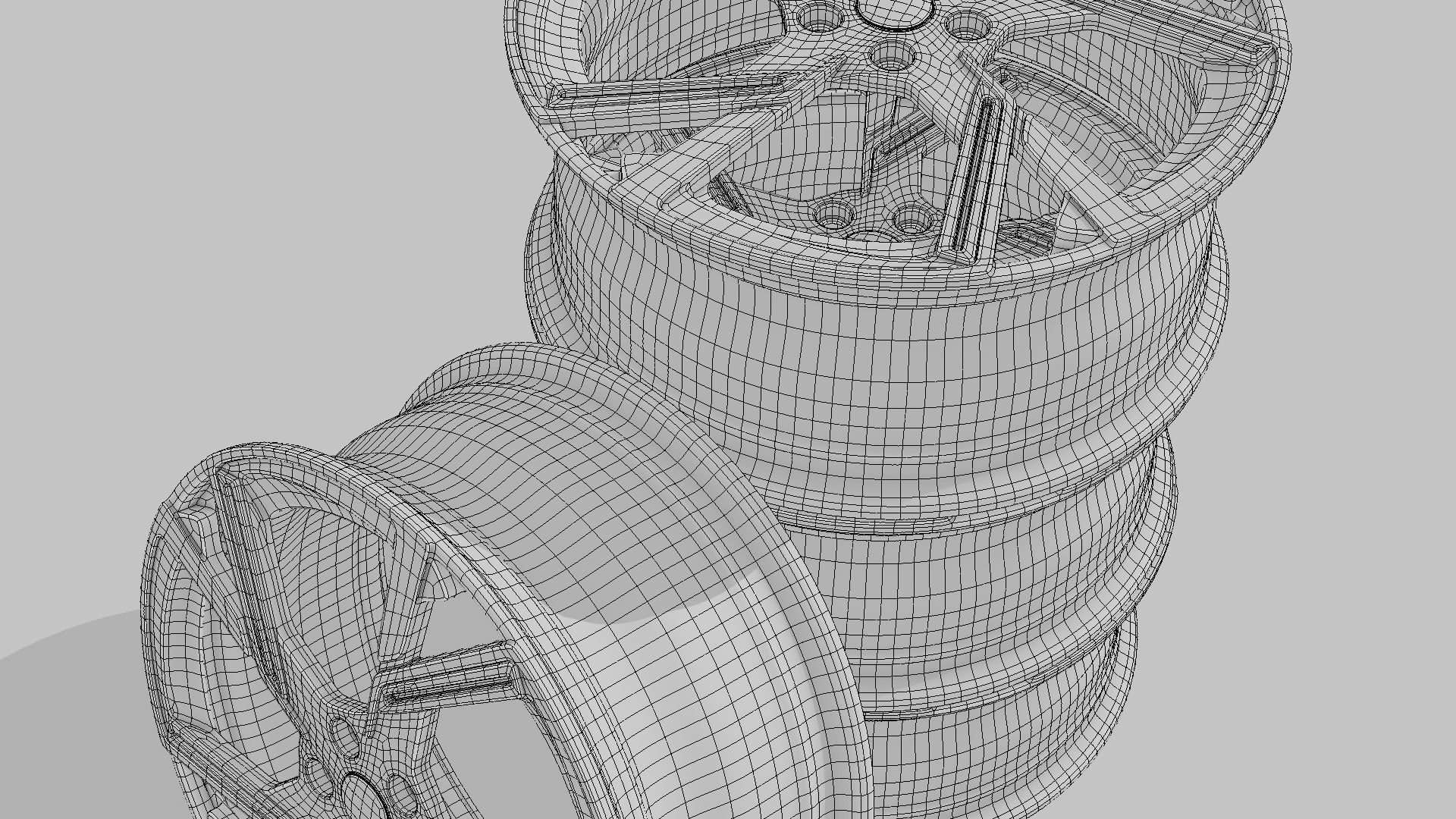

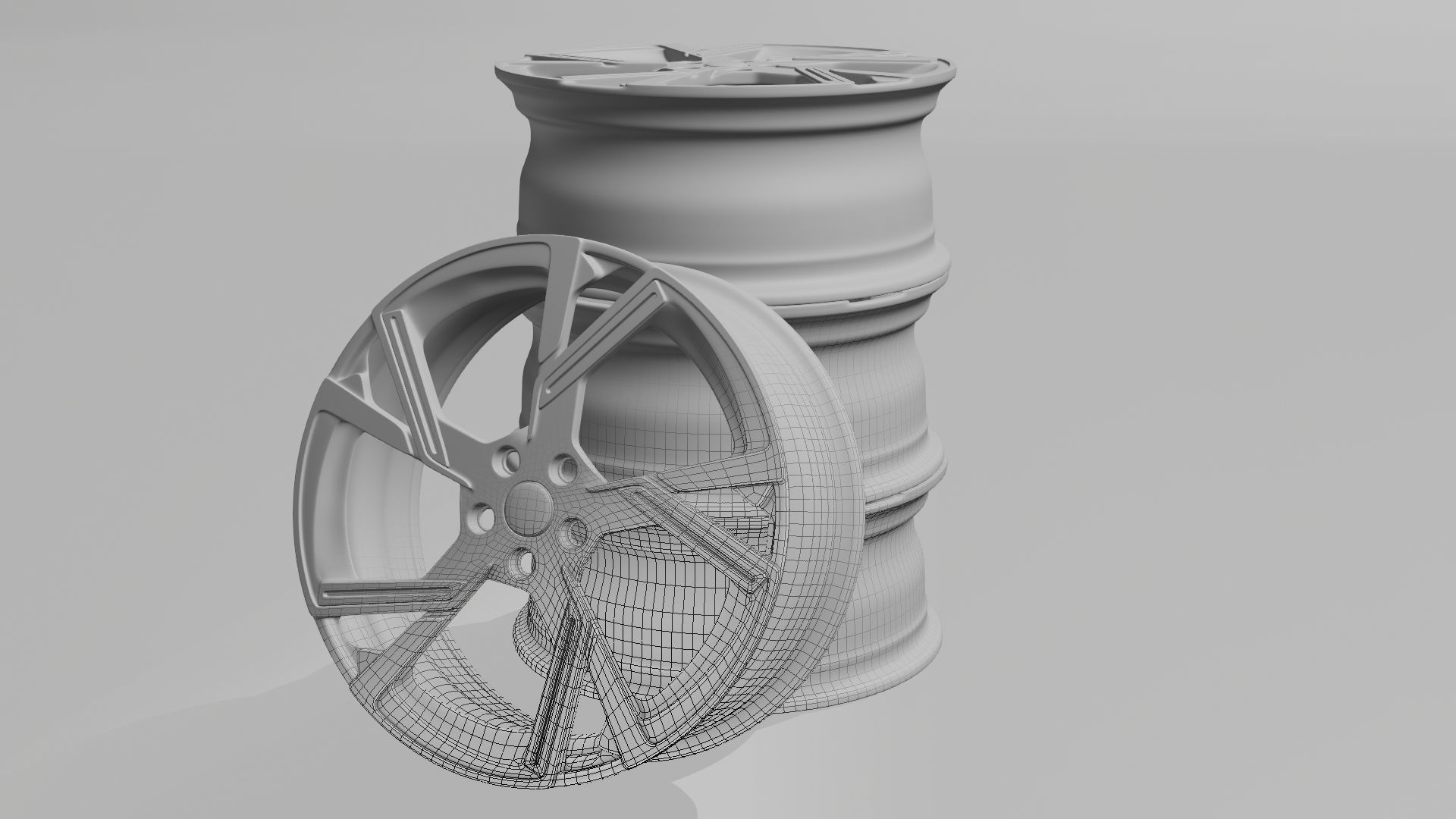

ANGEL GMP Italia Rim Low-poly 3D model

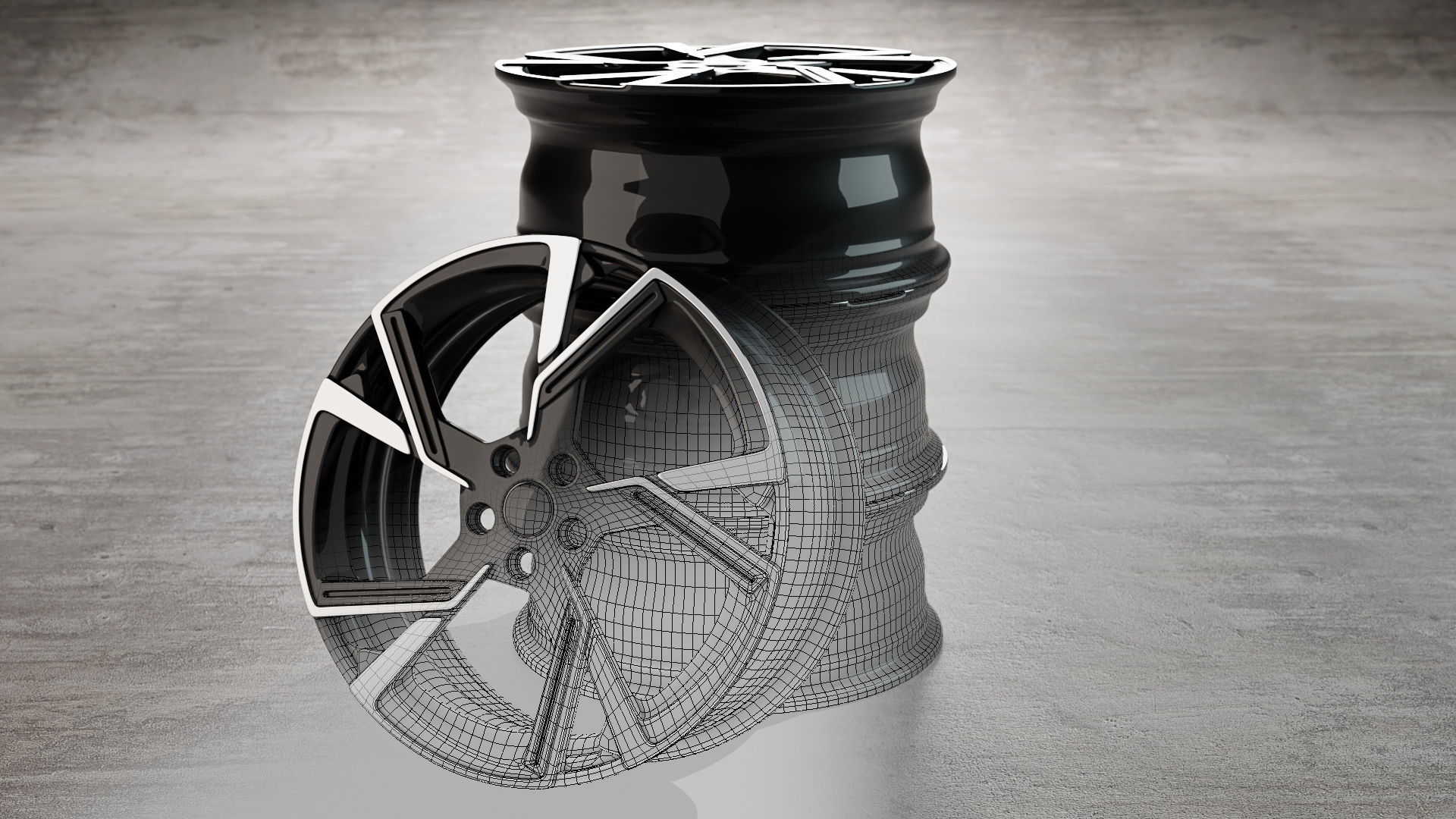

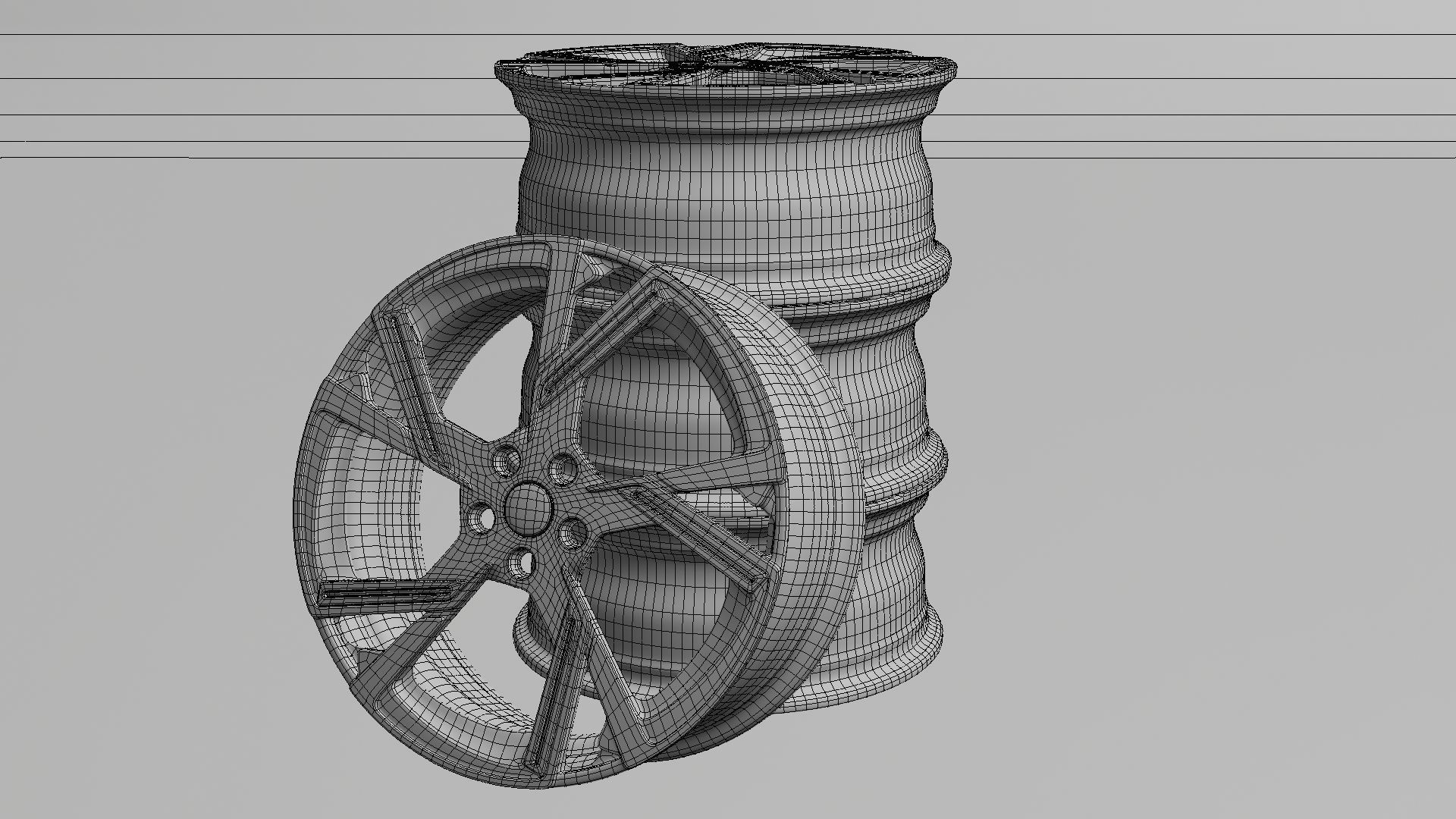

Rim suitable for Audi A6. Model: Angel. Size 22". Year: 2022all quads topology. PBR materials. sub-d-ready.

The rim is the outer edge of a wheel, holding the tire. It makes up the outer circular design of the wheel on which the inside edge of the tire is mounted on vehicles such as automobiles.A standard automotive steel wheel rim is made from rectangular sheet metal. The metal plate is bent to produce a cylindrical sleeve, and then the two free edges of the sleeve are welded together. At least one cylindrical flow spinning operation is carried out to obtain the desired thickness profile of the sleeve—and the desired angle of inclination relative to the axial direction in the zone for the outer seat. The sleeve is then shaped to obtain the rims on each side with a radially inner cylindrical wall in the zone of the outer seat and with a radially outer frustoconical wall inclined at an angle corresponding to the standard inclination of the rim seats. The rim is then calibrated.

To support the cylindrical rim structure, a disc is made by stamping a metal plate. It has to have appropriate holes for the center hub and lug nuts. The radial outer surface of the wheel disk has a cylindrical geometry to fit inside the rim. The rim and wheel disk are assembled by fitting together under the outer seat of the rim and then being welded together. The disk is welded in place such that the center of the wheel is equal to the center of the hub. The distance between the centerline of the rim and the mounting plane of the wheel is called the offset and can be positive, negative, or zero.

One-piece rim and wheel assemblies may be obtained by casting or forging.
