ALH-AHF TDI Belt Tensioner 3D model
Description

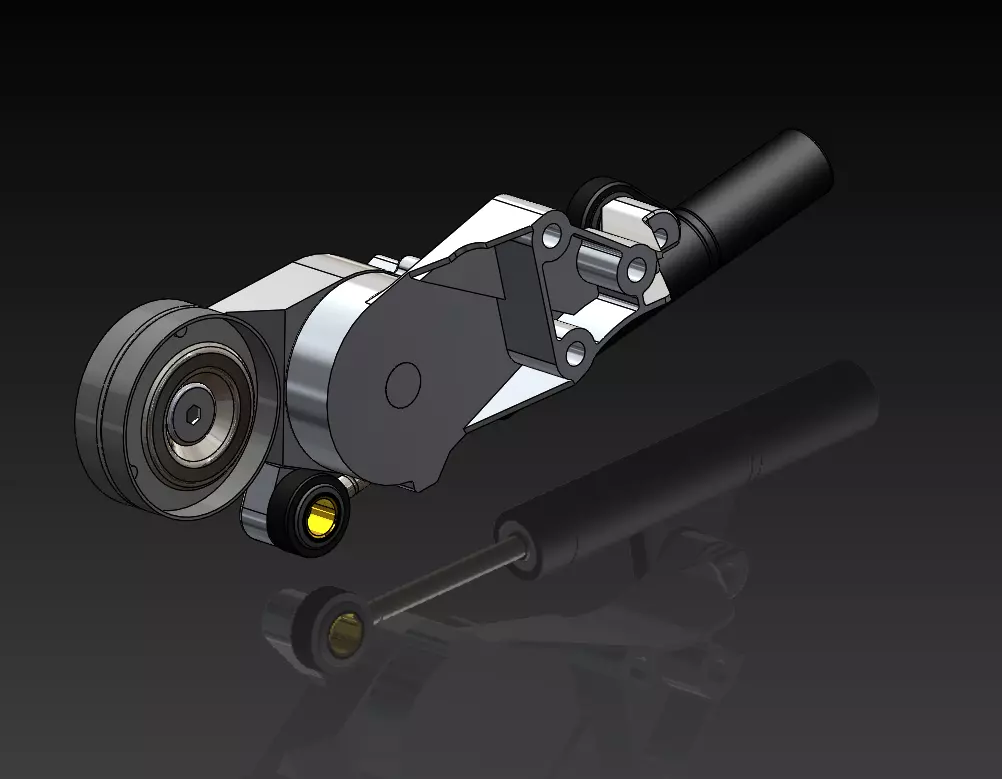

1.9TDI VW ALH/AHF Diesel engine serpentine belt tensioner model.
This model was drawn up in Solidworks 2018 by me.
Holes and placement of pulley and shock are correct. Body might have some slight deviations, but good enough to get the idea.
Shock has a stroke of 57.5mm.
ALH-AHF TDI Belt Tensioner
Royalty Free License
ALH-AHF TDI Belt Tensioner
Royalty Free License
3D Modeling
3D Model formats
Format limitations
- Other 1.24 MB
- IGES (.ige, .igs, .iges)3.21 MB
- Parasolid (.x_t, .x_b)455 KB
- SolidWorks (.sldprt, .sldasm, .slddrw)767 KB
- Stereolithography (.stl)3.86 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2025-01-23
- Model ID#5807938
