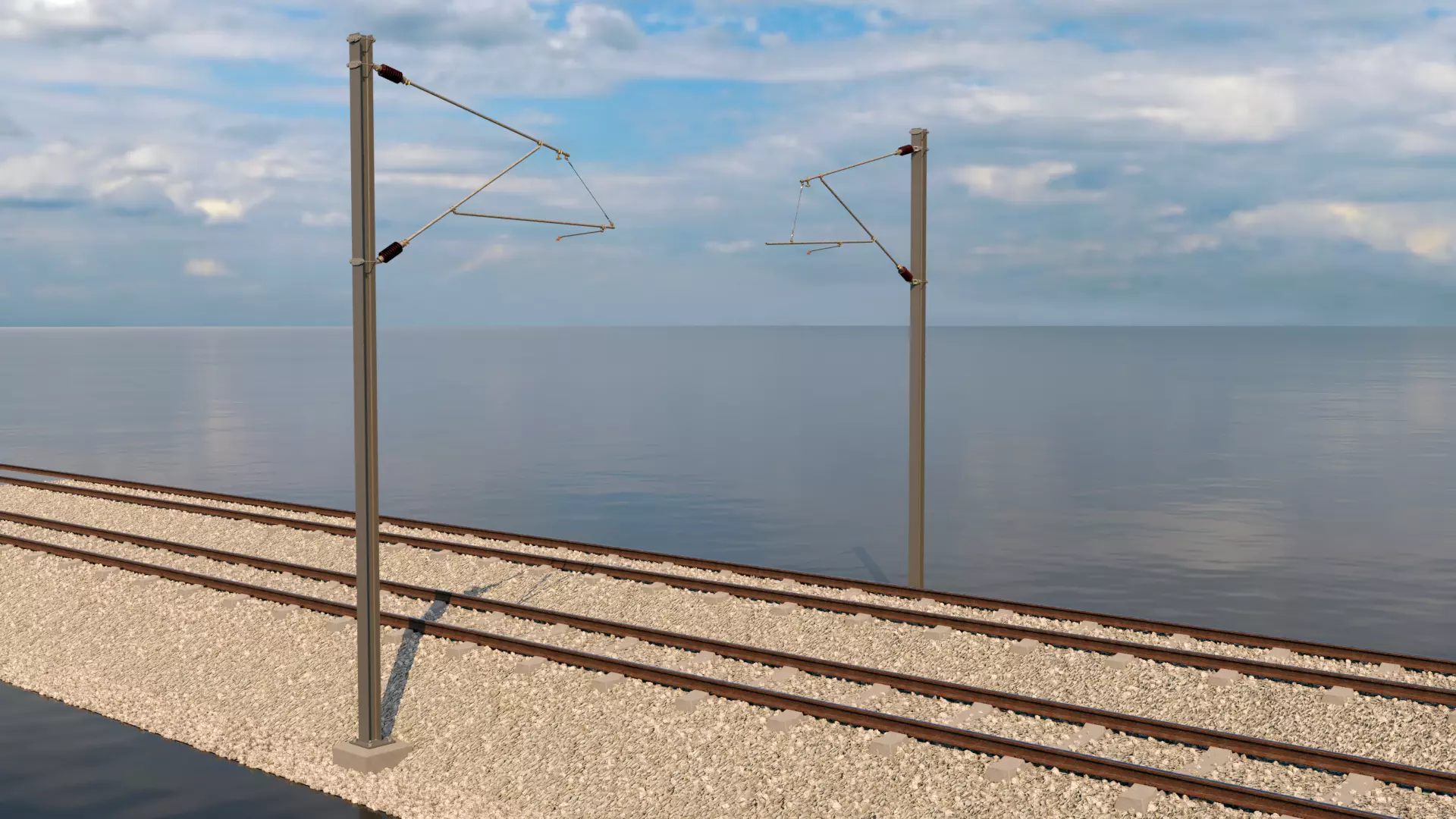

Railroad Catenary Poles Push Pull 2 Sets 3D model

Included in the Railroad Elements Series this model results mainly from photo analysis and some physical dimensions taken on site. I really invested some time on details, especially on catenary holder system and this includes stay tubes, bracket tubes, register arms, steady tubes, contact clamps, ceramic insulators, brackets, fittings, nuts and bolts. On the top I modeled a specific bracket for the anchor cable. There is also a very peculiar bracket to hold the catenary cable and a copper clamp to hold the contact cable. On the bottom of the pole there is a concrete footing and four anchor bolts. All these elements are grouped by texture and labeled according its usual designation, so it is possible to separate original mesh into its several components, if you need to. I prefer do group items this way so I do not have to render it individually or include it in render layers. Please check thumbnails for full detail on every component of the model. Some topology is simplified to quads but most of the model is composed by tris. The elements were unwrapped and rendered as shown in thumbnails. Ballast rocks, sleepers, rails, rail clamps and cables are not included. This is a modular series and these elements will be included on another models. Environment elements and ambient light were used to show case de model and are included in the package. I'm including two symmetrical sets of push/pull poles. To generate a basic assembly you just have to move both sets apart between 50m and 60m (standard catenary length). All dimensions in meters. Overall poles height around 10 m. The model was mainly developed in Blender. Feel free to contact me if some doubts remain , or if you want some similar model with specific attributes or format conversion. PLEASE READ THE DESCRIPTION TO EVALUATE MODEL CONTENTS AND INSPECT ALL THUMBNAILS BEFORE BUY.
