Electrical Bicycle Frame 3D model

Electrical Bicycle Frame – detailed modelThe 3D model was designed in Solidworks. It’s created accurately, in real units of measurement (metric, mm) and its ready to be made :)Model formats:

• .igs
• .step

• .prt (Solidworks)

• texture is not included.

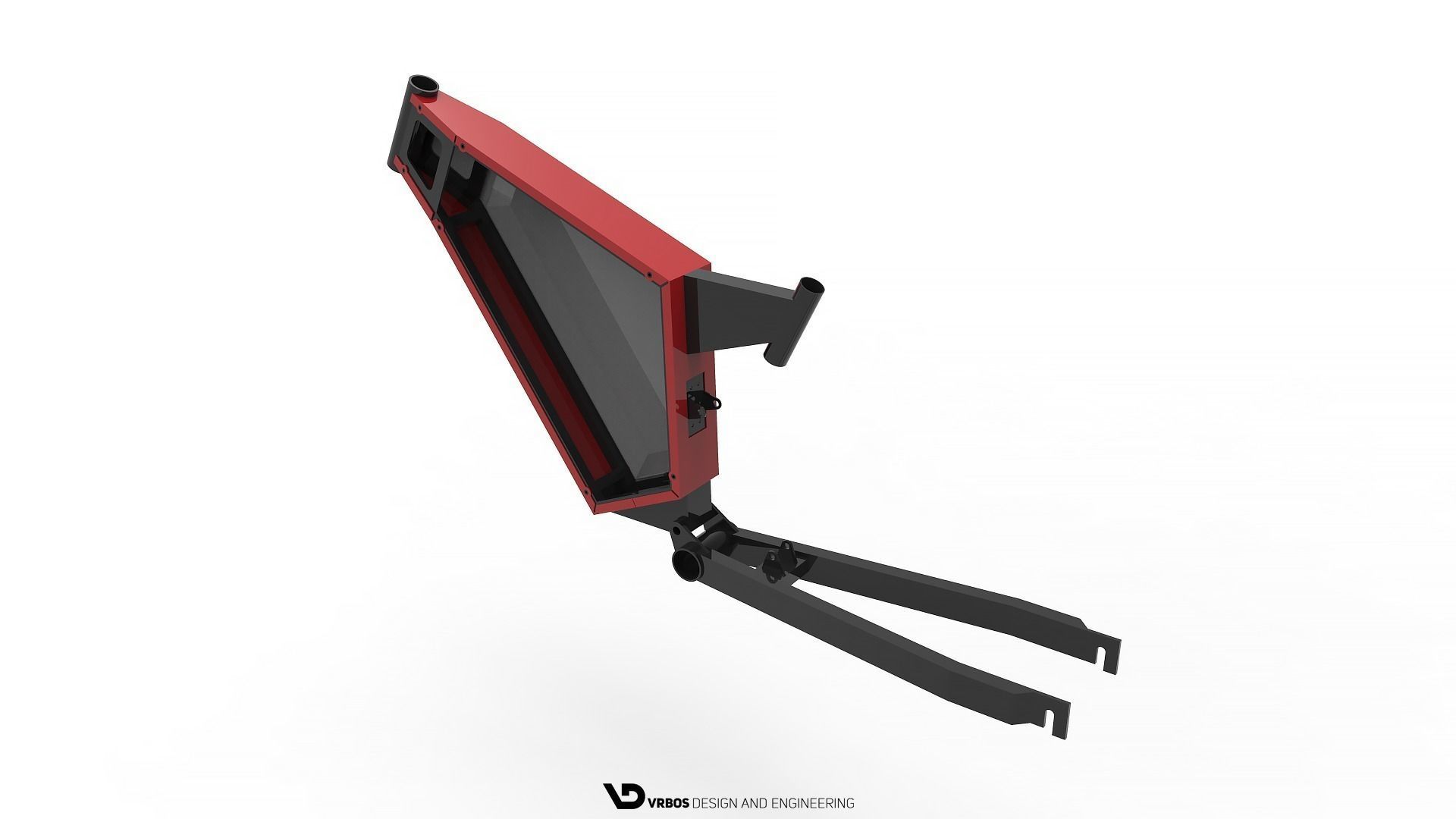

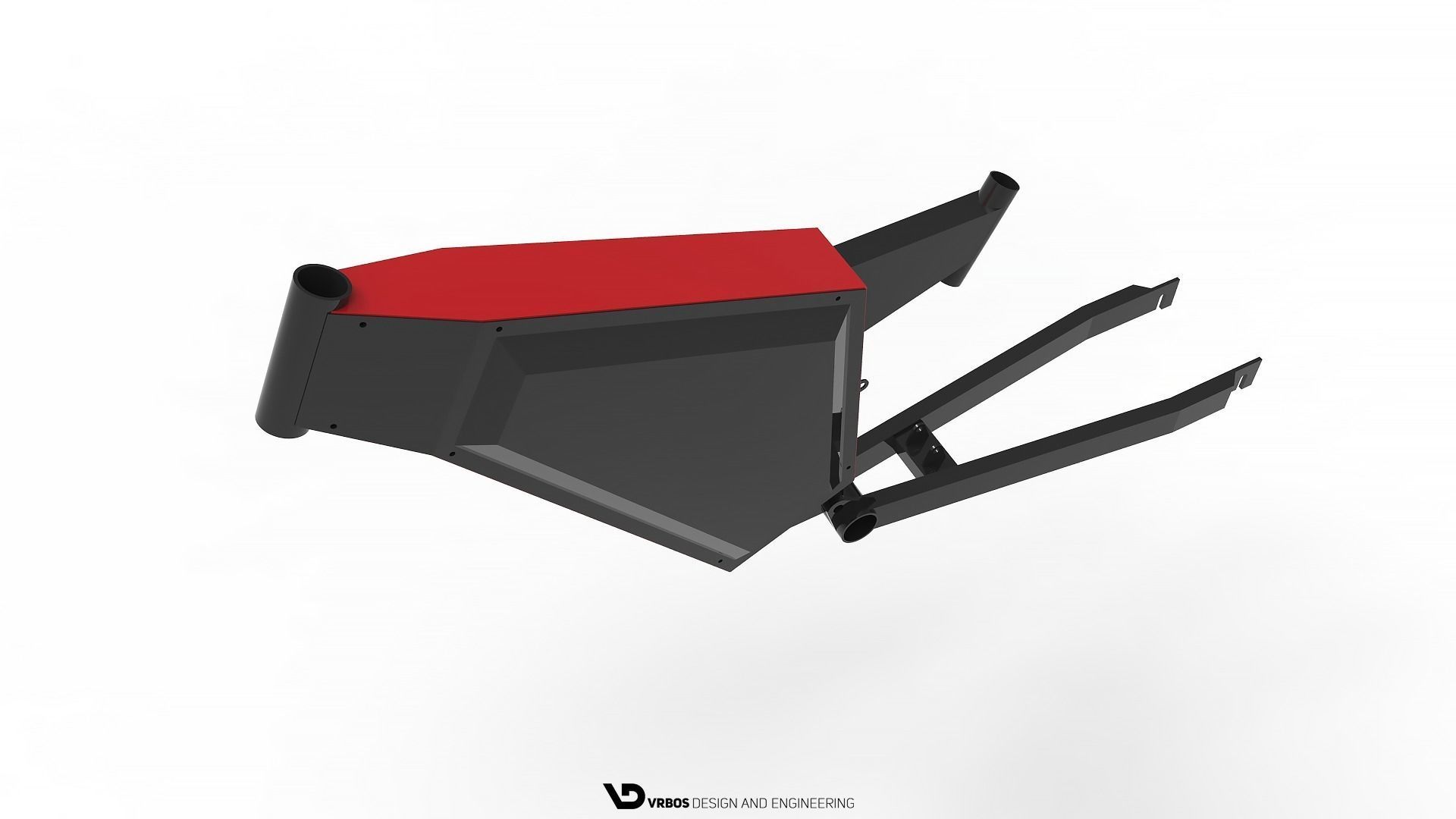

• renders are made in Keyshot V6

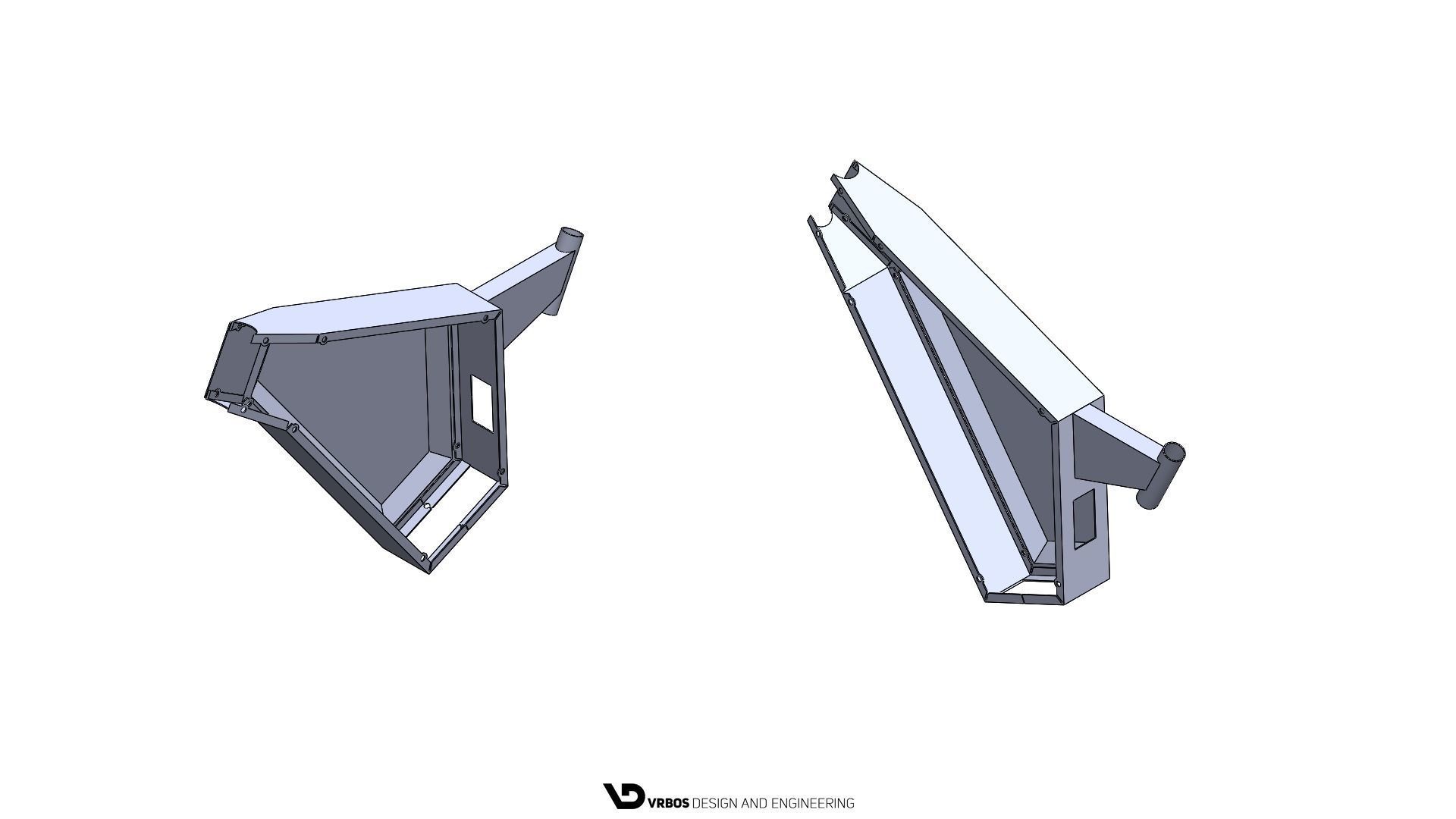

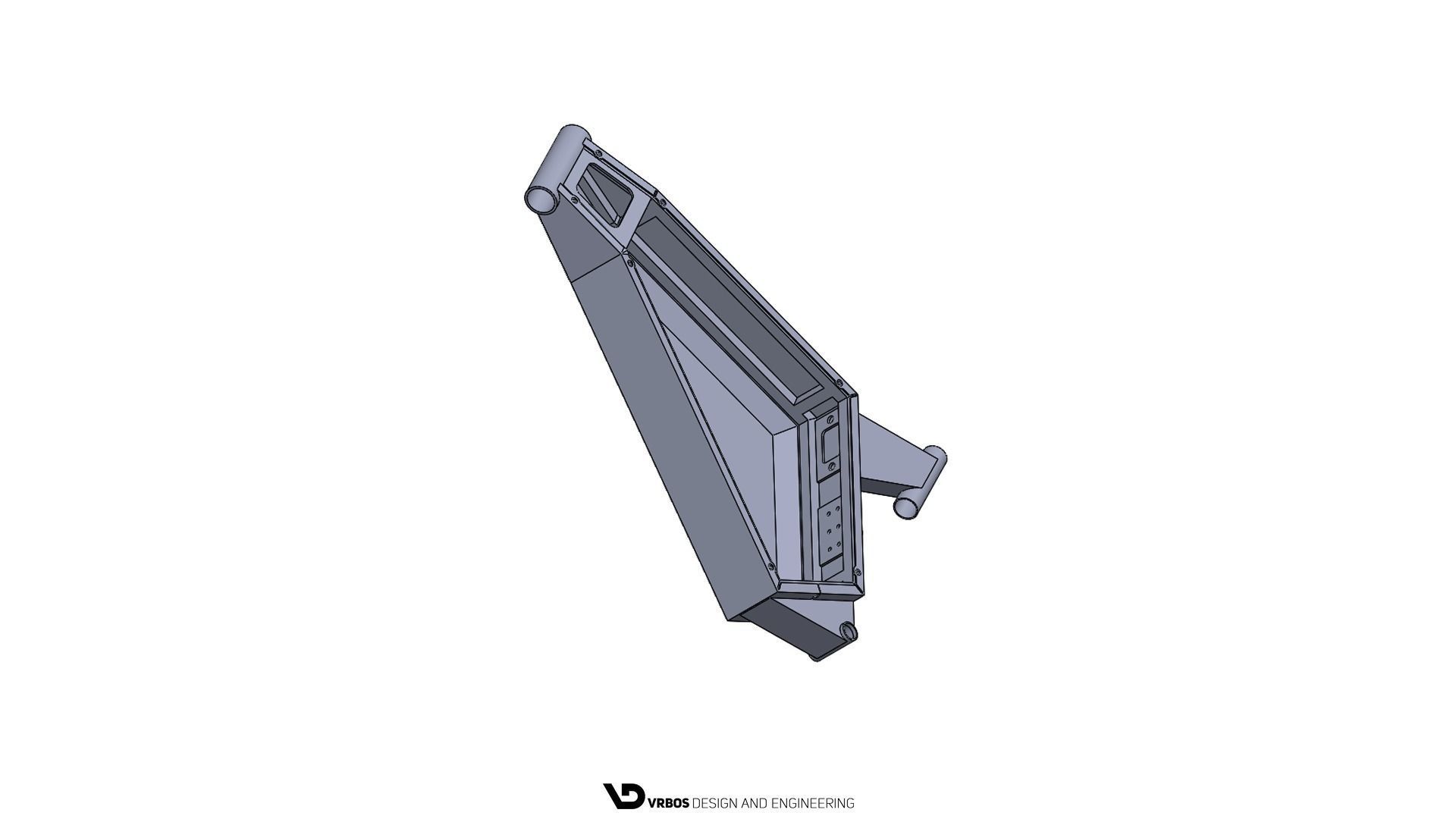

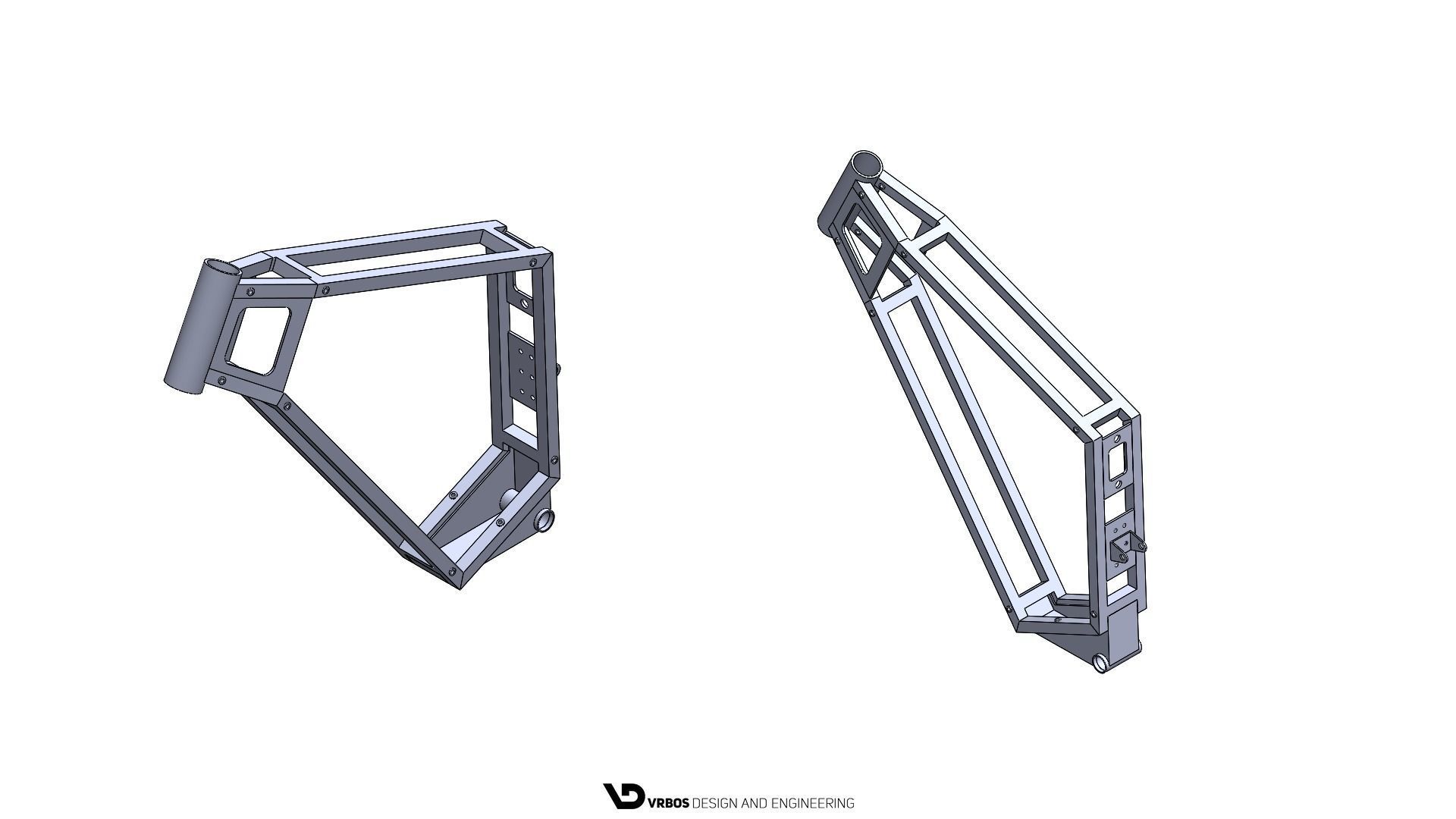

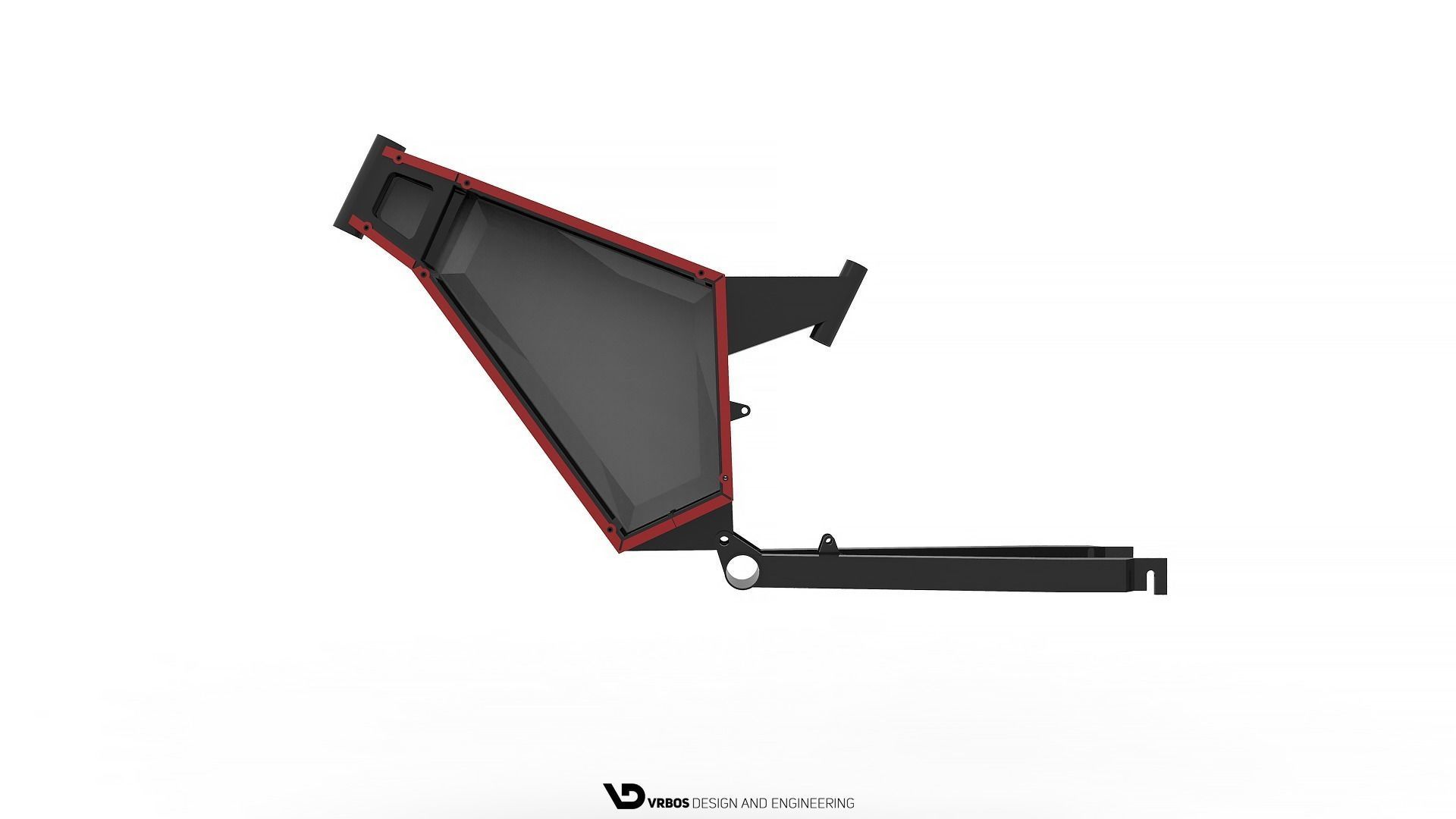

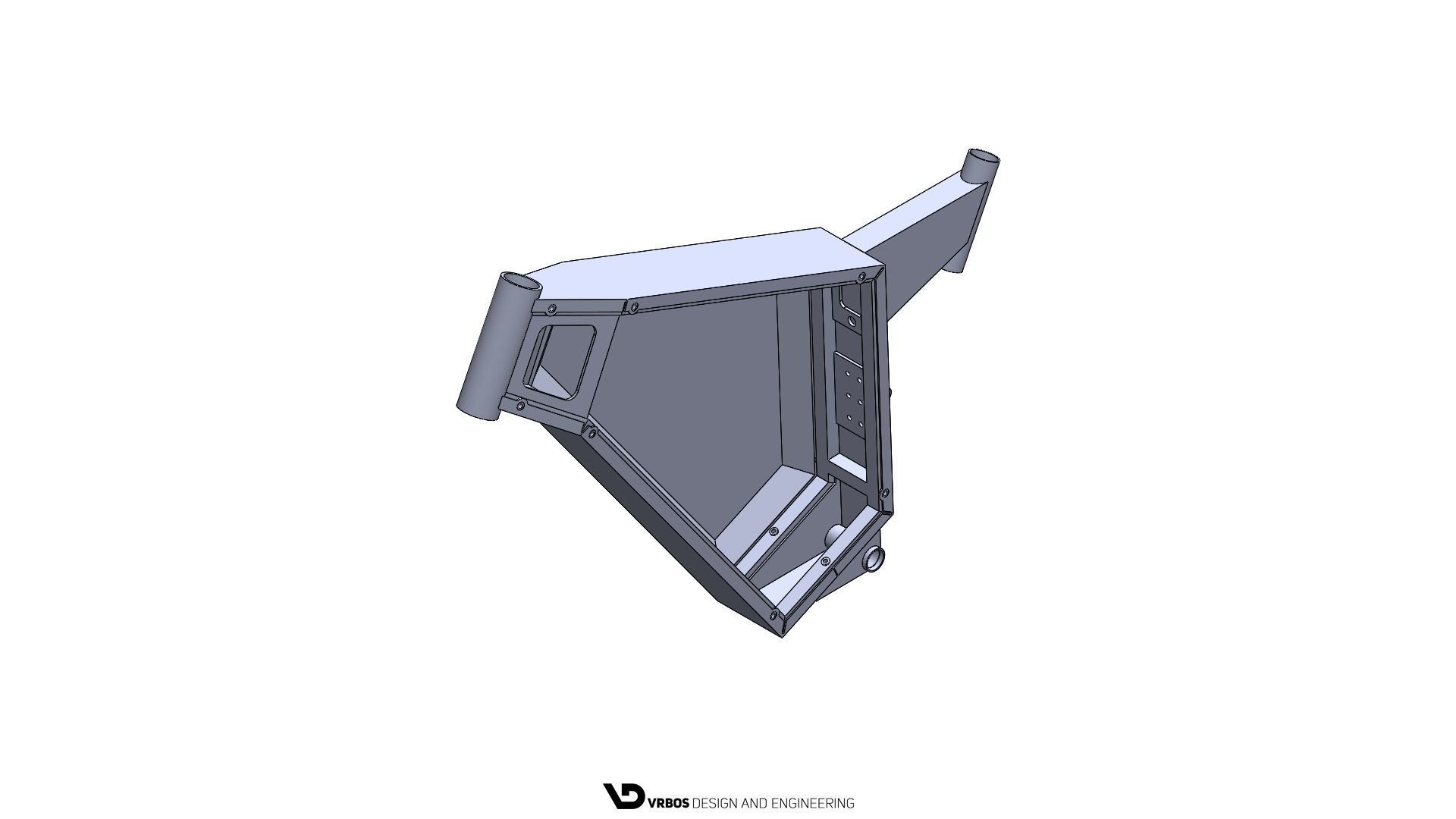

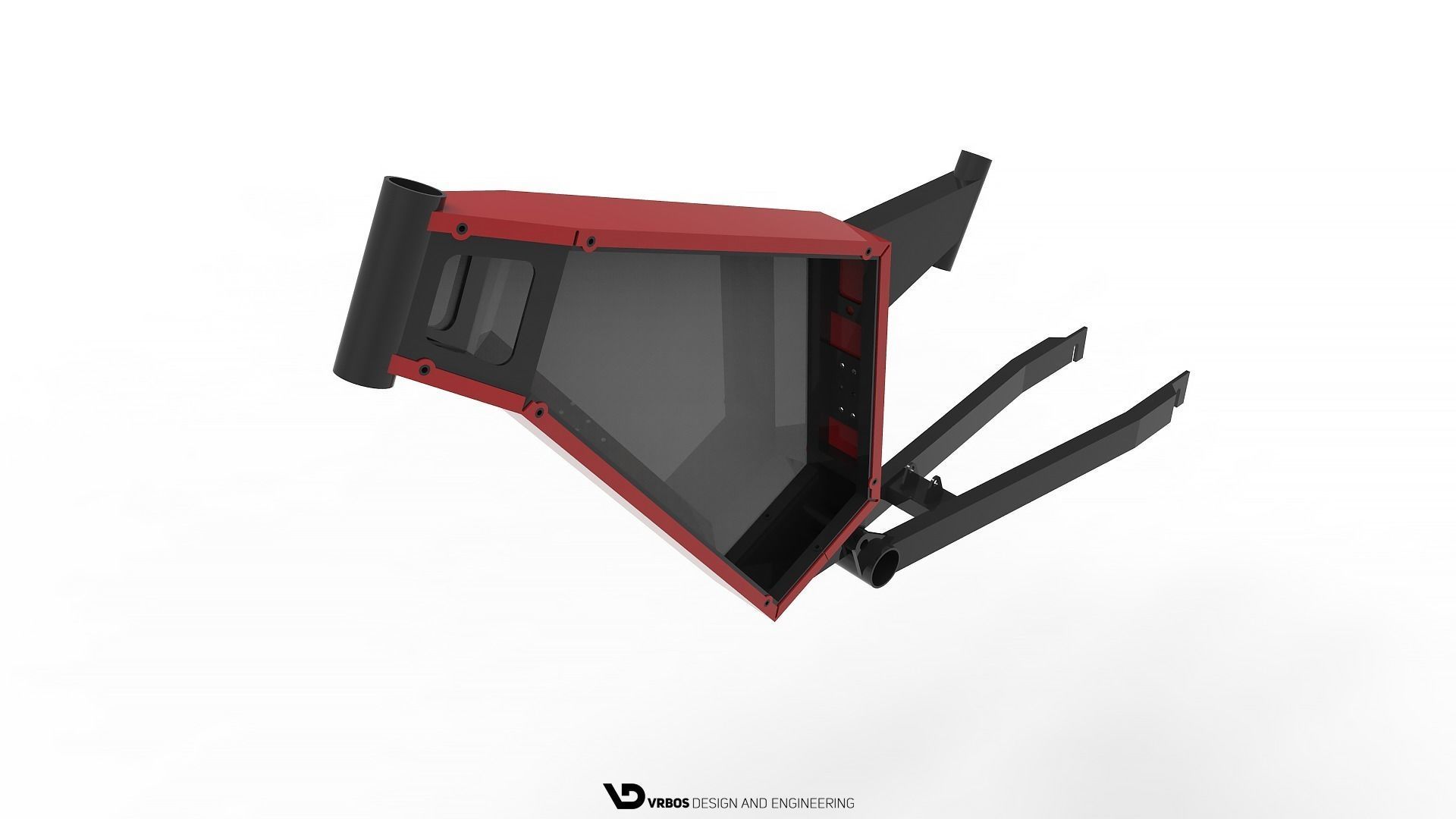

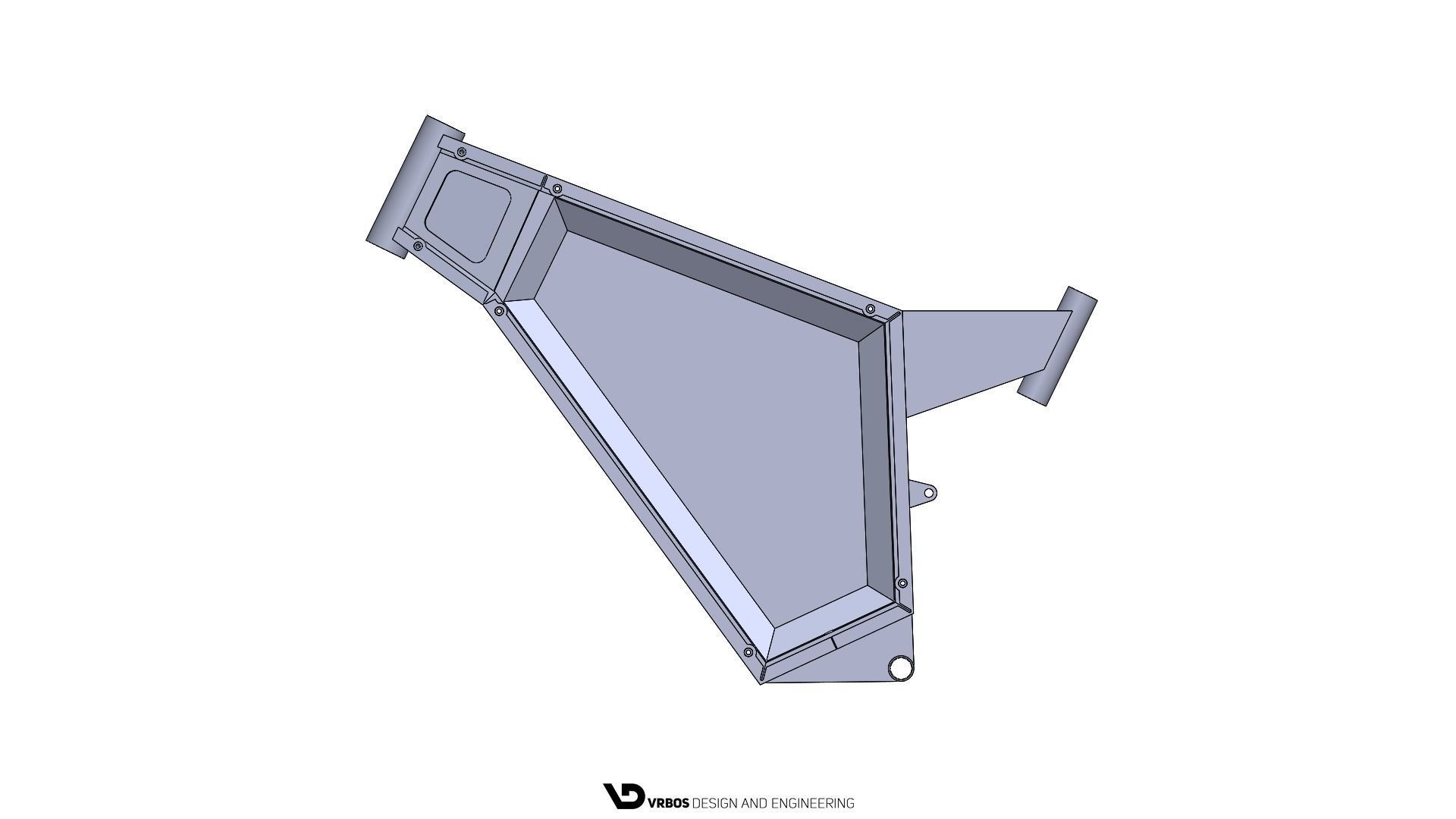

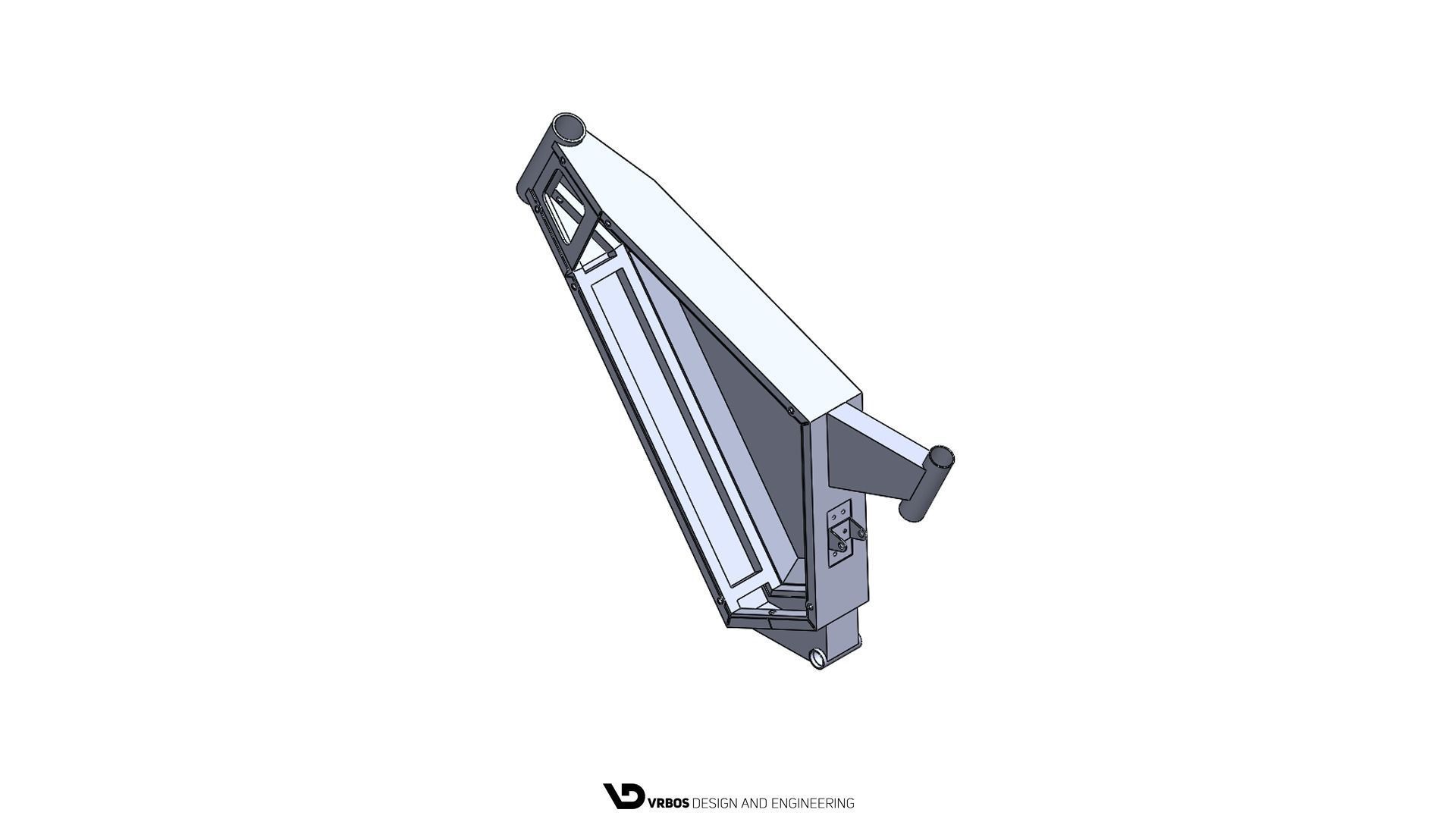

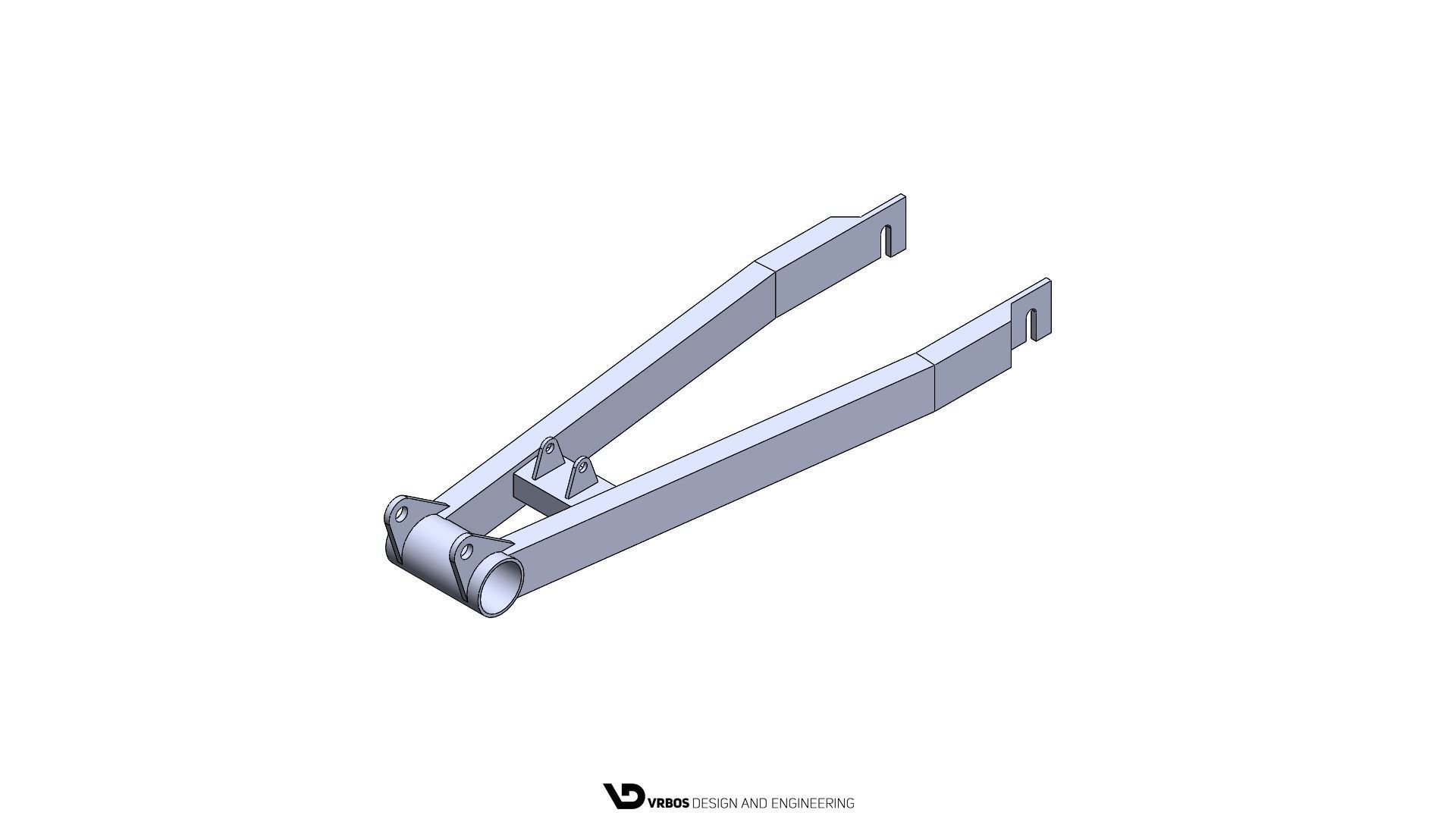

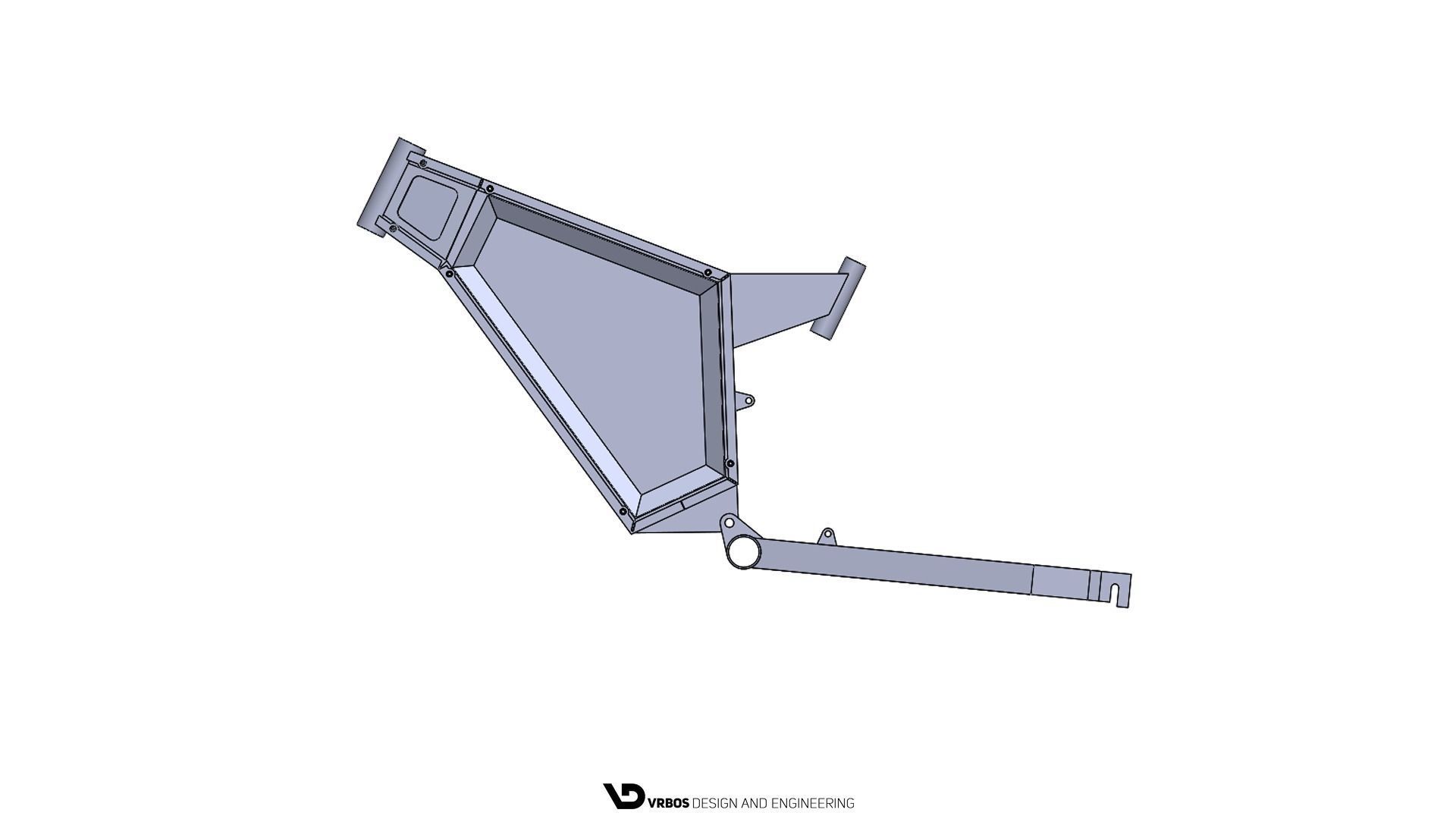

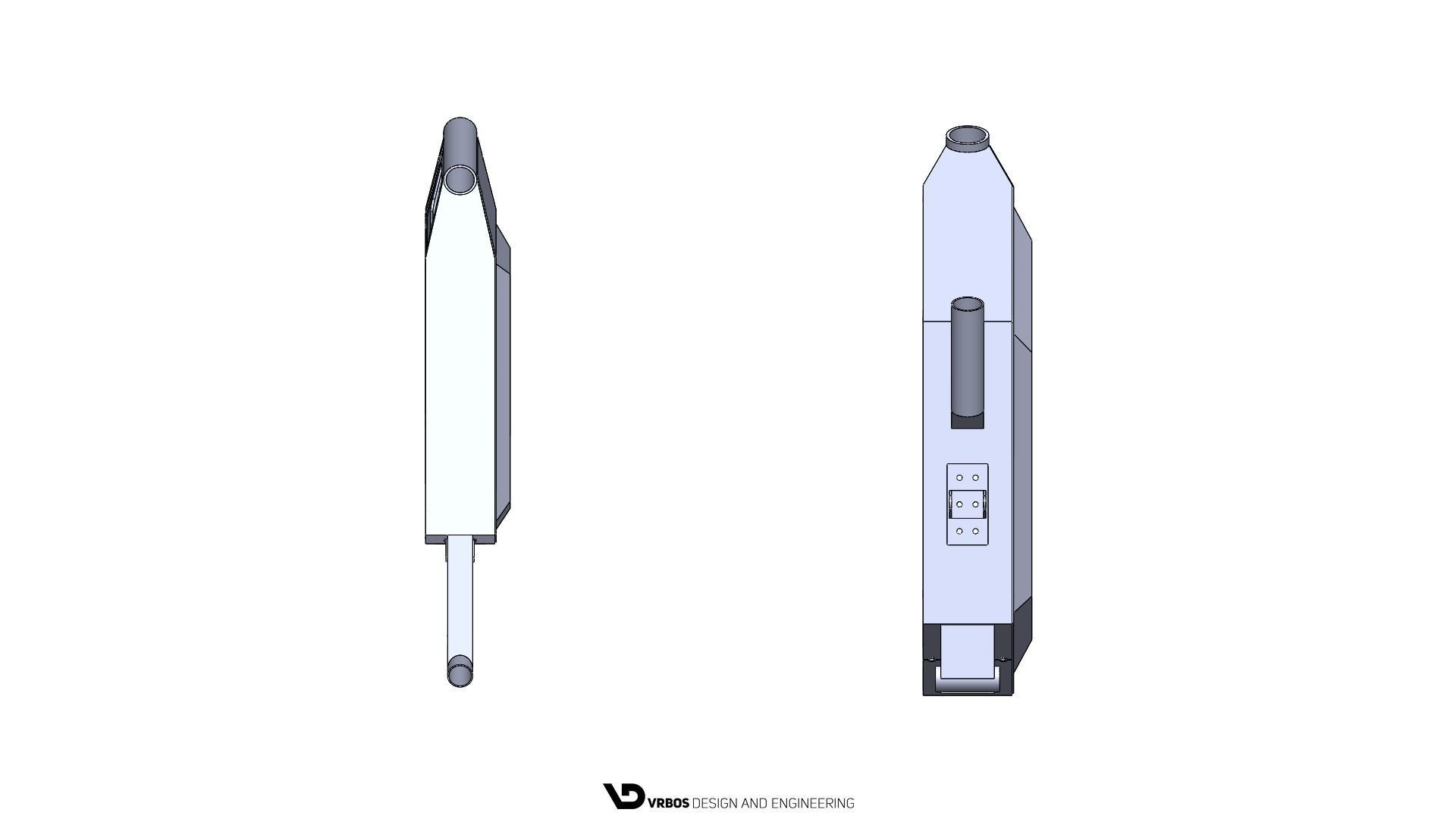

The Model includes components frame, cover1, cover2, swing arm.All parts and type of material is in files, and all dimensions, this model is ready to be build, and tested on stress simulation. On this model or build goes 27.5 inch wheels and you can put 3 battery packs on it. For more informations feel free to contact me :)

Davor Vrbos,VD design and engineering
