Round Diamond Brilliant Faceting Ideal Cut 3D model

Photo-realistic 3D model of Round Diamond, Brilliant Faceting, Ideal Cut. The model presents so-called ideal cut, mathematically calculated shape and proportions of brilliant faceting, which guarantee that light rays will not pass through the diamond but will reflect from its inner facets multiple times. The result of this are beautiful rainbow dispersion, that makes diamonds so pleasant to look at. Since the model provides precise proportions of ideal cut and accurate parameters of diamond material, the resulting renderings are the most life-like possible. Note, that all renderings of the model were made in absolutely neutral black and white studio environment. No colorful HDRI maps or colored lights were used. Also, the renderings are provided as is, without any post-processing, enhancements and after effects.

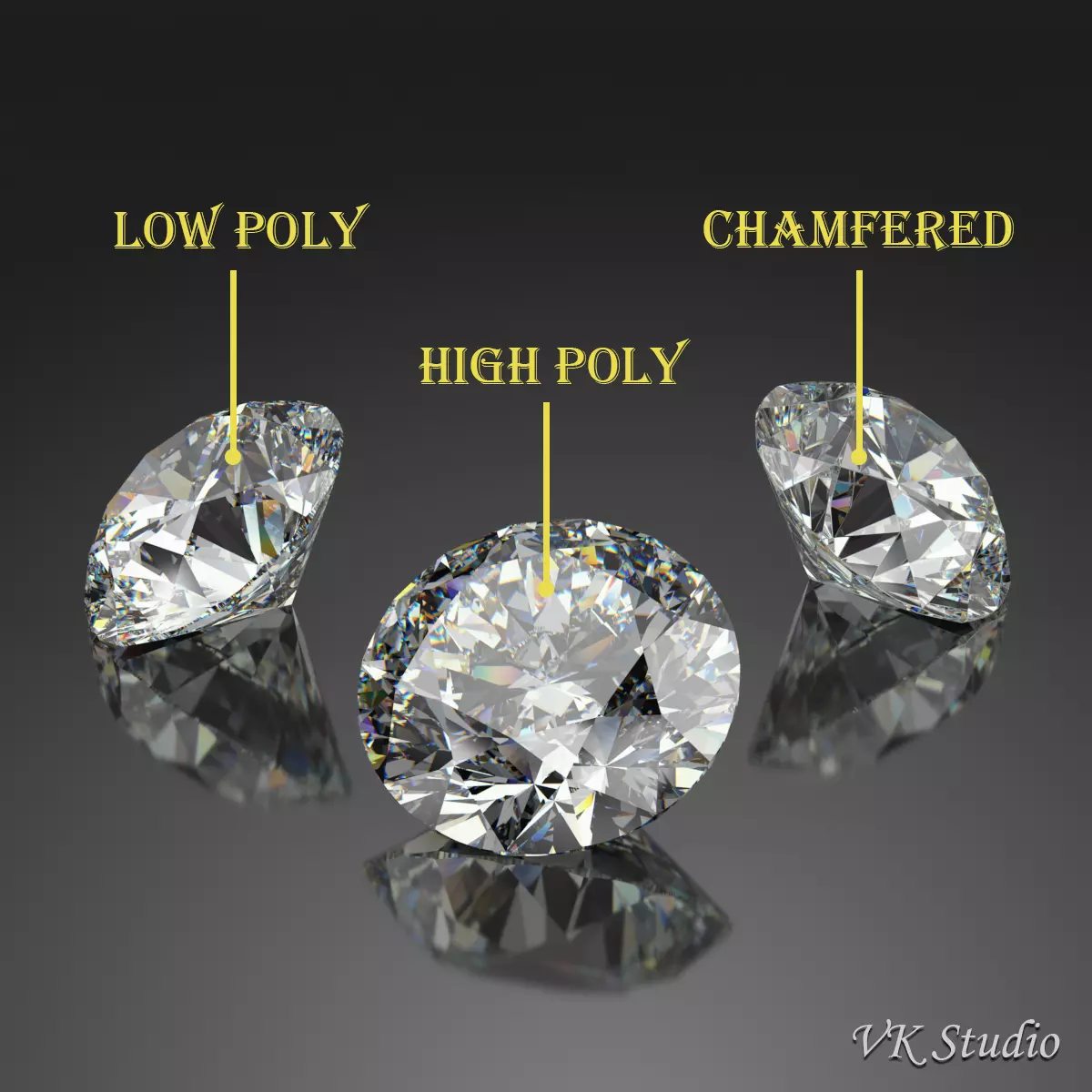

To make the use of the model as wide as possible, four topologies are provided:

• NURBS GEOMETRY - the initial design made in CAD program using NURBS shapes. Best to use in jewelry CAD designs.
• LOW POLY - polygonal topology with minimal number of polygons retaining the diamond's shape. The best for low-poly applications and scenes, where diamonds are placed far from the camera. Not for subdivision.
• HIGH POLY - polygonal topology with number of polygons enough to present the roundness of the diamond's girdle. The best for scenes, where group of diamonds is the main subject. Also this topology is good for the render engines having option to chamfer edges at rendering time. Not for subdivision.
• CHAMFERED - polygonal topology with chamfered edges and round girdle. This topology is the most realistic presentation of real diamond. The best for the scenes with extreme closeups of the diamond. For better result, the subdivision level 2 or higher is recommended for this topology renderings.

Features:

• Model provides level of details enough for close-up renders.
• Objects, groups, materials, textures in a scene have unique and meaningful names.
• Real world scale (system units - centimeters).
• Base of the models is at the World Origin (0,0) just above the grid.
• Clean non-overlapping UVs.
• Model is completely ready for visualization.
• The exchange formats were delivered with 3 levels of mesh subdivision (if applicable): 0, 1 and 2
• Each mesh is put in a separate file.
• Model previews were rendered in 3DS Max with V-Ray renderer.

File formats:

• max (Autodesk 3ds Max 2011+, V-Ray 2.40+ renderer)
• max (Autodesk 3ds Max 2011+, Mental Ray renderer)
• max (Autodesk 3ds Max 2015+, Corona 1.7+ renderer)
• max (Autodesk 3ds Max 2015+, Redshift 2.50+ renderer)
• ma (Autodesk Maya 2011+ (ASCII), Mental Ray renderer)
• c4d (Maxon Cinema 4D R13+, Standard renderer)
• c4d (Maxon Cinema 4D R13+, VRayforC4D 1.9+ renderer)
• 3dm (Rhinoceros 5+, default renderer)
• fbx (Autodesk FBX version 2013.3)
• obj (Wavefront Technologies)
• 3ds (3D Studio)
• step (Standard for the Exchange of Product model data)
• stl (Stereolithography)
• png (Preview images)
• pdf (User Guide)

Polygon count (4790 vertices, 4516 quads, 536 tris, no ngons):

• Diamond Low-Poly: 154 vertices, 148 quads, 8 tris
• Diamond High-Poly: 538 vertices, 276 quads, 520 tris
• Diamond Chamfered: 4098 vertices, 4092 quads, 8 tris

Dimensions (3,9 carats): W(1,0cm), L(1,0cm), H(0,6cm)

Properties:

• Materials: YES, procedural
• UVW mapping: YES, non-overlapping
• Textures: NO

Studio lighting setup is not included.
