Roman Dodecahedron

Roman Dodecahedron 3D model

Description

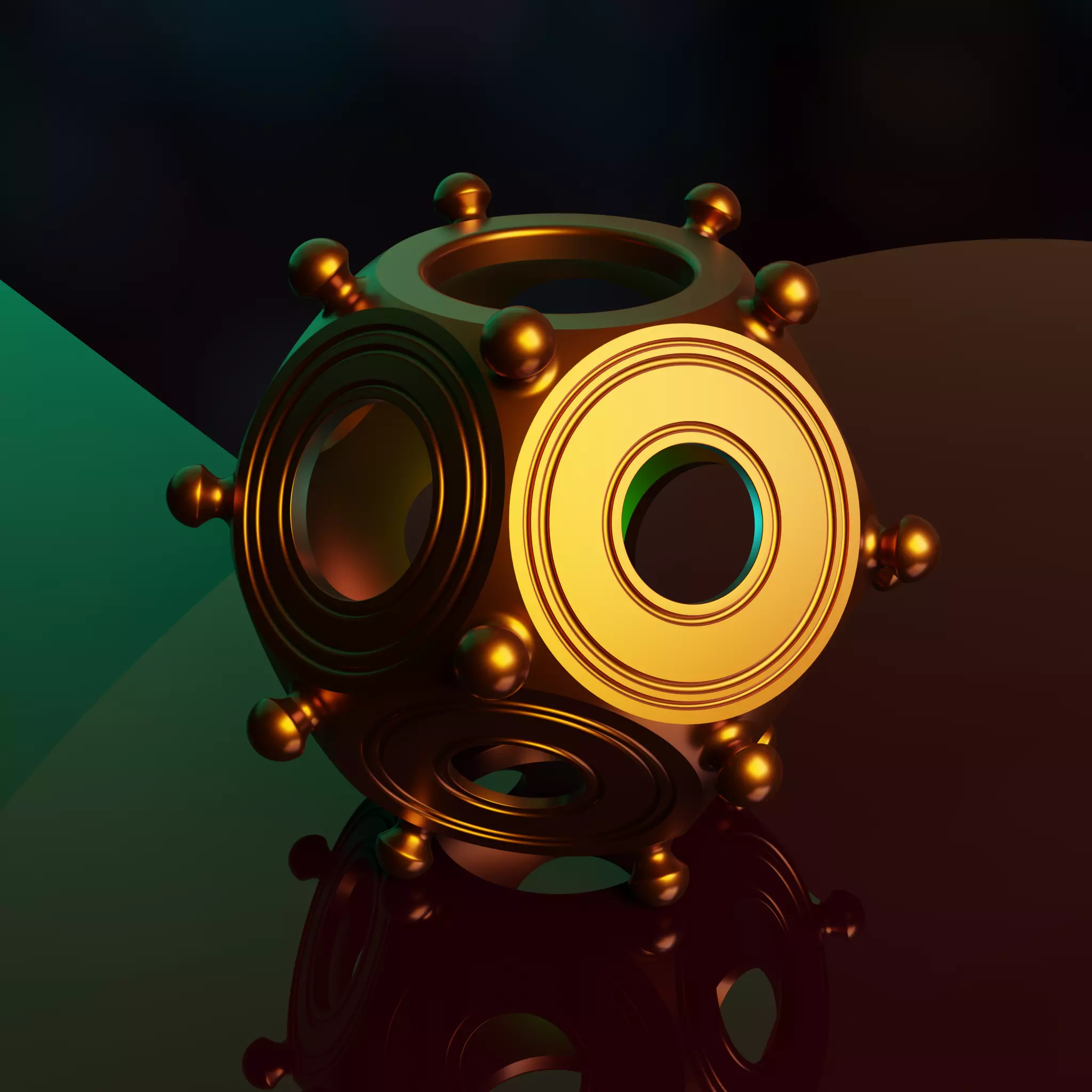

This is a very accurate model of the Brian Campbell dodecahedron, the model is to scale and all dimensions should be accurate. This is more of a rendering or 3D printing model, as the topology is bad which results in there being no uv map. this is a very highpoly model with around 350,000 faces. This model includes the original Blender file.

H
hardwickleigh-52649a 2024-05-01 02:46:58 UTC
First, no complaints. Your model is visually just like the images of the Brian Campbell dodecahedron. Beautiful. I used Rhino 6 to check the mesh and run repairs. The geometry has caused the common problem of non-manifold edges and some other issues which mostly resolved through the repair wizard. I finished by converting the model in Meshmixer into a solid which then imported without issue into Anycubic's Slicing software. Odd method but it works for me! Yes, scale. I often double check import sizes as different programs seem to fix different units so decimal points can jump around. I predicted that the finish size on the 'circular' plan view would be 68.7mm ( hence the 1000 re- scale) so a meter to mm unit error. I now hold a very nice resin print which once held just adds to the mystery of these things! Thank you.
H
hardwickleigh-52649a 2024-04-30 04:40:41 UTC
Good looking model but it is correct to say that it is not 'print ready'. It will take some work to correct the .obj or .stl mesh to get it print ready. I also found that the scale was not 1:1 and had to enlarge by 1000% to get it to a size I guessed was correct. That said, it's a fun project so the work and research is all part of the process.
OriginalAgentSmith
OriginalAgentSmith 2024-04-30 21:06:40 UTC
The base model does have some problems with the knobs that made Cura have some errors, there should be a printable model in the downloaded folder that should work good with Cura. I designed this model to be printed with a resin printer which I have been looking into getting, but I'm unsure if the software will have any problems with the topology or scale. I did check and I used blender to model the Dodecahedron using real dimensions, but it exported it at the wrong scale so that's something I have to fix. What program are you using? It would be good to know so I can make a compatible model and add it to the downloads.
Item rating
0 0
Roman Dodecahedron
$10.00

Royalty Free License
Roman Dodecahedron
$10.00

Royalty Free License
Response 0% in 48.0h
3D Modeling
3D Print Modeling
Low-poly Modeling
Rigging
Texturing
Animating
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Blender 3.6.0 (.blend)35 MBVersion: 3.6.0Renderer: Cycles
Exchange
  • Autodesk FBX (.fbx)17.3 MB
  • Stereolithography (.stl)33.2 MB
  • OBJ (.obj, .mtl)40.1 MB

3D Model details

  • Publish date2023-10-14
  • Model ID#4836779
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 237,995
  • Vertices 254,852
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
