Parametric cycloidal gear
Parametric cycloidal gear 3D model
  • Parametric cycloidal gear 3D model_0
1 / 1
Useto navigate. Pressescto quit

Parametric cycloidal gear 3D model

Description

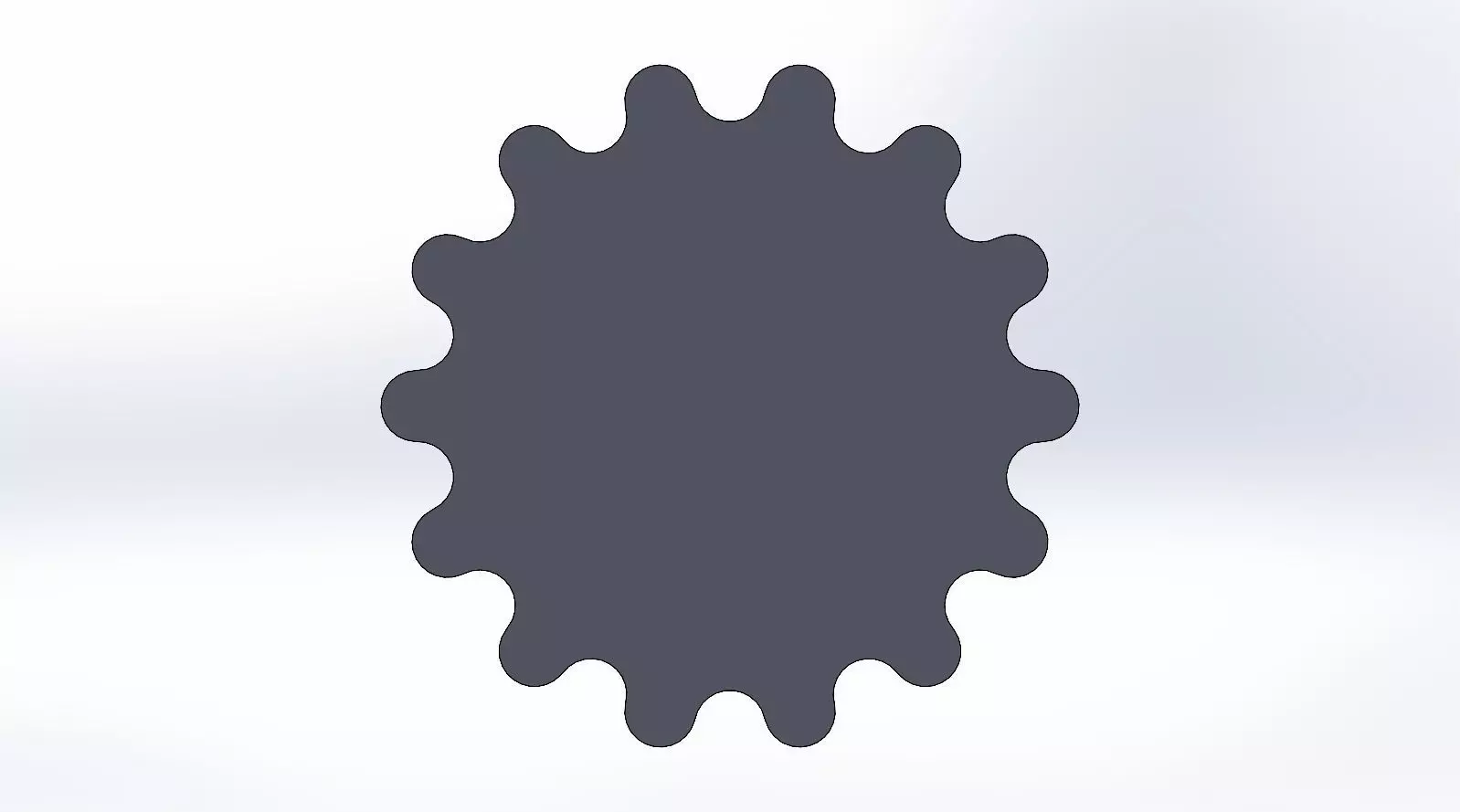

Cycloidal gear tooth profile drawn with equations and, patterned.

  • modify Z which is the numbe rof teeth.
  • modify M which is the neareast module.
  • mirror the for consturction part, and set its property to normal.*pattern the full tooth profile to the dezired number of theeth.
