Mold Design - B01 3D model
Description

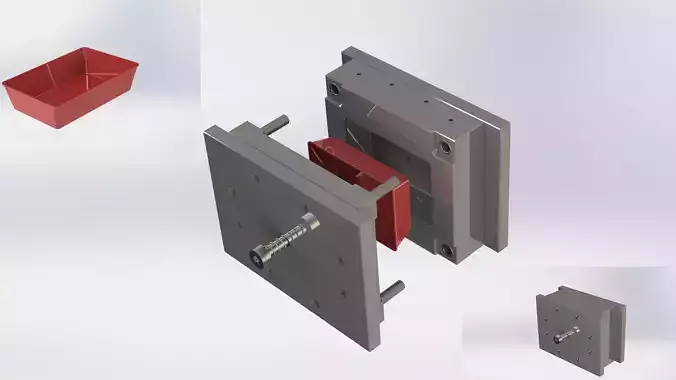

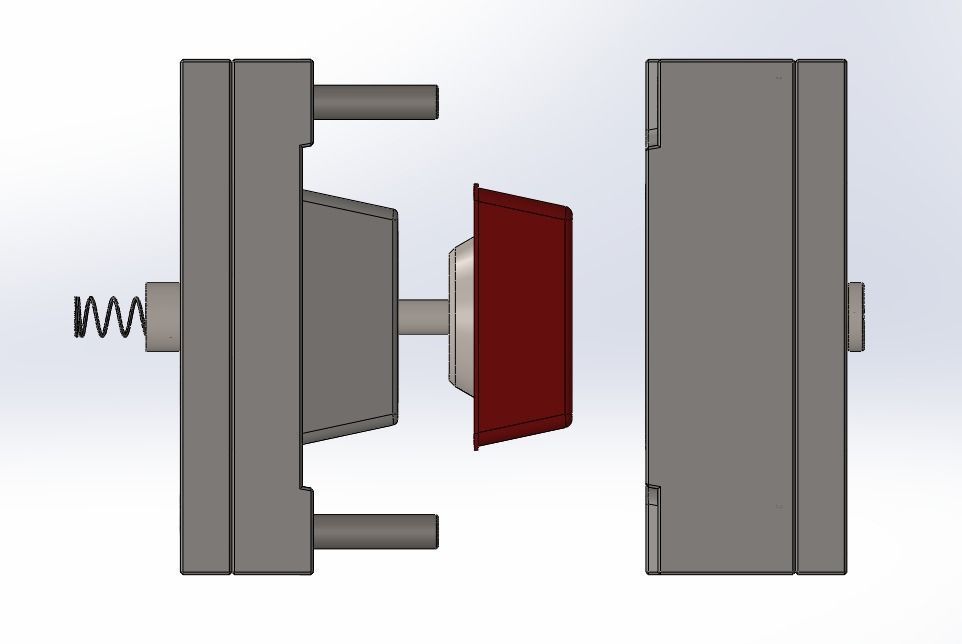

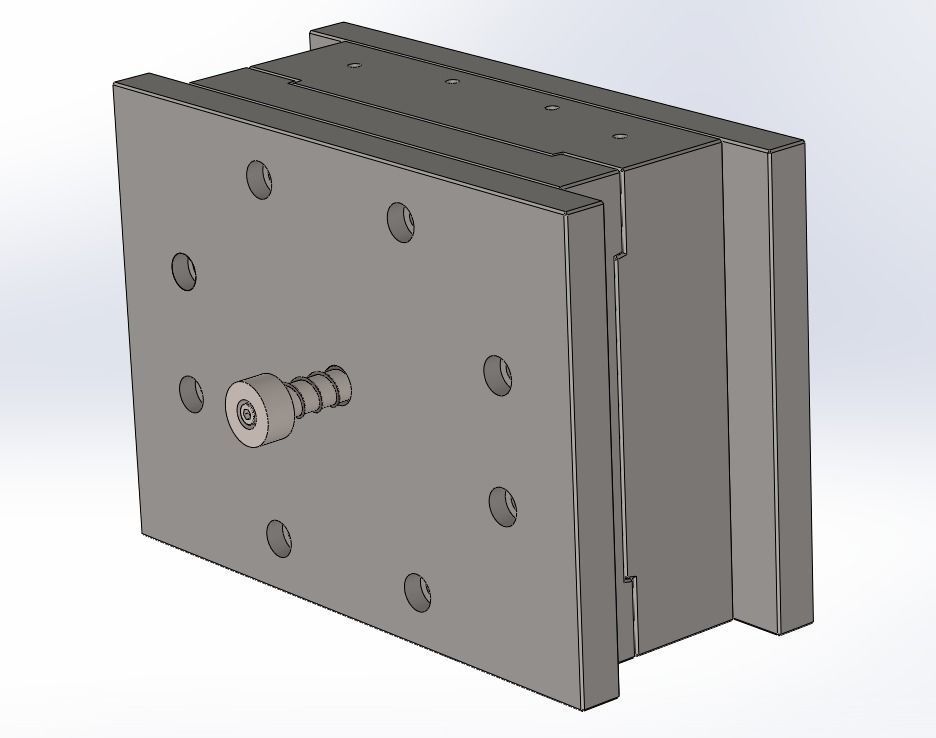

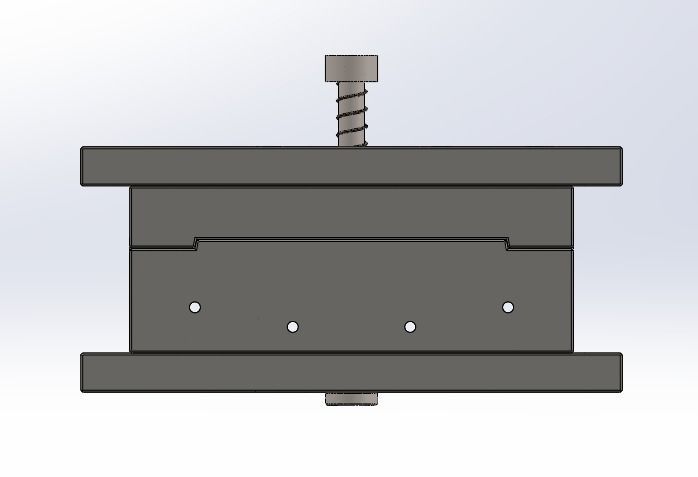

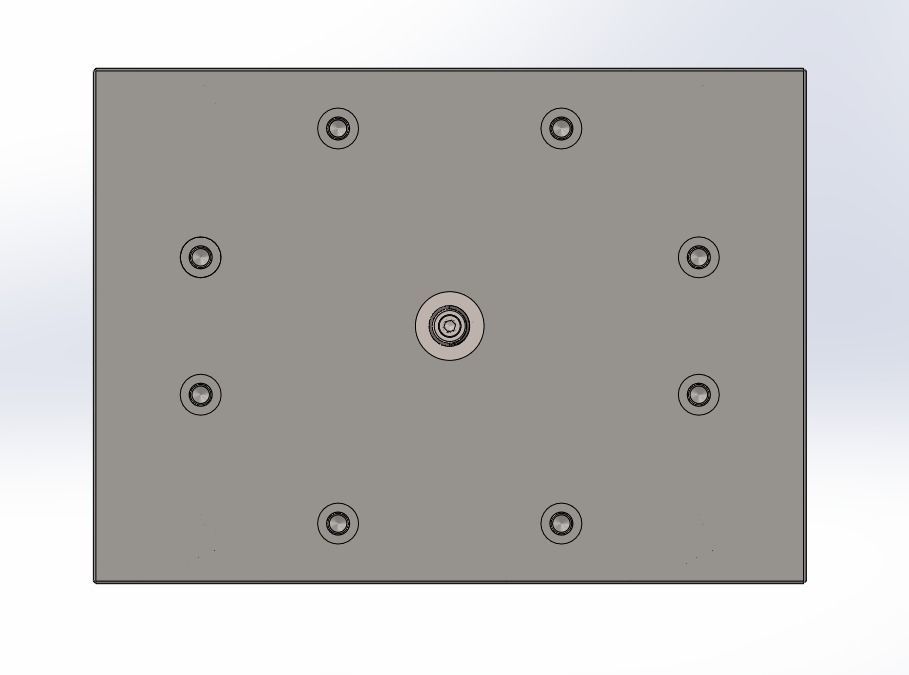

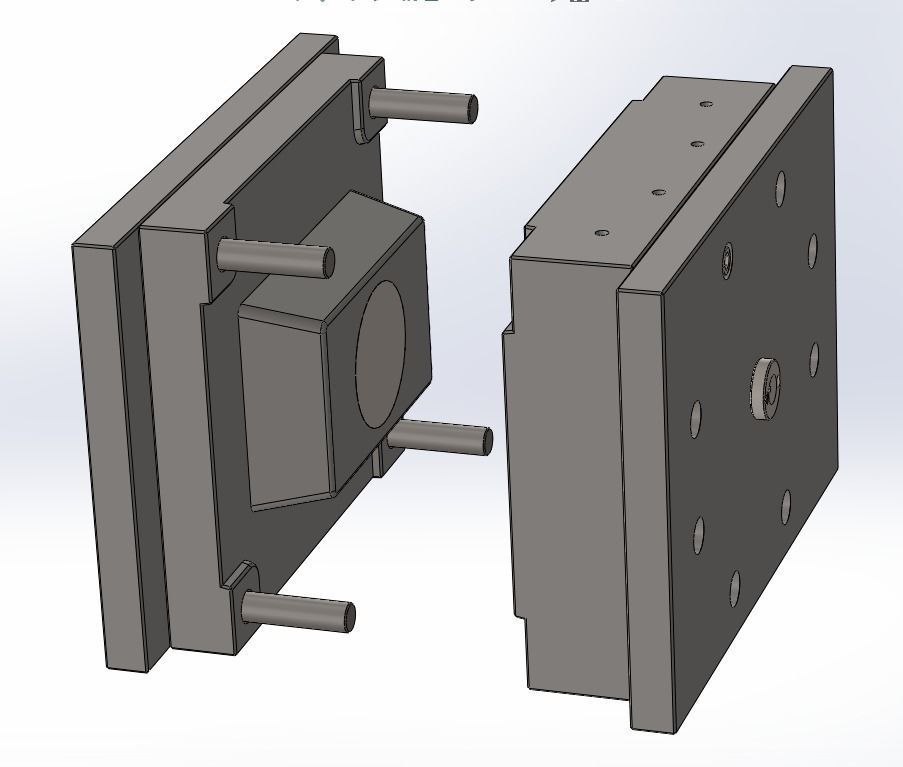

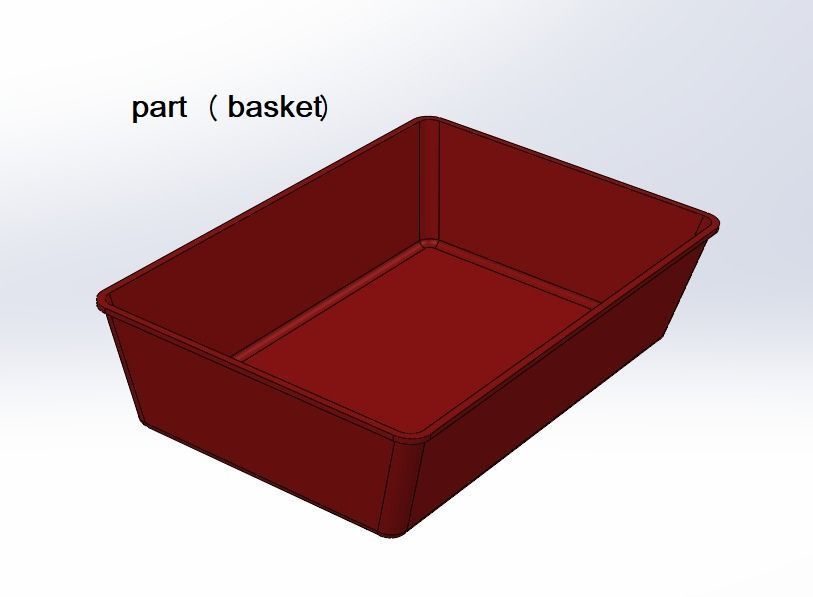

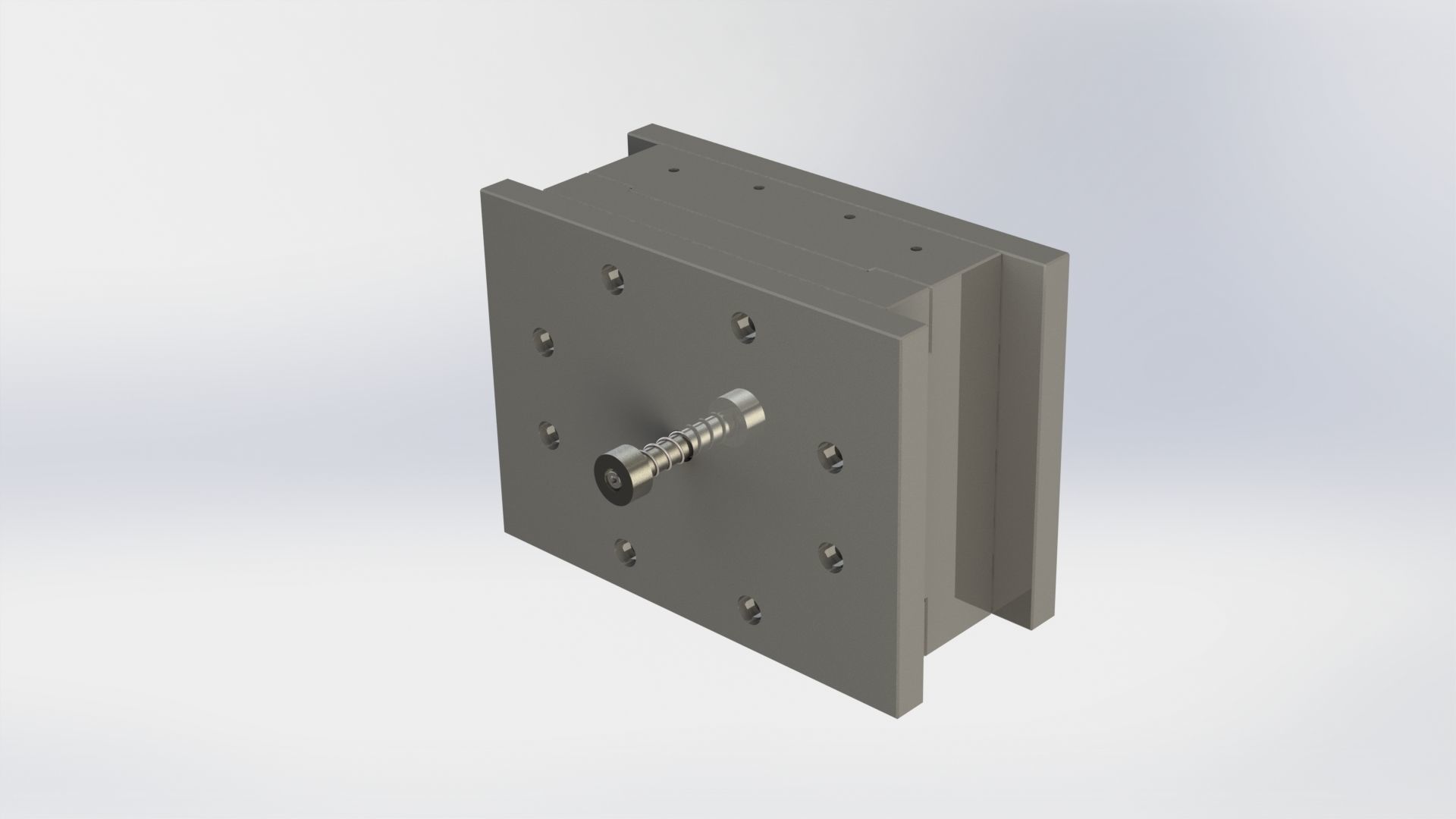

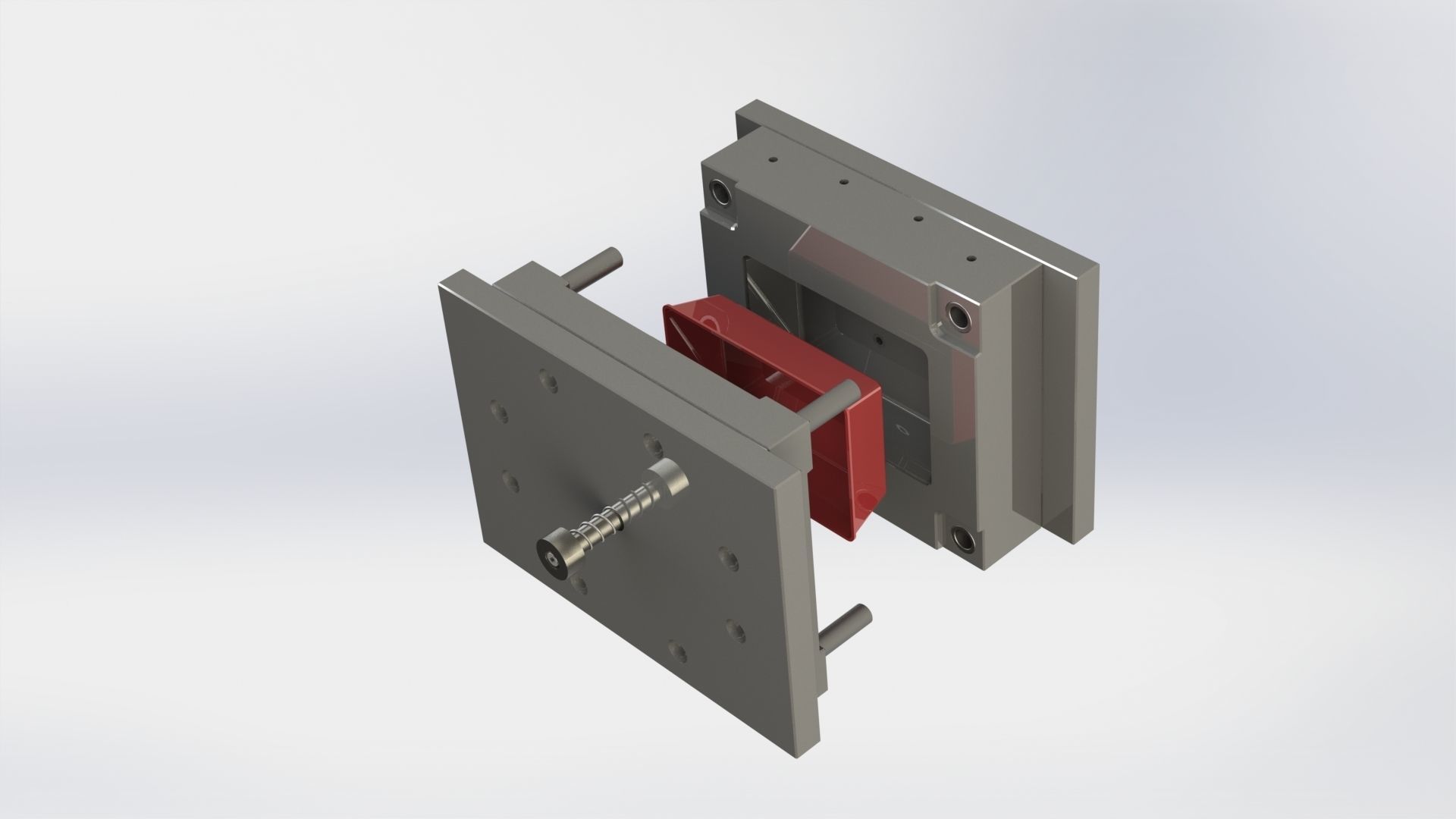

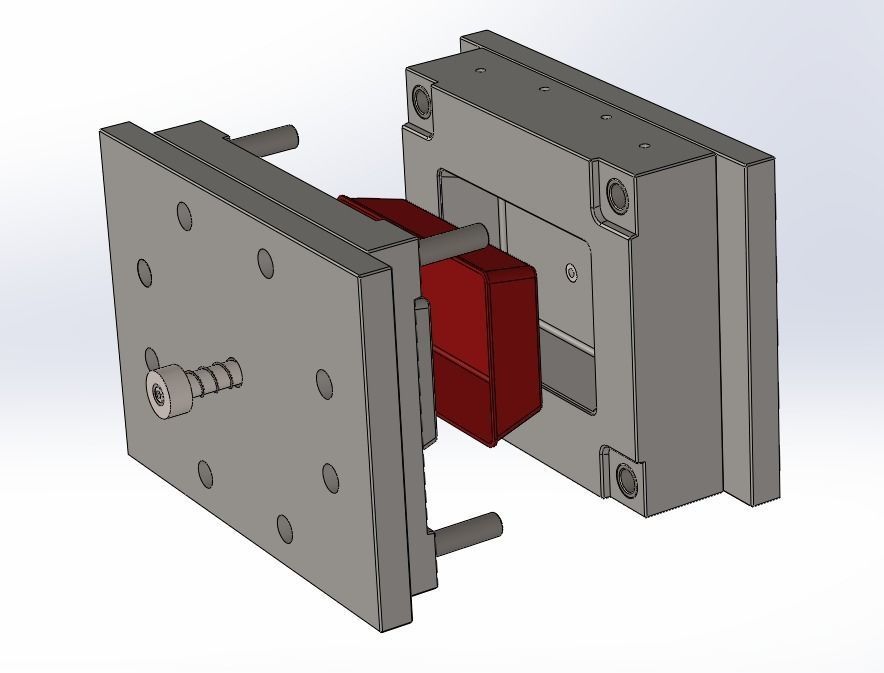

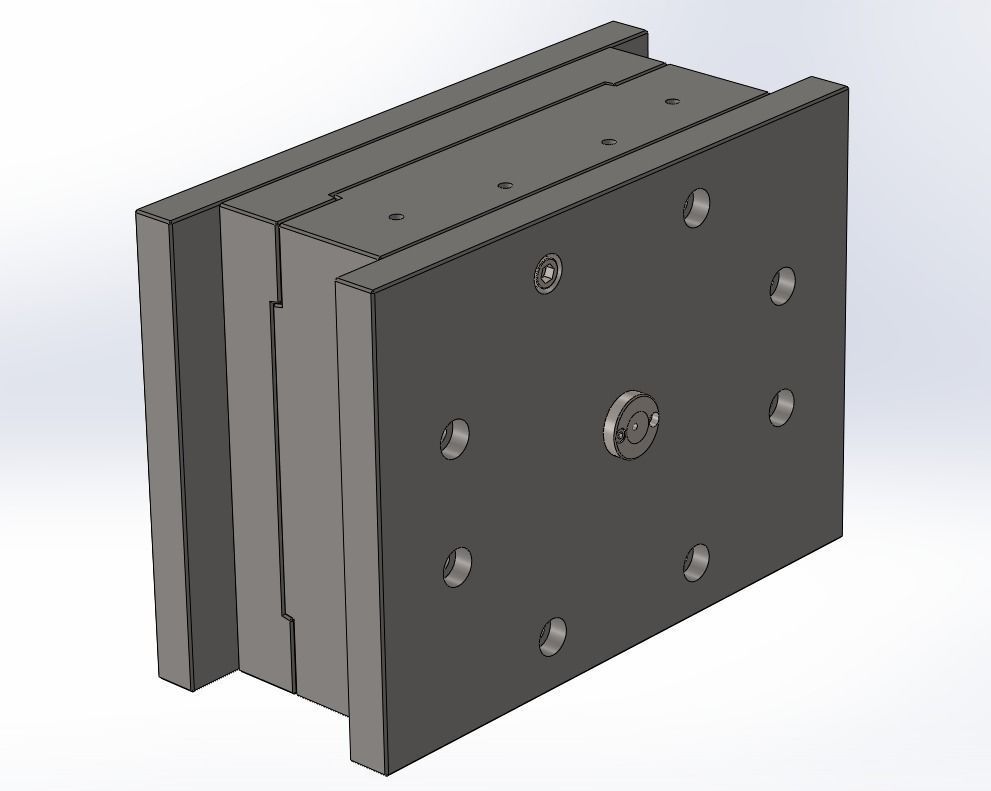

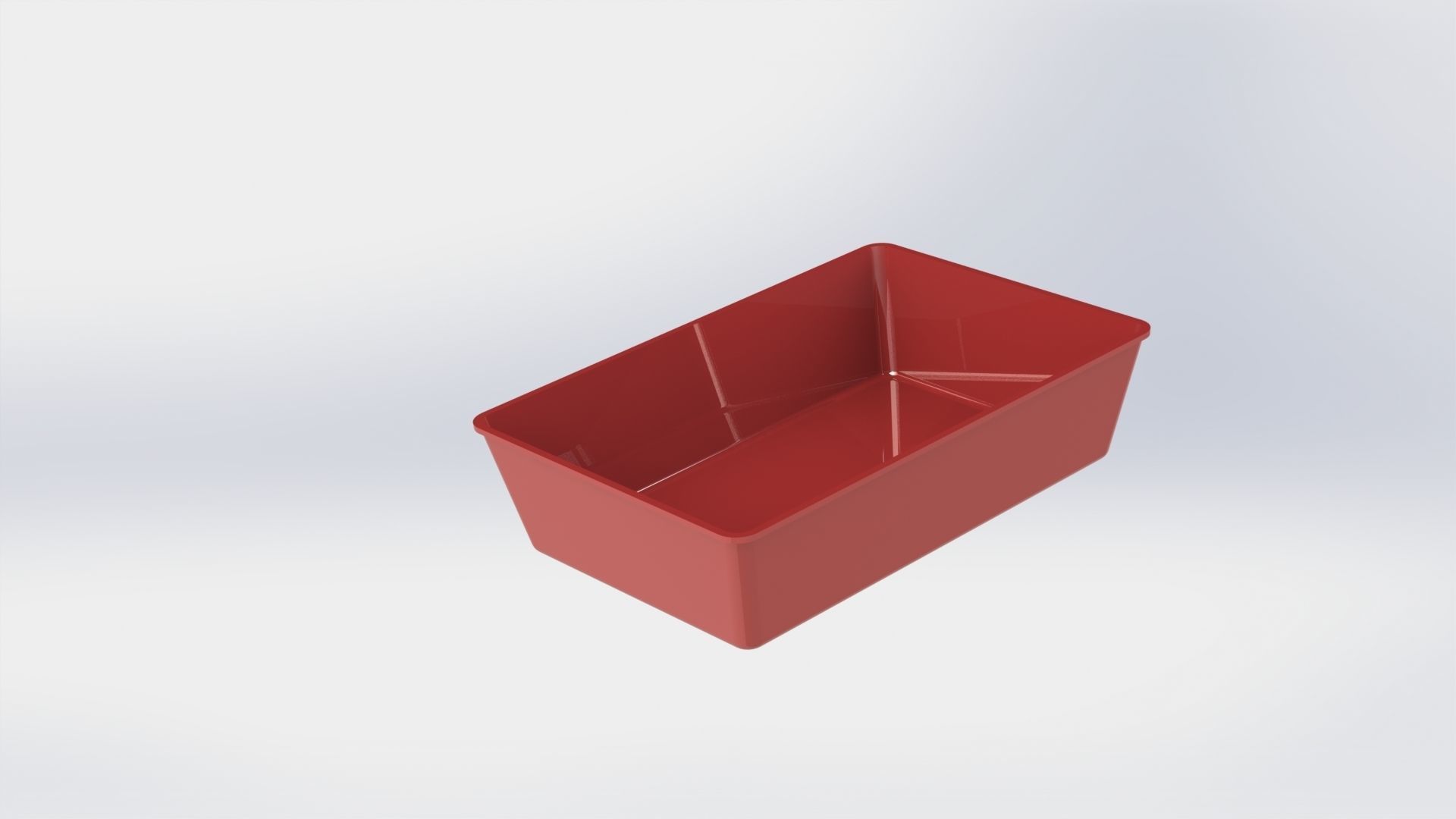

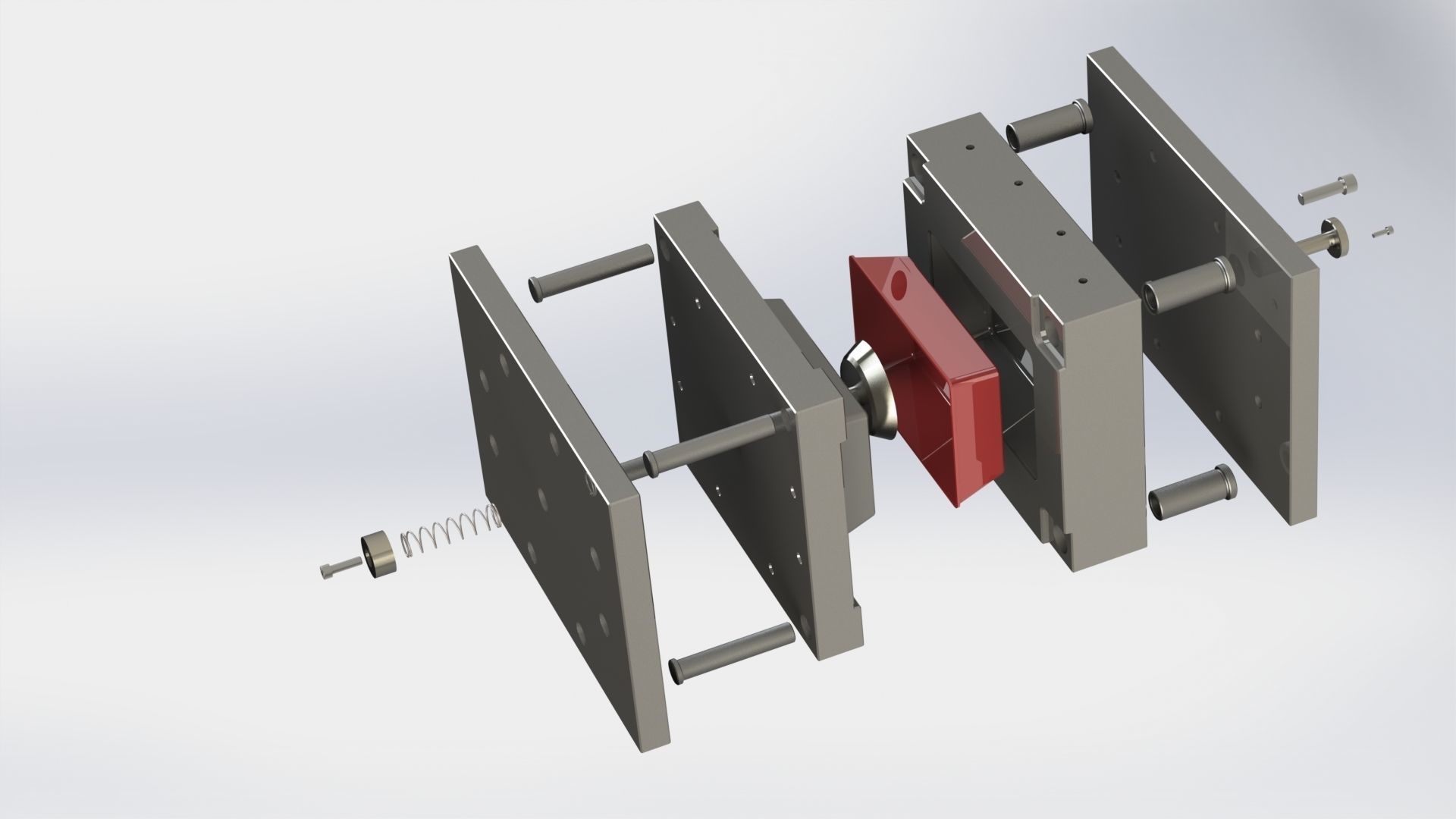

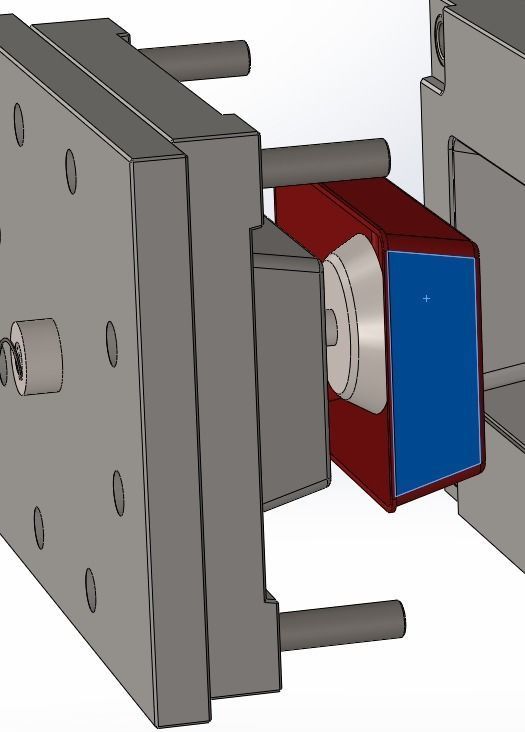

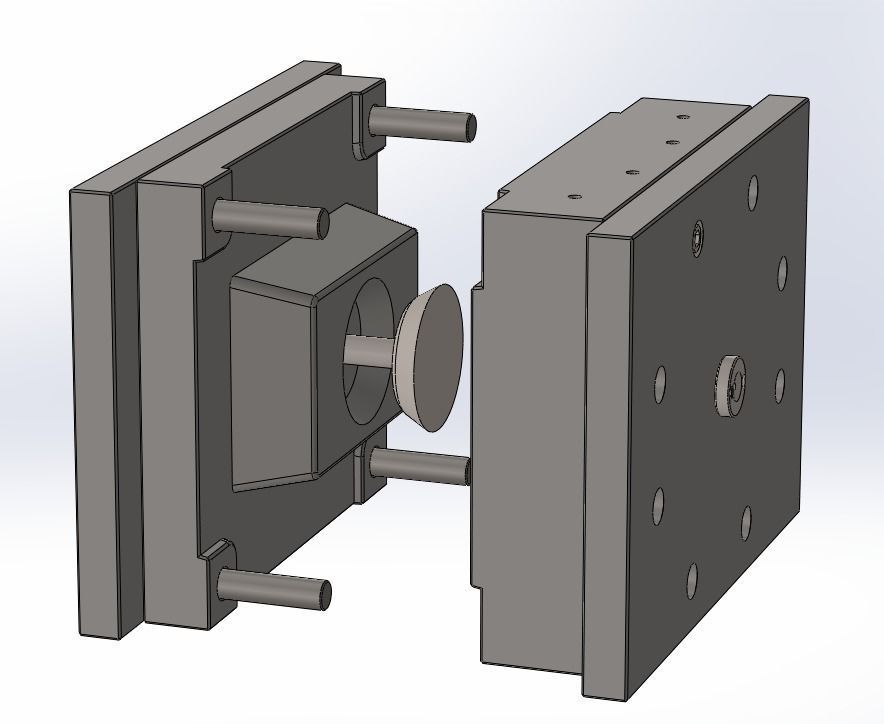

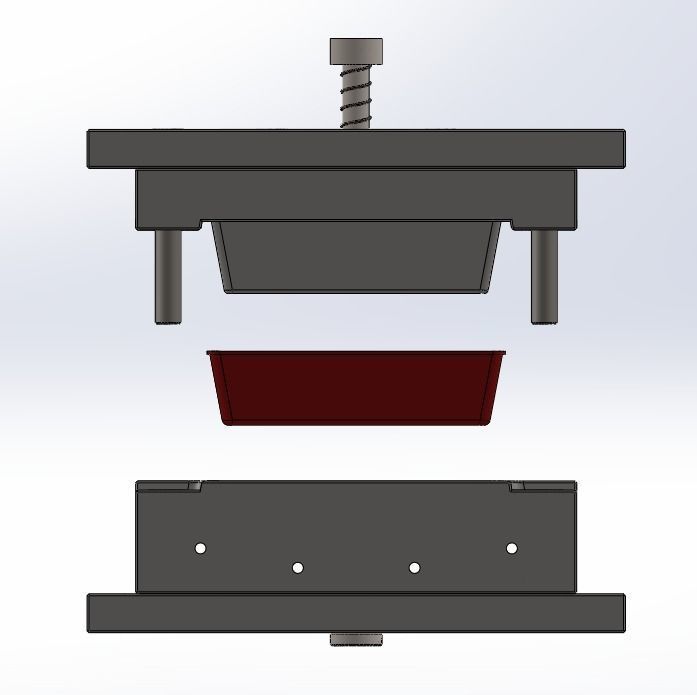

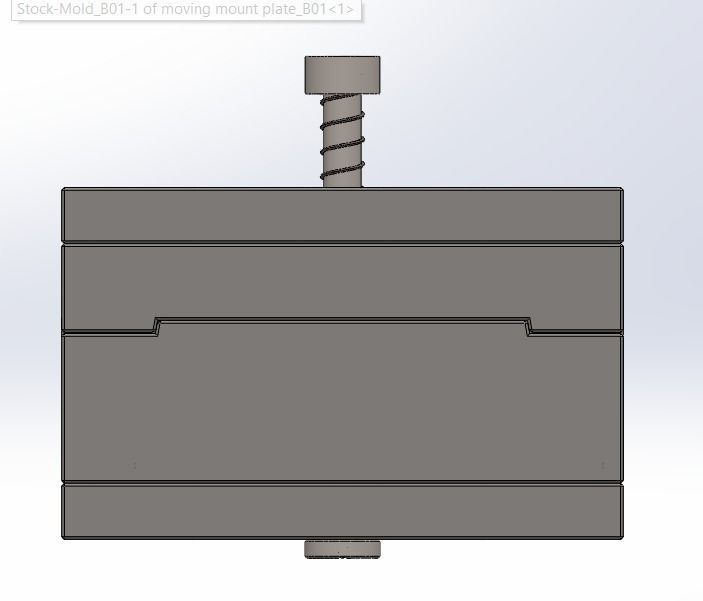

3D SolidWorks model of simple basket mold.

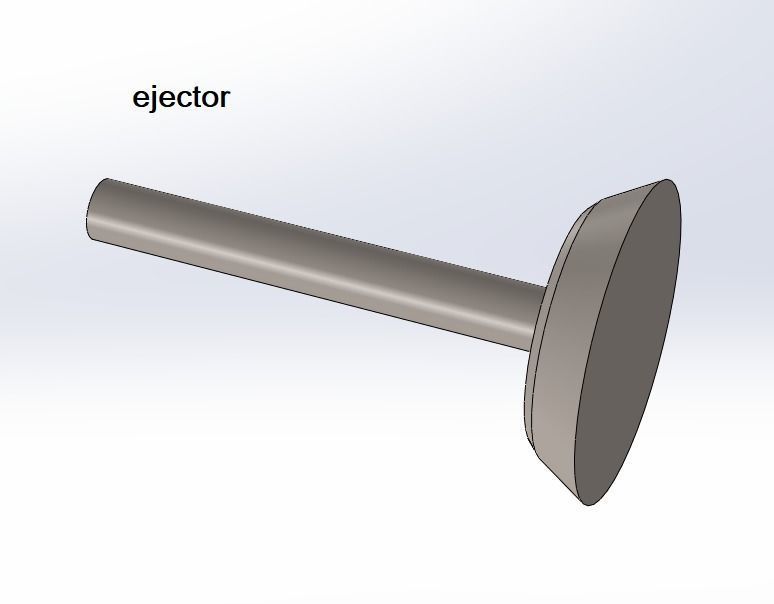

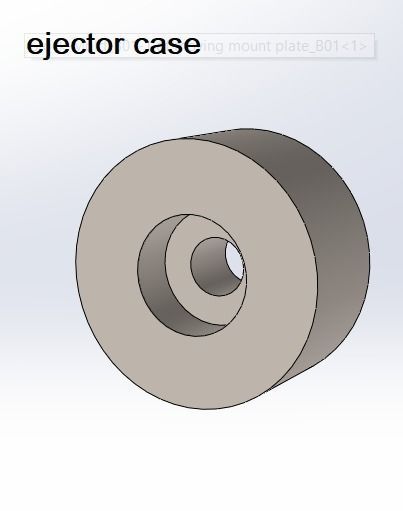

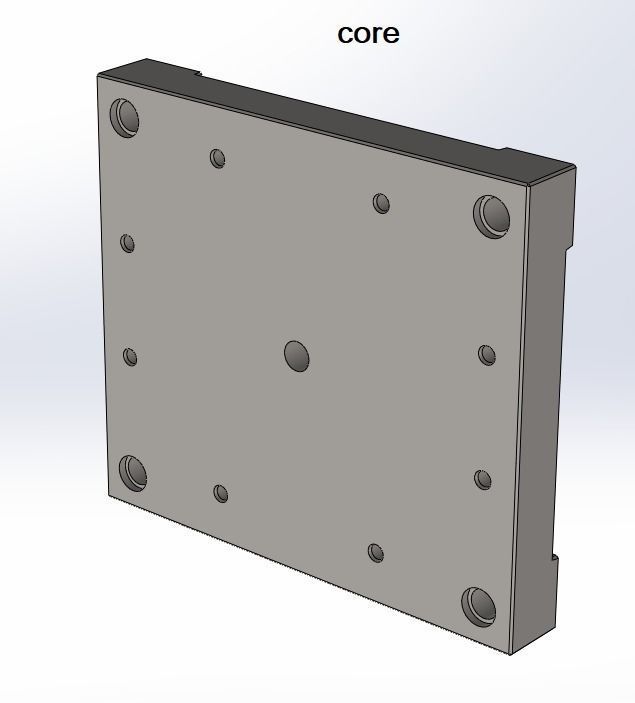

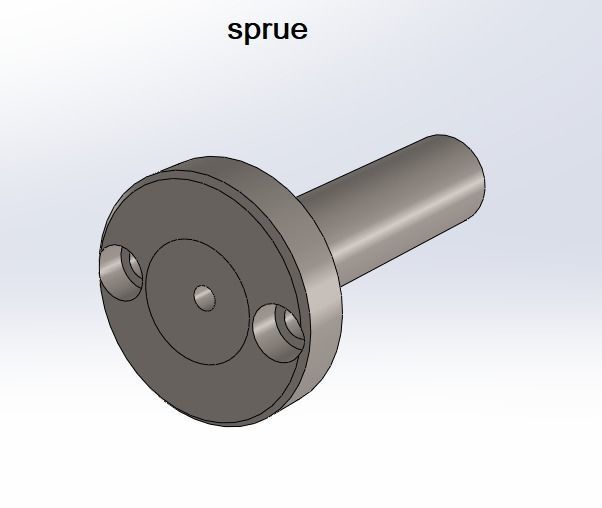

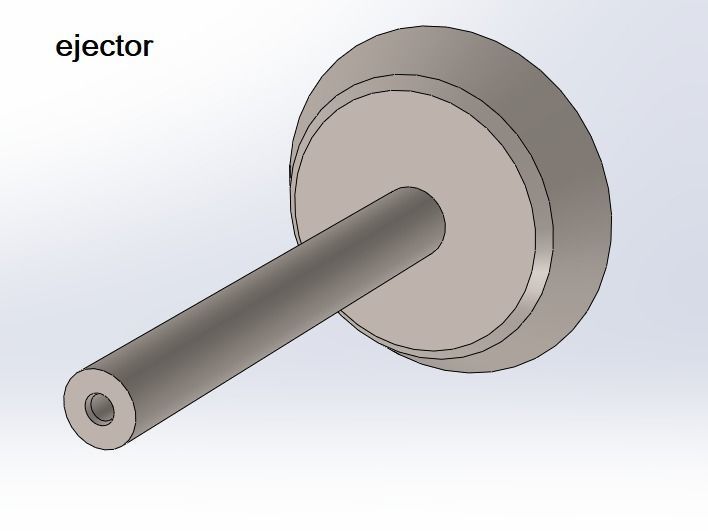

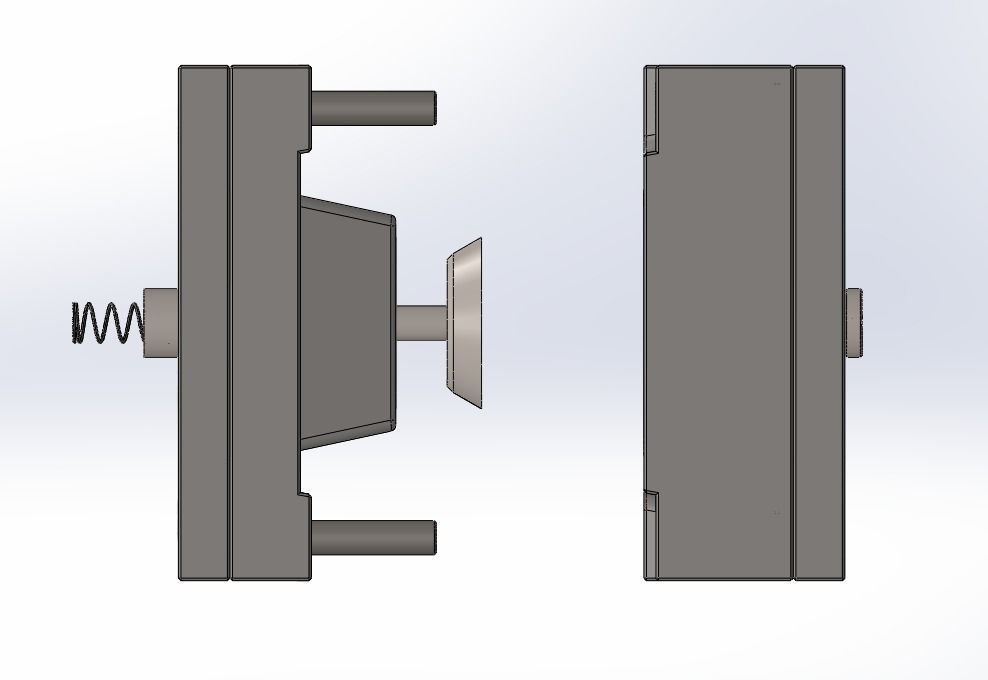

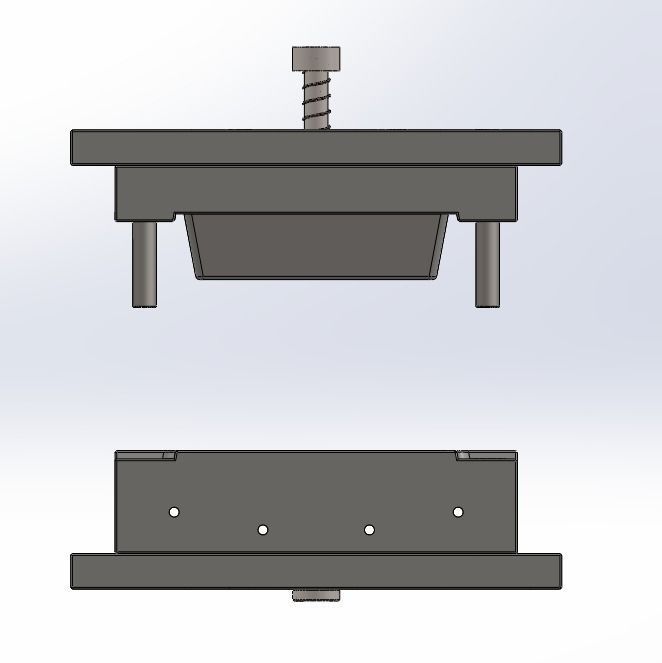

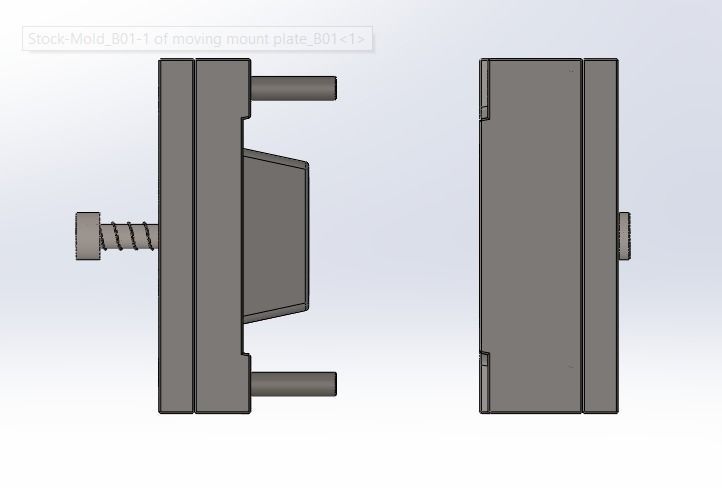

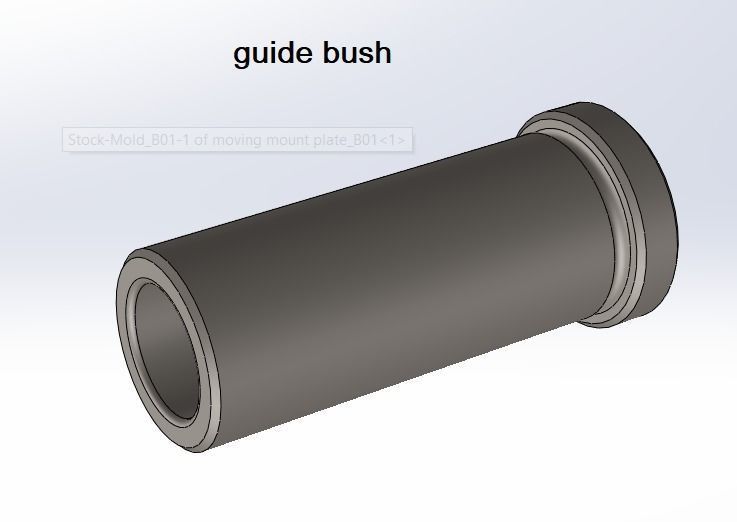

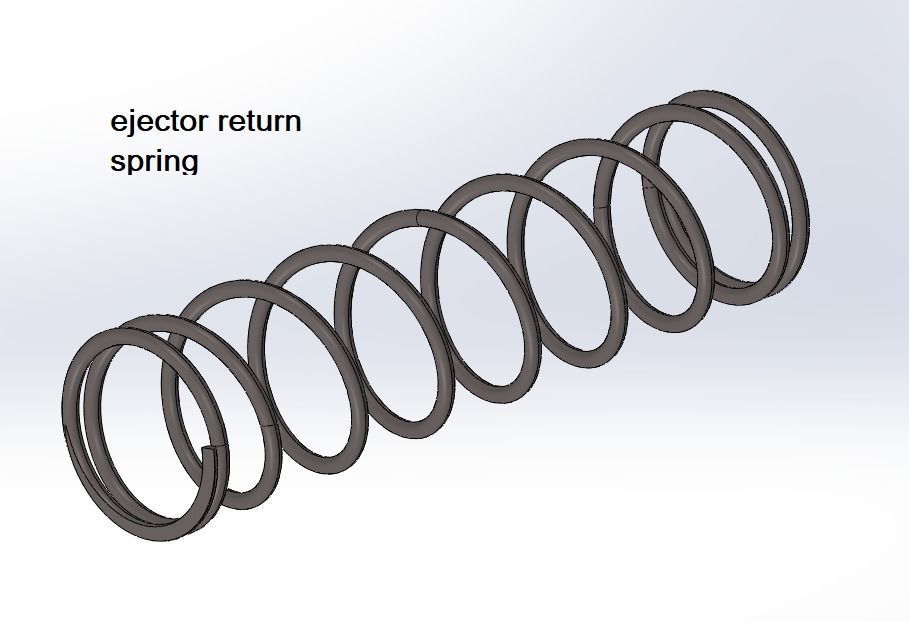

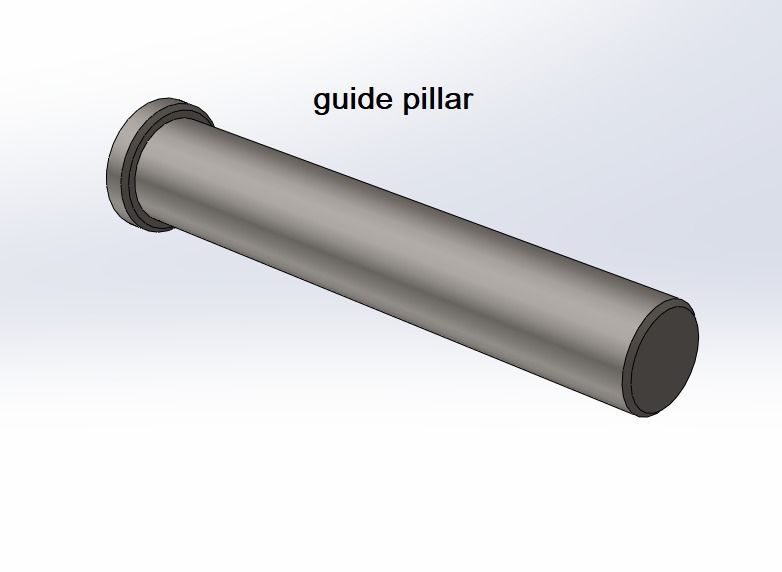

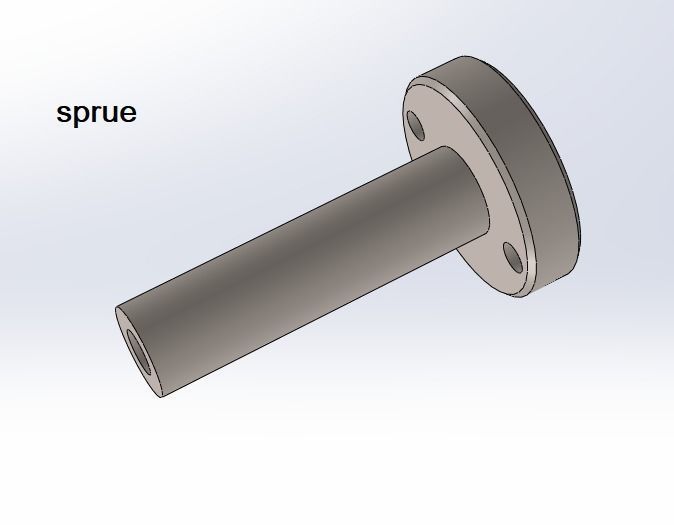

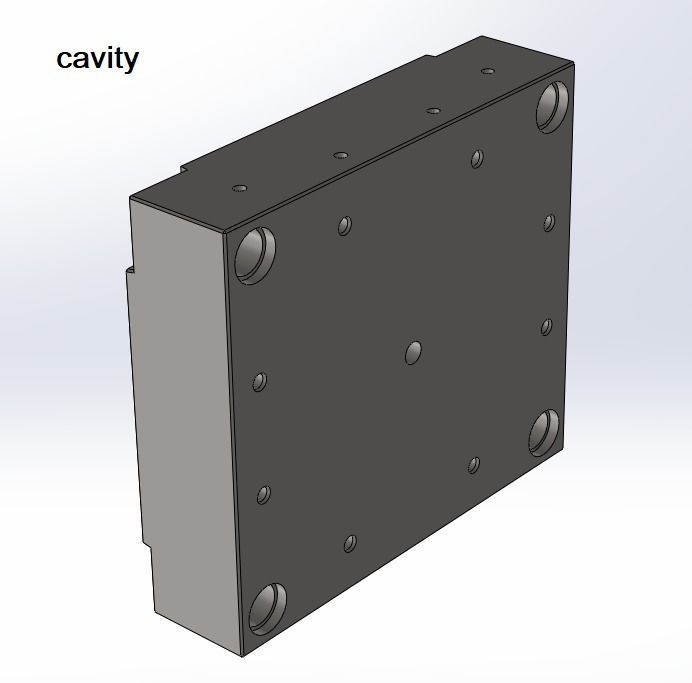

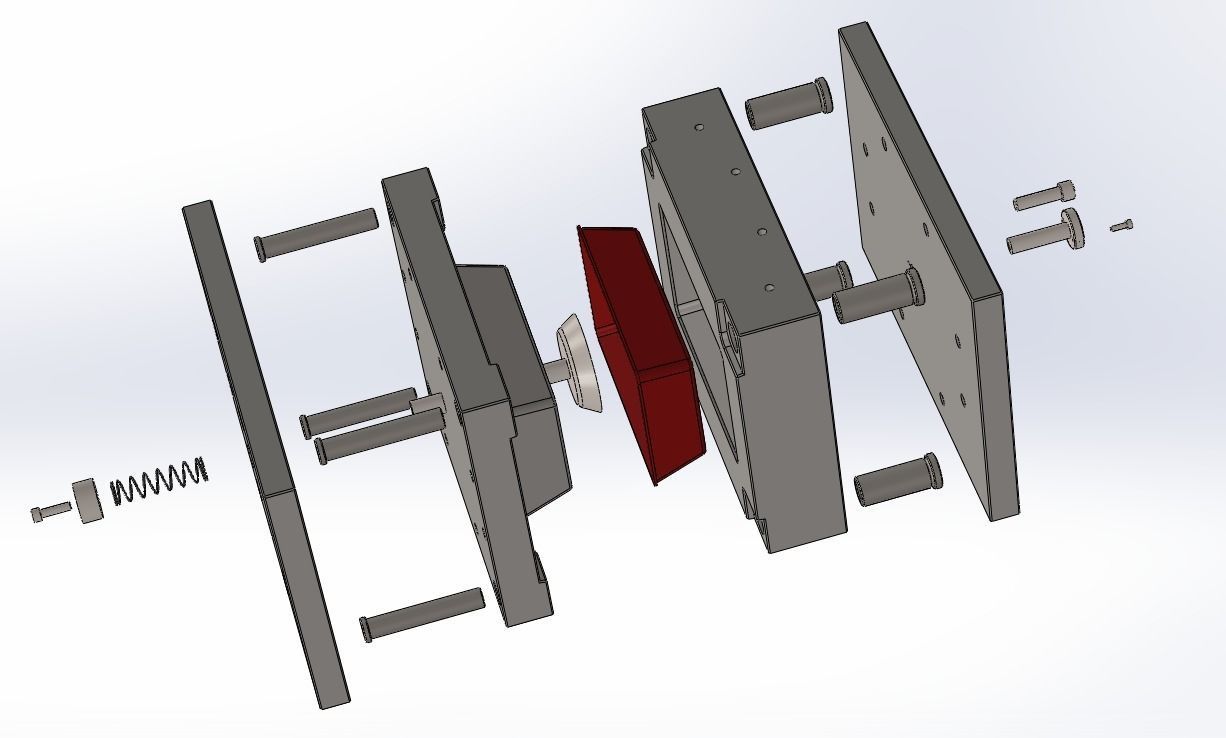

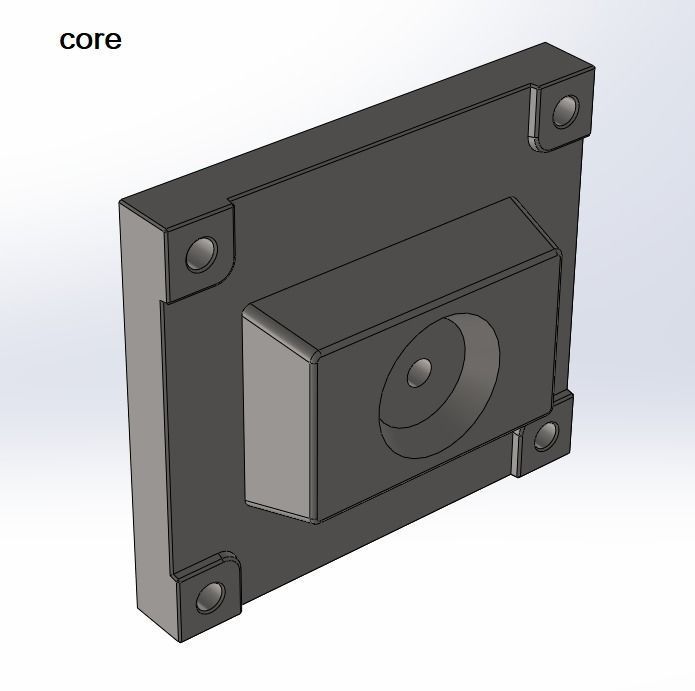

The model contains the most common parts that used in mold designing, sprue/guide pin/giude bush/cavity/core/ejector/spring.

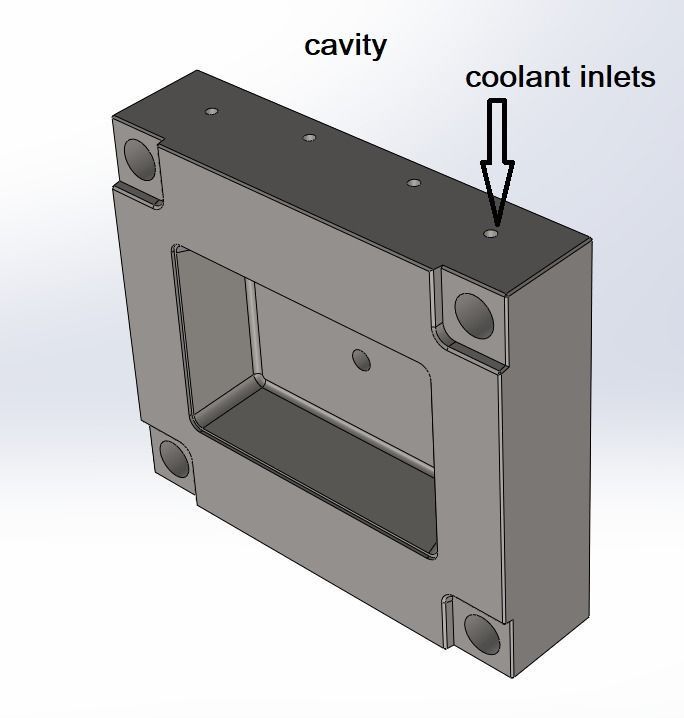

The model cantains the cooling inlets bores but not all the cooling system.
File formats is: solidworks(sld) version 2018 + step format.

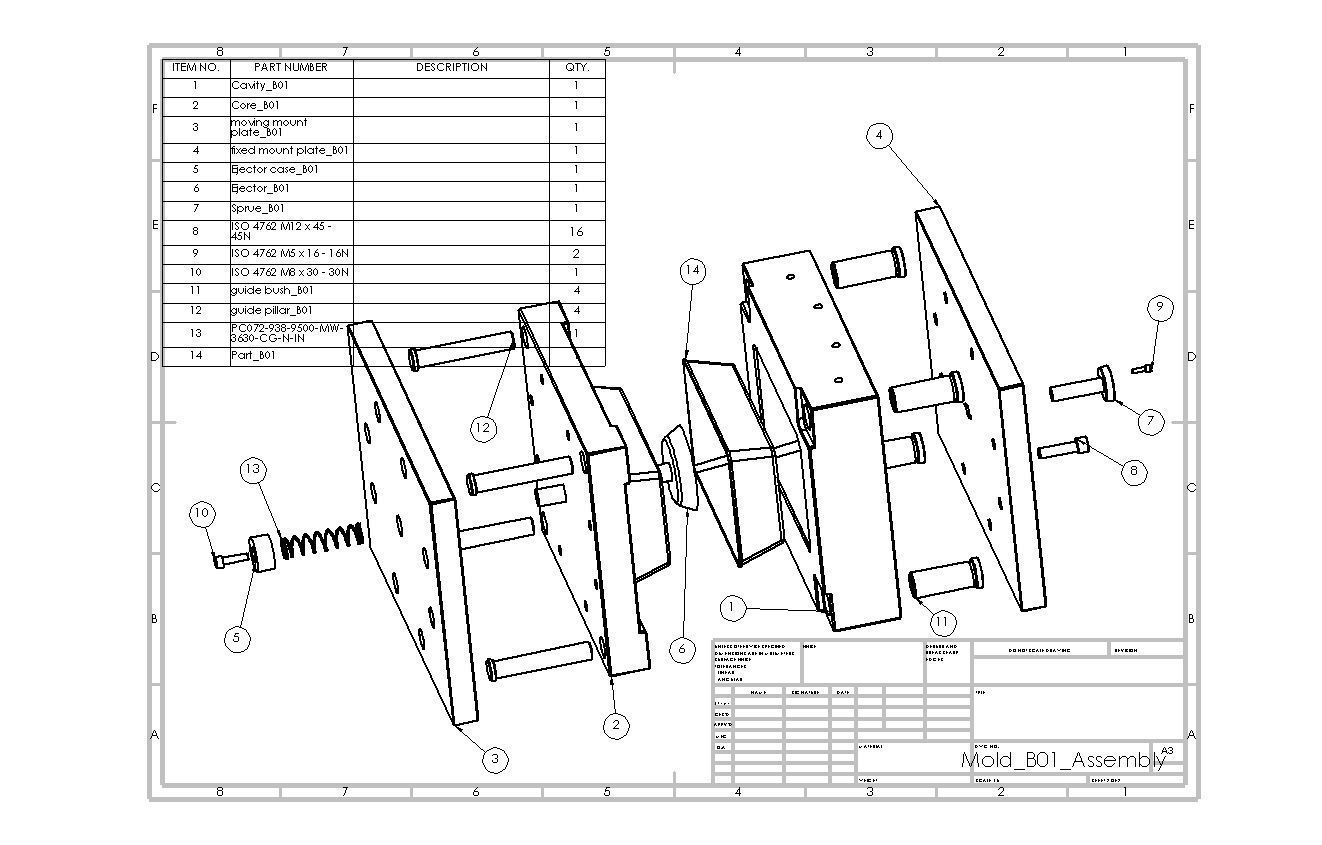

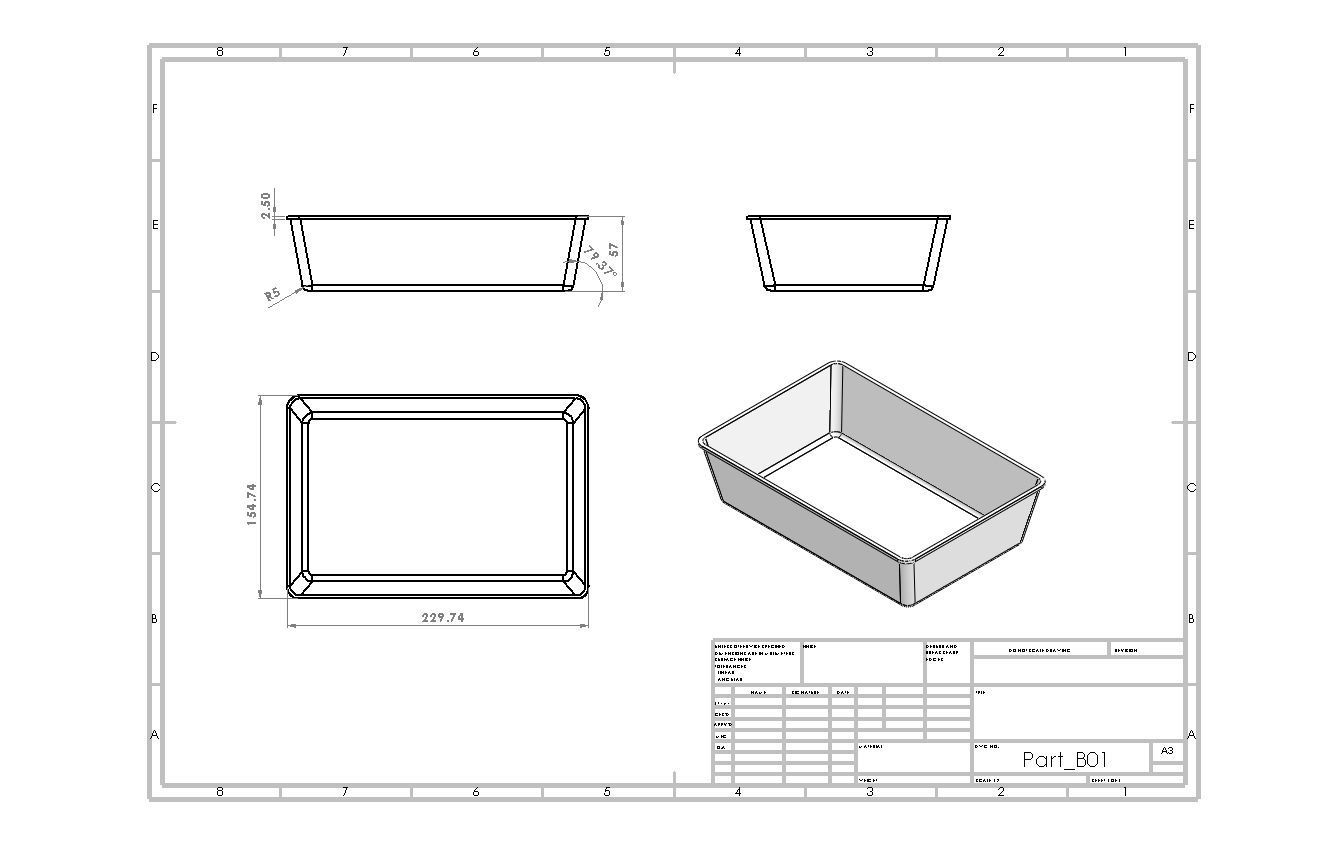

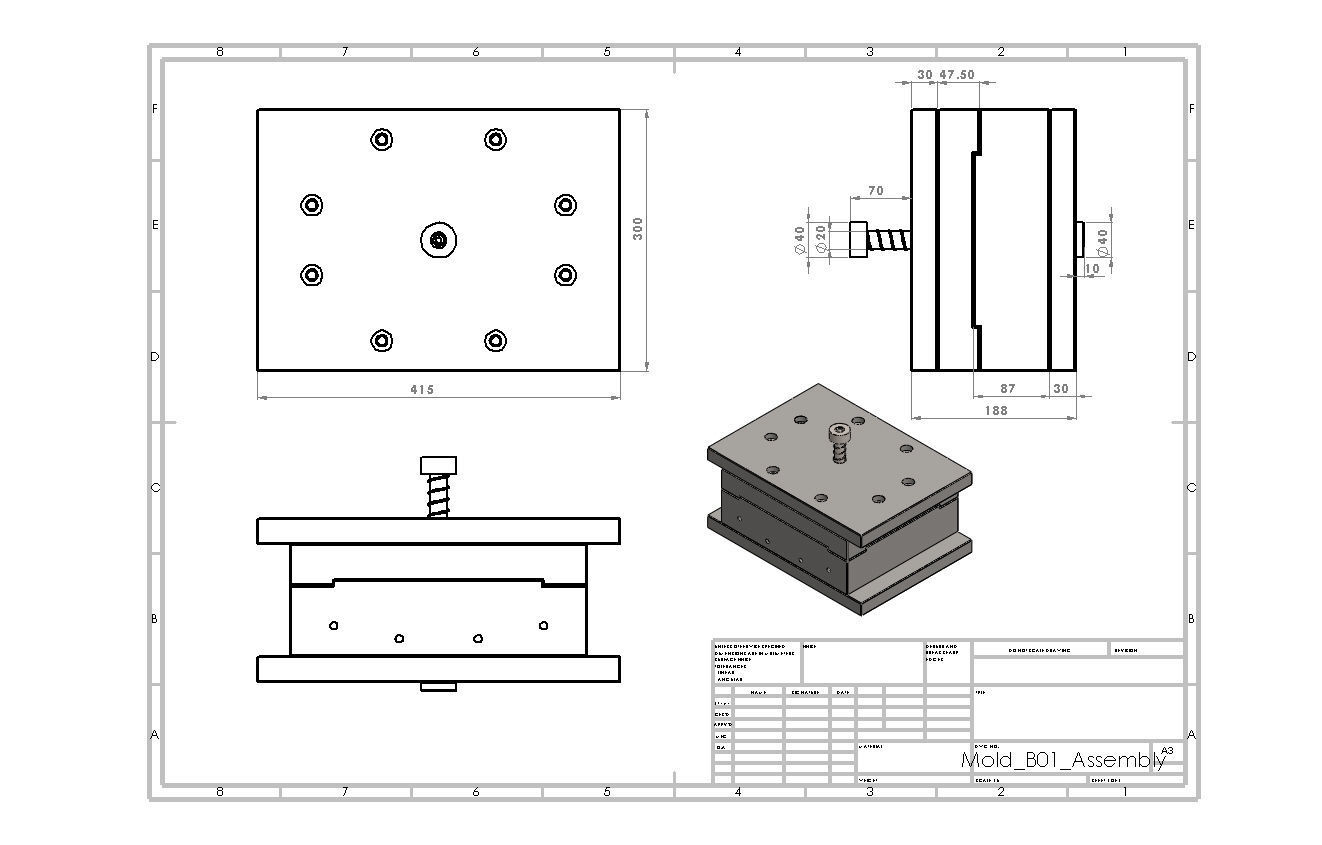

The dimesnoins of the model on the drawing sheets are in mm.
The model doesnt contain the screws listed in the drawing sheet. you can take them from the solidworks tools box from is standard.
