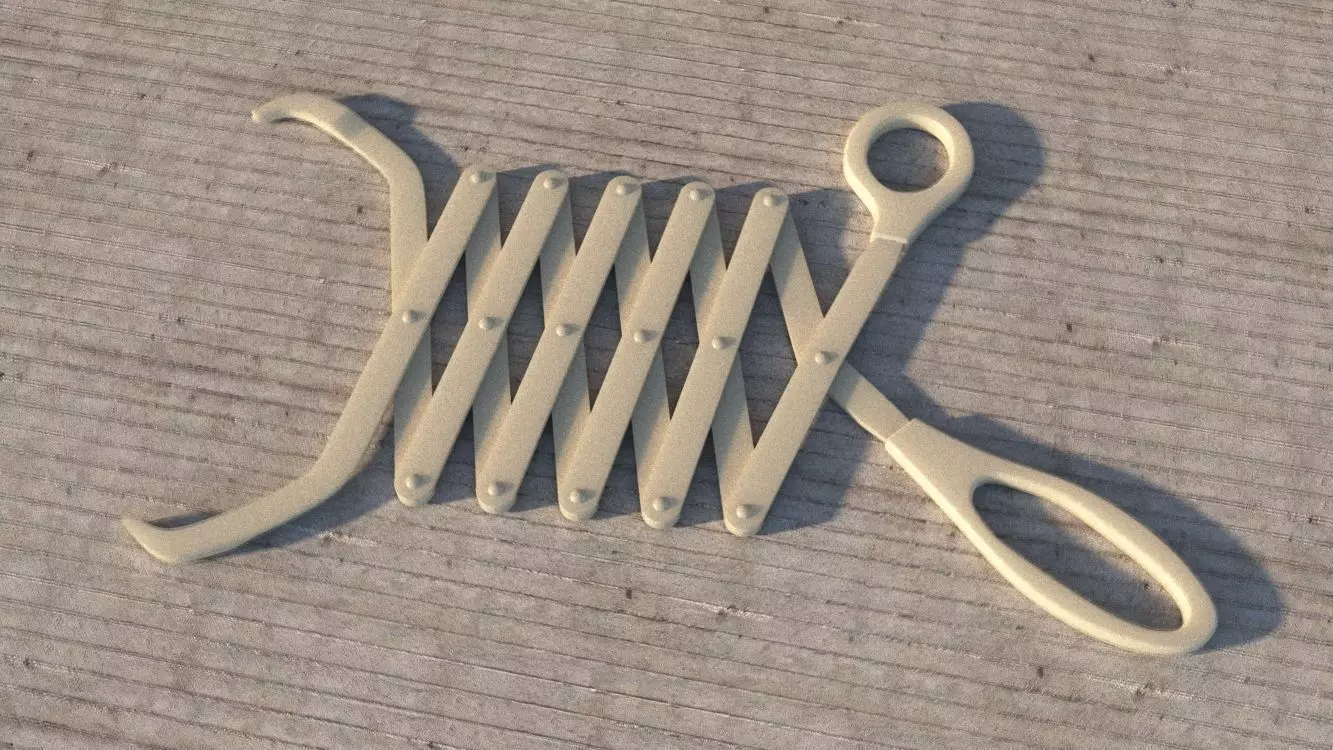

Extending scissor arm grabber 3D model

Extending scissor arm grabber designed by Gergely Kárpáti

The original model was created for CNC manufacturing. Then enhanced for rendering. Files units are milimeters and accurately scaled to represent real-life object's dimensions. Created in Rhino, with V-ray renderer.

This model comes as separated objects on different layers, according to the materials used. For mesh formats it is transformed into mesh in Rhino with no retopology. (see mesh images) No lights, cameras and render/scene setup are included.

AVAILABLE FILE FORMATS

• 3DM
• OBJ (NURBS and mesh with high, and lowered polycount)
• FBX both NURBS and mesh
• STL (mesh)
• 3DS (mesh)

ABOUT THE IMAGERY Previews rendered in Rhino using VRay. Please note that the studio scenes and light and environment settings are not included.
