Planet Waves American Stage Audio Jack 3D model

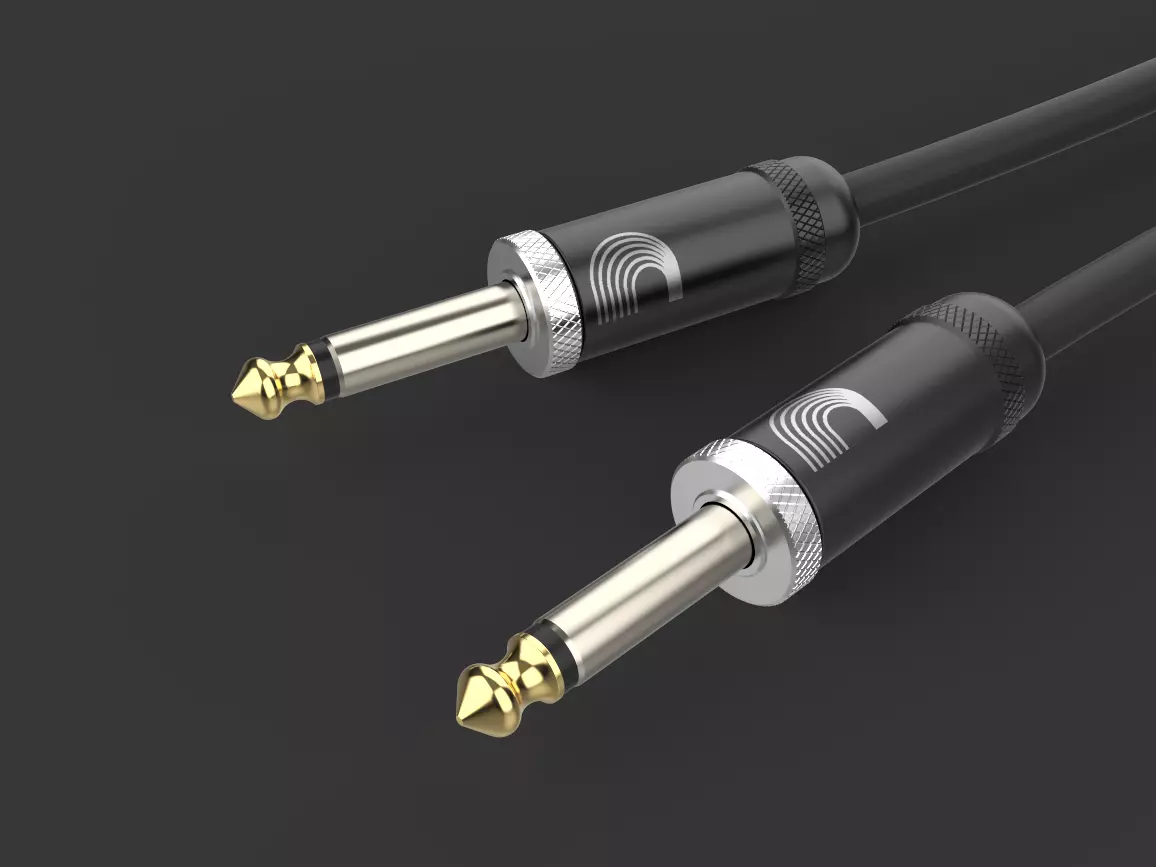

This is a model of the 1/4 inch audio jack part of the D'Addario (Planet Waves) American Stage guitar cable. This is a model of the jack only, the lead is only for rendering purposes (see Marmoset preview and clay renders). Modelled in SolidWorks and rendered in KeyShot. The D'Addario logo is included in the Textures zip file.
From the D'Addario website:
D'Addario American Stage Series Cables are designed to reproduce the natural tones of your instrument with zero interference. With audiophile quality wire, which is made in the USA, the low 28pF/ft. capacitance is the sweet-spot for uncolored tone and the 22AWG oxygen-free copper conductor provides exceptional signal transfer. Full coverage comes from using 95% tinned copper braiding, eliminating handling noise and rejecting interference. Using only the finest materials, custom designs, and precision USA manufacturing methods, American Stage delivers a professional performance cable. The result is pure, natural tone guaranteed for life.
Also known as phone connector, phone jack, headphone jack, jack plug, guitar lead, instrument lead, instrument cable, mono connector, 6.35mm jack.
3D Model formats
Format limitations
- SolidWorks 2020 (.sldprt, .sldasm, .slddrw)3.11 MB
- KeyShot 9 (.bip, .ksp)9 MB
- 3D Studio 2020 (.3ds)1.32 MB
- Autodesk FBX (.fbx)921 KB
- STEP (.stp)10.8 MB
- Stereolithography (.stl)1.38 MB
- Textures 2.2 KB
- OBJ (.obj, .mtl)2.82 MB
- Autodesk 3ds Max 2020 (.max)3.67 MB
3D Model details
- Publish date2020-01-27
- Model ID#2249436
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
