Adjustable Wrap Around Bridge 3D model

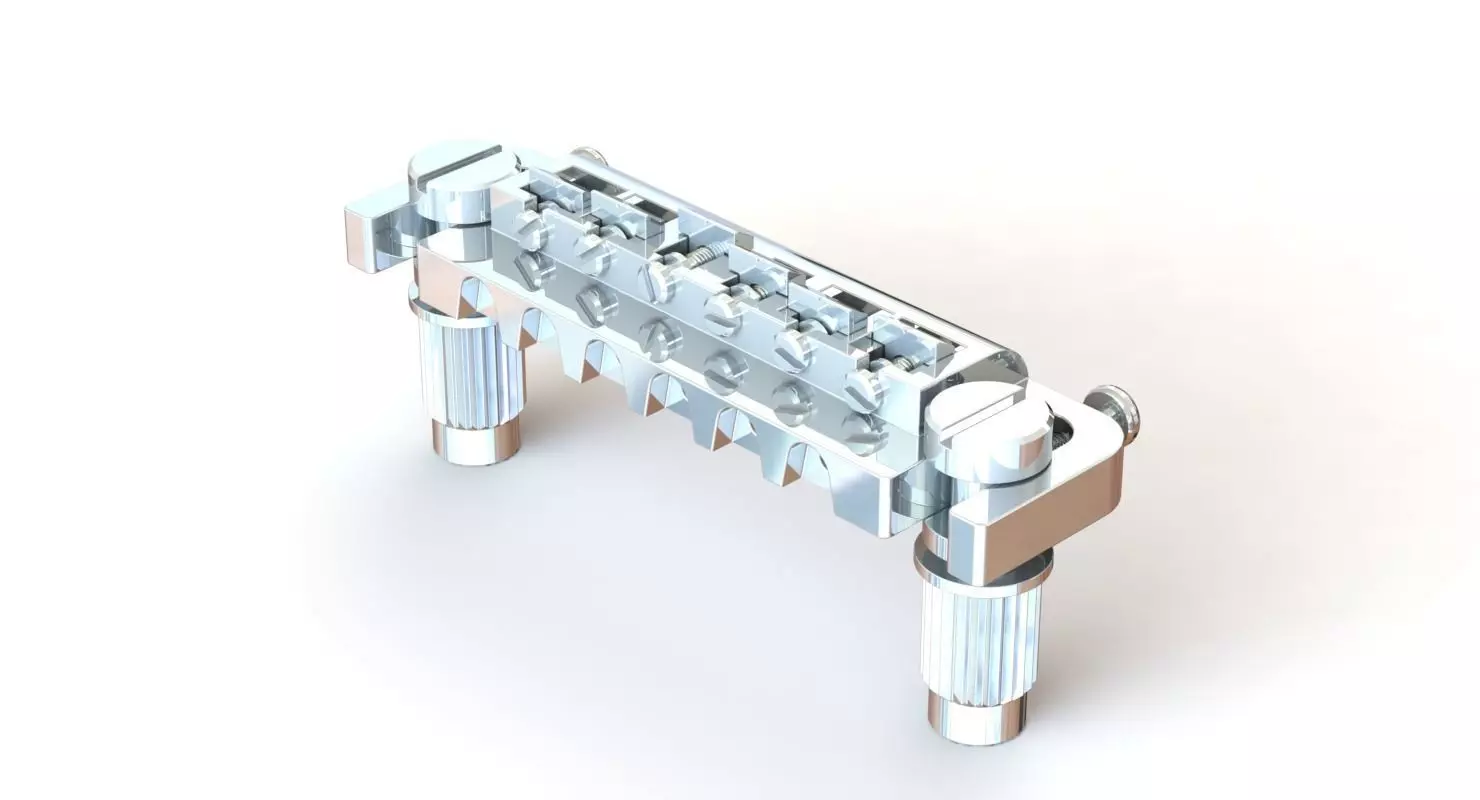

This is a full scale solid model of an Adjustable Wrap Around Bridge. The dimensions are taken from the Stew-Mac blueprint of the real item on their website. Item #4041 and #4041-G This is an assembly with all the adjustable screw actions set with mate controller and some pre-defined positions to get you started. The fasteners are modeled using the machinery's hand book for accurate fastener threads. The Model was rendered with Solidworks 360 using some default textures and materials.
