Saturn V Launch Vehicle with Apollo Spacecraft and Launch Tower 3D model

Detailed model of the Saturn V launch vehicle and Apollo lunar spacecraft including launch tower.

Geometry and Rigging

The model is divided into separate objects for each component of the vehicle:

• Saturn V First Stage (S-IC)

• F1 Engine (x5)
• Inter-stage Ring
• Saturn V Second Stage (S-II)
• J2 Engine (x5)
• Saturn V Third Stage (S-IVB)
• J2 Engine
• Side Panels

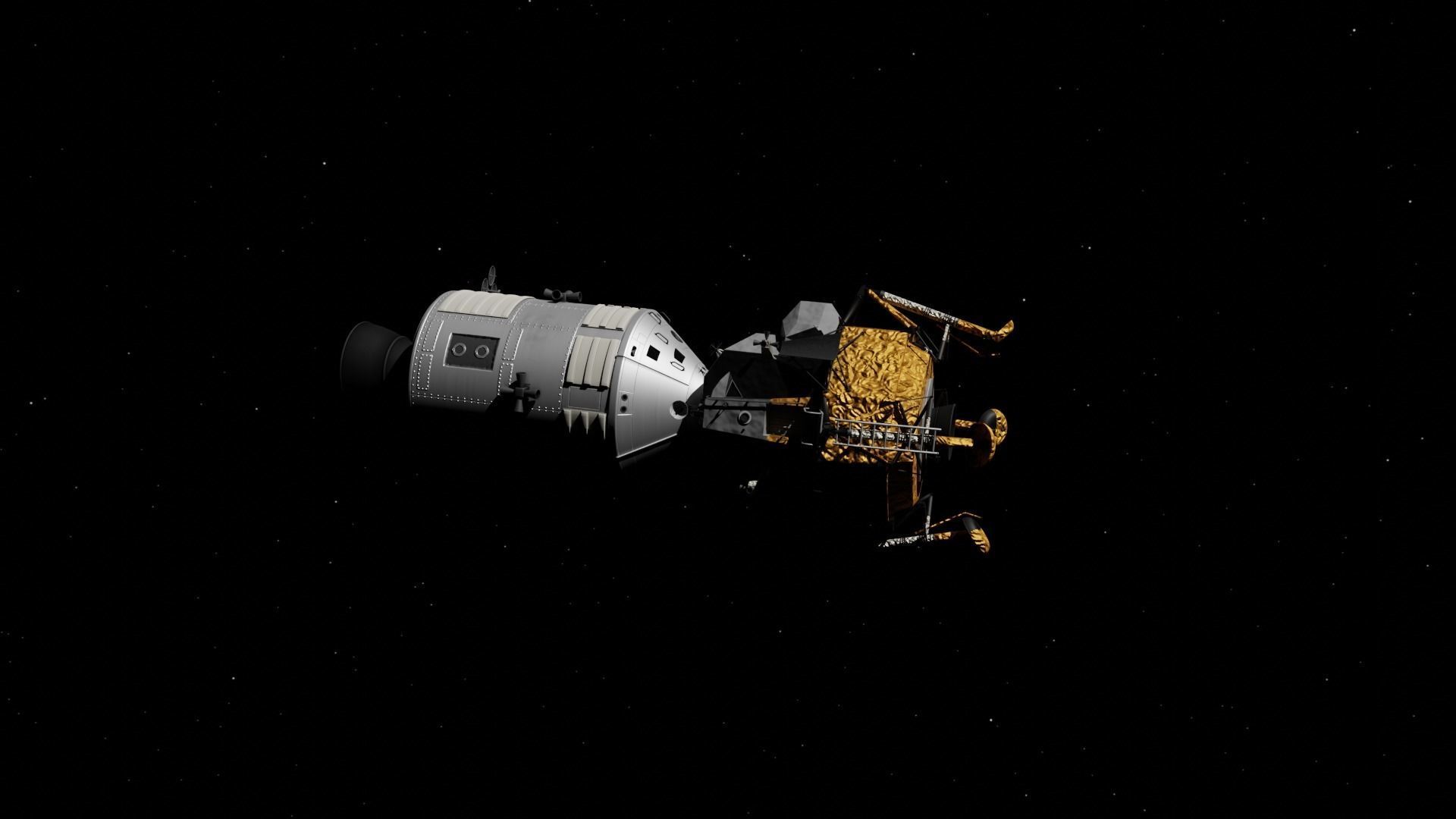

• Apollo Service Module
• High Gain Antenna
  • Command Module clamp

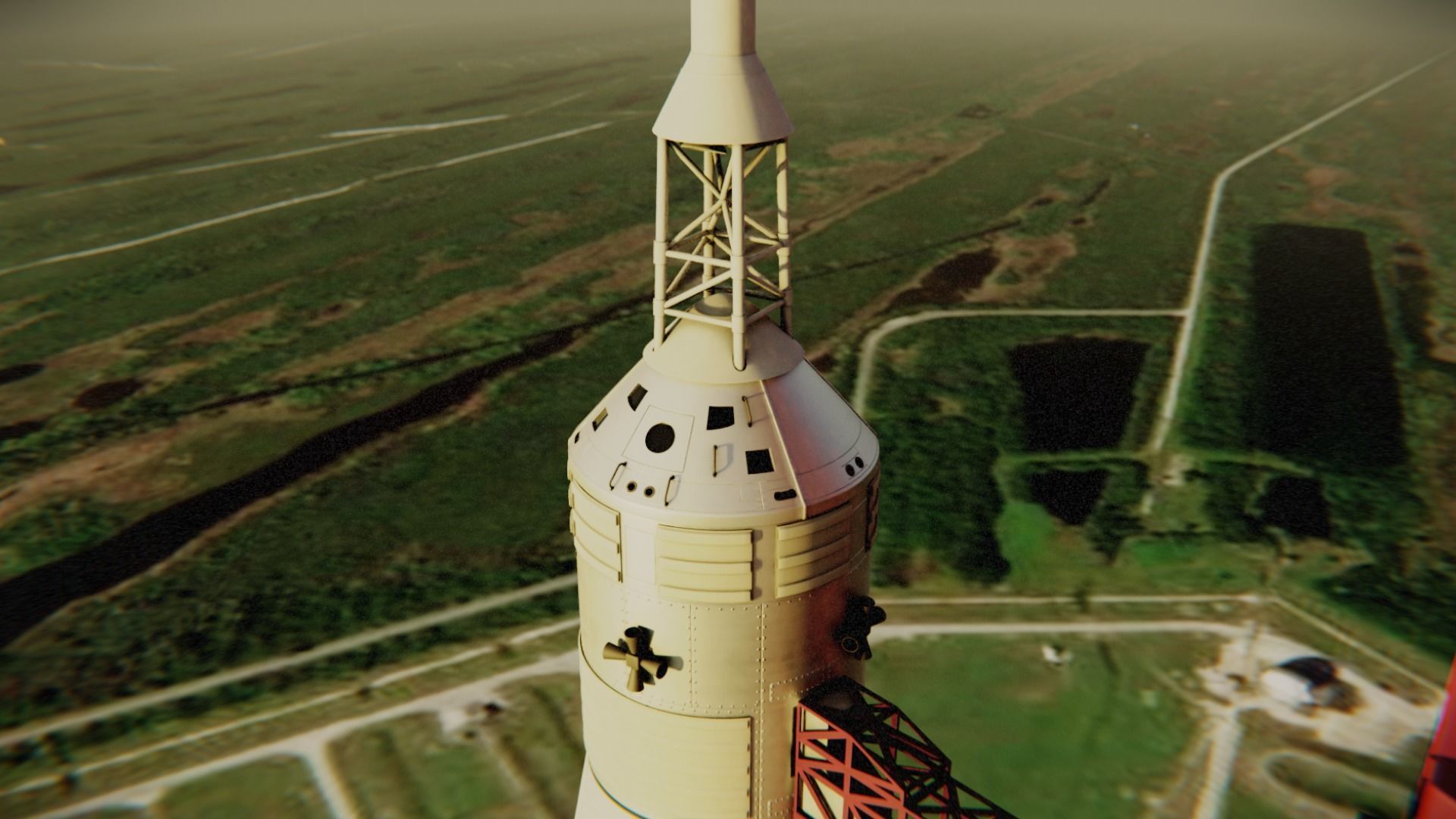

• Apollo Command Module
• Launch Escape System
• Docking Probe

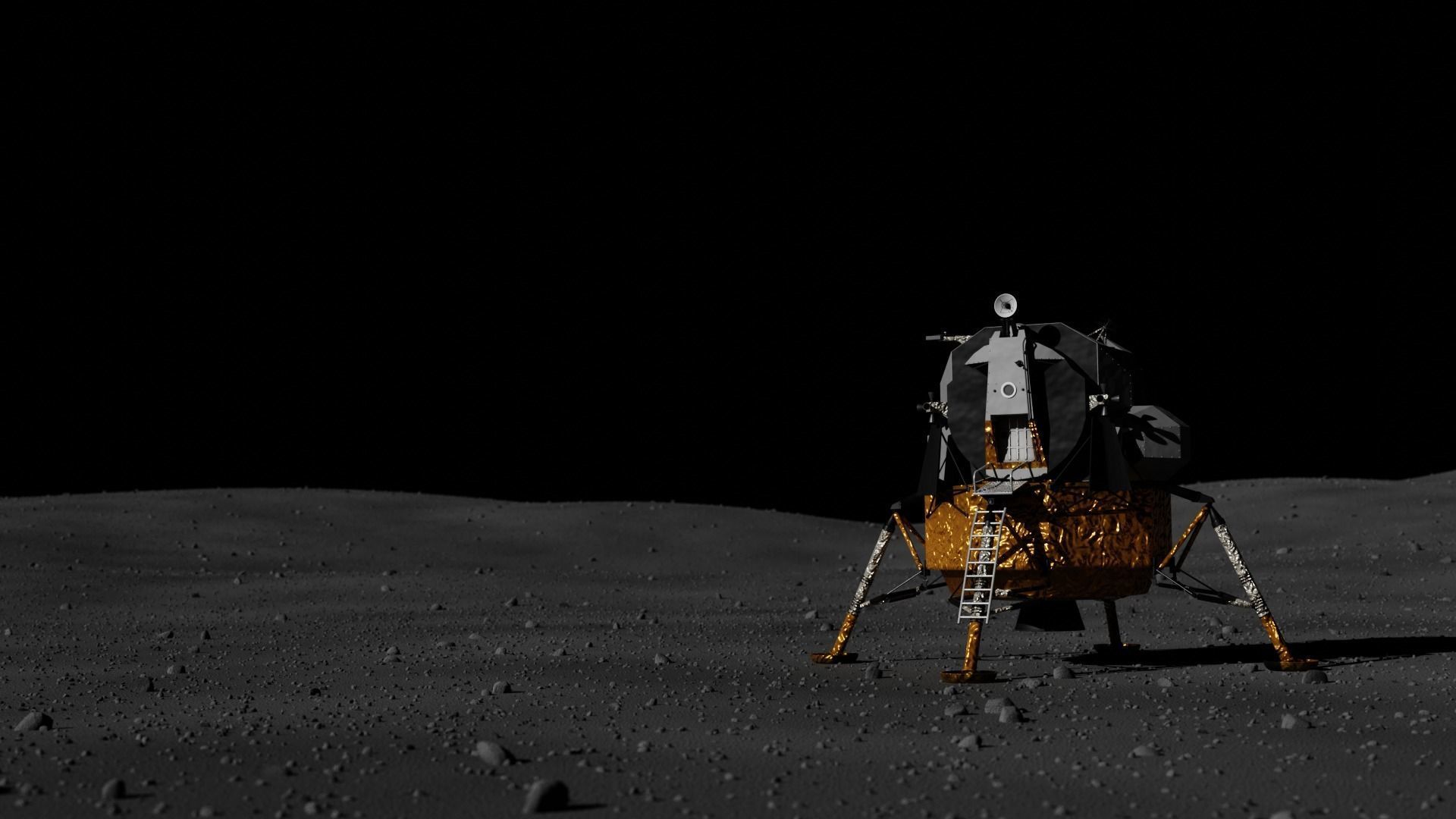

• Apollo Lunar Module Descent Stage
• Landing Gear (x4) (with rigged controller)
• Apollo Lunar Module Ascent Stage
• Launch Tower
• Towe Access Arm
• Tower Service Arms
• Tower Crane
• Tower Base
• Tail Service Masts with animated arms

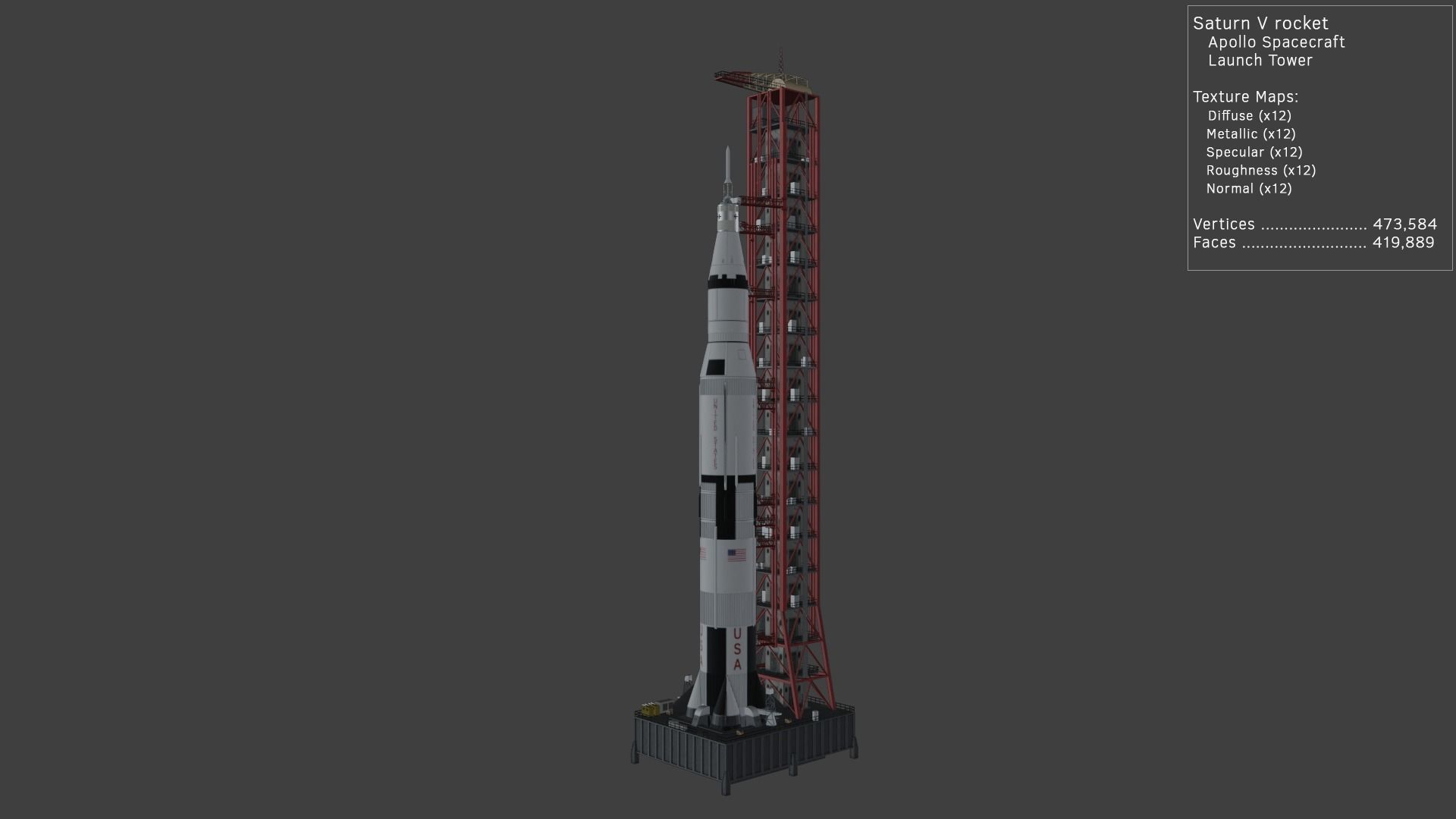

The total poly count is 419,889 faces (473,584 vertices) - see the preview video for a detailled breakdown of the poly count for each component.

Note: The rigged Landing Gear is only available in the native Blender format.

Materials and Textures

The model comes 12 PBR materials with a total of 60 textures - a colour, metallic, specular, roughness and normal map for each component:

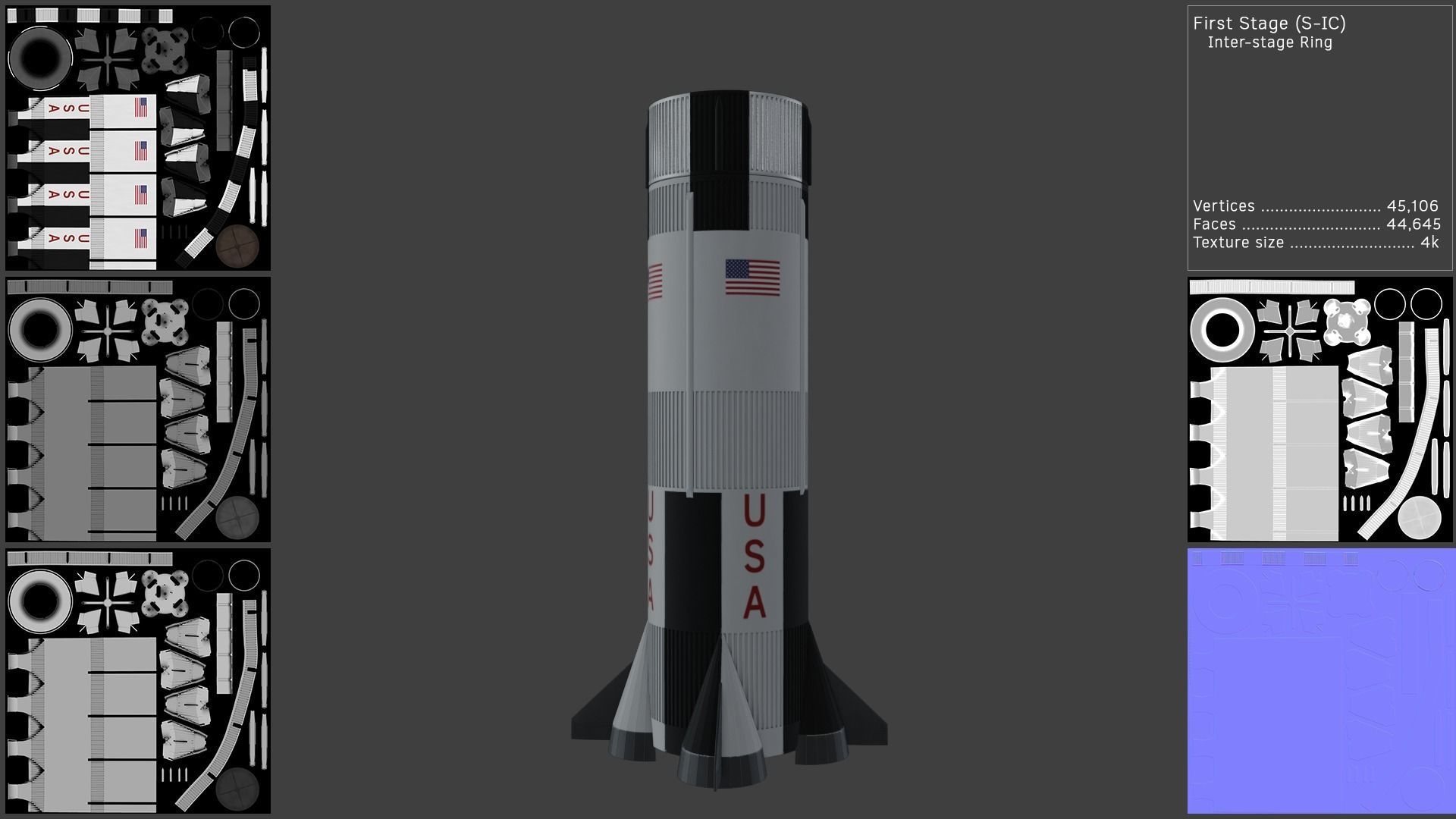

• First Stage (including Inter-Stage Ring ) - 4k

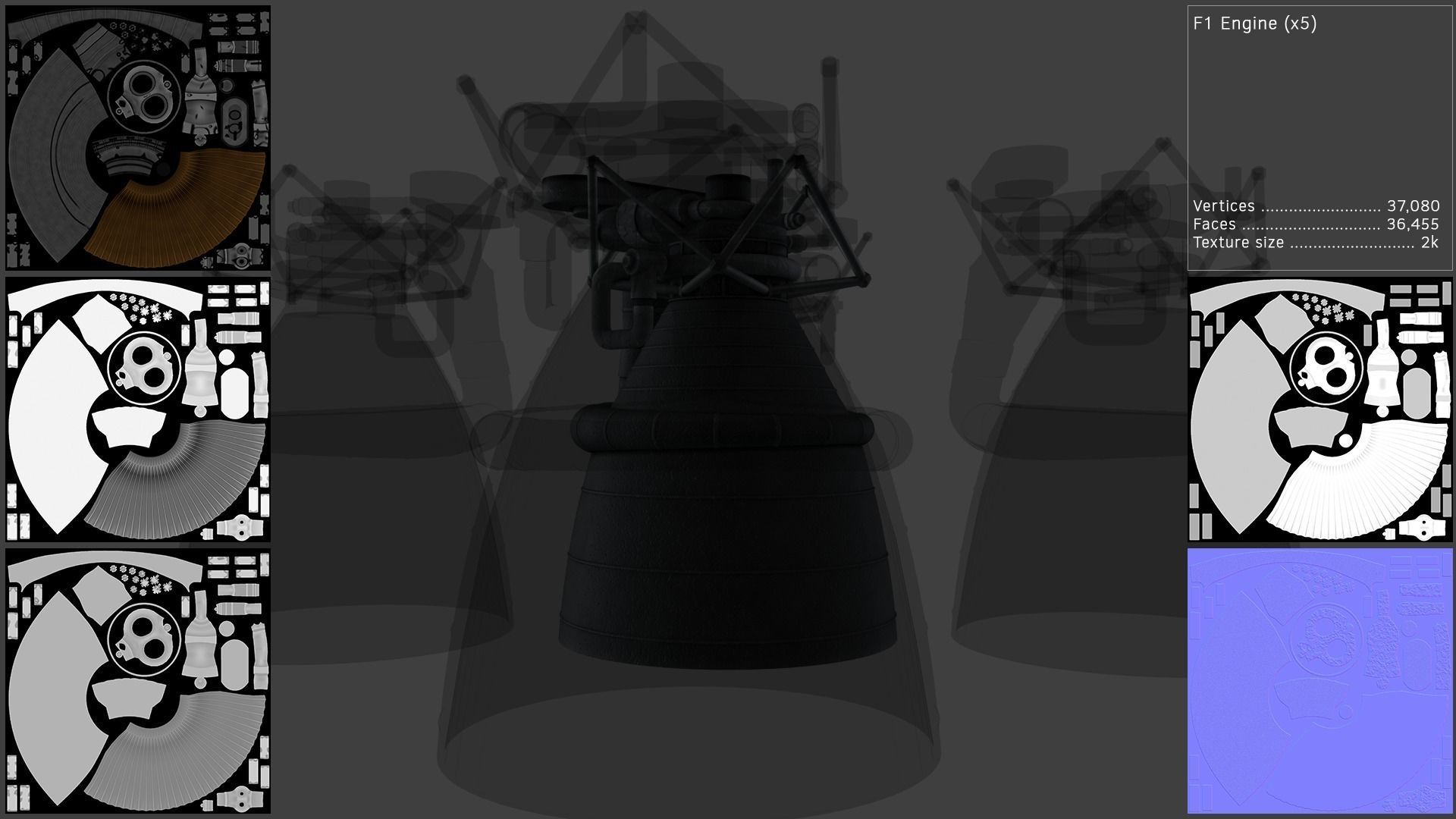

• F1 Engine - 2k

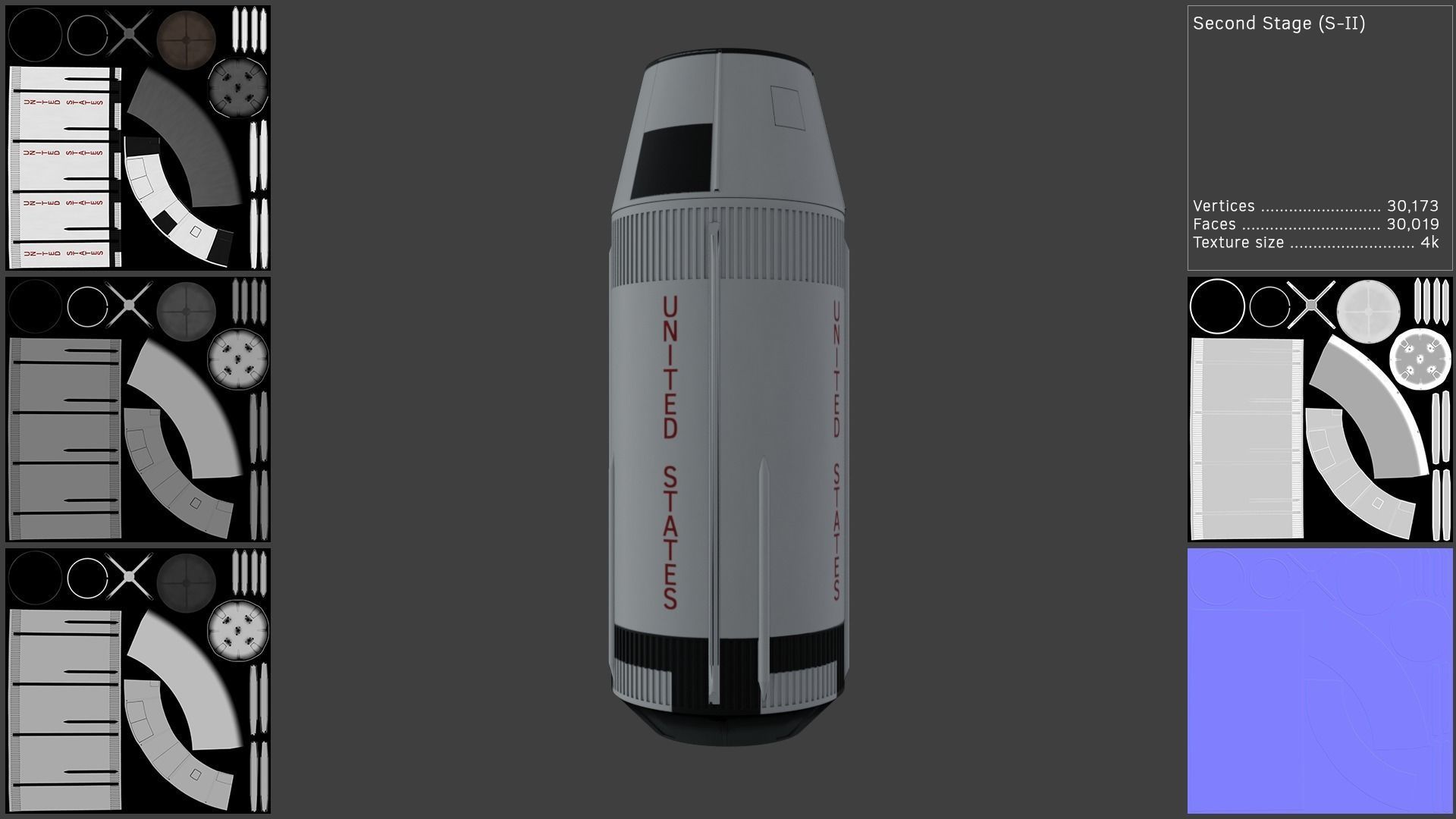

• Second Stage - 4k

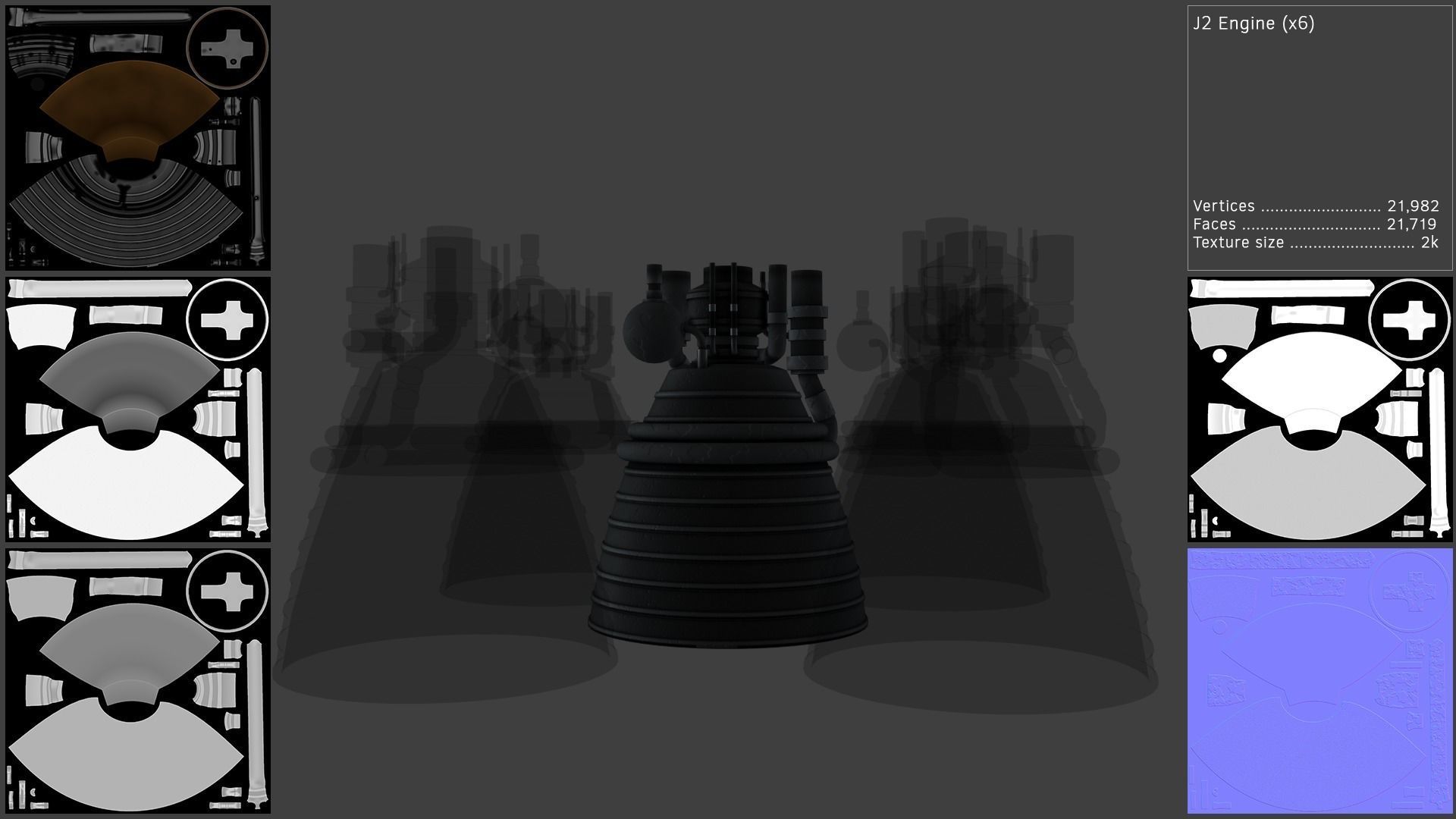

• J2 Engine - 2k

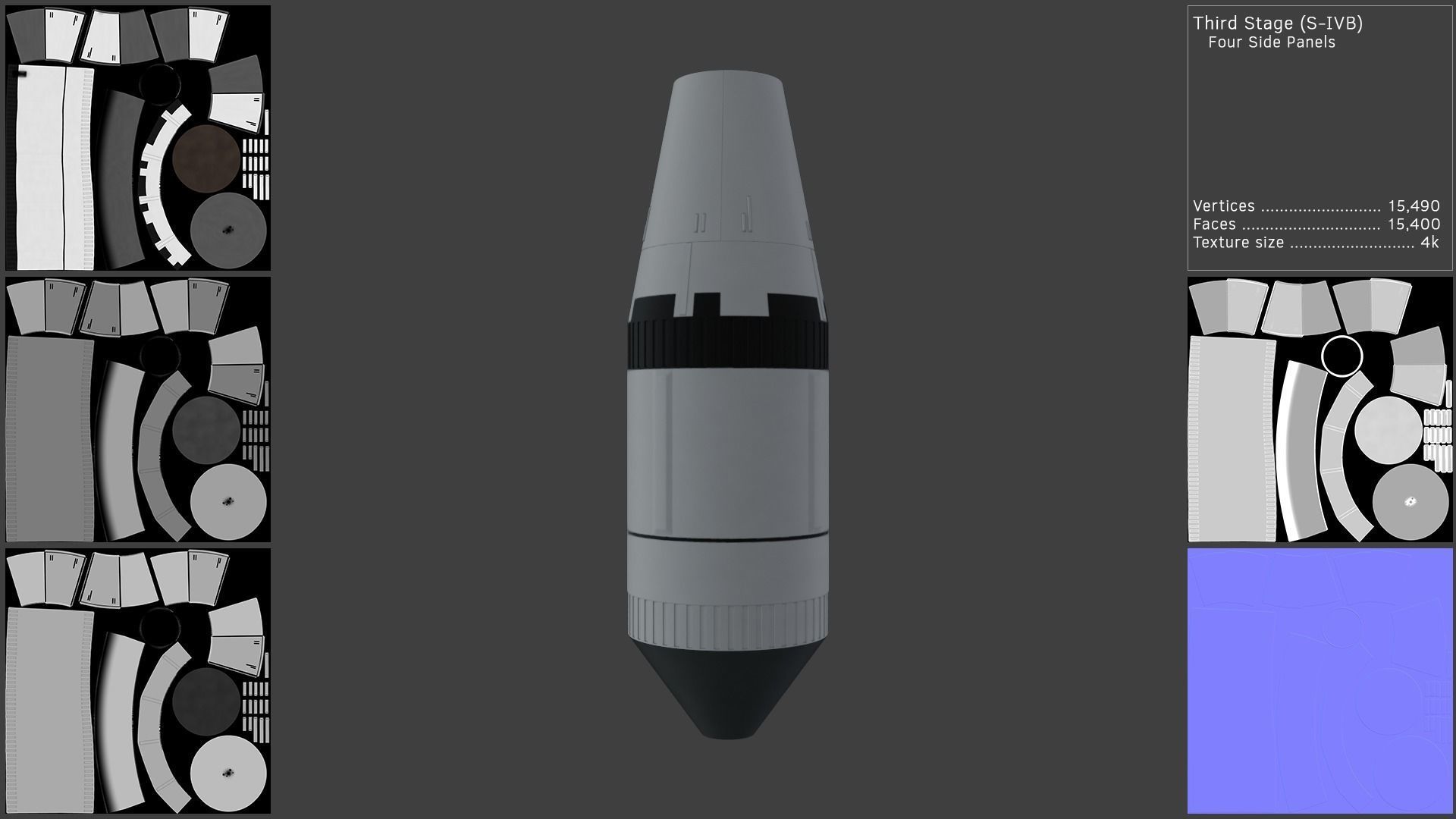

• Third Stage (including side panels) - 4k

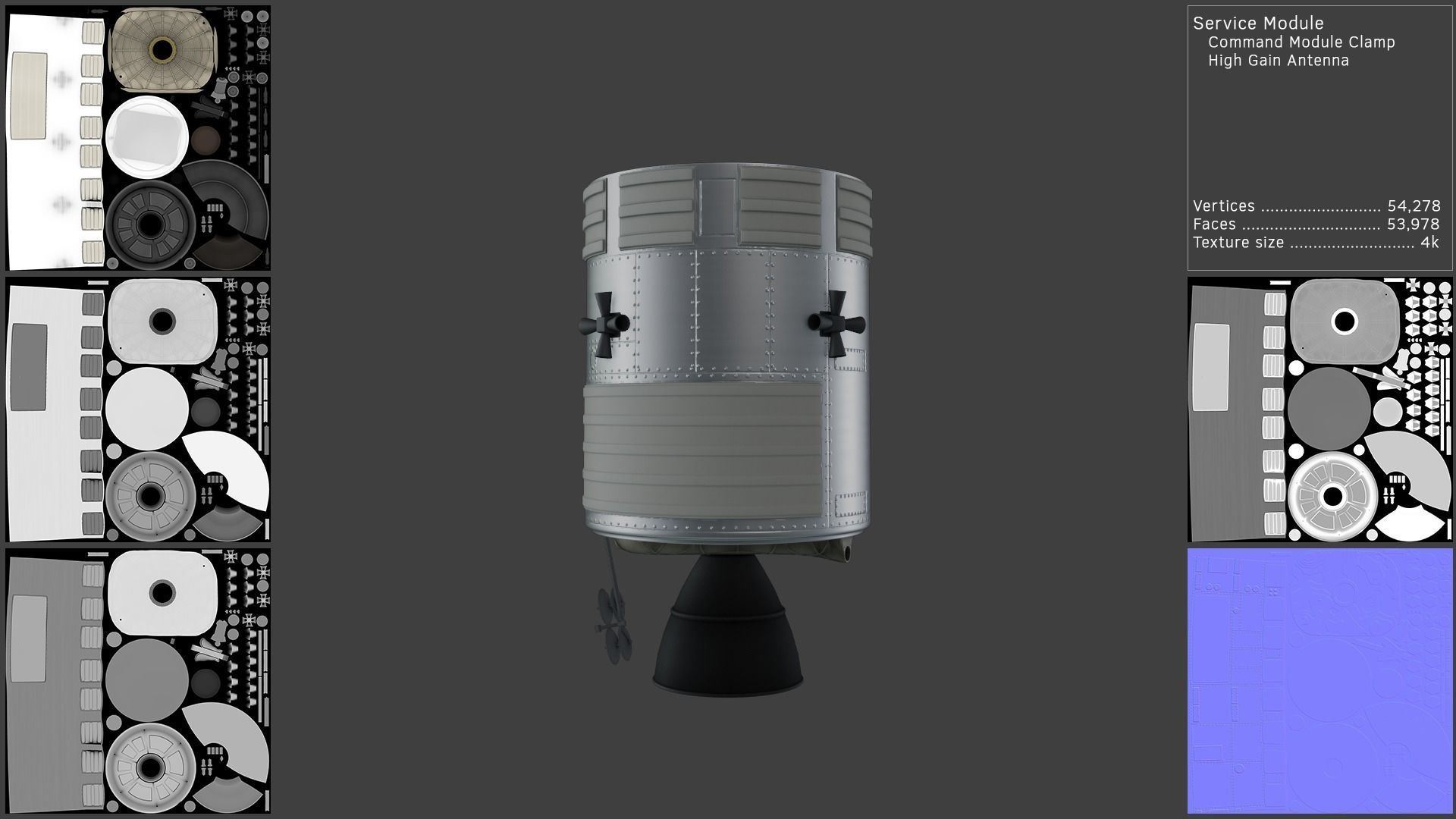

• Service Module (including High Gain Antenna and CM clamp) - 4k

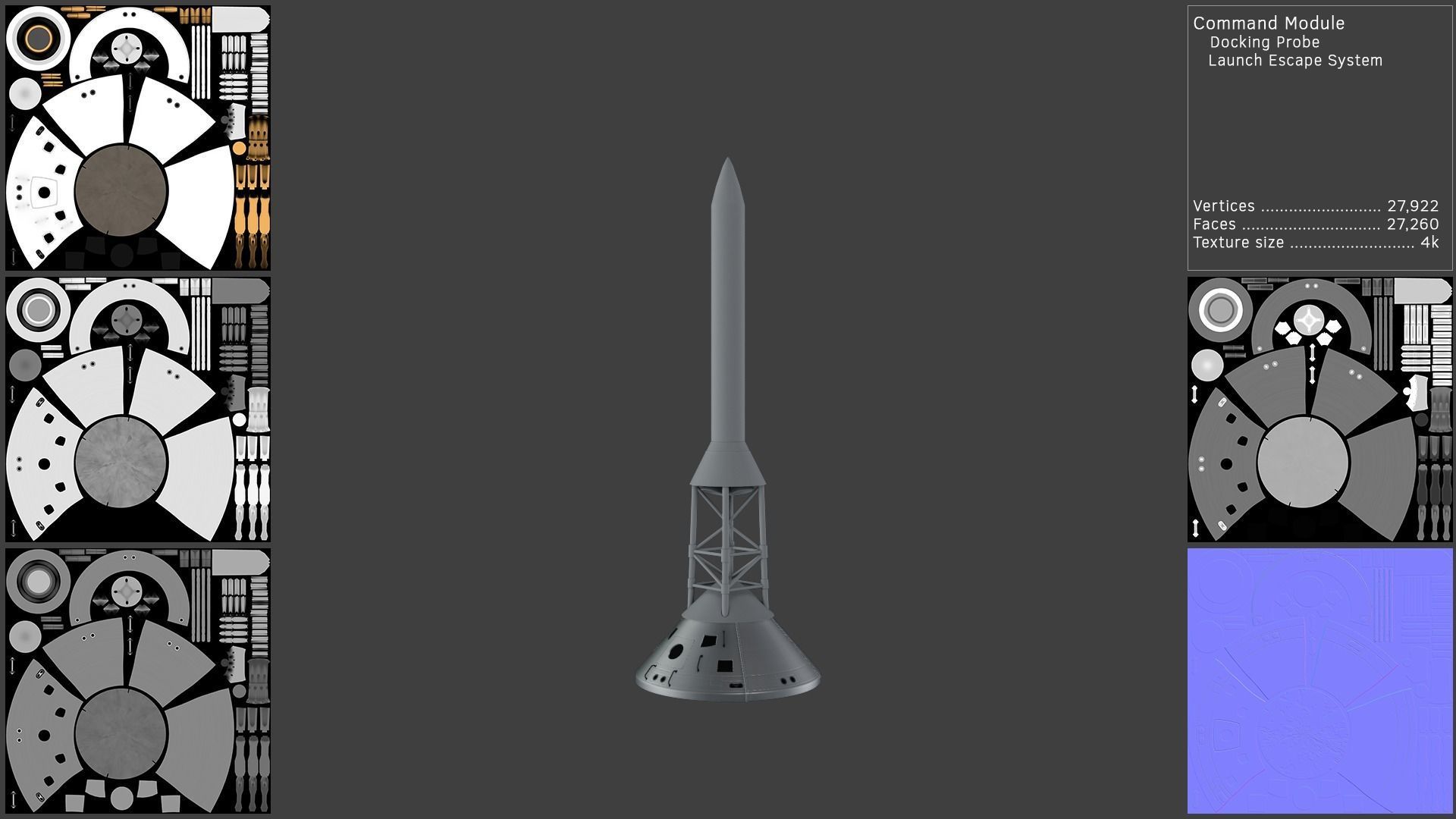

• Command Module (including LES and Docking Probe) - 4k

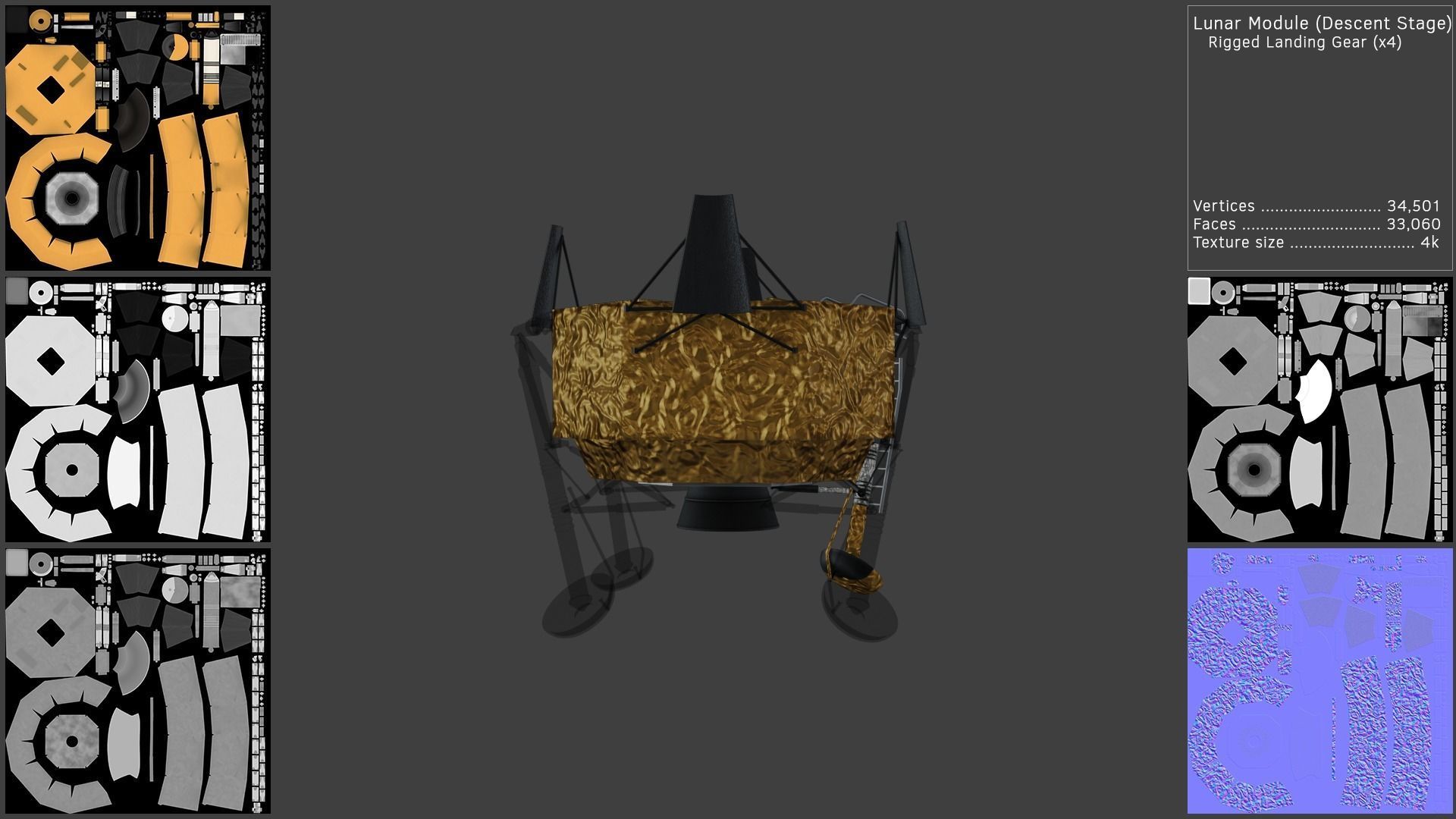

• Lunar Module descent stage (including Landing Gear) - 4k

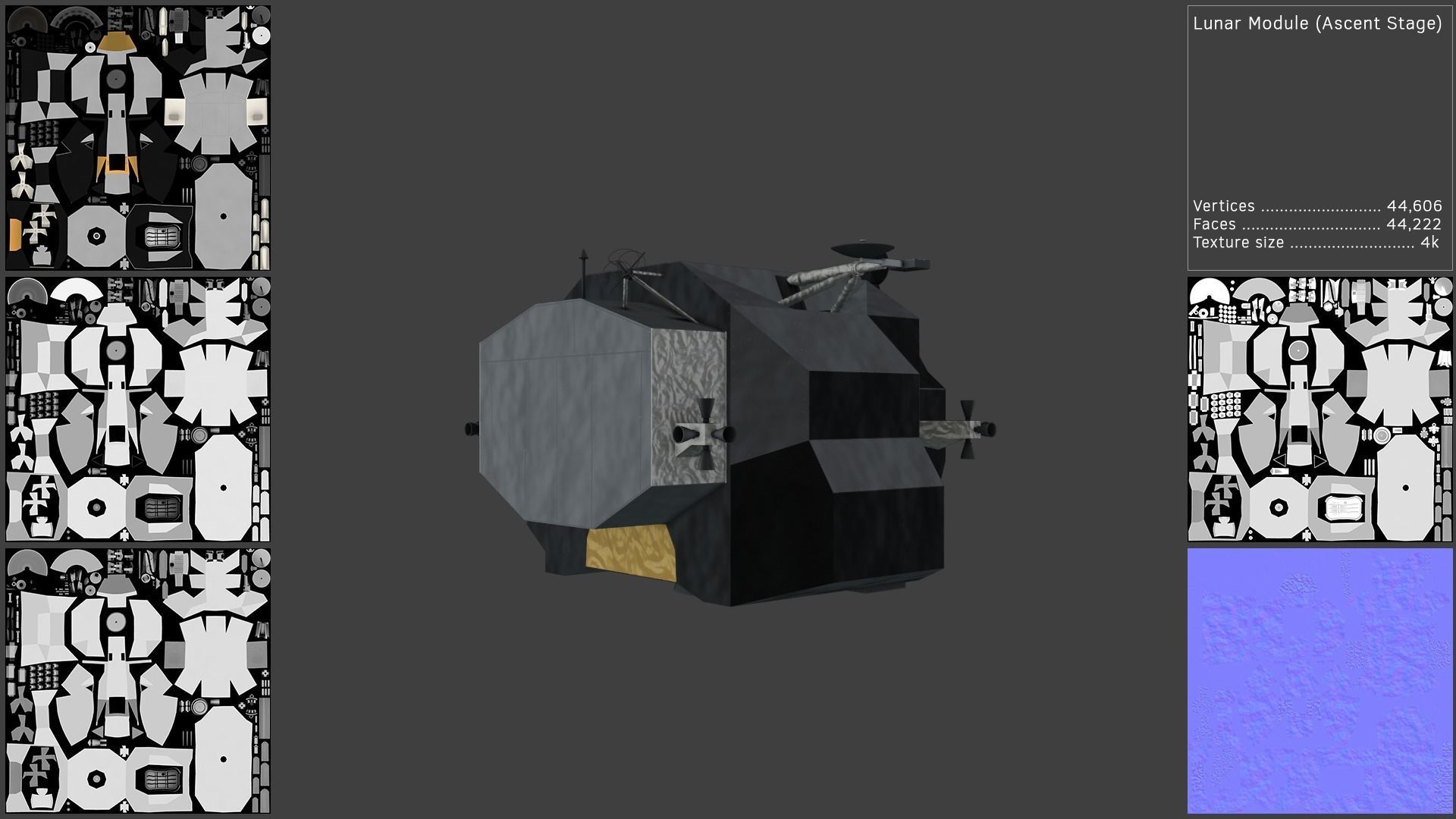

• Lunar Module ascent stage - 4k

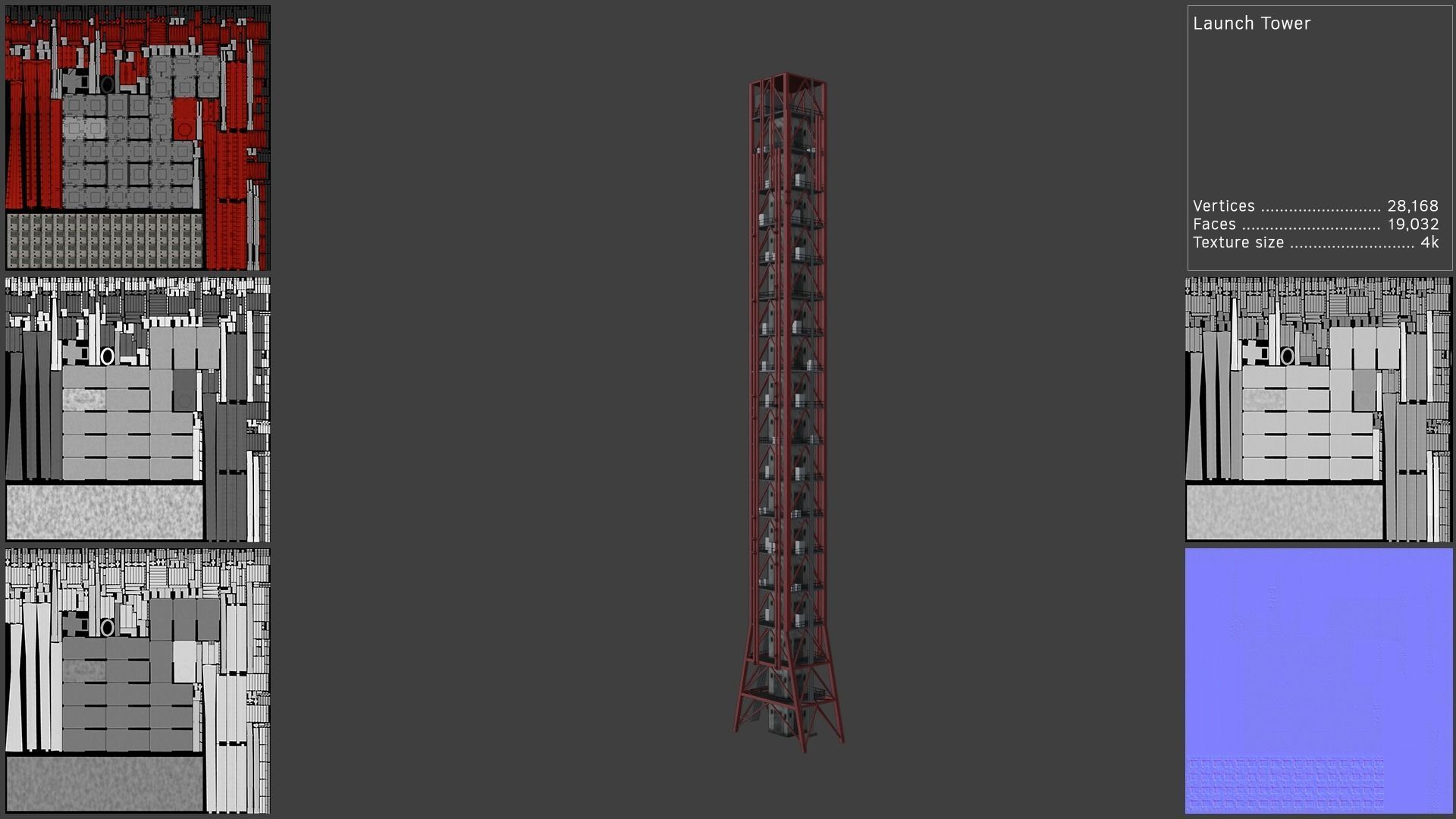

• Tower - 4k

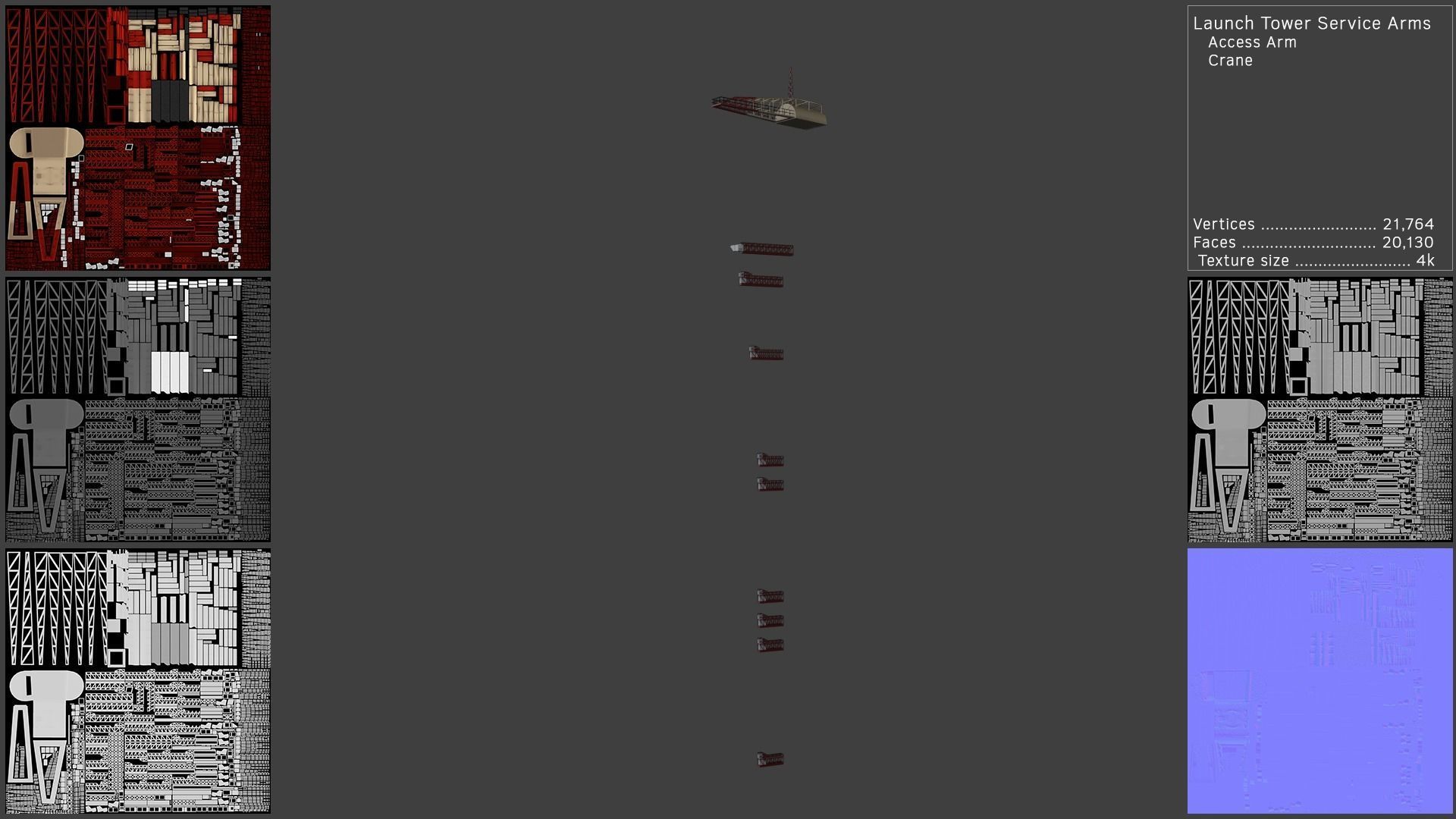

• Tower Arms (Service Arms, Access Arm and Crane) - 4k

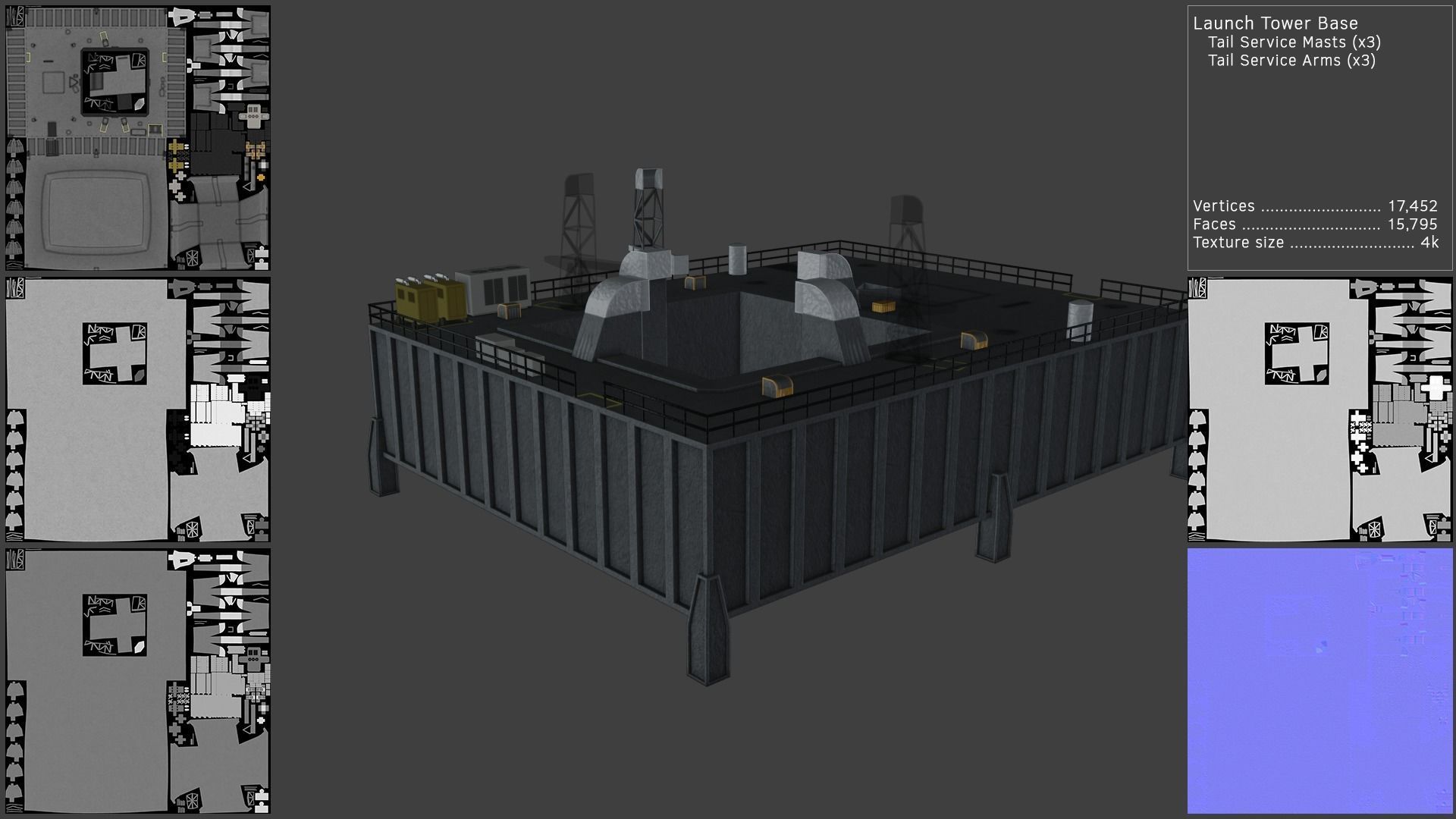

• Tower Base (including Tail Service Masts and Tail Service Arms) - 4k

Note: Materials were created for Blender/Cycles but should import correctly into any other render engine, texture maps are logically named so should be easy to connect if they don't import automatically.
