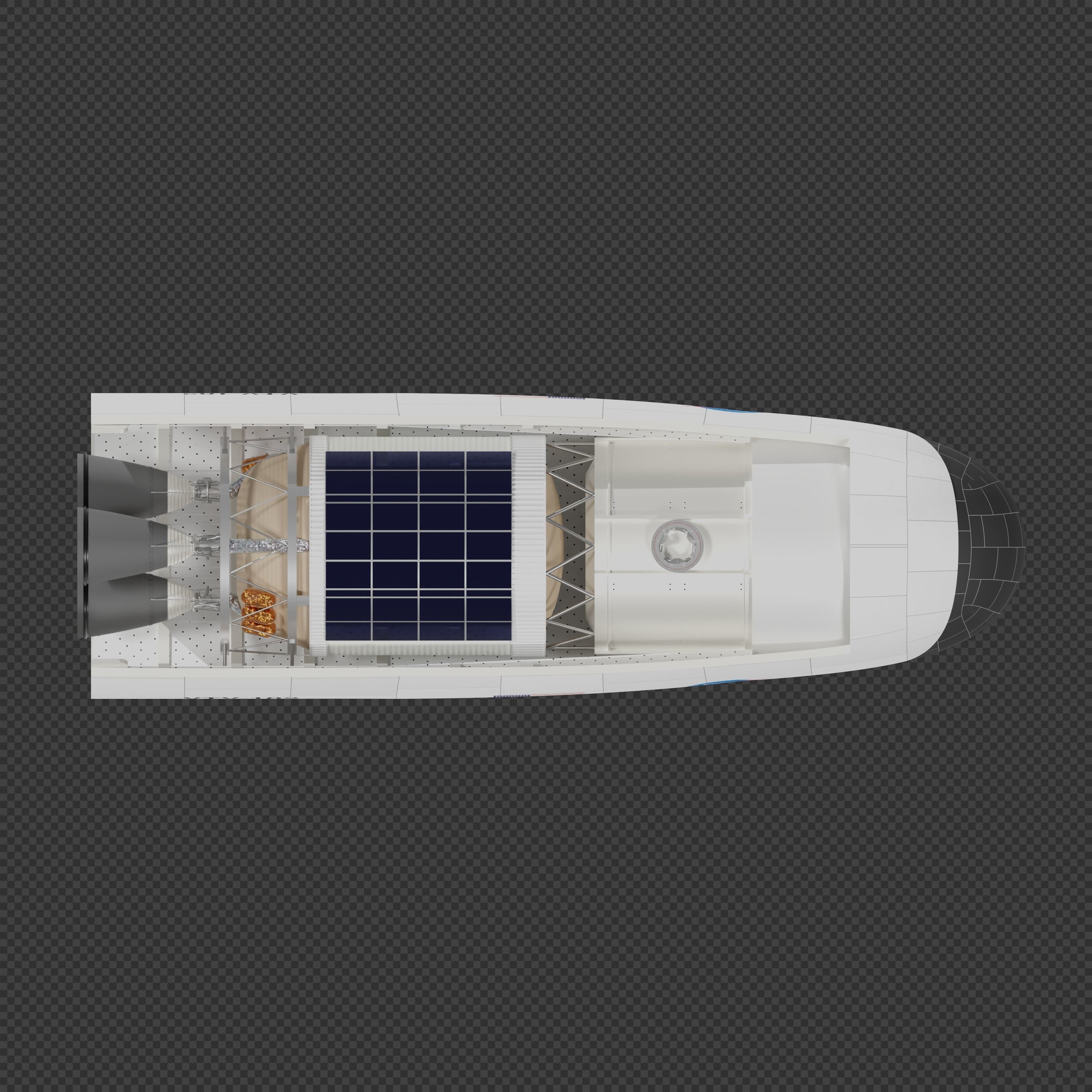

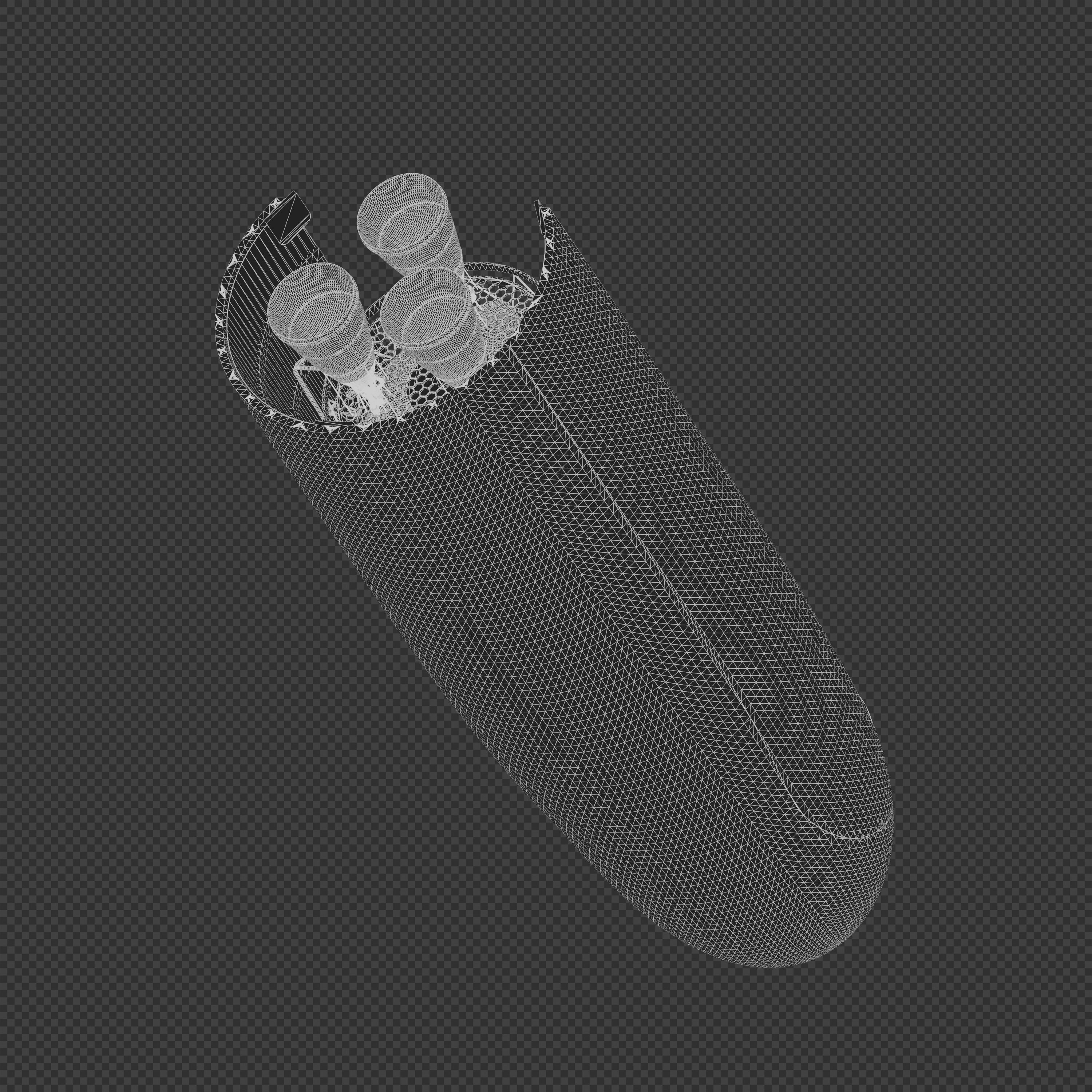

NASA HAVOC Crew Transfer Vehicle

NASA HAVOC Crew Transfer Vehicle 3D model

Description

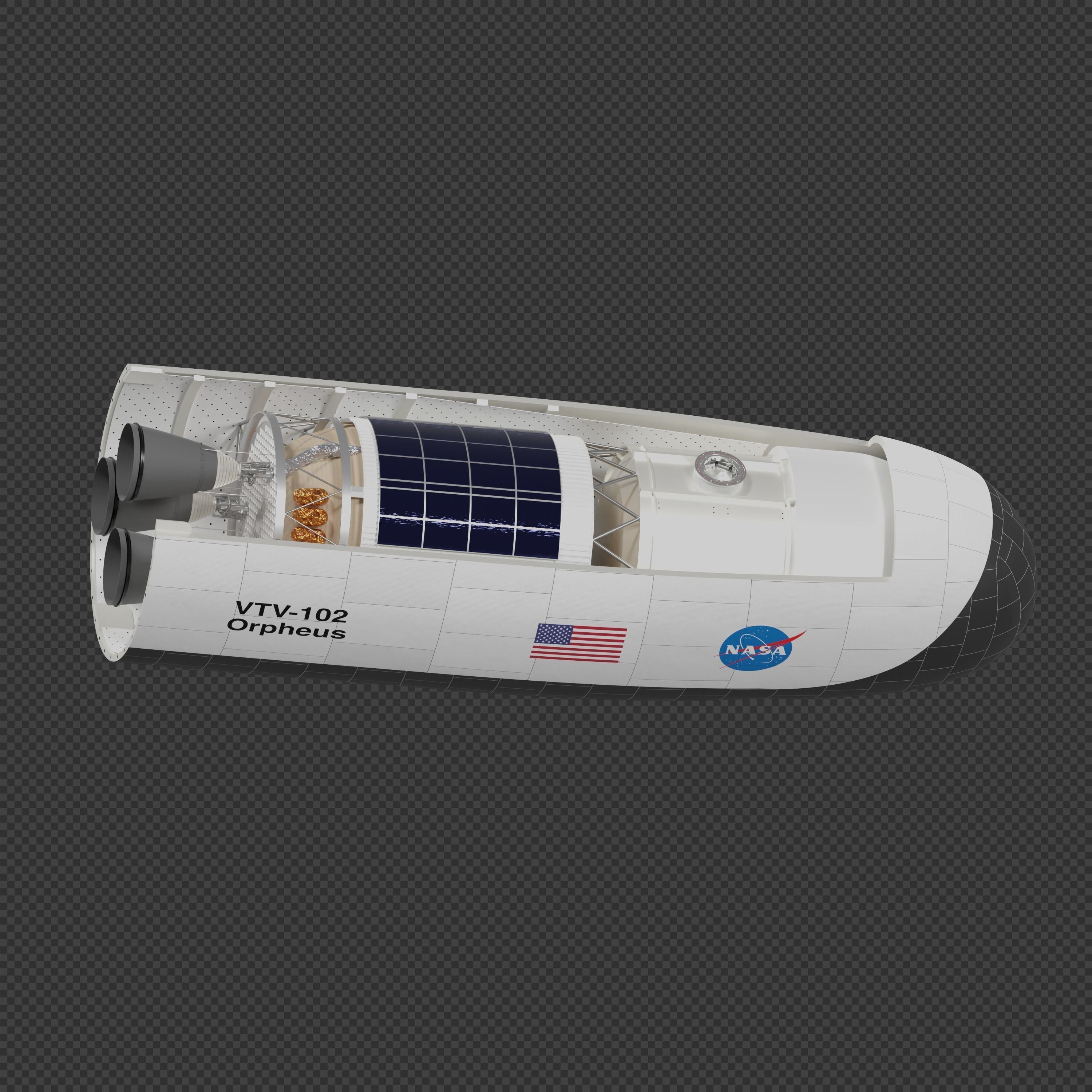

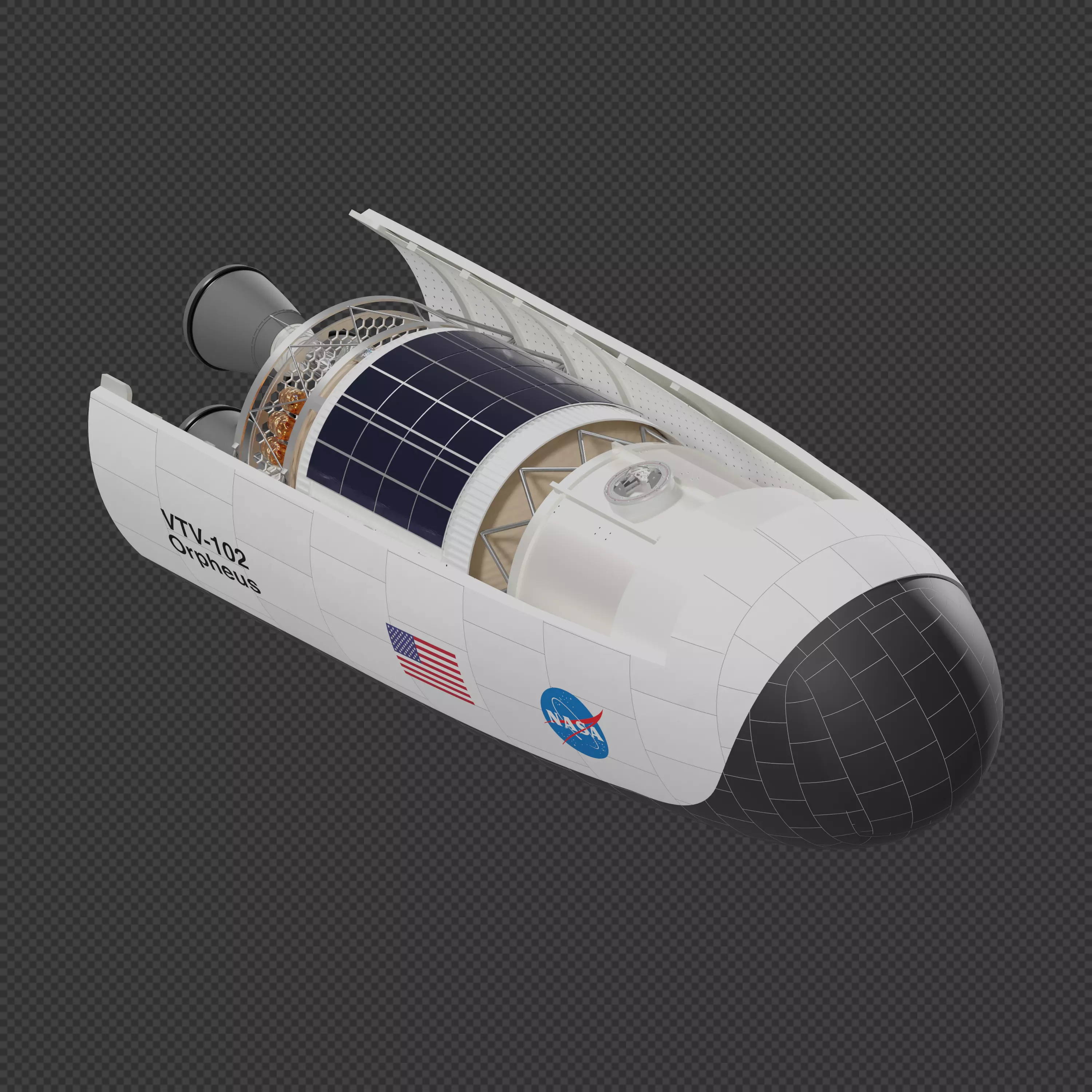

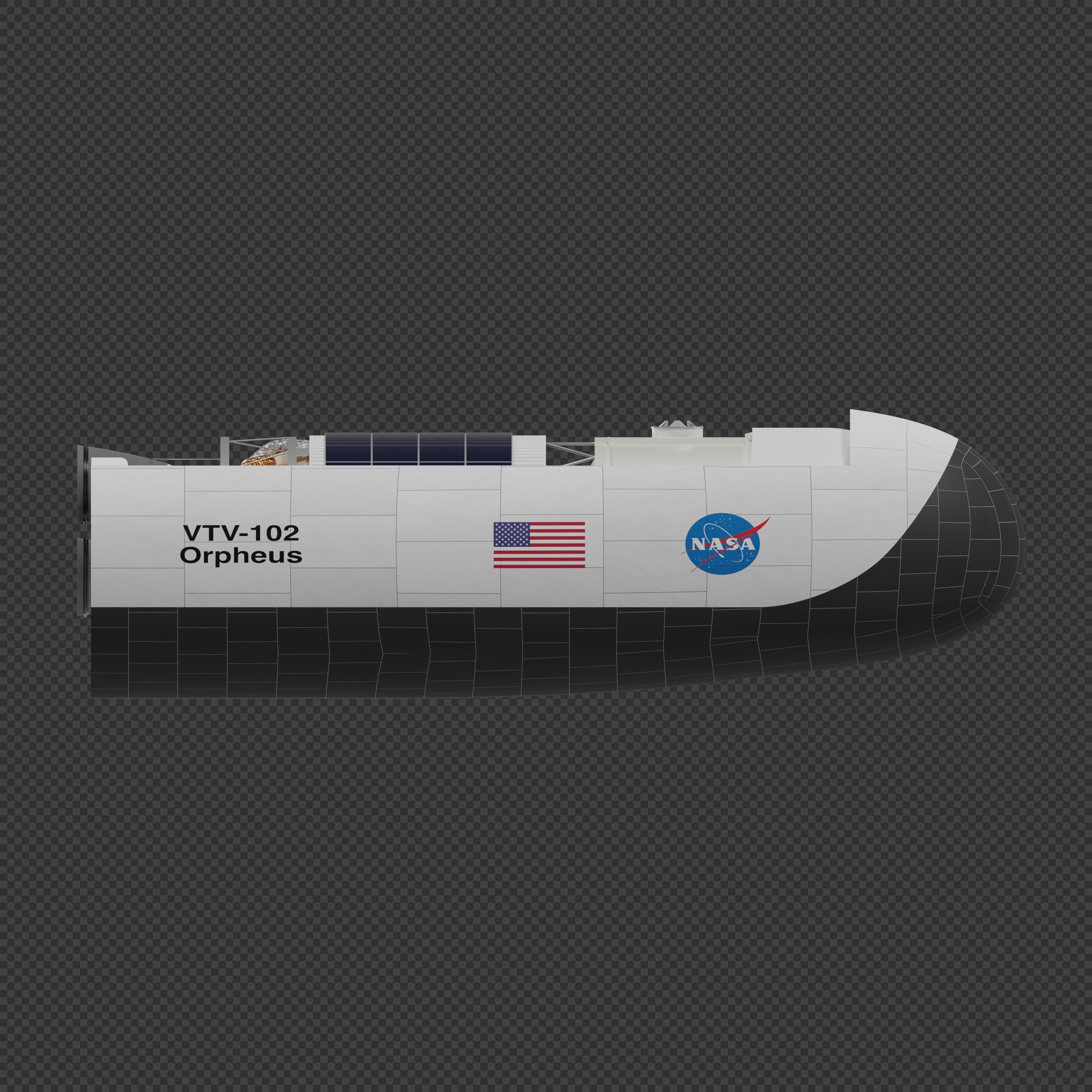

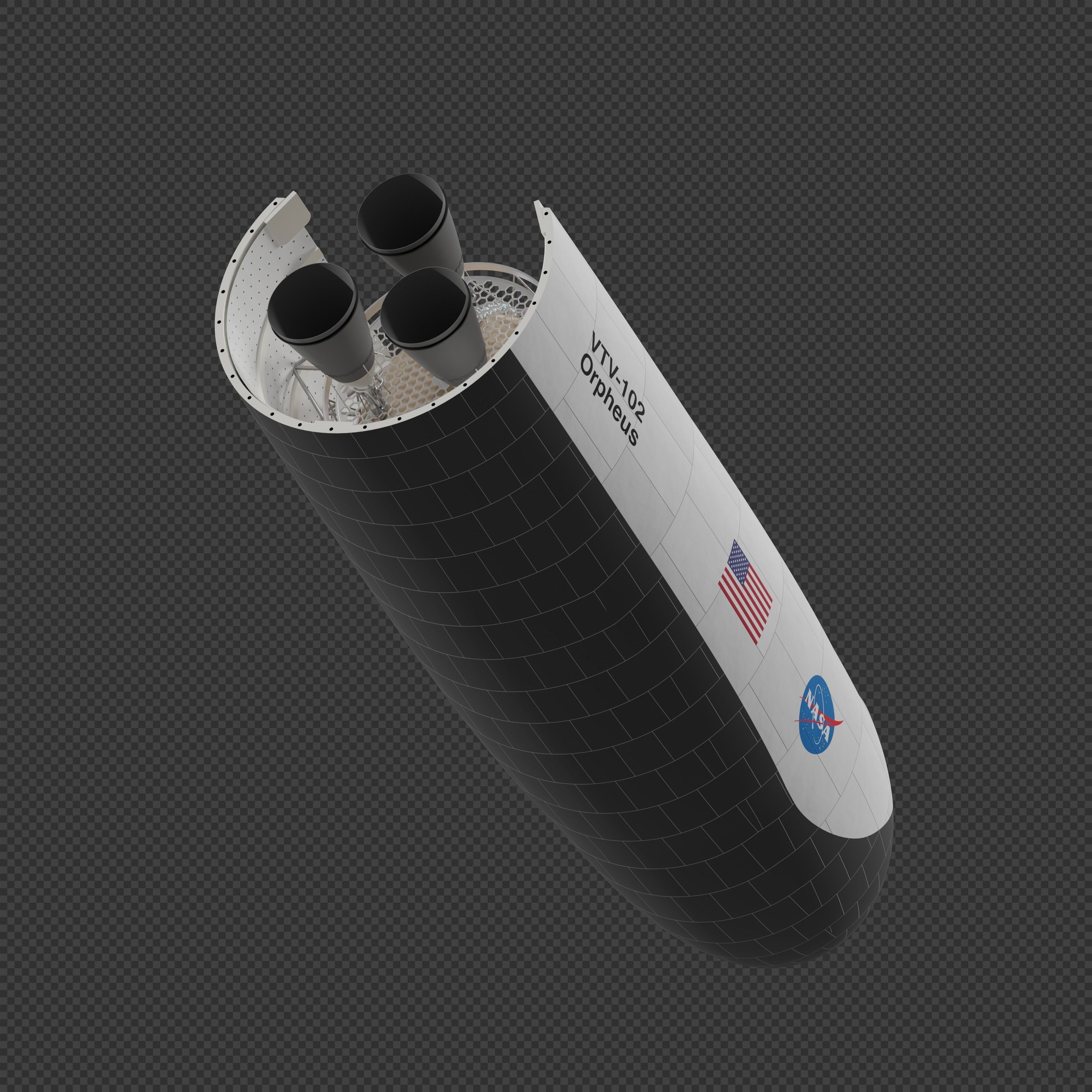

HAVOC (High Altitude Venus Operational Concept) was a mid-2010s NASA study on human missions to Venus's orbit and upper atmosphere. This Crew Transfer Vehicle would be used for the interplanetary transit portions of the mission, between Earth and Venus' orbits. Astronauts would launch aboard an Orion capsule and transfer to the CTV in medium Earth orbit. Earth departure would use two chemical propulsion stages (likely modified Exploration Upper Stages). The CTV would then aerocapture into Venusian orbit, where the crew would transfer to another aeroshell containing an airship and return-to-orbit rocket. For Earth return, the CTV would perform trans-Earth injection under its own power, and aerocapture back into Earth orbit

All materials, textures, and linked libraries are packed in the .blend file. Unapplied modifiers and instancing have been used to reduce file size and enable easy editing

Item rating
0 0
NASA HAVOC Crew Transfer Vehicle
$35.00

Royalty Free License
NASA HAVOC Crew Transfer Vehicle
$35.00

Royalty Free License
Response 87% in 5.1h

3D Model formats

Format limitations
Native
  • Blender 3.3 (.blend)240 MBVersion: 3.3Renderer: Cycles
Exchange
  • Collada (.dae)29.6 MB
  • OBJ (.obj, .mtl) (2 files)201 MB
  • Autodesk FBX (.fbx)62.2 MB
  • Stereolithography (.stl)49.1 MB

3D Model details

  • Publish date2022-11-08
  • Model ID#4097841
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR

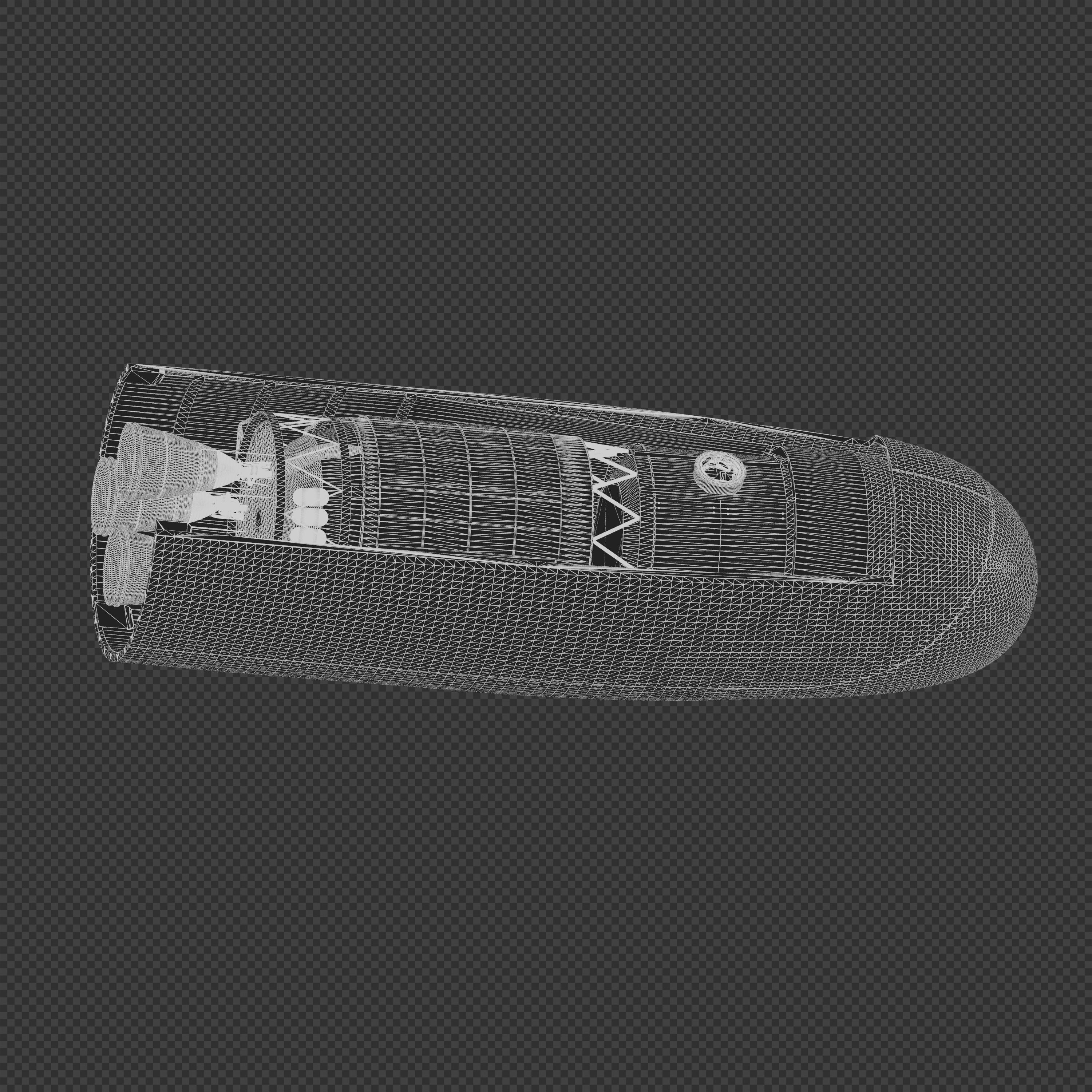

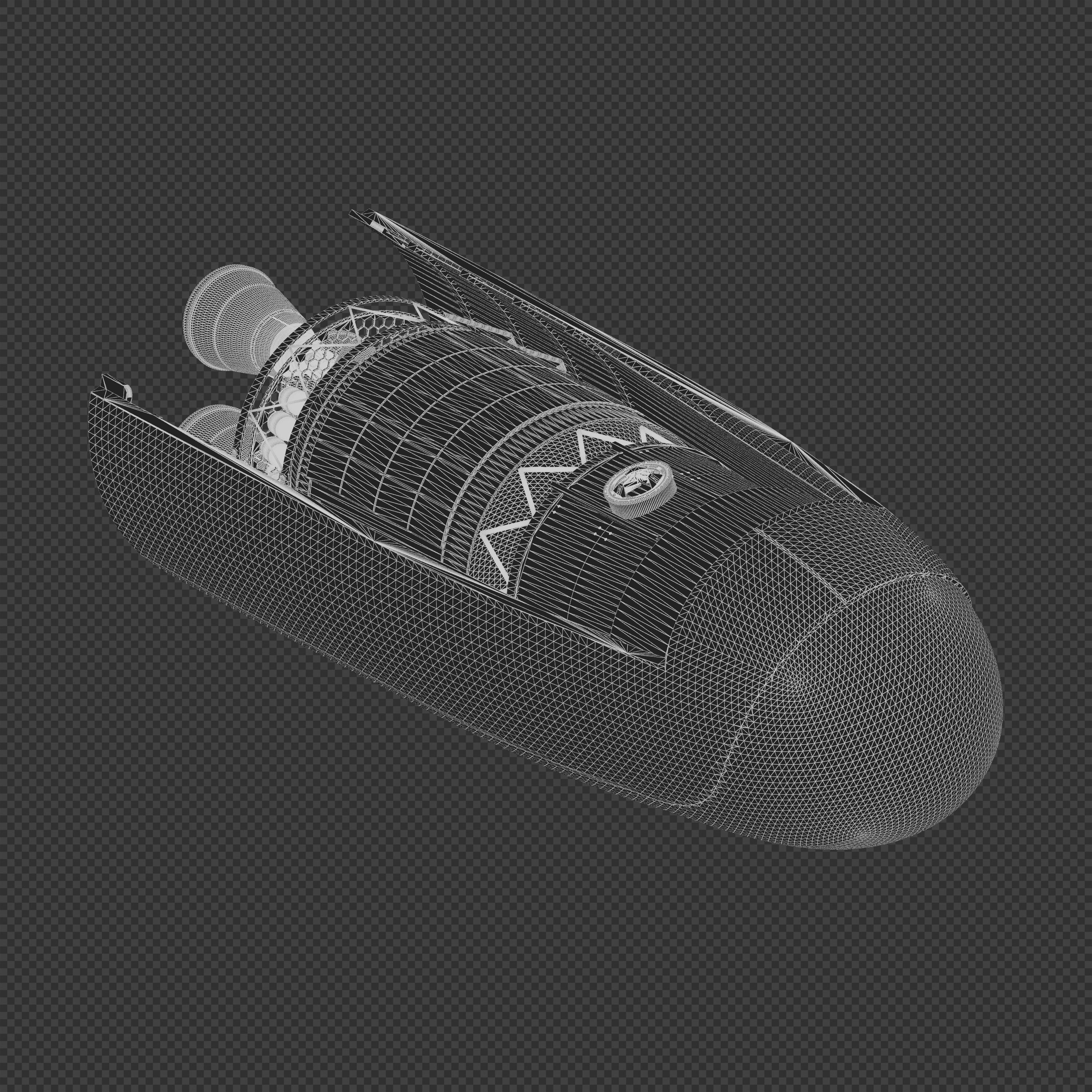

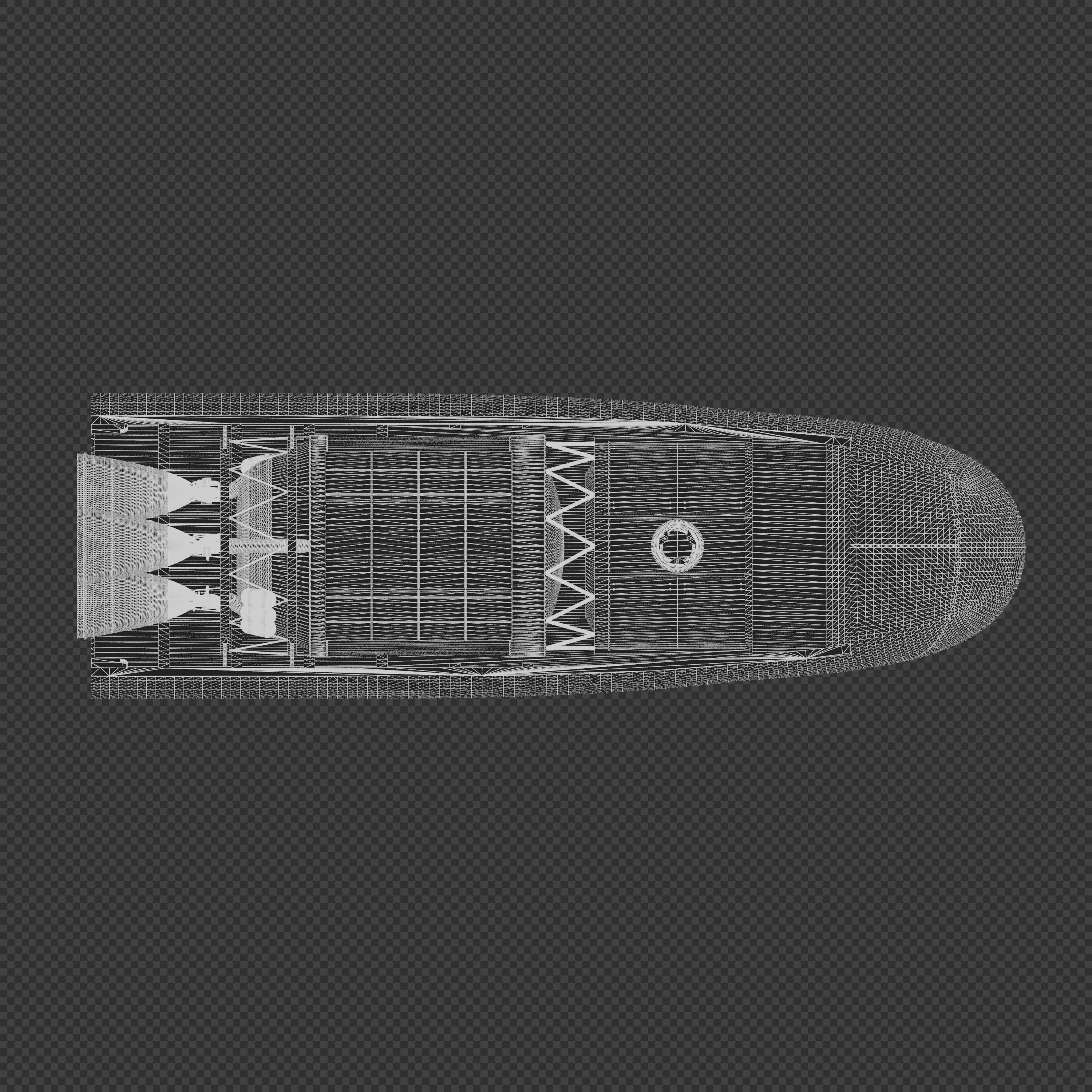

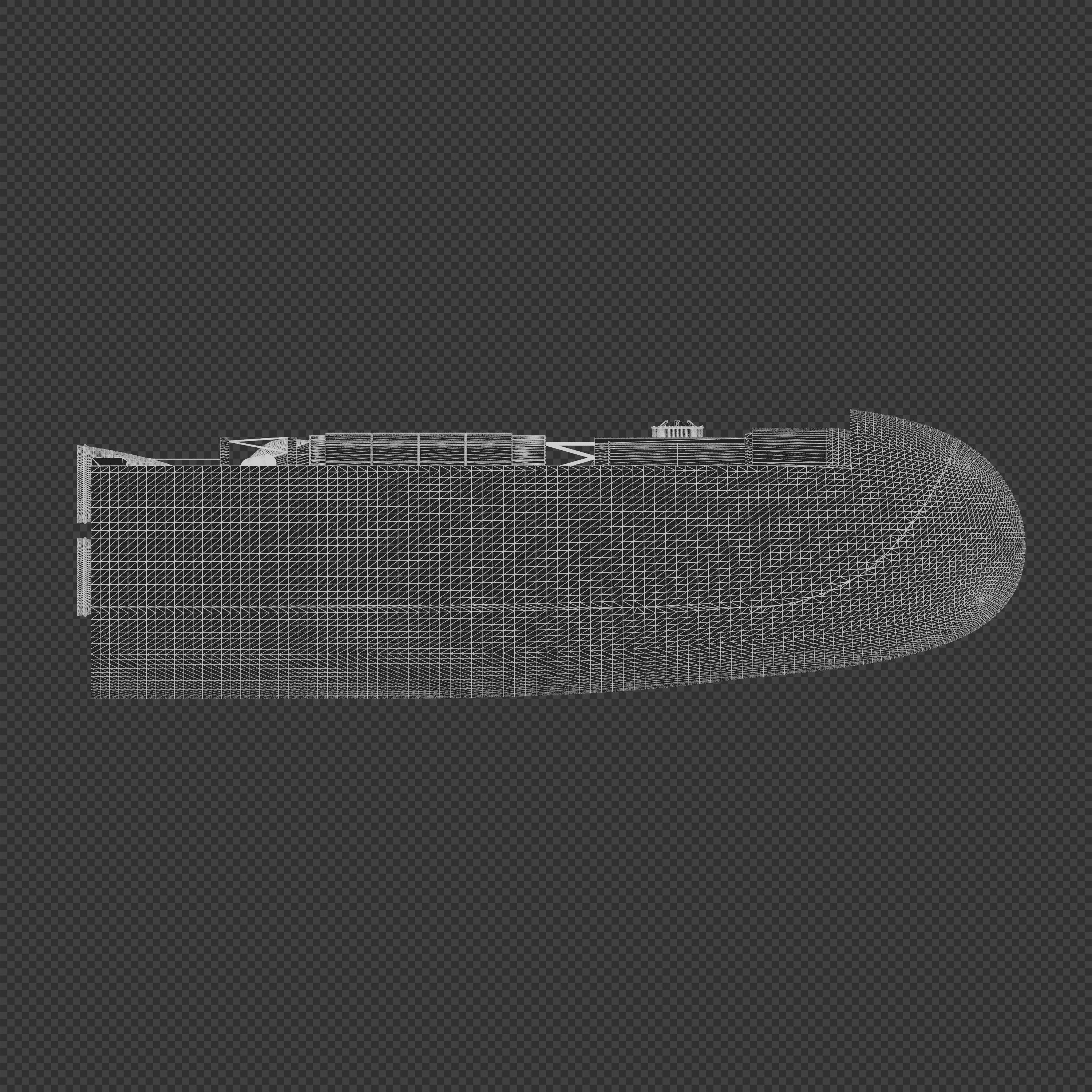

  • Geometry Polygon mesh
  • Polygons 1,751,370
  • Vertices 2,624,108
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
