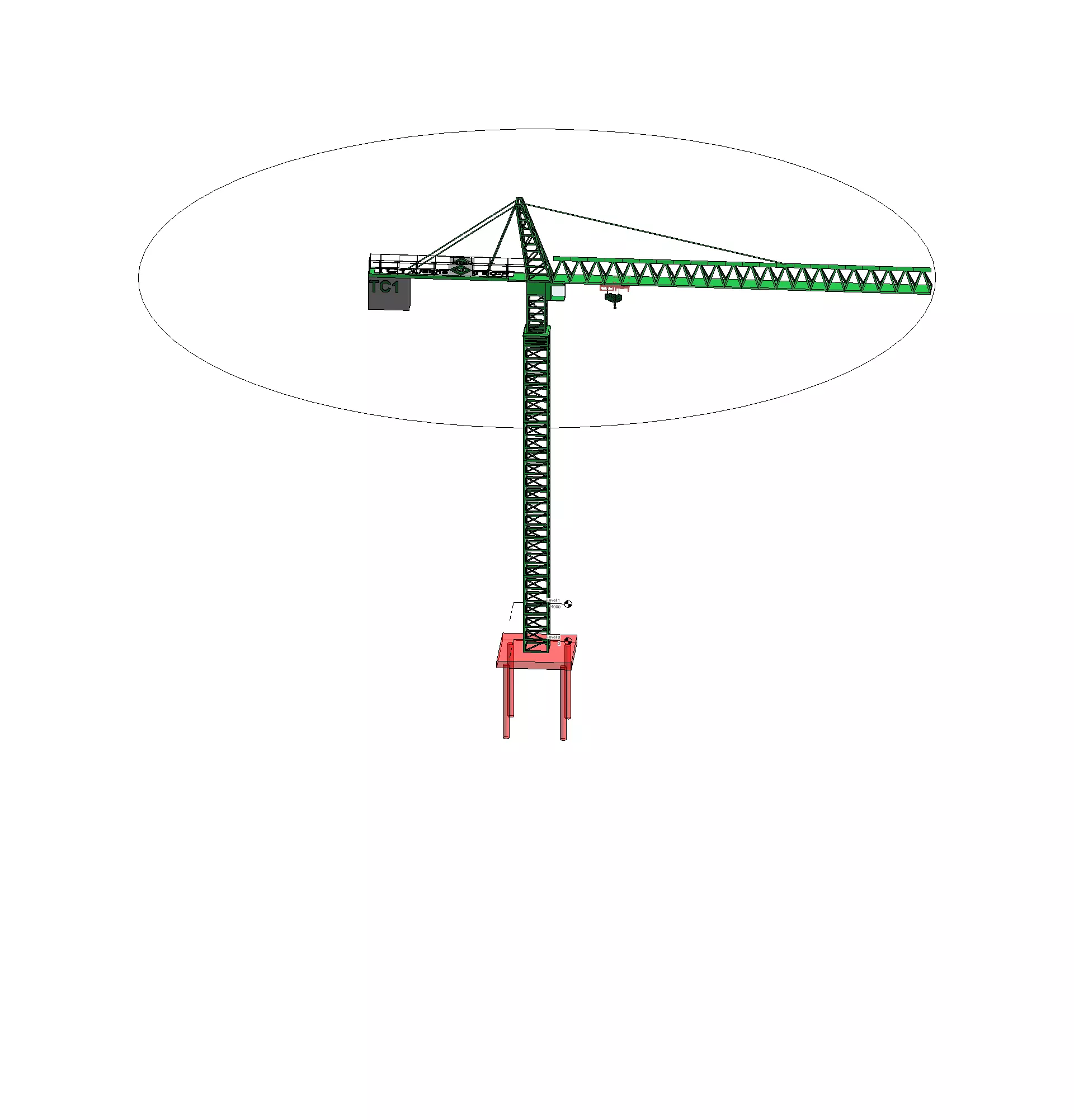

Tower Crane with RC Base and hook - Parameteric 3D model

full parametric tower crane with concrete base and piles.

the crane has been developed to enable easy use within revit and to then report on key data like height under hook HUH.

you can control the following parameters Crane Base: **width, length, depth, piles visibility, material **Tower Crane: jib height, Radius, hook off set from jib, material finish, crane ID, crane make.

to use: simply place the crane base at relevant level, then specify crane base size, then jib height, radius and hook off set from jib.

you can also move the trolley and hook out and down and rotate the jib.

can be configured to suit most crane types and models. Liebherr / Potain / NFT / Uperio / SPMR
