A10 Thunderbolt GAU-8 PGU13 HEI 30mm x 173mm 3D print model

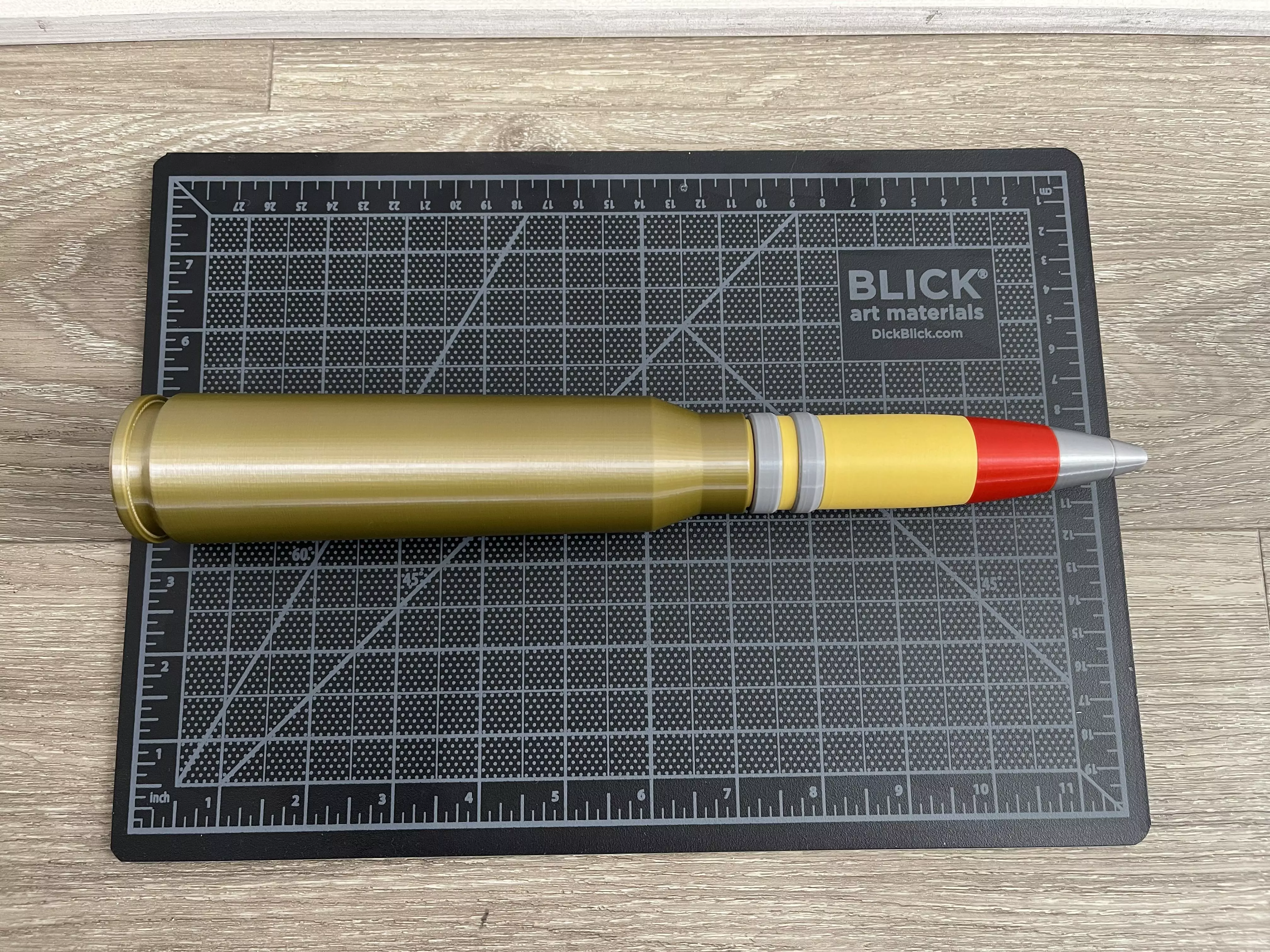

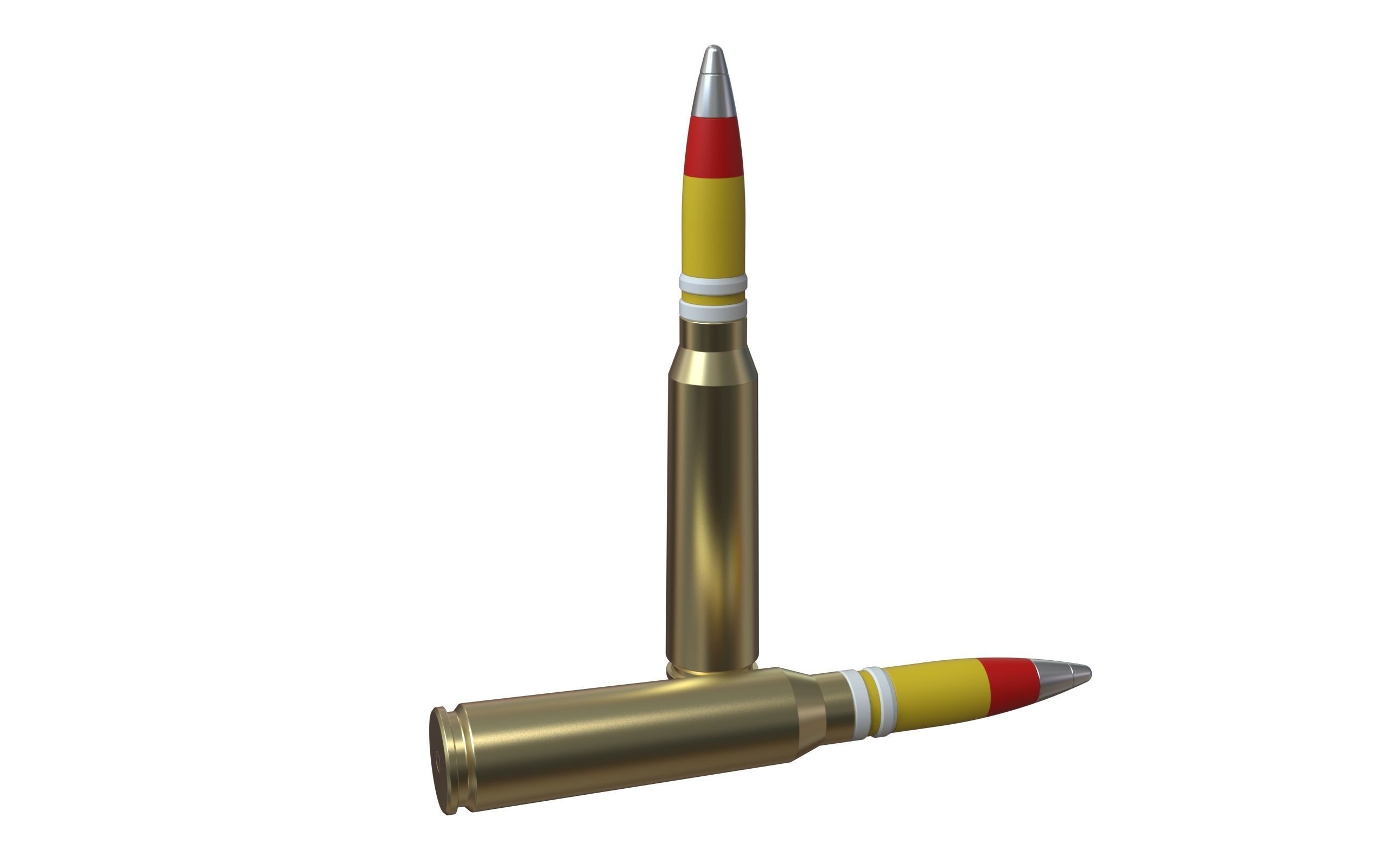

Using all available public data I have re-created a 3D printable PGU-13 30x173mm HEI round used in the mighty GAU 8/A Avenger autocannon on the Fairchild Republic A-10 Thunderbolt II.

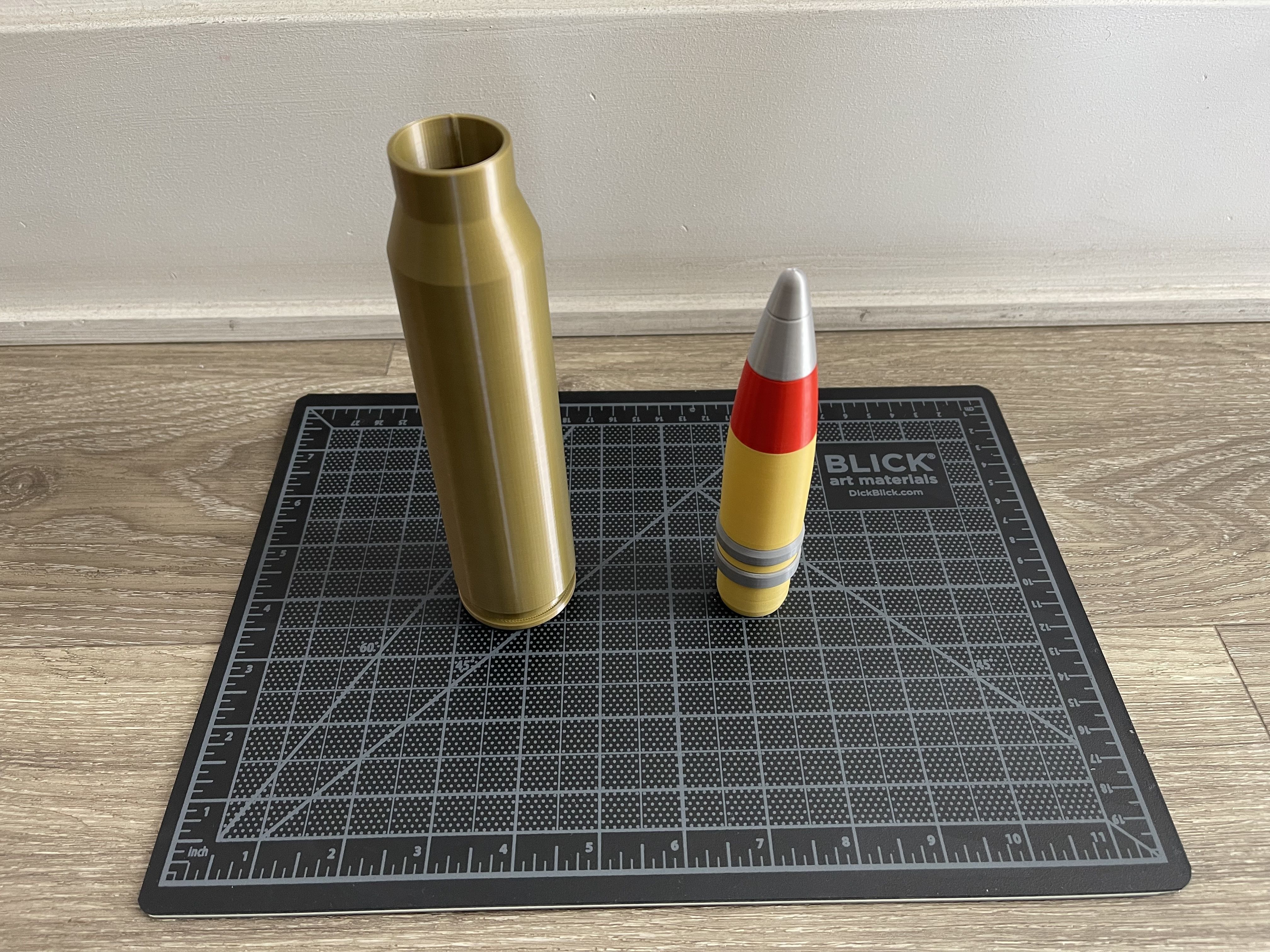

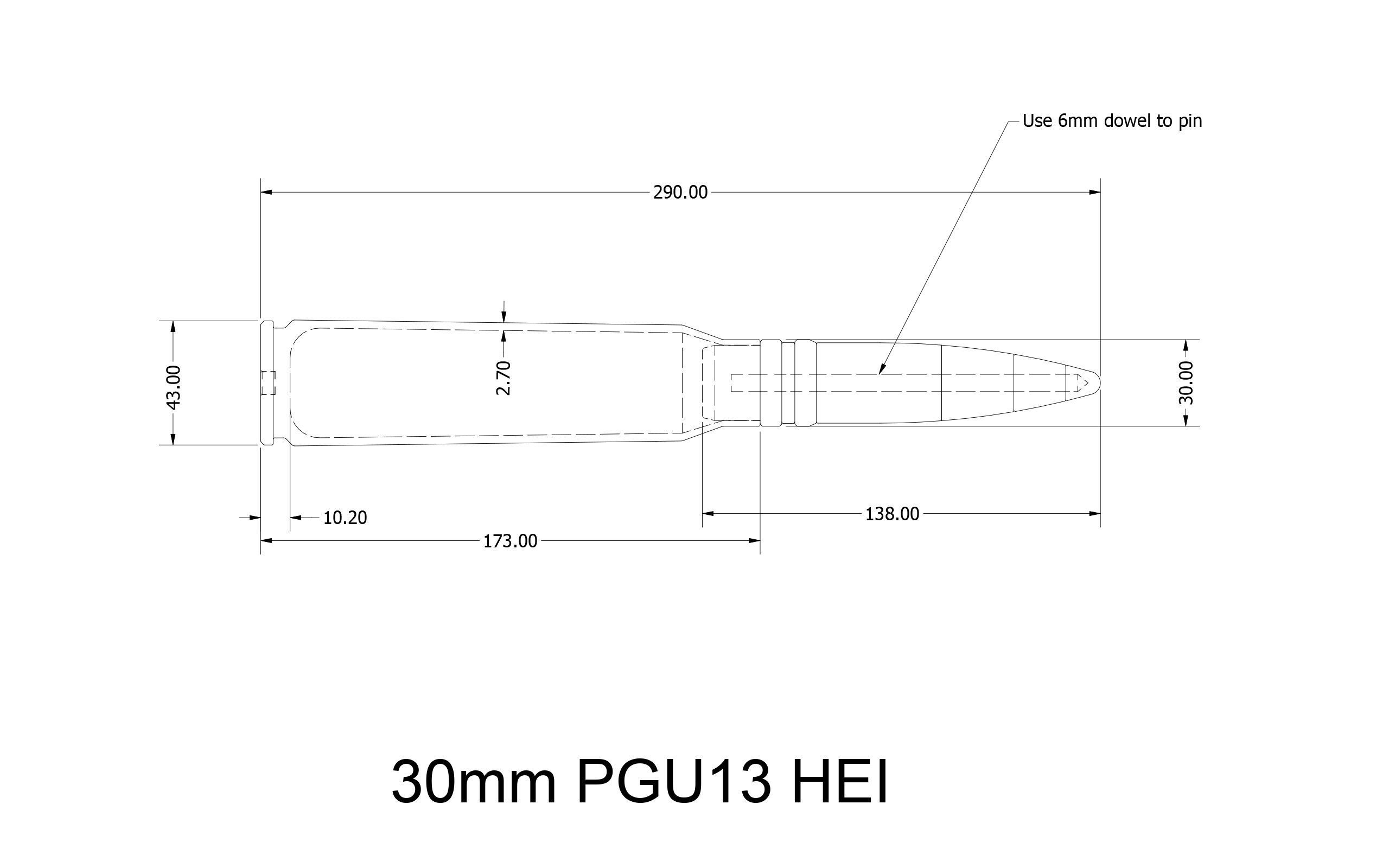

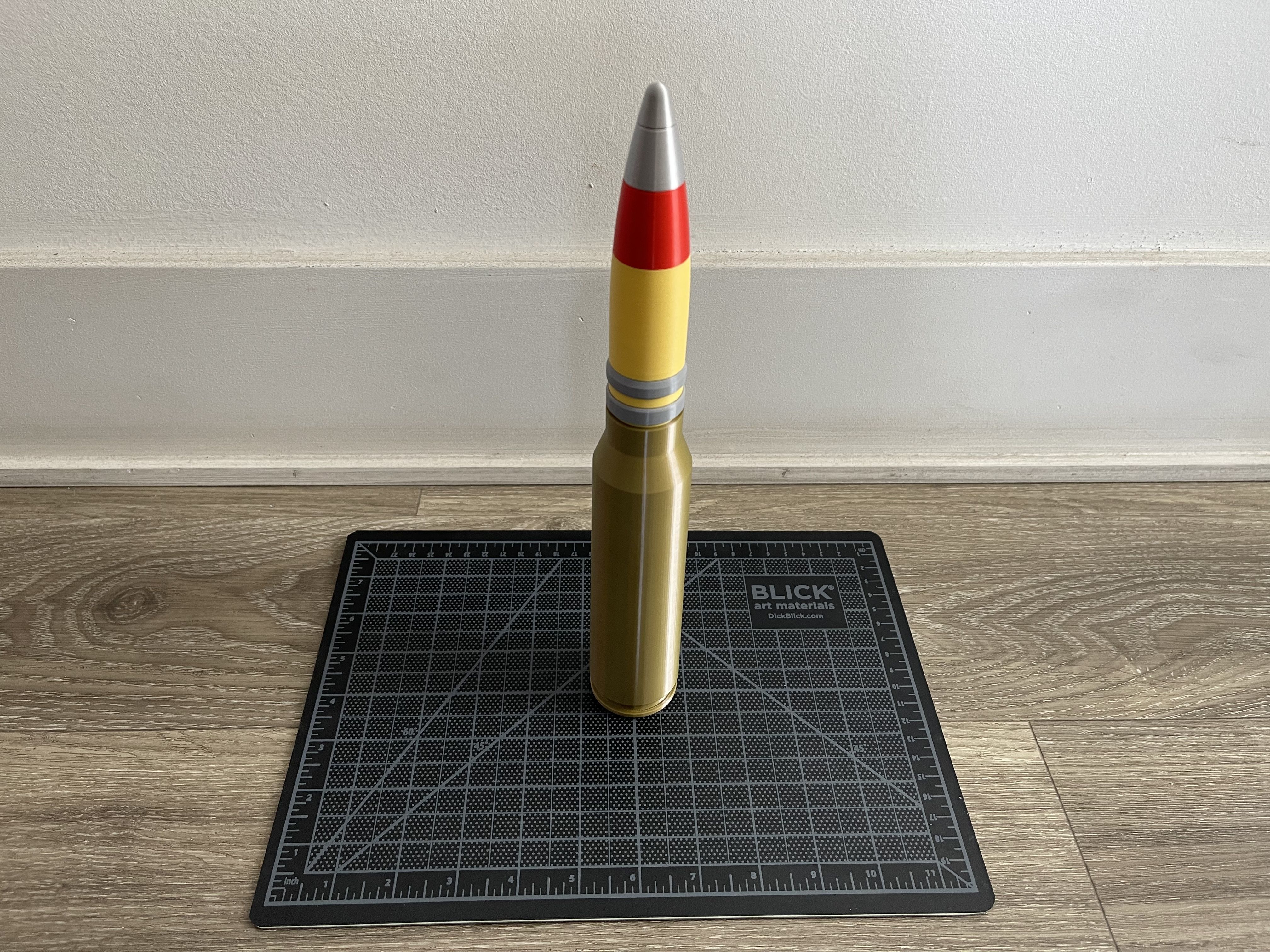

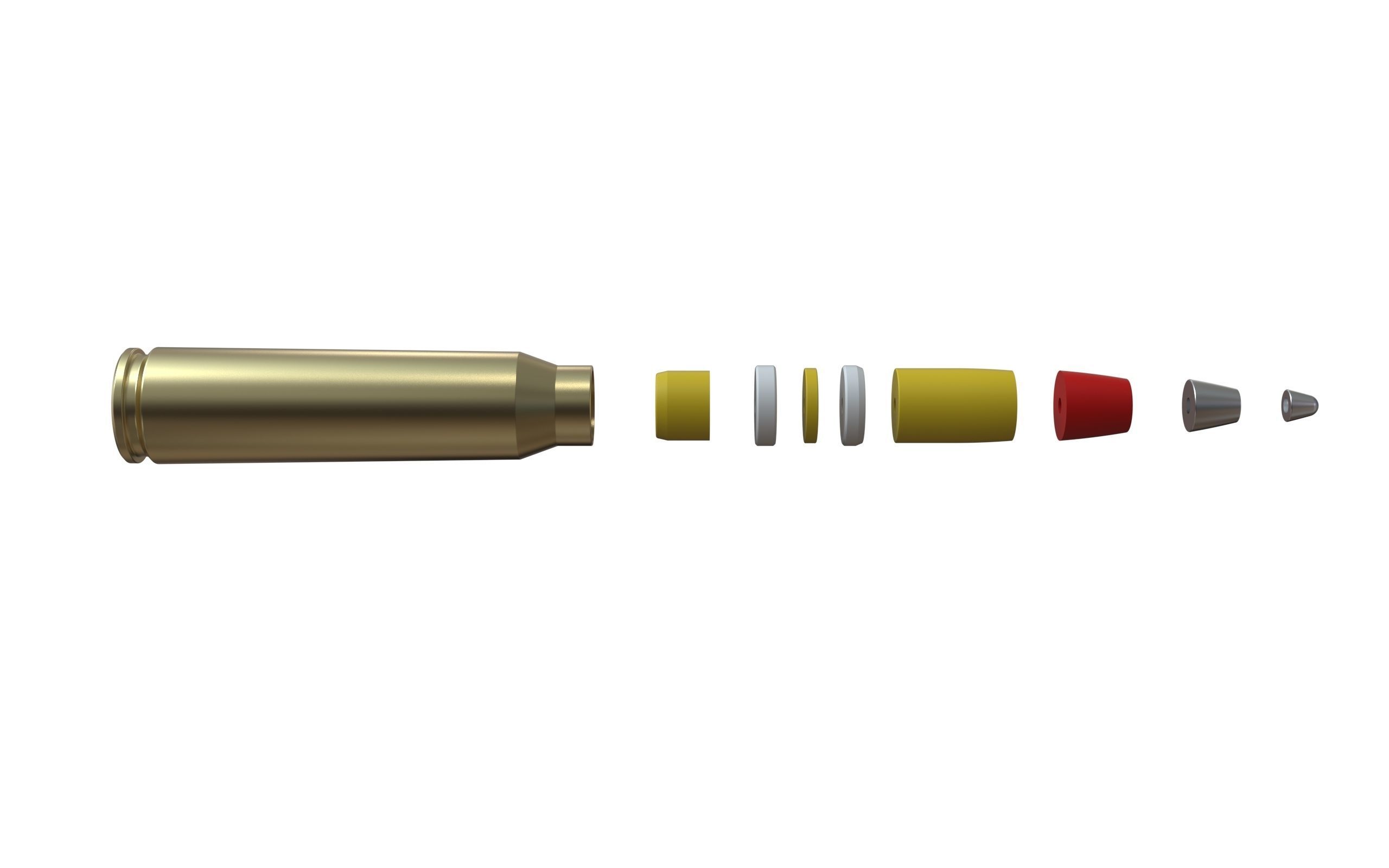

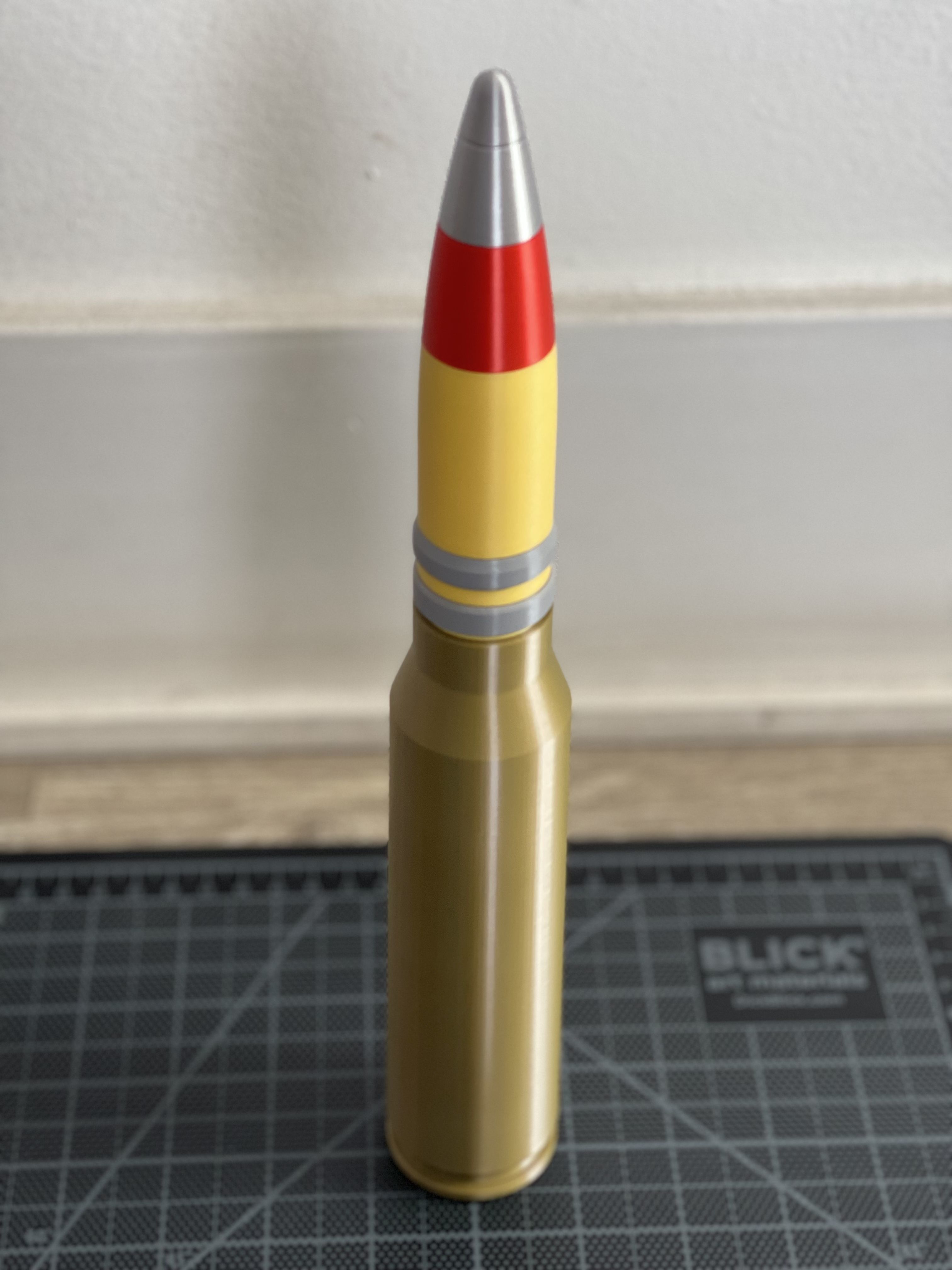

I have optimized the design to make it easier to 3d print without supports and improvised where data was not available, so I cannot promise 100% accuracy. But it will print 1:1 scale with no issues. I recommend utilizing a 6mm wooden dowel to align and pin the parts together (or you can 3d print pins as needed).
