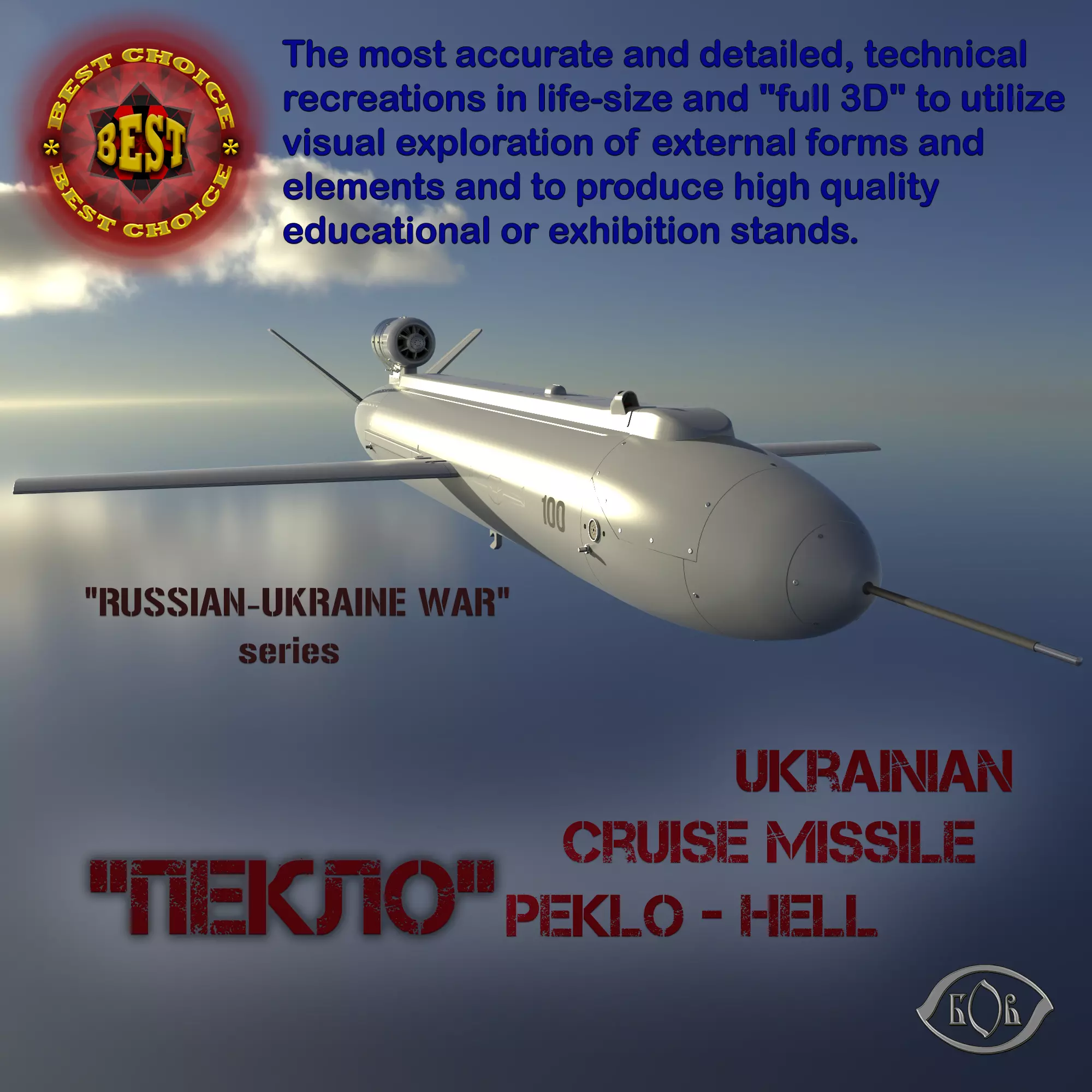

Ukrainian cruise missile PEKLO Detailed engineering 3D model

I present a 3D model of the Ukrainian small-sized (about 3x0.55x2 meters) cruise missile PEKLO (ПЕКЛО – HELL),
in full size. In the form and modification, which was presented in the official video in free access
from the presentation at the production in the presence of the President of Ukraine, in December 2024.
Of the many variants of turbo - jet engines used, the variant with PBS TJ40-G2 engine is presented.
In December 2024, the official presentation of the newest serial Rocket - drone - PECLO
was held in Ukraine. From the officially announced characteristics were voiced -
Maximum range of 700 km.
Maximum speed of 700 kilometers per hour.
Targeting system - Inertial and satellite GPS.
Ukrainian components - 70%
Design and Development was carried out from 2023 under the state program - Army Drones
for the design and production of missiles and drones for the needs of the Armed Forces of Ukraine,
the logo of the program is depicted on the fuselage of the missile. The program will be launched
in serial production from 2024. At the time of presentation, this munition is already hitting targets
in the rear infrastructure of the Moscow Federation, the production of more than 100 units (at the time of presentation).

Based on the design and dimensions, we can conclude or assume that the missile
can be launched by means of a catapult (presence of a grappling hook at the bottom and lateral guides).
Unique development - maximally detailed, with reflection in the model of almost all external elements
of the structure in full 3D format and not requiring mandatory, additional use of special 2D textures.
The model is ready for realistic 3D visualization in virtually any application designed for this purpose
using a standard set of materials - all surfaces are ready for this and marked - Assigned materials
surfaces with conditional color markings. See examples of realistic rendering in Keyshot 5.0 and
Real-time (online)rendering engine with limitations of the free version. The model is technically accurate and is made
as close as possible to the original and in the original dimensions, including the elements.
Even the screw heads, rivets which are not filled with putty and sealant in the real product,
correspond to real metric fasteners. Everything is made as accurately as possible, as much as
possible relying on the little information from available open sources - photo and video materials.
The model can be successfully used for detailed study of the external design of the product,
creating realistic 3D visualizations of high quality and pixel resolution - much higher than 4K
(smooth surfaces and high detail), as well as can be used for the production of high-quality stand
models-models for training and for exhibition purposes. The model is assembled, all moving
elements are made by separate parts, including engine impellers, Attitude and position rudders,
which if desired, allows you to use the model to create 3D animation. The model was originally
developed in technical-engineering 3D format (solid model). In addition to solid model file formats,
converted highly detailed polygonal file formats are additionally provided.
Mesh:
Vertices 2126121
Faces 4252325
(peklo_uacm.obj)
Please rate and write a review about this model.
If you have any questions, please message me.
Always willing to consider your price offer.
