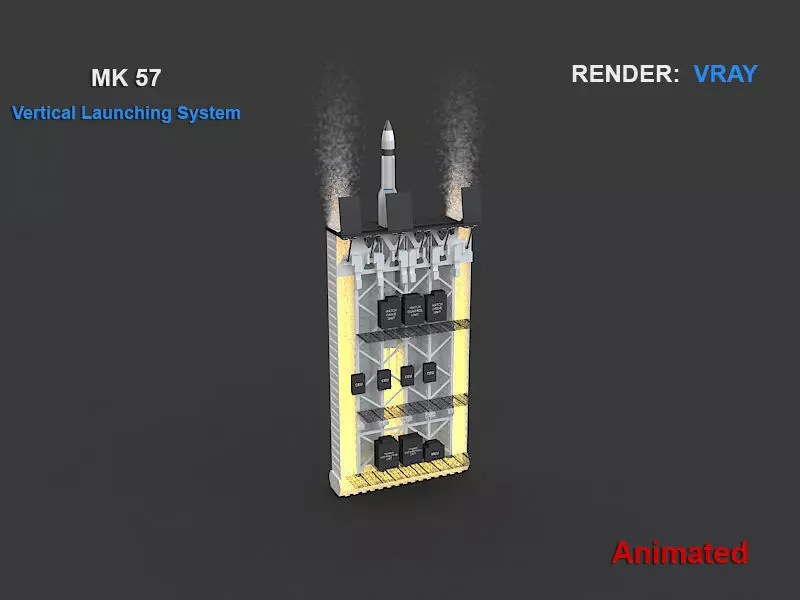

MK 57 Vertical Launching System 3D model

MK 57 Vertical Launching System (Animated) https://www.youtube.com/watch?v=0z5S_DbakR4

Technical detail: Render: Vray Adv 3.00.08 Originally modelled: 3ds Max 2015. Model: correctly scaled all texture and material you will find in archive

Mk 57 VLS is the development of Mk 41 VLS. Developed by Raytheon, the primary improvement of Mk 57 GMVLS (guided missile vertical launching system) over Mk 41 is its exhaust gas management system that can accommodate new missile designs having up to 45 percent greater rocket motor mass flow rate than that of Mk 41. The unique symmetric geometry of the U-shaped gas management system facilitates the egress of gases, while minimizing flow into witness cells and reversed flow into the active cell. Elimination of a missile deluge system significantly reduces maintenance and personnel requirements, and protects against accidental missile wet-down.
