POB (ПОБ) - A modern Russian anti-personnel fragmentation, tension-acting or guided
(depending on the fuze) mine - an engineering munition. Developed in the Russian Federation
in the early 2000s, and in 2005 adopted into service a new anti-personnel fragmentation
jumping mine of circular impact FOB (anti-personnel fragmentation munition).
Code NIR- Saw, Sawtooth. (ПИЛКА).
Tactical and technical characteristics
Type of mine - anti-personnel fragmentation jumping mine of tension action or guided.
Body - plastic

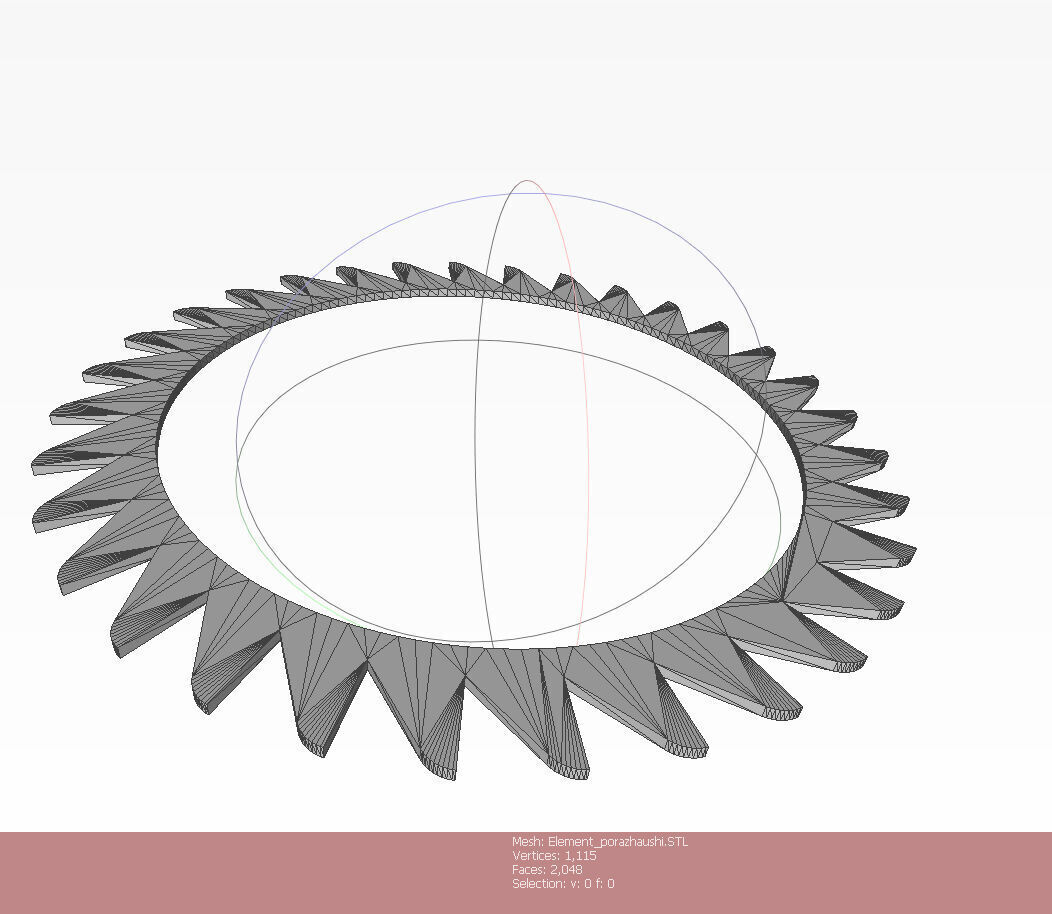

Striking elements - semi-finished, flat metal fragments.
Mass - 2.3 kg.
Weight of explosive charge (TG-40) - 0.51 kg.
Overall width - 12 cm.
Body diameter - 9 cm.
Height (on the body) - 17 cm.Mine burst height - 0.4-0.6 meters.
Radius of continuous defeat of unprotected manpower in height - 20 m.
The radius of continuous defeat in body armor of II-III protection class - 12 m.
It is actively used by Russian troops in the Russian-Ukrainian war.

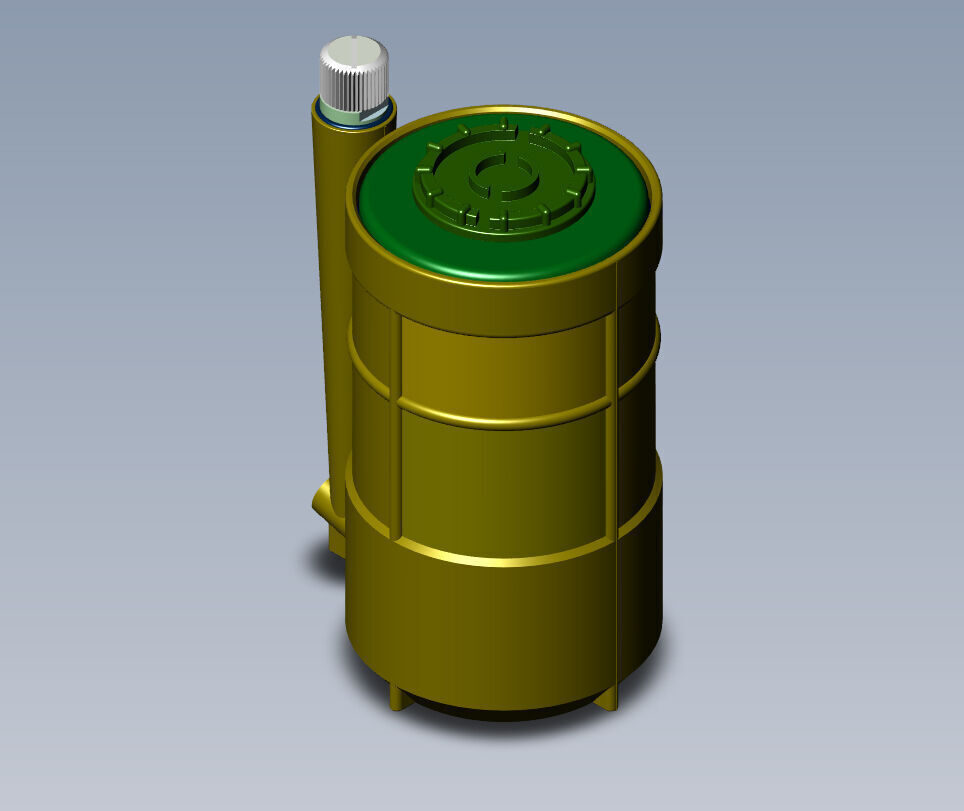

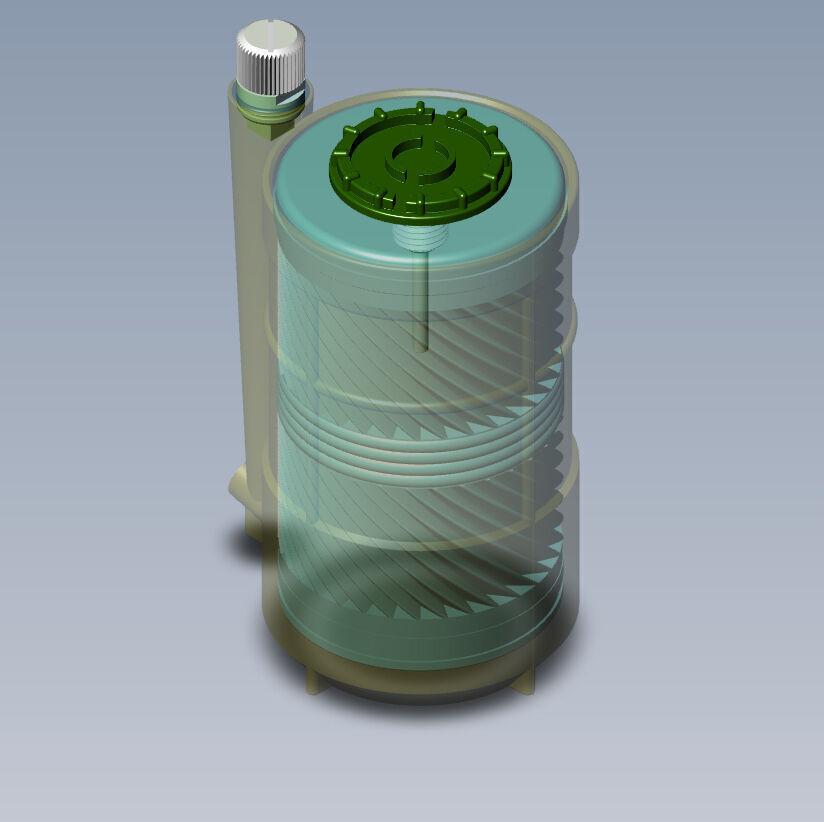

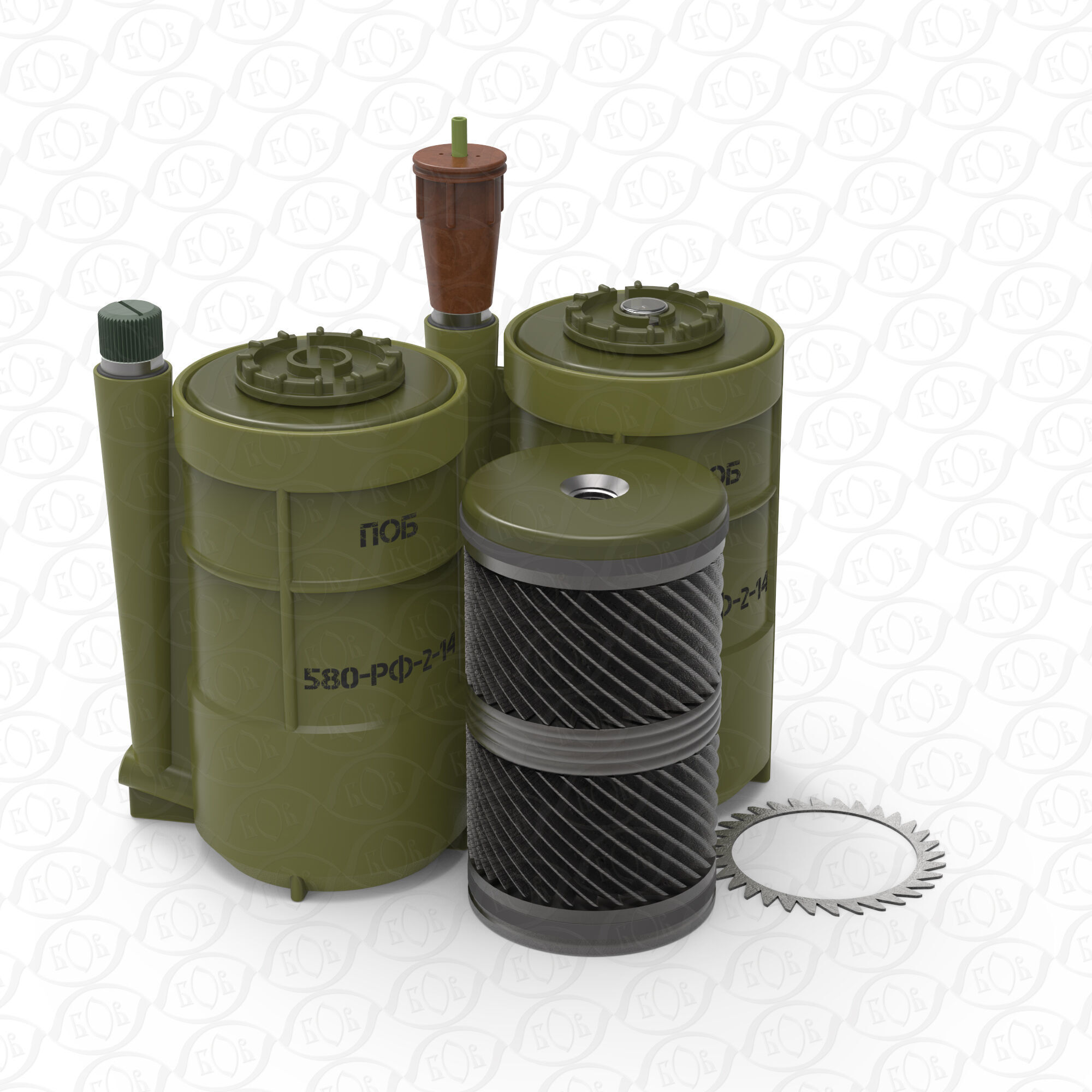

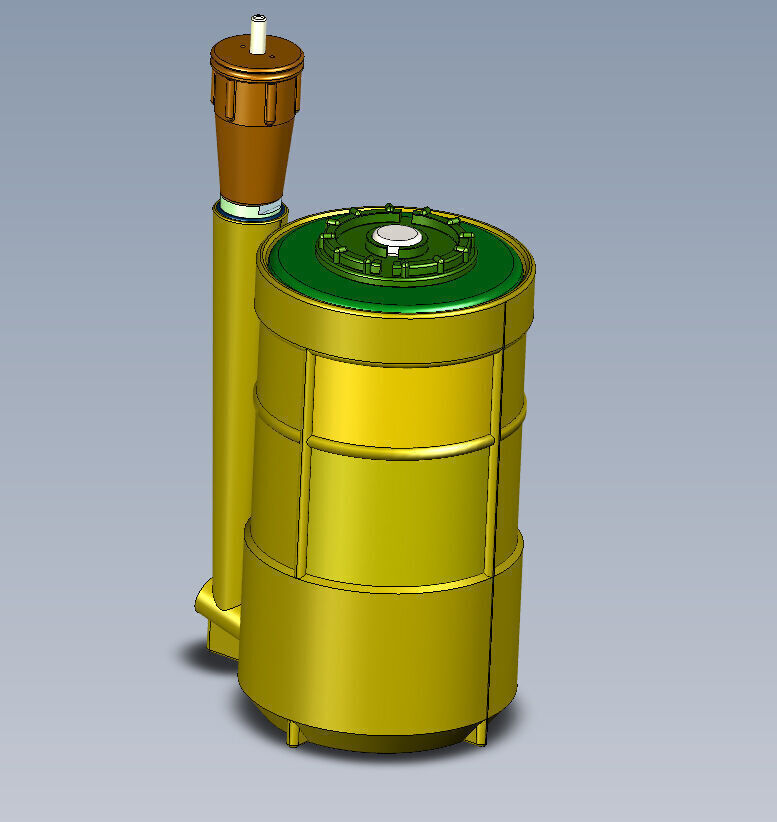

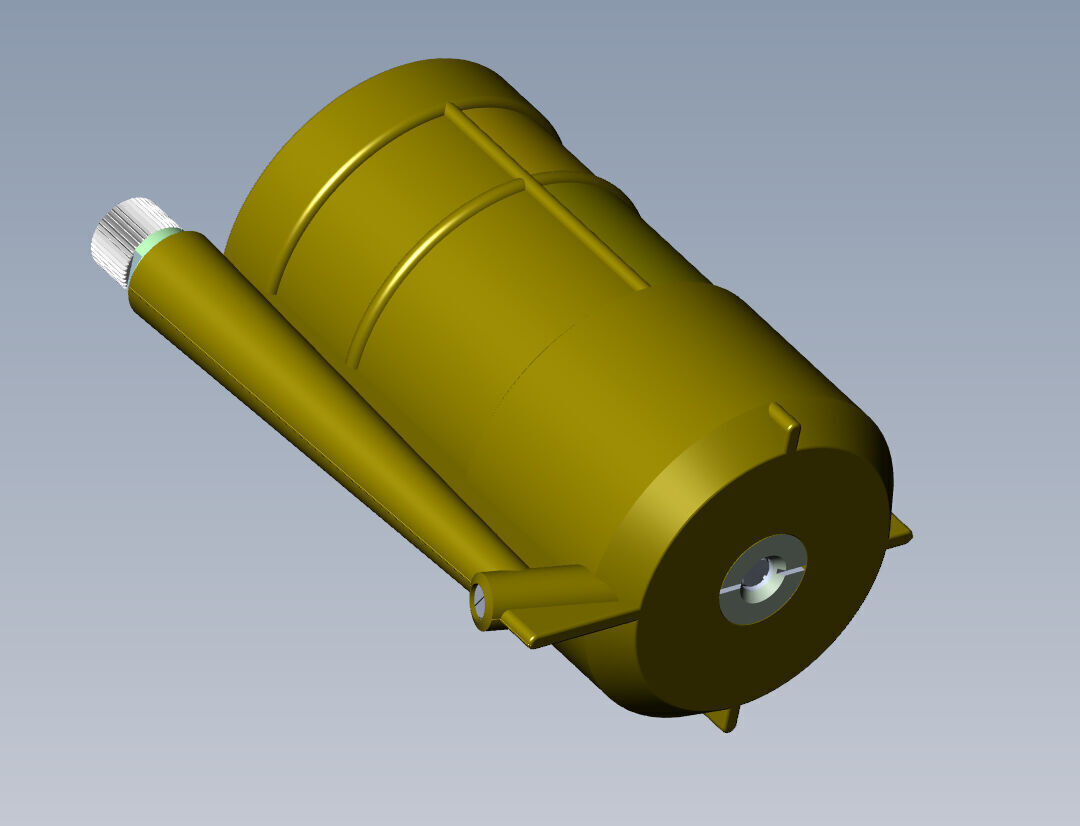

The kit includes two assembly versions of the model - Transport
and Combat (with a nacolny mechanism and mine installation level).

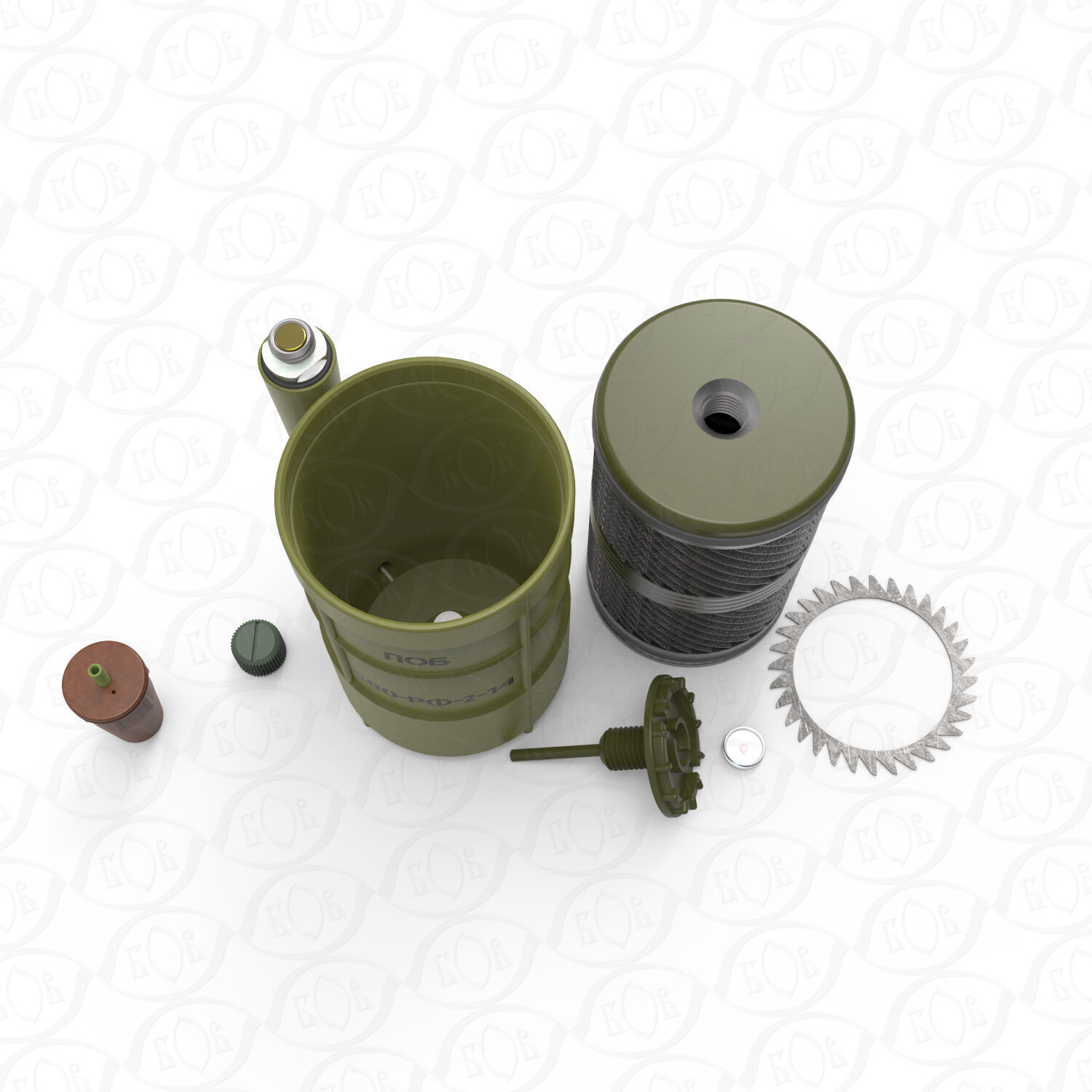

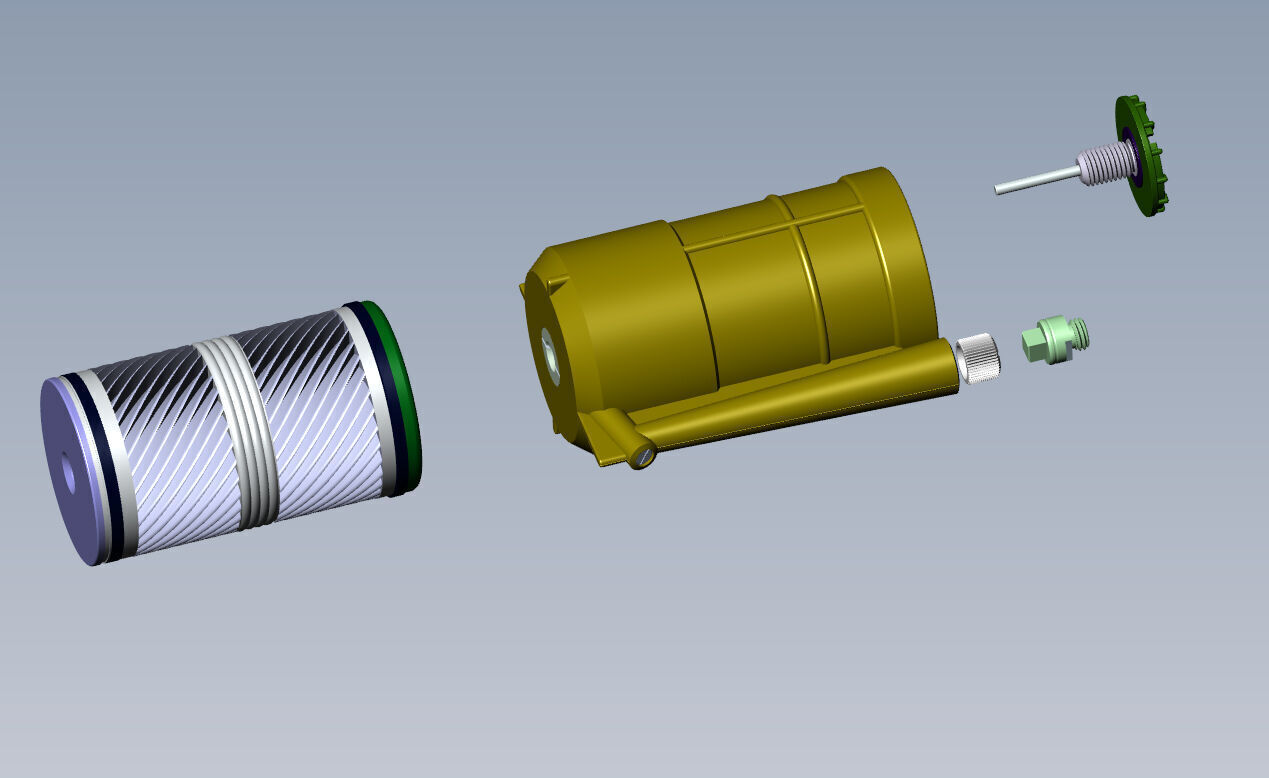

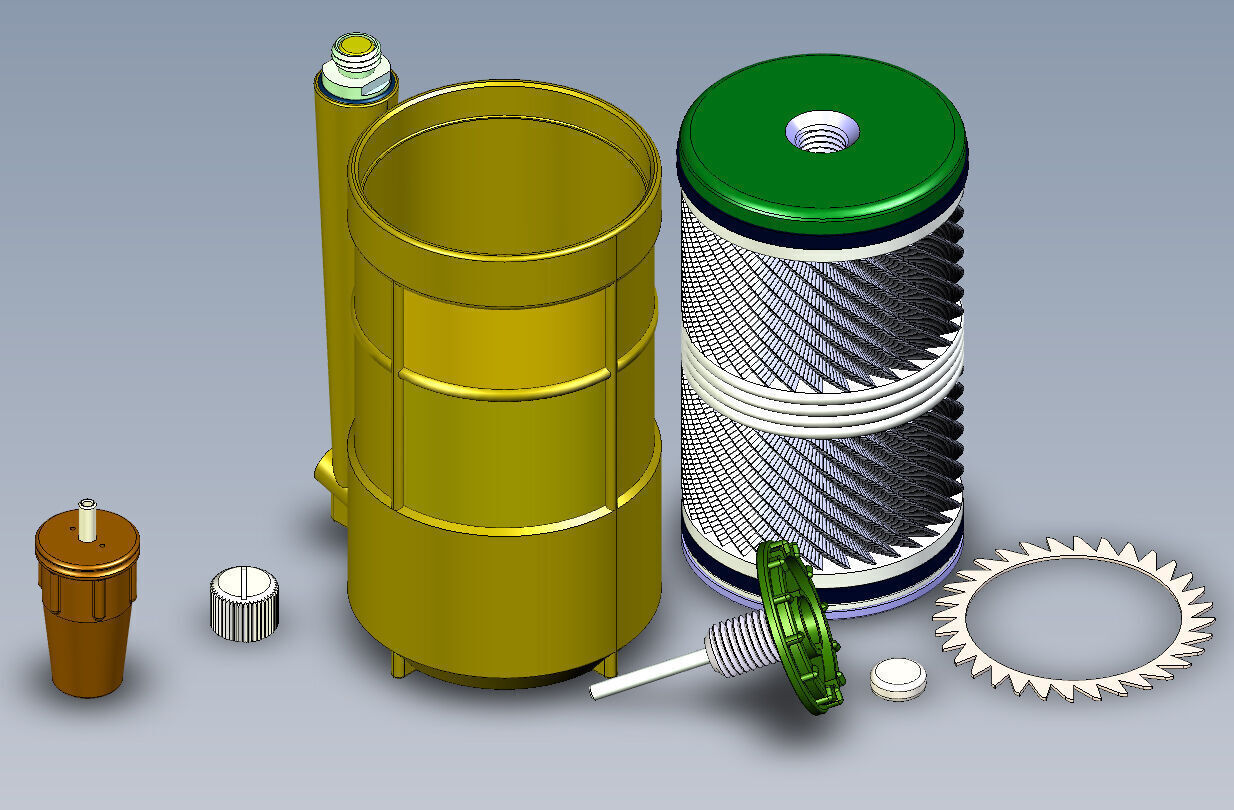

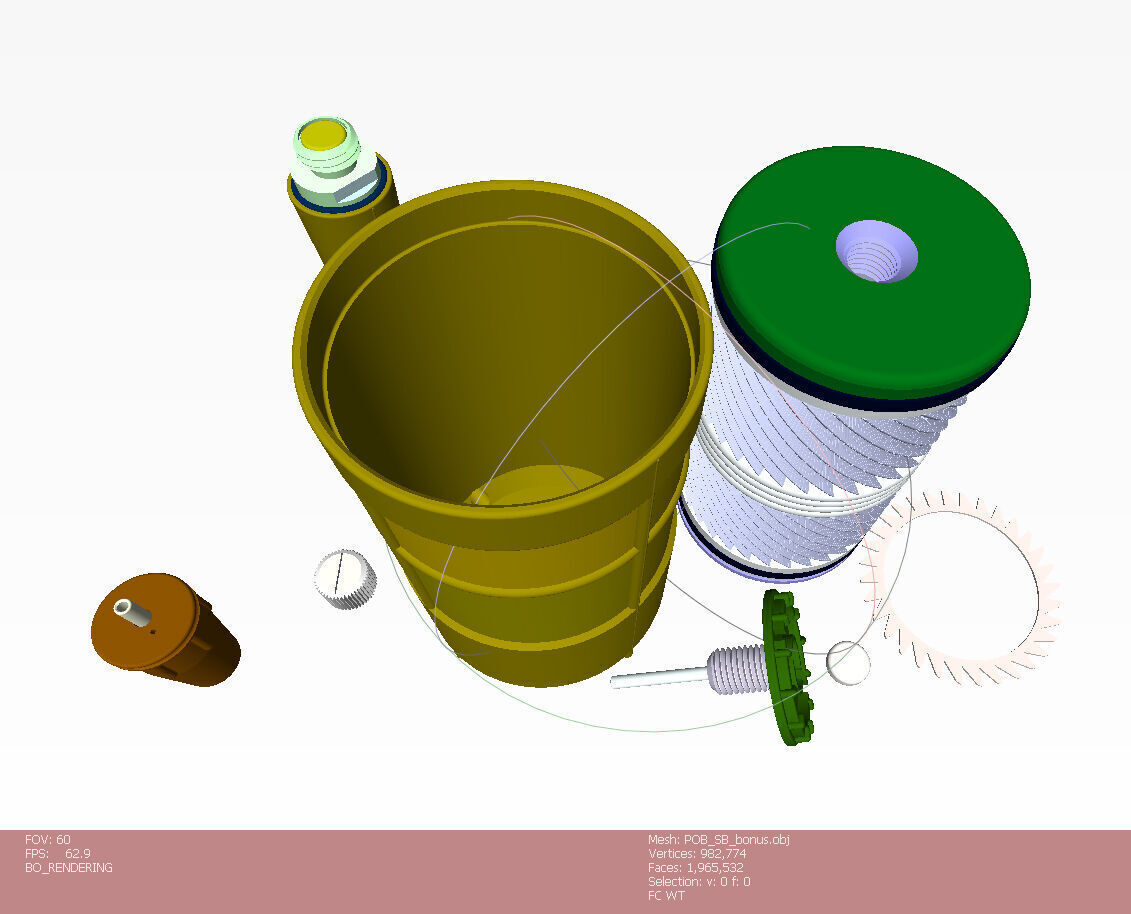

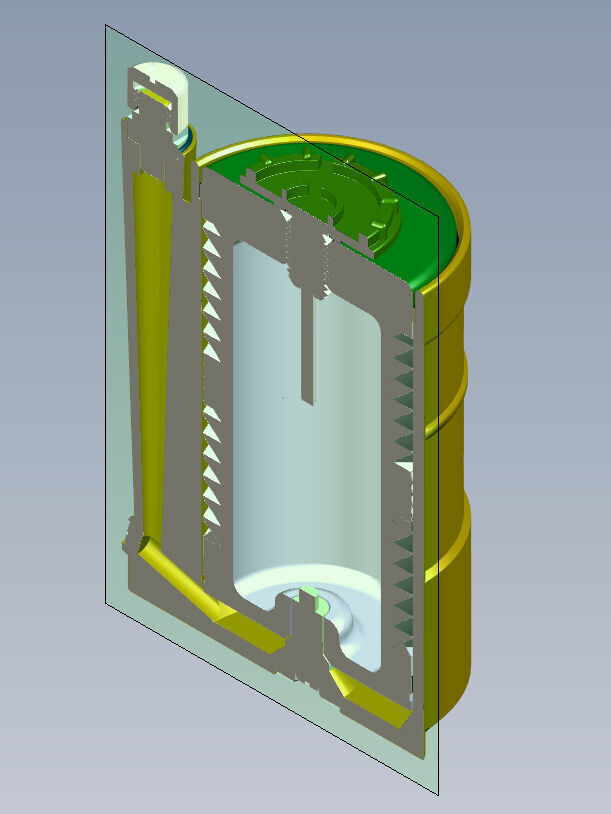

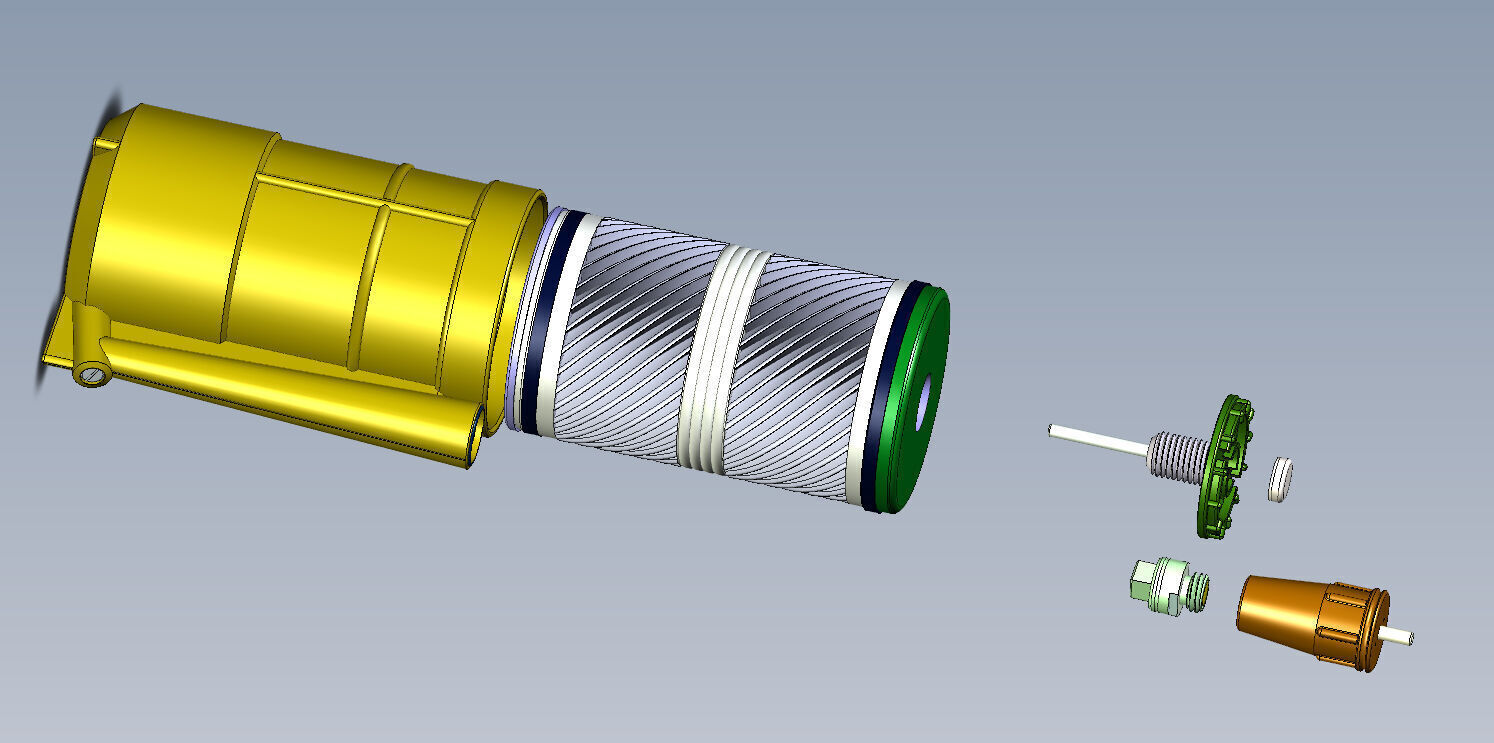

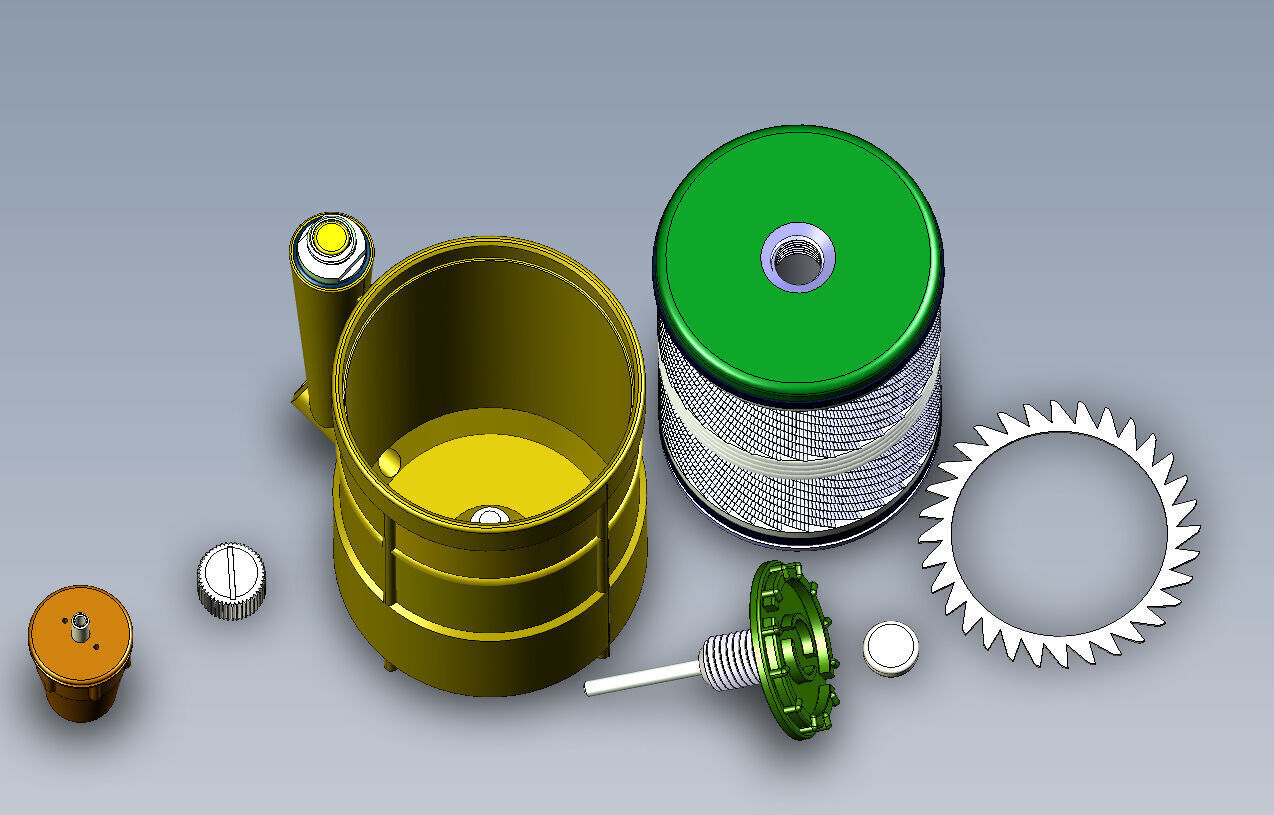

As a bonus, to visualize the details of the 3D model, added a variant - disassembled model
with a more complex variant of Combat Package (jumping) mine, but more visual.

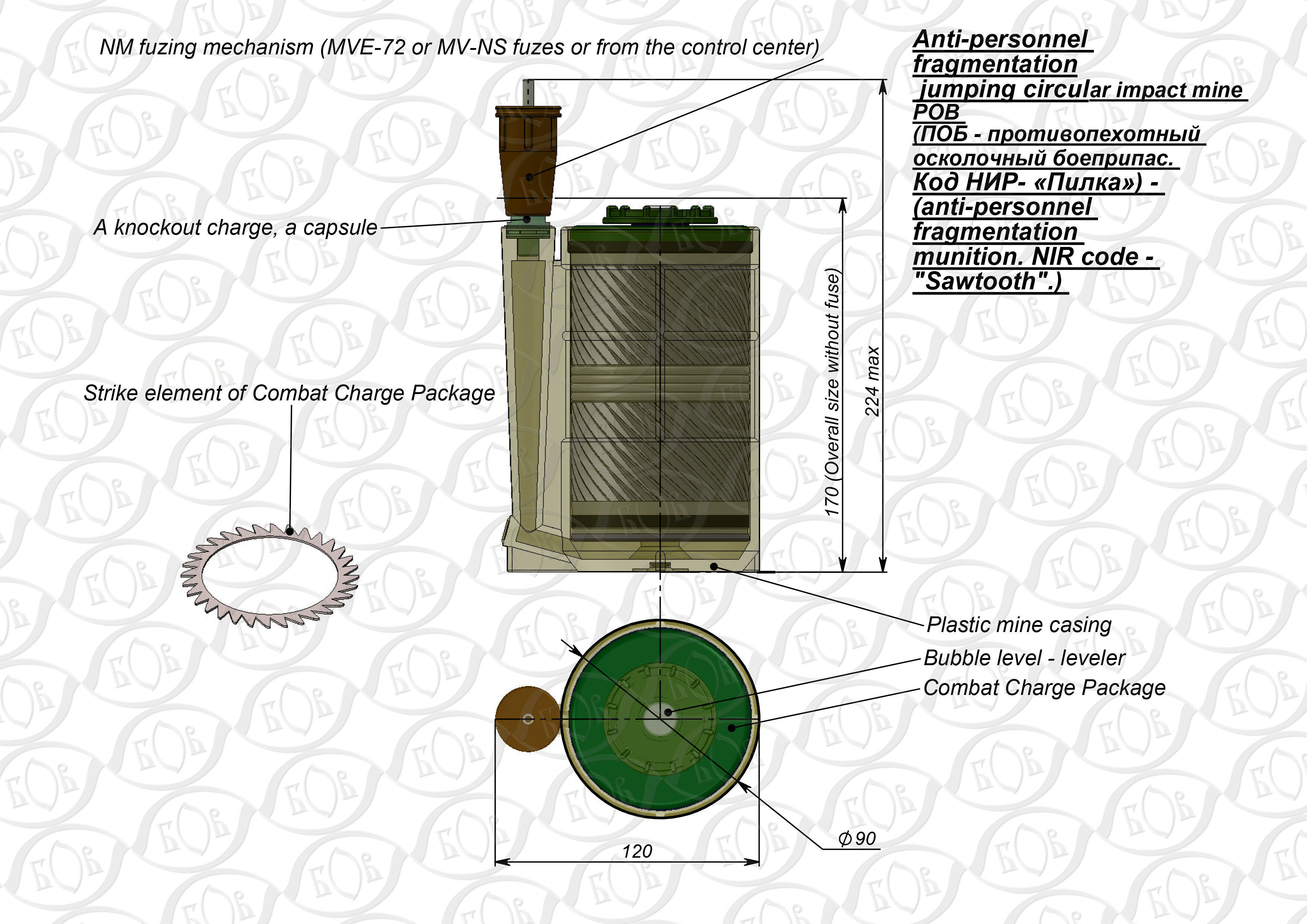

Model dimensions 120(max) x 90 x 170(224) mm. (original size).

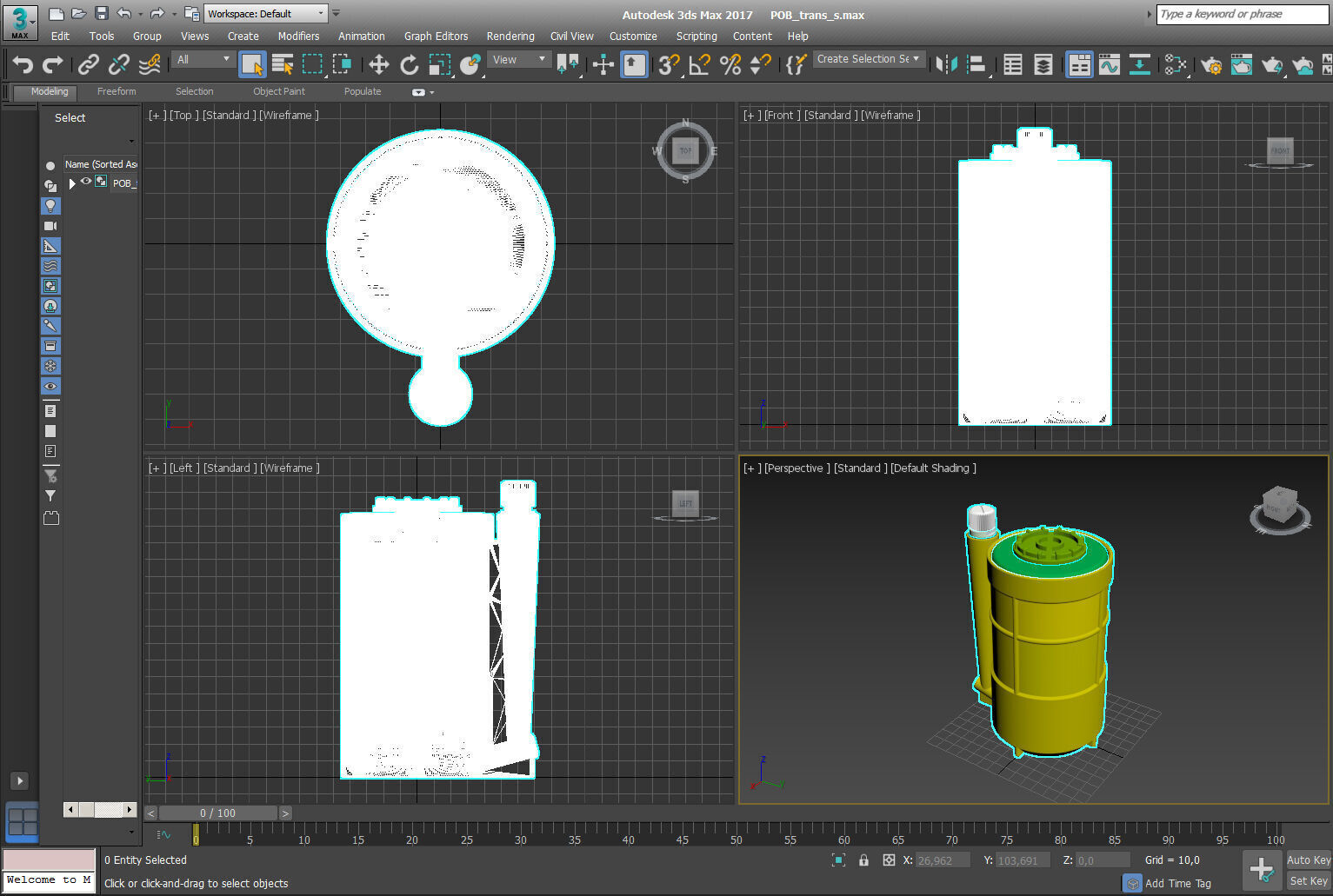

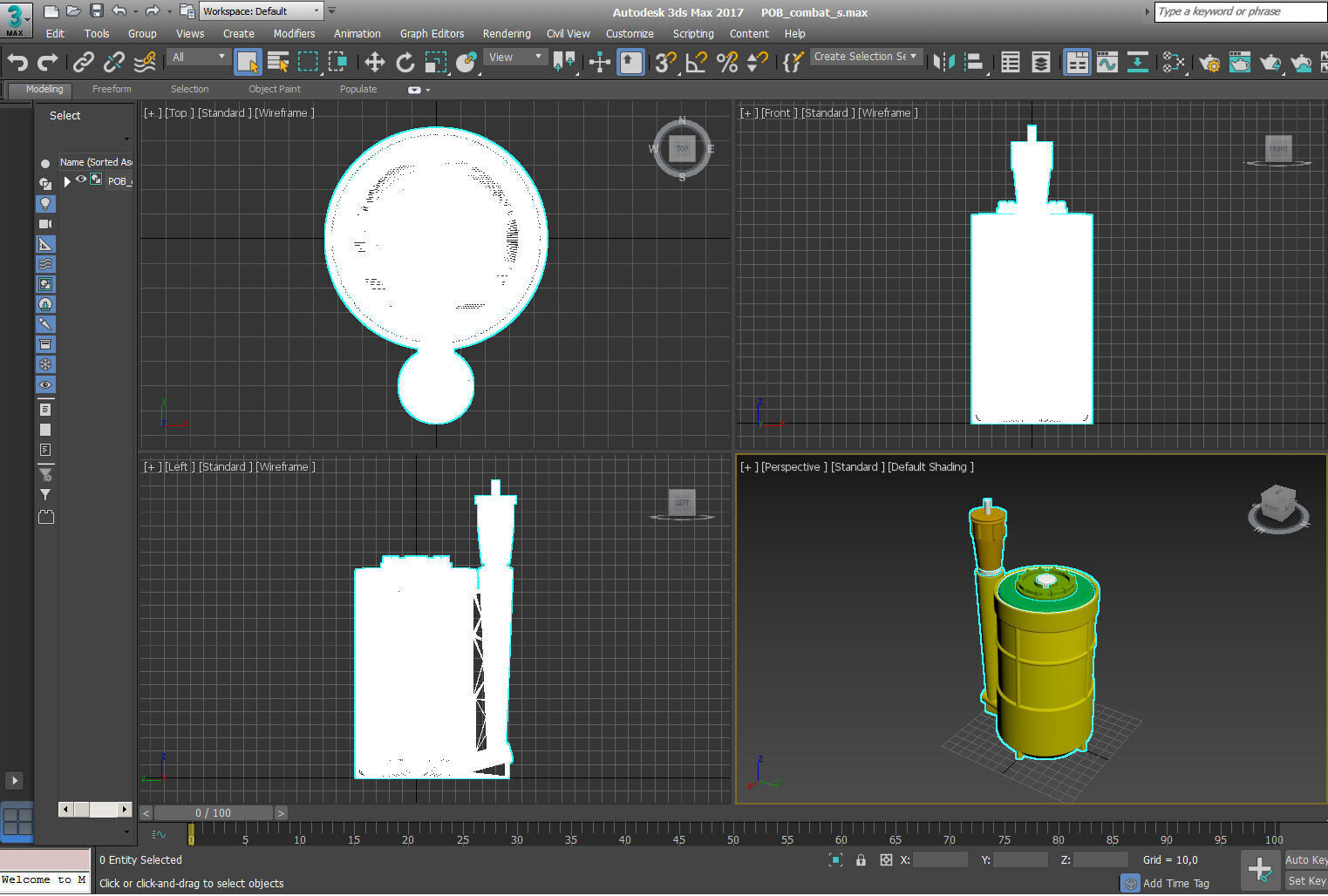

The model is made in SolidWorks 2012. It is primarily for 3D printing of a stand model.
For use as a visual aid and is not a complete copy of the external forms of the original product,
although it displays all the necessary elements. Adapted for the possibility of 3D printing
and subsequent assembly of the product layout. The model is an assembly model, contains

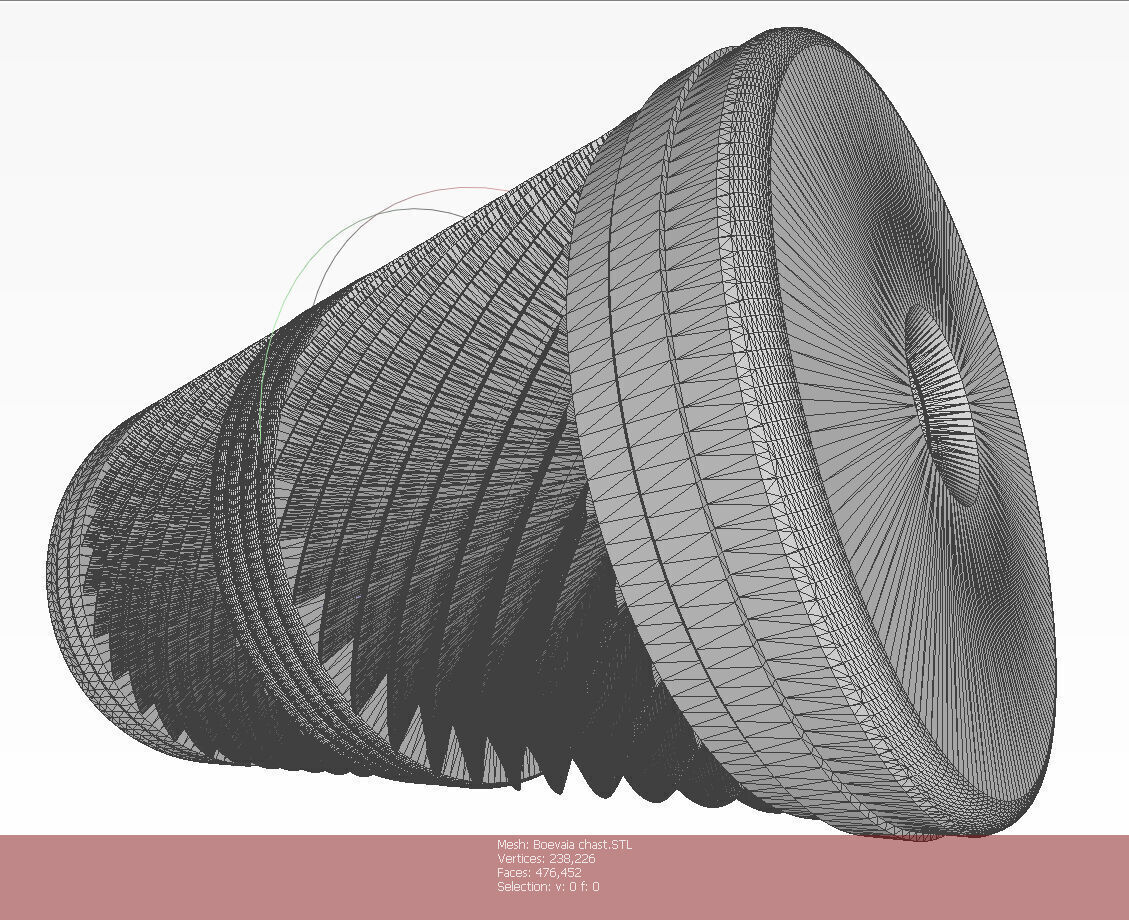

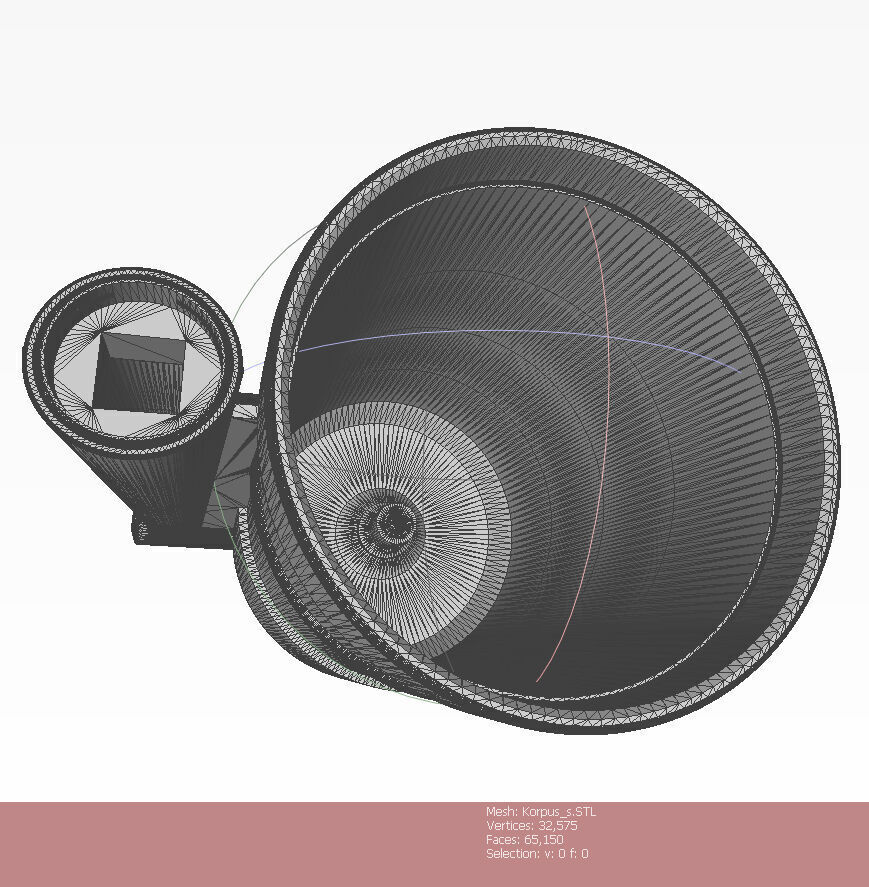

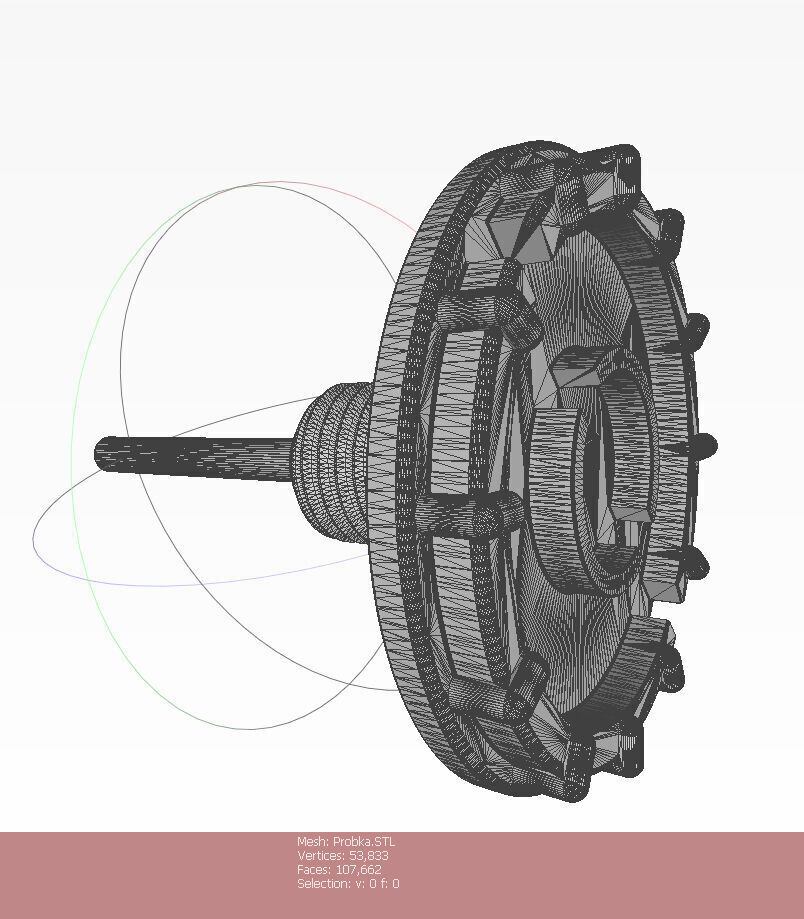

all conditional parts files (STL) in high-polygonal version to obtain qualitatively smooth forms.

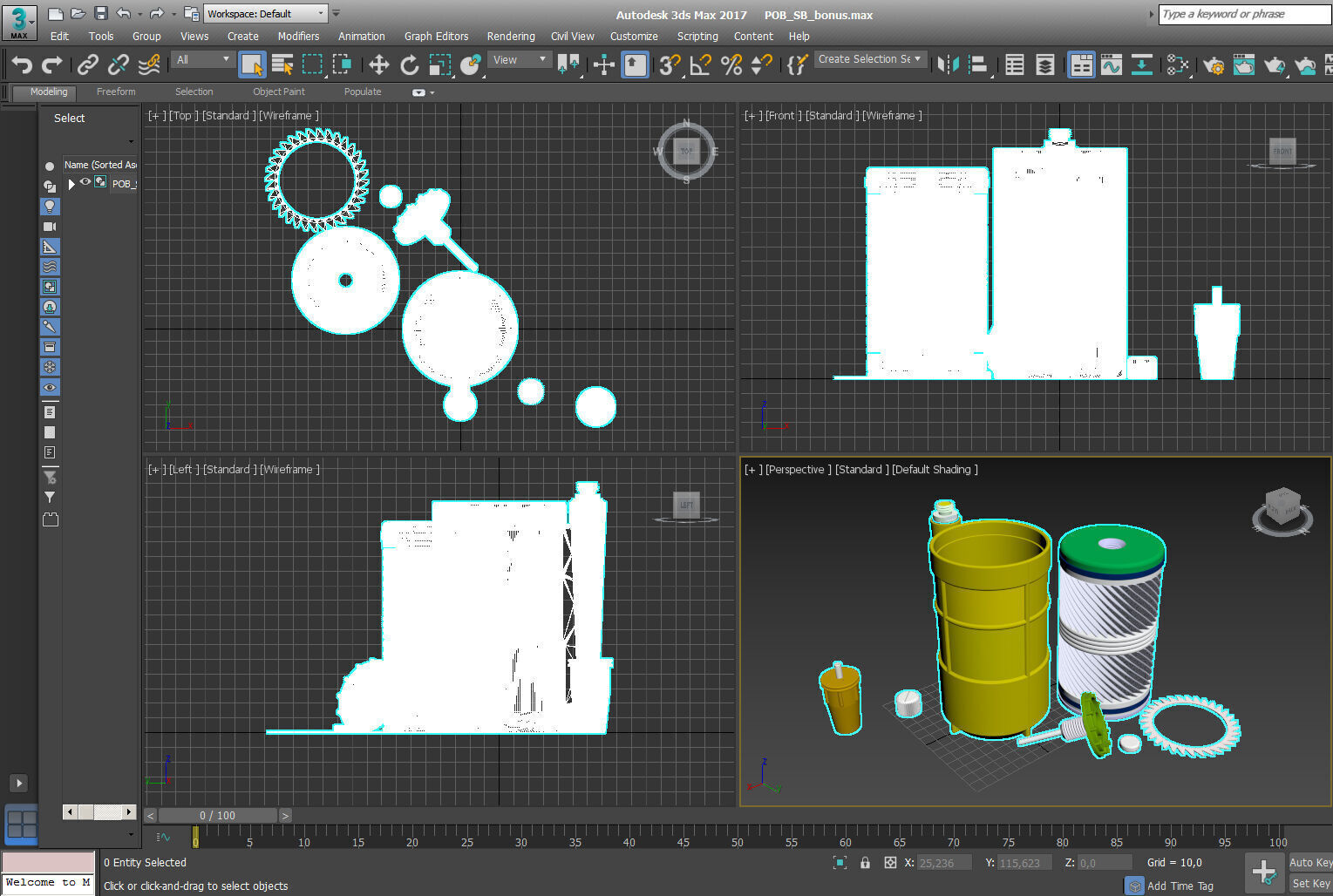

Additionally, the set contains all files for obtaining high-quality realistic close-up rendering
(smooth lines, selected, prepared surfaces - for applying materials or textures - Assigned materials
surfaces with conditional color markings), see the image of models and examples of 3D rendering
results in specialized professional applications (for examples- KeyShot). Additionally,
the set contains marking textures - inscriptions to be applied to surfaces (see rendering examples).

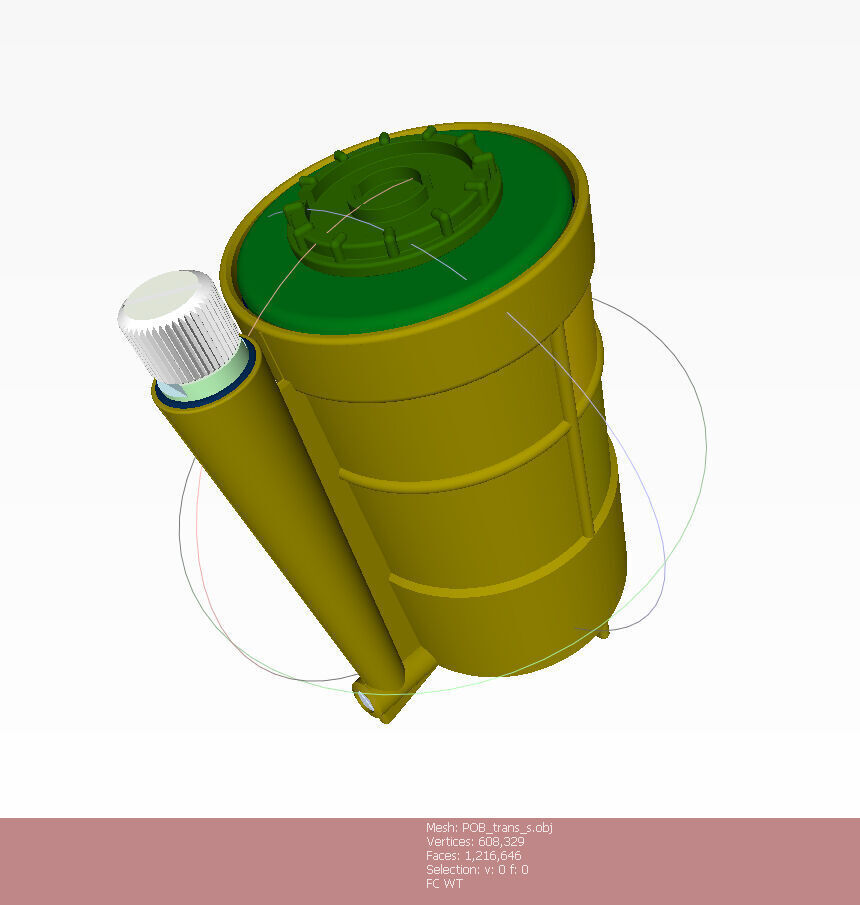

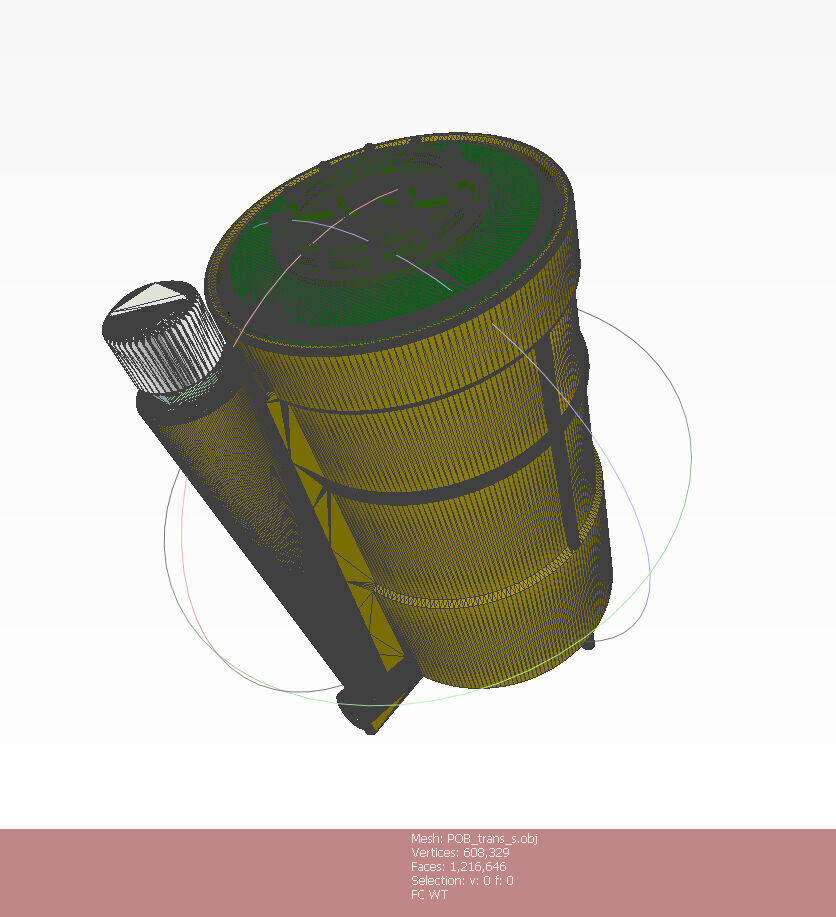

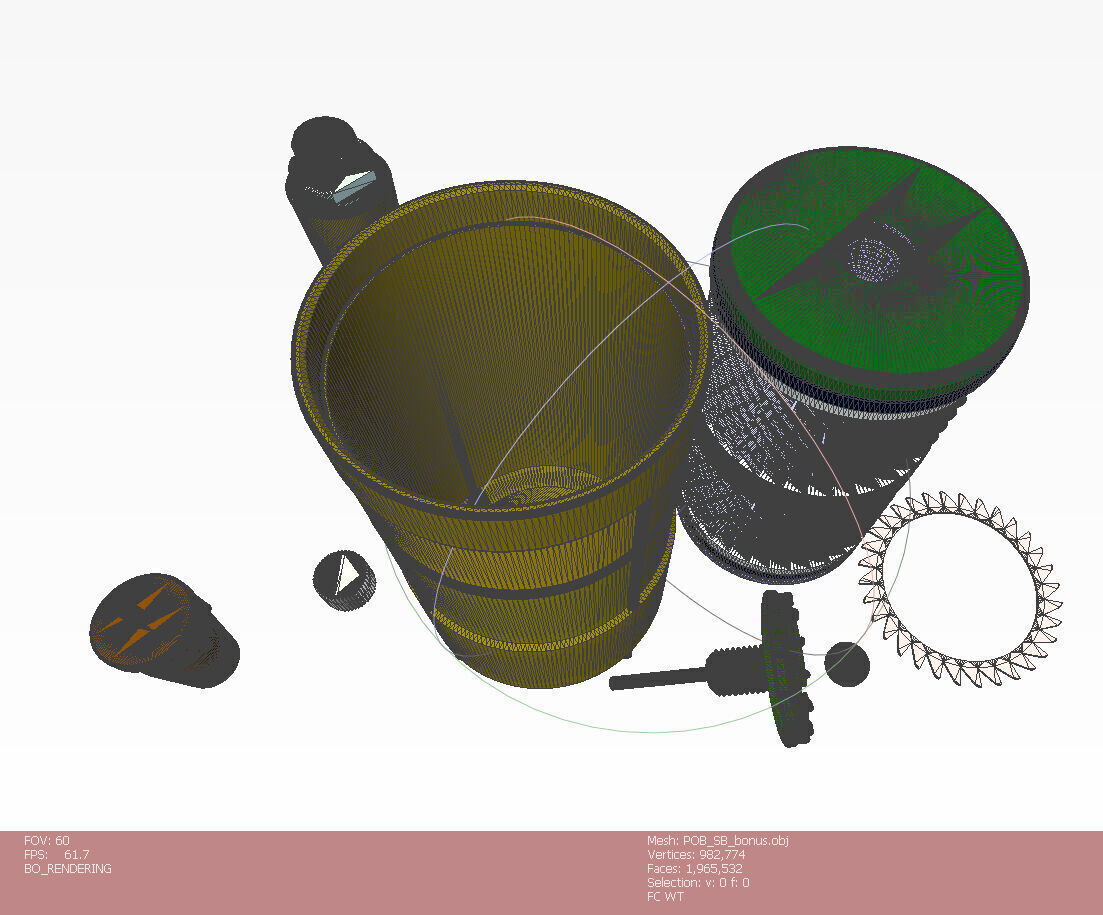

In addition to solid model file formats, converted highly detailed polygonal file formats are additionally available.

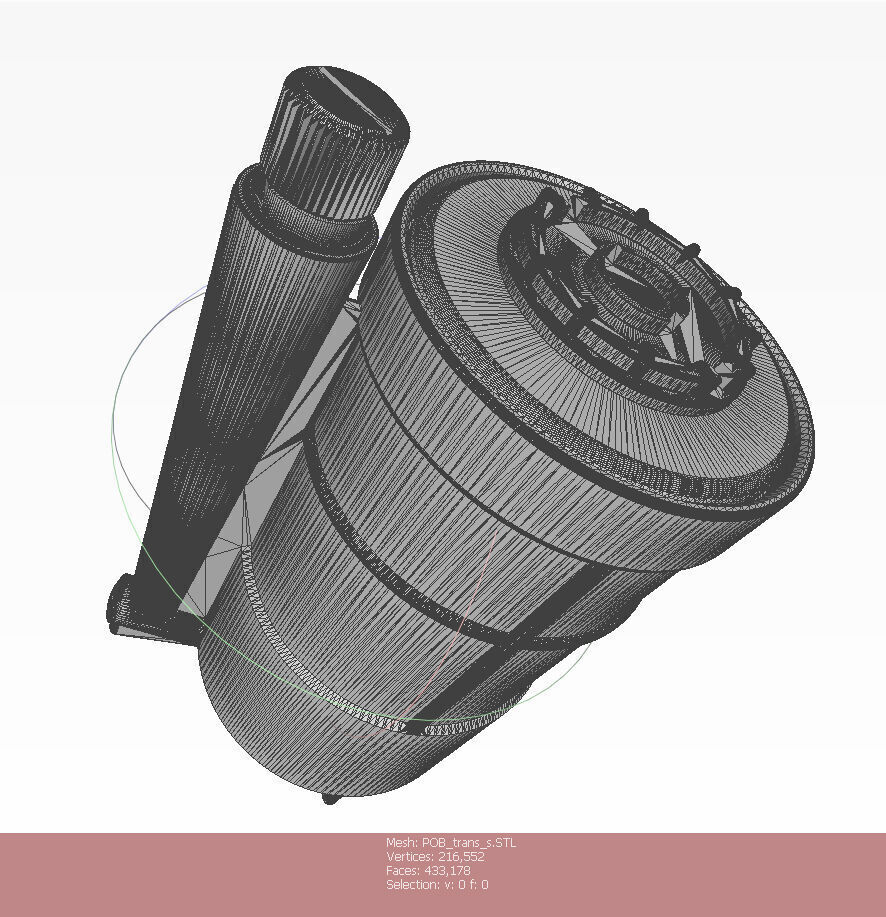

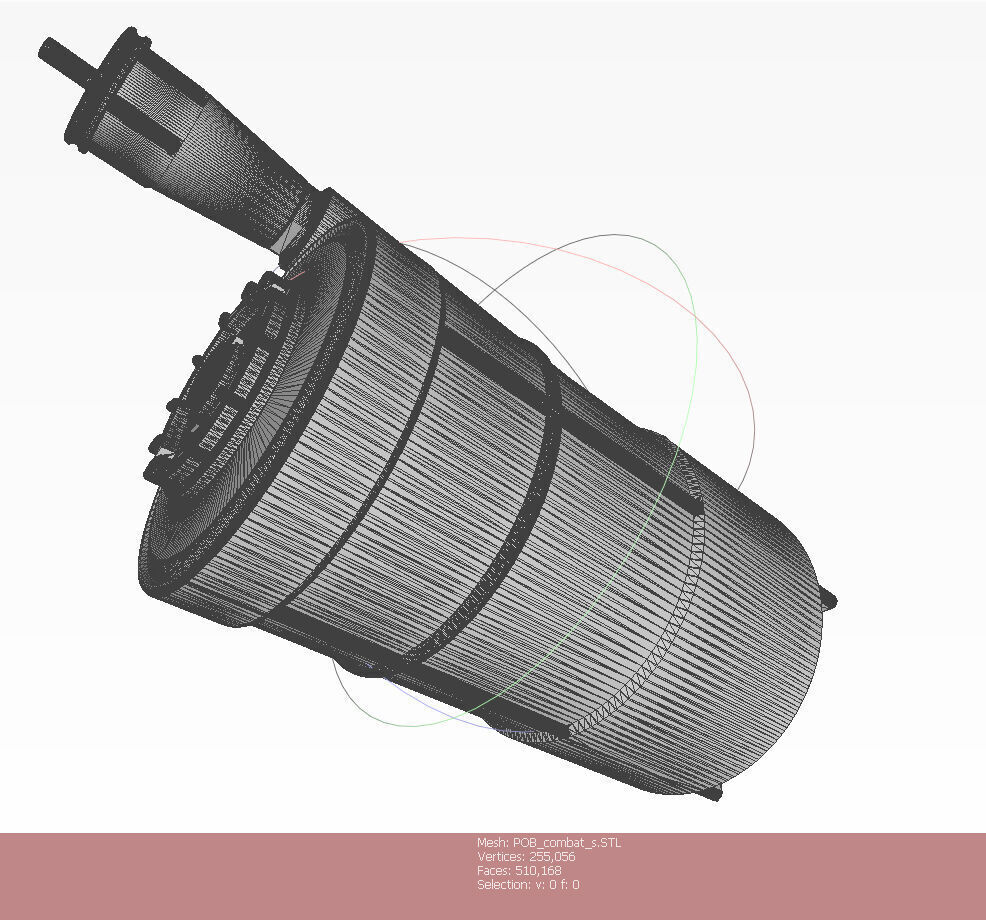

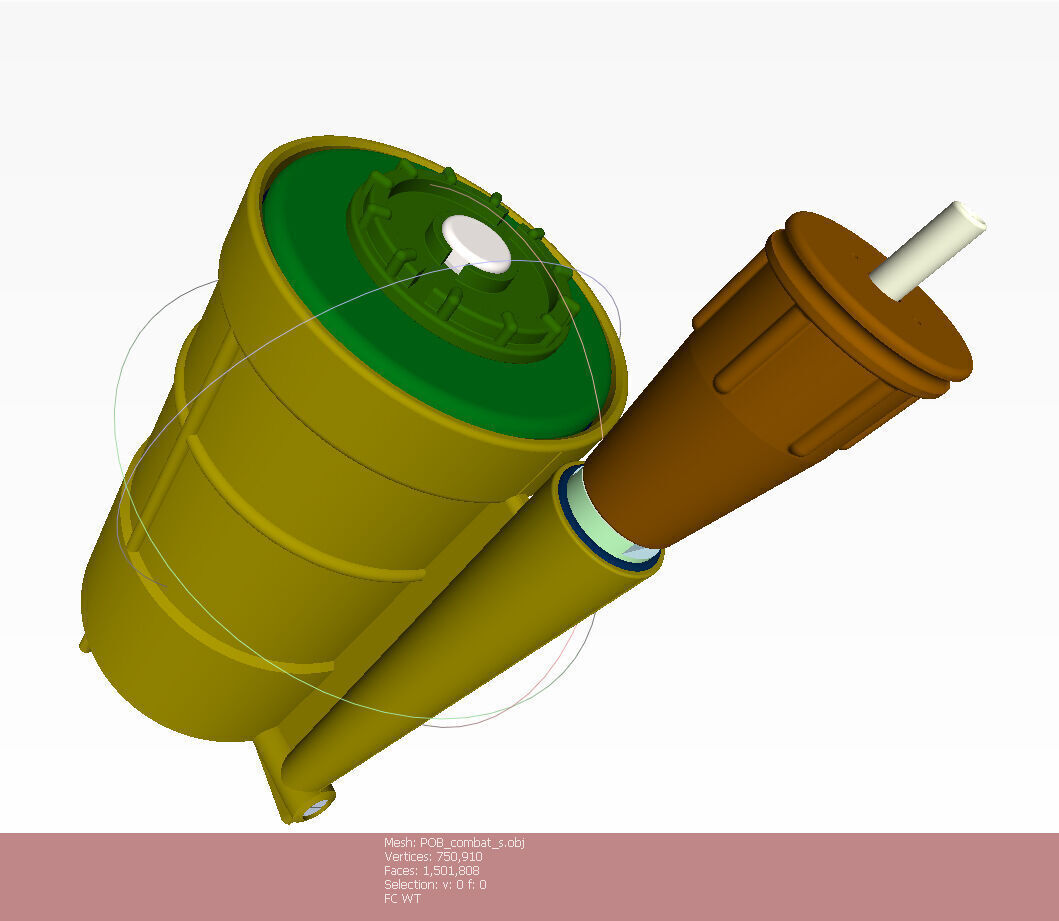

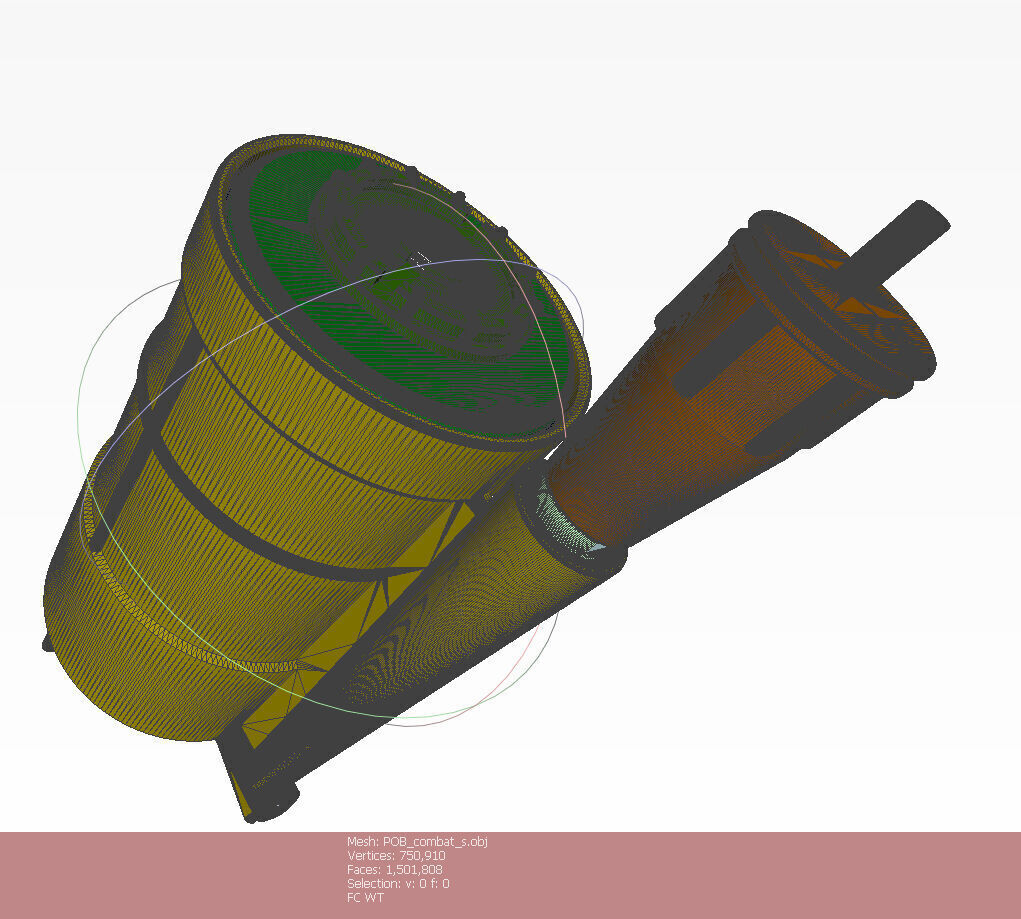

Mesh:
Vertices 750910
Faces 1501808
(POB combat s .obj)
