PMN-1 Anti-personnel landmine

PMN-1 Anti-personnel landmine 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

ZIP includes .FBX and .OBJ formants as well as textures.

The design of the PMN-1 mine dates from the late 1950s. It is particularly deadly because it contains an unusually large explosive filling when compared to most other anti-personnel landmines. For comparison, most anti-personnel blast mines (e.g. the VS-50) contain around 50 grams of high explosive, which typically destroys all or part of a victim's foot. In marked contrast, a PMN-1 contains 249 grams of explosive which can easily destroy a victim's entire leg (frequently requiring amputation high above the knee) in addition to inflicting severe injuries on the adjacent limb, which may also require some form of amputation due to blast injury. The majority of anti-personnel mine victims (e.g. those who step on an M14 mine containing 29 grams of explosive) have a very high probability of survival, though inevitably they suffer permanent disability regarding their gait. However, the amount of explosive inside a PMN-1 mine is so large that the risk of victims dying is significantly greater and, assuming that they survive their injuries, the degree of disability inflicted is much more severe.

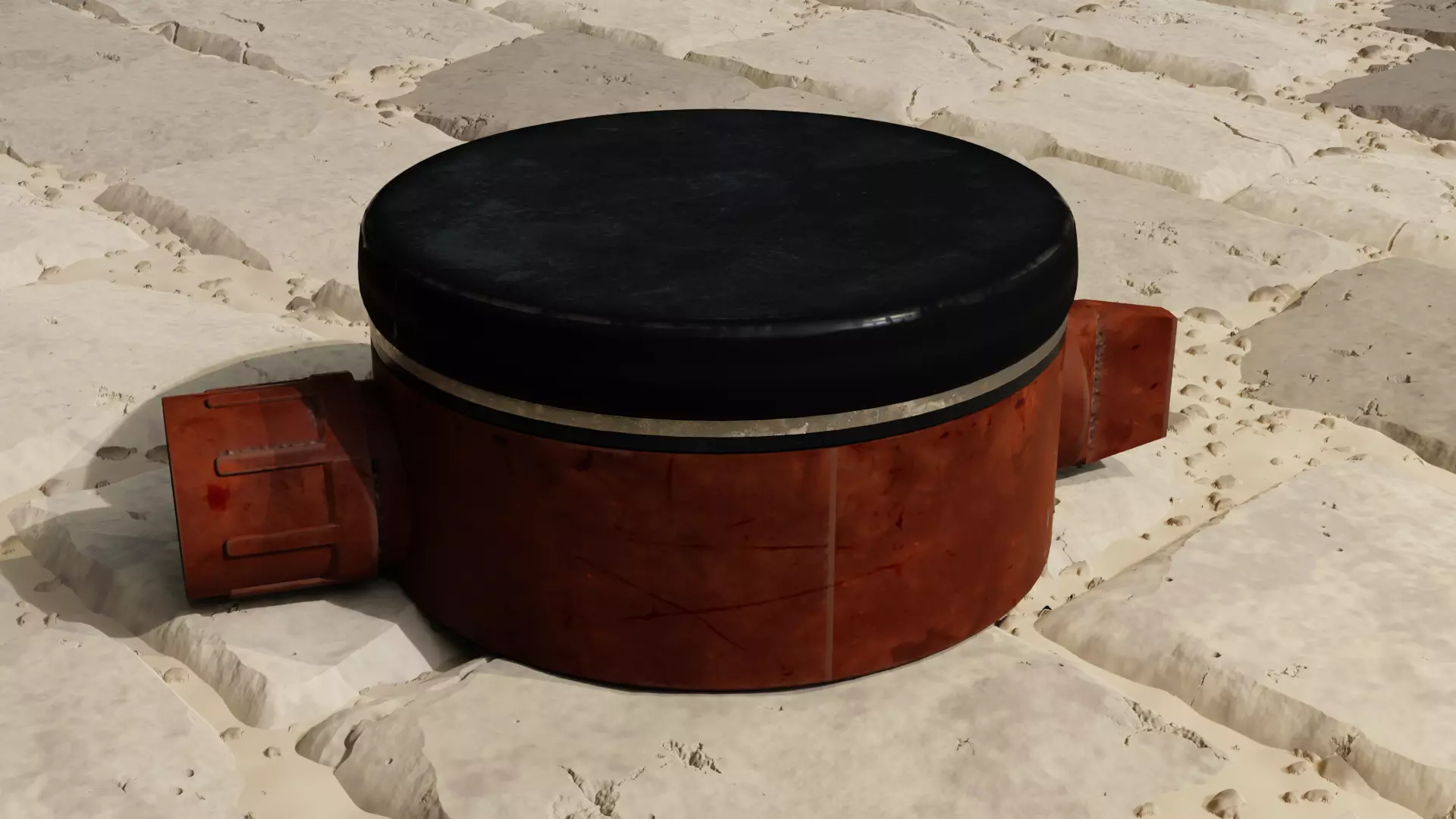

These mines are palm sized and cylindrical in shape. The PMN-1 has a bakelite case (brown or black in colour) with a black rubber pressure-plate and contains TNT explosive.

Height: 57 mm Diameter: 112 mm Main charge weight: 240 g TNT (initiated by a 9 gram tetryl booster) Total weight: 600 g Fuze: MD-9 (stab-sensitive) Operating pressure: 5.8 kg

WIKIPEDIA https://en.wikipedia.org/wiki/PMN_mine

Item rating
0 0
PMN-1 Anti-personnel landmine
$3.00

Royalty Free No Ai License
PMN-1 Anti-personnel landmine
$3.00

Royalty Free No Ai License
Response - % in - h

3D Model formats

Format limitations
  • Blender (.blend)30.3 MBVersion: undefinedRenderer: Cycles 3.6
  • OBJ (.obj, .mtl)30.3 MB
  • Autodesk FBX (.fbx)30.3 MB

3D Model details

  • Publish date2023-09-29
  • Model ID#4806840
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used
  • Ready for 3D Printing
