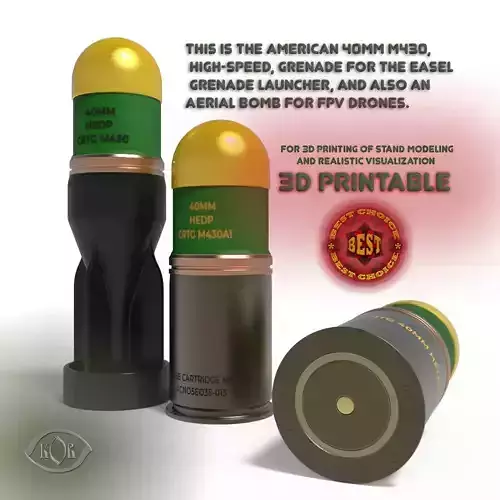

M430 40mm Projected Grenade Bomb for FPV drones Shell Cartridge 3D model

This is the American 40mm M430, a High-Explosive Dual-Purpose (HEDP), Shaped-Charge and Fragmentation,
percussion-fired, projected grenade providing both Anti-Vehicle penetration and Anti-Personnel effects.
The M430 and the M430A1 can use either the M549 or M549A1 fuze and except for markings,
cartridges are externally identical. Grenades have a High-Explosive Anti-Tank Shaped-Charge effect
designed to penetrate 51mm (2in) and 76mm (3in) of steel, respectively.
The Ukrainian military industry mastered the production of this type of grenade (40mm)
in 2018 for use in the Ukrainian machine grenade launcher - UAG-40 (УАГ-40).
Since 2022 is actively used in the Russian-Ukrainian war, as well as as an air bomb for the FPV drones.

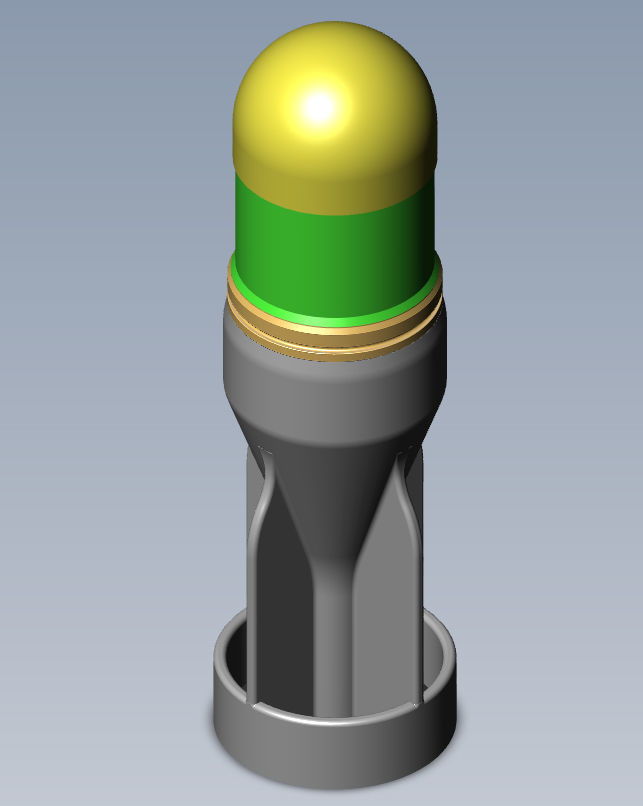

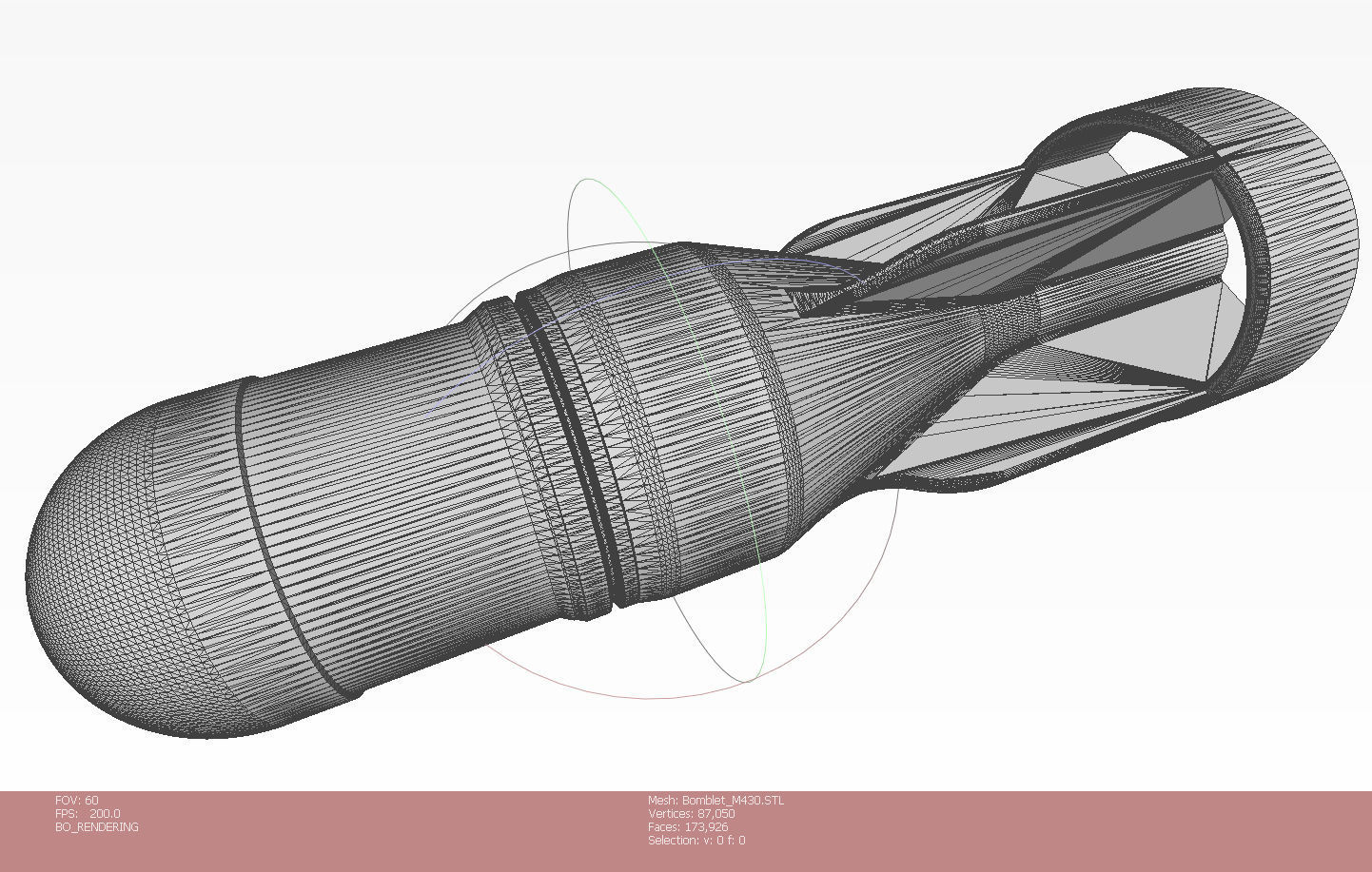

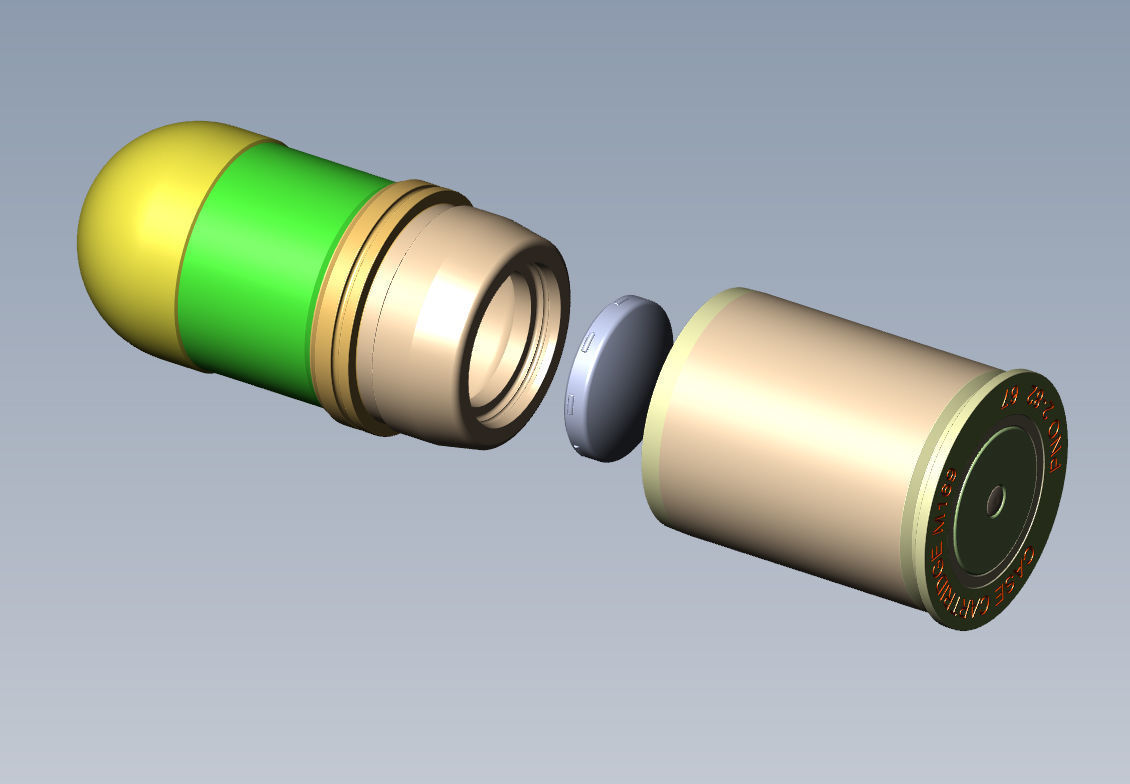

For this reason, this model is presented in two kits for assembling a
replica simulation of a standard grenade and an aerial bomb for drones.

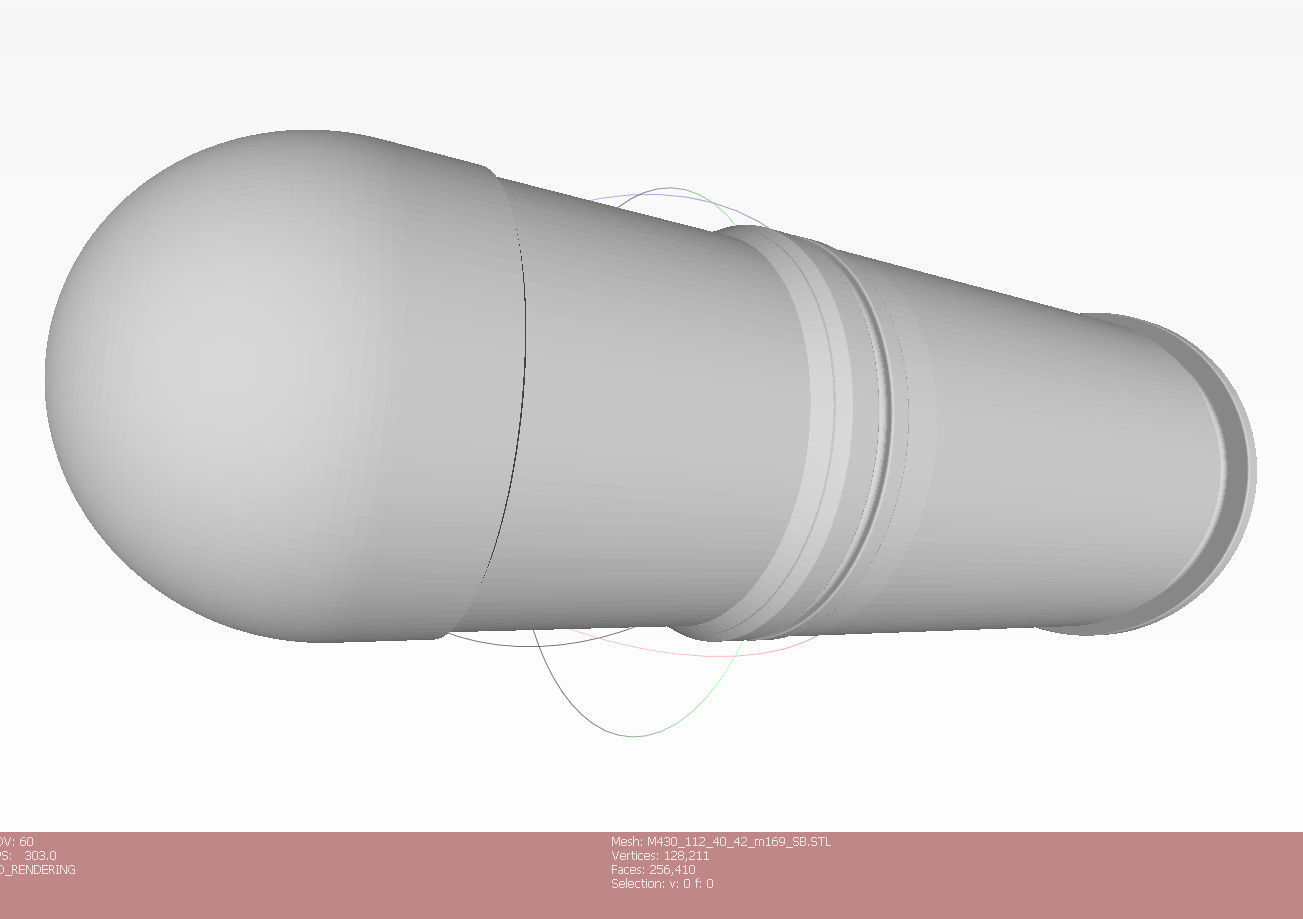

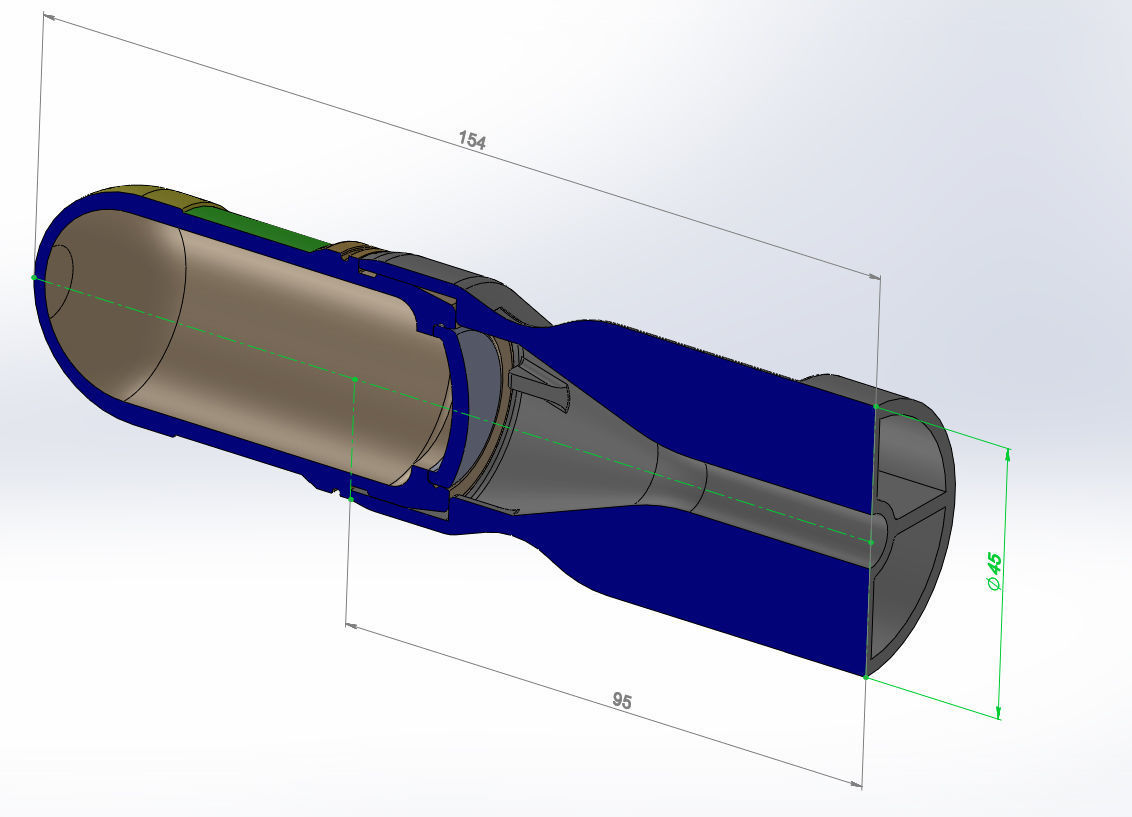

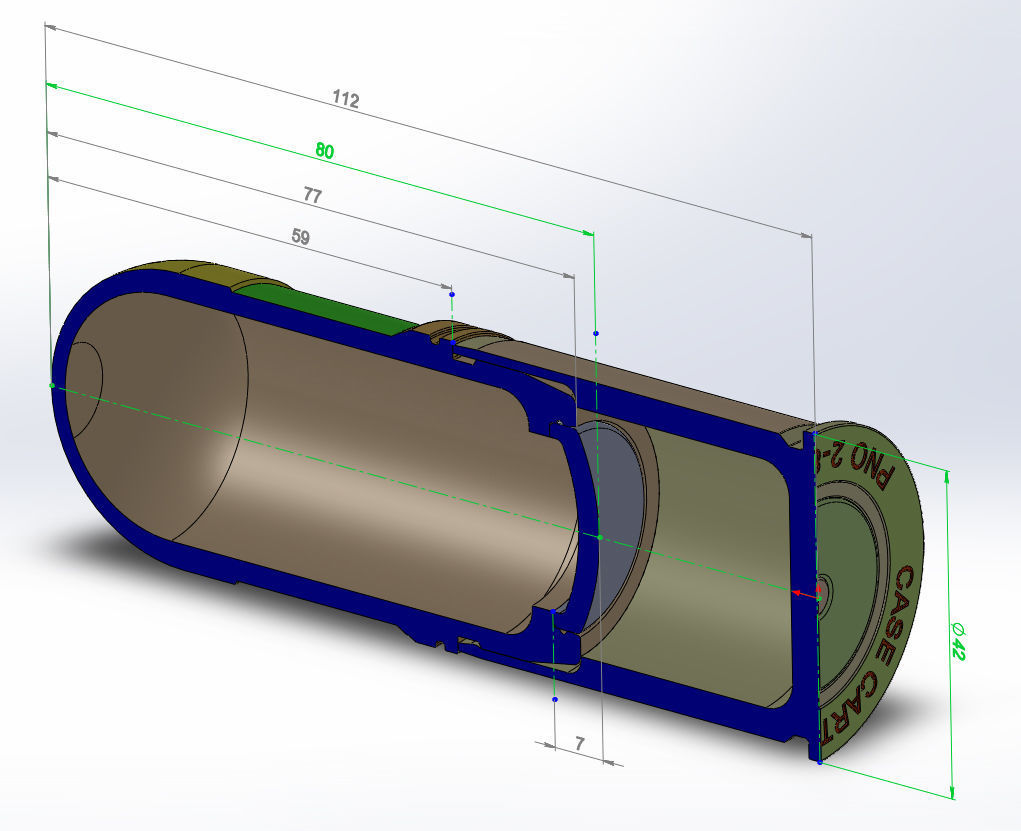

Dimensions of the assembled model 112(max)x40(42max) mm. and 154x45mm- original size.

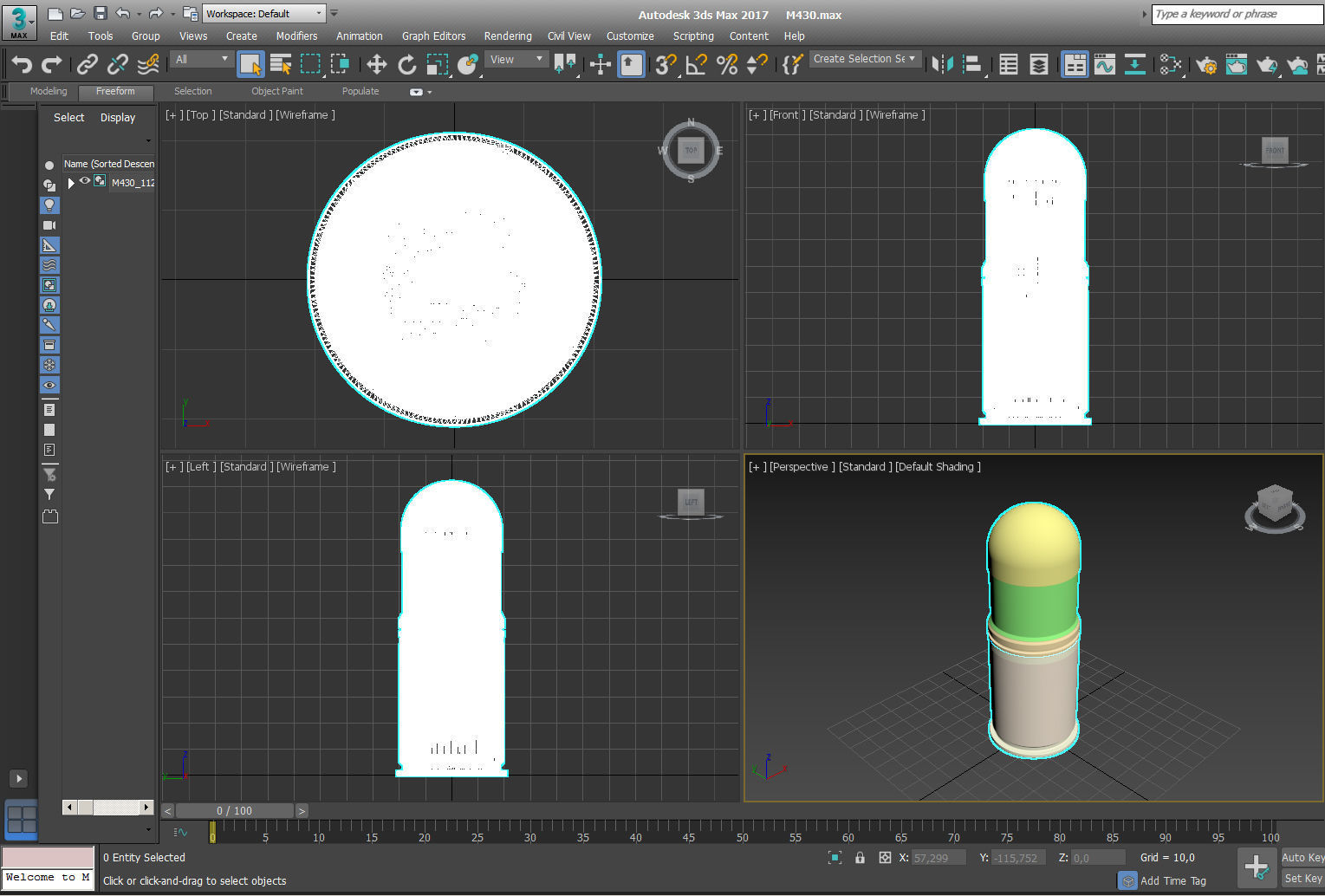

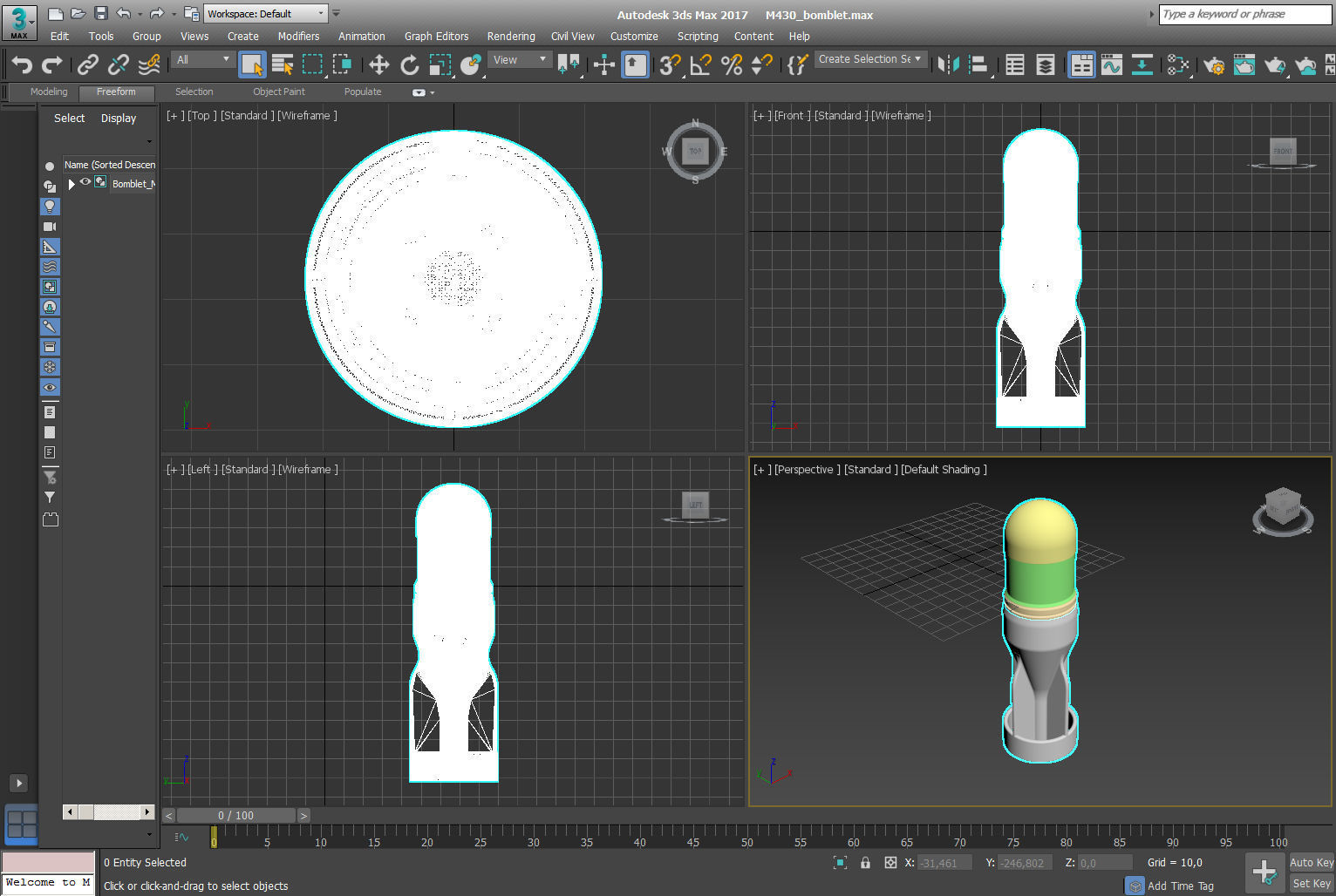

The model is made in SolidWorks. It is intended primarily for 3D printing stand model - training model,
for use as a visual aid and is not a complete copy of the external forms of the original product.
Although it does display all the basic external elements. The model is adapted for the possibility of
3D printing and subsequent assembly of the product layout.
The model is assembled, contains files

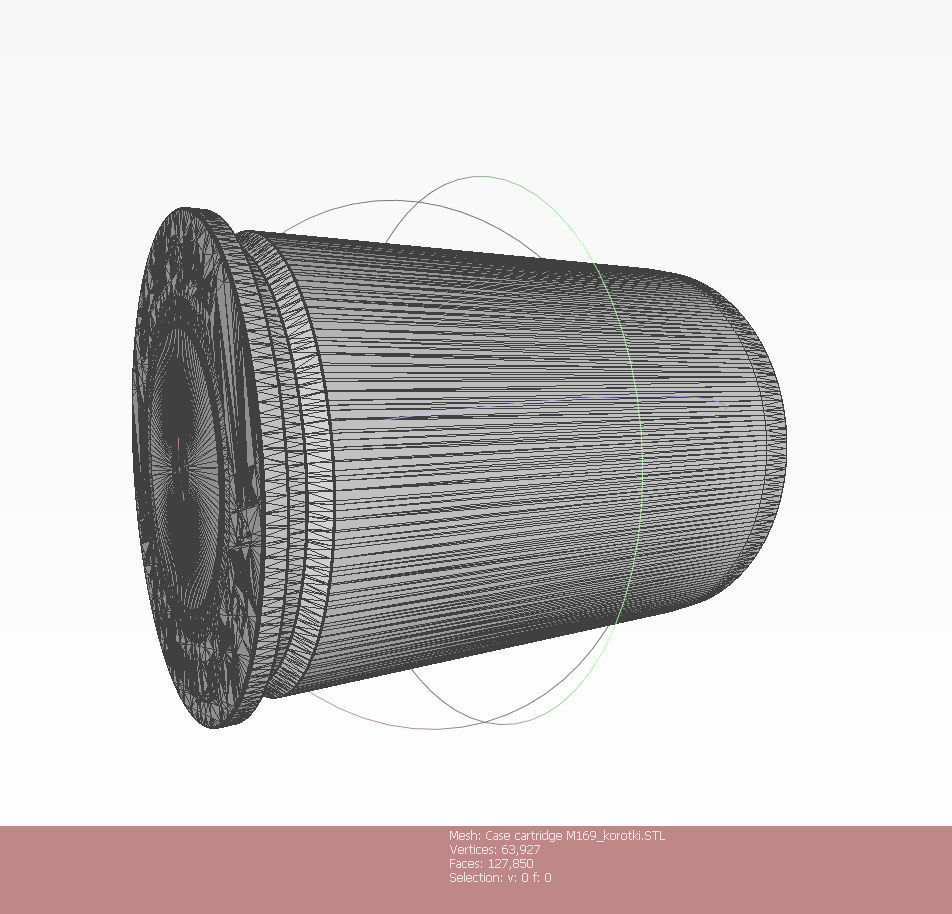

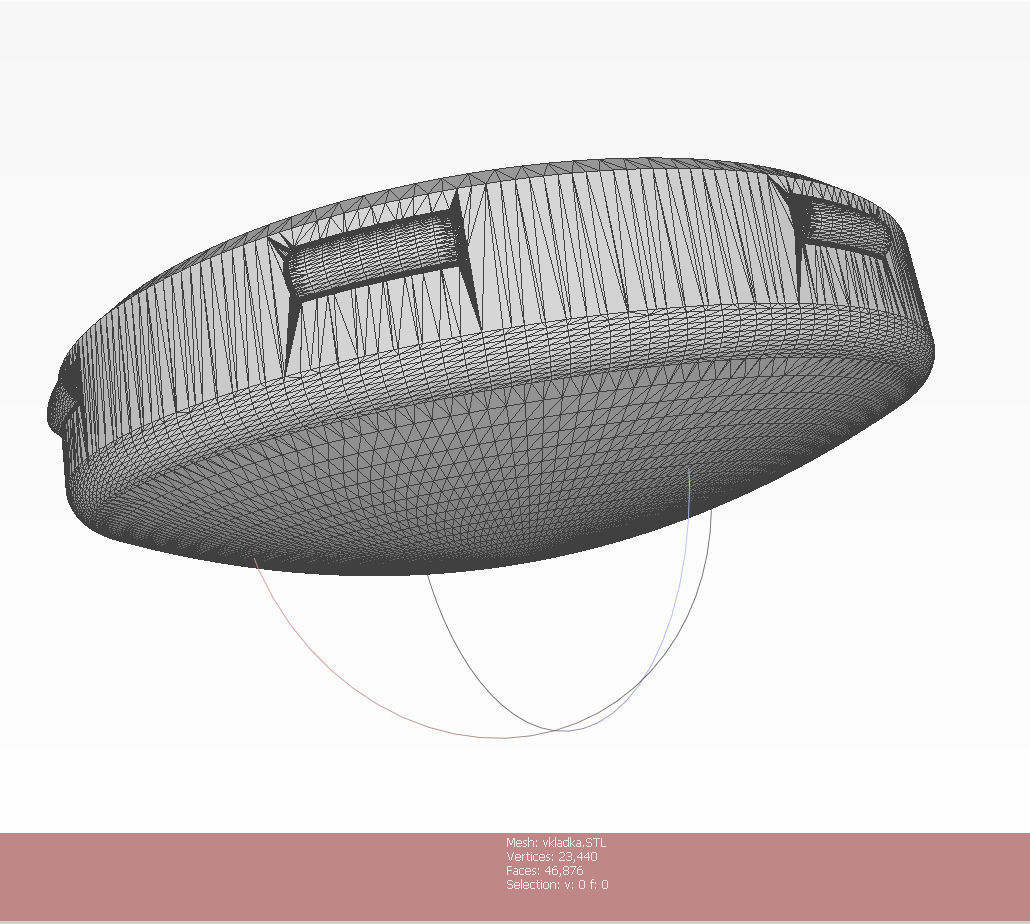

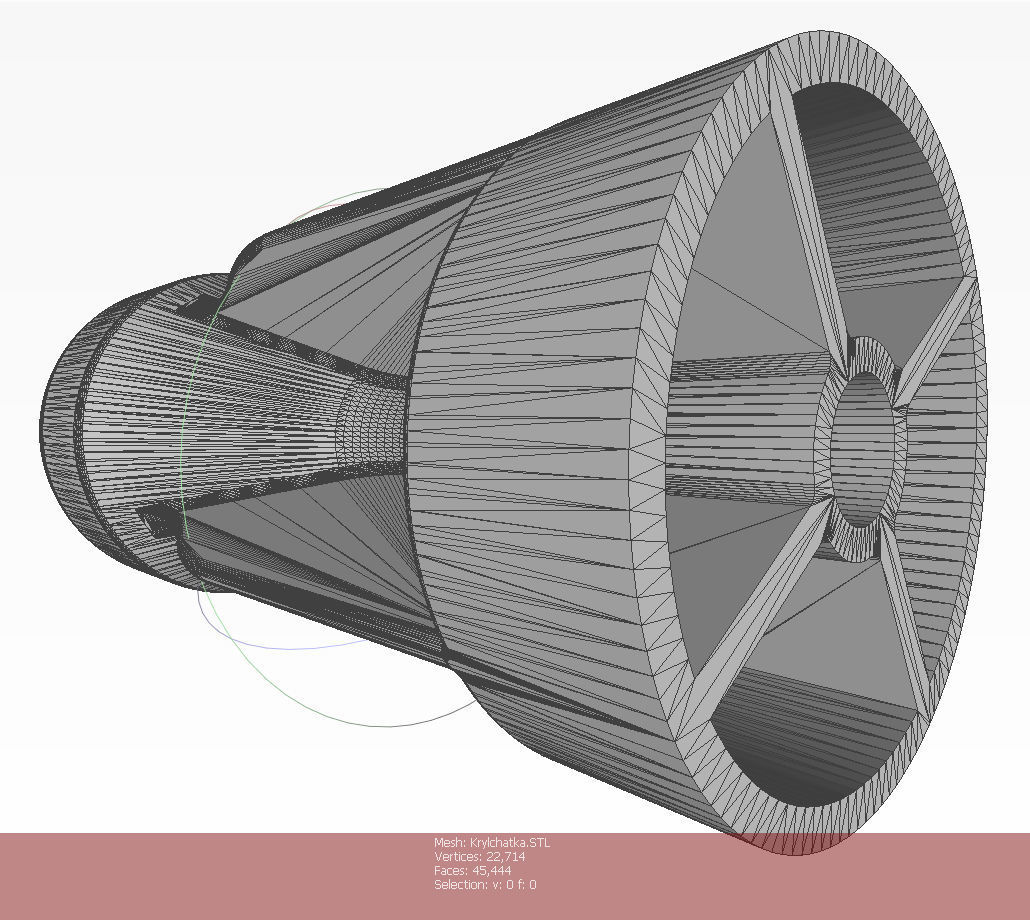

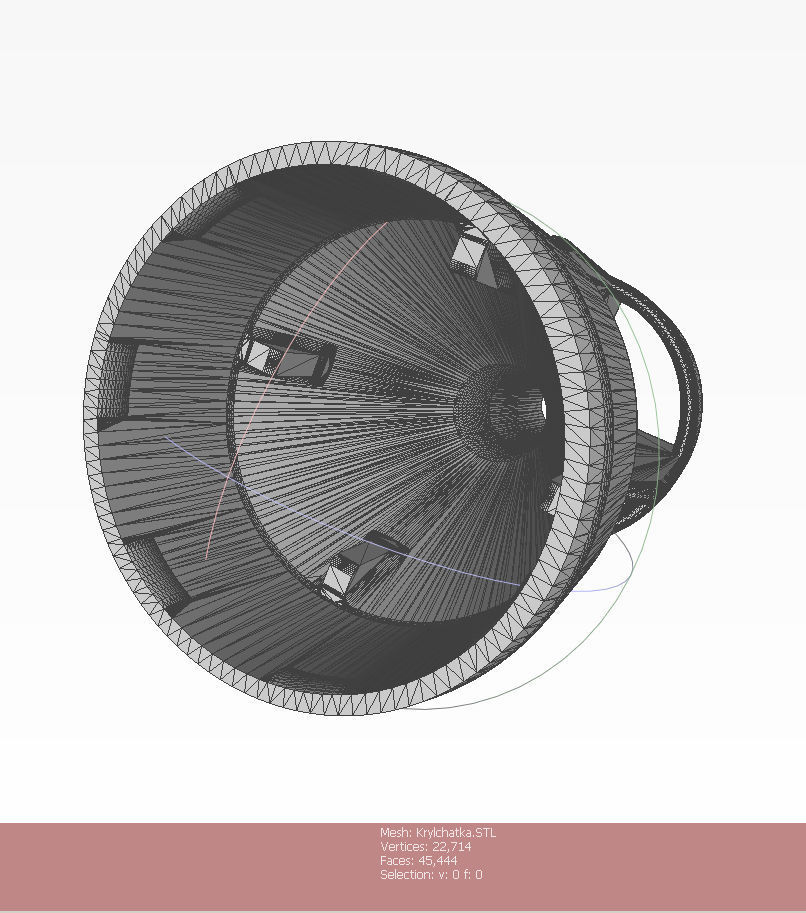

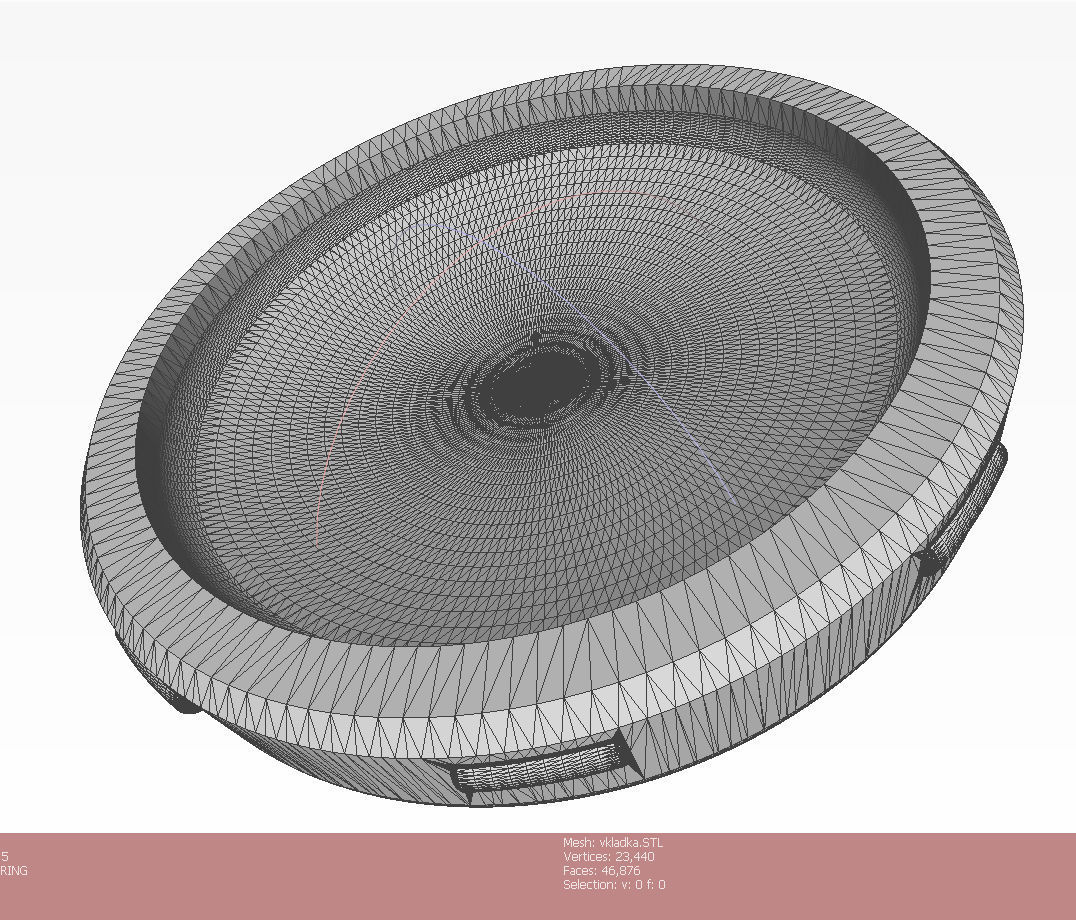

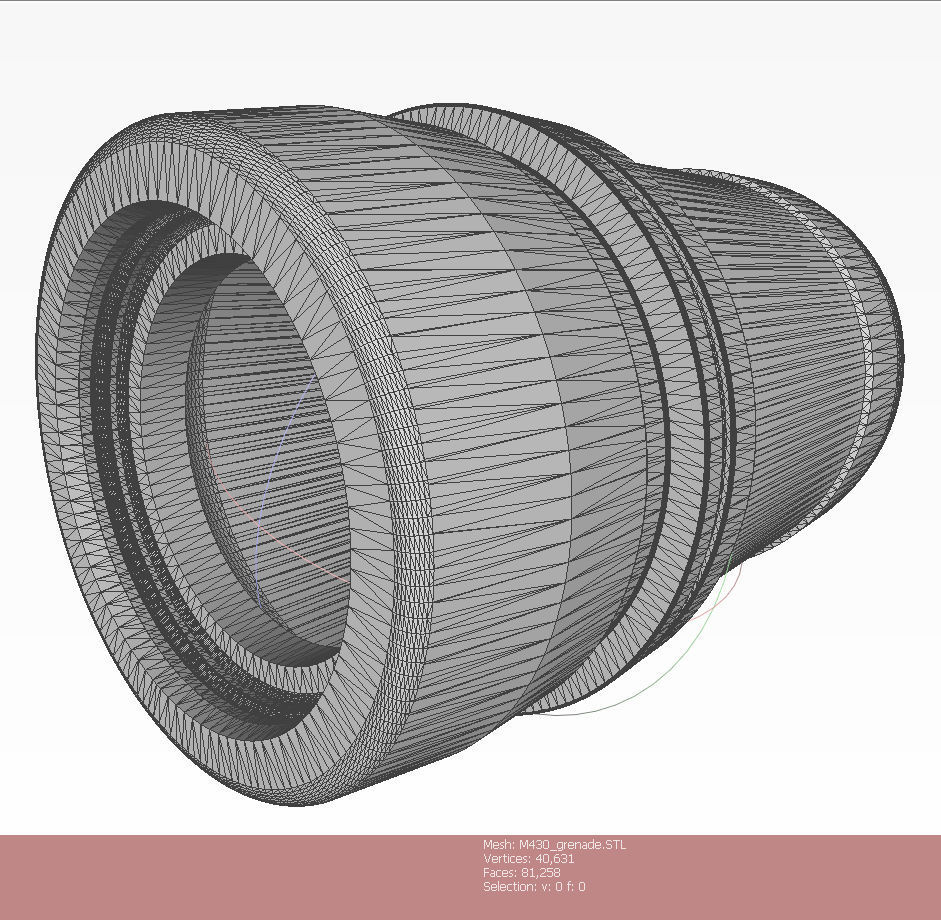

of all conditional parts (STL) in high-polygonal version to obtain qualitatively smooth forms. Additionally,
the set contains all files for obtaining high-quality realistic visualization with close-ups (smooth lines,
selected surfaces for applying materials or textures), texture file are texture inscriptions (markings)

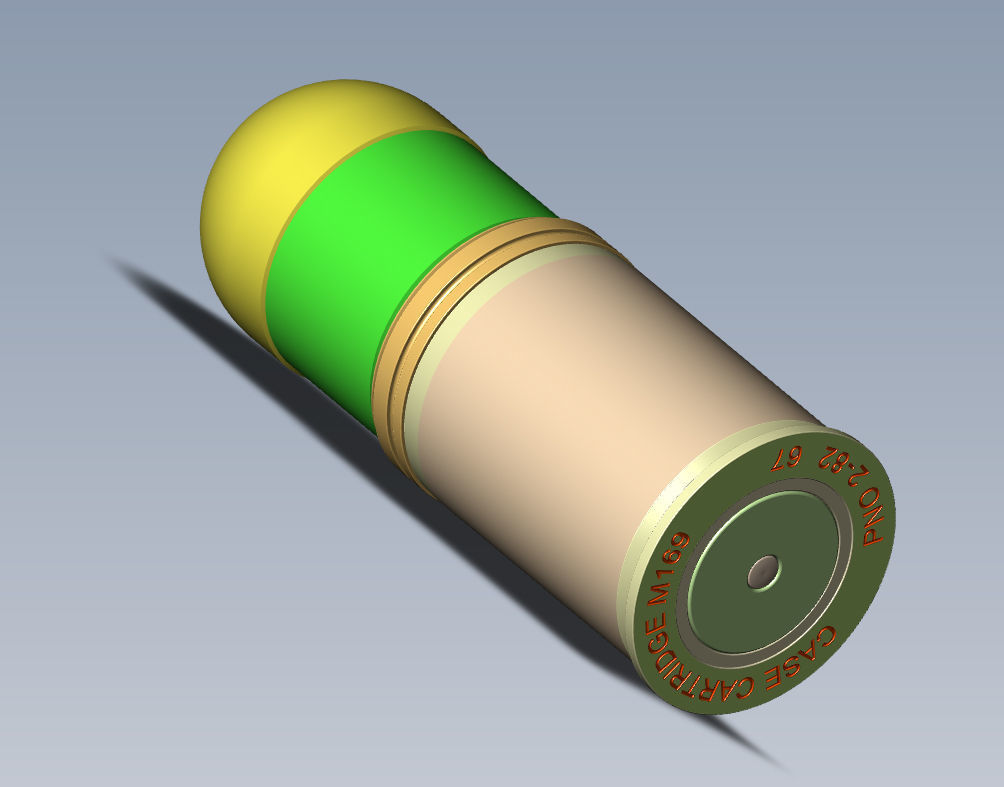

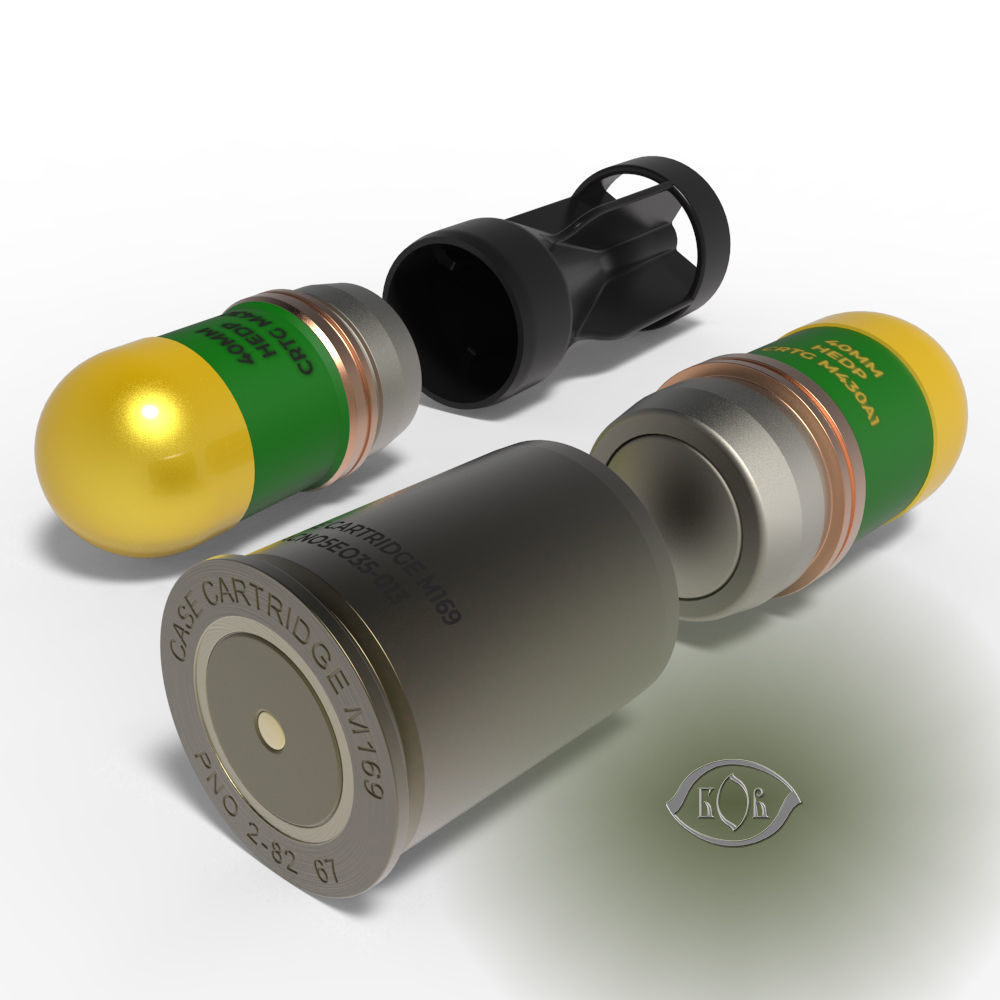

for applied to surfaces.(see rendering examples).
In addition to solid model file formats, converted high detail polygonal file formats are additionally provided.

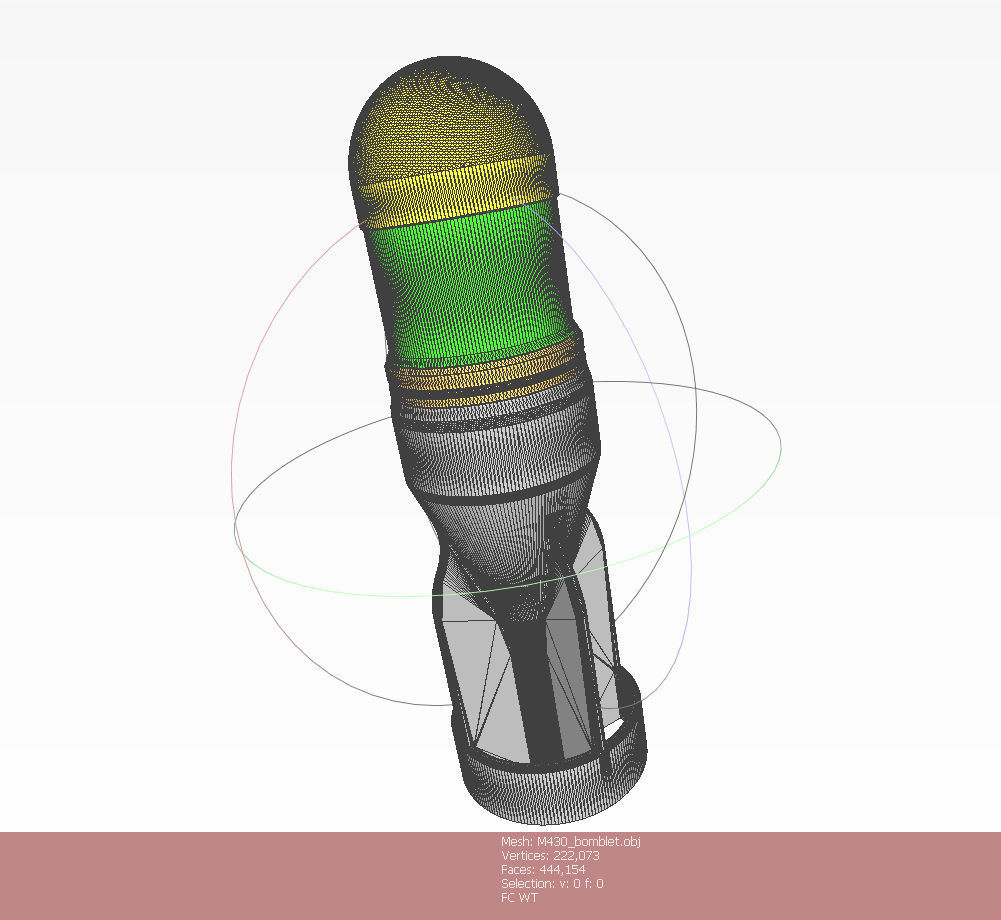

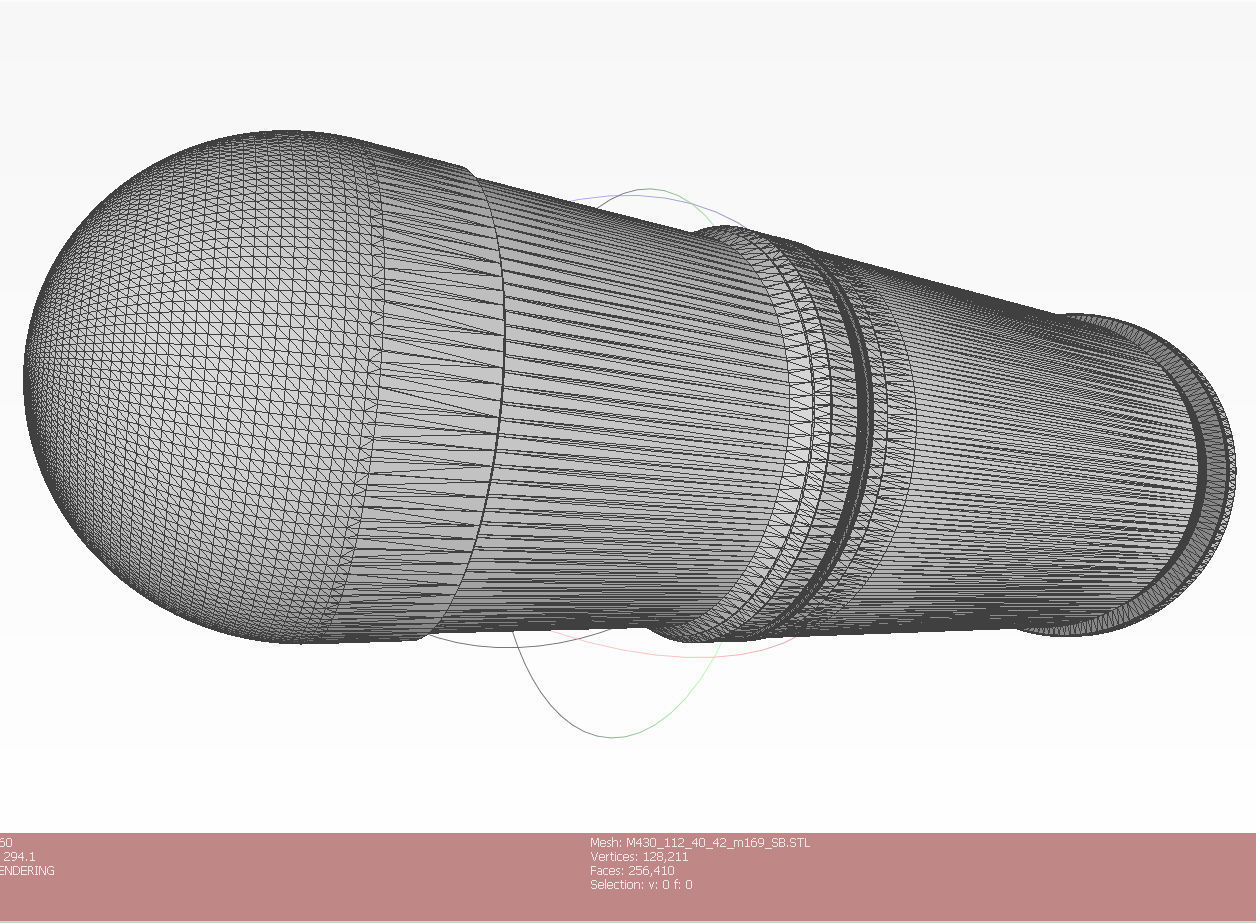

Mesh:
Vertices 331945
Faces 663878
(M430.obj)
Please rate and write a review about this model.
If you have any questions, please message me.
Thank you.
