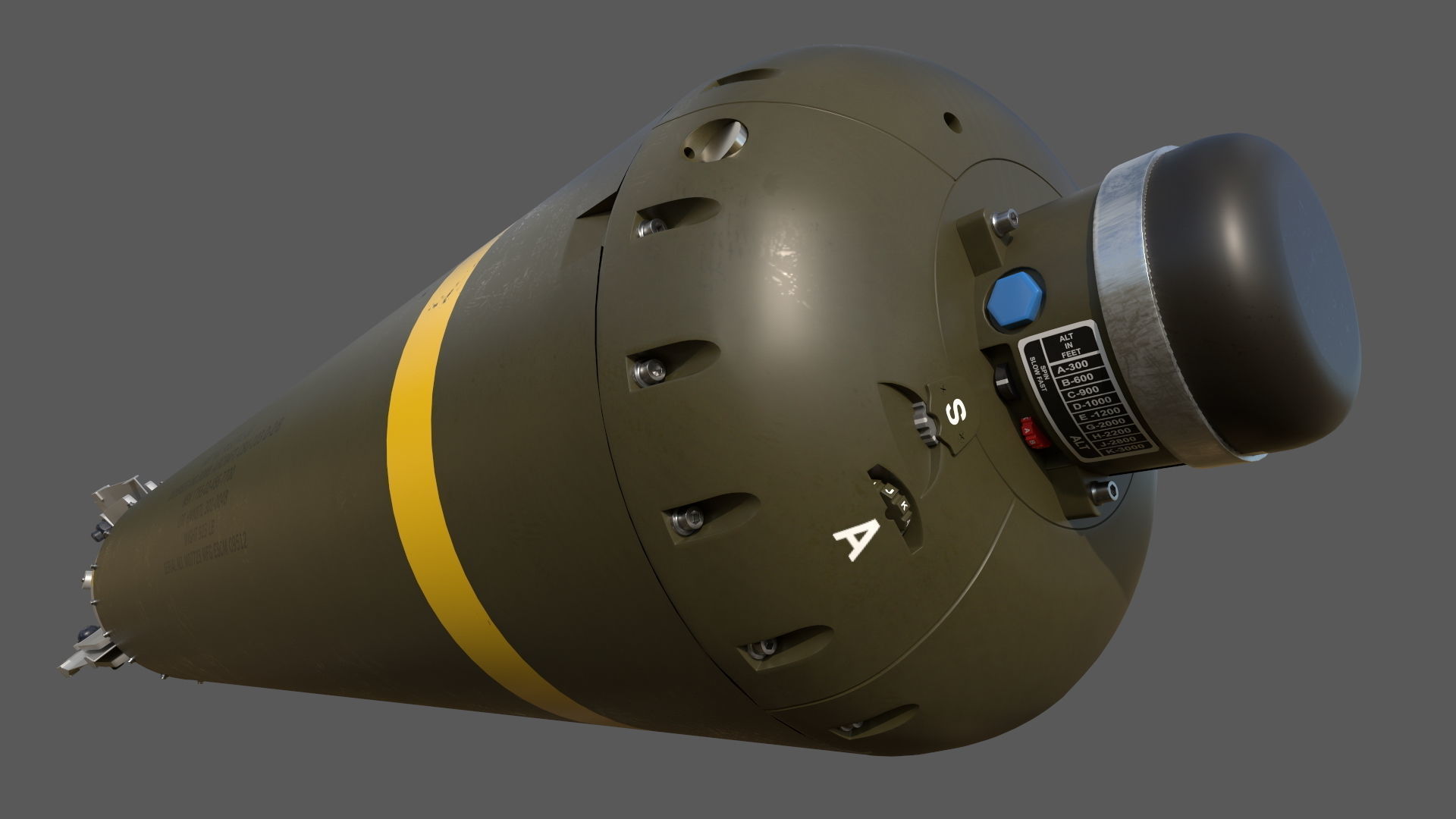

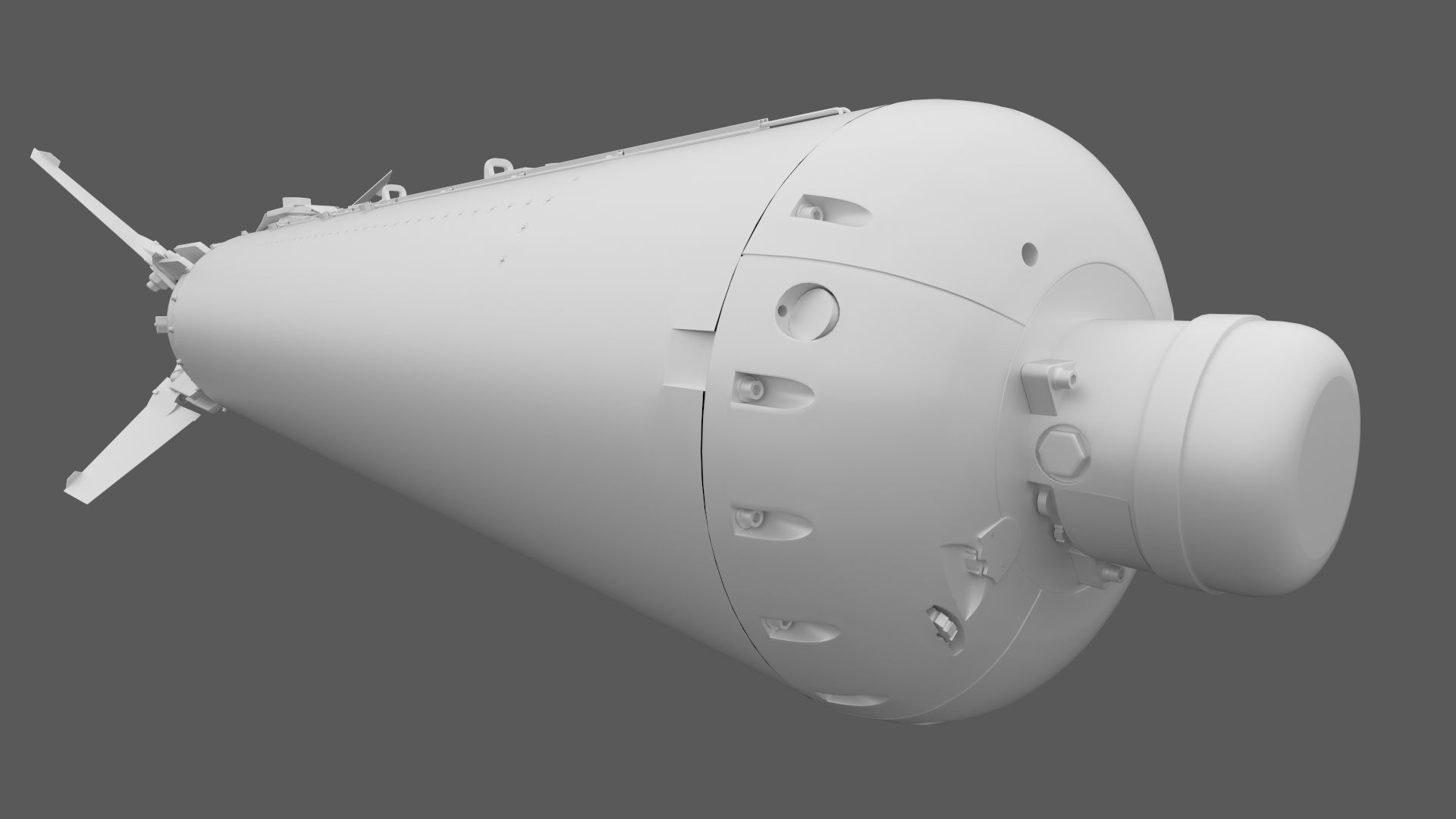

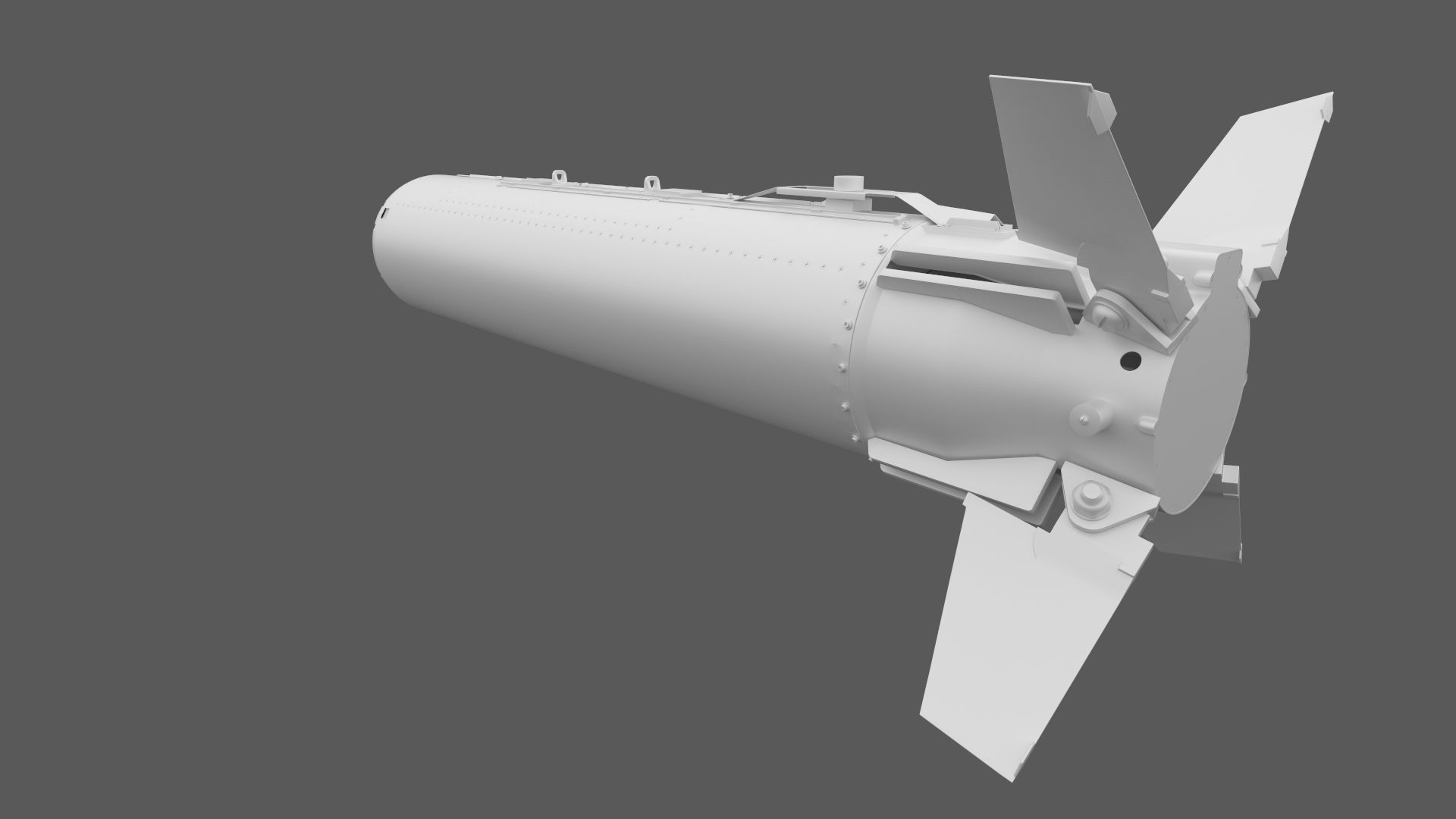

CBU-103 Combined Effects Munition 3D model

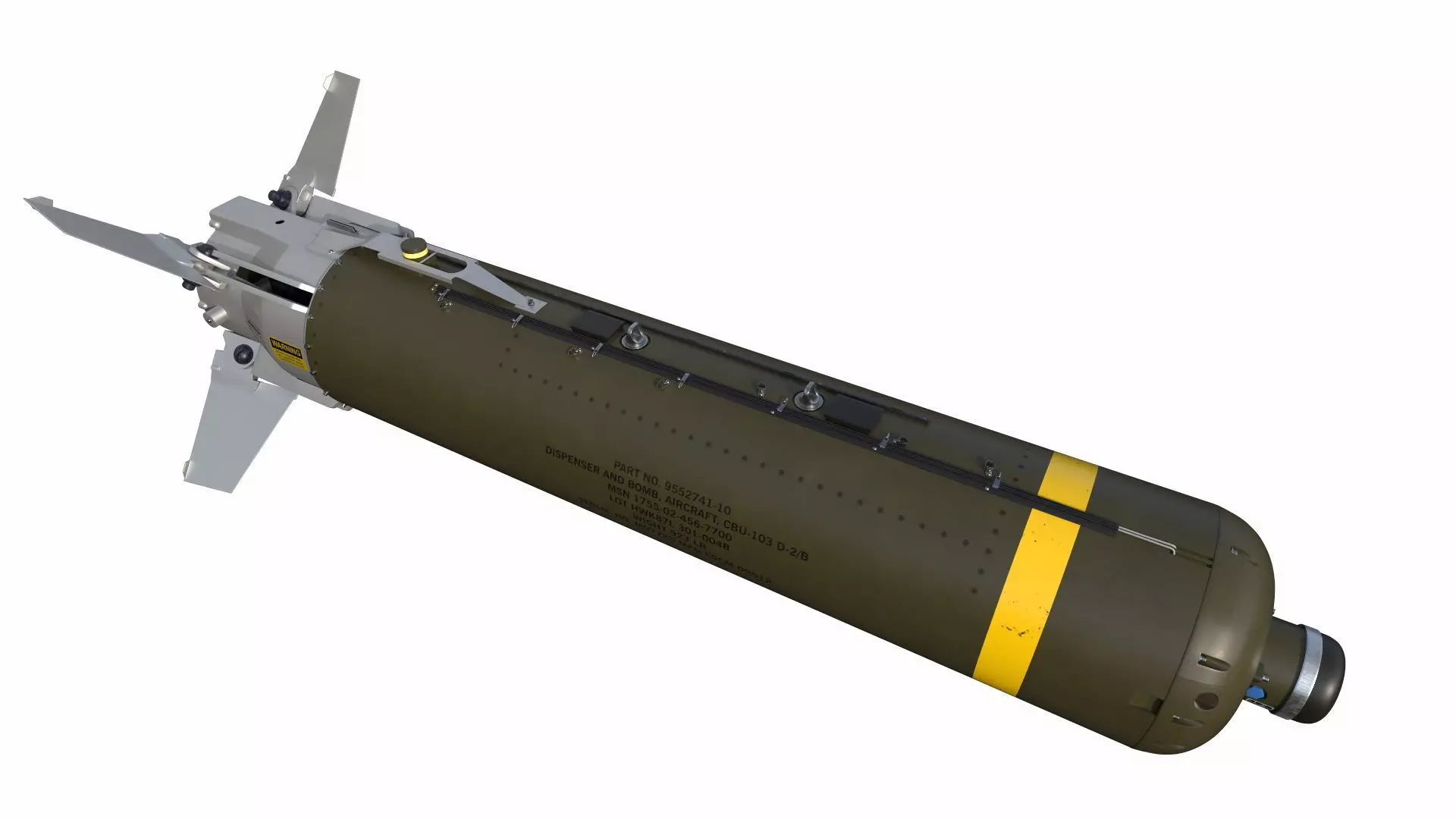

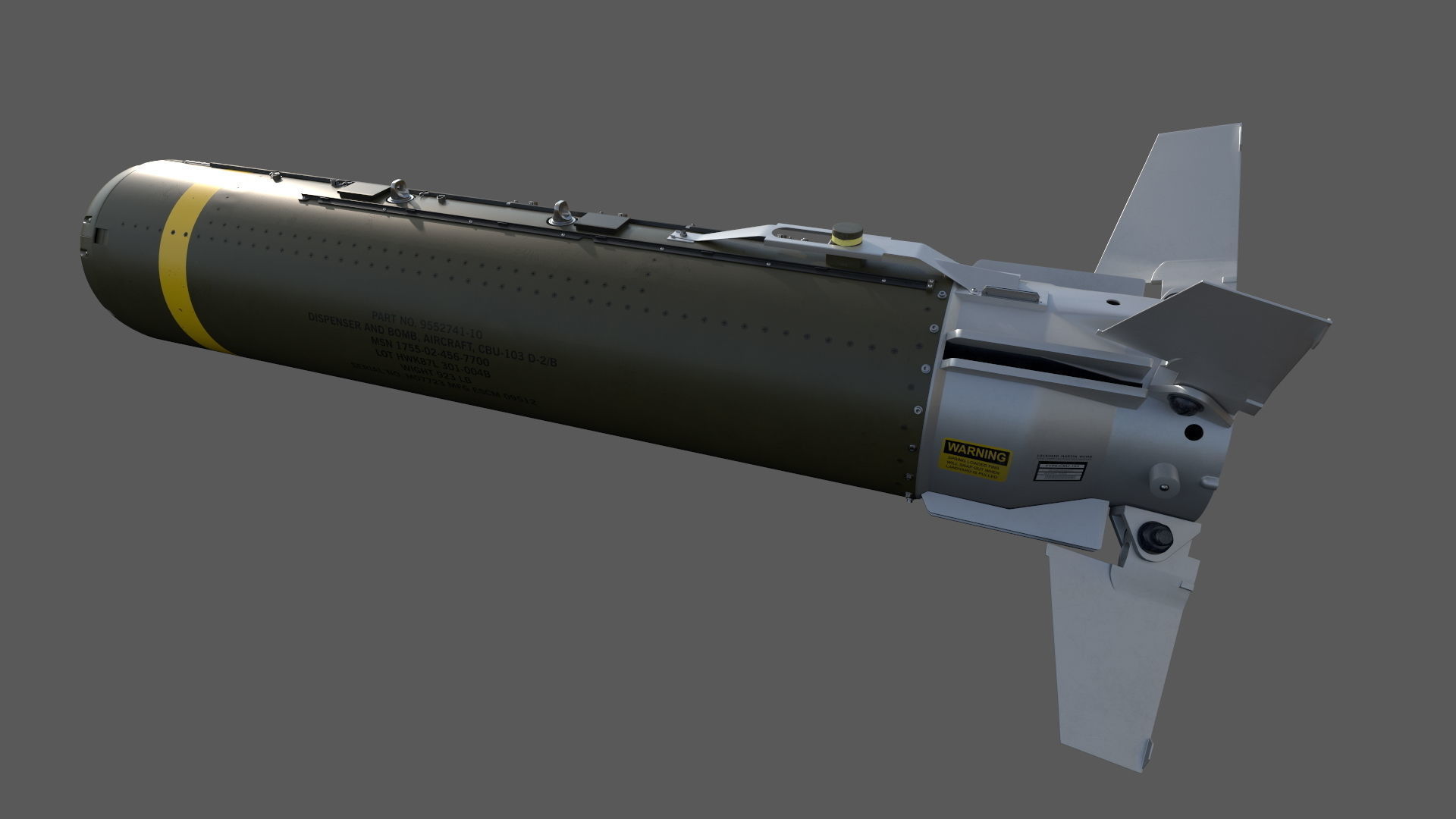

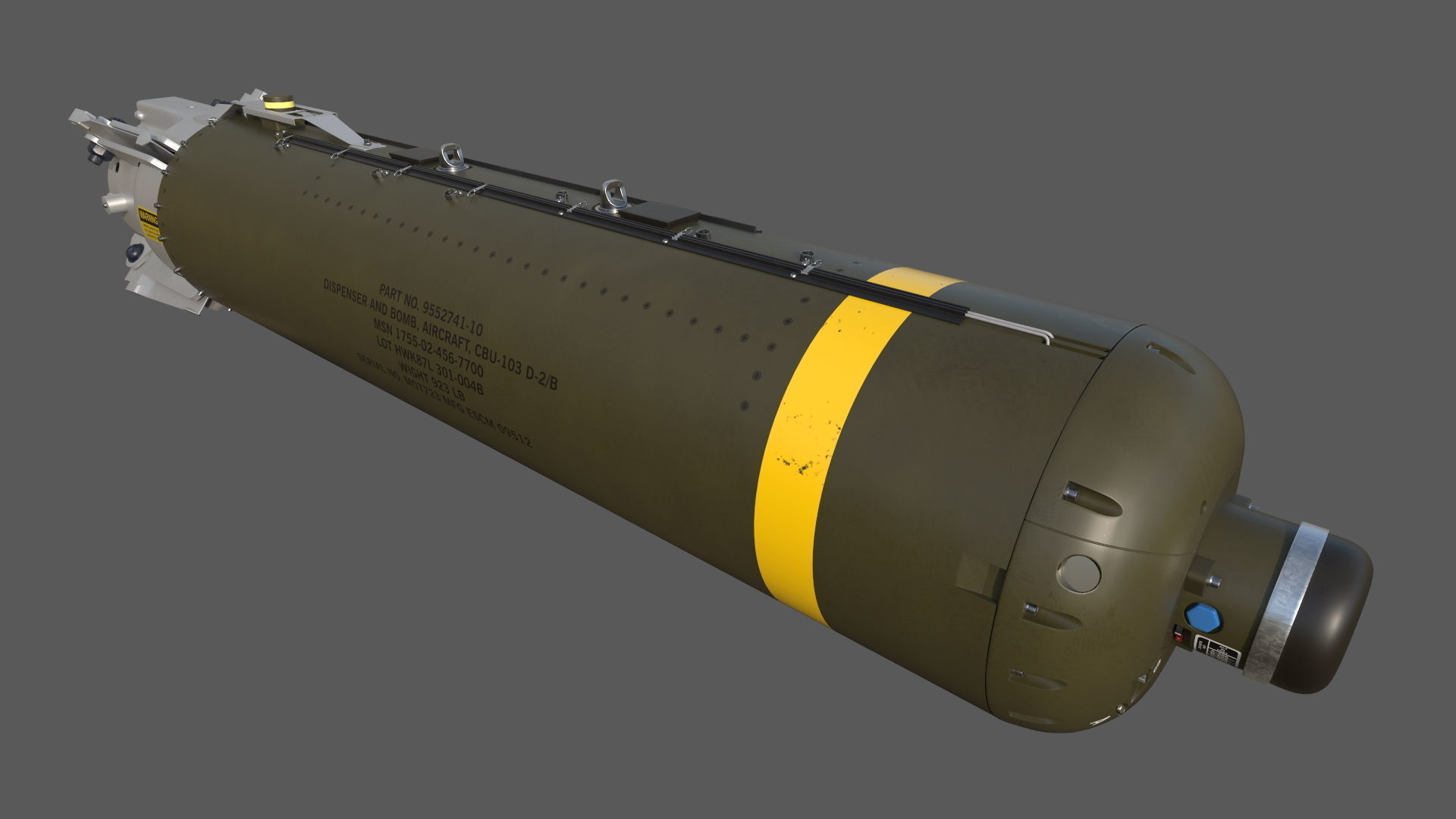

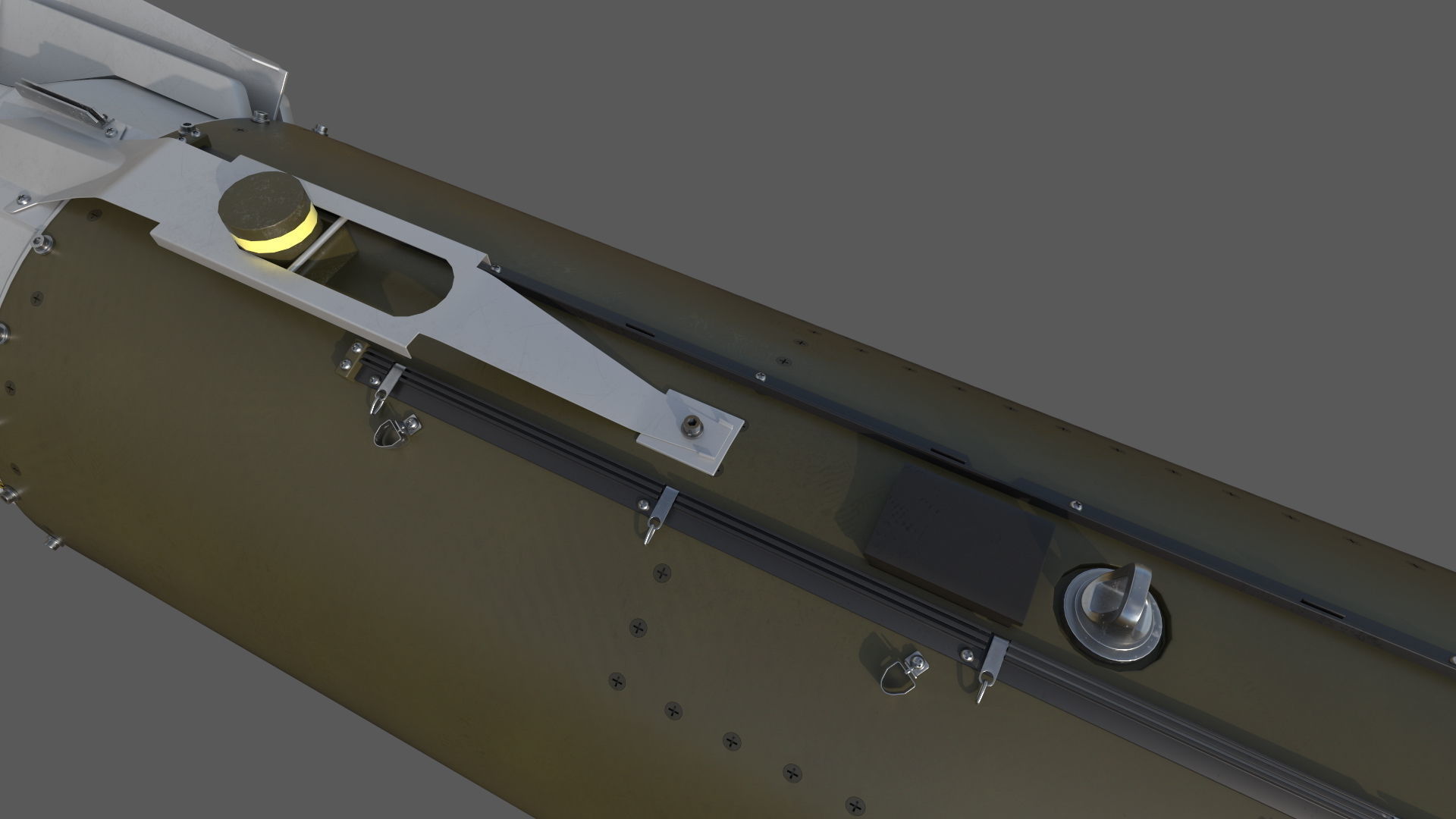

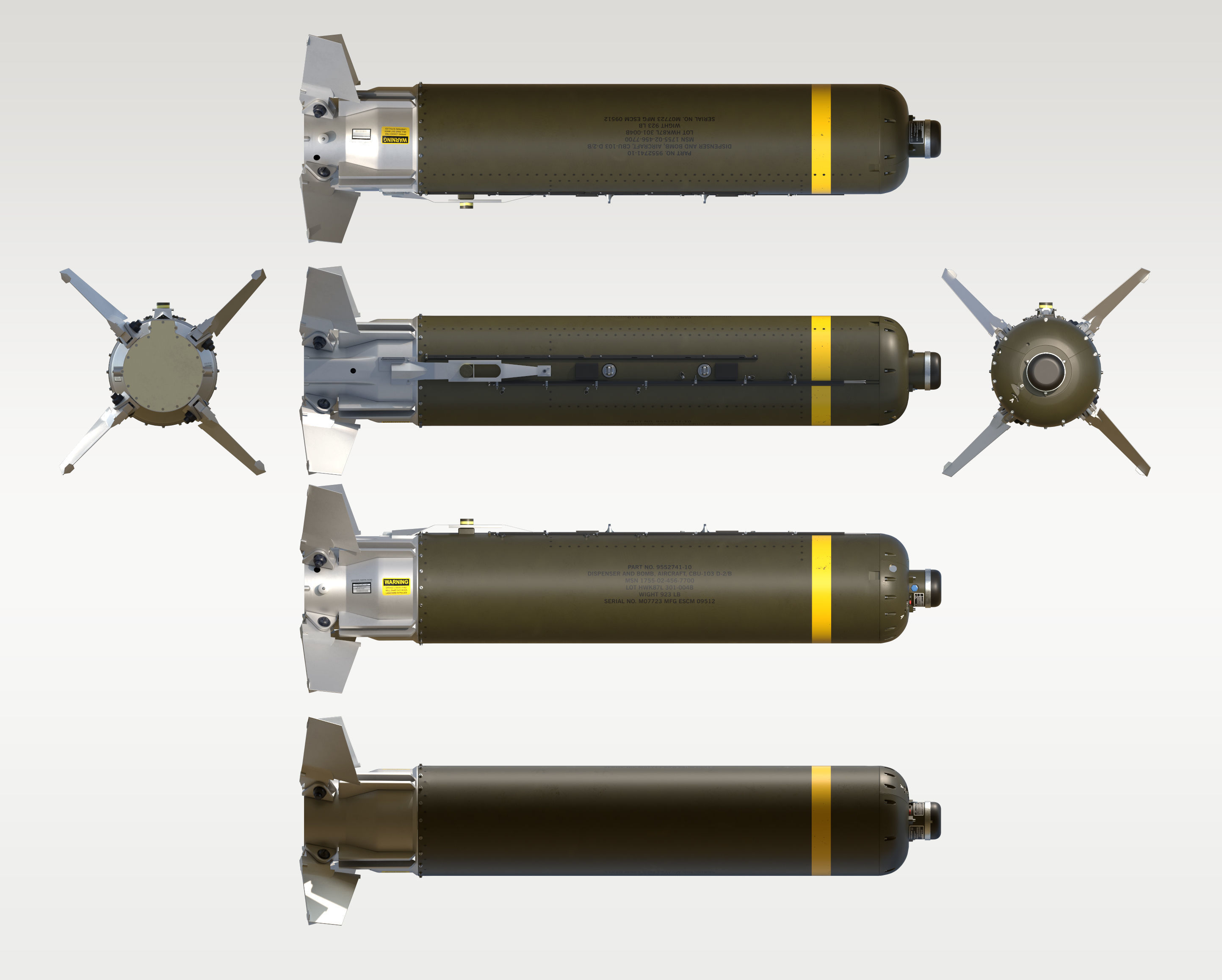

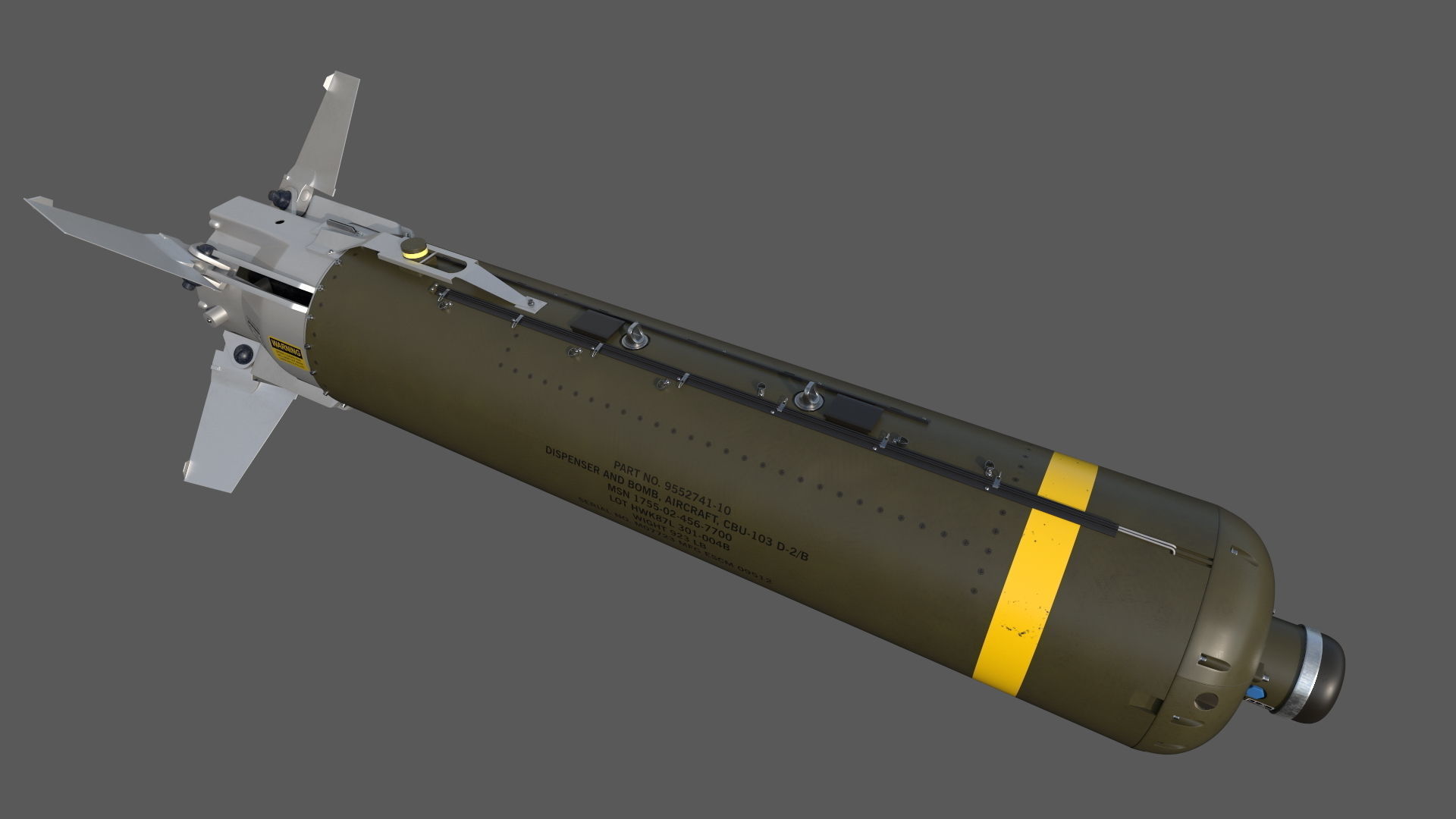

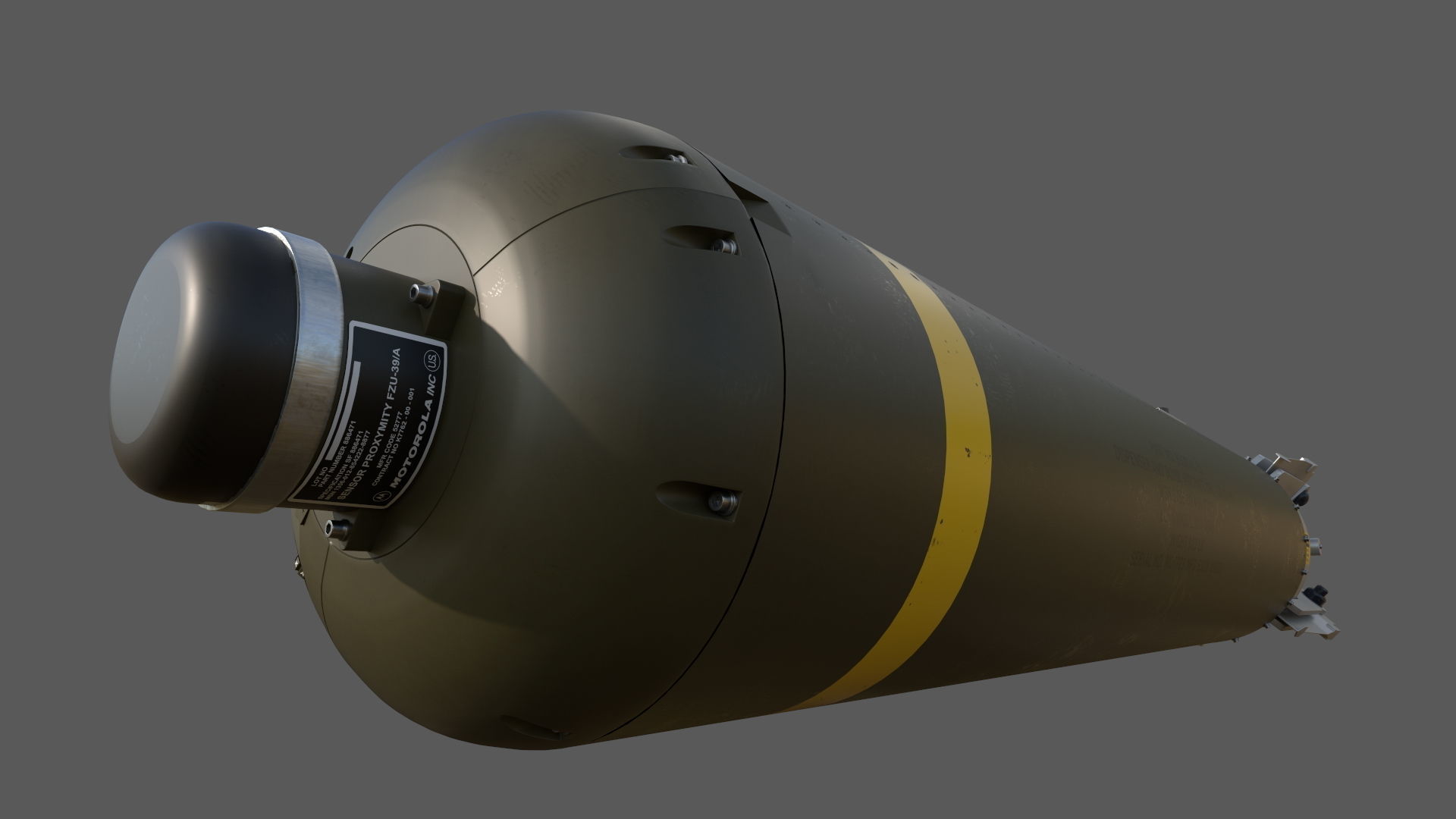

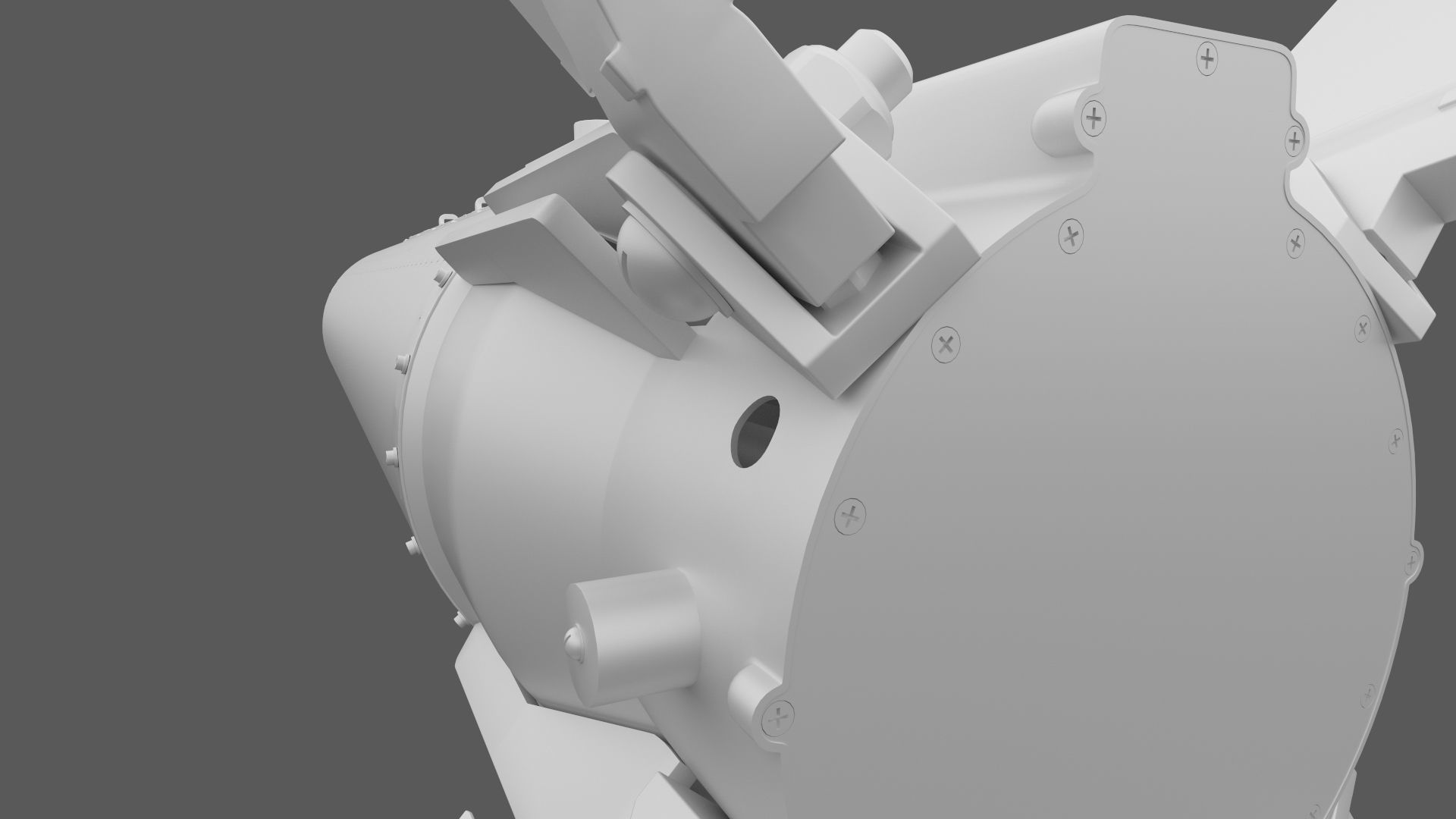

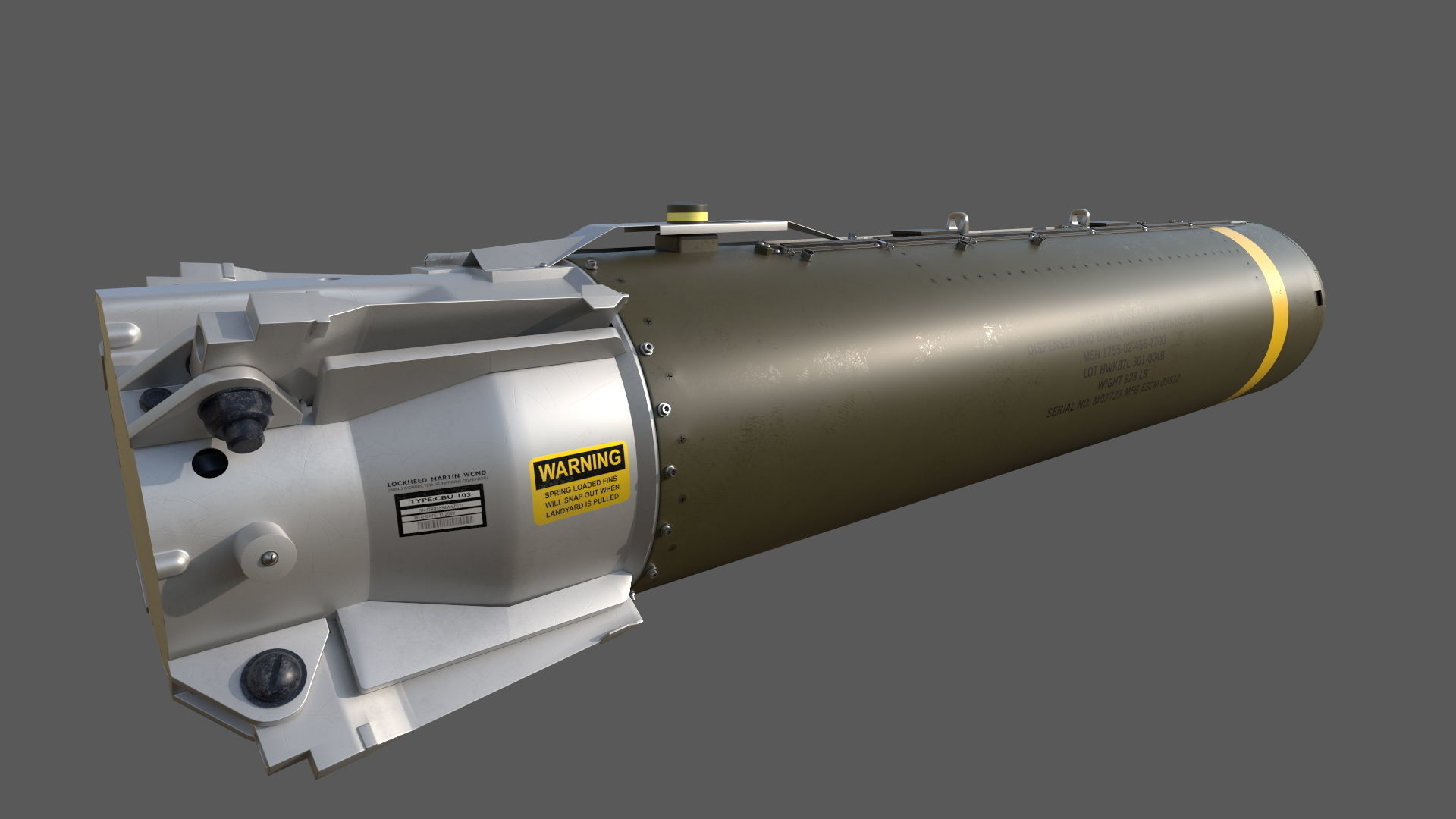

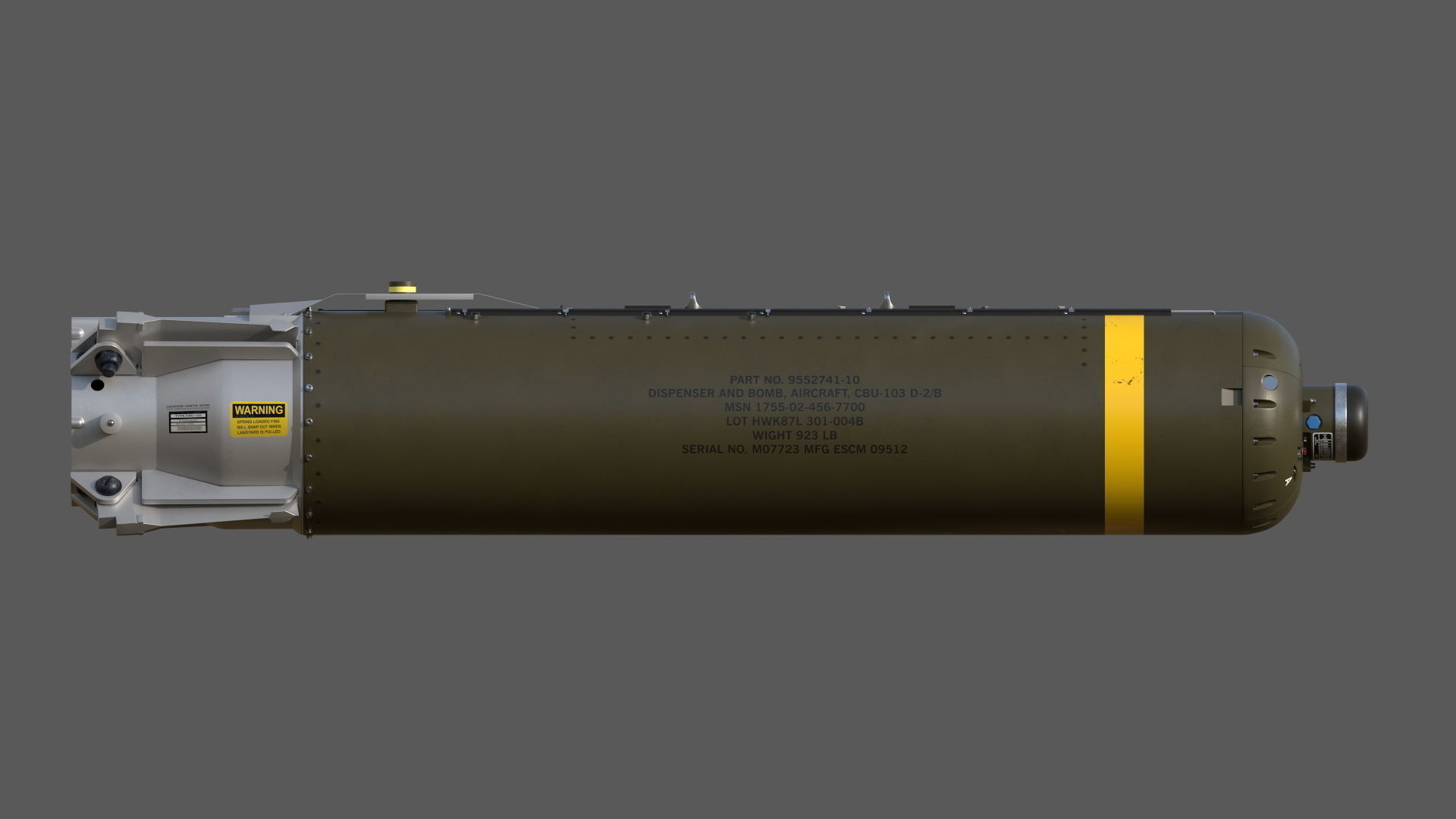

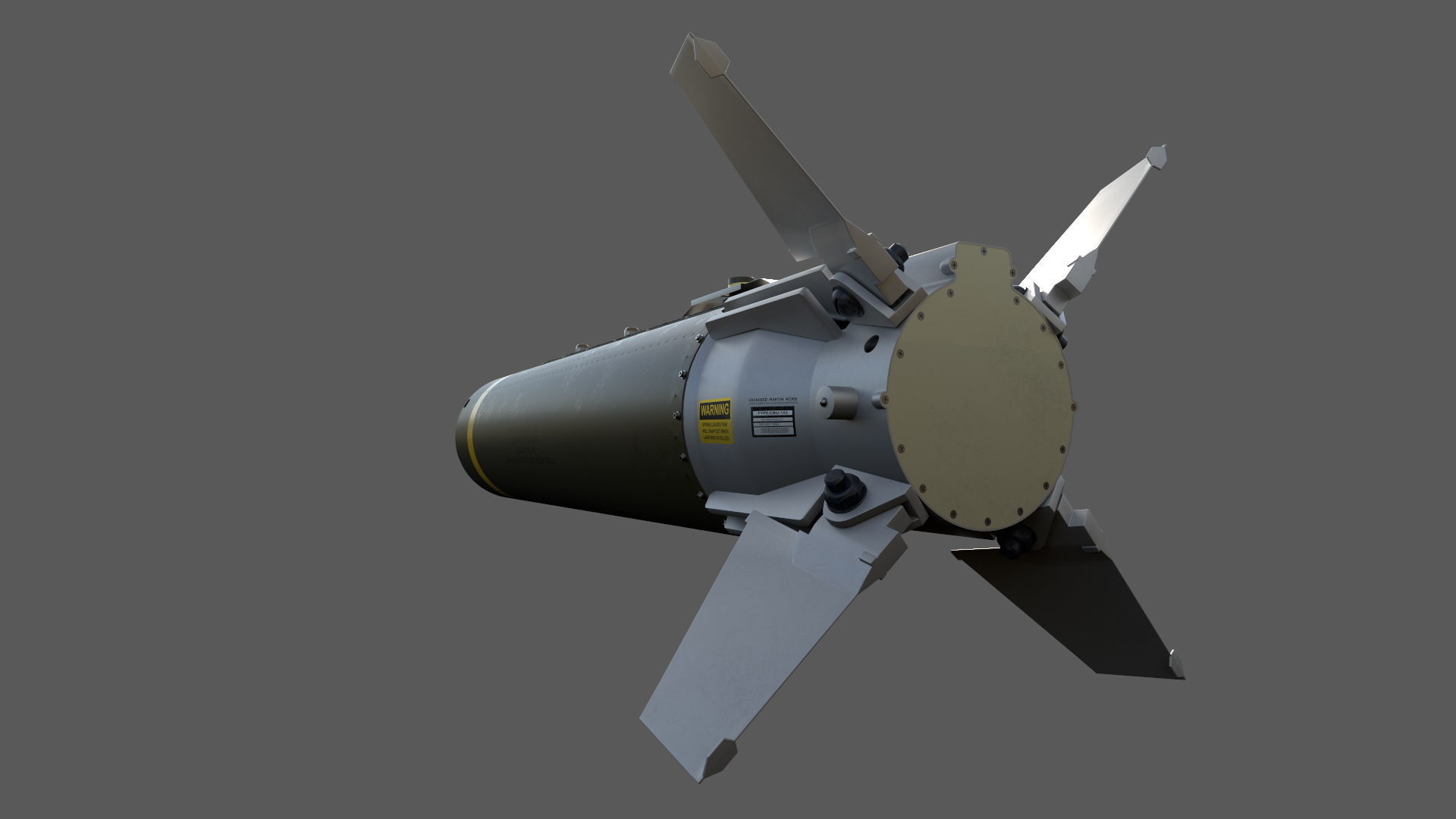

CBU-103 Combined Effects Munition

The CBU-87 Combined Effects Munition (CEM) is a cluster bomb used by the United States Air Force, developed by Aerojet General/Honeywell and introduced in 1986 to replace the earlier cluster bombs used in the Vietnam War. CBU stands for Cluster Bomb Unit. When the CBU-87 is used in conjunction with the Wind Corrected Munitions Dispenser guidance tail kit, it becomes much more accurate, and is designated CBU-103.

The basic CBU-87 is designed to be dropped from an aircraft at any altitude and any air speed. It is a free-falling bomb and relies on the aircraft to aim it before it drops; once dropped it needs no further instruction, as opposed to guided munitions or smart bombs. The bomb can be dropped by a variety of modern-day aircraft. It is 7 feet 7 inches (2.31 meters) long, has a diameter of 16 inches (41 centimeters), and weighs roughly 951 pounds (431 kg).

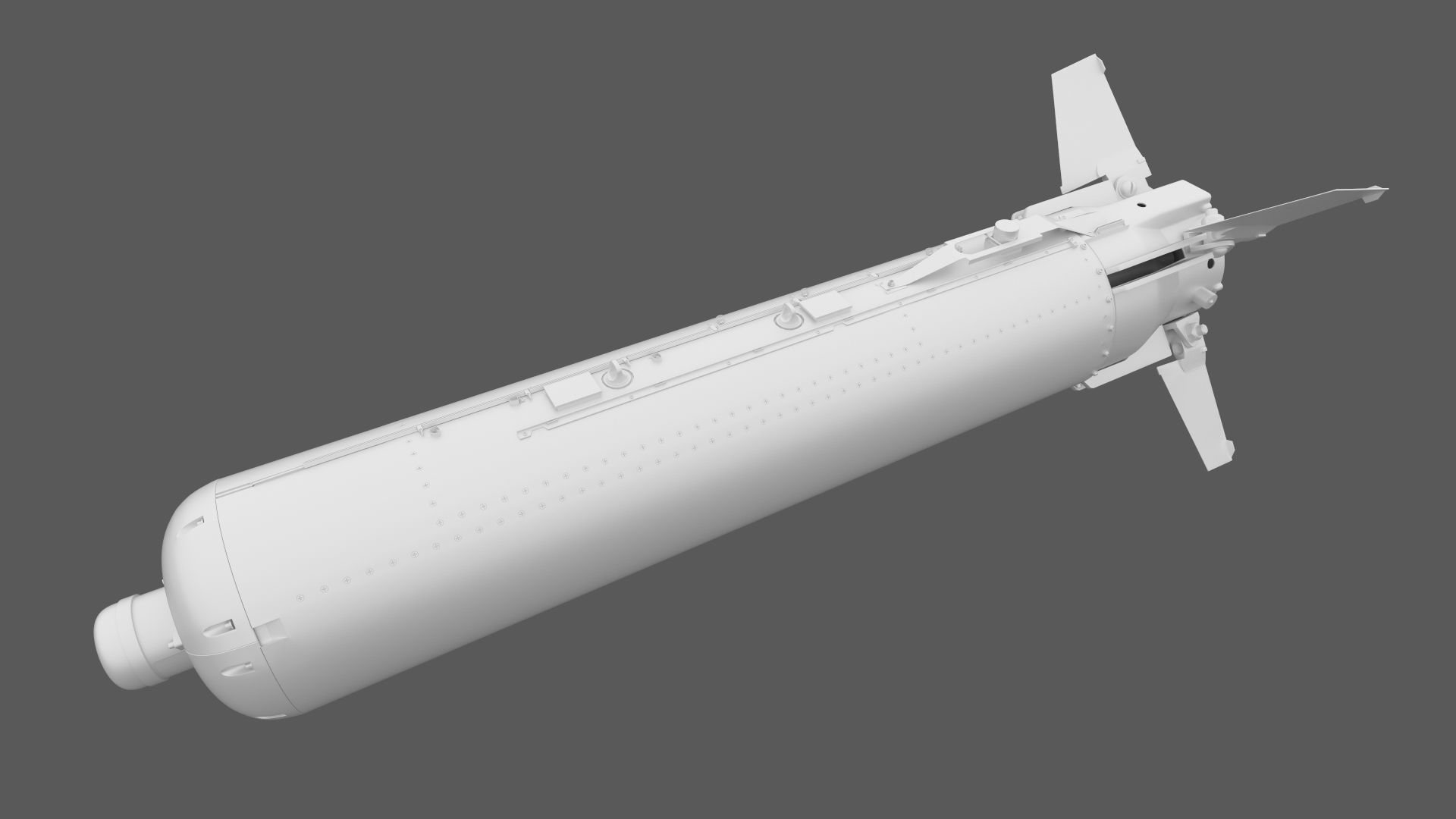

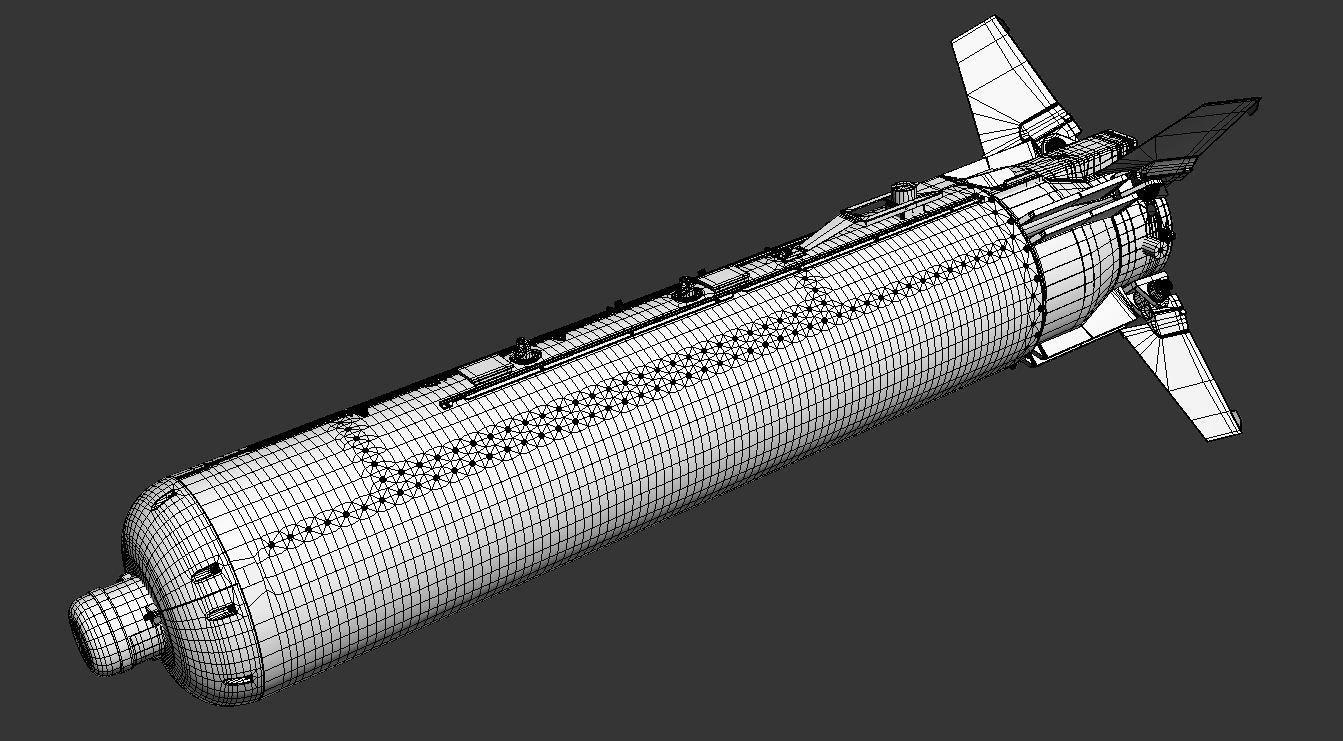

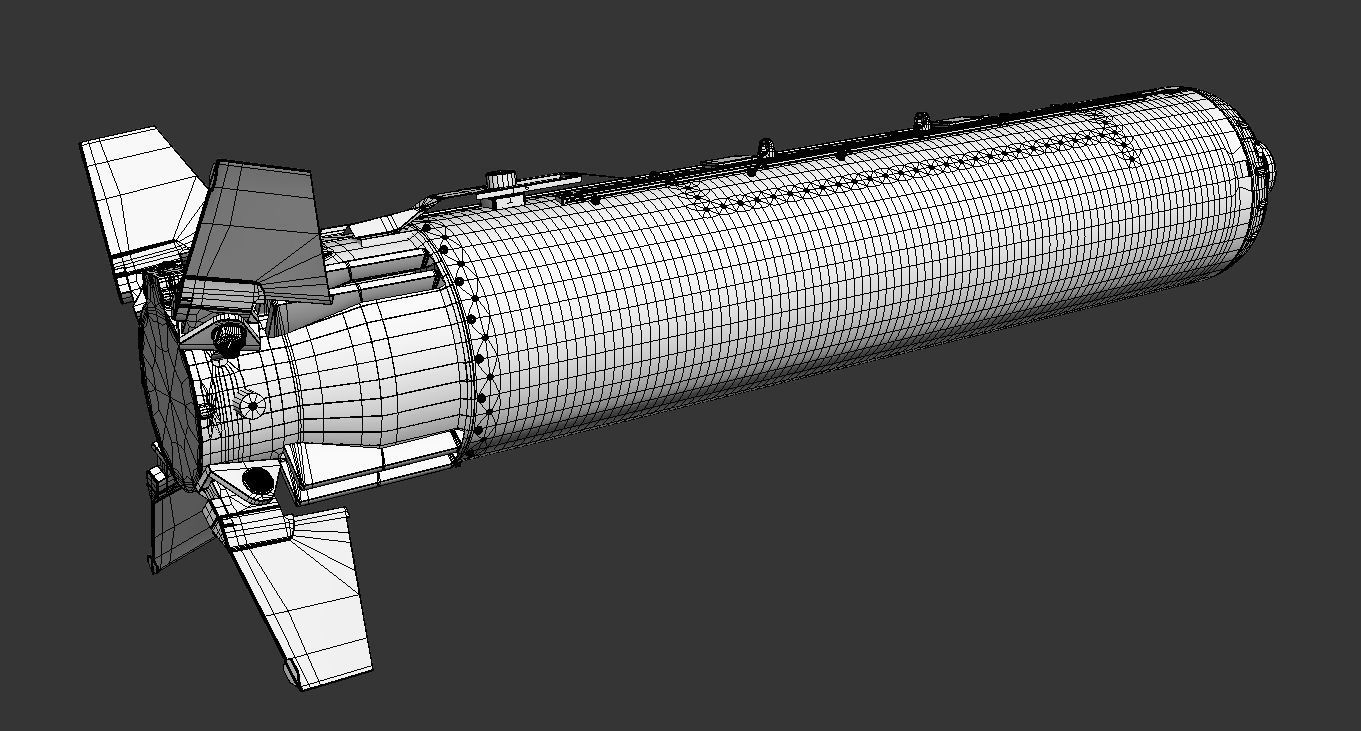

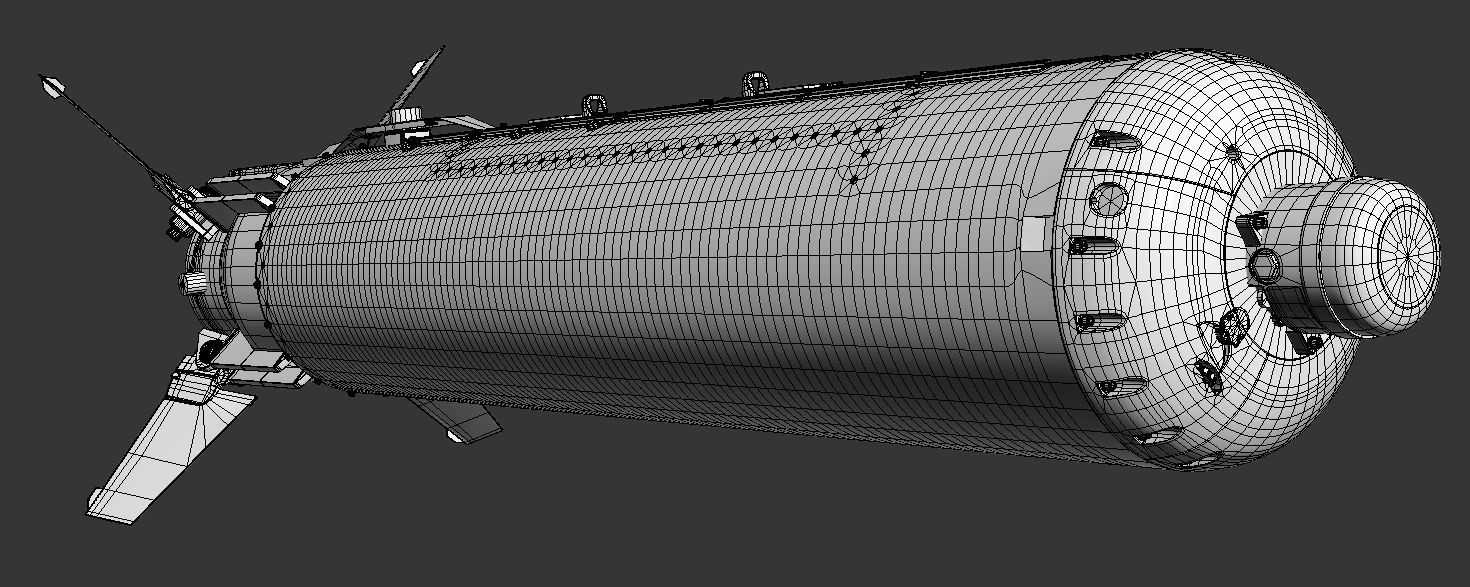

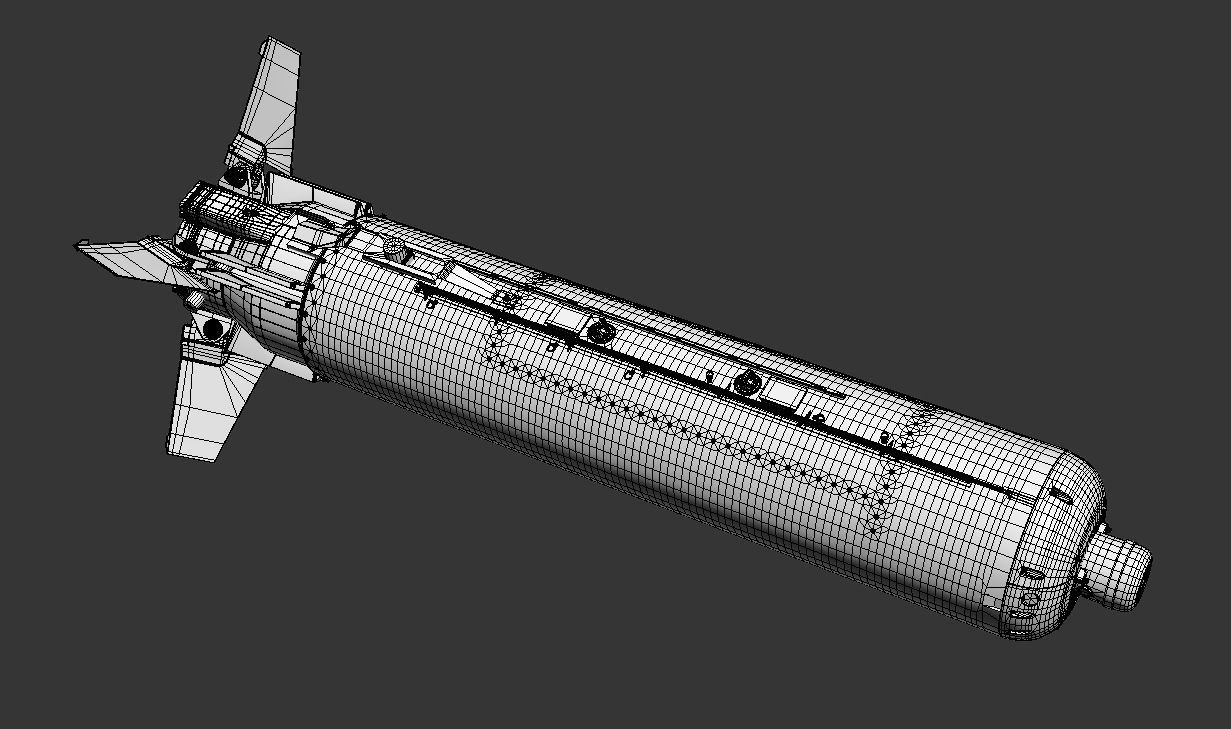

Subdivision-Ready/The model can be subdivided according to your needs. (Subdivion surfaces method such as Meshsmooth perfectly working.)

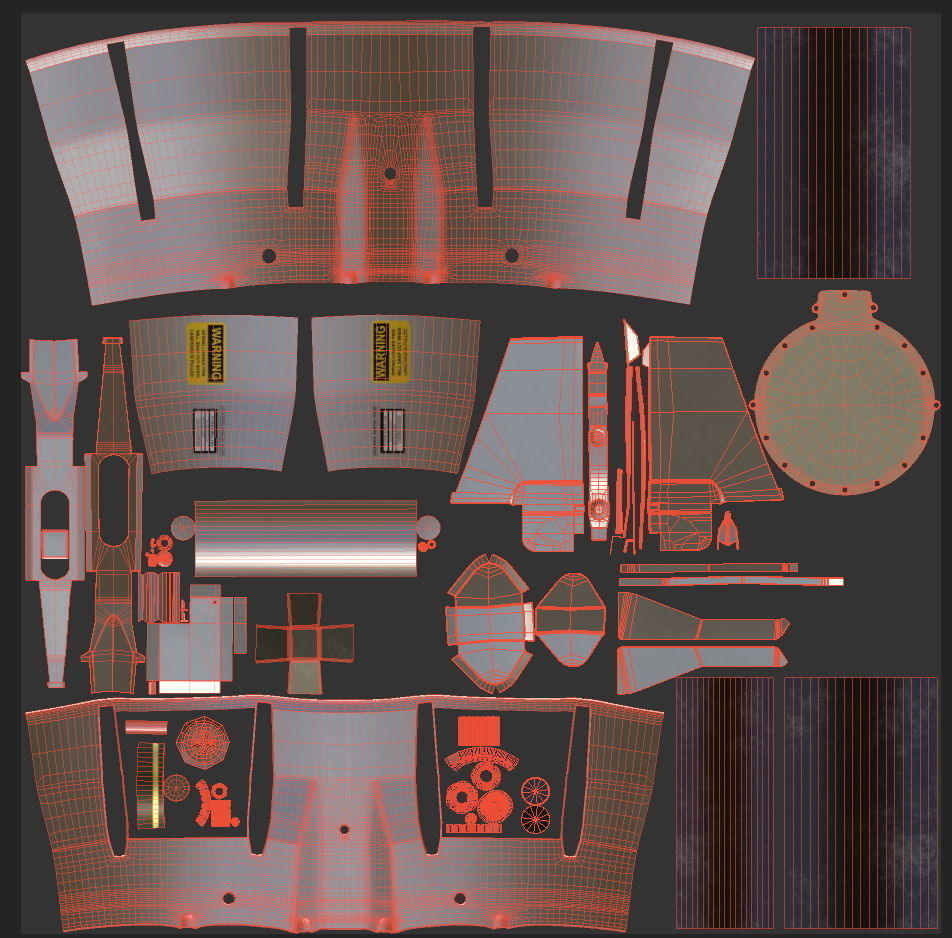

The texture maps include Basecolor, height, metallic, roughness and normal.

• Additional notes * Scene does not include the light setup

File Formats:

• .MAX
• .FBX
• .OBJ

Textures Formats -PNG

Textures 4K in textures.zip Archive (4096 x 4096) (Textures 8K for request.)

Eeach element consists of a polygon mesh - each element is separate, for 3d printing it will require refinement.
