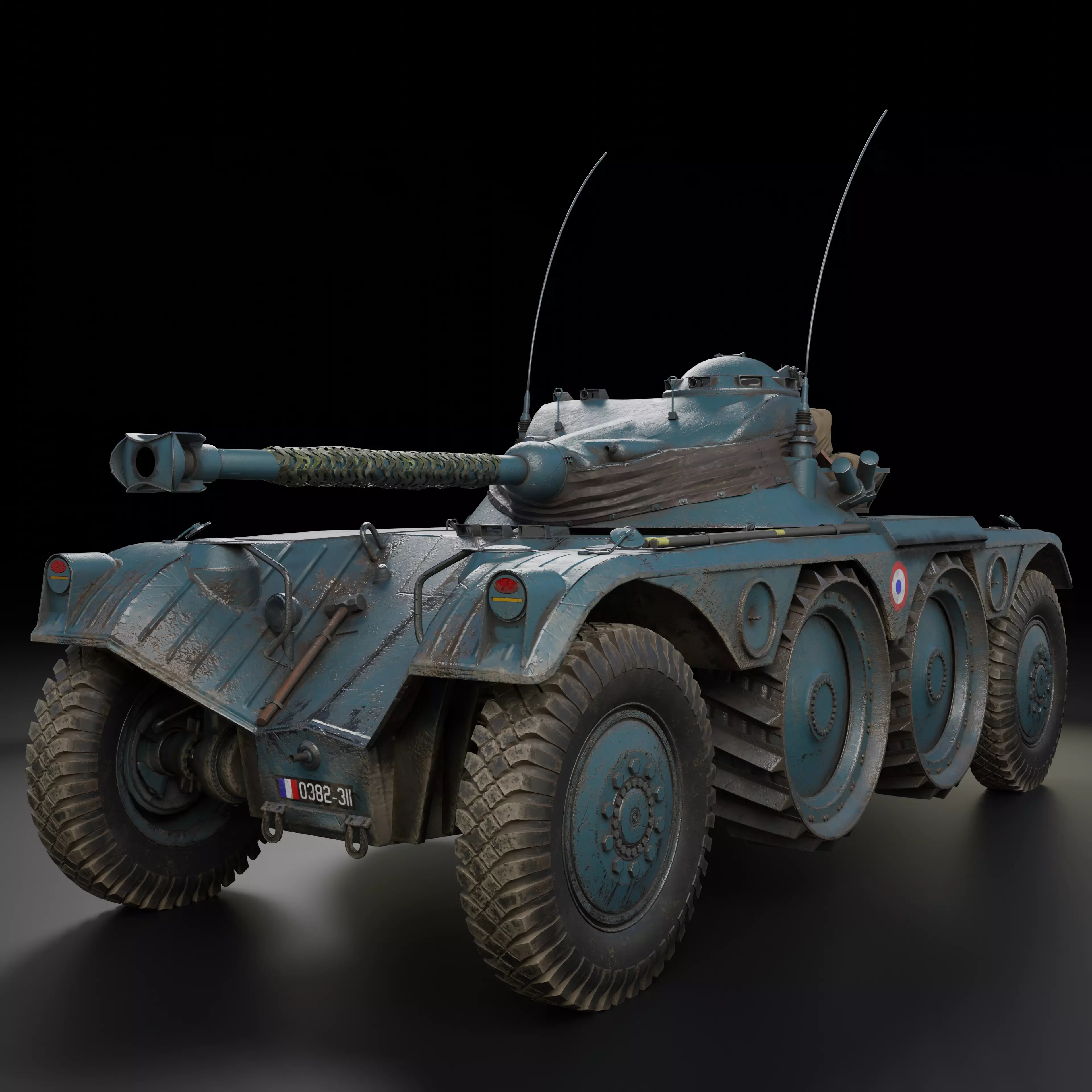

Panhard EBR 90 PBR Model 3D model

If you want to take your renders and animations to the next level, this model of the french wheeled reconnaissance vehicle „Panhard EBR 90“ is perfect for you.

Being carefully crafted with realism and performance optimization in mind, this model will definitely help you to enhance your project and get the most out of your renders and animations. The „Panhard EBR 90“ is a wheeled reconnaissance vehicle, produced by Panhard in France from 1951-1960.

It was used by the French, Indonesian and Portuguese Army, and saw service in the Algerian War, the Portuguese Colonial War, as well as the Indonesia-Malaysia Confrontation, and the Sand War. This version of the Panhard EBR is equipped with a 90mm low-pressure gun for engaging armored targets, giving it the designation „Panhard EBR 90“

Topology:

Overall Face and Vert count:

• Faces: 159.013

• Vertices: 139.733

The EBR 90 model consists of 4 objects:

• EBR90Turret (18.561 Faces)

• EBR90Body (18.503 Faces)

• EBR90Tires (105.132 Faces)

• EBR90Equipment (16.817 Faces)

Each object uses a separate material and has its own UV’s.

All objects are scaled in the metric system and according to real-life counterparts.

The model consists mostly of Quads, as seen in the preview images, and has a clear topology (no artifacts, overlapping polygons, etc.)

The model does not have any N-Gons in its topology.

Forward-facing axis: -Y

Up facing axis: Z

Textures/Material:

Each object uses separate materials, which are named accordingly to the object.

Each object has its own UV’s

List of used materials:

• EBR90_Turret

• EBR90_Body

• EBR90_Tires

• EBR90_Equipment

Each material/object is provided with the following textures with the resolution 4096px X 4096px, to suit both Metallic/Roughness and Specular/Glossiness PBR workflows.

For Metallic/Roughness Workflow:

• Base_Color

• Metallic

• Roughness

• Normal (OpenGL and DirectX)

• Height

• Ambient Occlusion

For Specular/Glossiness Workflow:

• Diffuse

• Glossiness

• Specular

• Normal (OpenGL and DirectX)

• Height

• Ambient Occlusion

The model uses overlapping UV’s to provide a higher texture resolution.

Pipeline:

• modeled in Blender 2.92

• textured in Substance Painter

Provided Formats:

• .blend

• .obj (textures need to be linked up manually)

• .fbx (textures need to be linked up manually)

Additional notes:

• This model contains poles with more than 5 edges.

• The model does NOT come with a Rigg.

• The light setup, used to render the preview images is included in the .blend file in a separate layer.

I hope you find this Model helpful when creating your new masterpiece. :)
