M4A3 Sherman 75mm - simplified internals - armour thicknesses

M4A3 Sherman 75mm - simplified internals - armour thicknesses 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

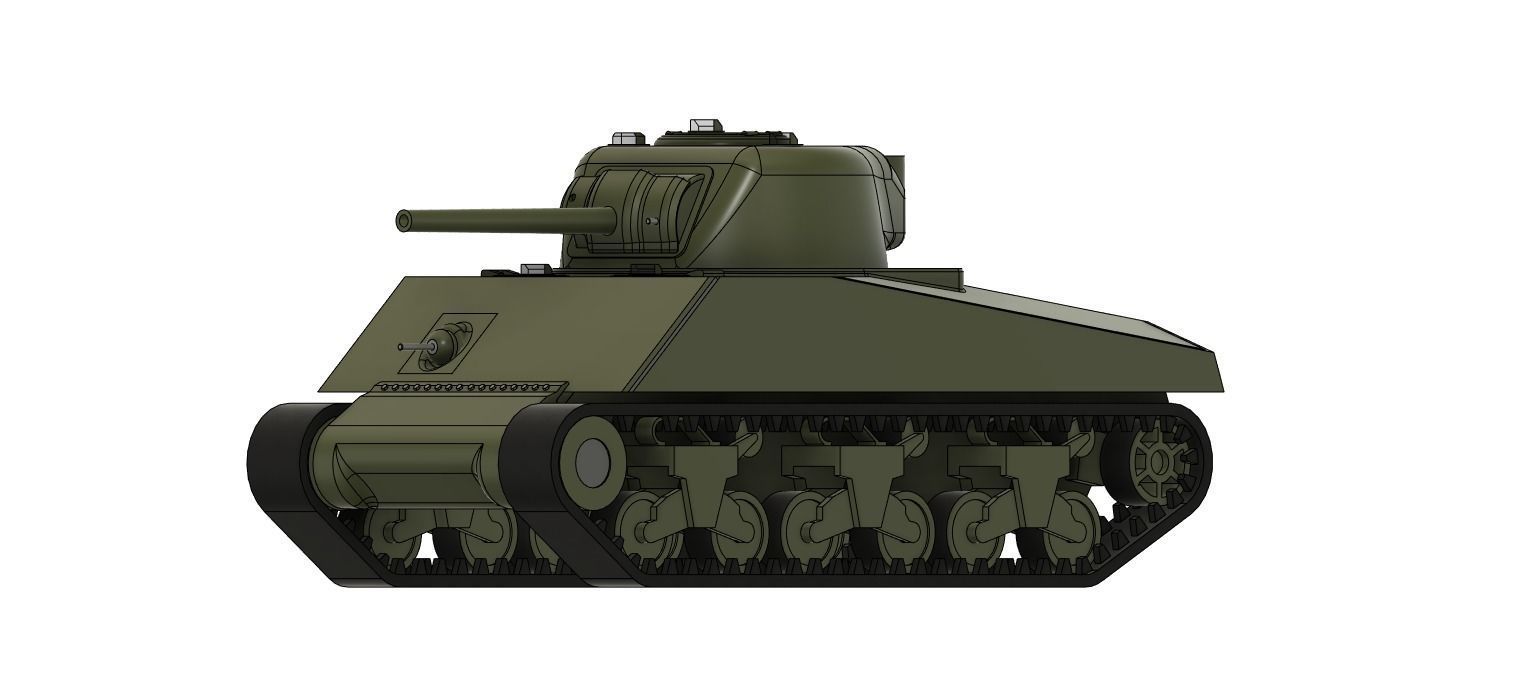

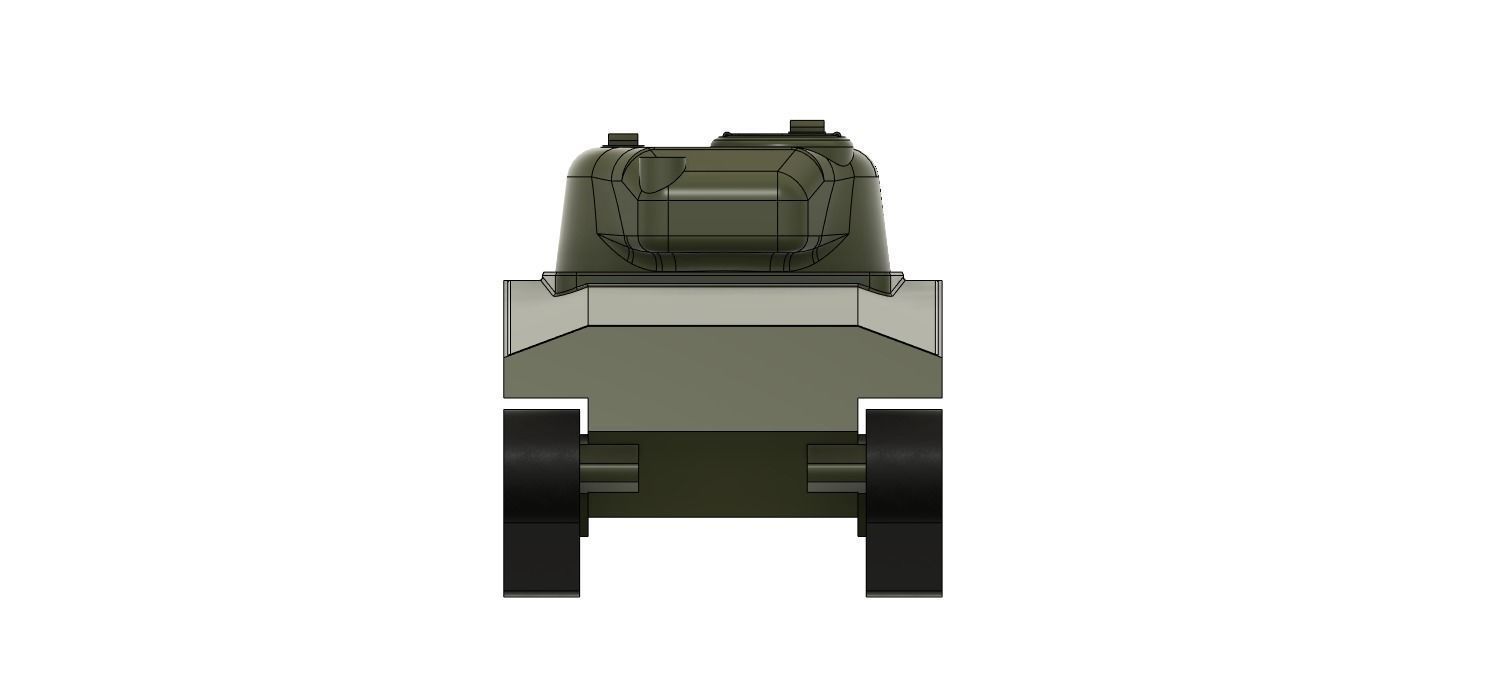

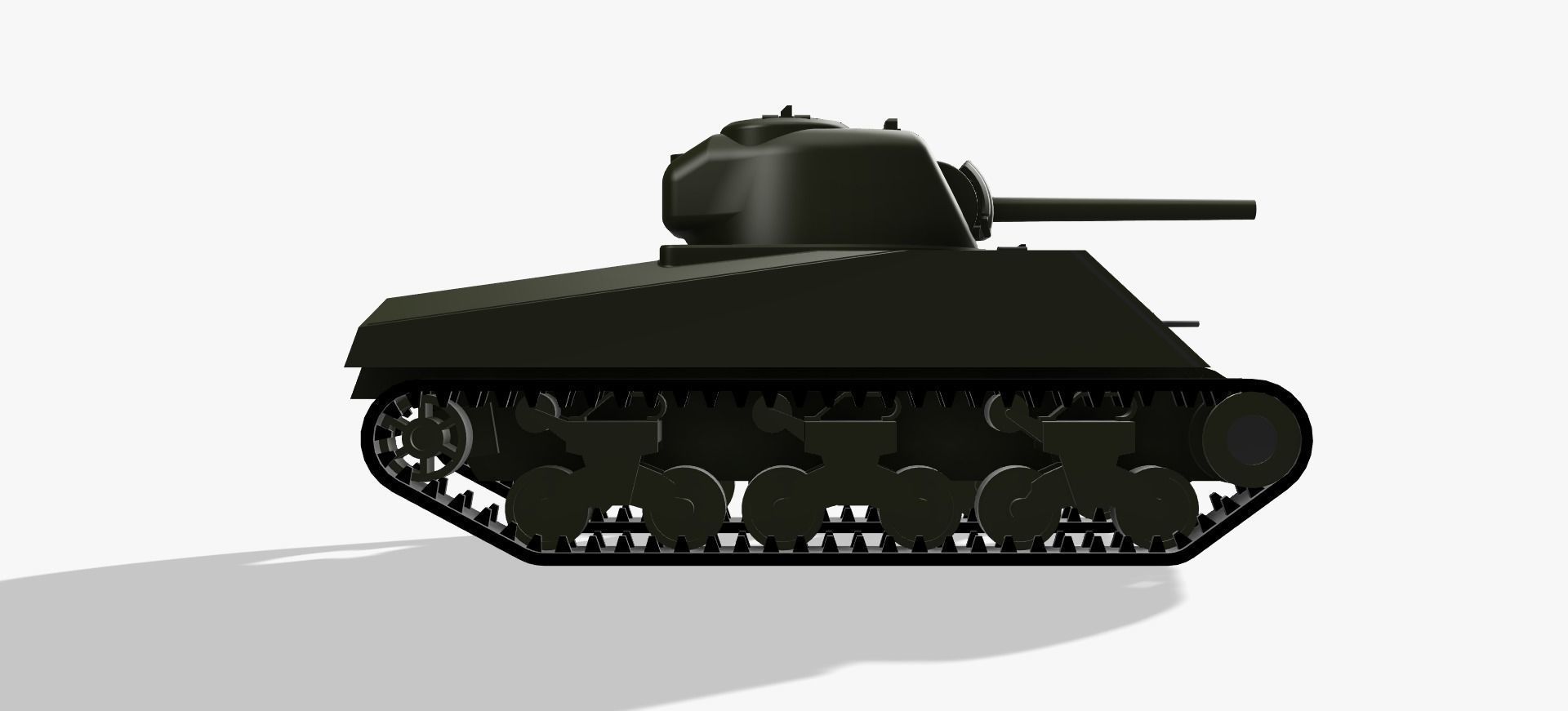

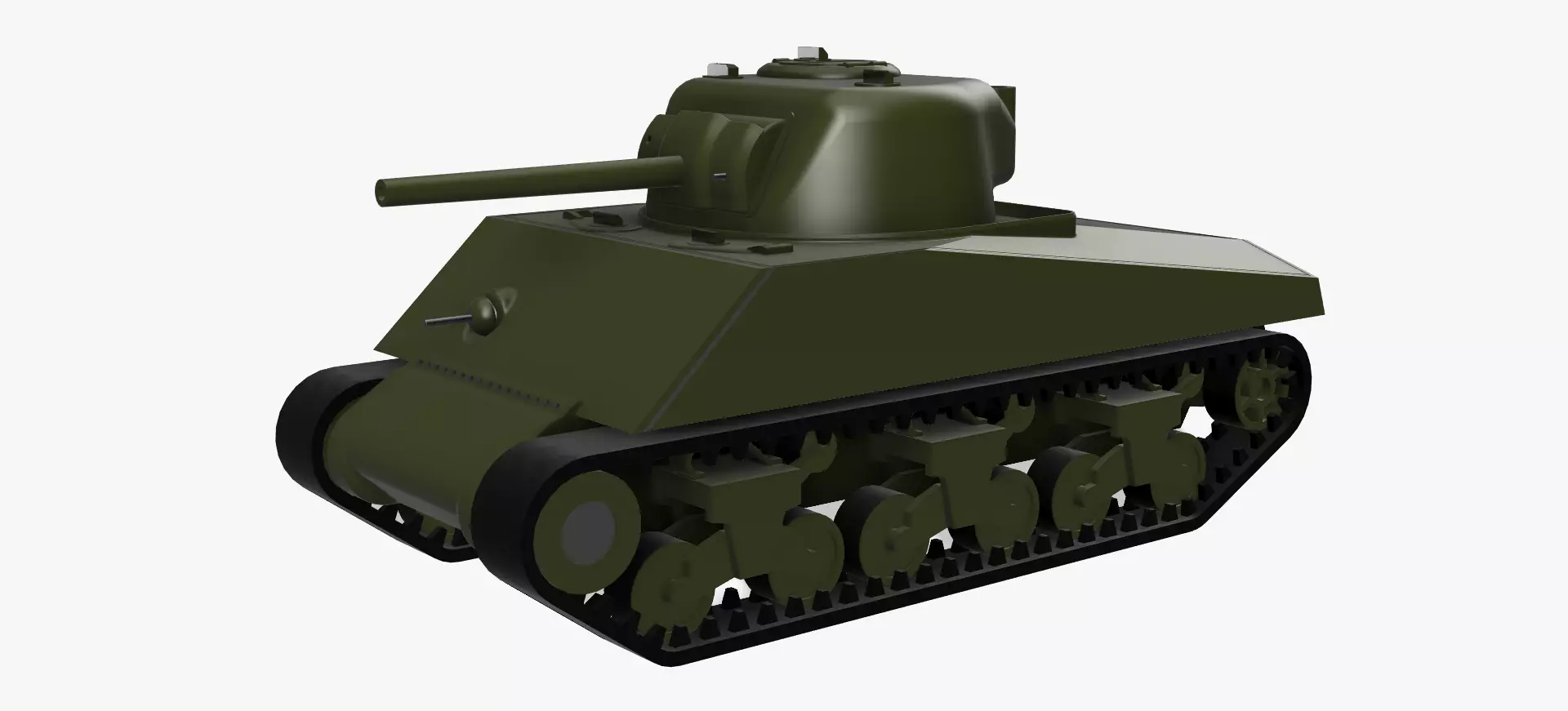

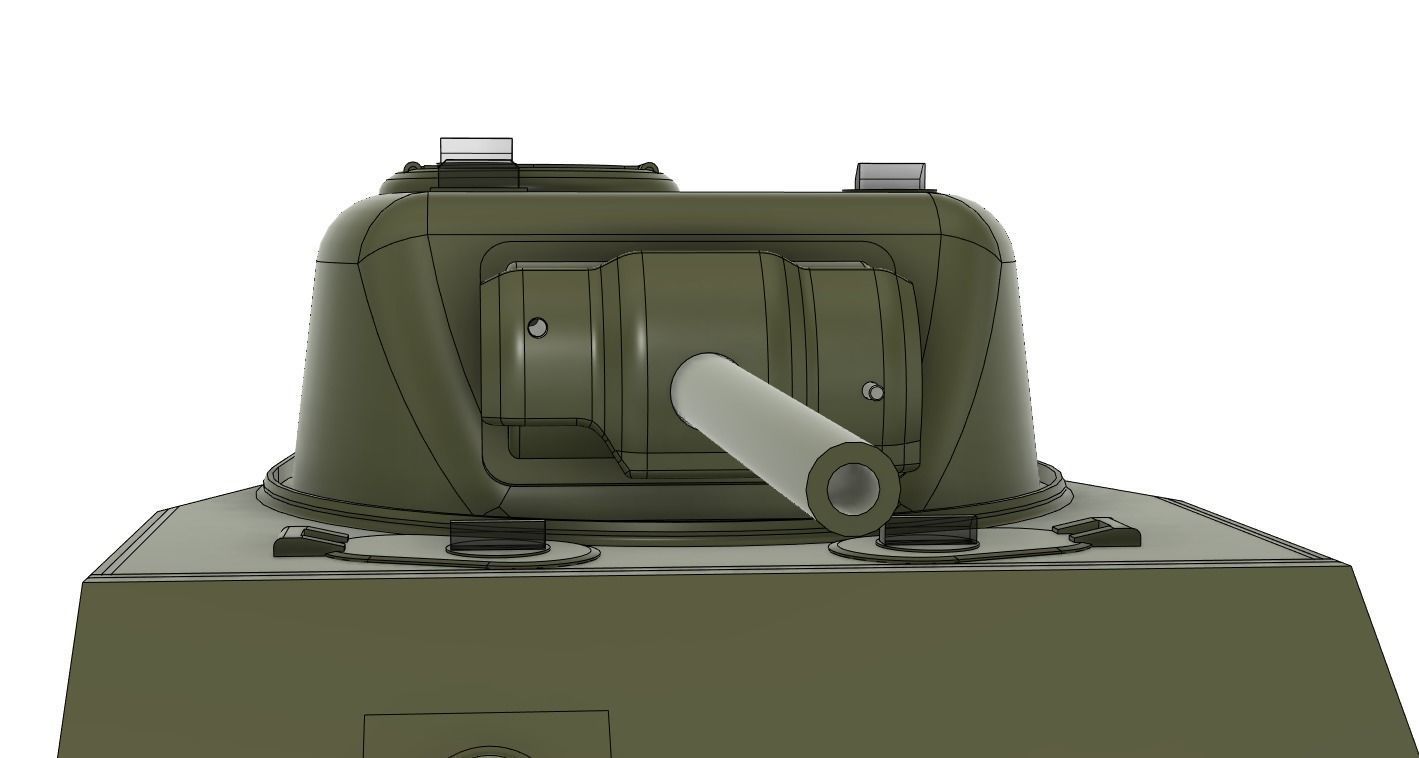

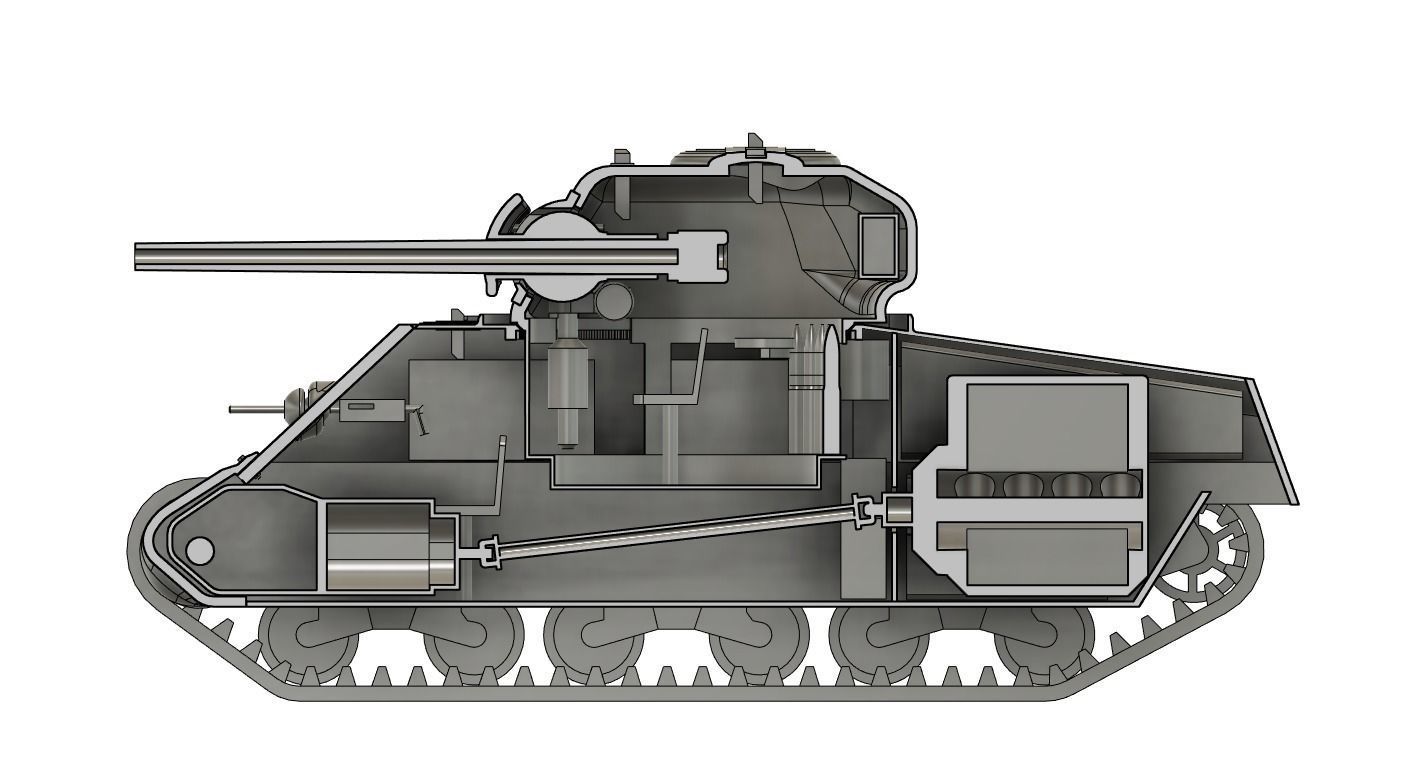

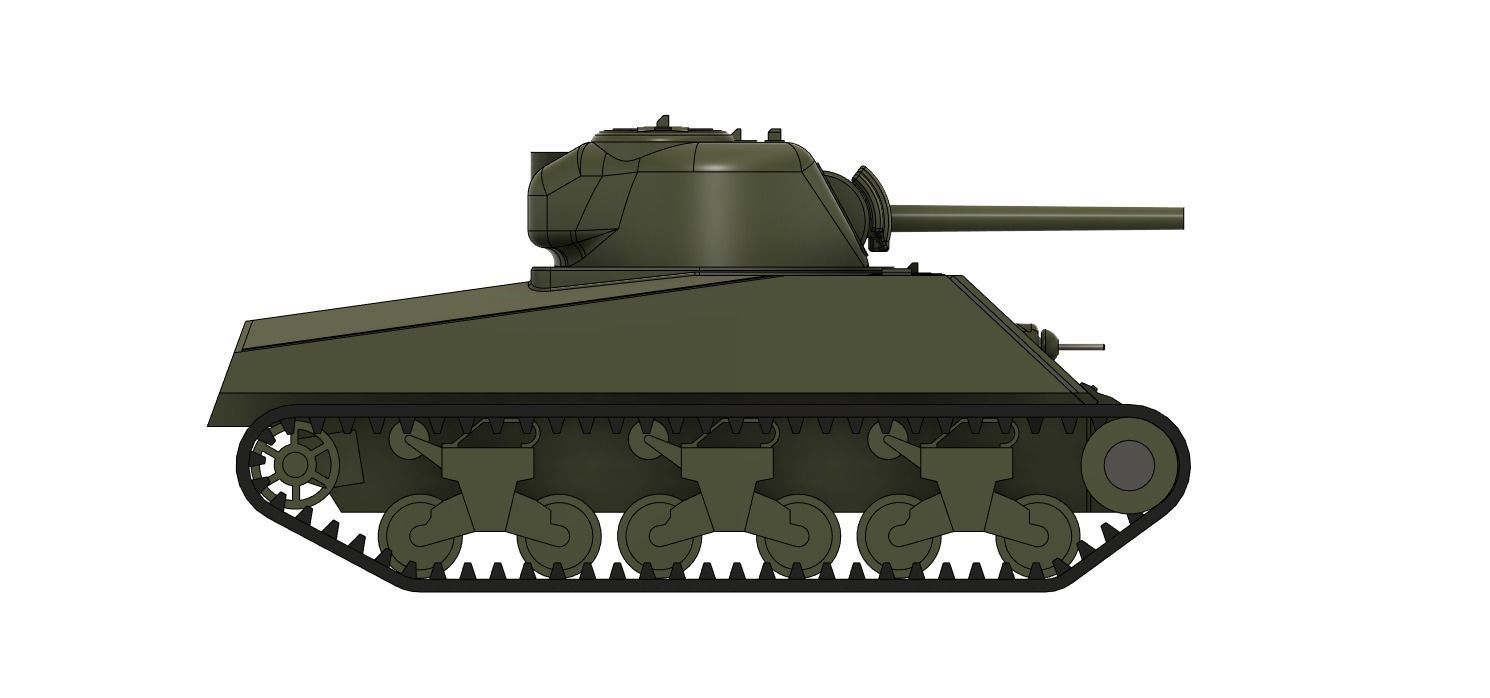

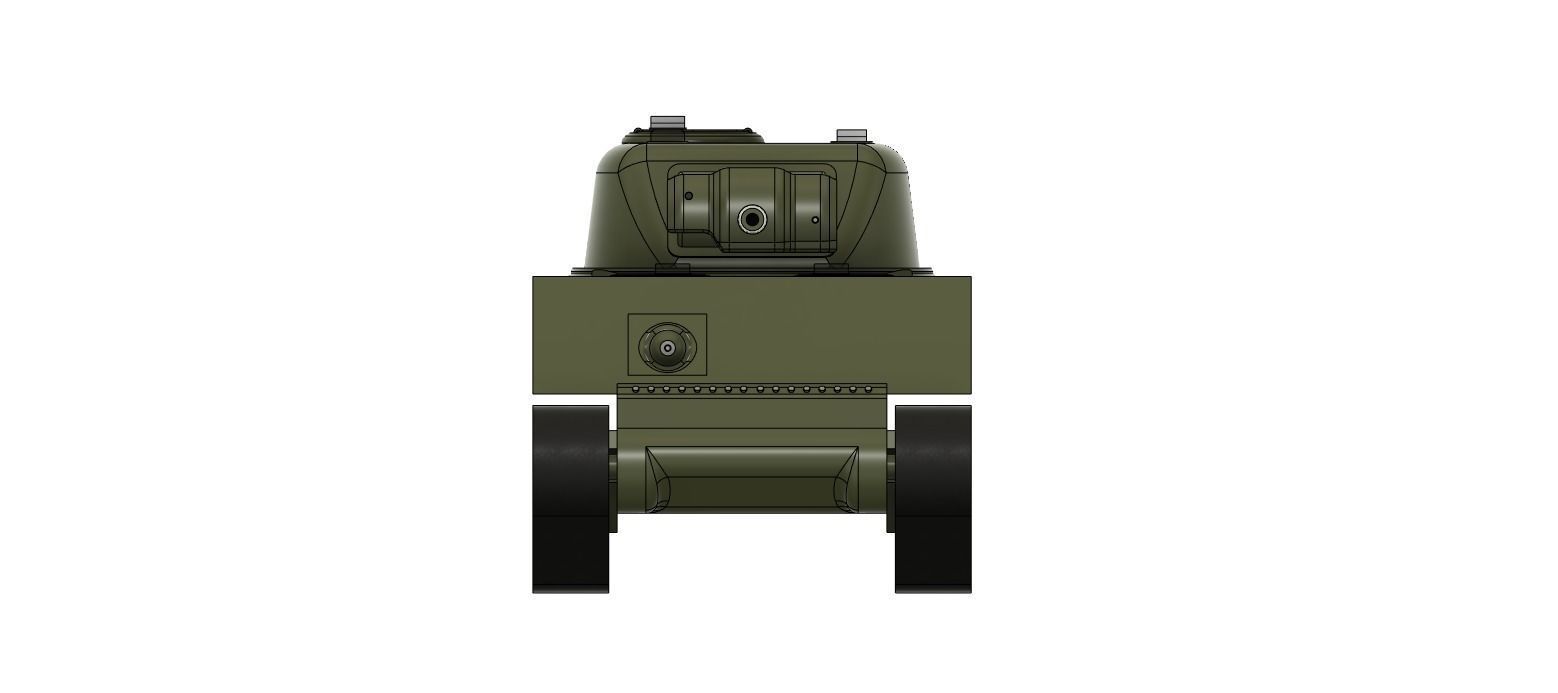

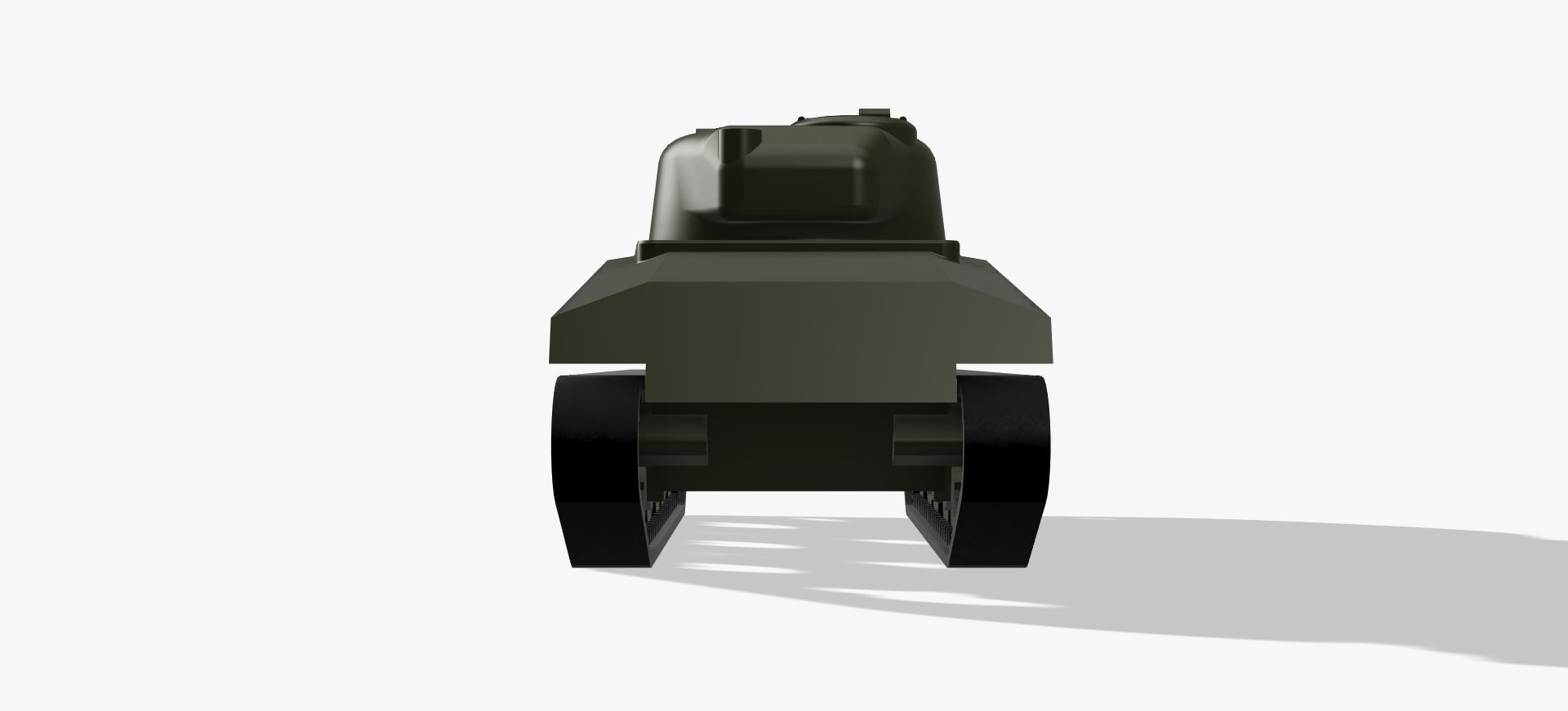

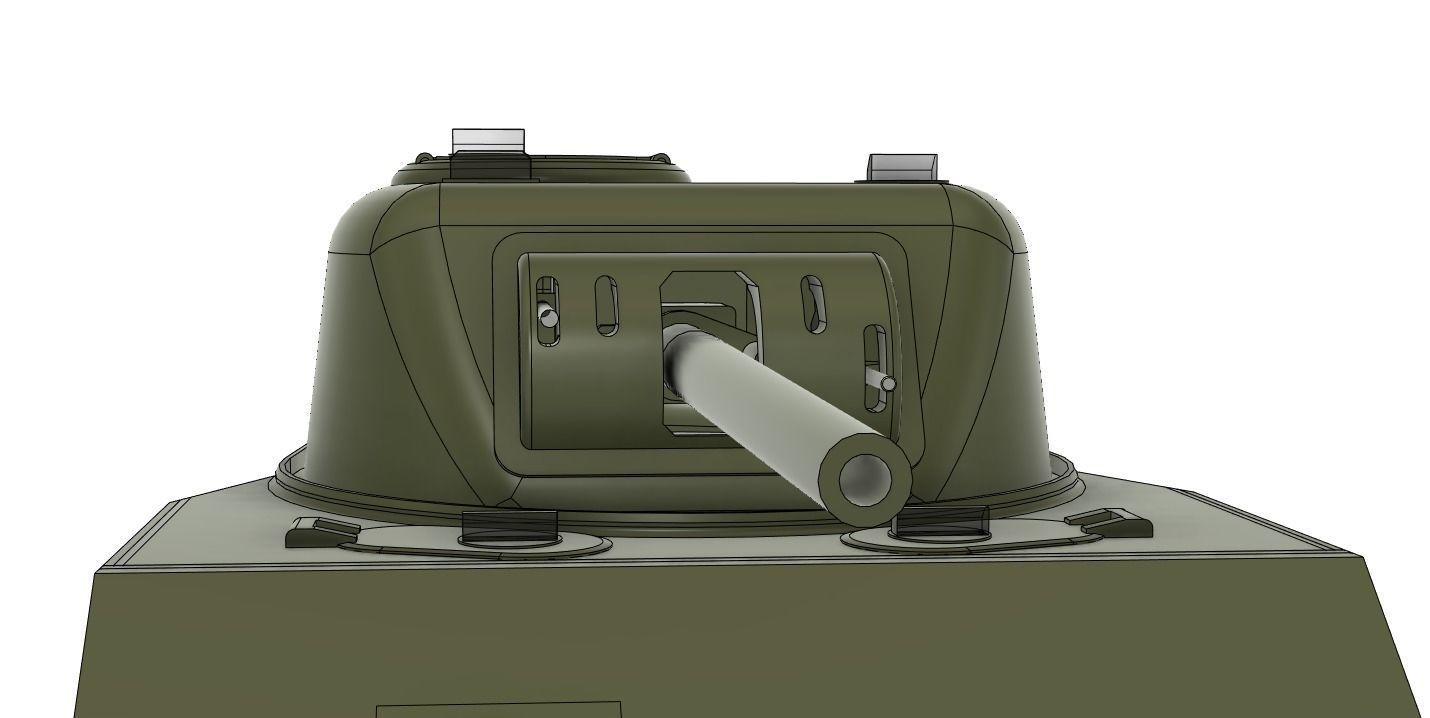

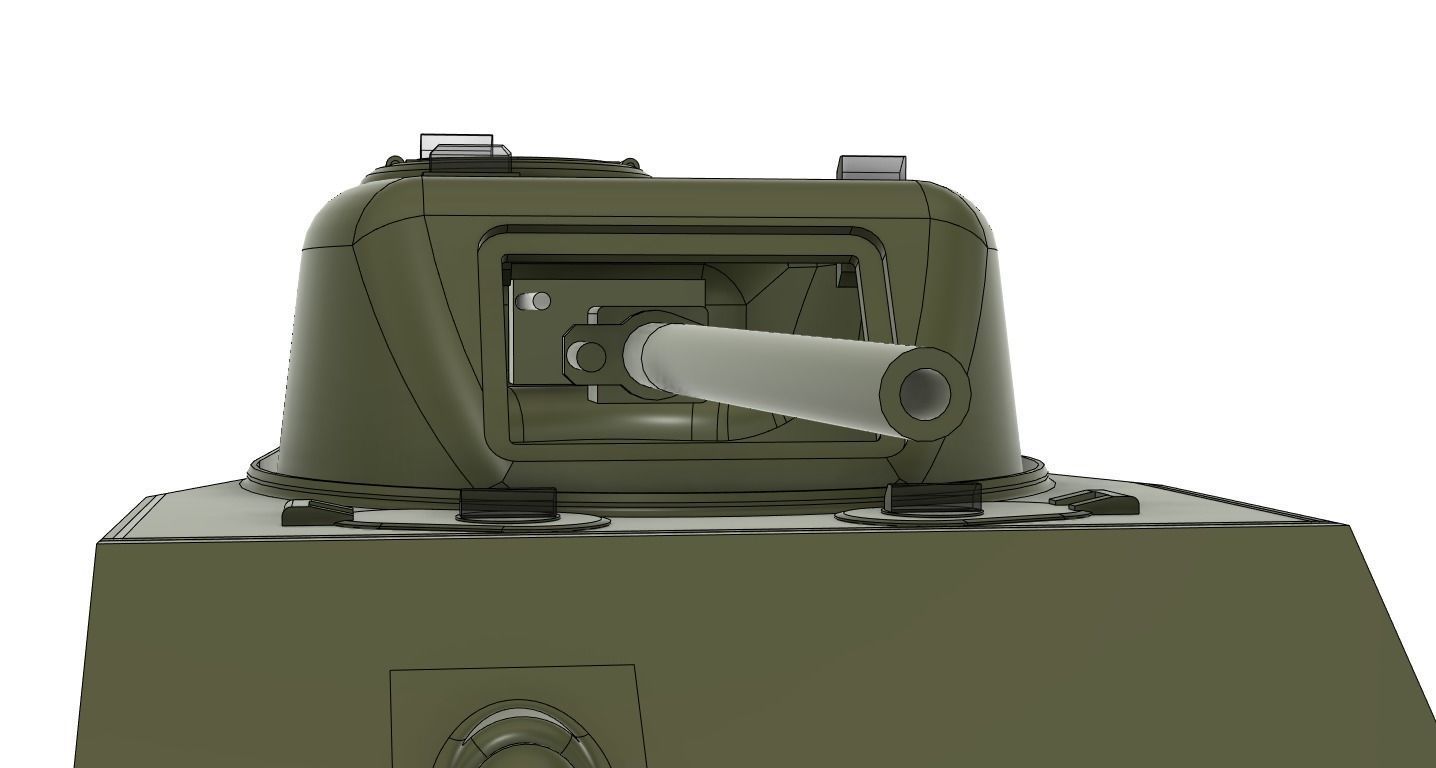

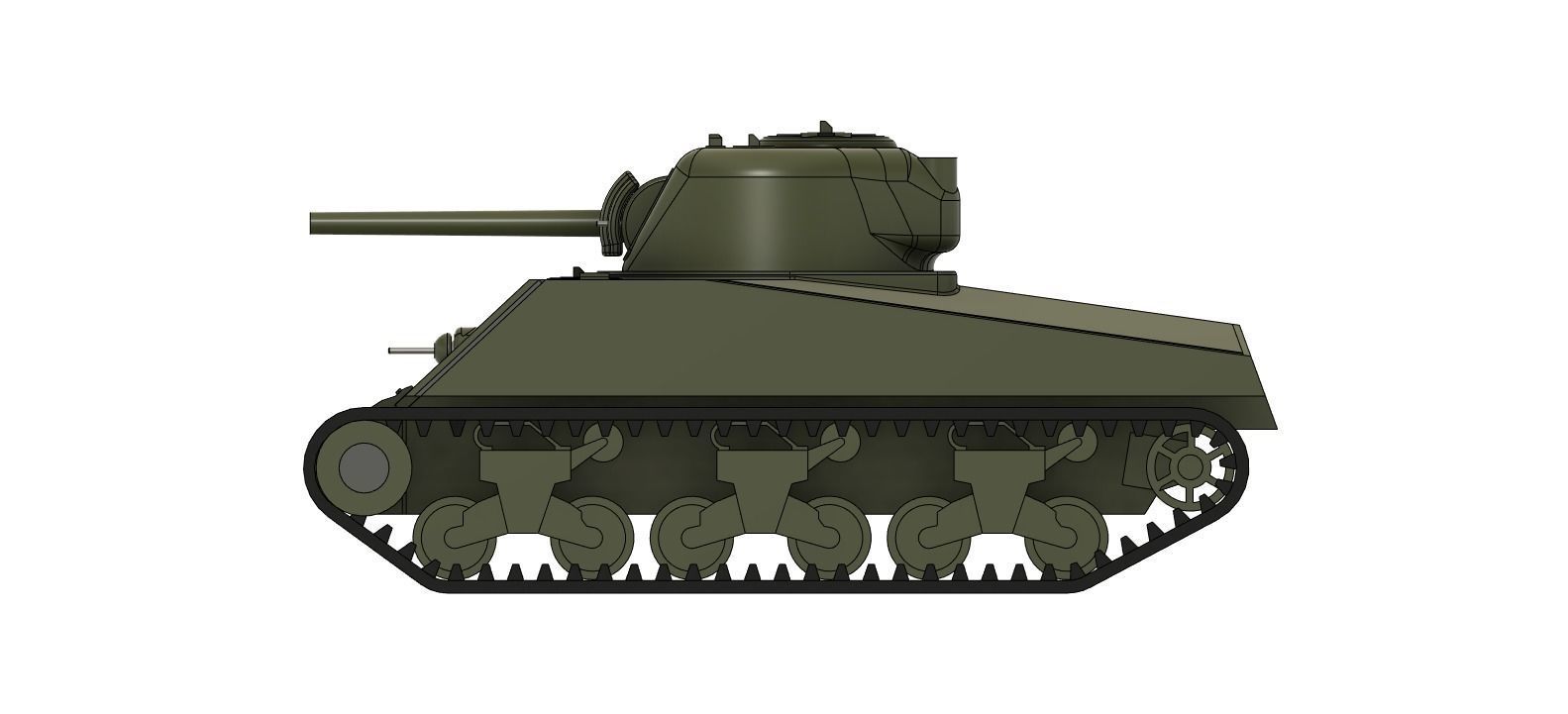

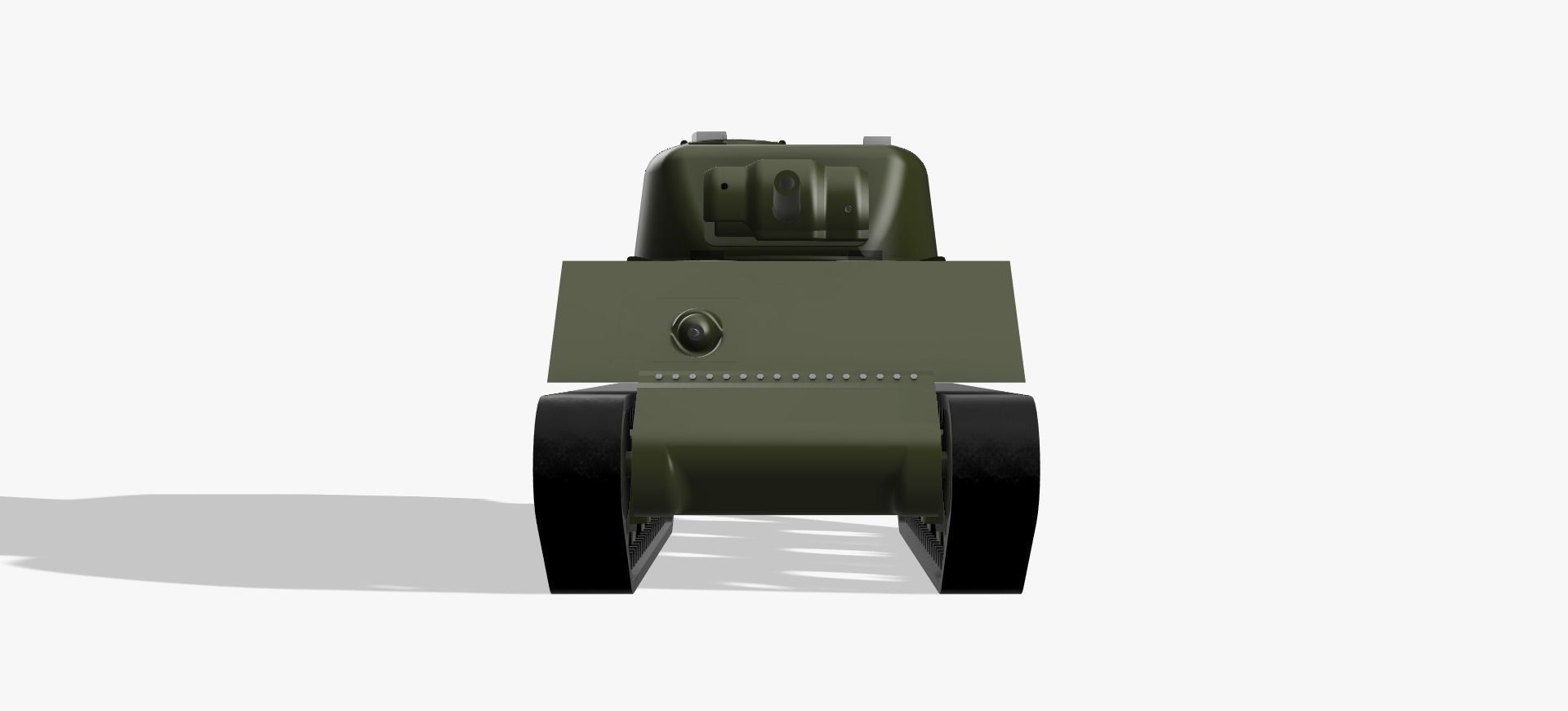

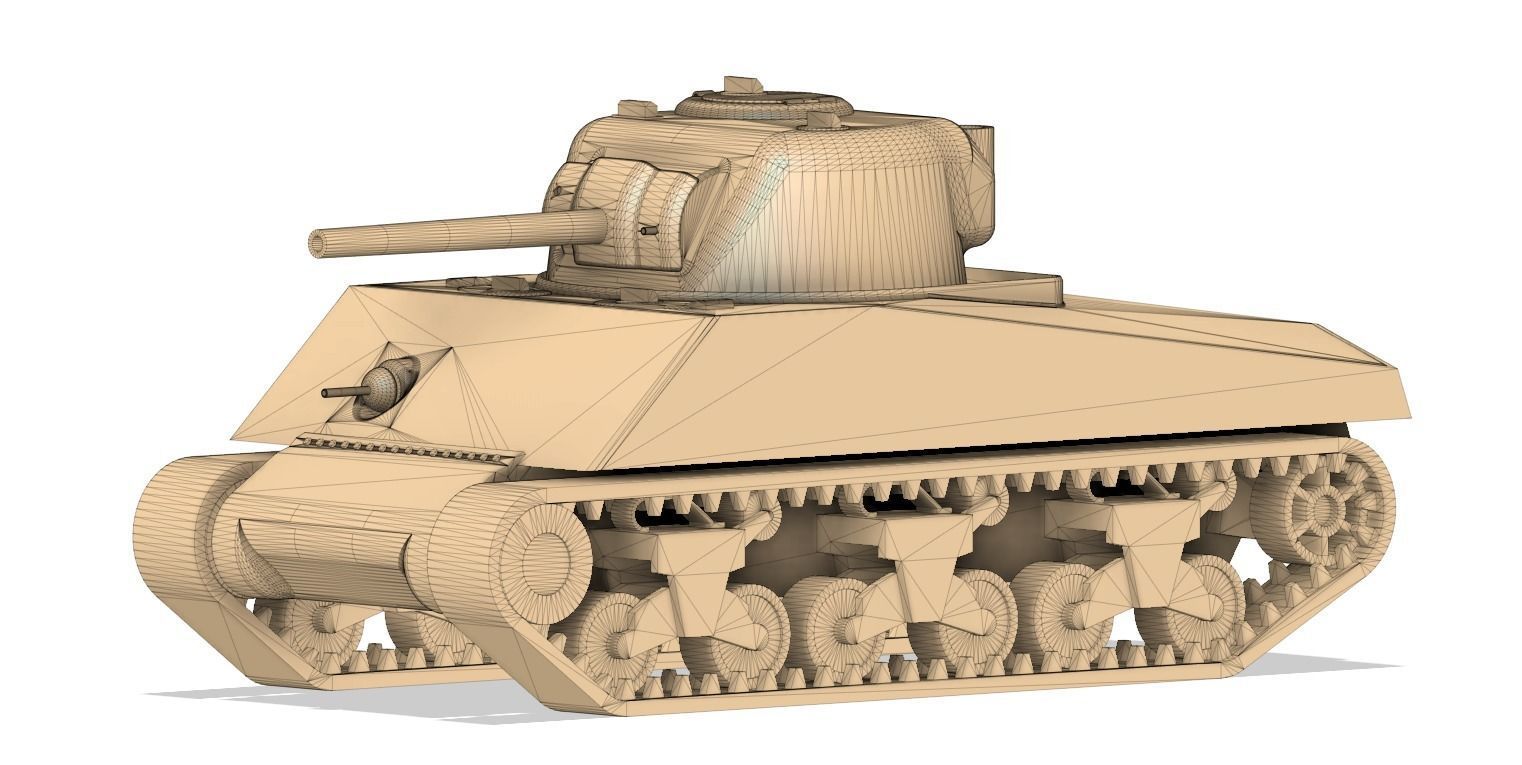

3D model of the M4A3 Sherman with the 75mm M3 cannon. The model features correct plate thicknesses in most of the locations, some welds around the front and side plates, and simplified internal geometry.

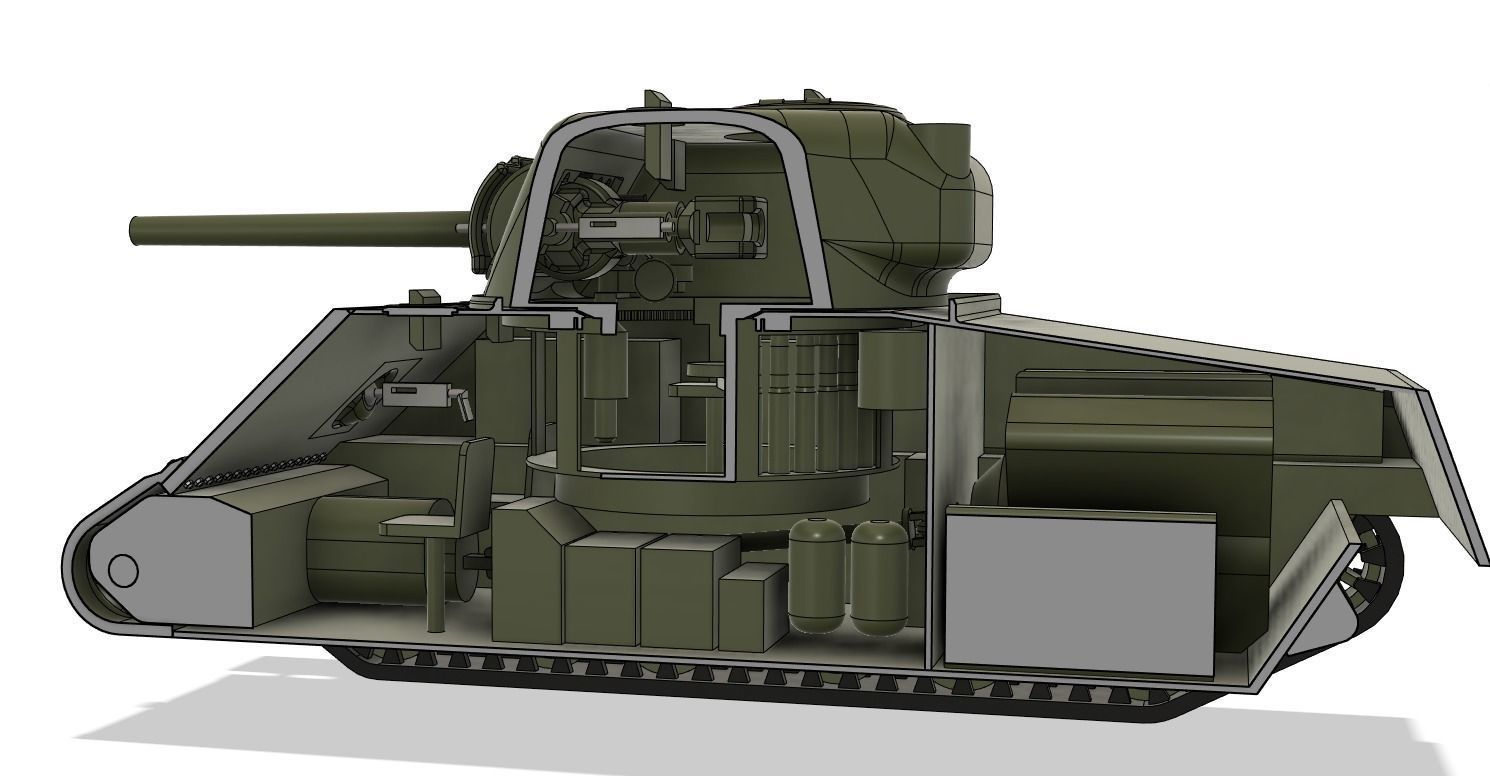

This model was used for finite-element simulations so is not well suited for renderings/games/3D printing. Because it was optimsed for FE, small components (both internal and external) have been omitted and no wall thickness is less than 19mm. No textures or materials are present in the model as it was not supposed to be used for rendered images. The model is made up of multiple parts and is not a single body. Armour thicknesses are correct in most locations except some parts of the transmission housing and turret roof.

Item rating
0 0
M4A3 Sherman 75mm - simplified internals - armour thicknesses
$25.00

Royalty Free License
M4A3 Sherman 75mm - simplified internals - armour thicknesses
$25.00

Royalty Free License
Response - % in - h

3D Model formats

Format limitations
  • Stereolithography (.stl)5 MB
  • OBJ (.obj, .mtl)9.71 MB
  • STEP (.stp)8.2 MB
  • 3D Manufacturing File (.3mf)1.68 MB
  • Autodesk FBX (.fbx)4.05 MB

3D Model details

  • Publish date2023-04-15
  • Model ID#4437130
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
