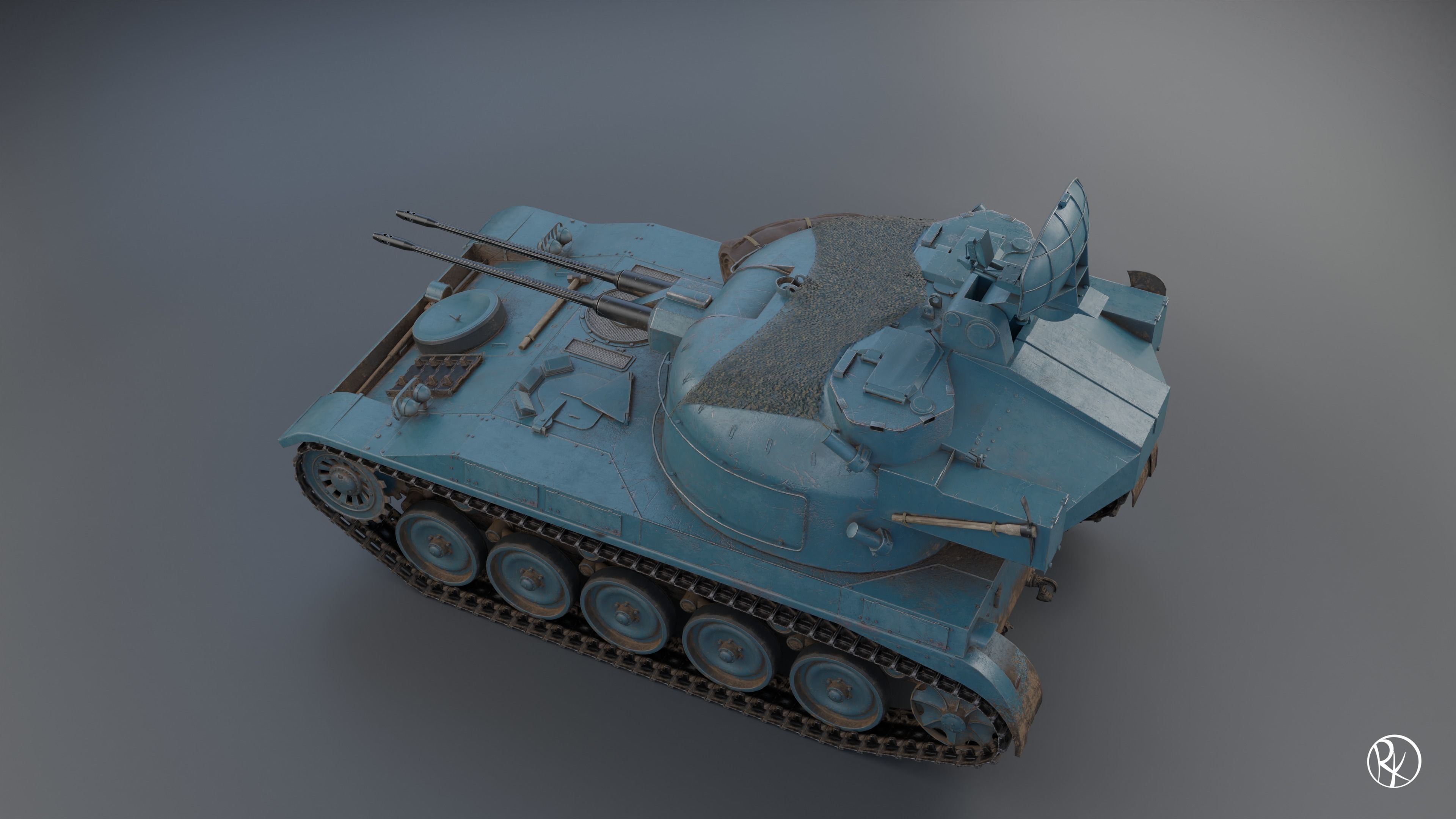

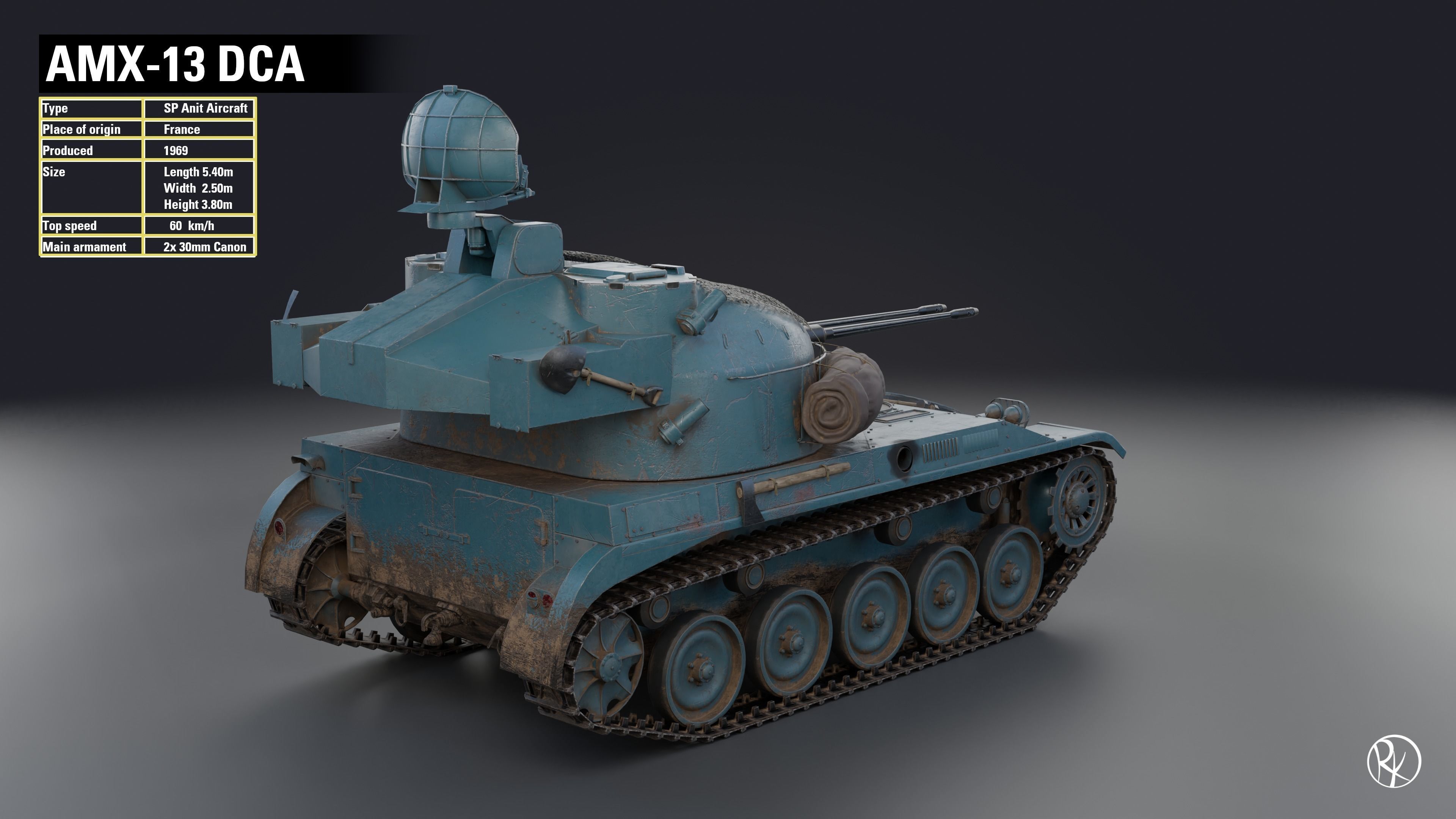

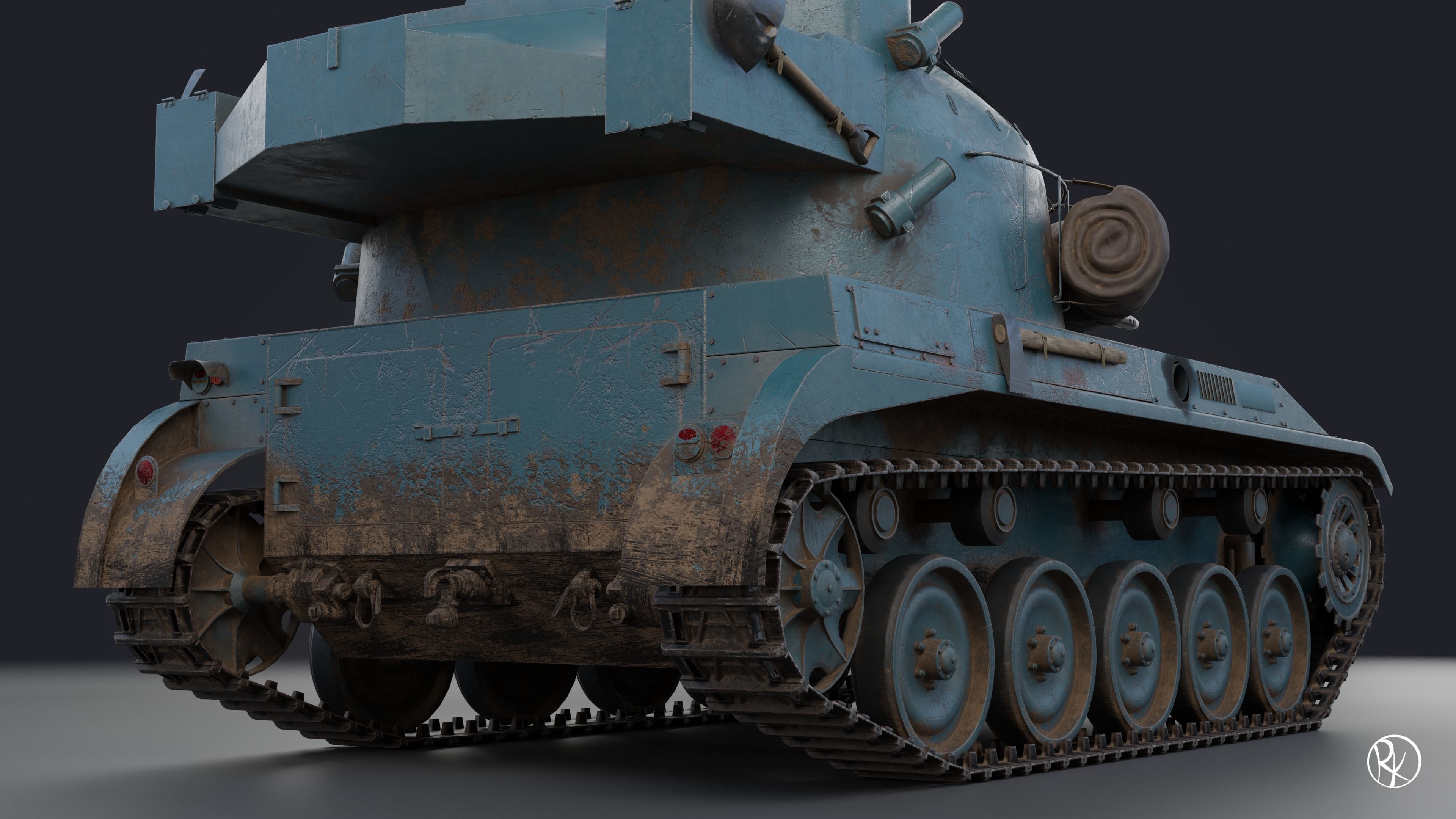

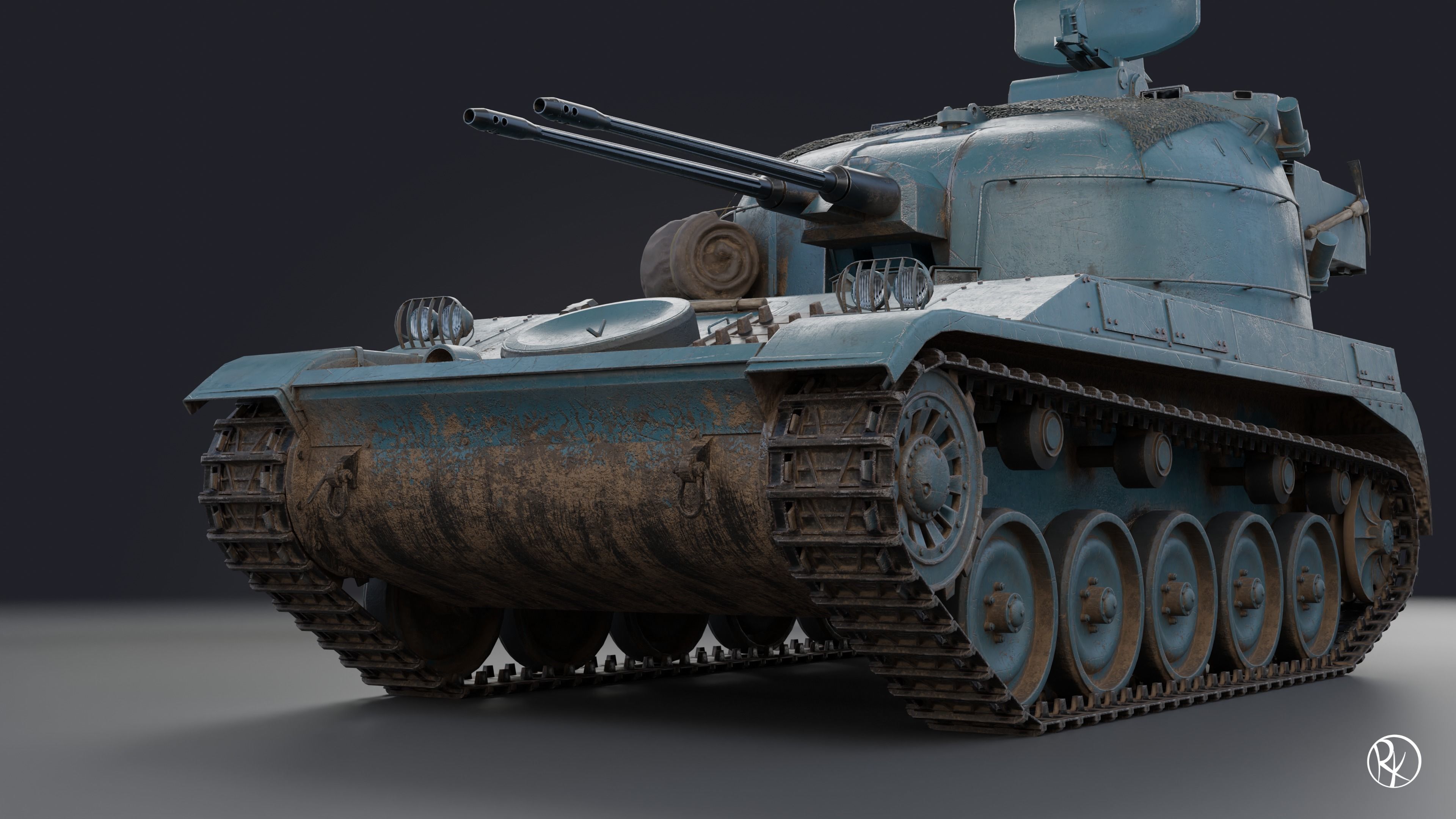

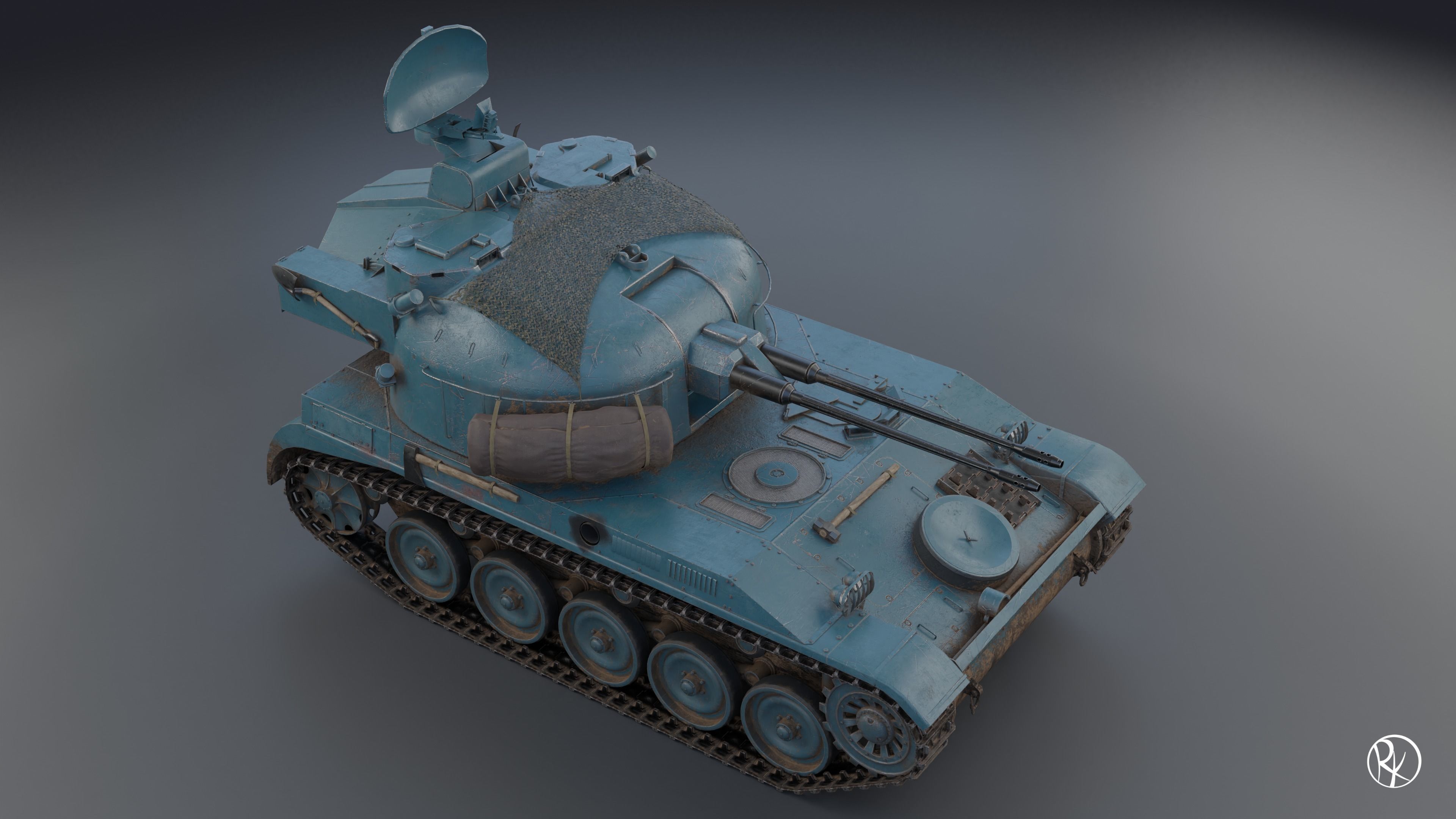

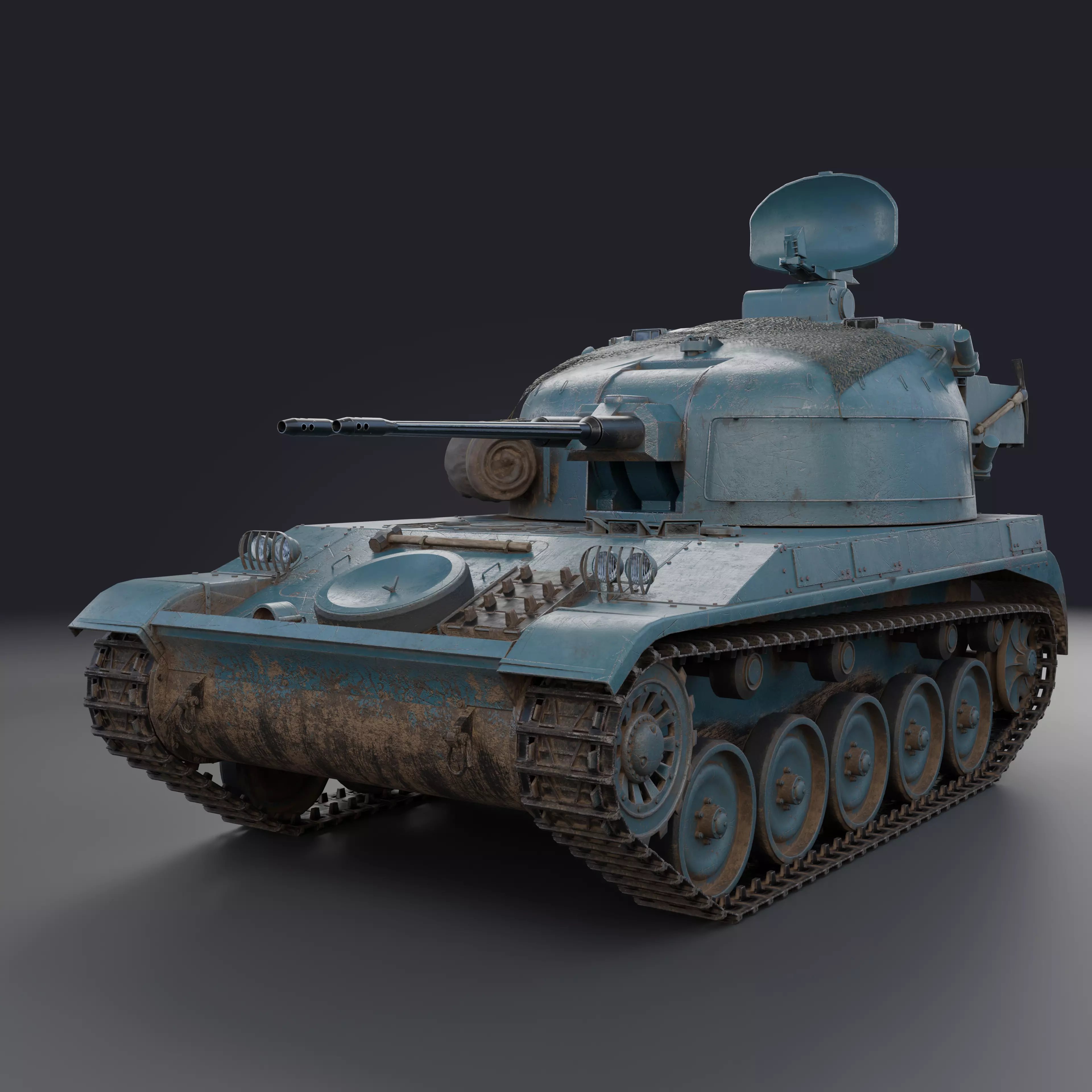

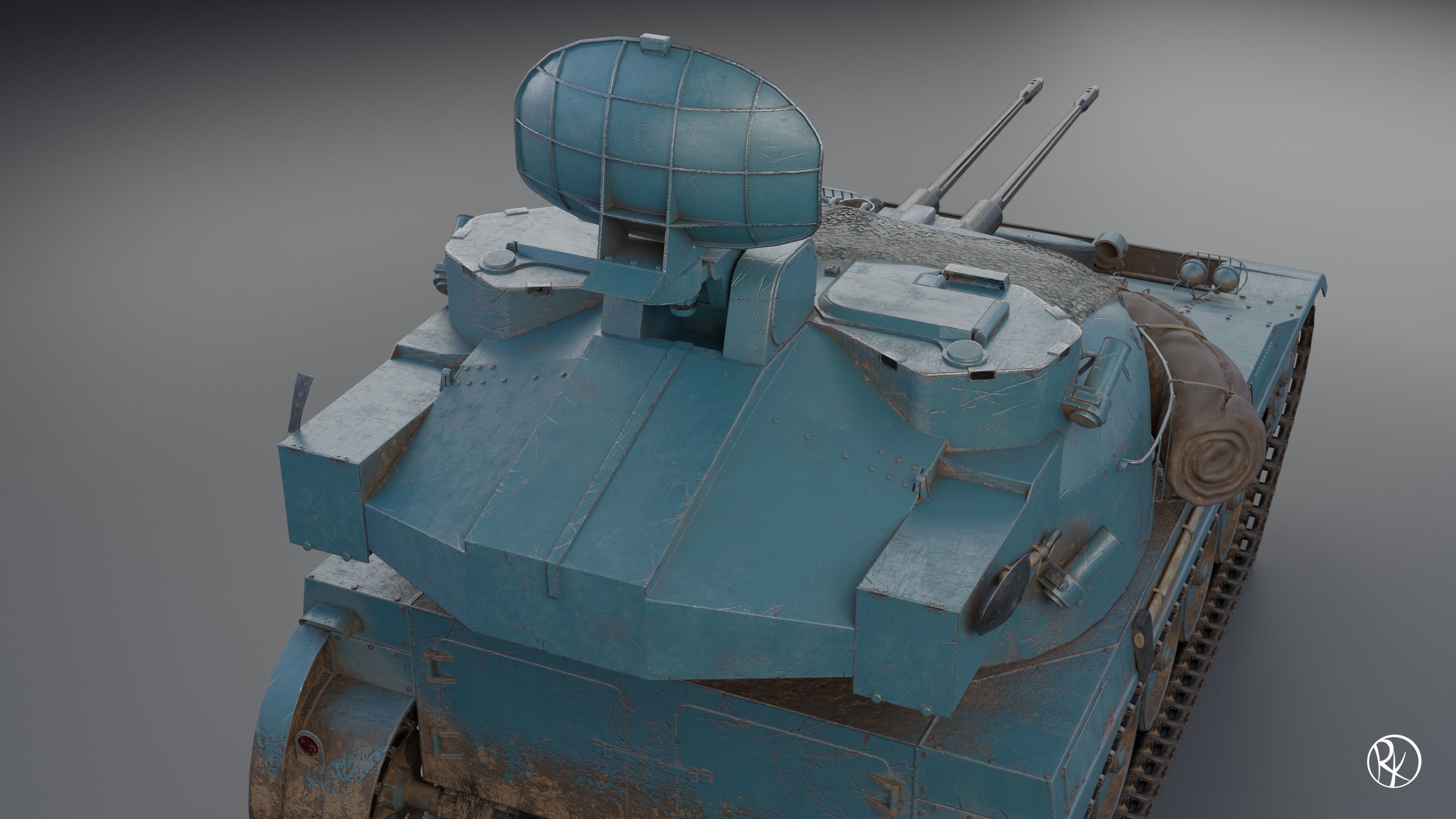

AMX-13 DCA PBR Model 3D model

If you want to take your renders and animations to the next level, this model of the french light tank AMX-13 DCA is perfect for you.

Being carefully crafted with realism and performance optimization in mind, this model will definitely help you to enhance your project and get the most out of your renders and animations.

The AMX-13 DCA is a Self Propelled Anit Aircraft Gun, produced during the Cold War in France.

The AMX-13 DCA is based on the AMX-13 chassis but used an alternative turret equipped with 2 30mm autocannons and a radar sensor to effectively engage airborne targets. With production starting in 1969, around 60 vehicles were produced, however, the AMX-13 DCA was never used in combat, and is no longer in active use.

Topology:

Overall Face and Vert count:

• Faces: 101.150

• Vertices: 99.145

The AMX-13 DCA model consists of 4 objects:

• AMX-13_DCA_Turret (10.181 Faces)

• AMX-13_DCA_Body (14.888 Faces)

• AMX-13_DCA_Tracks (63.496 Faces)

• AMX-13_DCA_Equipment (12.585 Faces)

Each object uses a separate material and has its own UV’s.

All objects are scaled in the metric system and according to real-life counterparts.

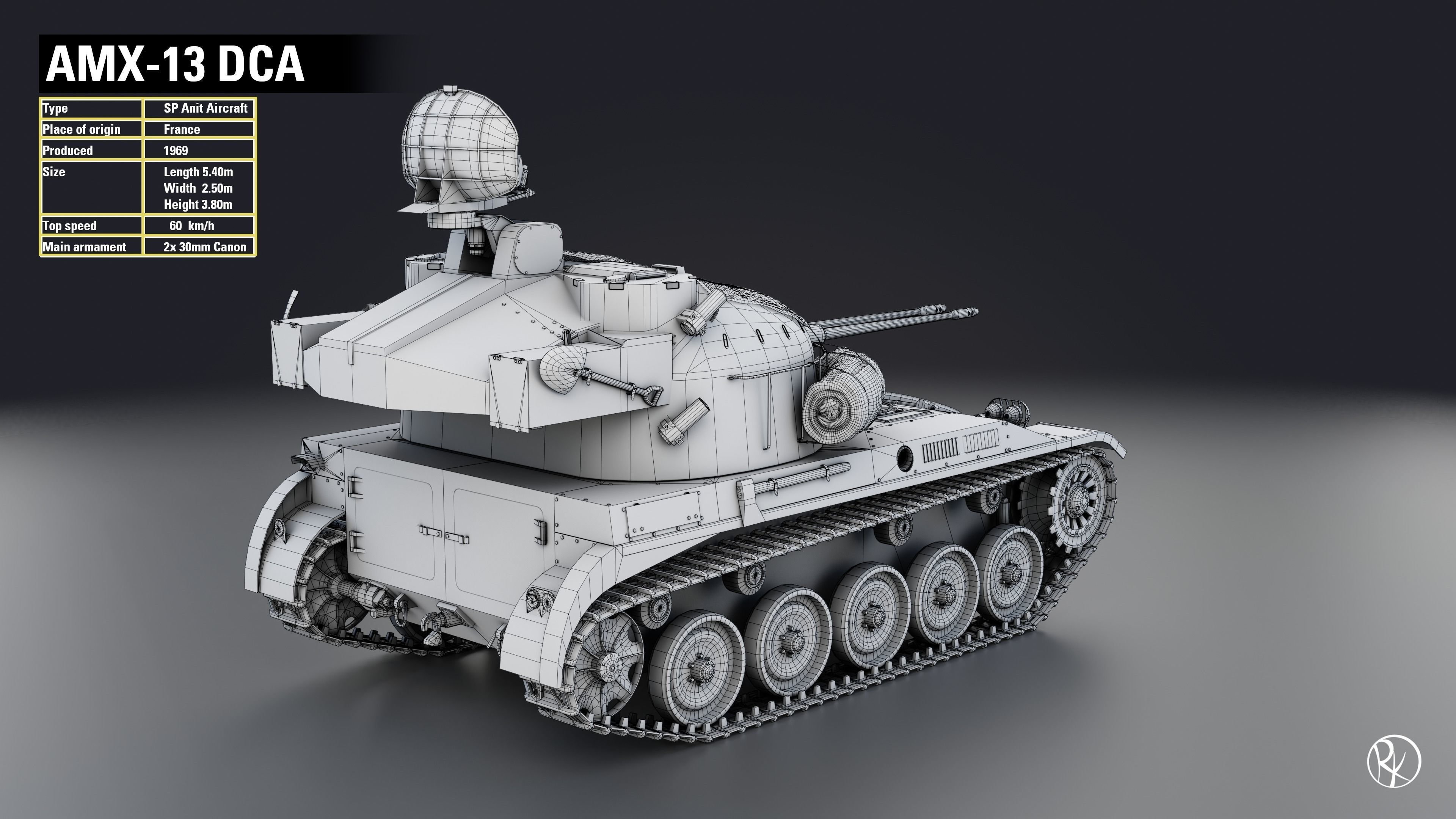

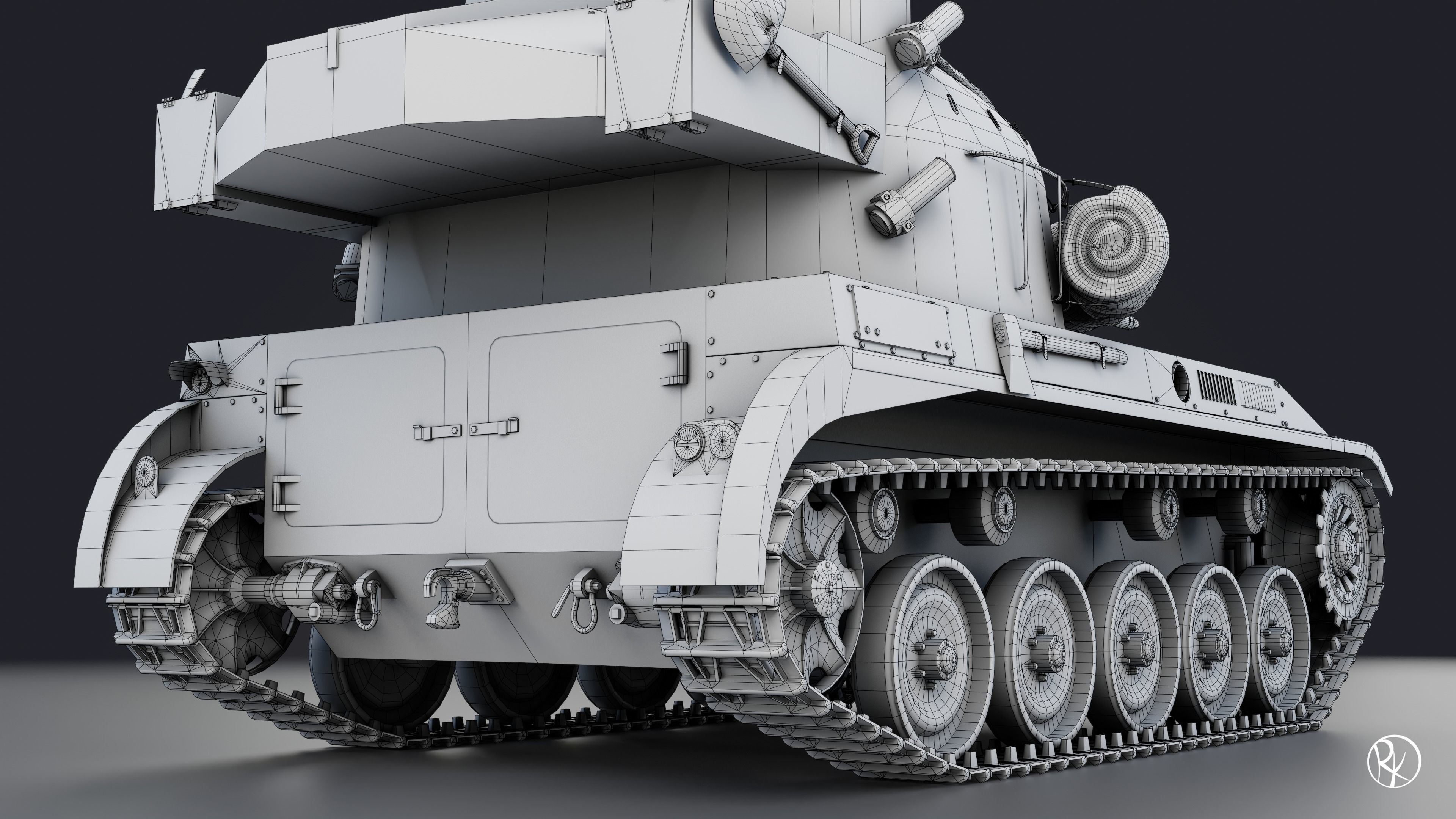

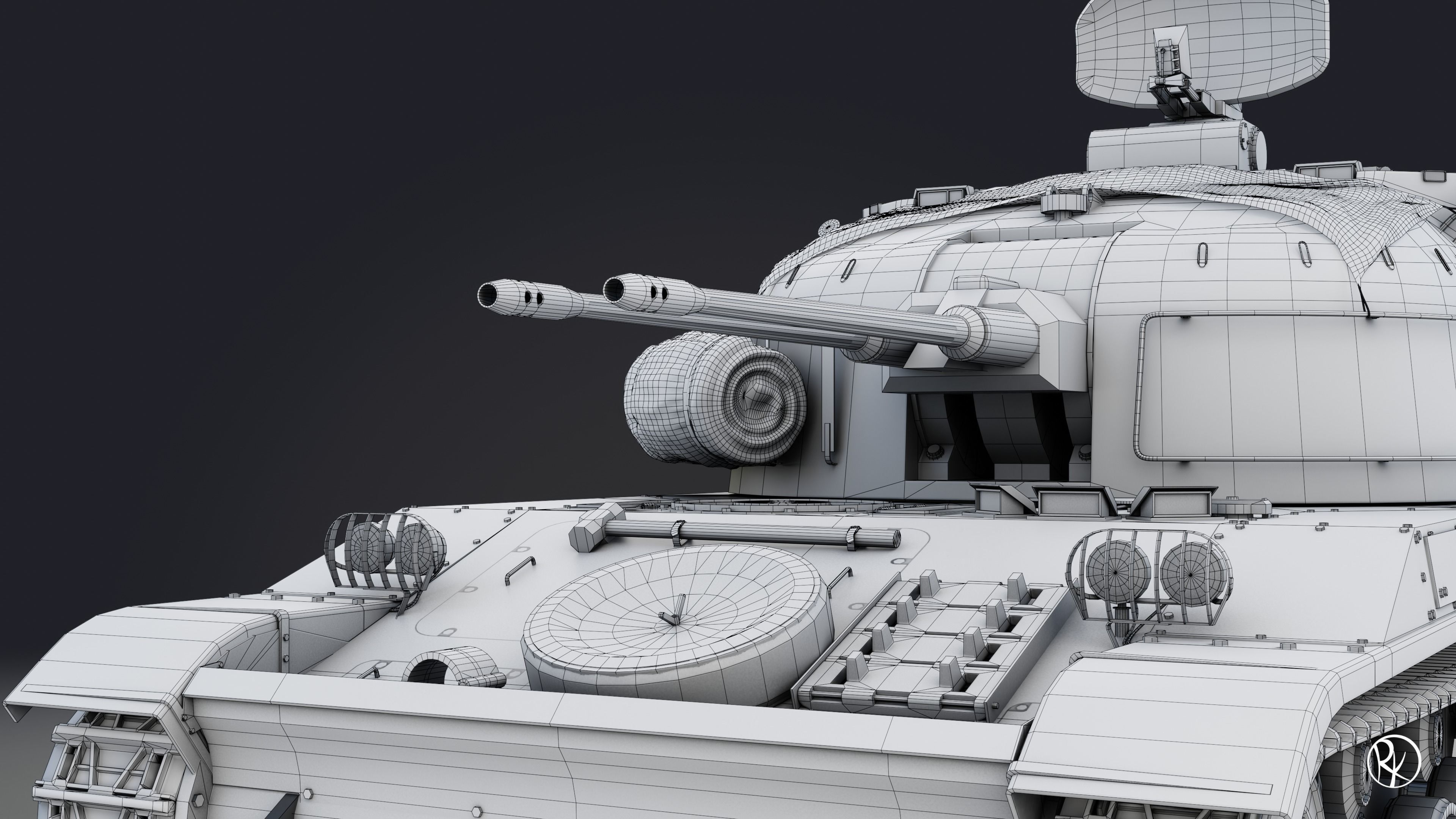

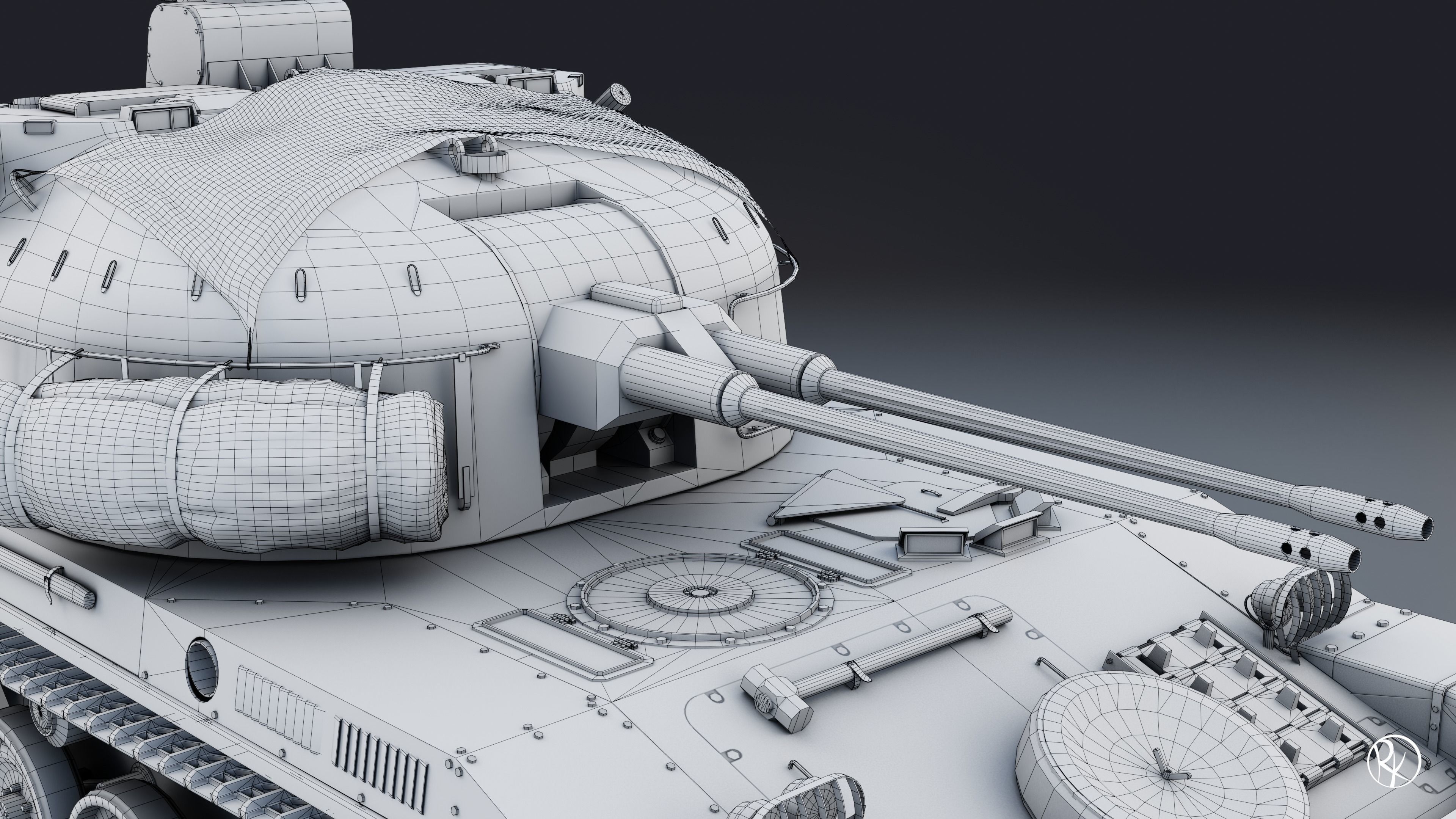

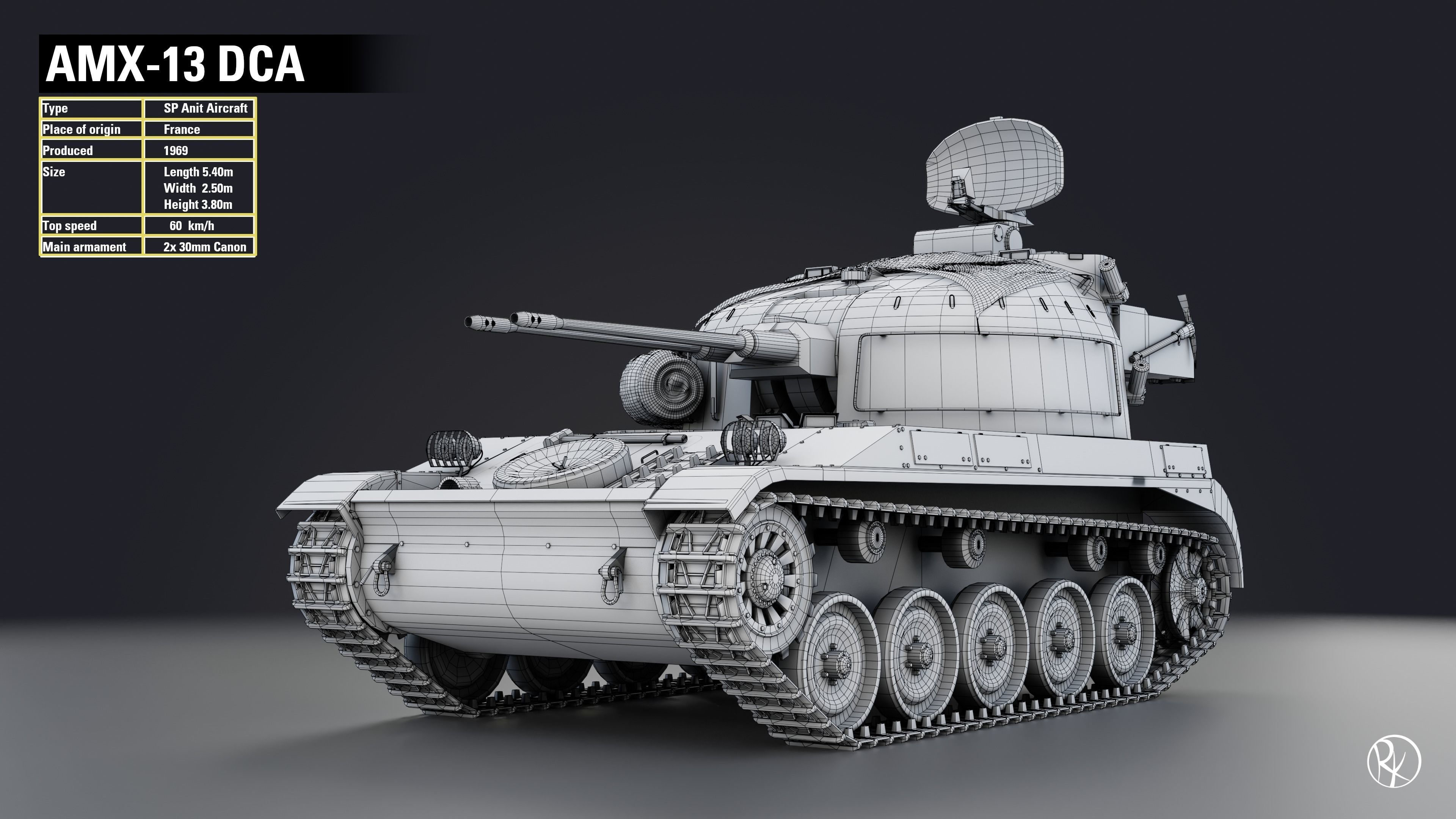

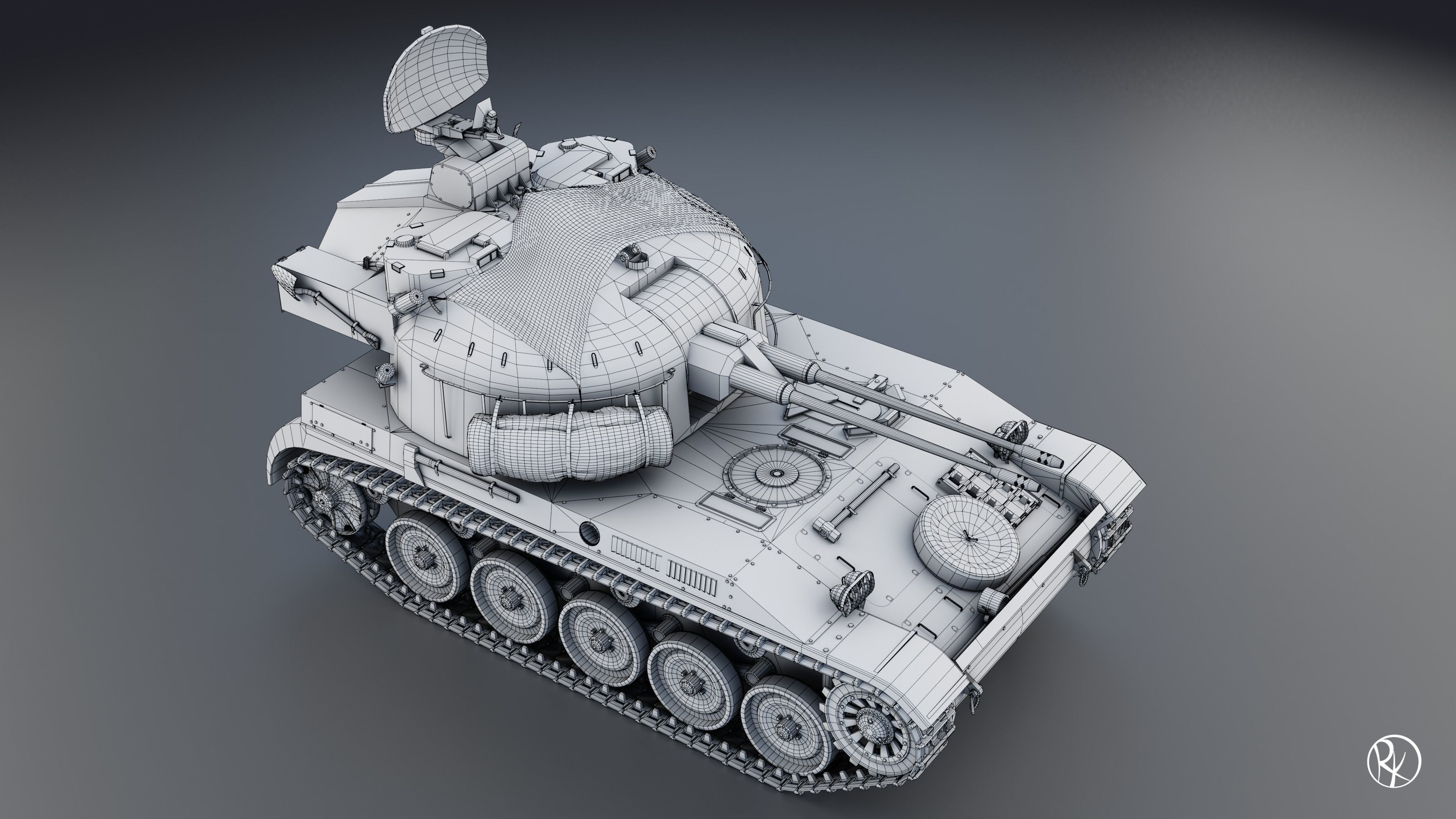

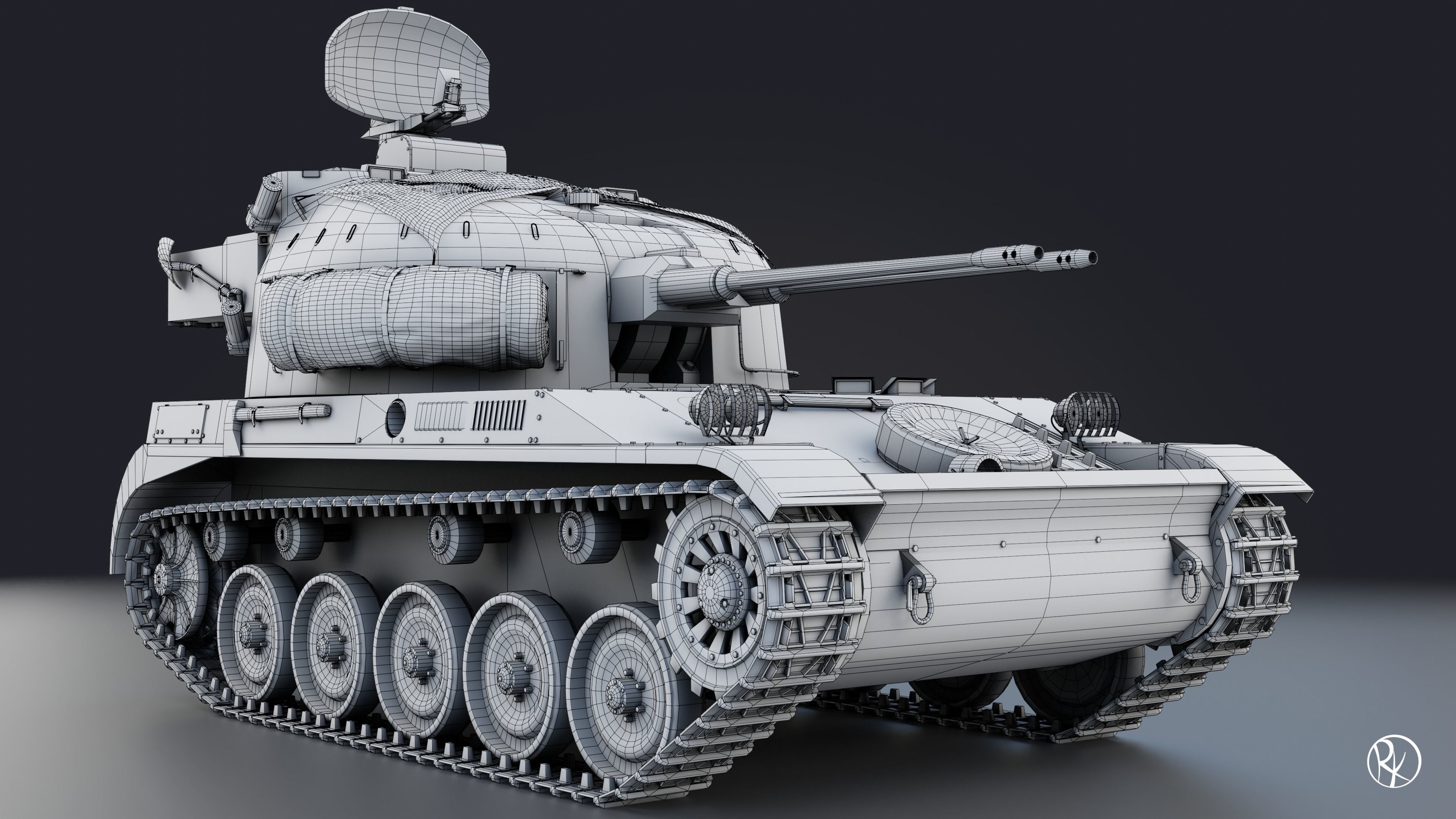

The model consists mostly of Quads, as seen in the preview images, and has a clear topology (no artifacts, overlapping polygons, etc.)

Forward-facing axis: -Y

Up facing axis: Z

Textures/Material:

Each object uses separate materials, which are named accordingly to the object.

Each object has its own UV’s

List of used materials:

• AMX-13_DCA_Turret

• AMX-13_DCA_Body

• AMX-13_DCA_Tracks

• AMX-13_DCA_Equipment

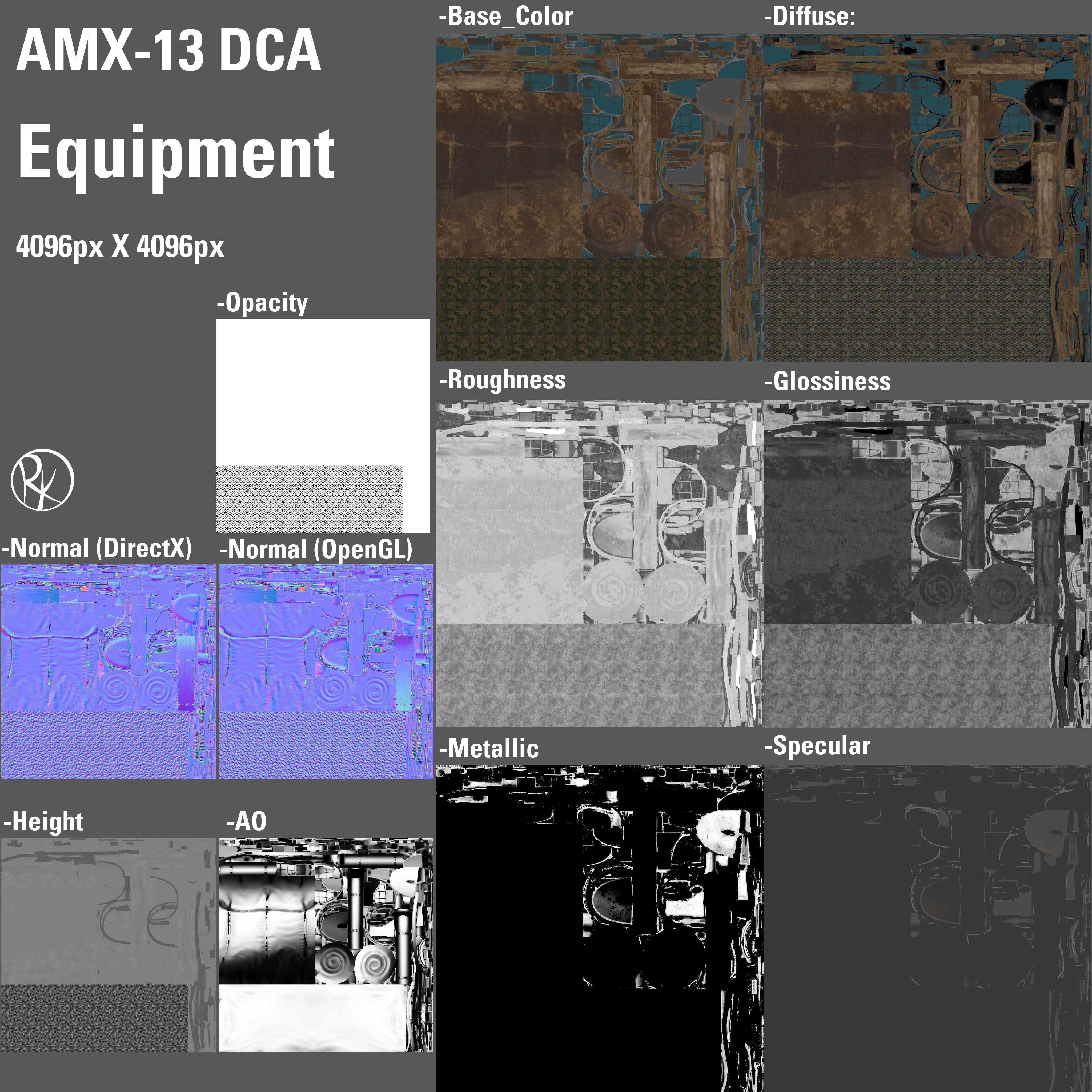

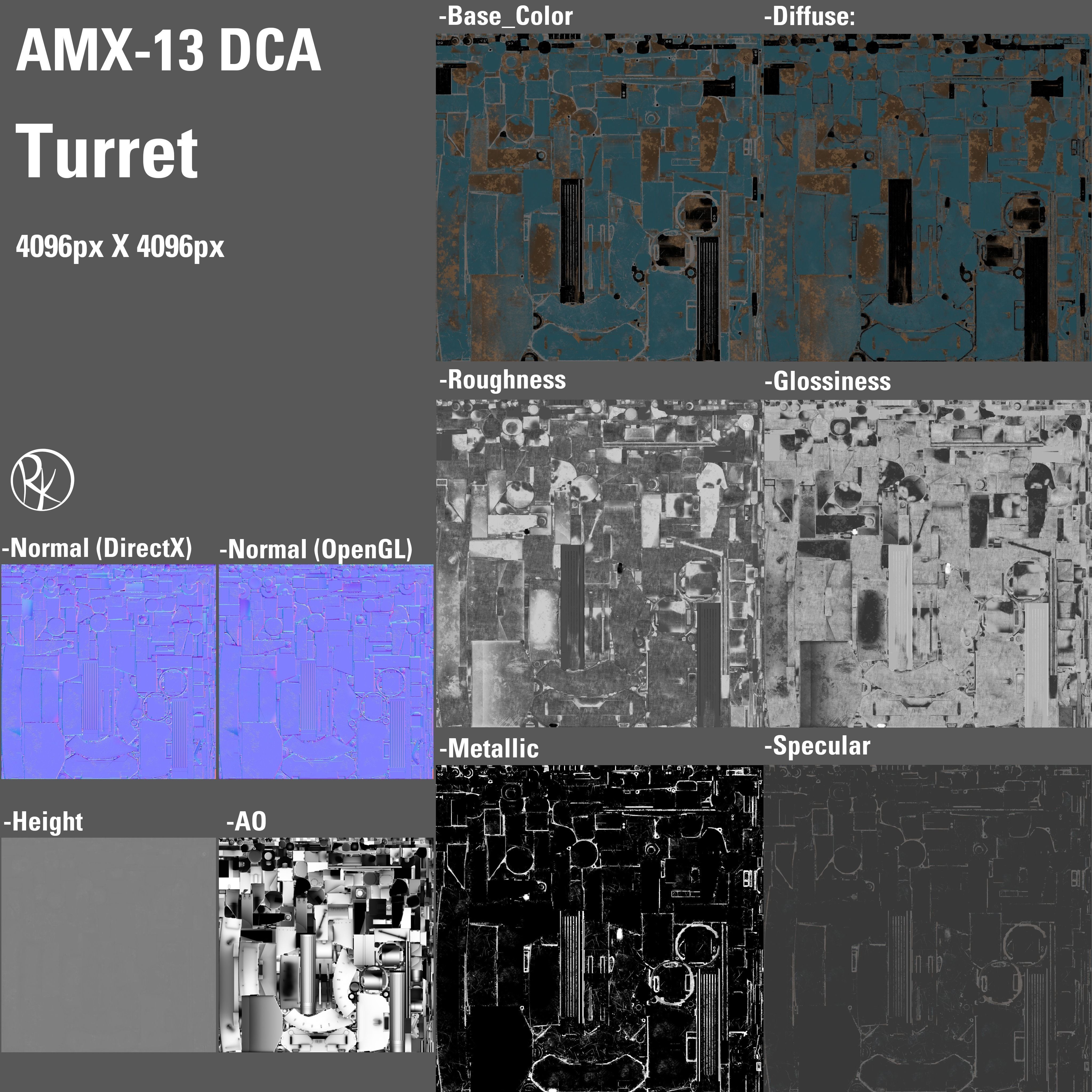

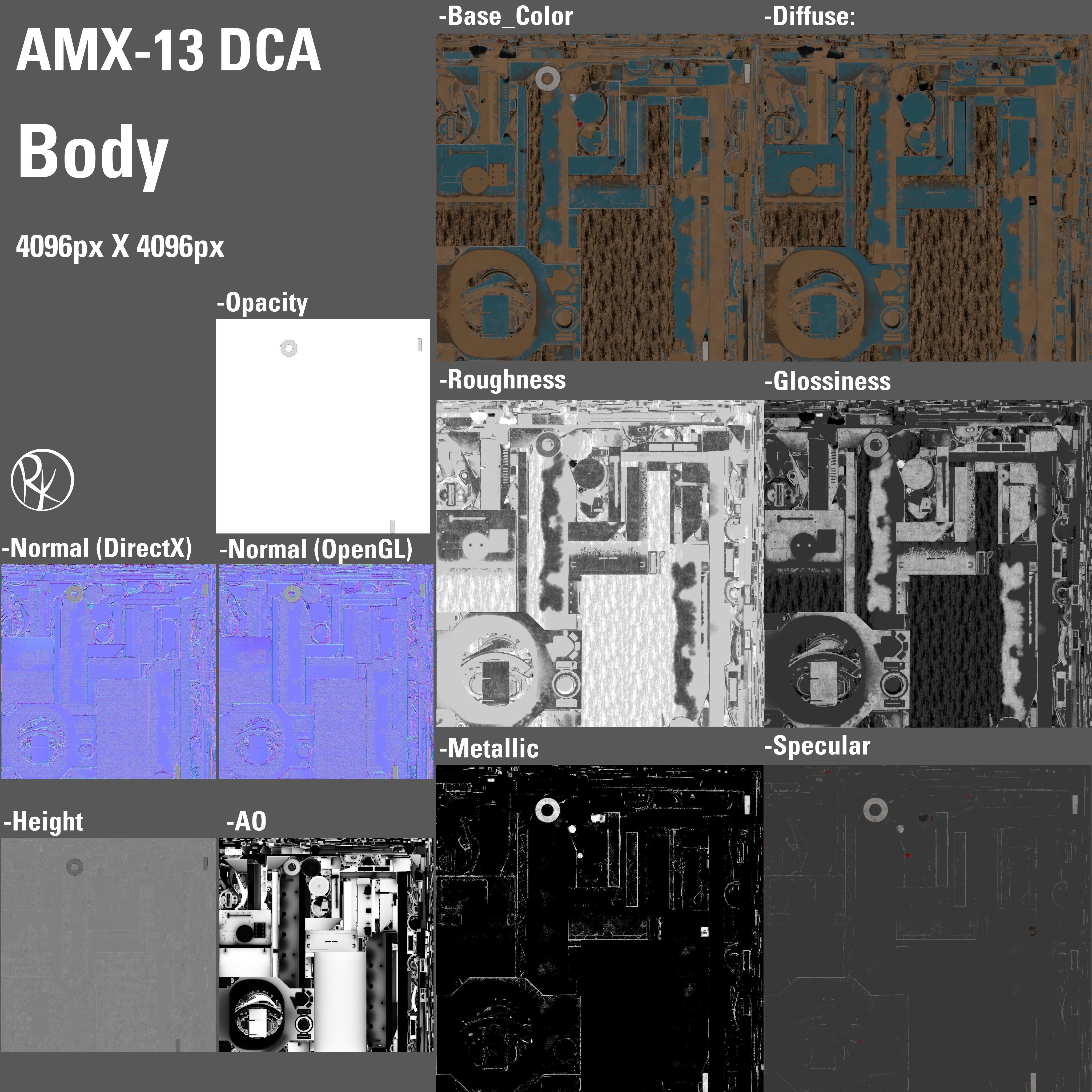

Each material/object is provided with the following textures with the resolution 4096px X 4096px, to suit both Metallic/Roughness and Specular/Glossiness PBR workflows.

For Metallic/Roughness Workflow:

• Base_Color

• Metallic

• Roughness

• Normal (OpenGL and DirectX)

• Height

• Ambient Occlusion

• Opacity

For Specular/Glossiness Workflow:

• Diffuse

• Glossiness

• Specular

• Normal (OpenGL and DirectX)

• Height

• Ambient Occlusion

• Opacity

The model uses overlapping UV’s to provide a higher texture resolution.

Pipeline:

• modeled in Blender 2.92

• textured in Substance Painter

Provided Formats:

• .blend

• .obj (textures need to be linked up manually)

• .fbx (textures need to be linked up manually)

Additional notes:

• This model contains poles with more than 5 edges.

• The model does NOT come with a Rigg.

• The light setup, used to render the preview images is included in the .blend file in a separate layer.

I hope you find this Model helpful when creating your new masterpiece. :)
