Type 11 70mm Infantry Mortar

Type 11 70mm Infantry Mortar Low-poly 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

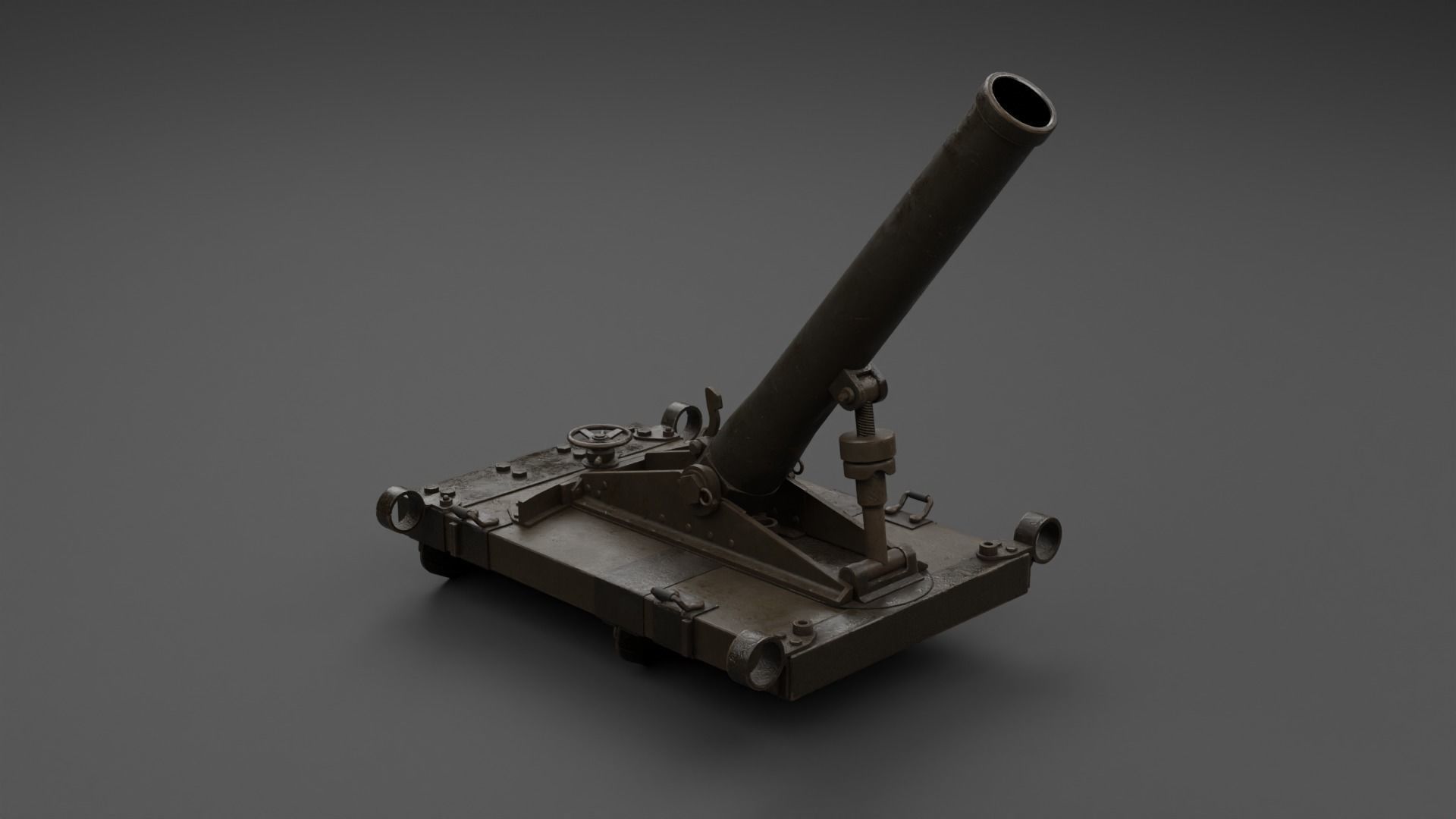

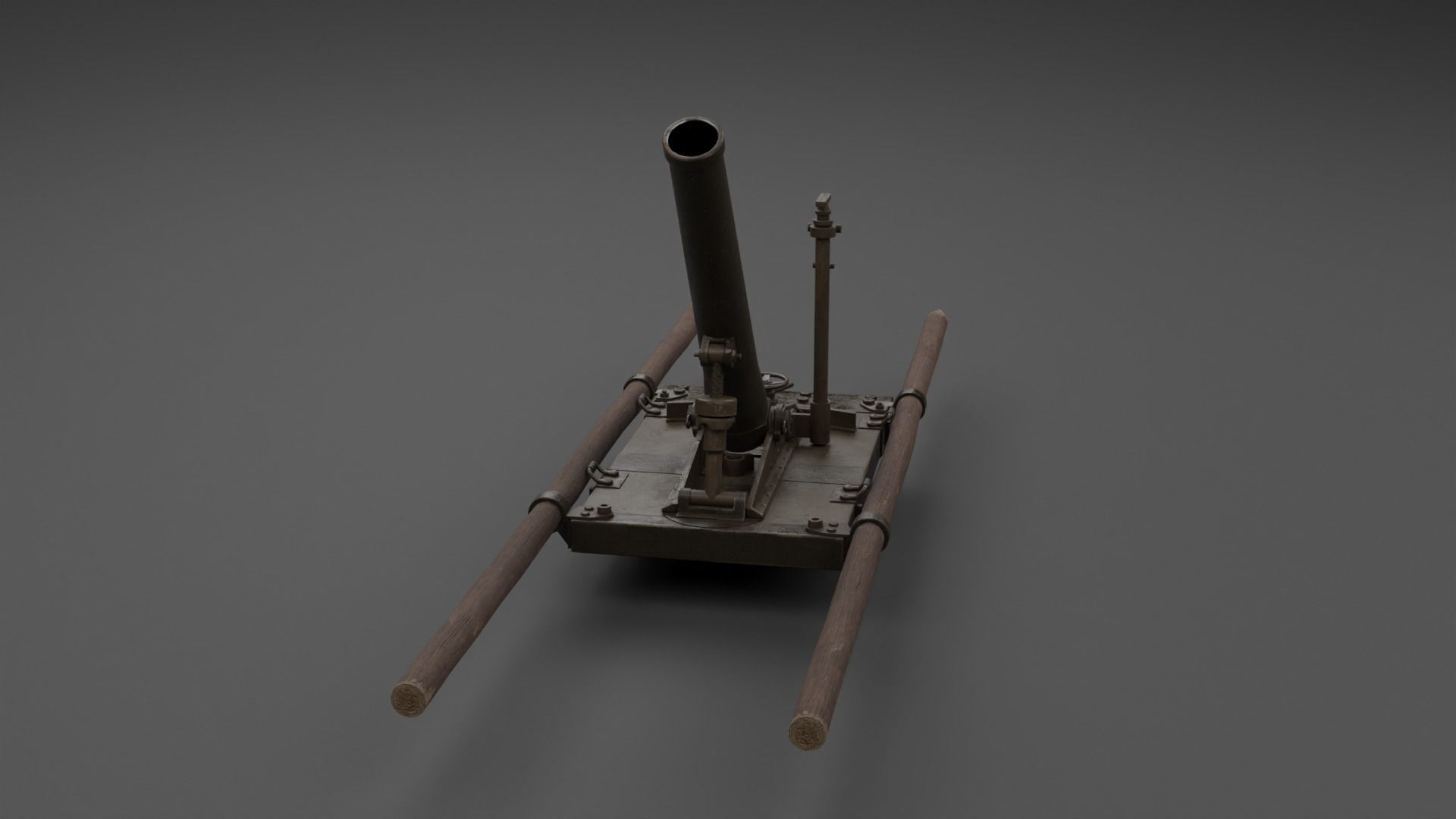

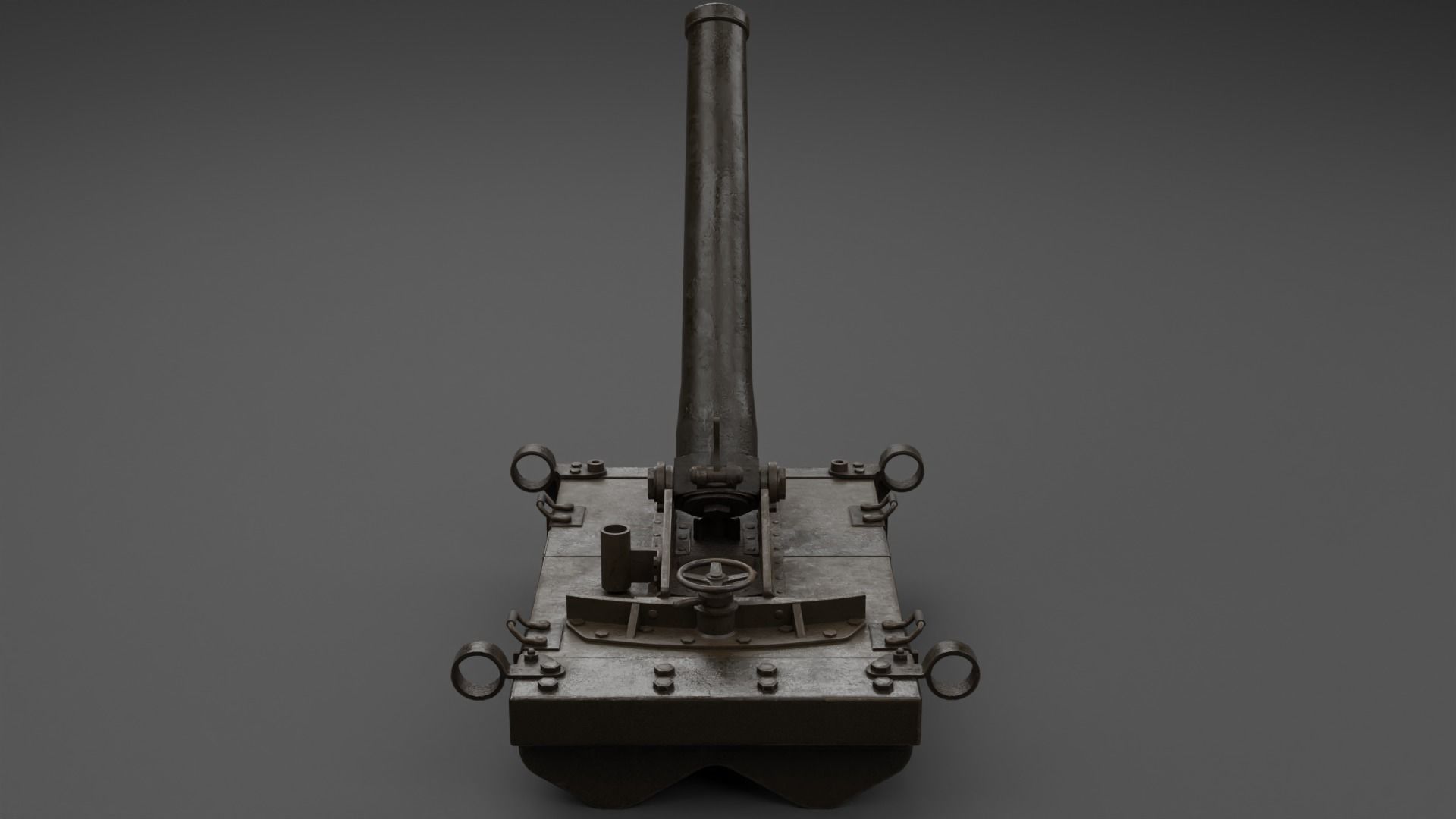

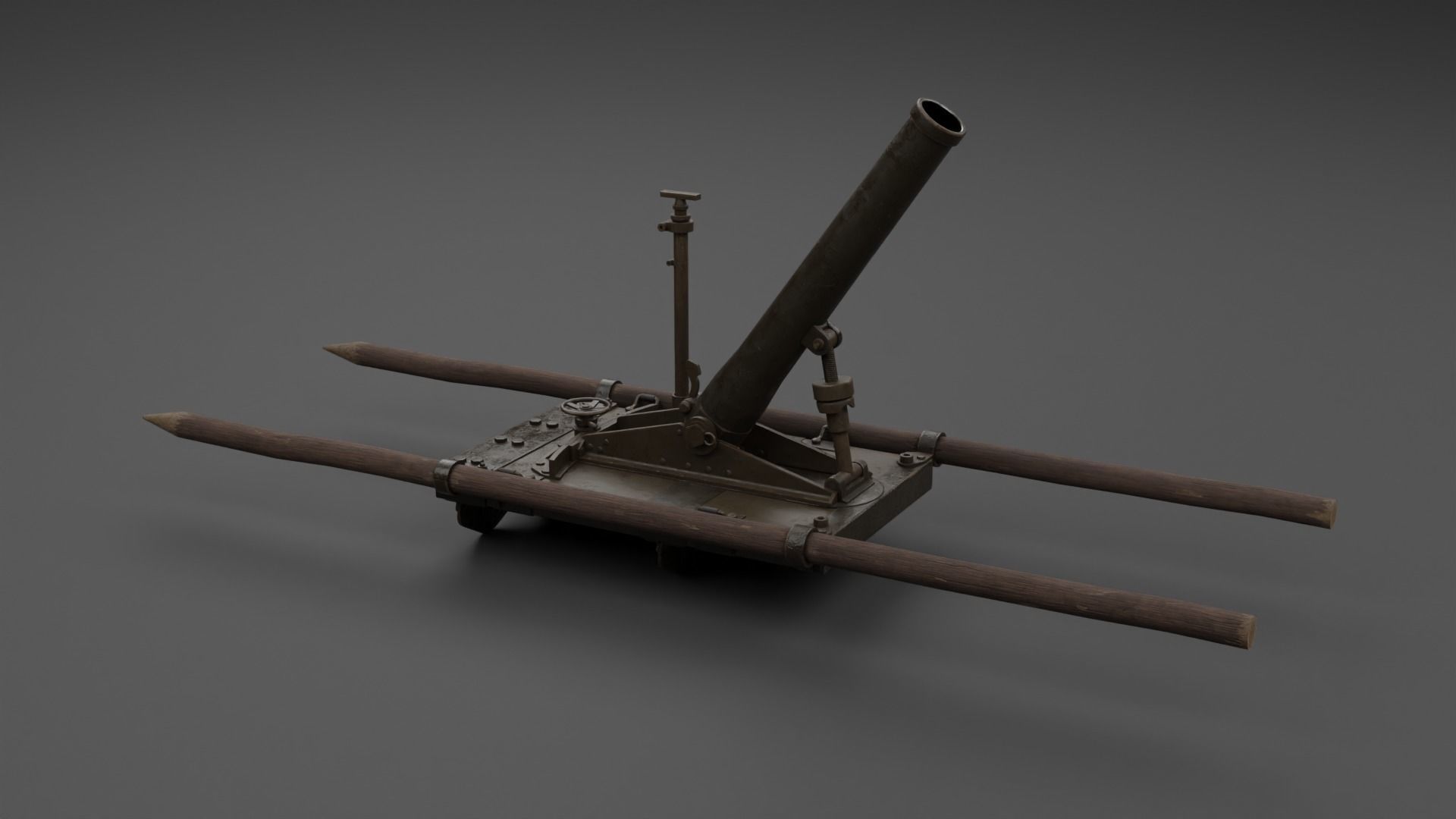

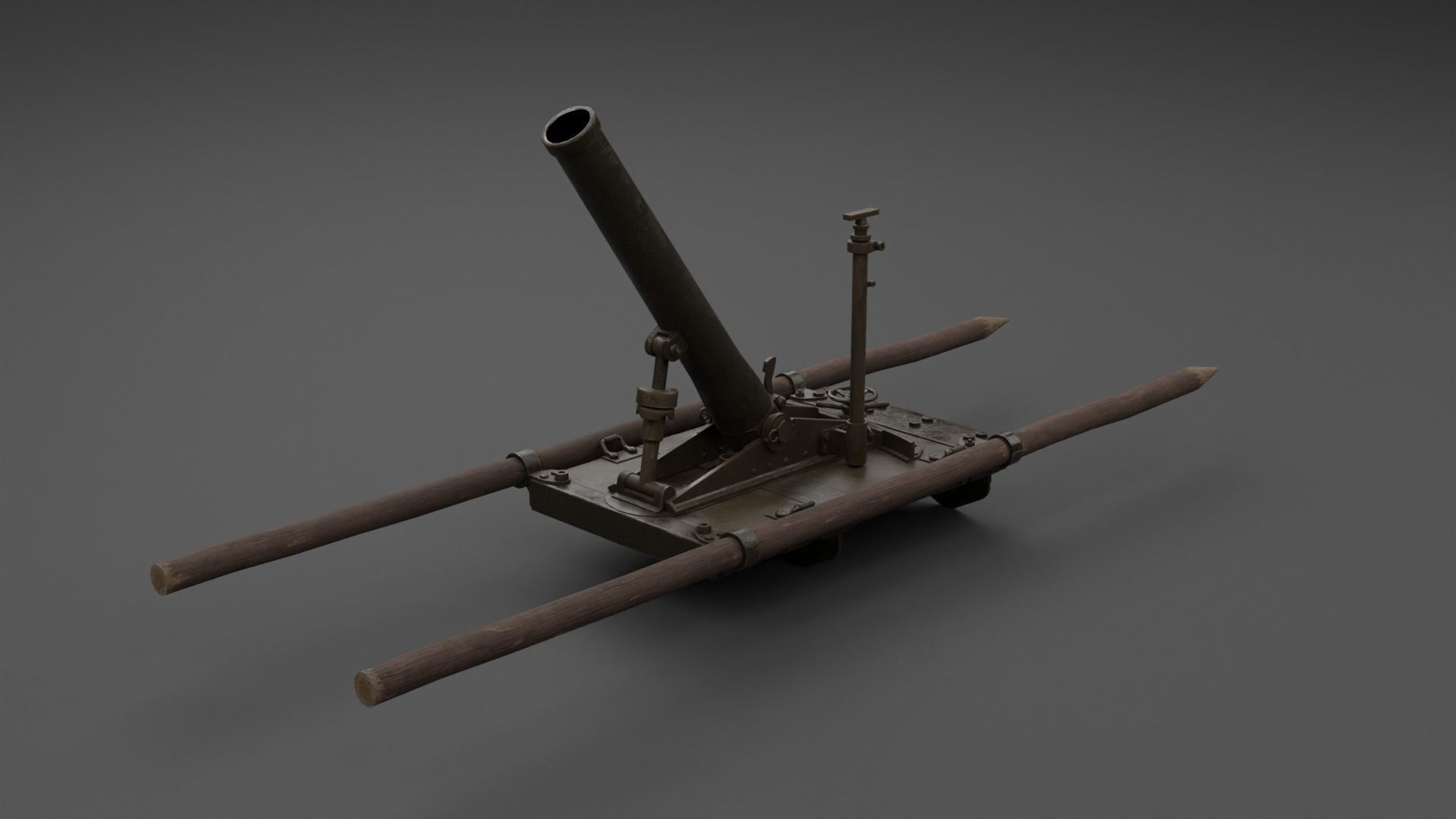

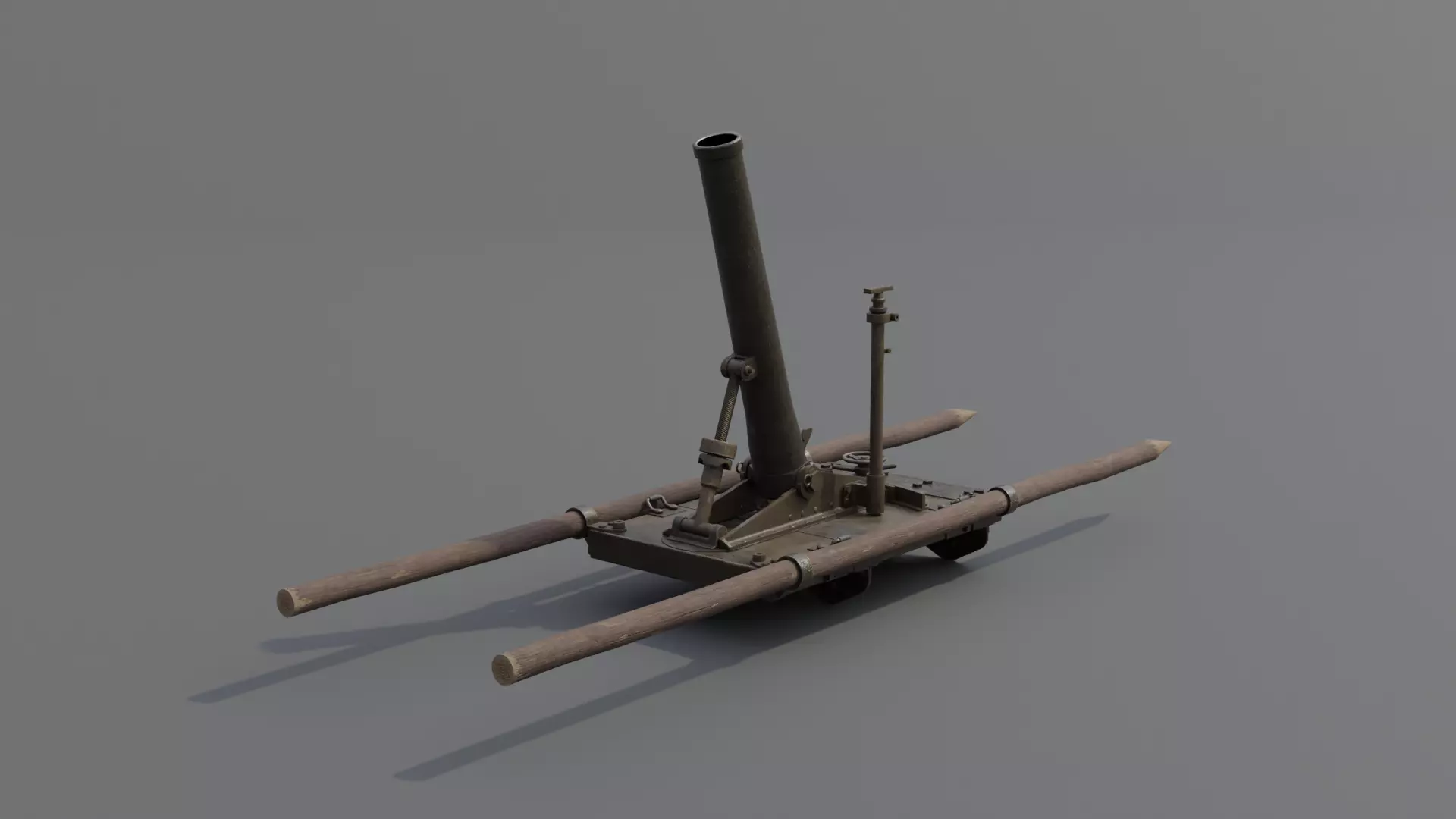

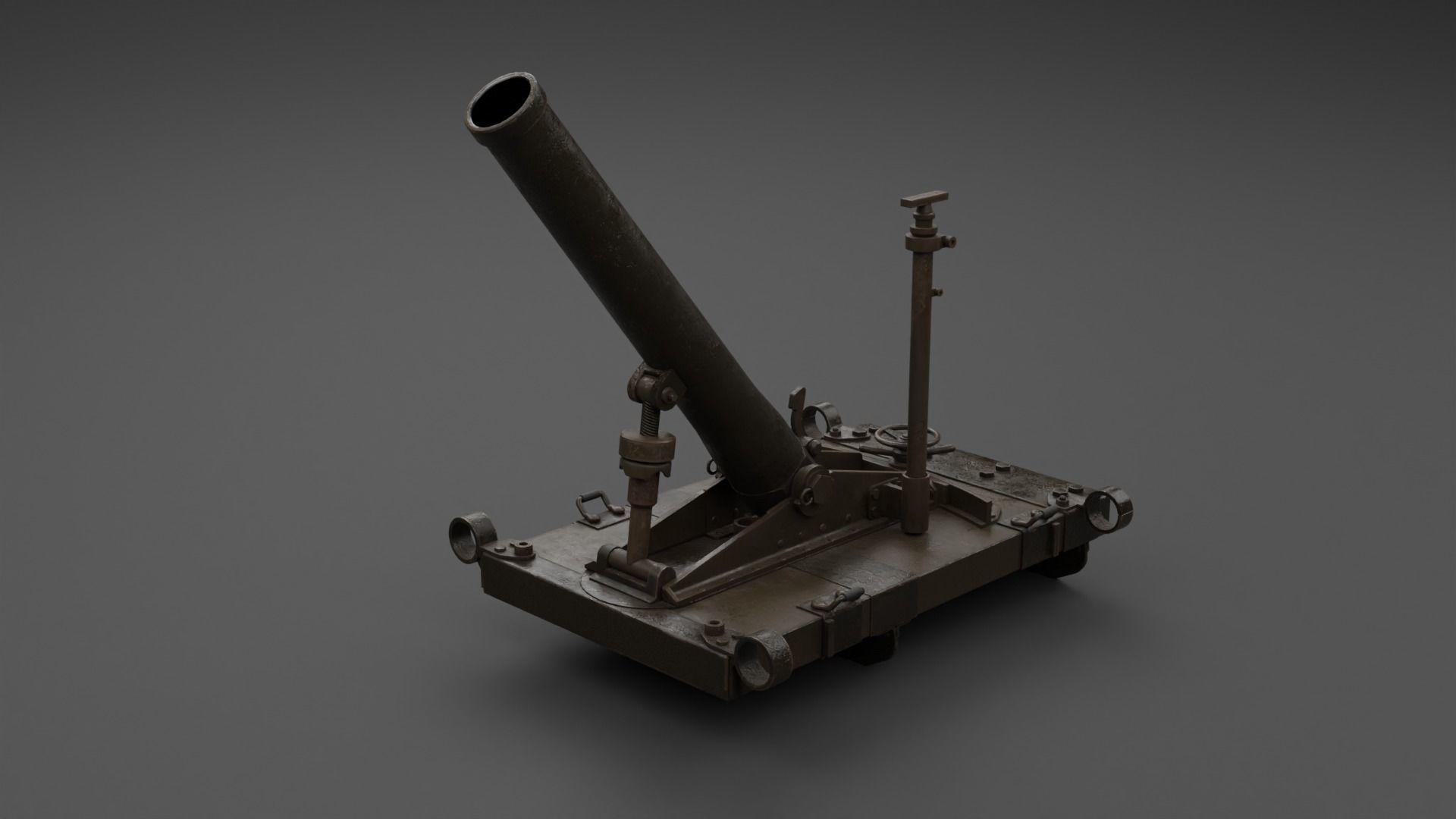

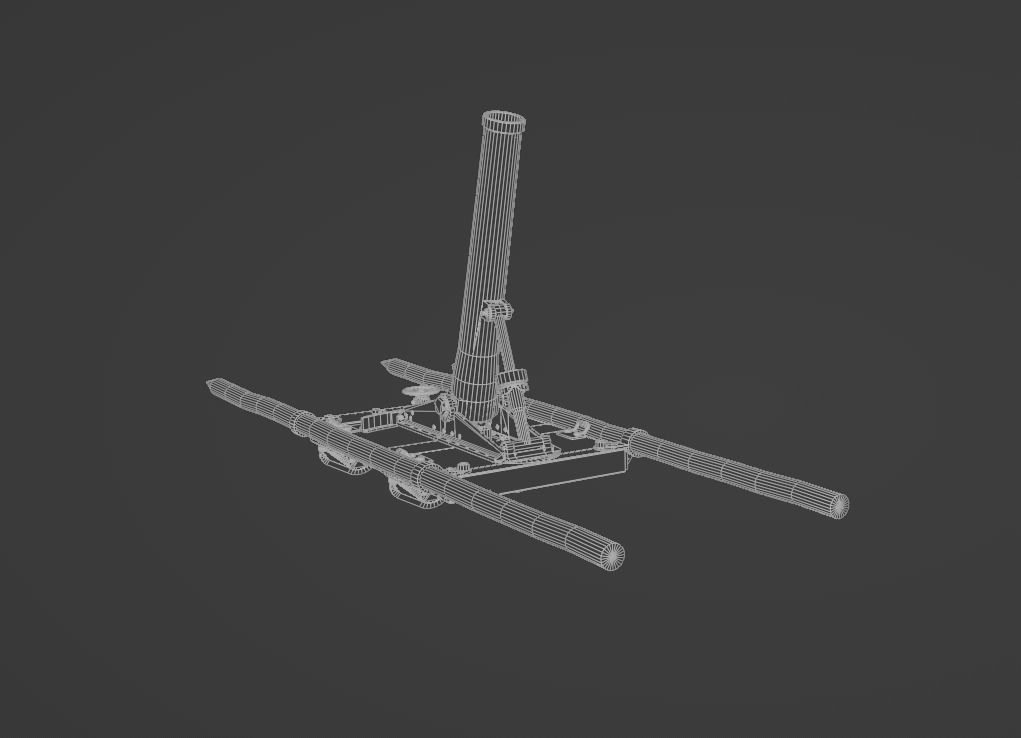

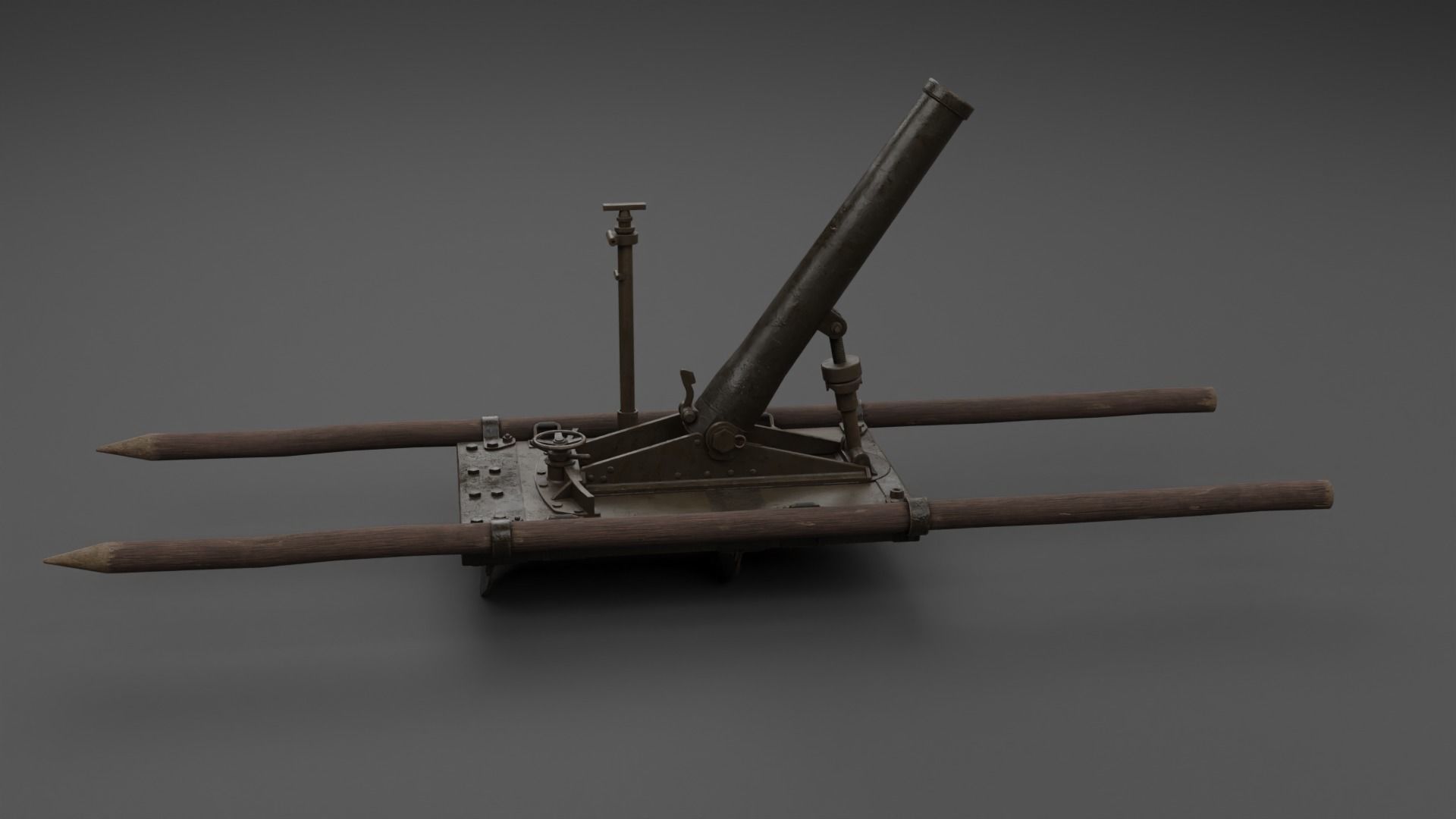

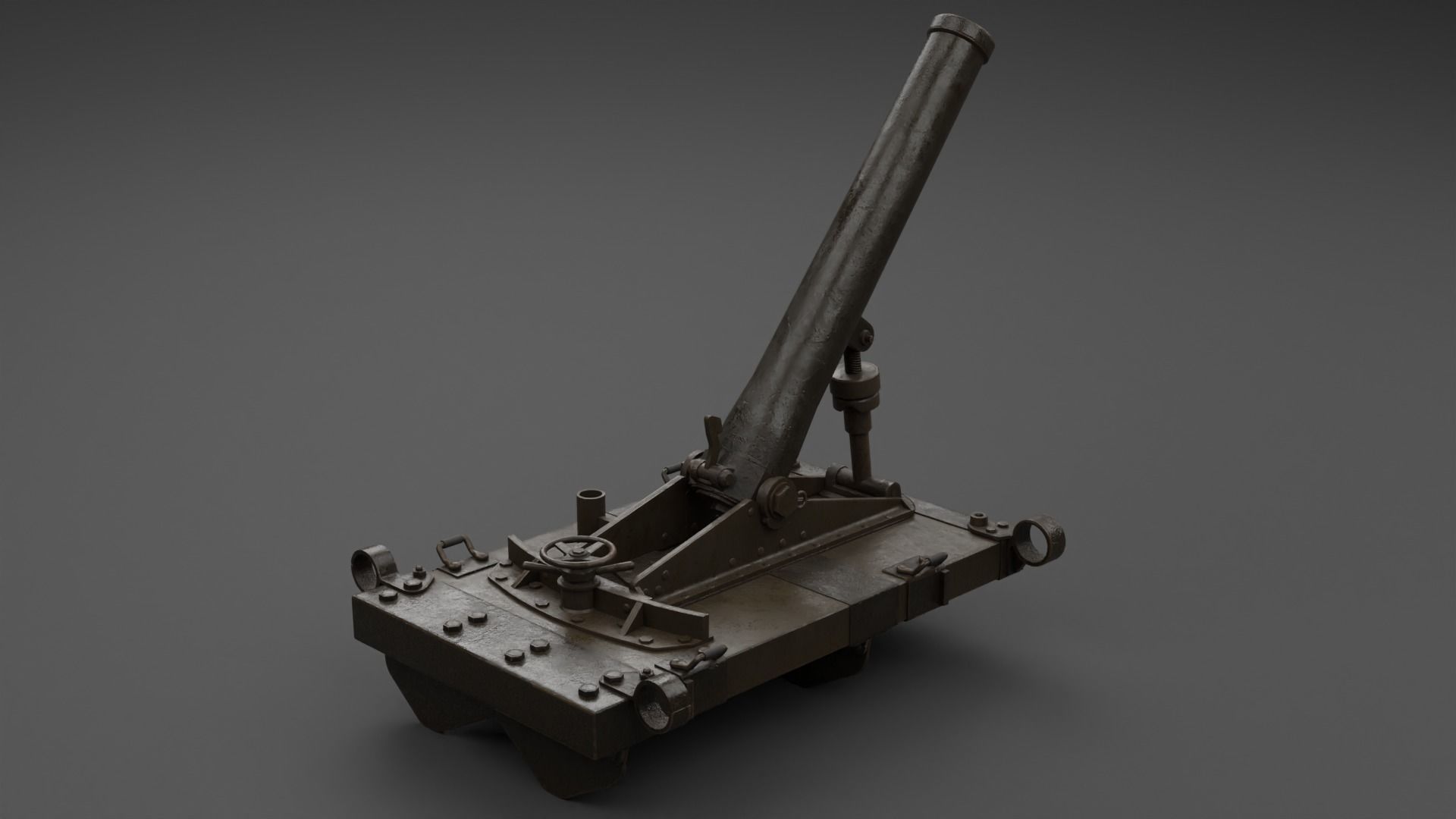

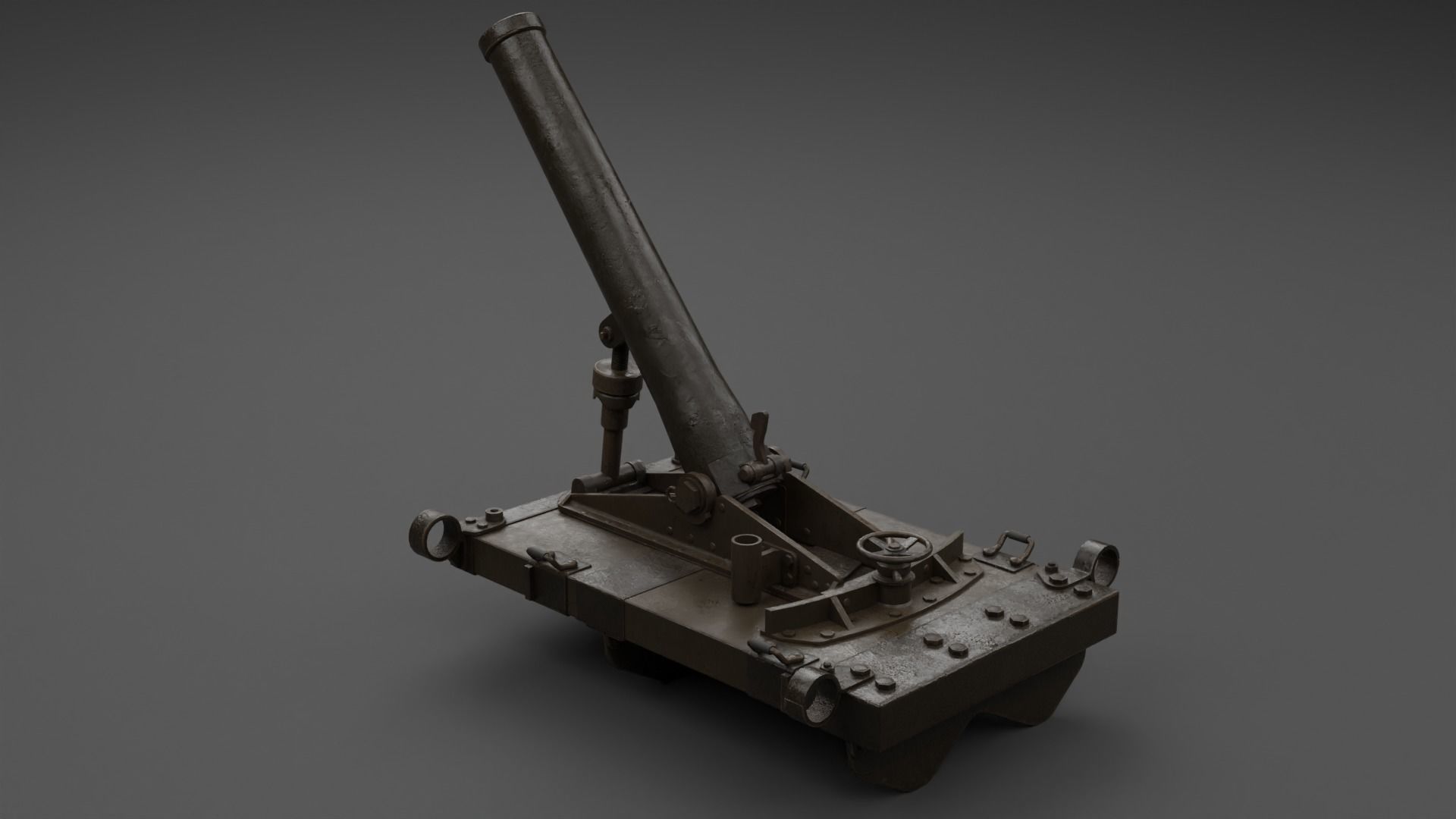

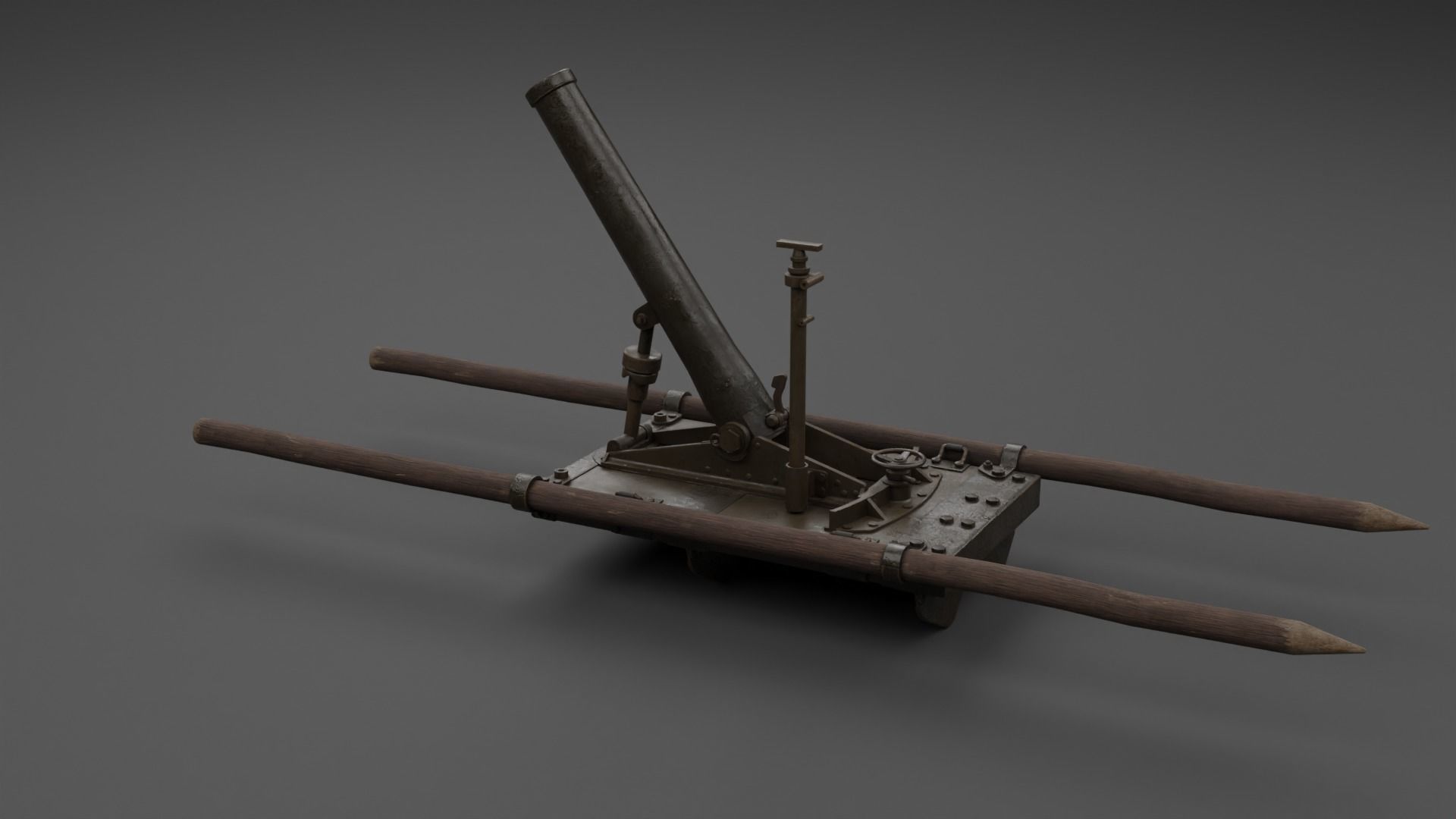

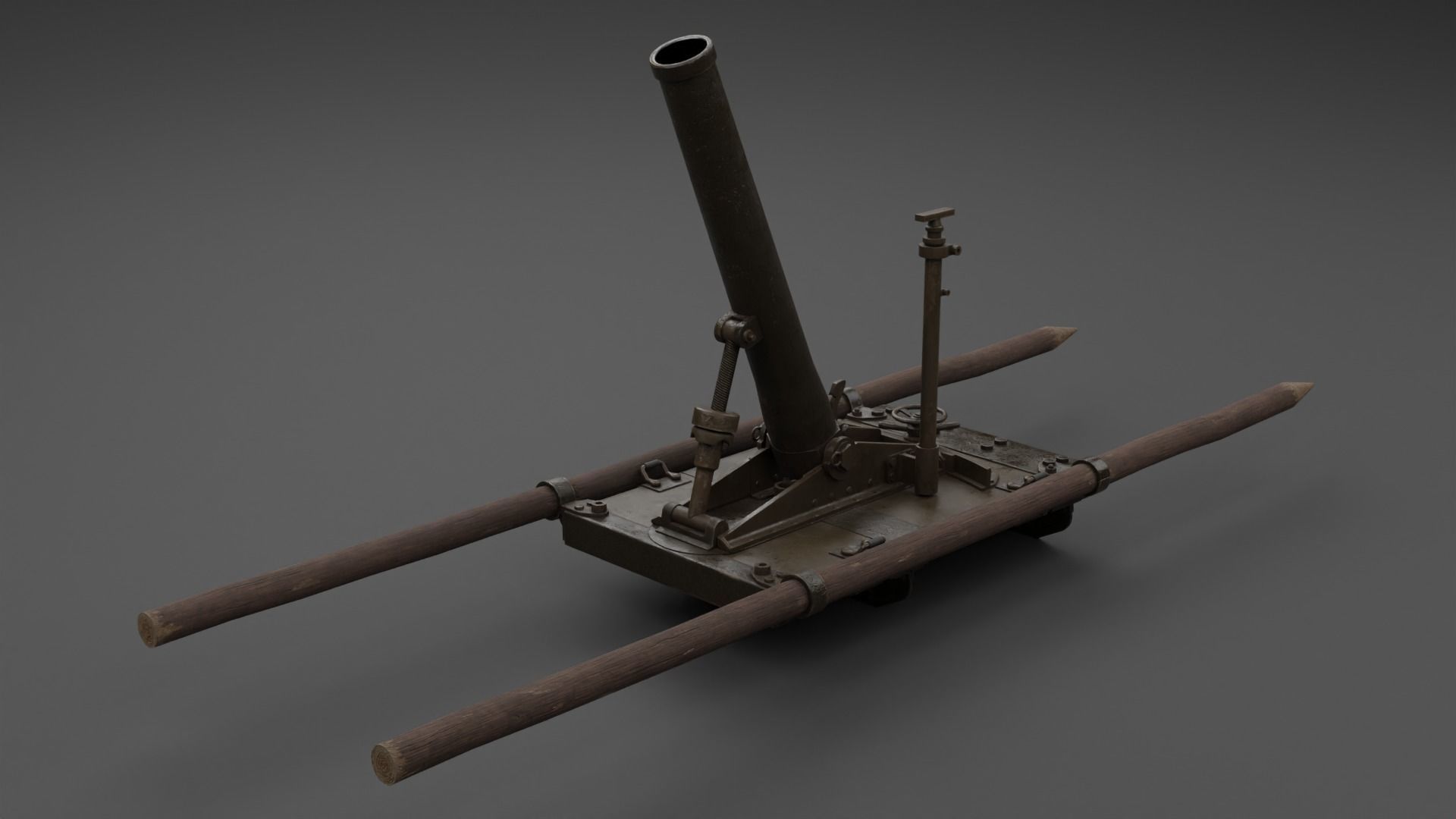

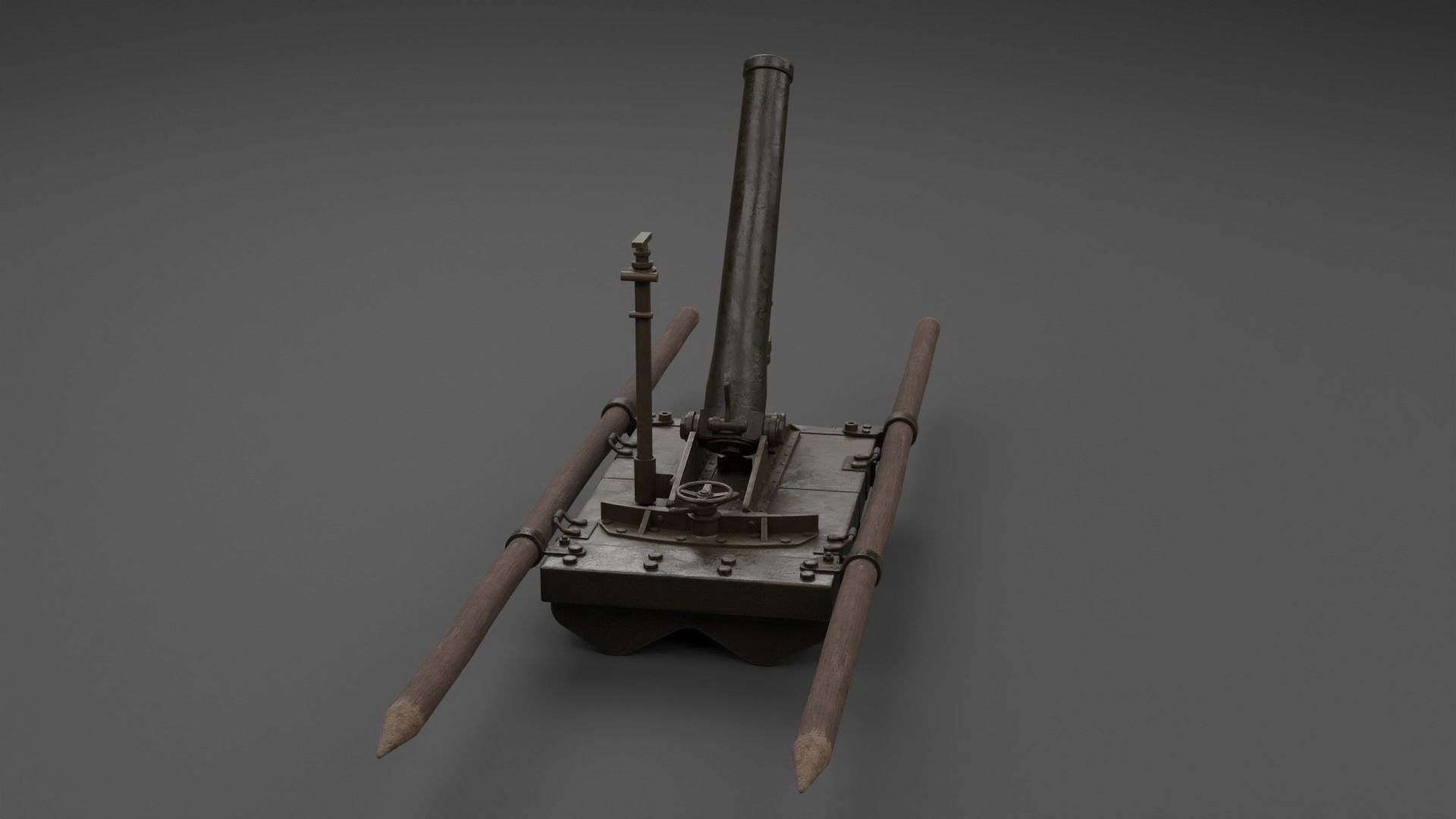

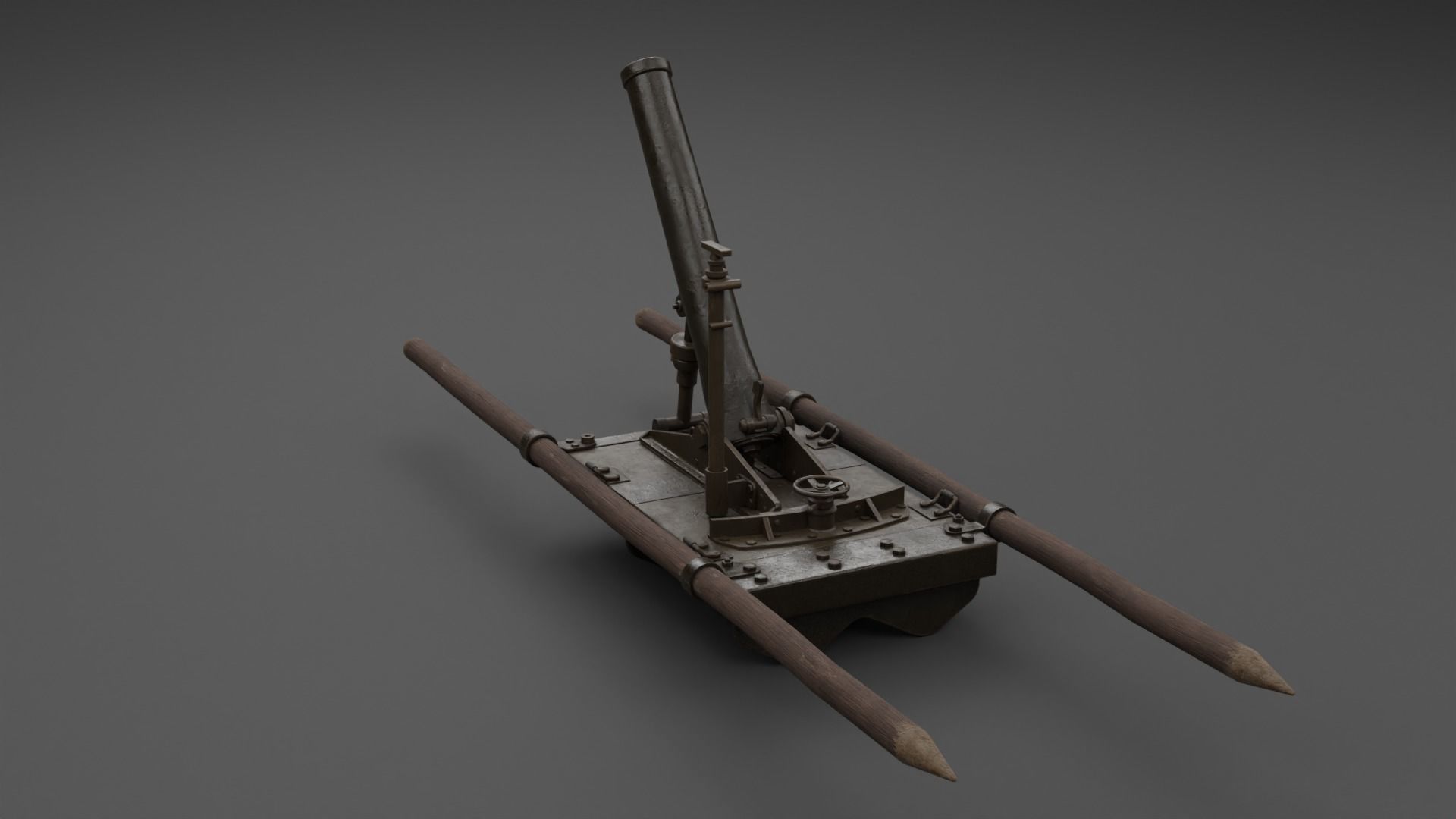

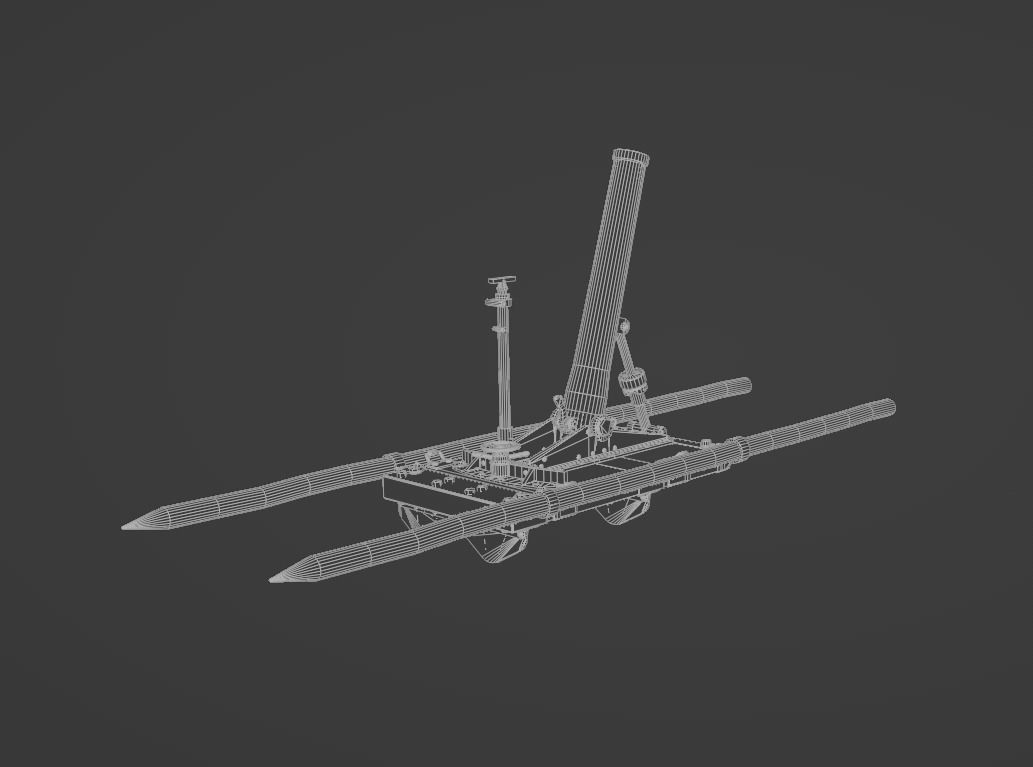

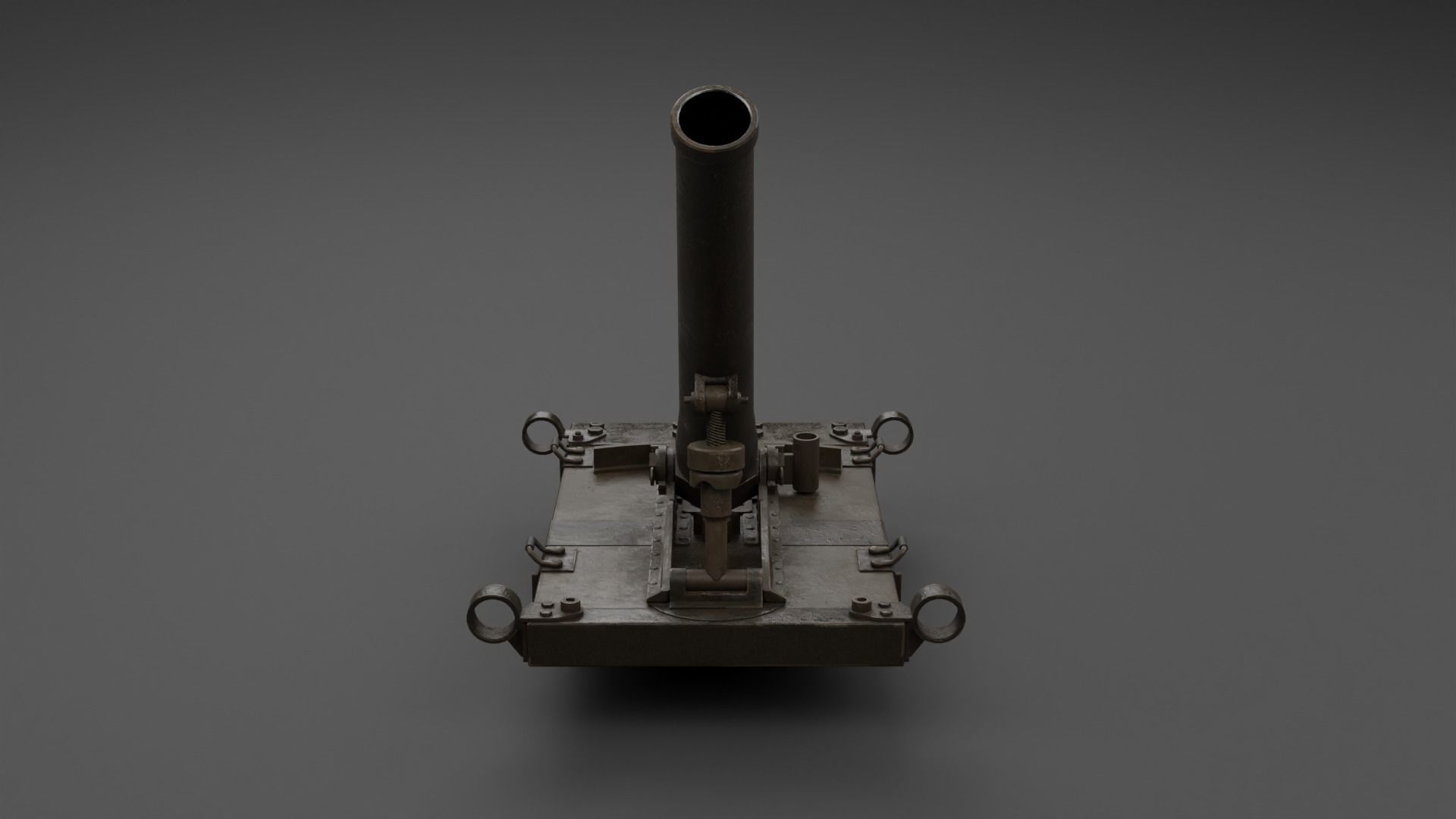

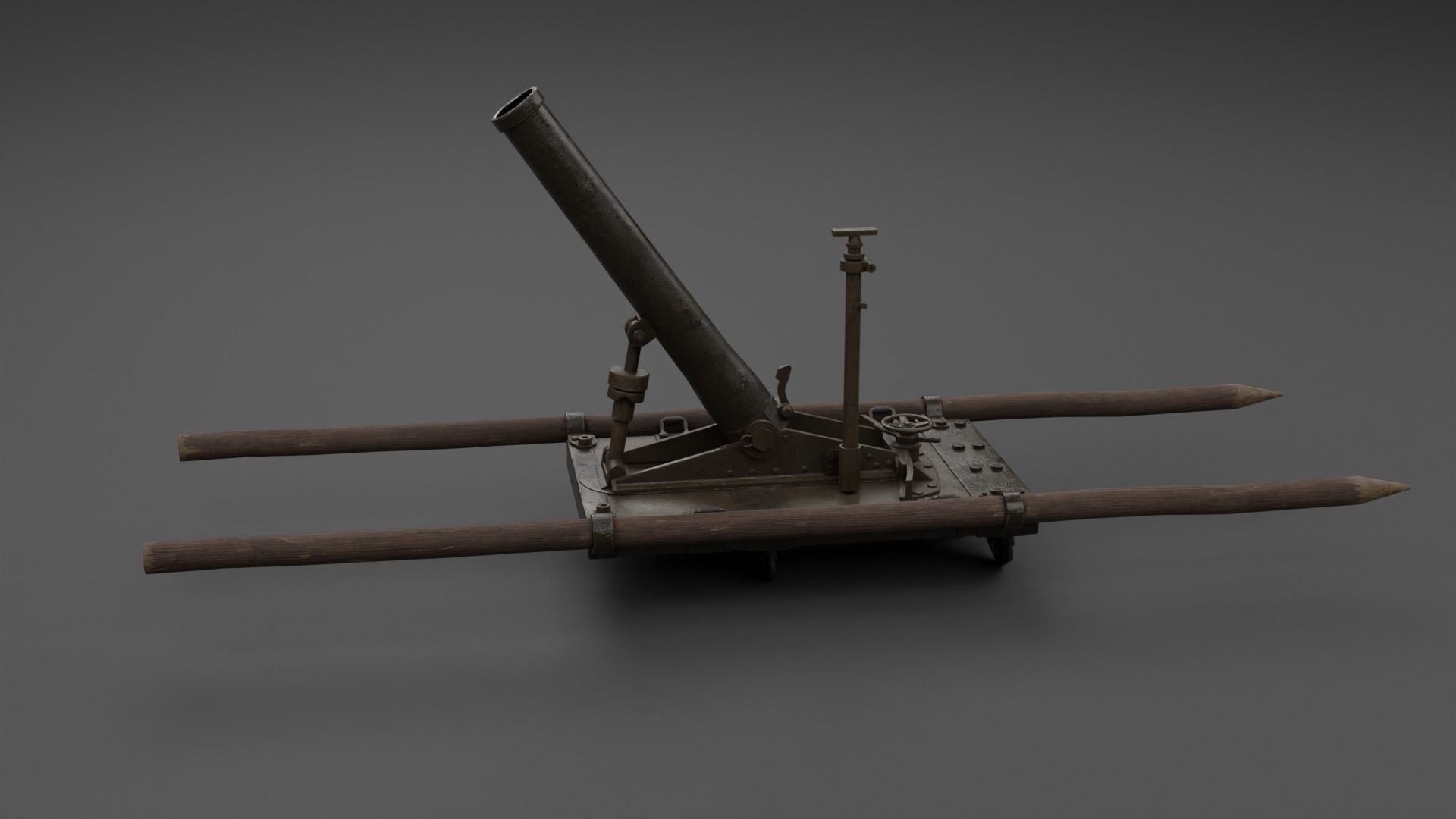

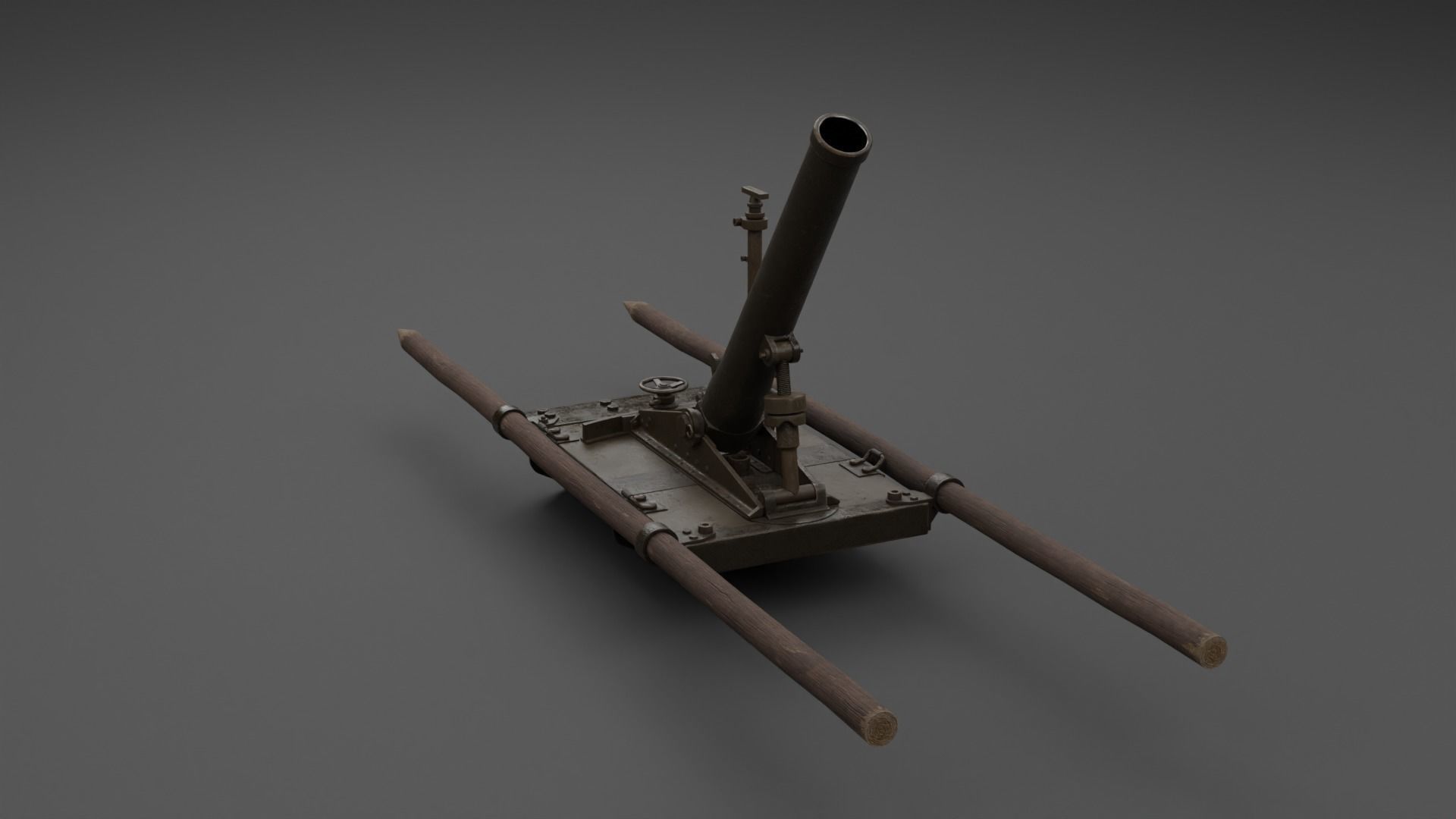

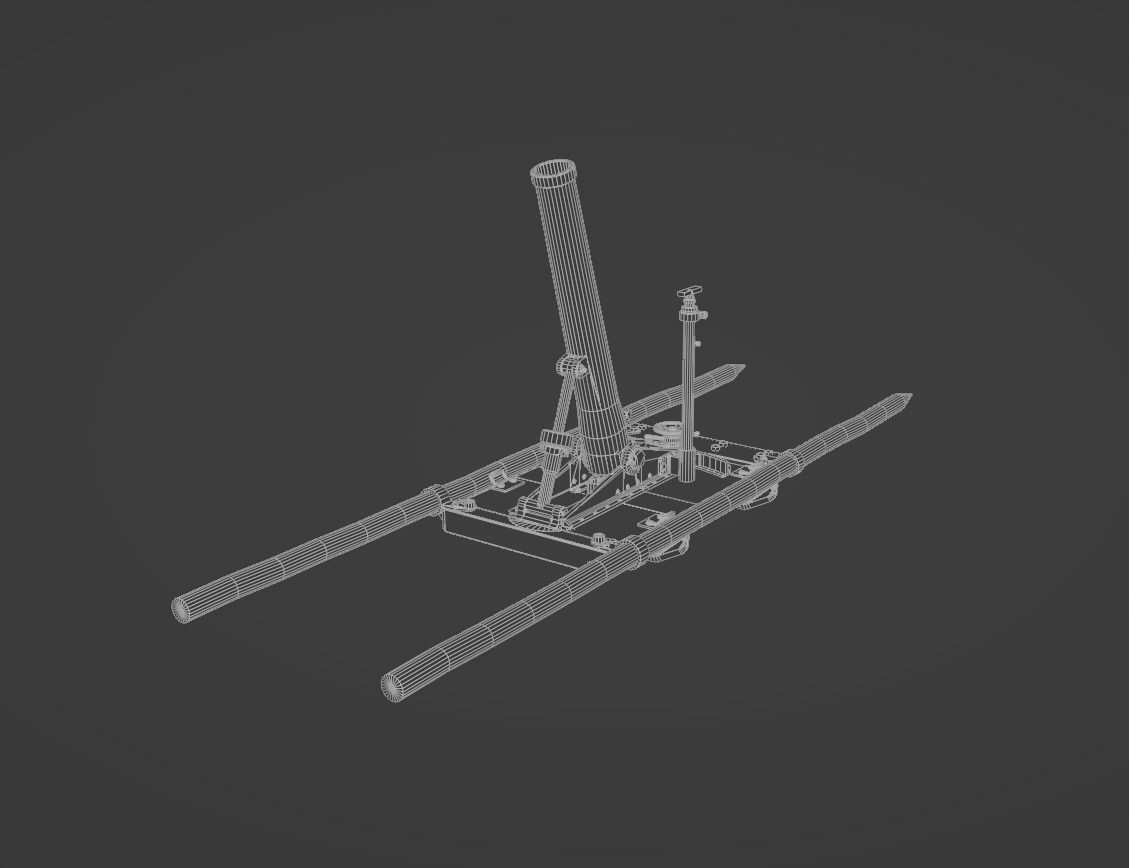

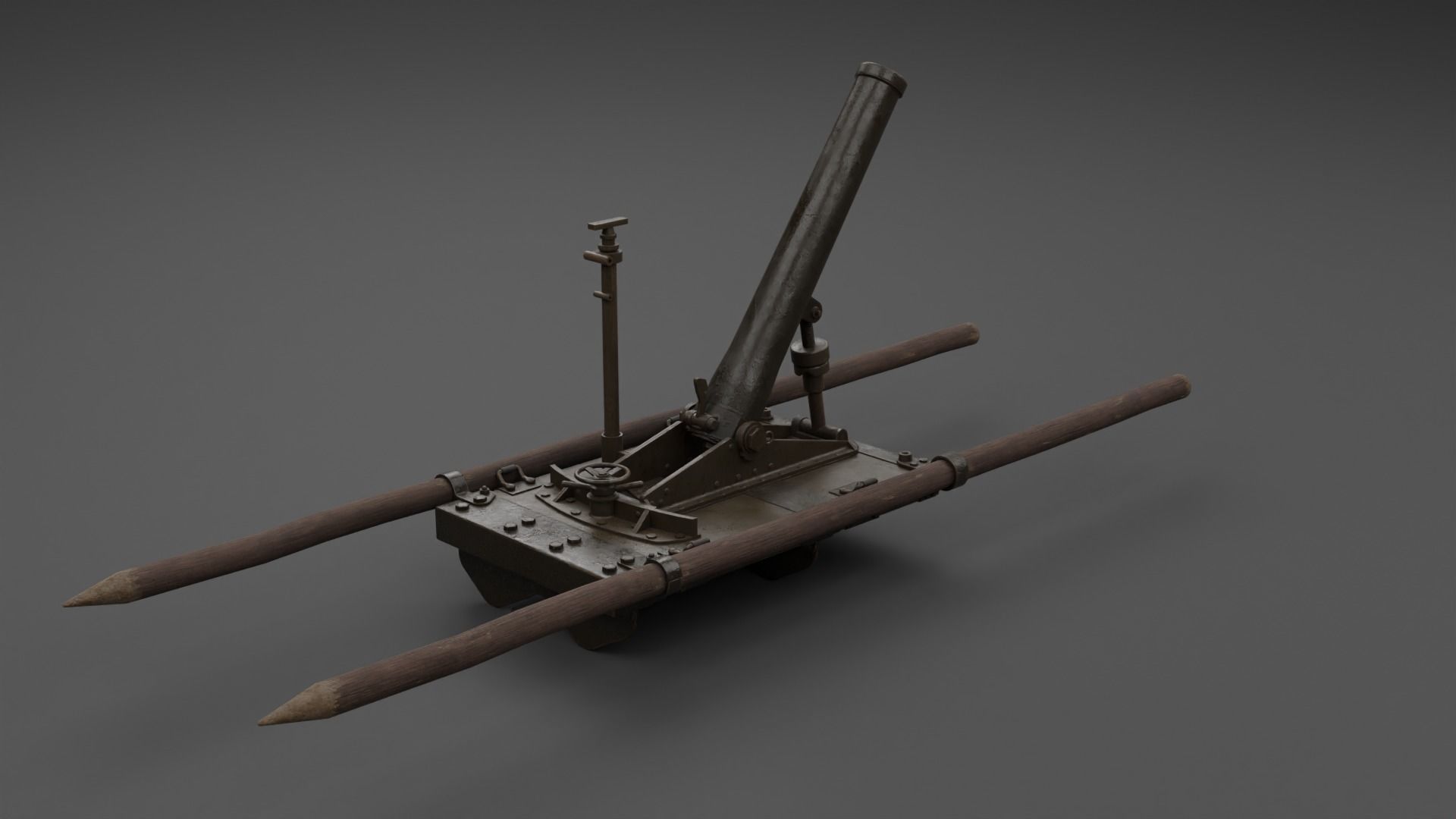

Type 11 70mm Infantry Mortar Lowpoly 3D model

Rar file contain Blendfile, Texture folder , FBX , Obj mtl

Centered (in right place) and Seperated parts

Blender 3.4.1

Textured with substance painter

1 Set of material and Texture

2k texture

Pictures rendered in Cycles engine

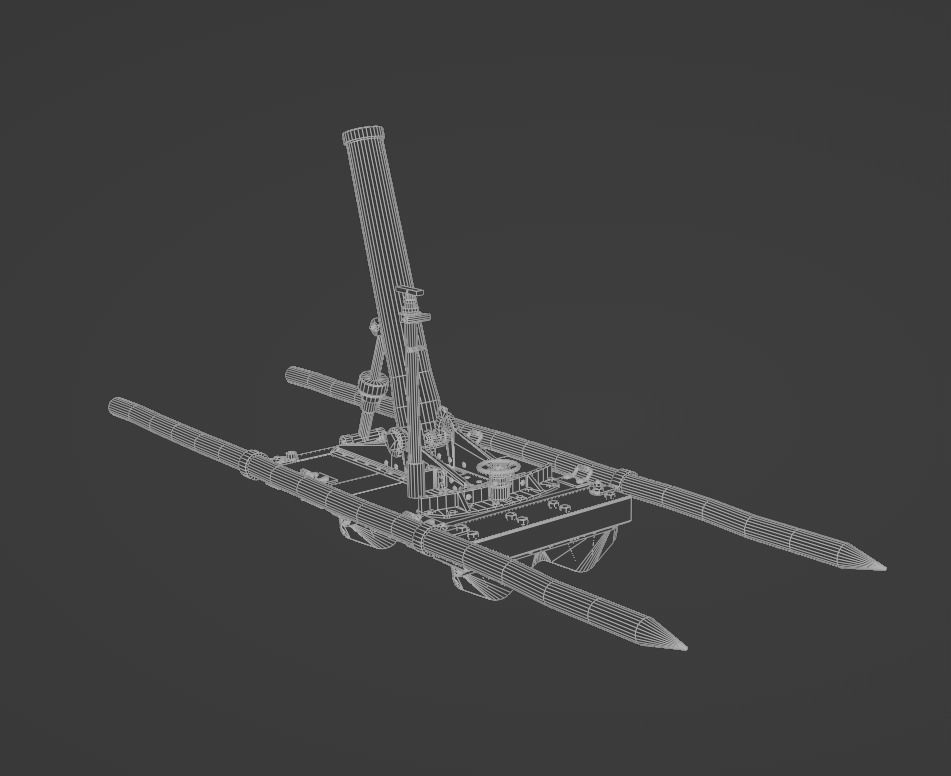

Vertices:14,831

Faces:14,972

Tris: 26,376

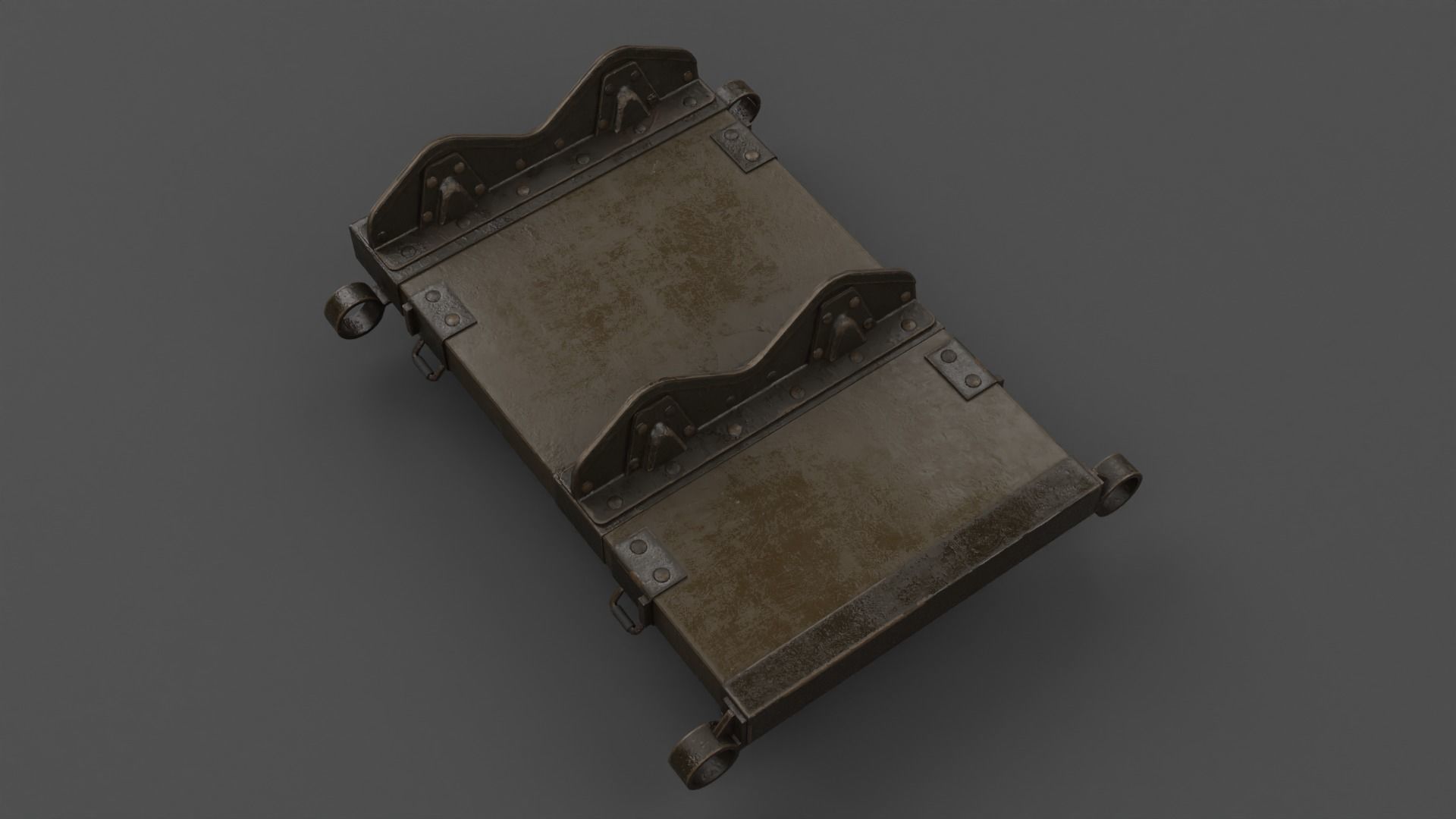

Description:The Type 11 70 mm infantry mortar, was a muzzle-loading, rifled bore infantry mortar used by the Japanese. The Type 11 designation was given to this gun as it was accepted in the 11th year of Emperor Taishō's reign (1922). It was first used in 1922 and was the first mortar to be introduced by the Imperial Japanese Army. The mortar was later replaced by the Type 92 battalion gun.The Model 11 (1922) 70 mm mortar is exceptional among Japanese mortars in that, although a muzzle-loading weapon, it has a rifled bore. The Japanese marking is 11th year model high-angle infantry gun. A monopod, similar to the support of the US 4.2-inch chemical mortar, is another distinguishing feature.The total weight of the weapon is 133.75 lb (60.7 kg), of which 99.5 lb (45.1 kg) represents the weight of the base plate. The traverse of the piece is 410 mils (23 degrees), and its elevation is 661 to 1,370 mils (37 to 77 degrees). A gunner's quadrant is used to lay in the weapon. It has a level vial, actuated by a knob, a movable arm, and a fixed elevation scale. The elevation scale is graduated in half-degree units from 0 to 55 degrees. The movable arm has a vernier scale which permits readings of 1/16th degree. Before the weapon can be fired, by means of a lanyard attached to a striker arm, a latch pin on the breech end of the tube must be set in its recess.

K
karlu 2023-11-11 15:21:09 UTC
Great
OK3D
OK3D 2023-11-11 15:32:51 UTC
Thank you!
Item rating
0 0
Type 11 70mm Infantry Mortar
$20.00

Royalty Free License
Type 11 70mm Infantry Mortar
$20.00

Royalty Free License
Response 100% in 0.4h
3D Modeling
Low-poly Modeling
UV mapping
Texturing
PBR modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Blender (.blend) (2 files)31 MBVersion: 3.4.1Renderer: Cycles
Exchange
  • Blender (.blend) (2 files)31 MBVersion: 3.4.1Renderer: Cycles
  • Autodesk FBX (.fbx) (2 files)31 MB
  • OBJ (.obj, .mtl)15.5 MB

3D Model details

  • Publish date2023-01-02
  • Model ID#4203296
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 14,972
  • Vertices 14,831
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Overlapping
  • Plugins used
  • Ready for 3D Printing
