Schmidt M1882 3D model

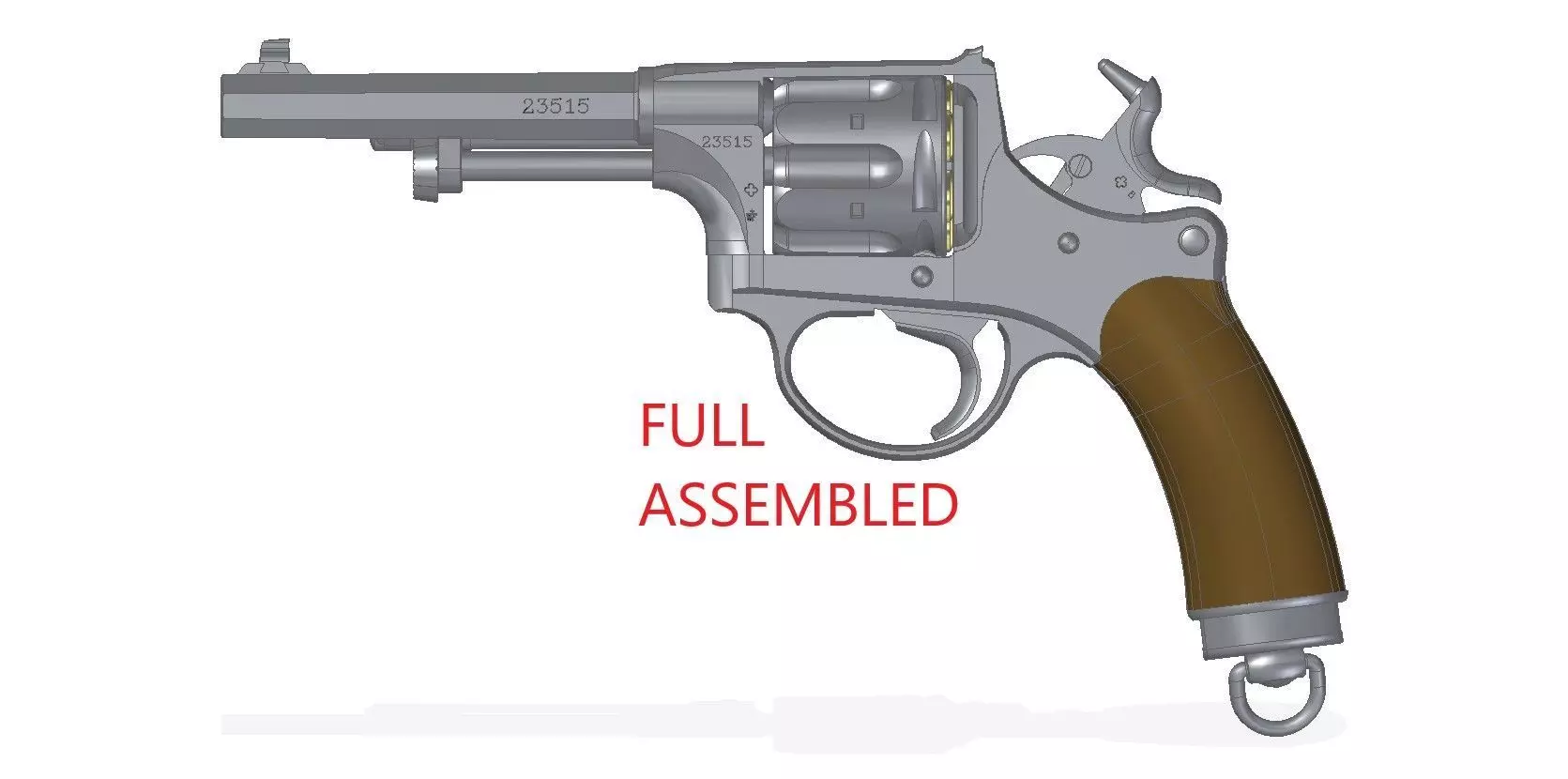

Full assembled model of Swiss Schmidt M1882 revolver and its 7,5 mm bullet

Model is good for weapon mechanic animation, games and for visual education.

Notification: if You need low poly model You can contact me here or : all_world_weapons@mail.ru

The Swiss military dabbled in revolvers with their rimfire 1872 model (about 900 made) and the followup 1878 centerfire version (5500-6000 made), but their first large-scale service revolver was the Model 1882, designed by Colonel Schmidt. The 1882 is a 7.5mm, 6-shot double action design with lineage to the French 1873 model. It is a magnificently well-made gun , and features several nice features.

It has a rebounding hammer, allowing it to be safely carried with all 6 chambers loaded. It also uses the Abadie gate-loading system, in which opening the loaidng gate disconnects the trigger from the hammer. This allows the trigger to be used to quickly and precisely index the cylinder between chambers when loading and unloading. For gate-loading wheelguns, this makes it the fastest type to load and unload. It also has a hinged sideplate, which opens up with the removal of a single captive screw, allowing easy access to all the internals - which are helpfully numbered in their disassembly order.
