HK21E machine gun 3D model

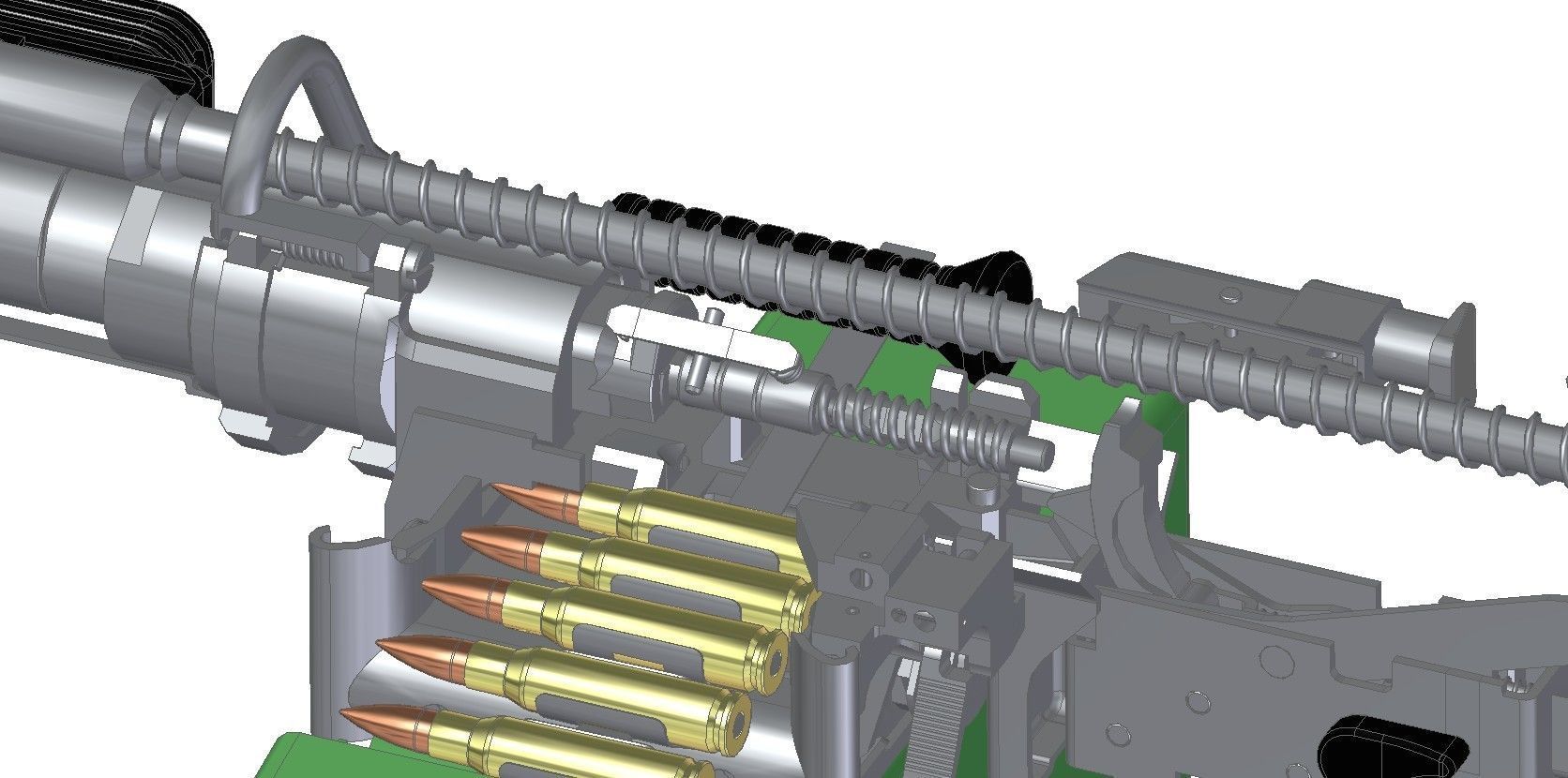

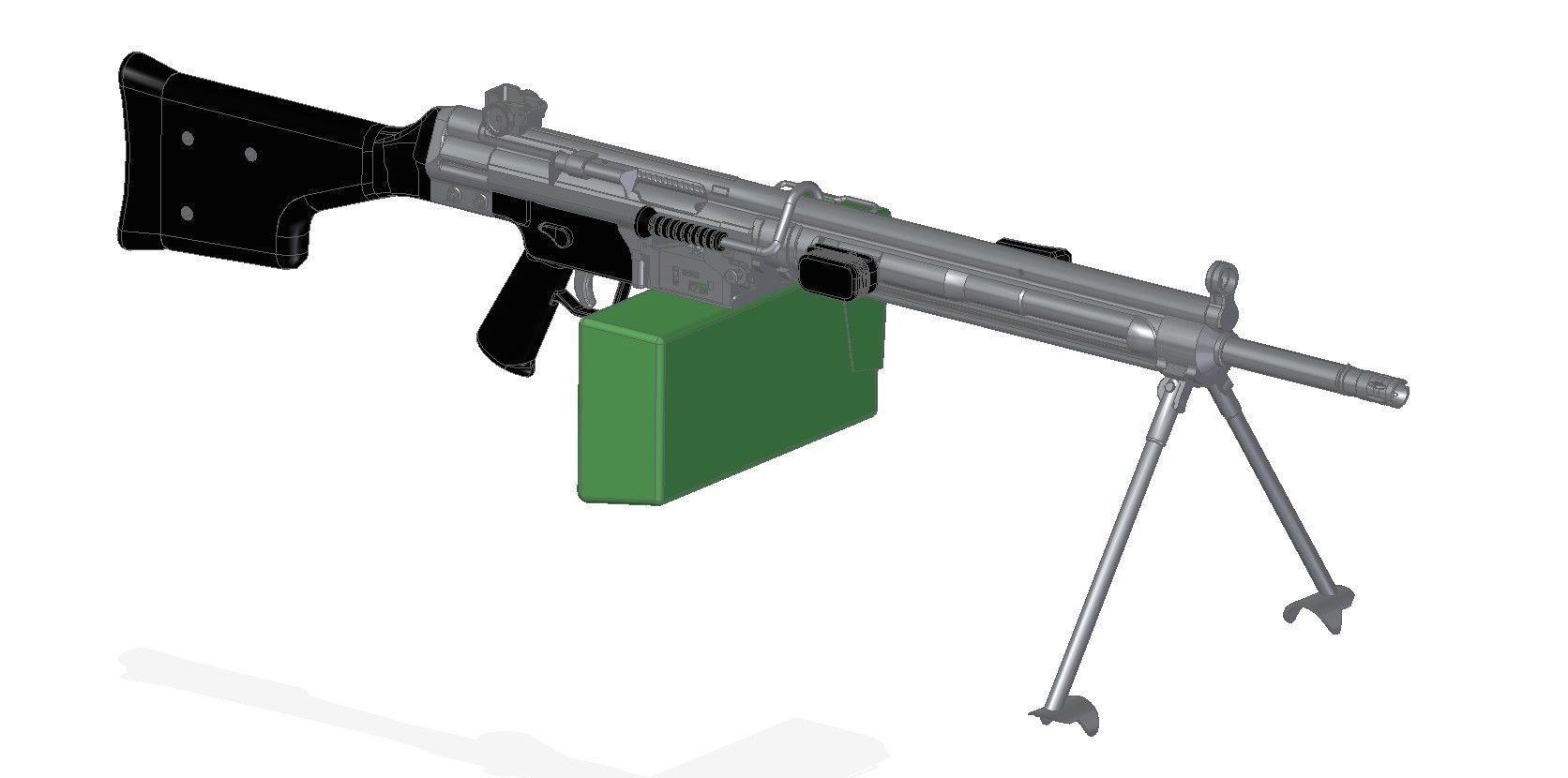

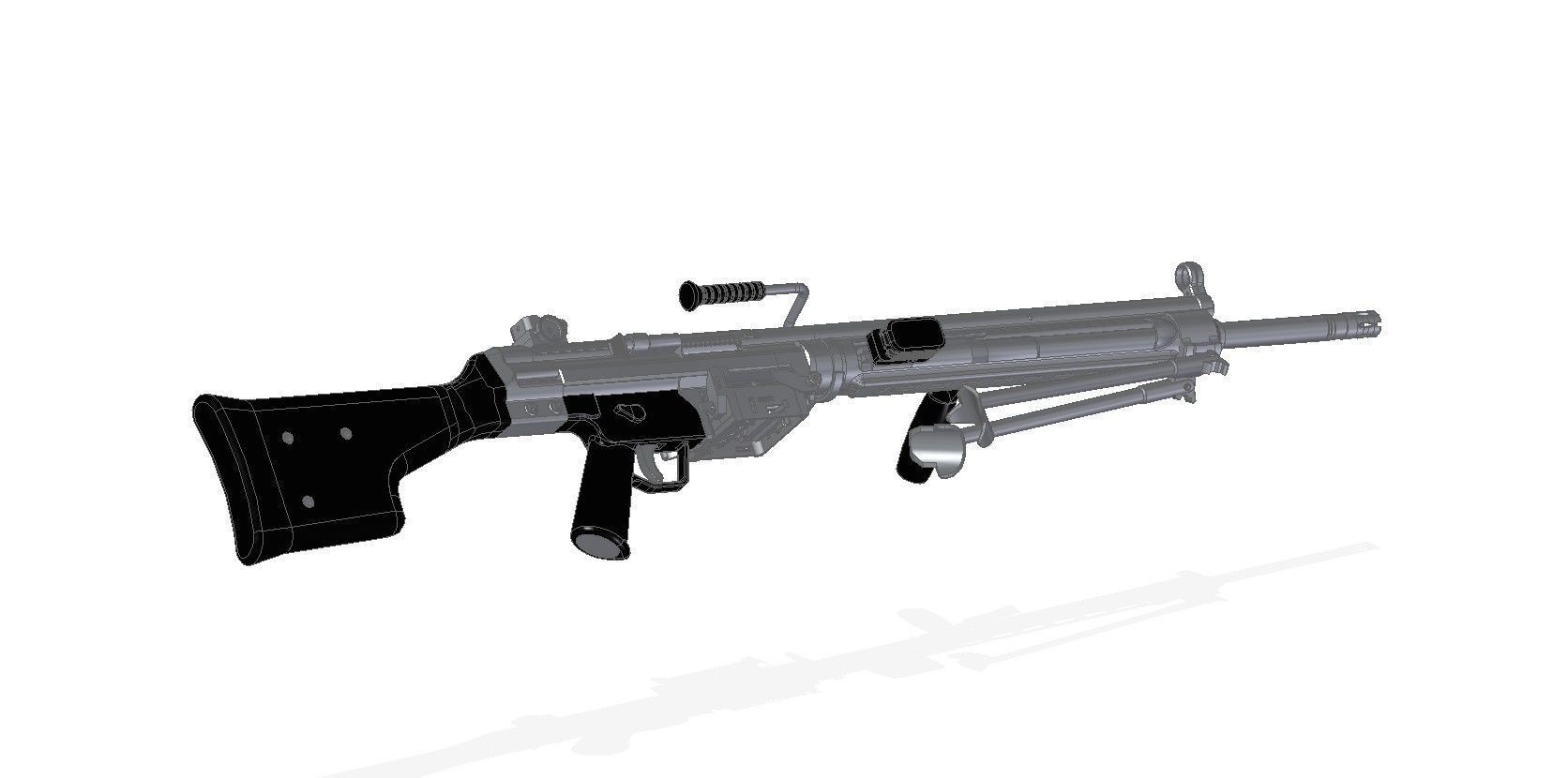

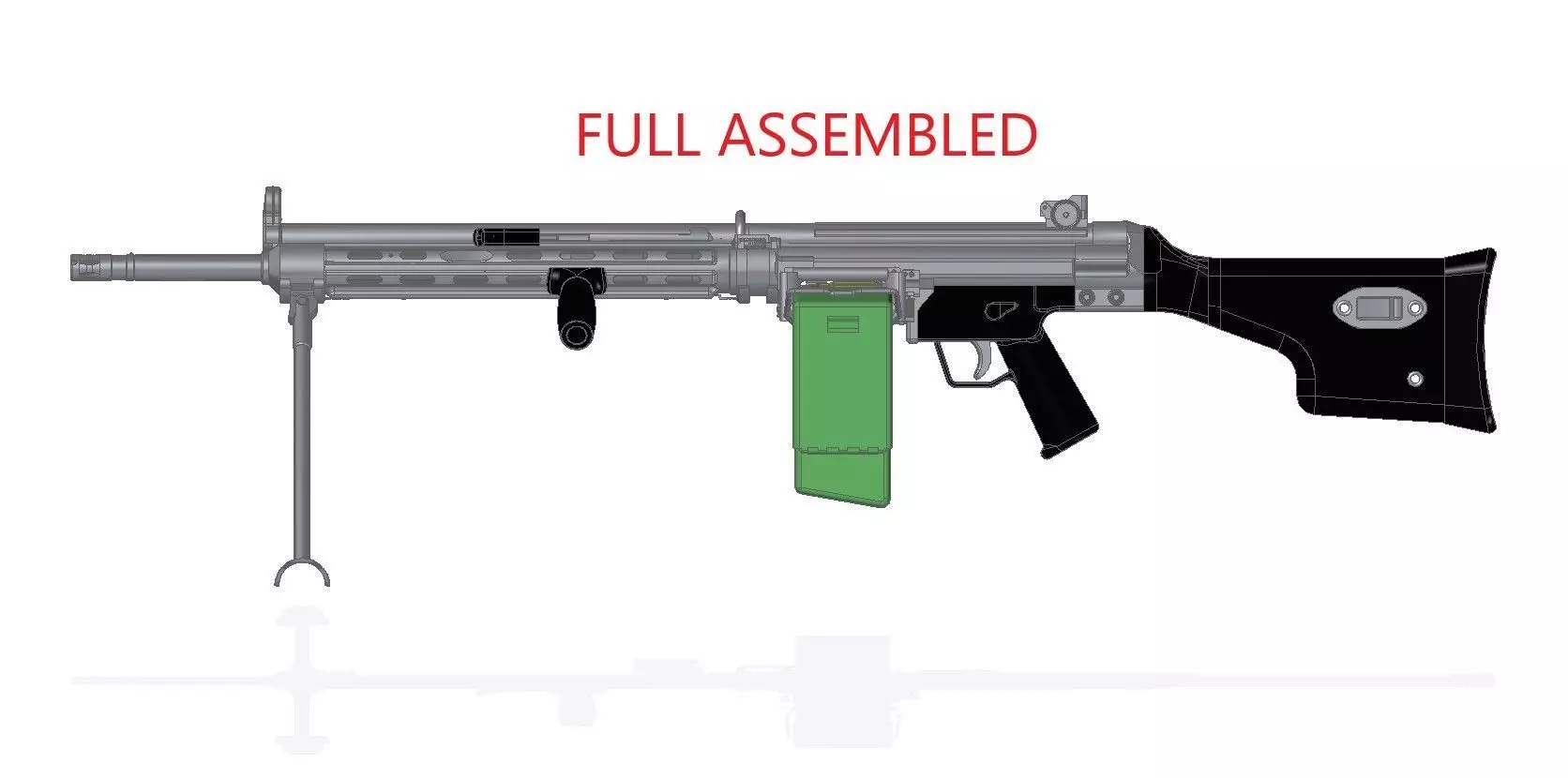

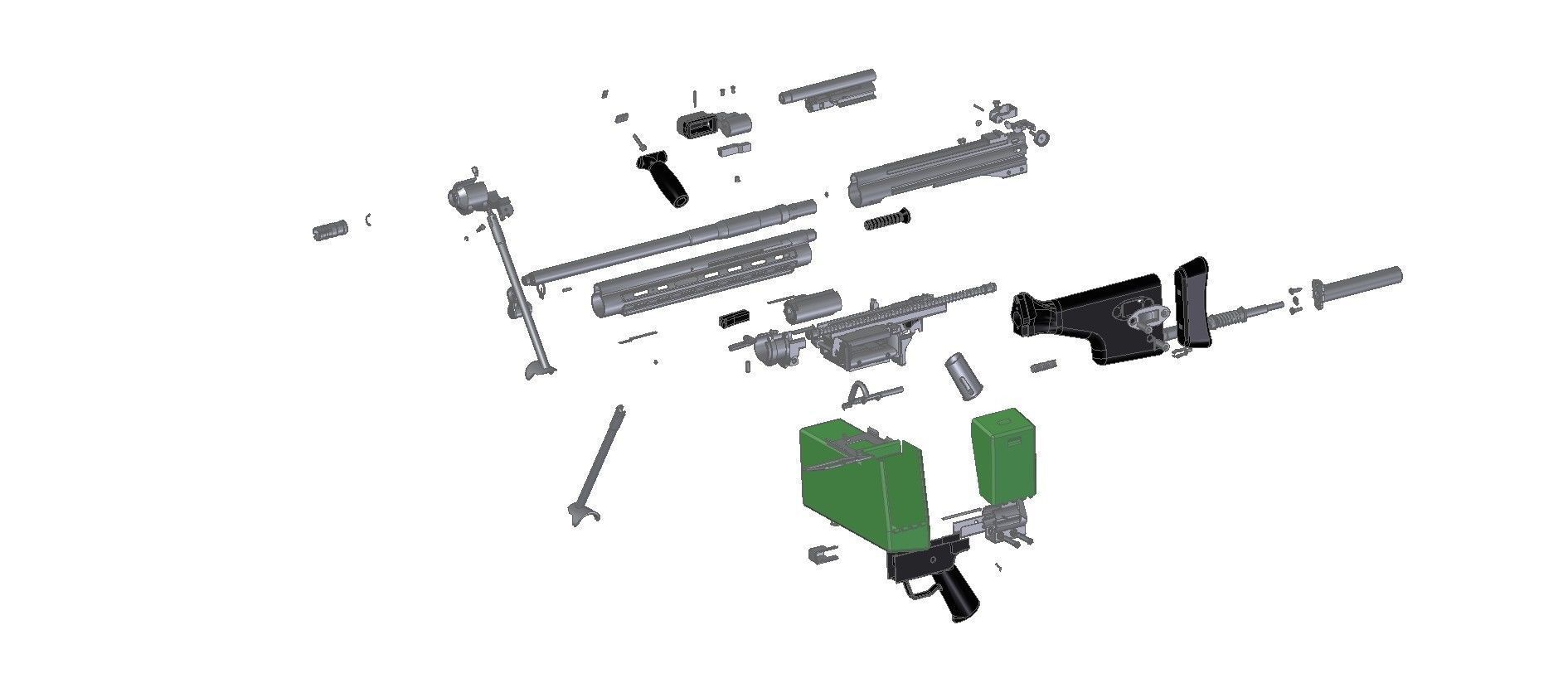

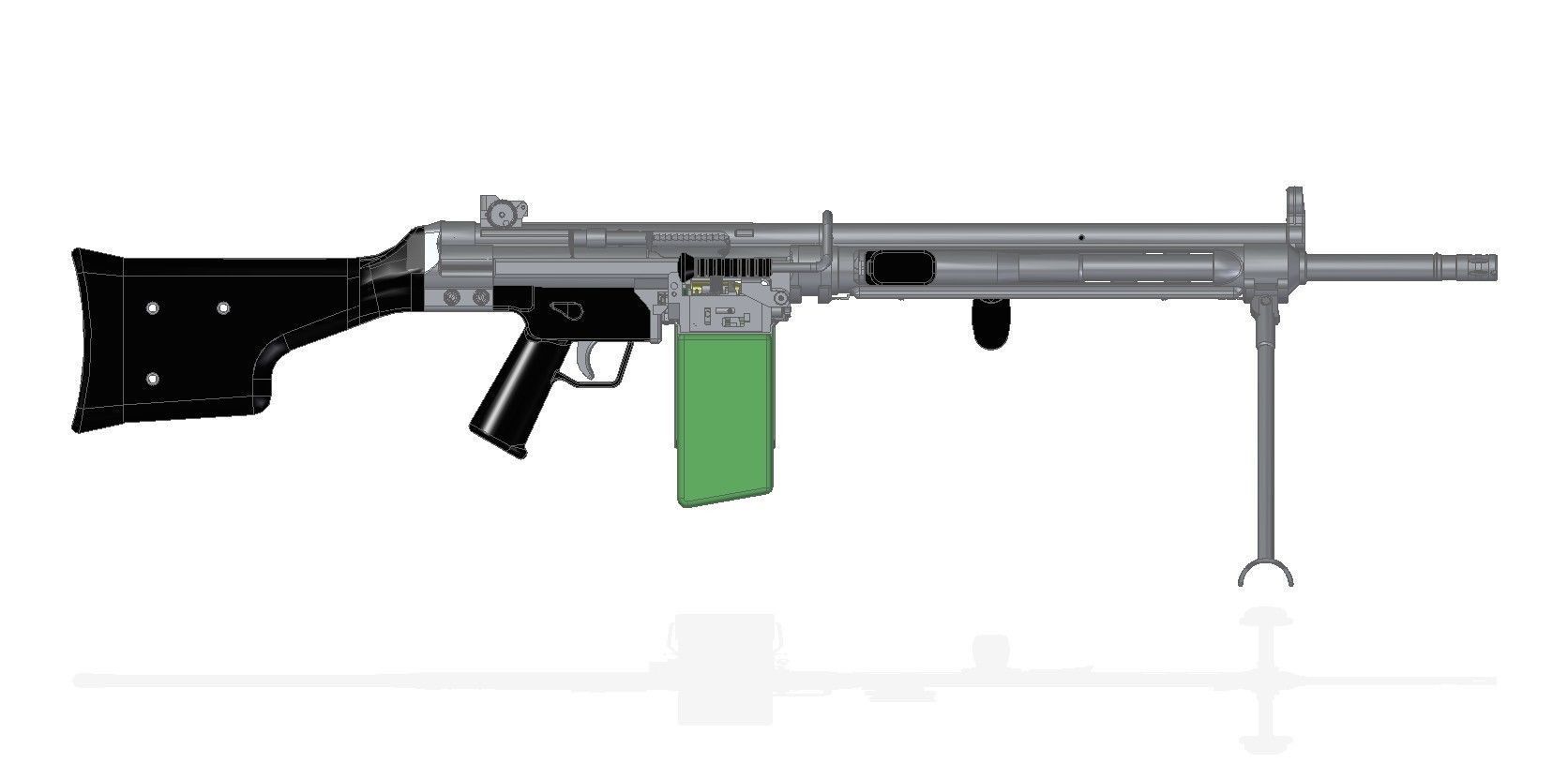

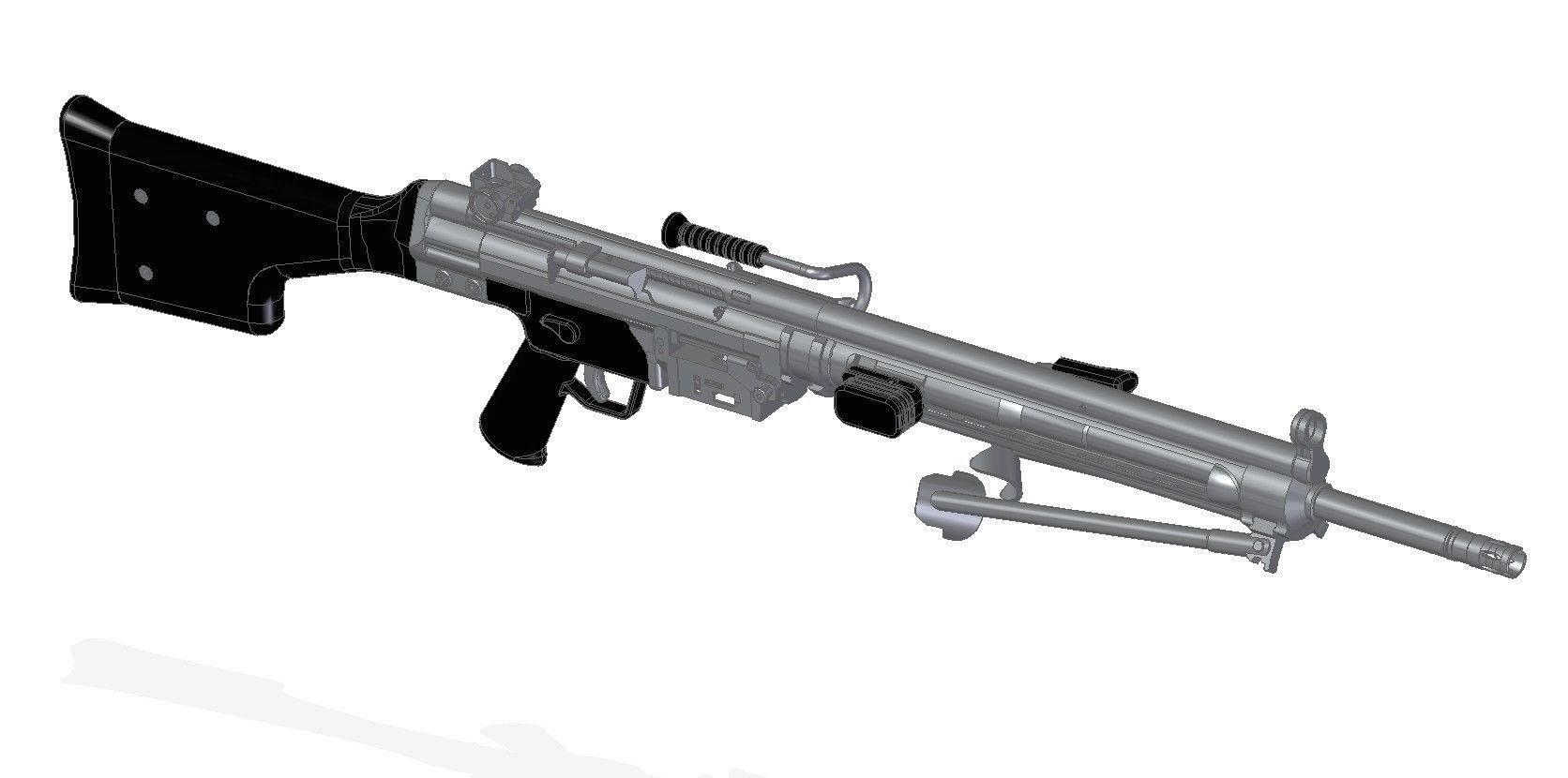

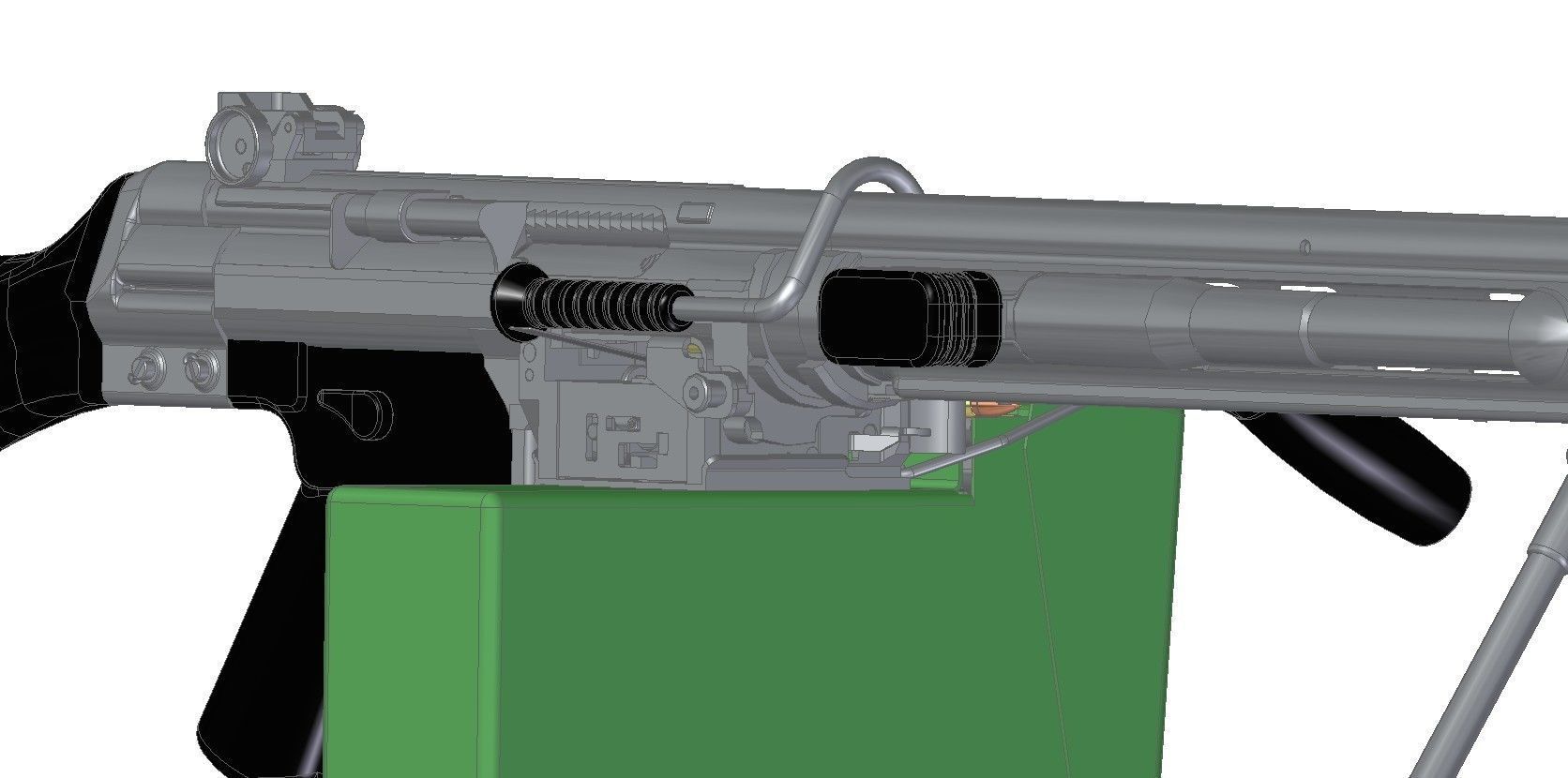

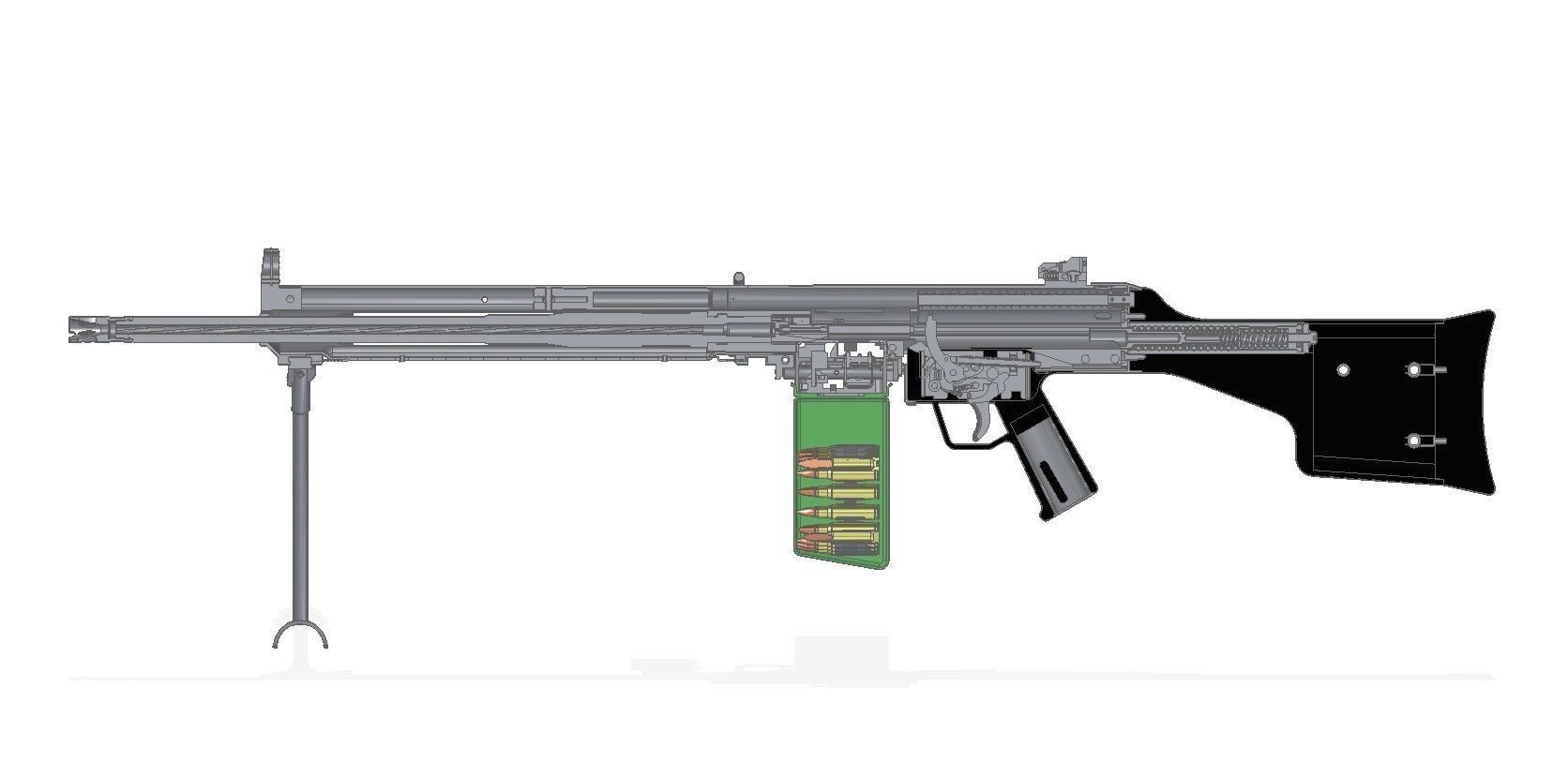

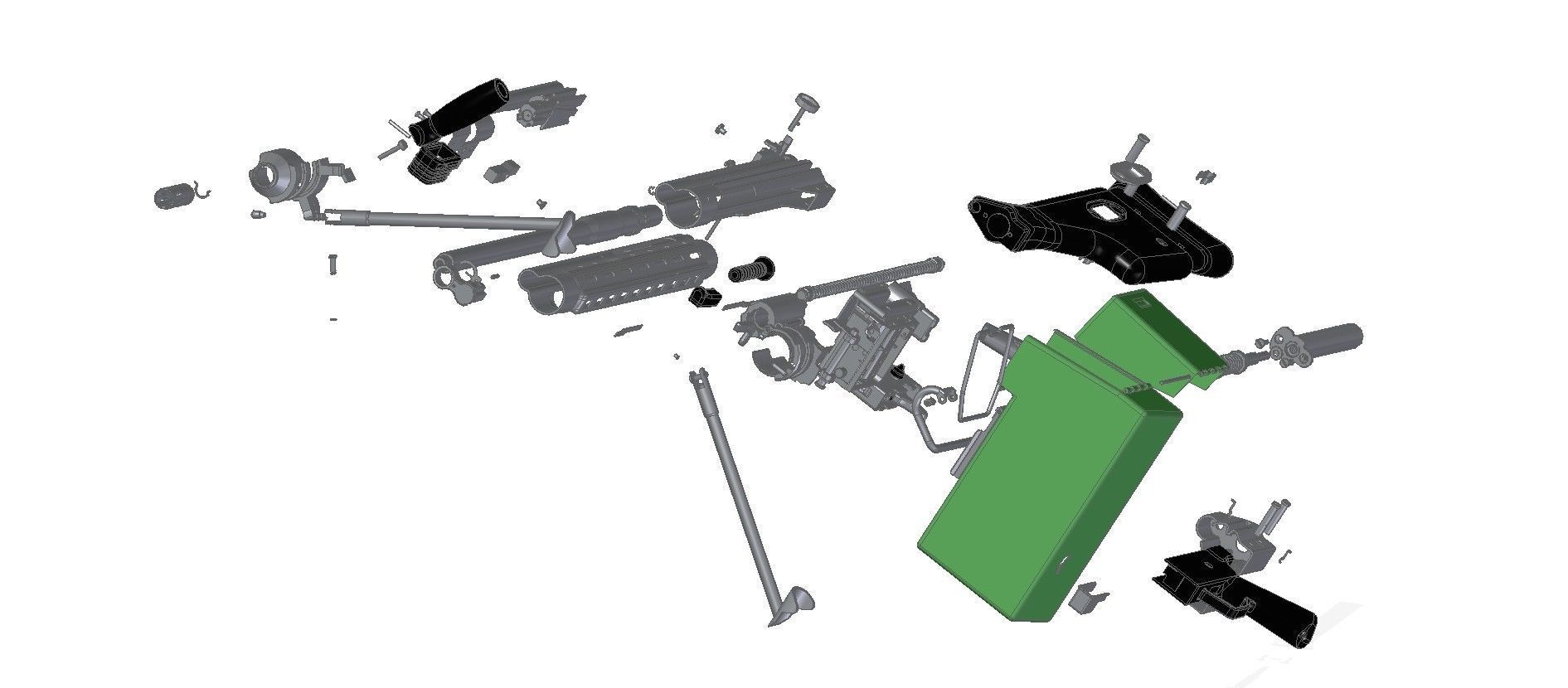

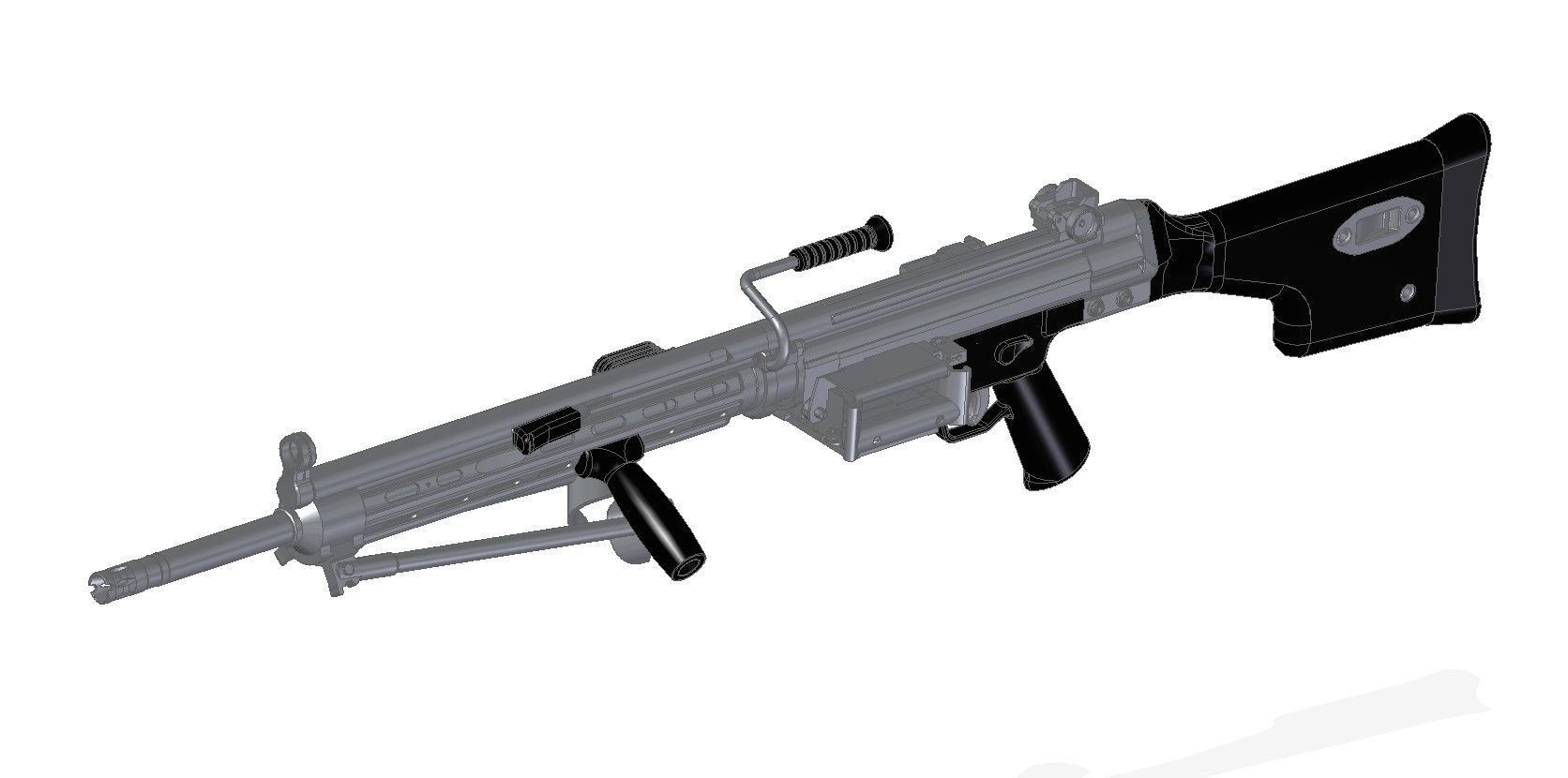

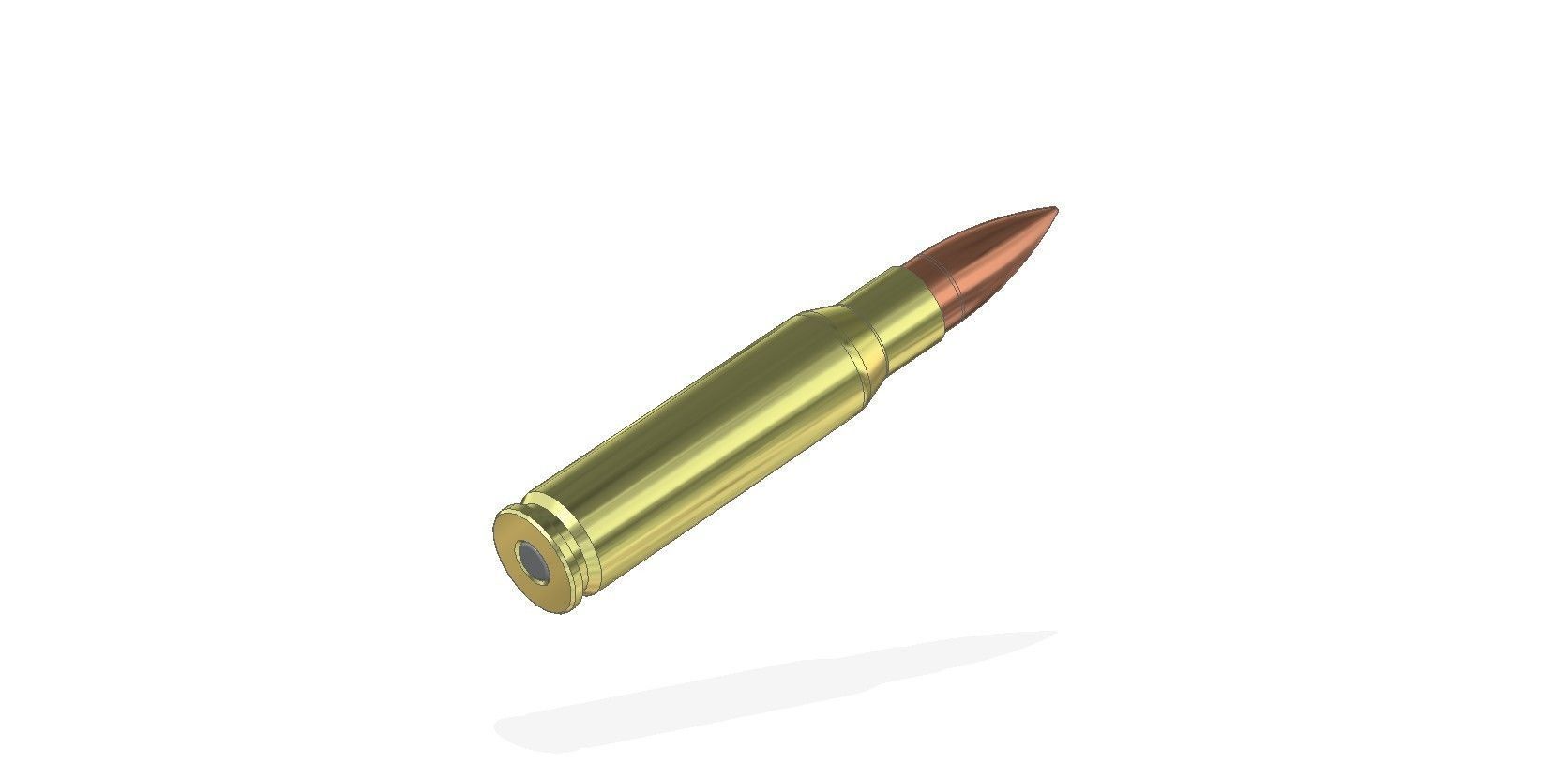

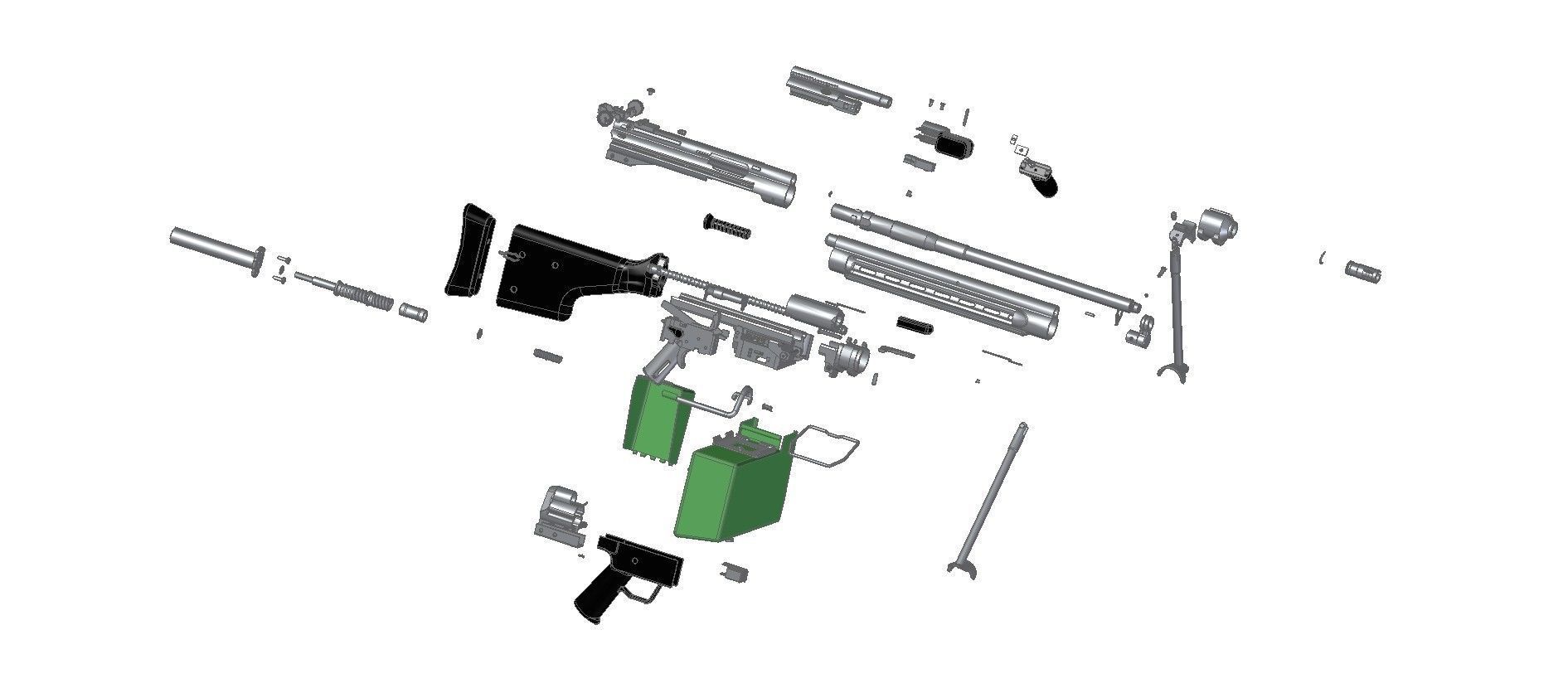

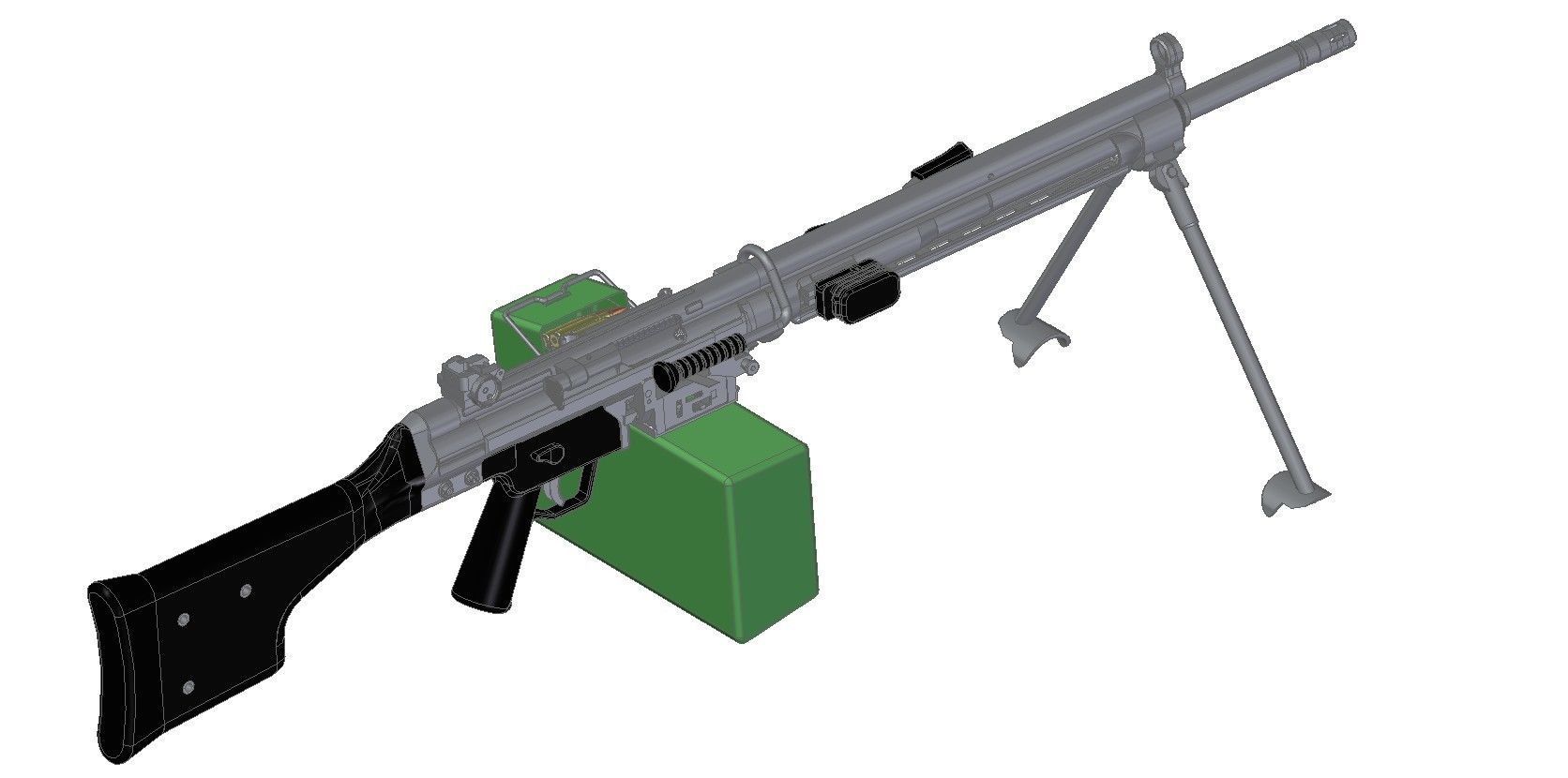

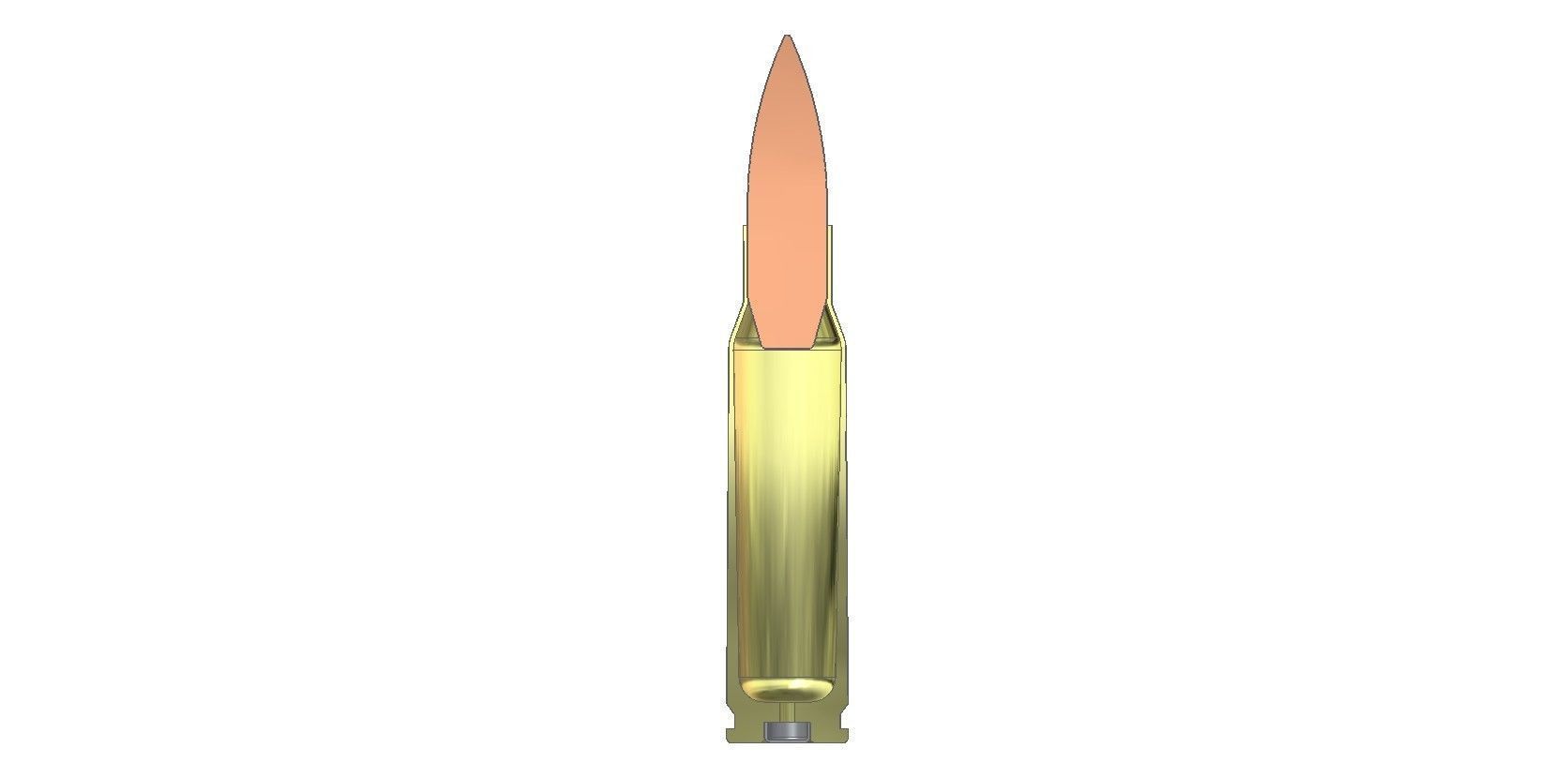

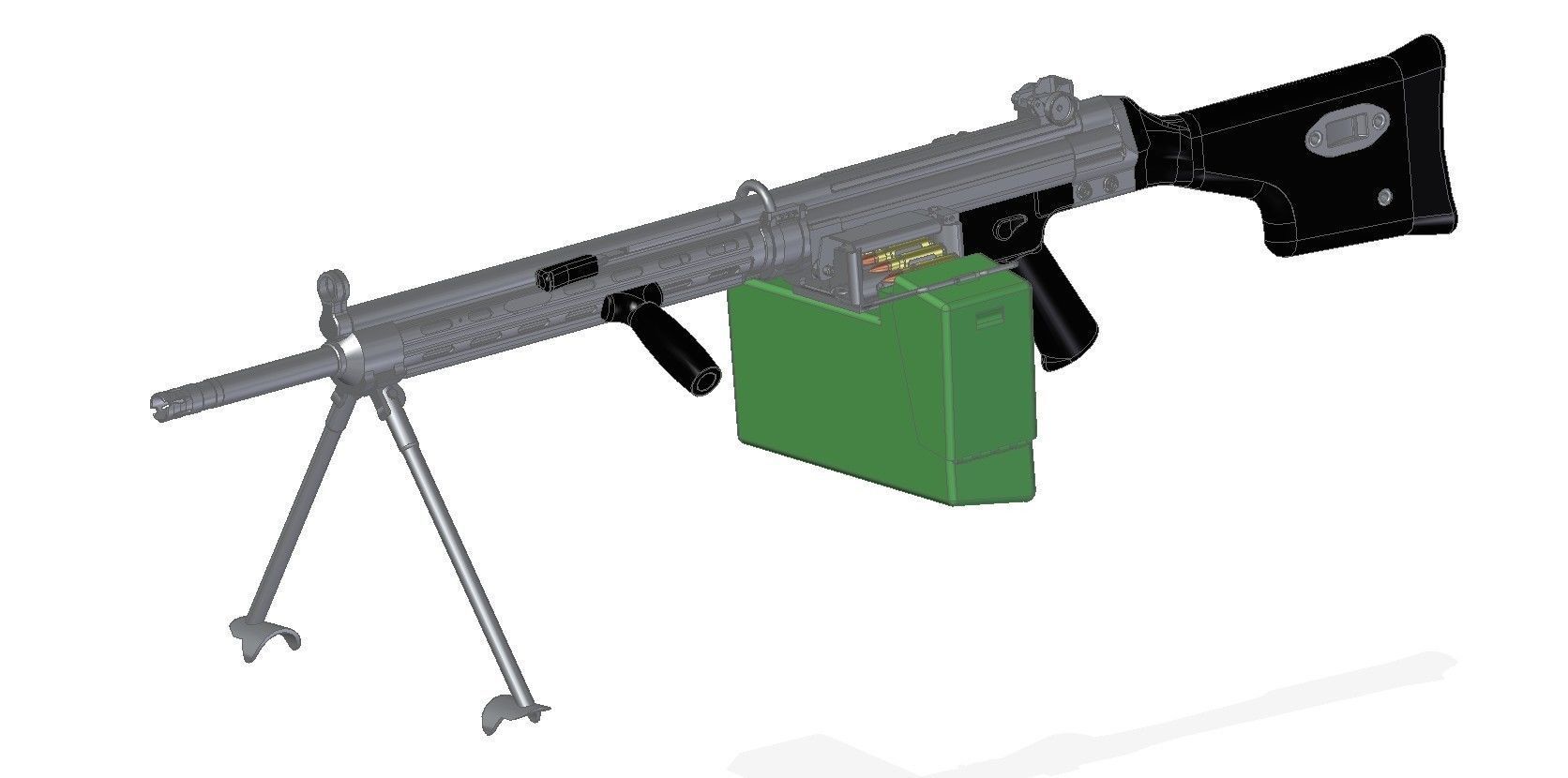

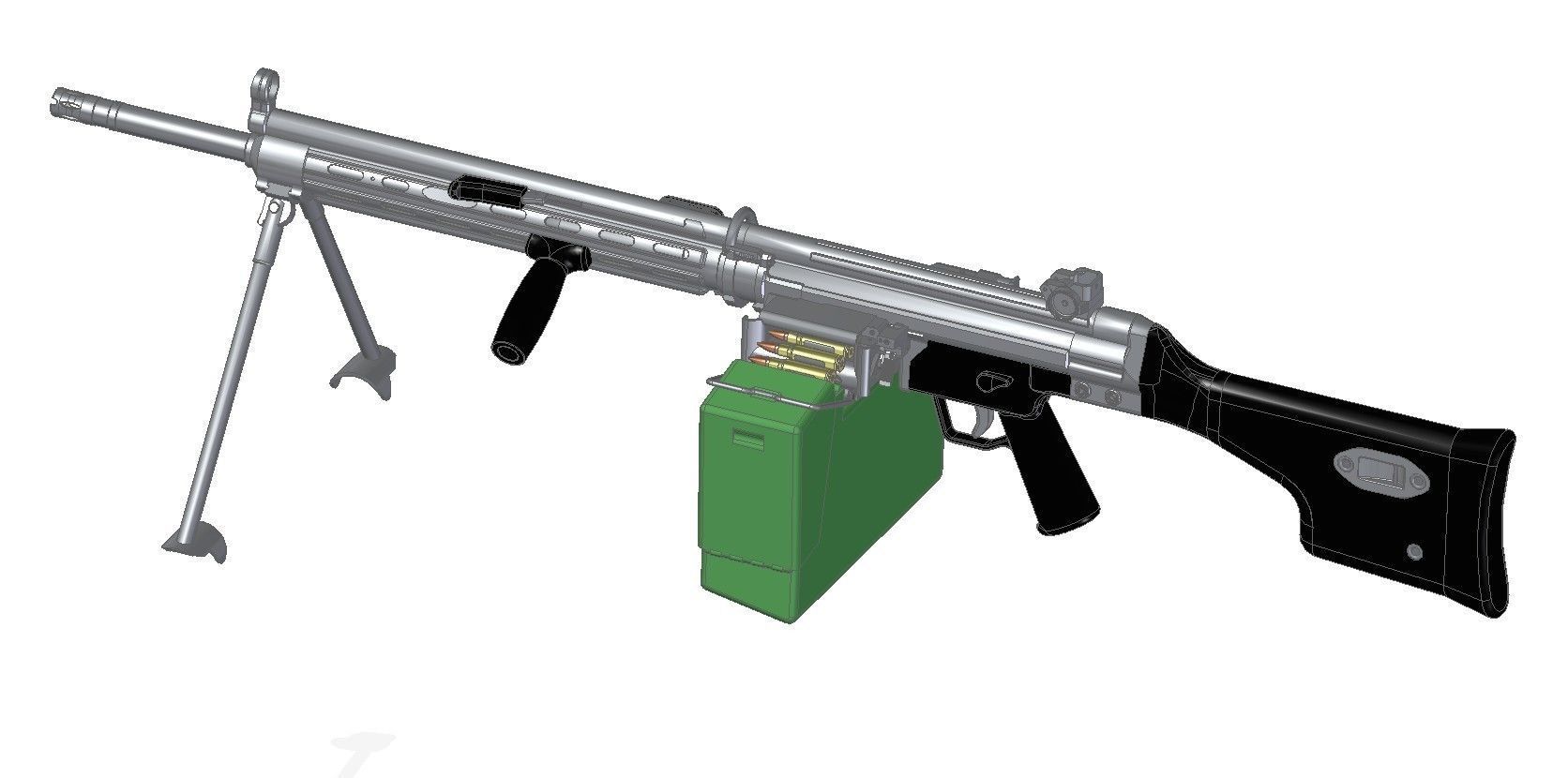

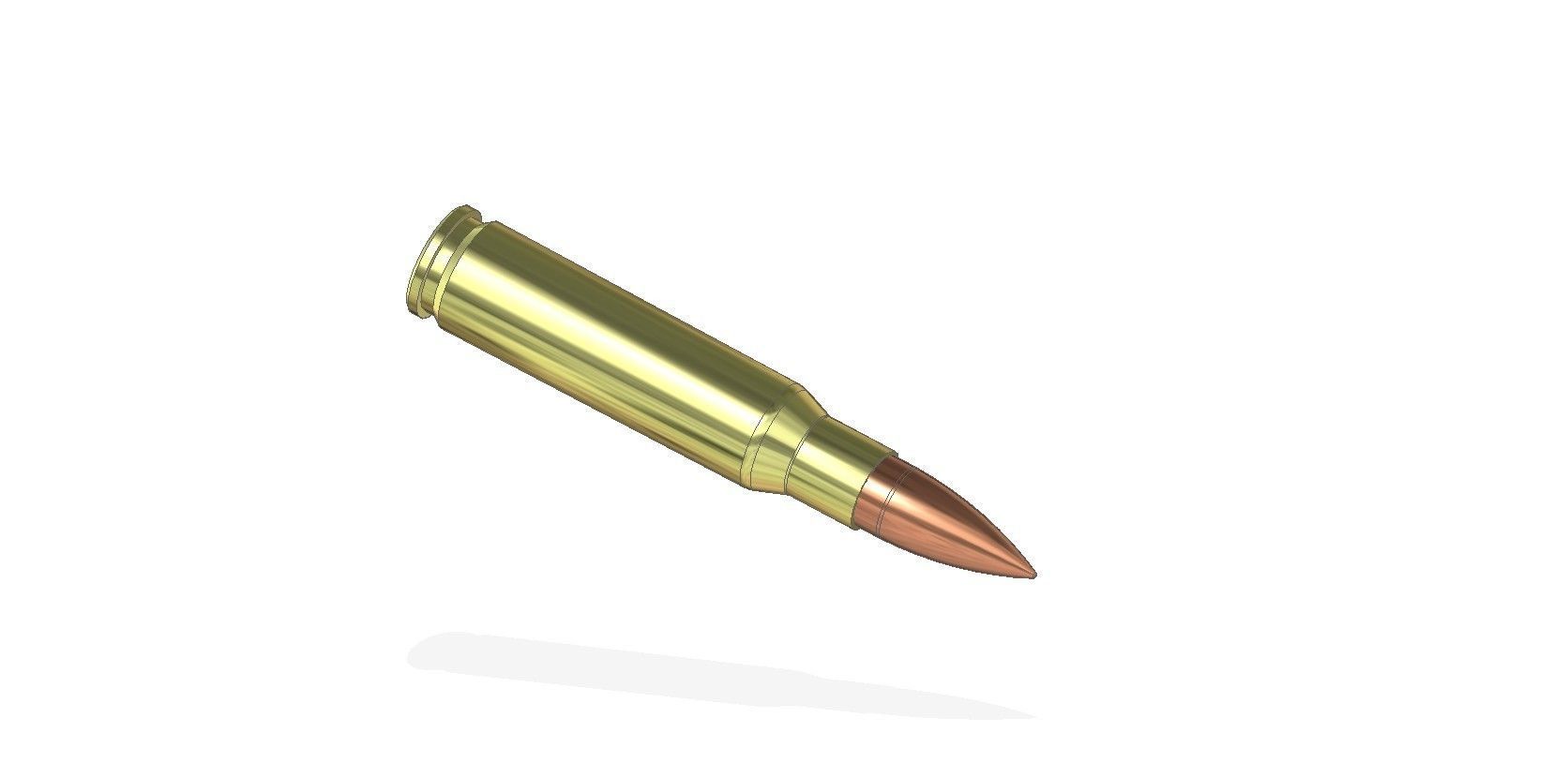

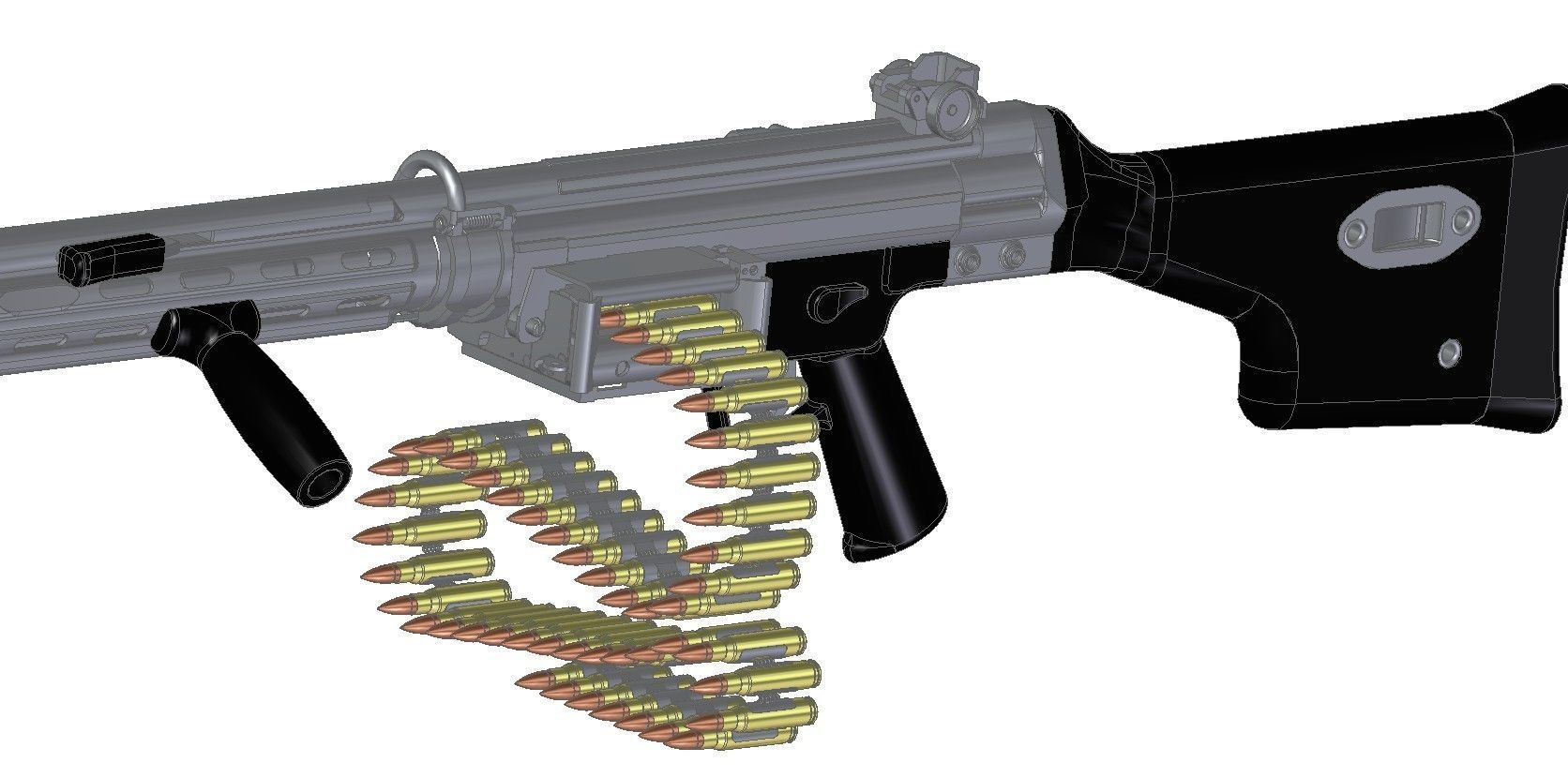

Full assembled model of HK21E LMG, 7,62X51 NATO bullet, assault grip, belt for 50 rounds, belt box and bipod.

Model is good for weapon mechanic animation, games and for visual education.

Notification: if You need low poly model You can contact me here or : 27608166@mail.ru (too many polygons is because of belt and 50 bullets in assembly)

The HK21 is a German 7.62 mm general-purpose machine gun, developed in 1961 by small arms manufacturer Heckler & Koch and based on the G3 battle rifle. The weapon is in use with the armed forces of several Asian, African and Latin American countries. It was also license-manufactured by Fábrica de Braço de Prata in Portugal as the m/968 and in Mexico by SEDENA as the MG21. In the German military (Bundeswehr) and the federal police (Bundespolizei) it is designated G8.

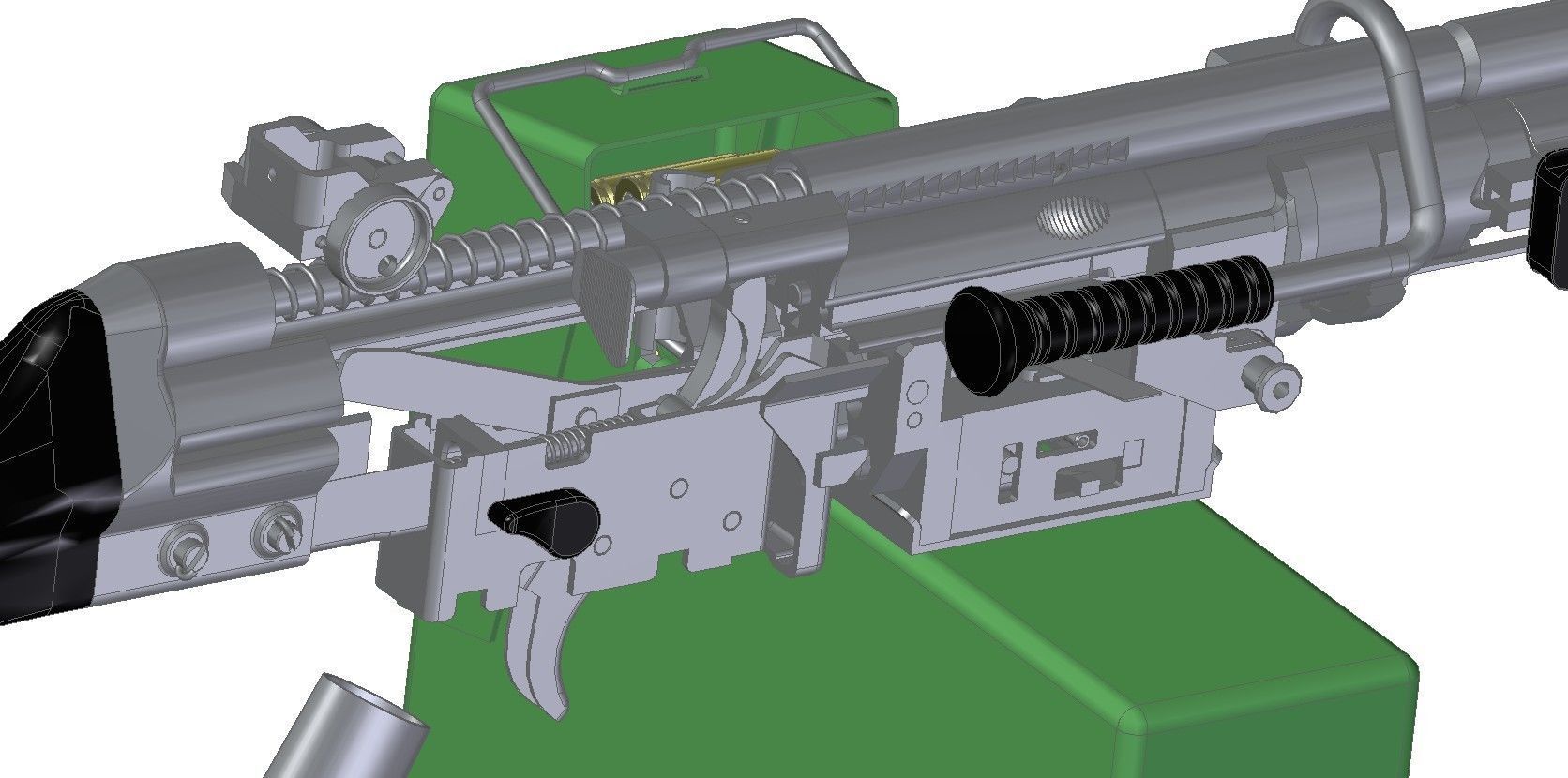

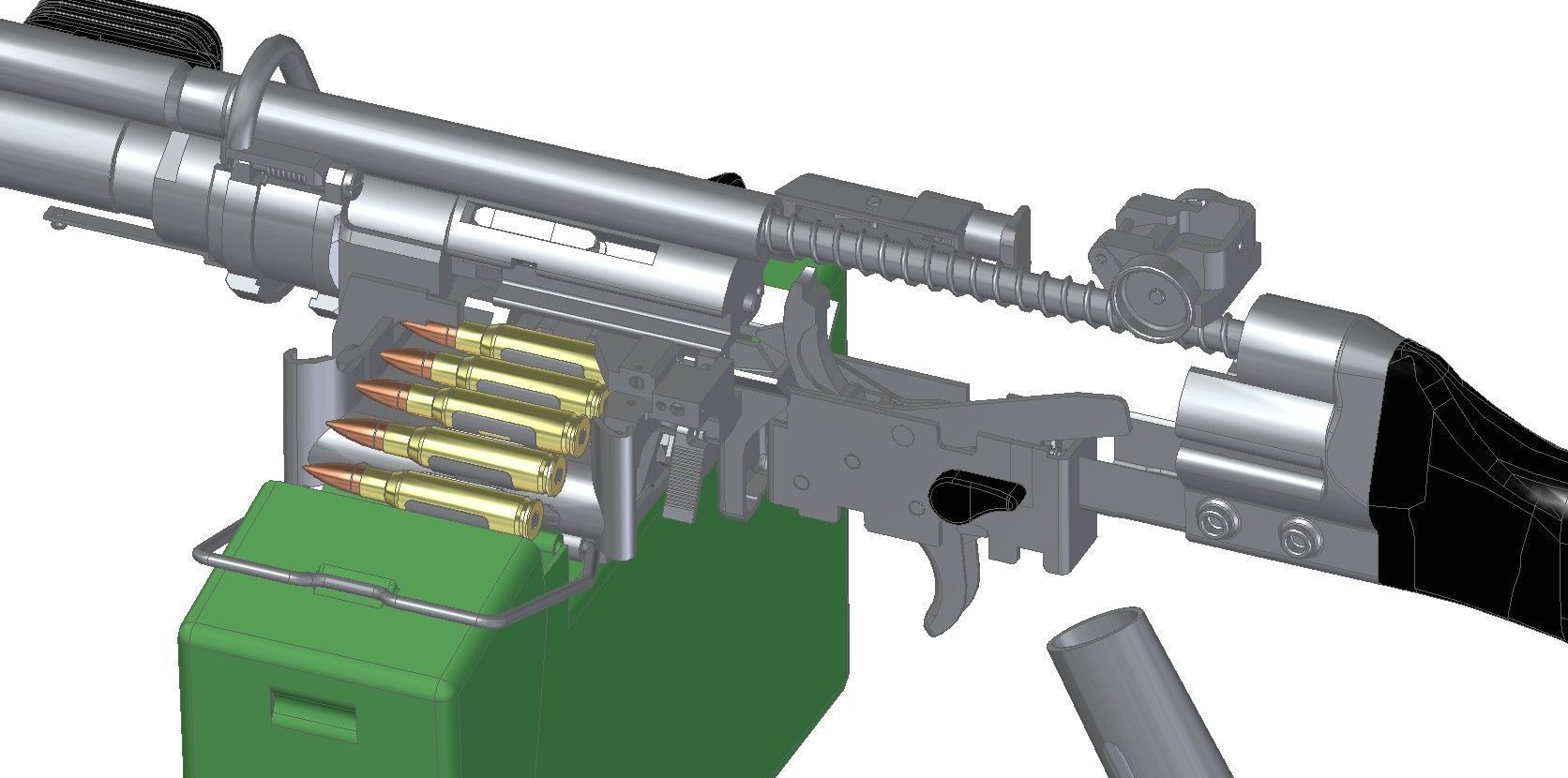

The E model is a thoroughly revised variant aimed to improve the reliability, efficiency and service life of the weapon. For this the length of the receiver was increased by 25 mm (1.0 in) to provide additional recoil length for the bolt group. The recoil reduction improved accuracy of fire. Reinforcing bars were added to the receiver to provide additional strength and a guaranteed 60,000 rounds minimum service life. The bolt head, extractor and locking roller holder were completely redesigned as were the bolt carrier and recoil spring assembly, belt feed unit, buffer, barrel and trigger group. The redesigned belt feed mechanism transports the ammunition belt in two steps reducing stress on the feed and ammunition belt.

Compared to the older HK21A1 and HK11A1, the modernized Export weapons also feature a longer barrel shroud, extended by 94 mm (3.7 in) towards the front, which also resulted in a longer sight radius; the barrel trunnion was modified (the HK21E also received a longer barrel); a burst fire mode was incorporated into the trigger group as the fourth selector setting (3-round burst); a polymer barrel handle was added; space for a cleaning kit was added in the grip; the rear sight was modified with an adjustable drum; a bipod with a 3-position height adjustment and 30 degree tilt mechanisms replaced the simple folding bipod; the feed mechanism was modified to provide continuous feeding (by moving the belt in two stages, during both forward and rear movement of the bolt), a forward assist for silent loading was provided and the machine guns were adapted to use NATO-standard optical sight mounts.

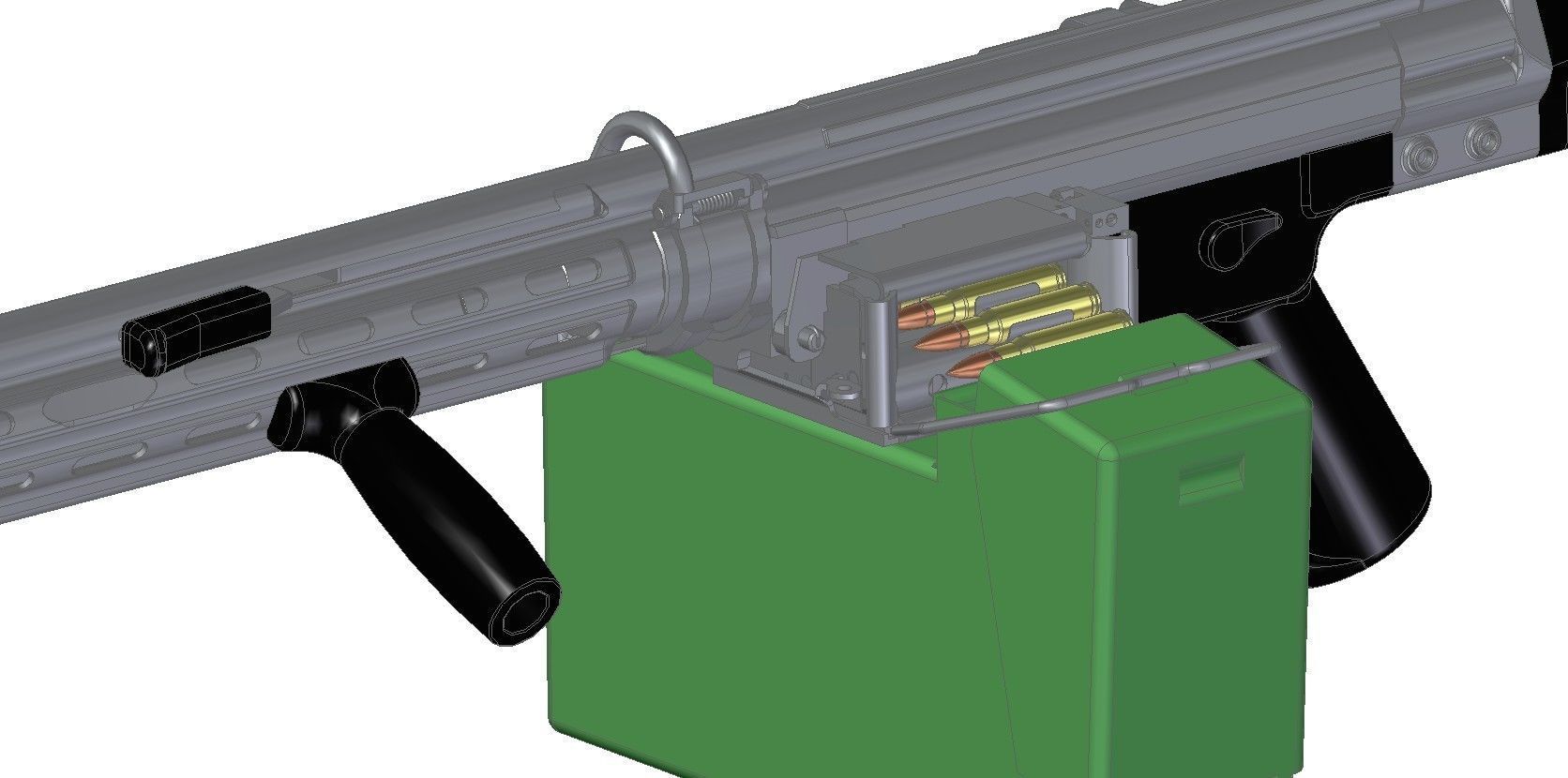

When employed in the light machine gun (infantry assault) role, the HK21E stores its ammunition belt in a 100-round sheet metal container, fastened to the bottom of the feed mechanism (as in the HK21A1). The ability to use G3 or STANAG (for HK23E) box or drum magazines is available with an optional feed module kit that consists of the bolt, recoil spring and belt feed module or magazine well. When employed in the belt-fed medium machine gun (fire support) role the HK21E provides a cook-off rate in excess of 1,000 rounds fired in quick succession. The shock-absorbing tripod weighs 10.5 kg (23.1 lb).
