HK G3A4 3D model

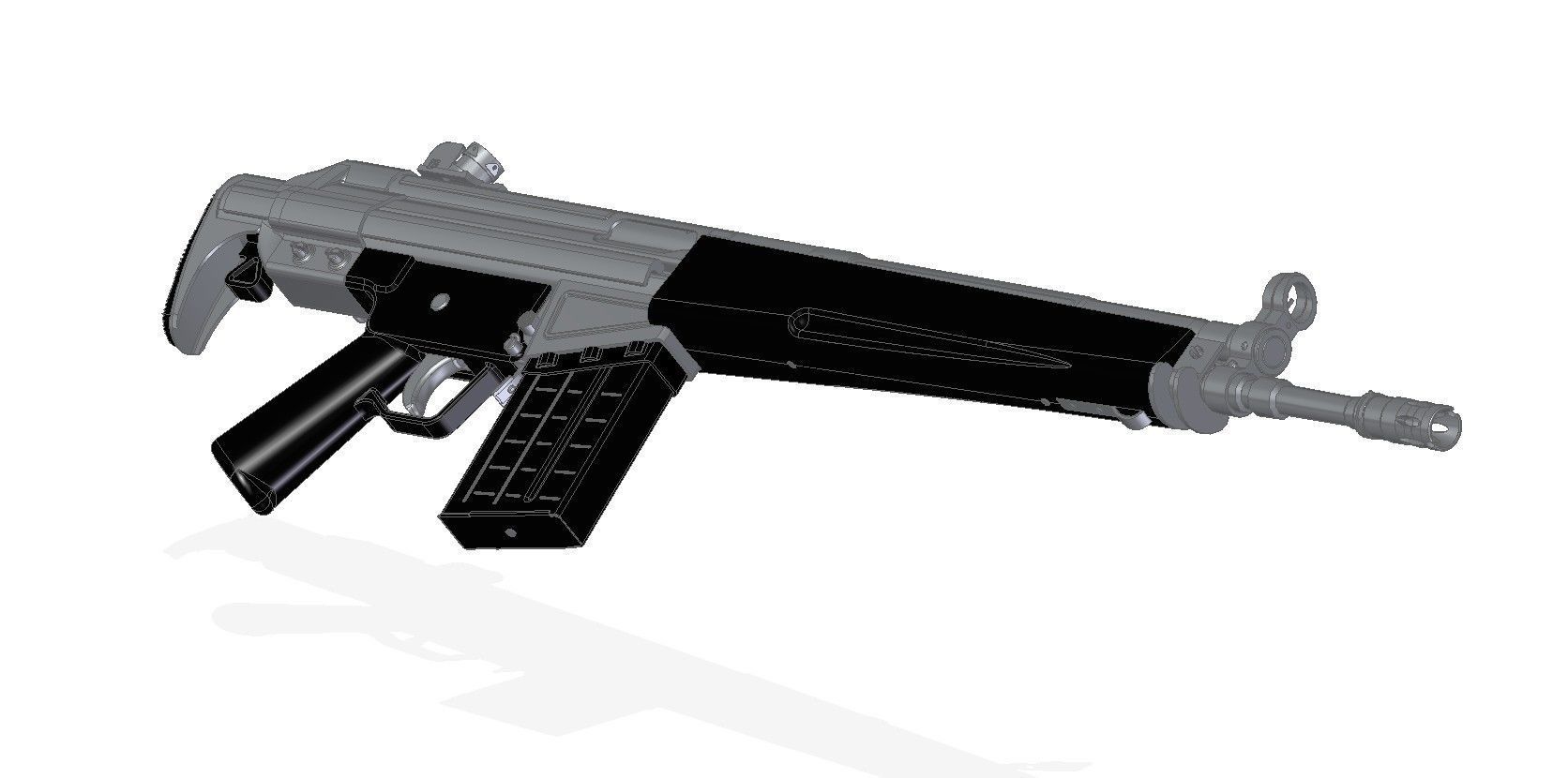

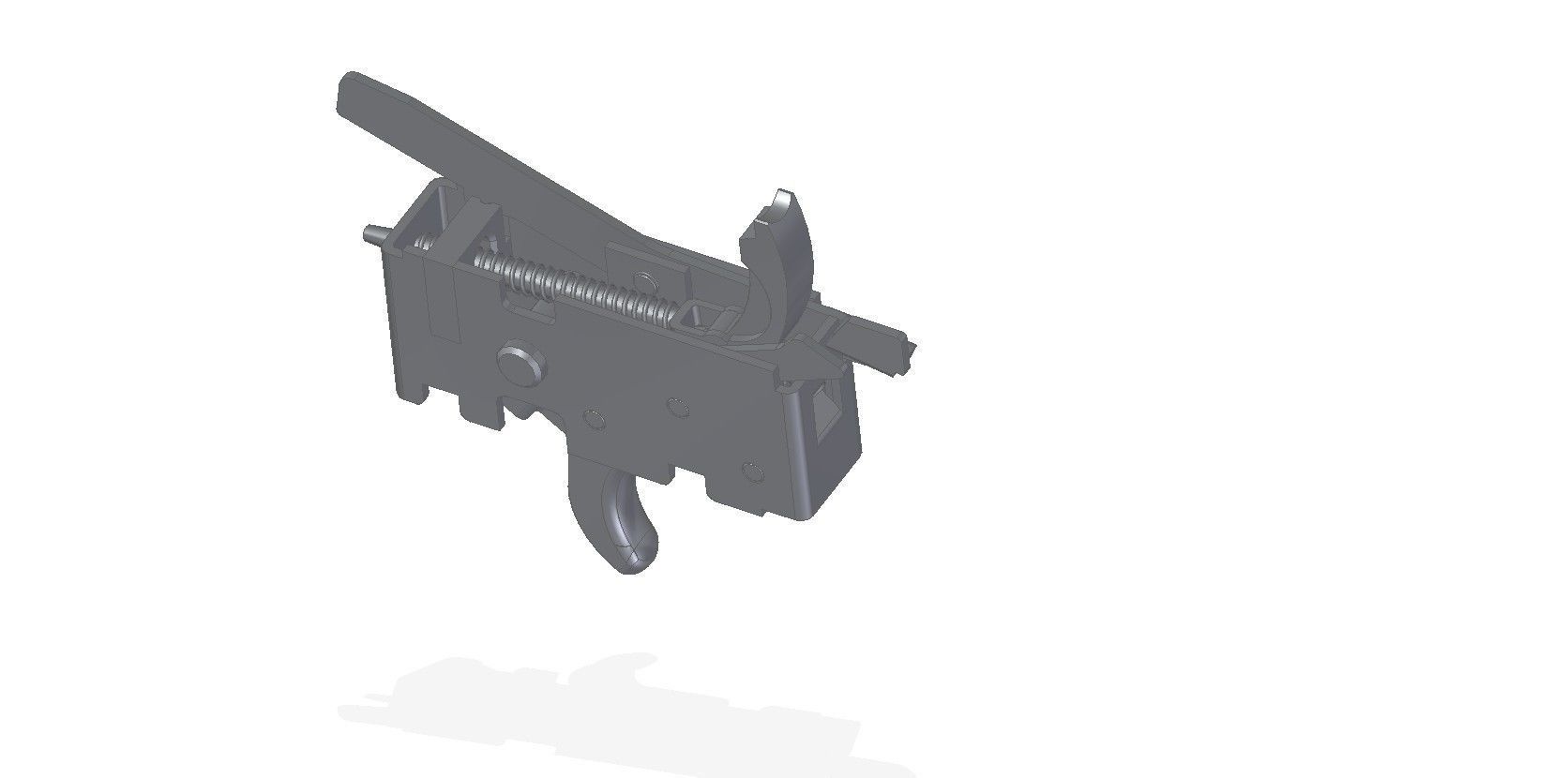

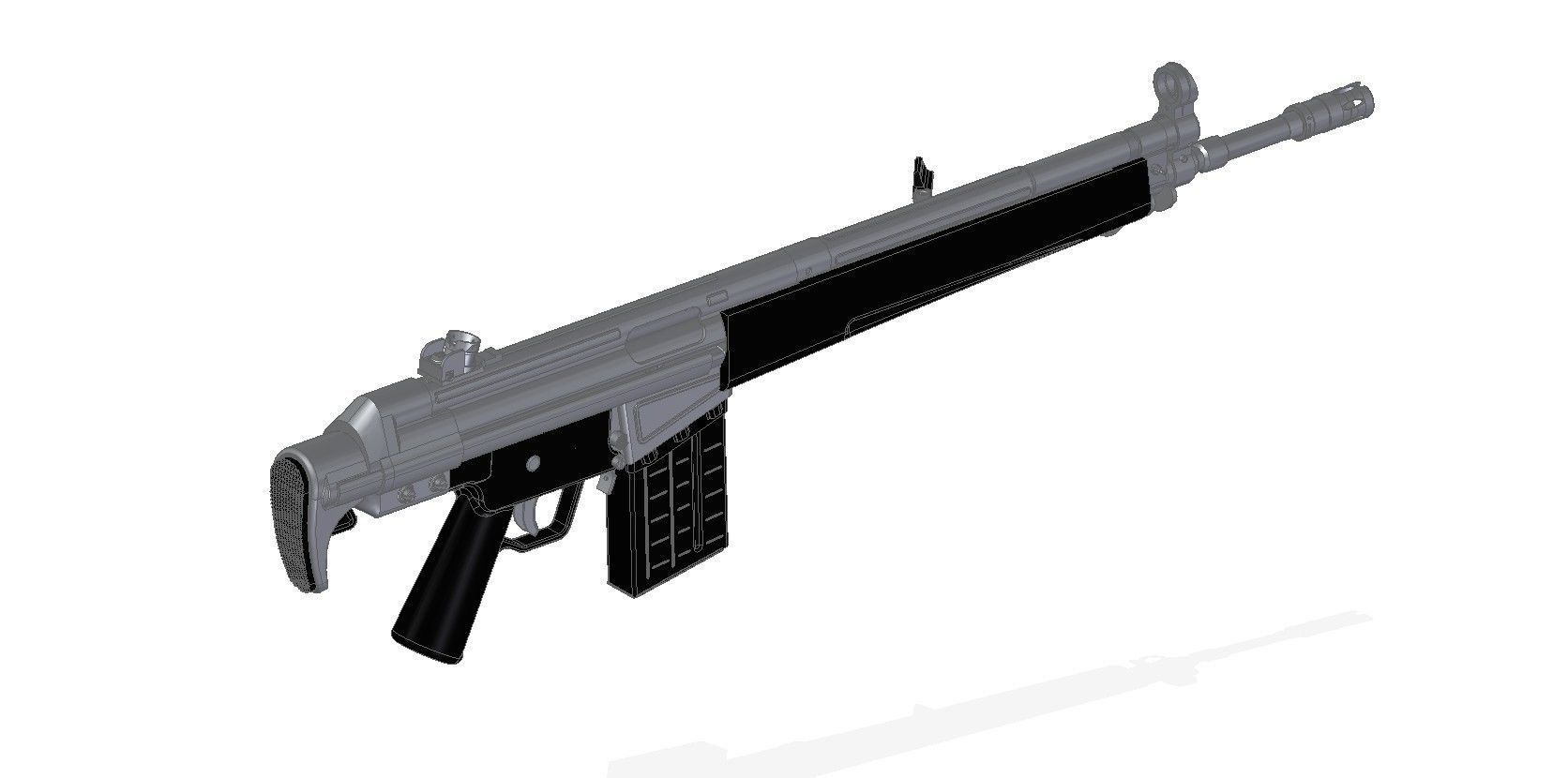

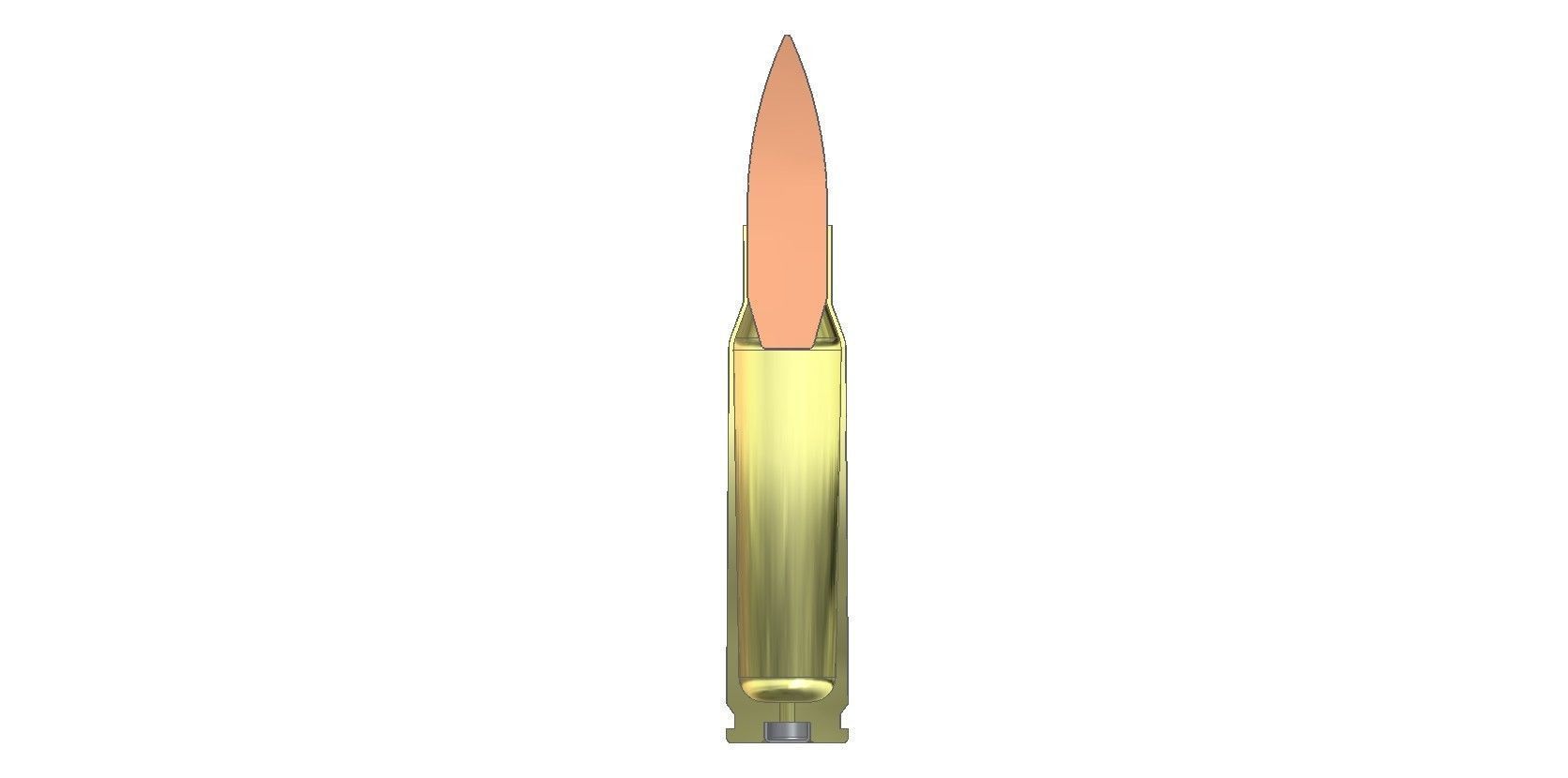

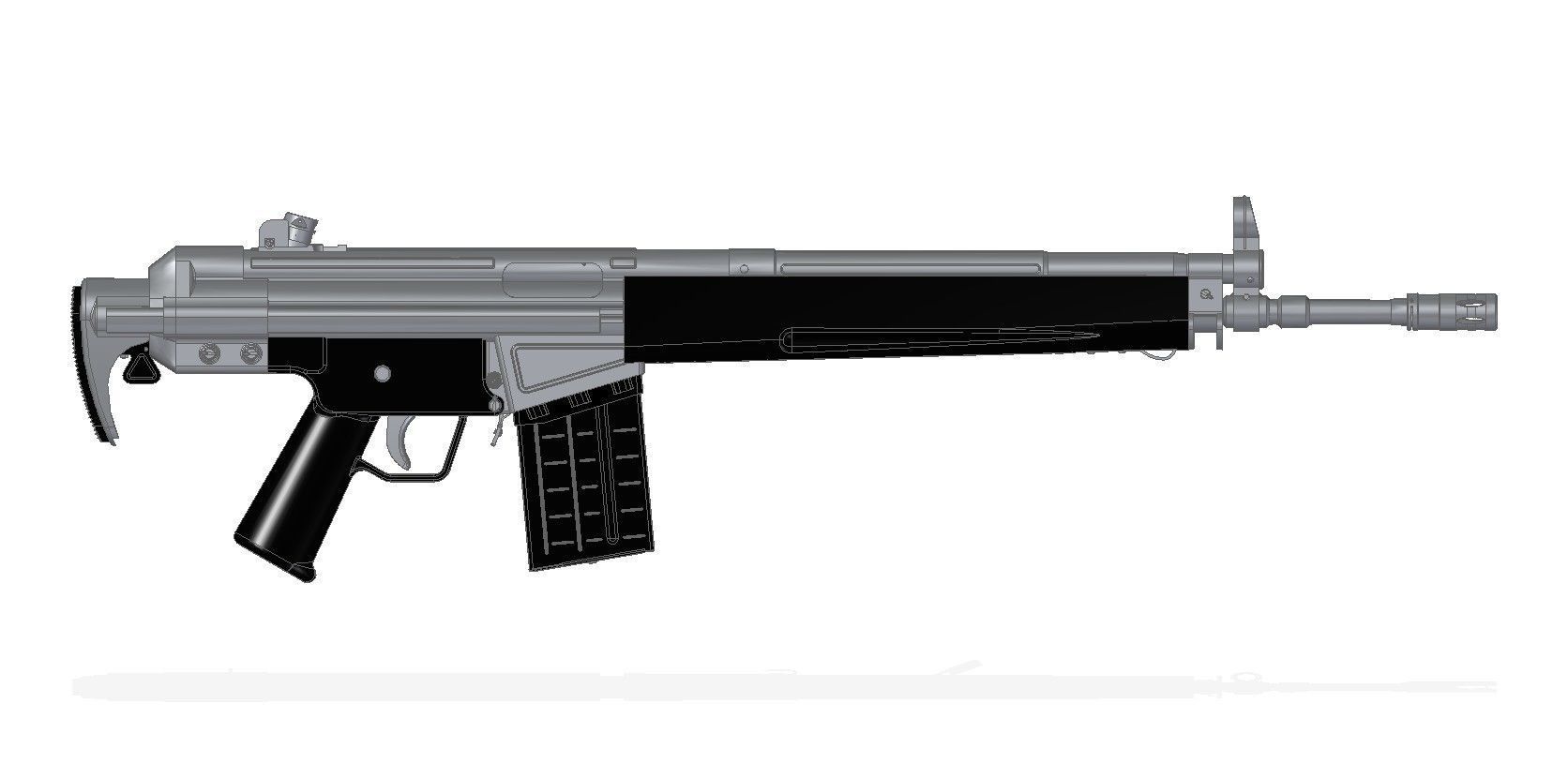

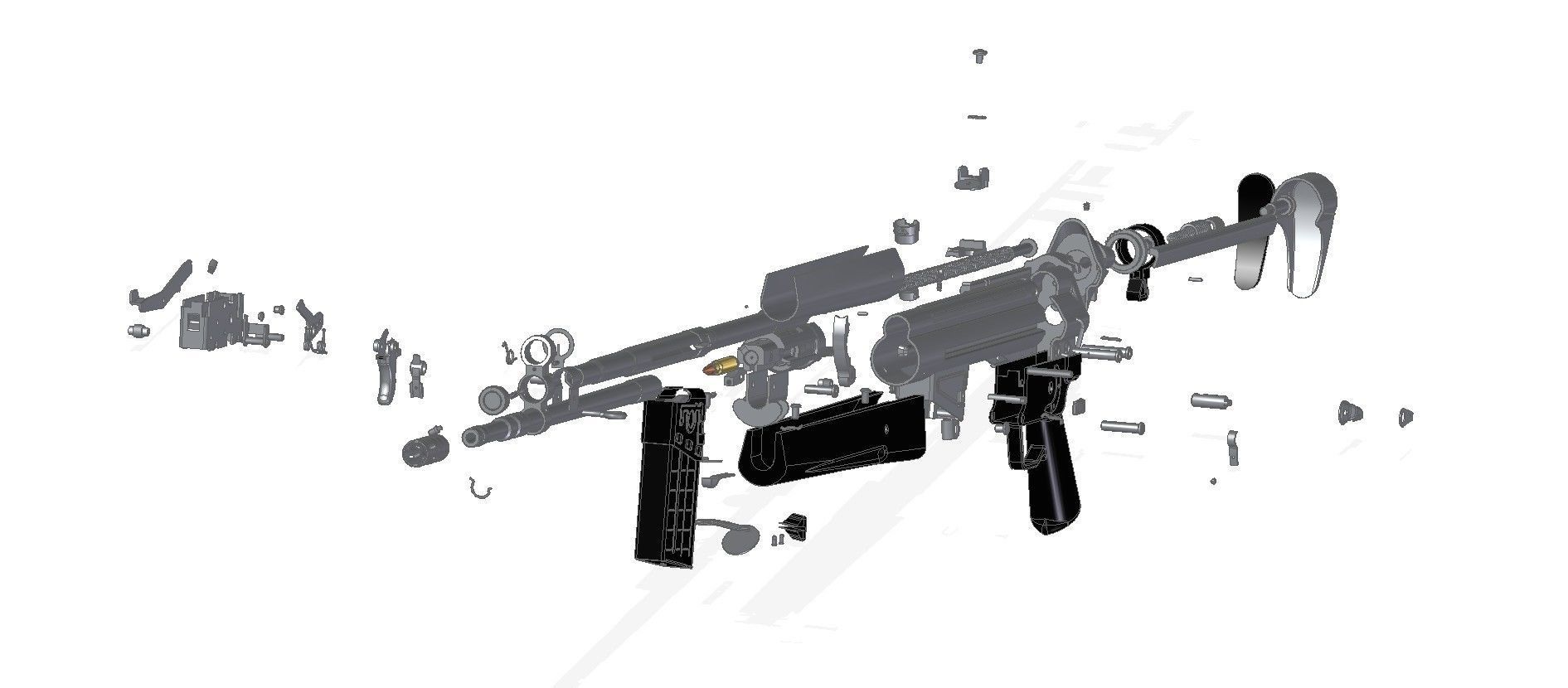

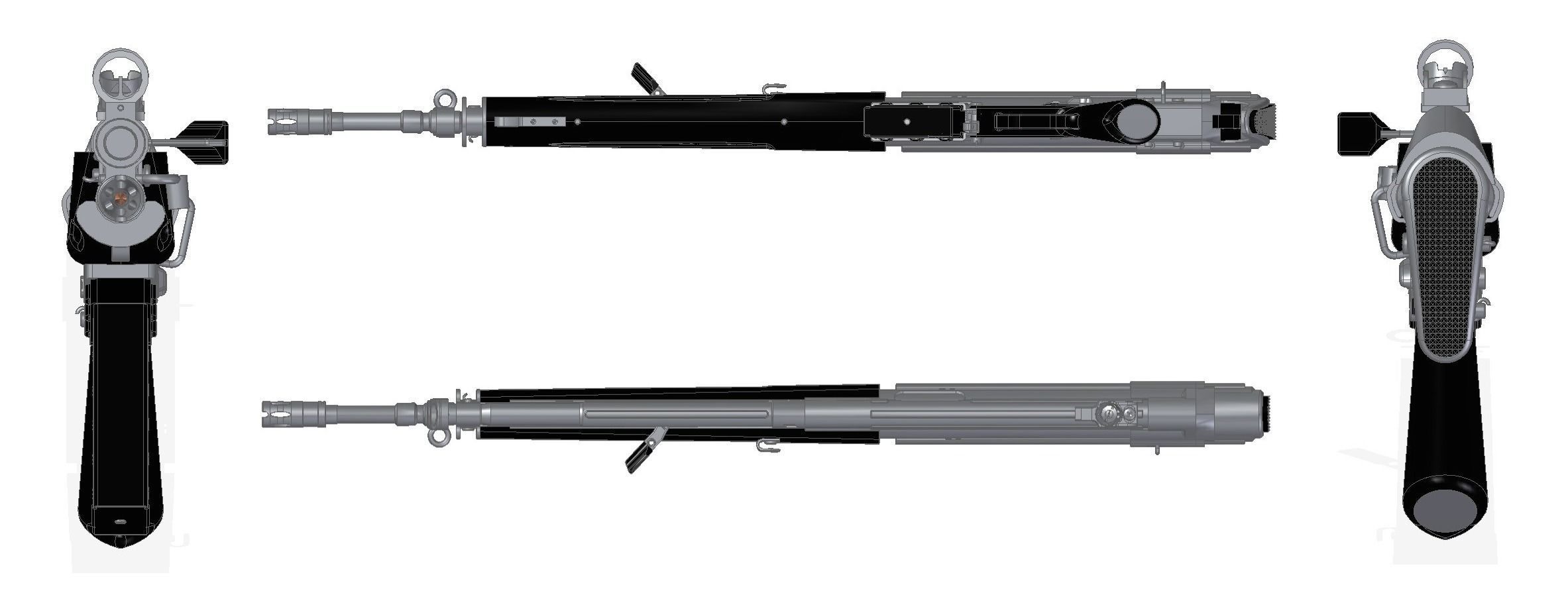

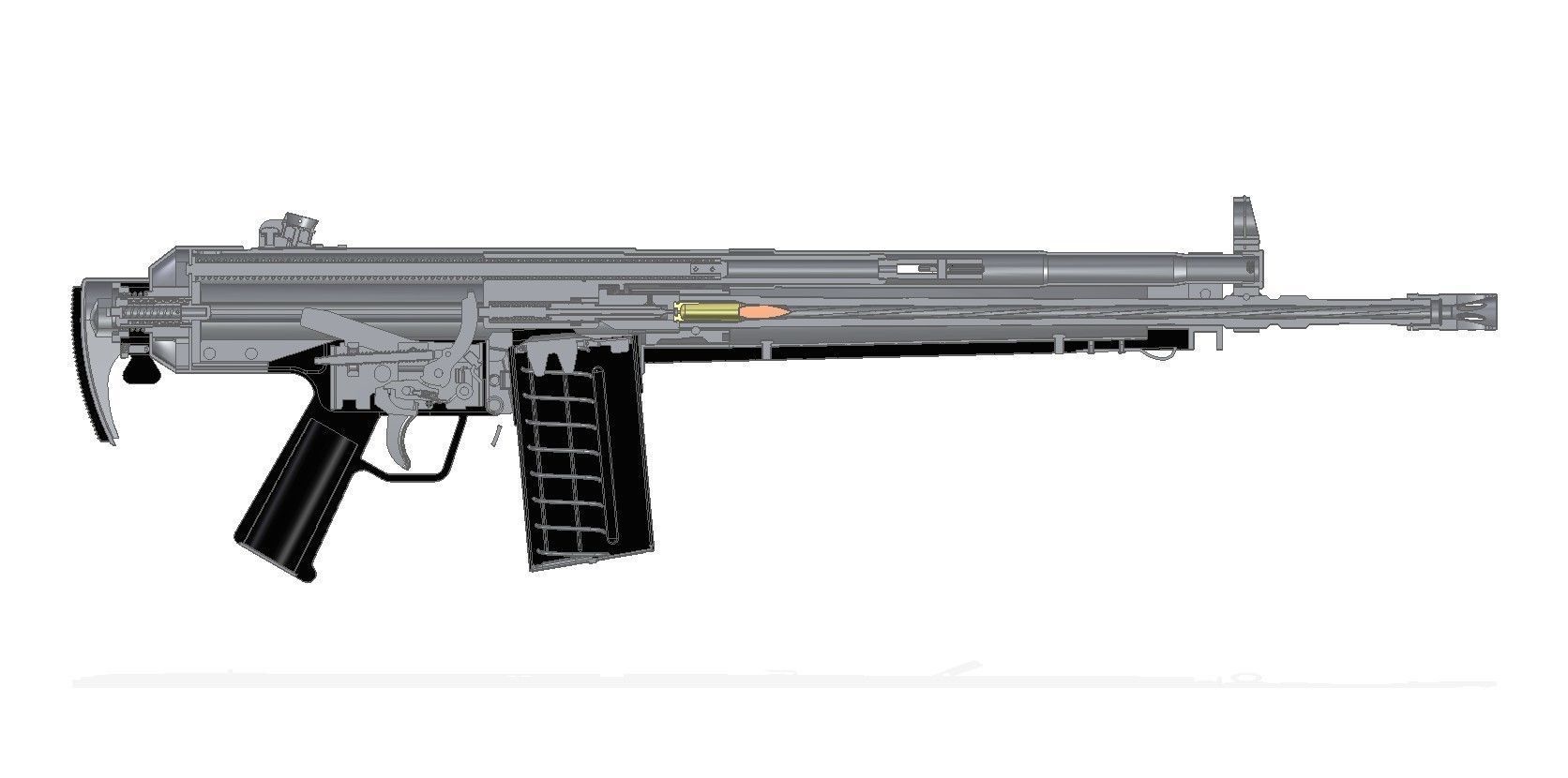

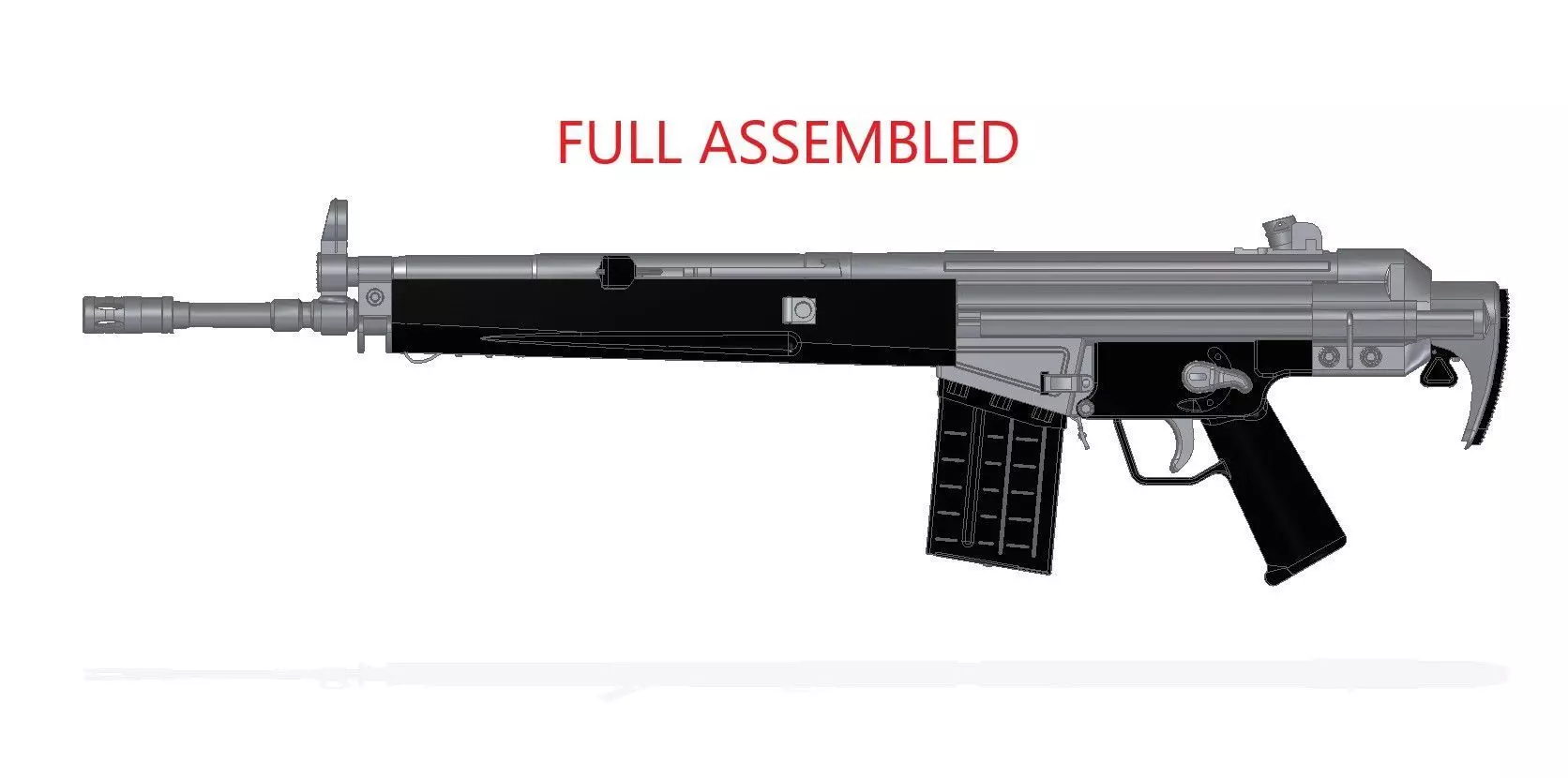

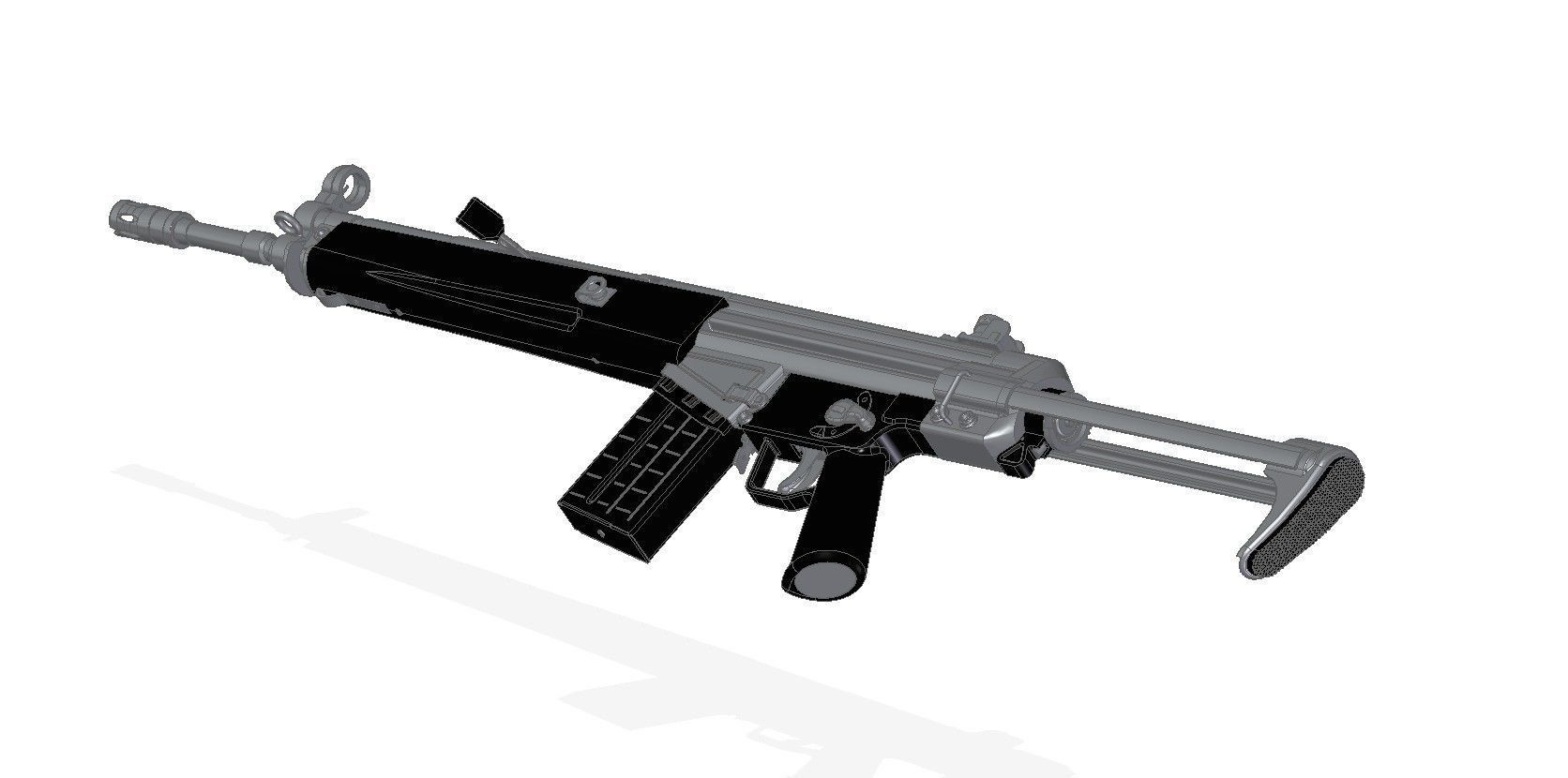

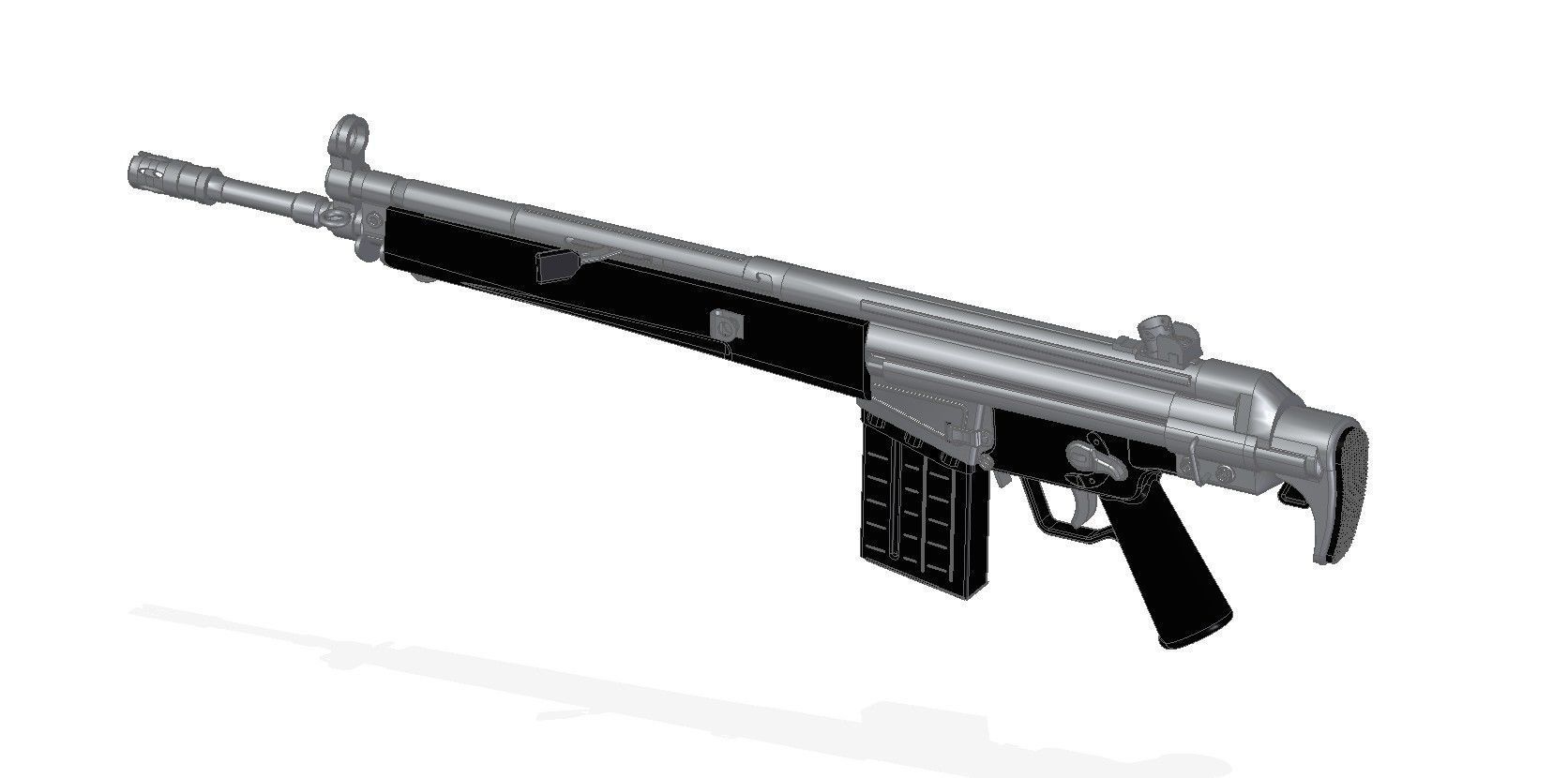

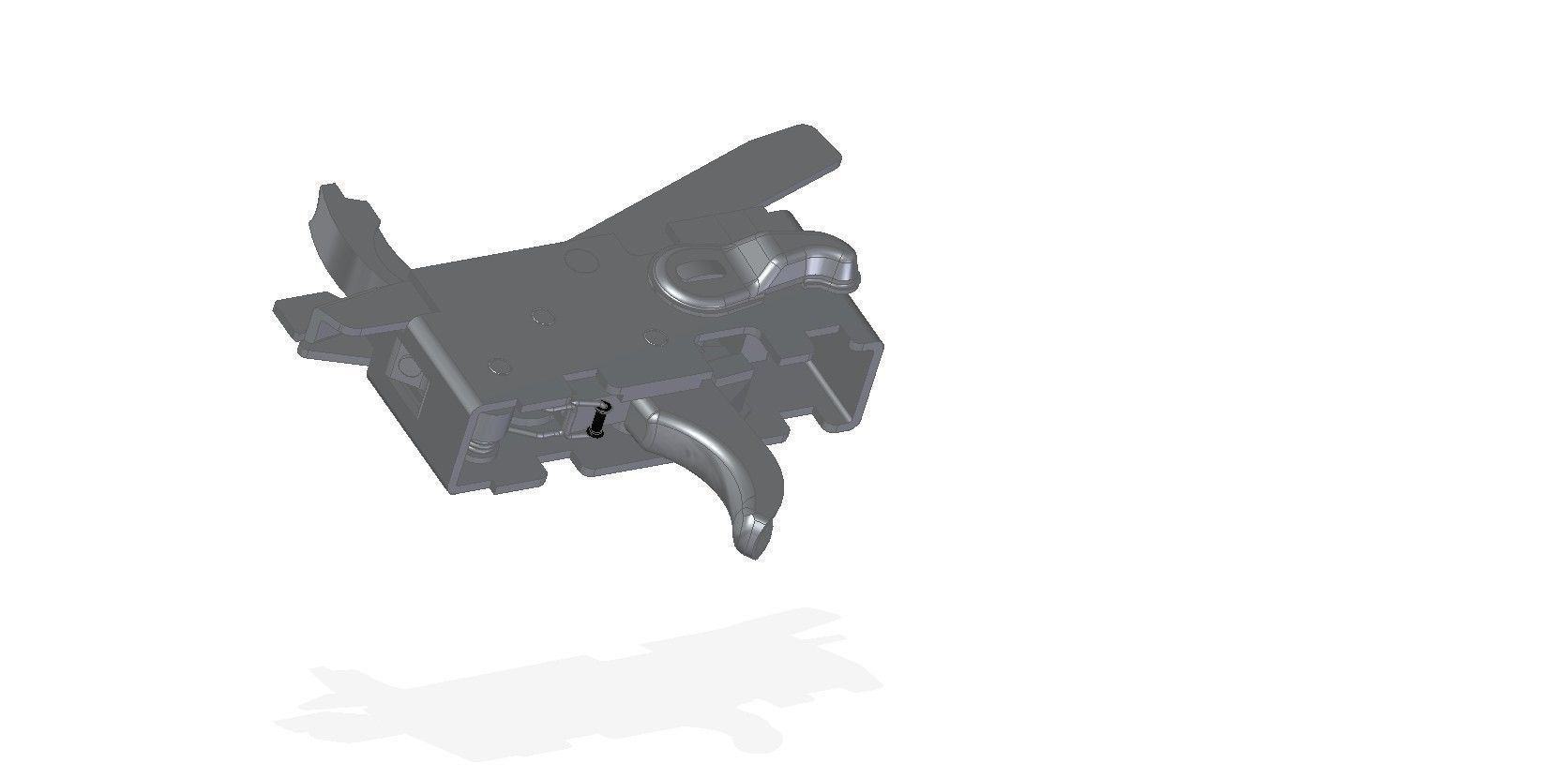

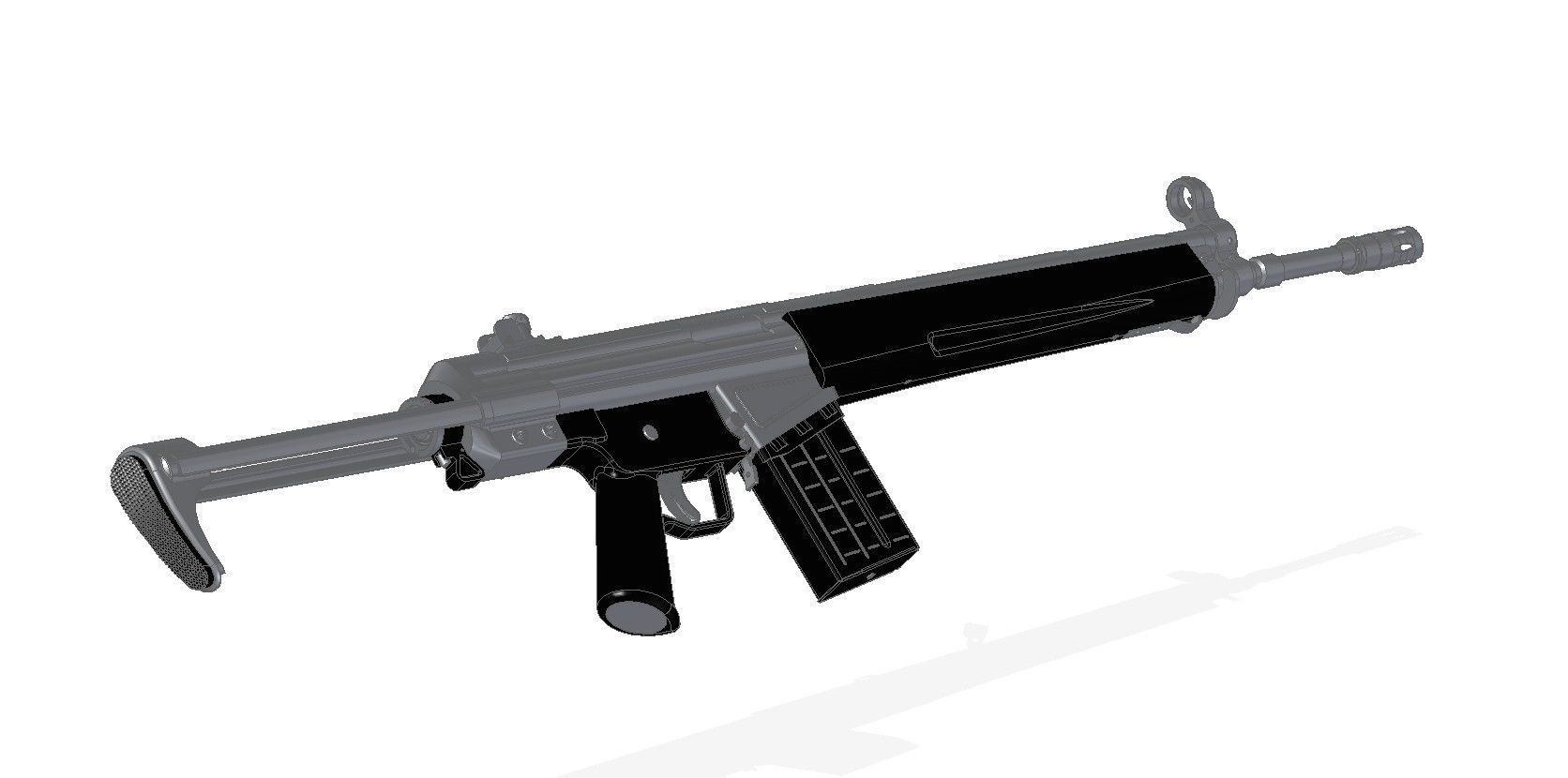

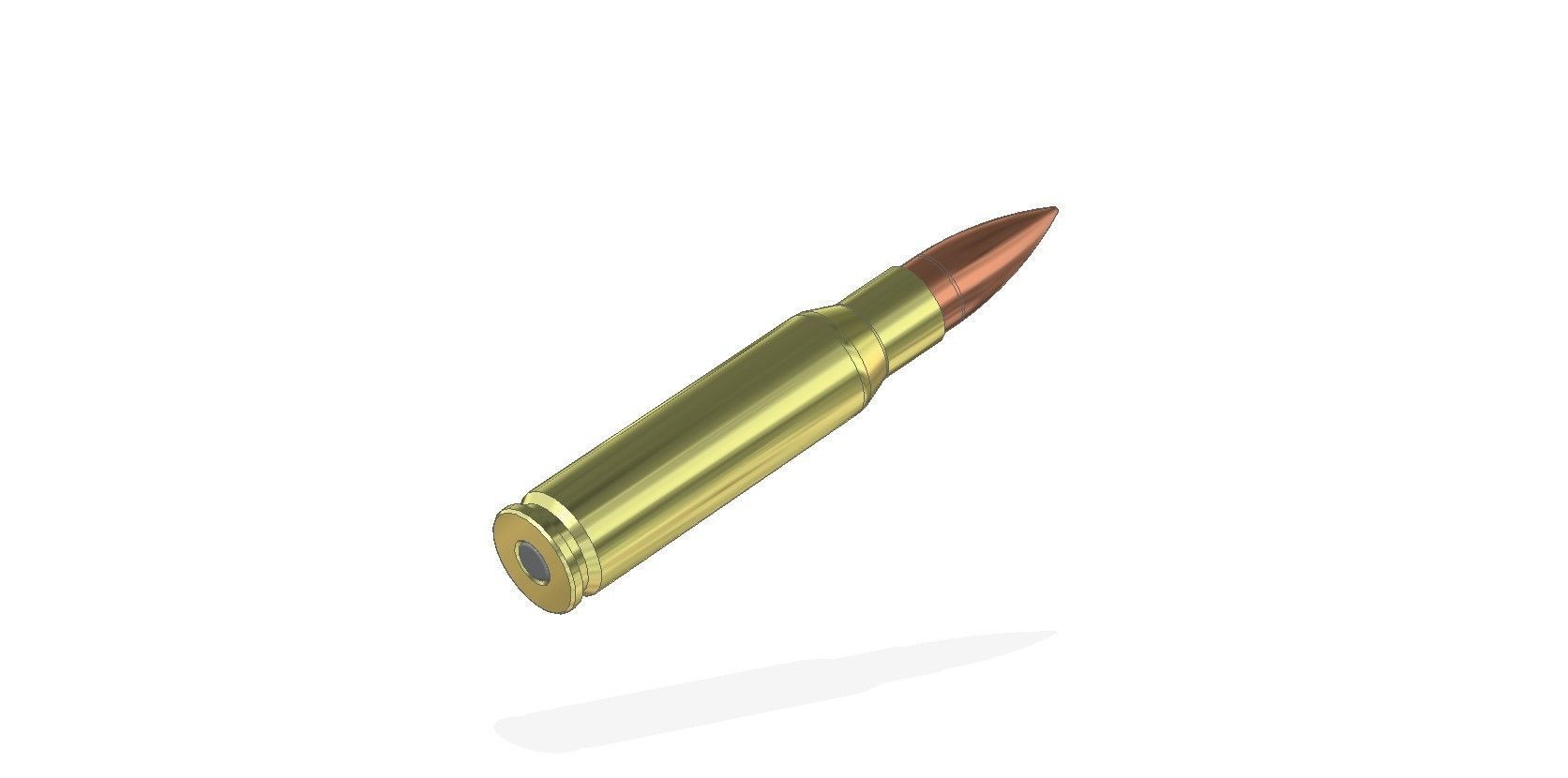

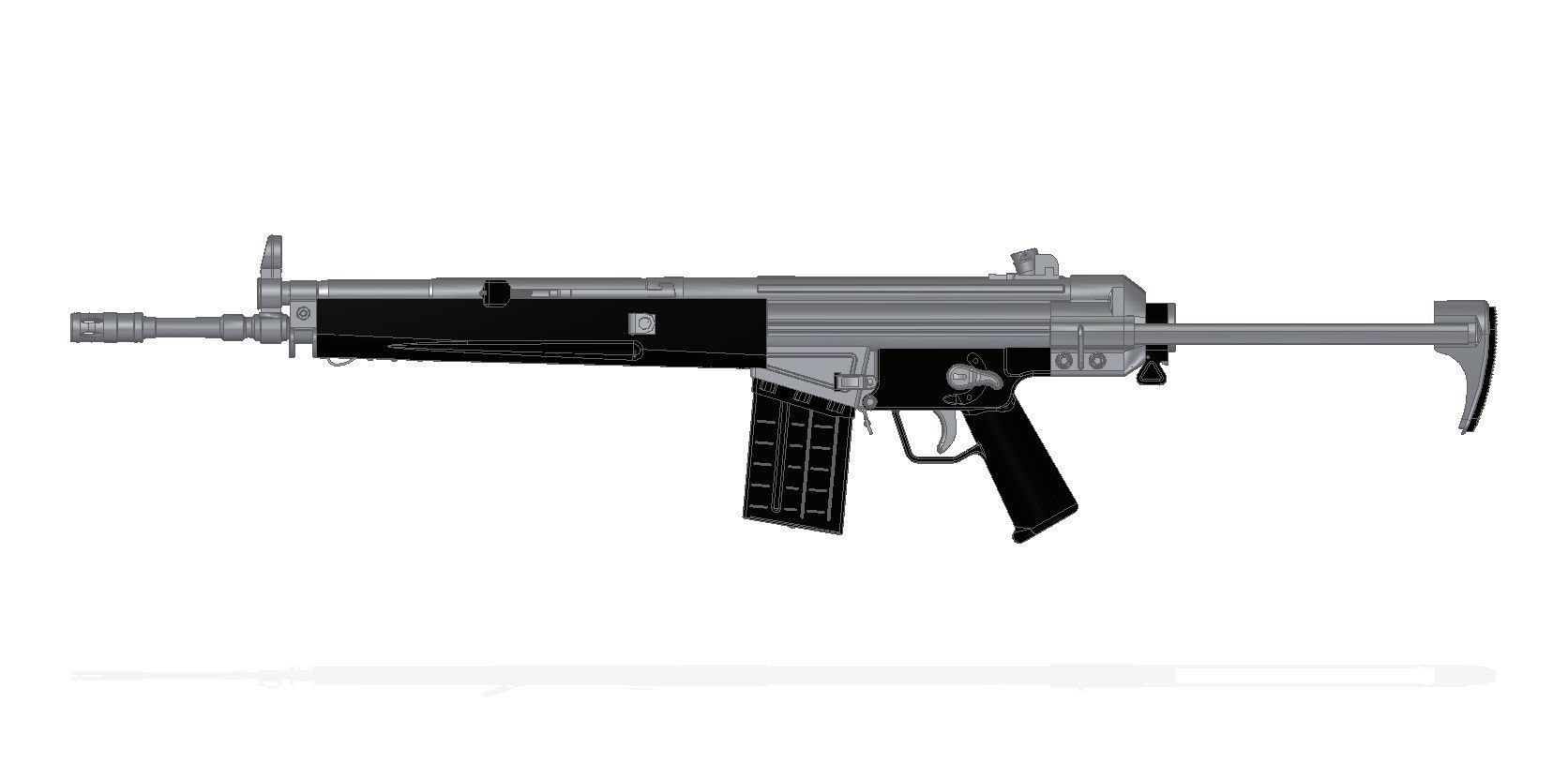

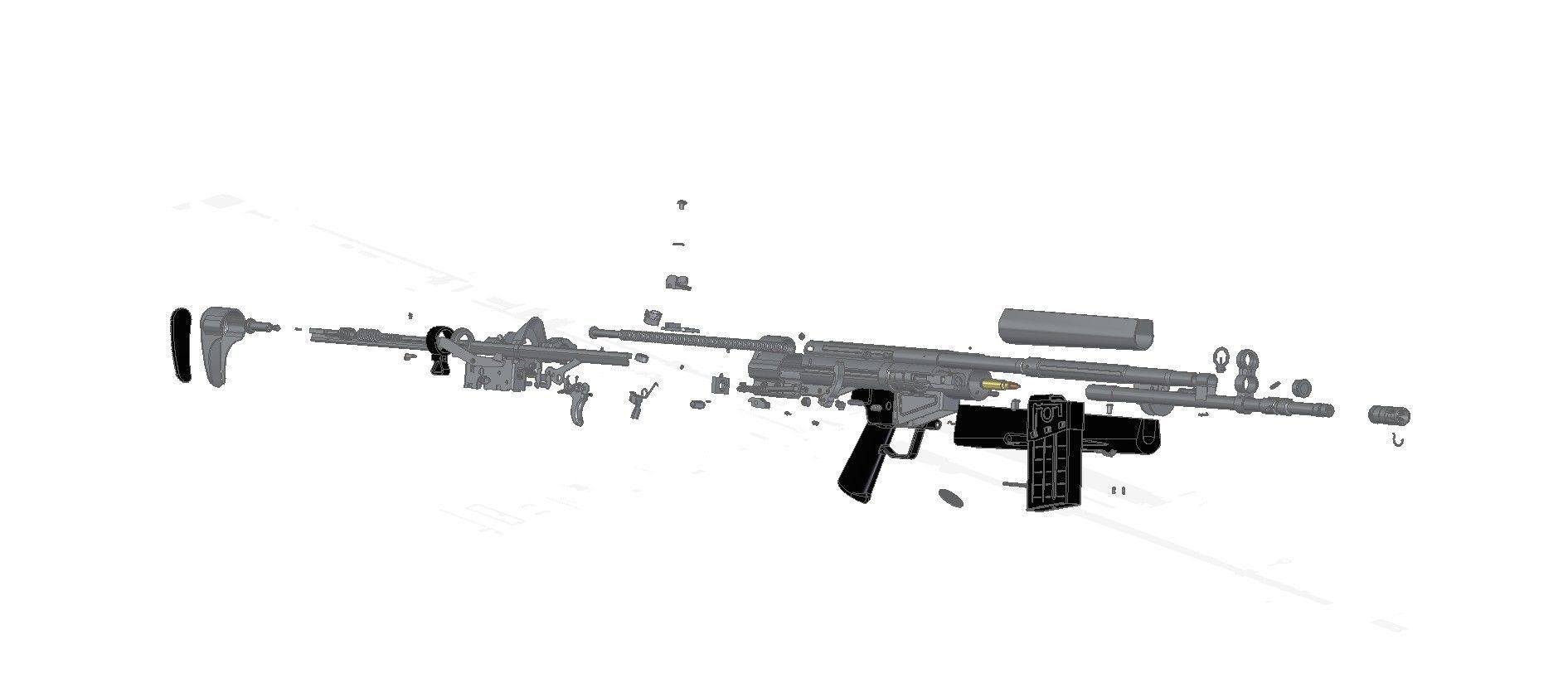

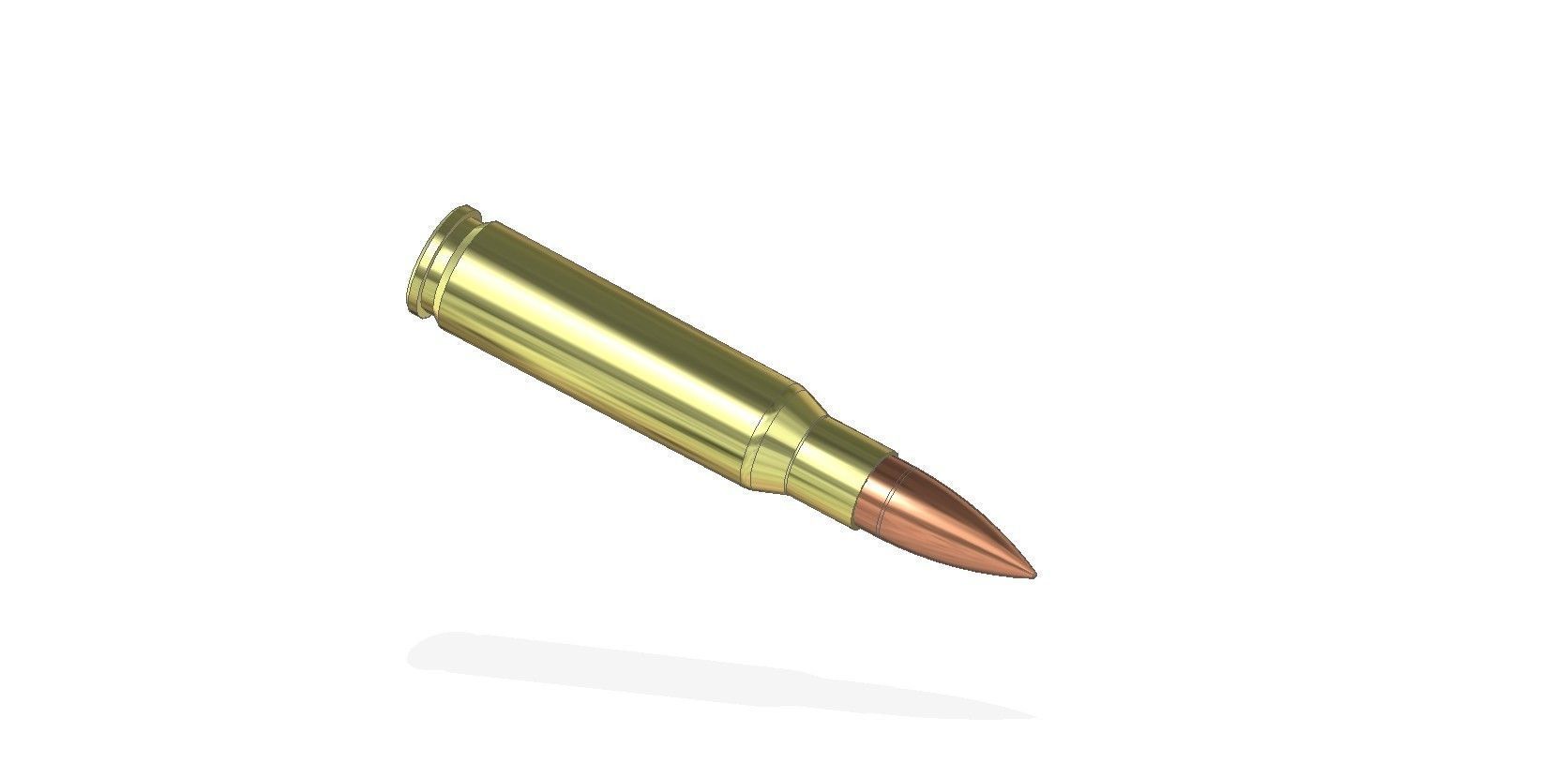

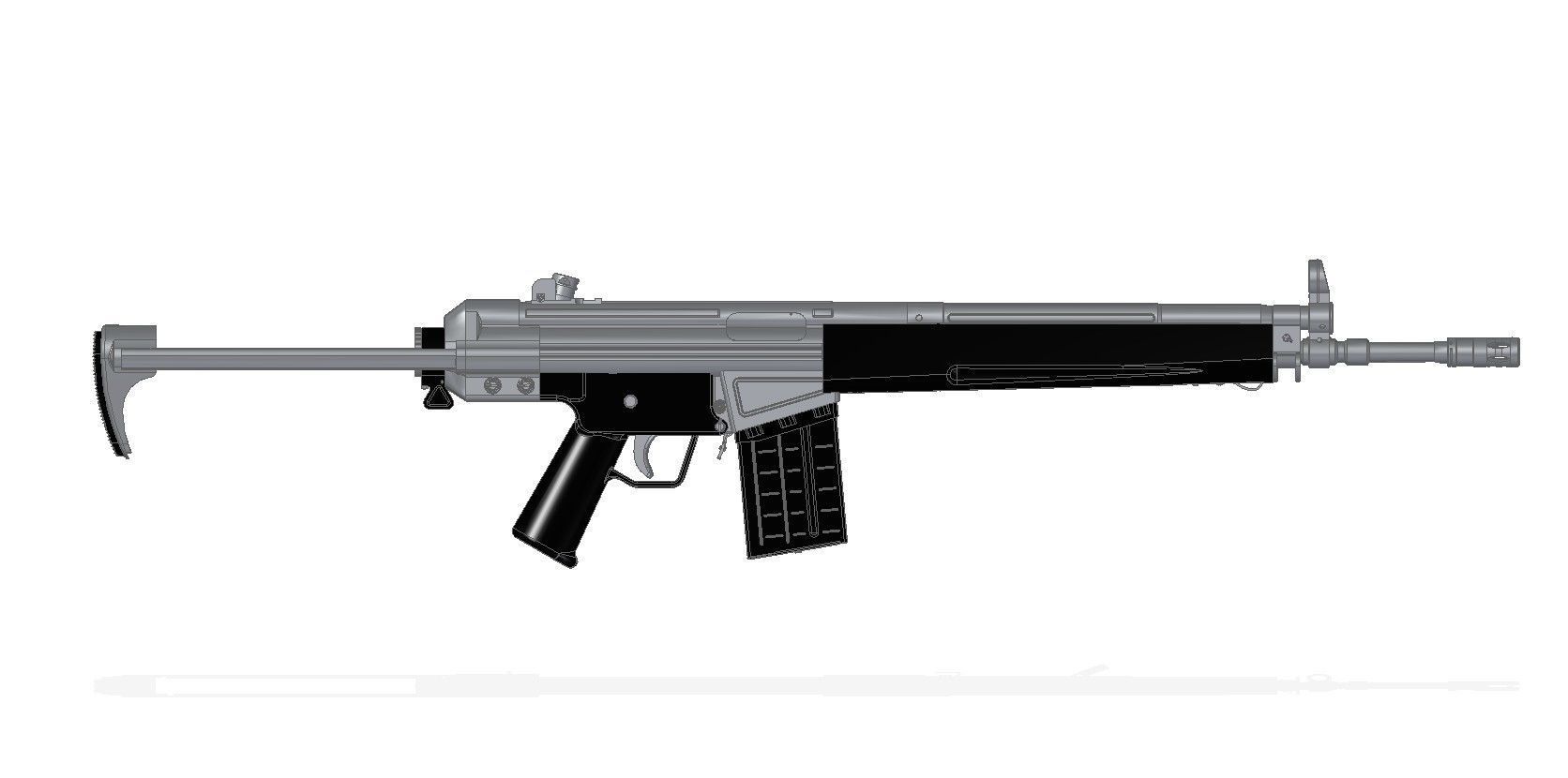

Full assembled model of german infantry rifle G3A4 and 7,62X51 NATO bullet. Model with plastical trigger housing collapsible stock and wide handguard.

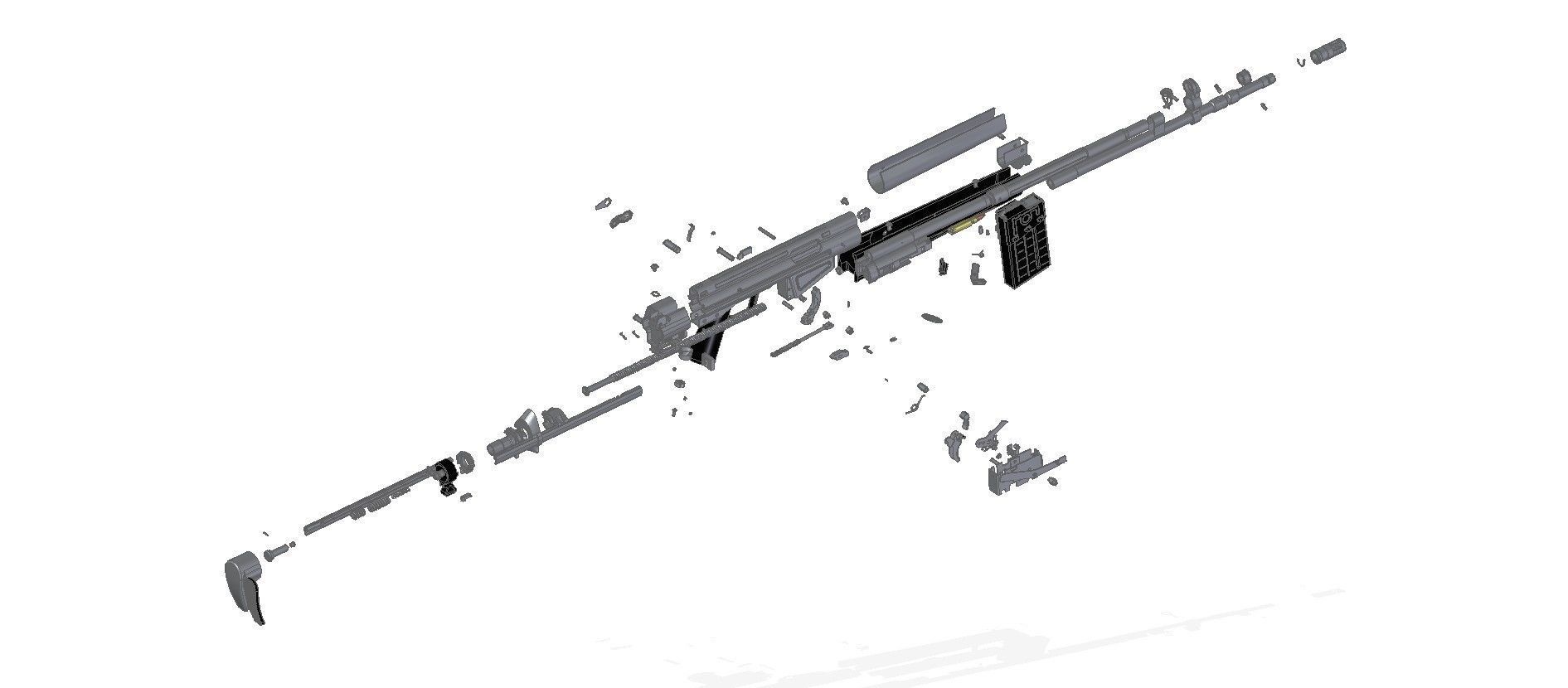

Model is good for weapon mechanic animation, games and for visual education.

Notification: if You need low poly model You can contact me here or : 27608166@mail.ru

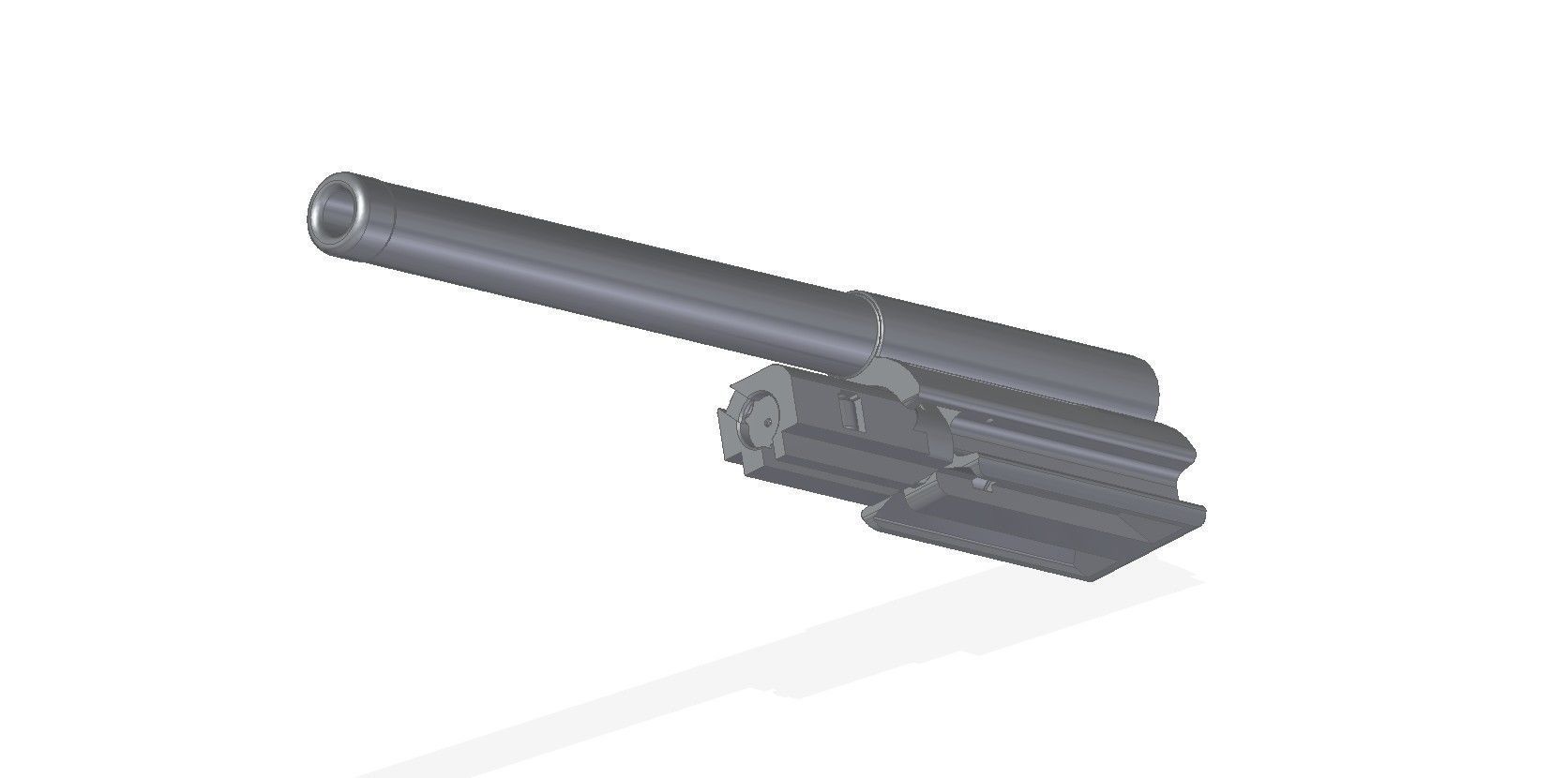

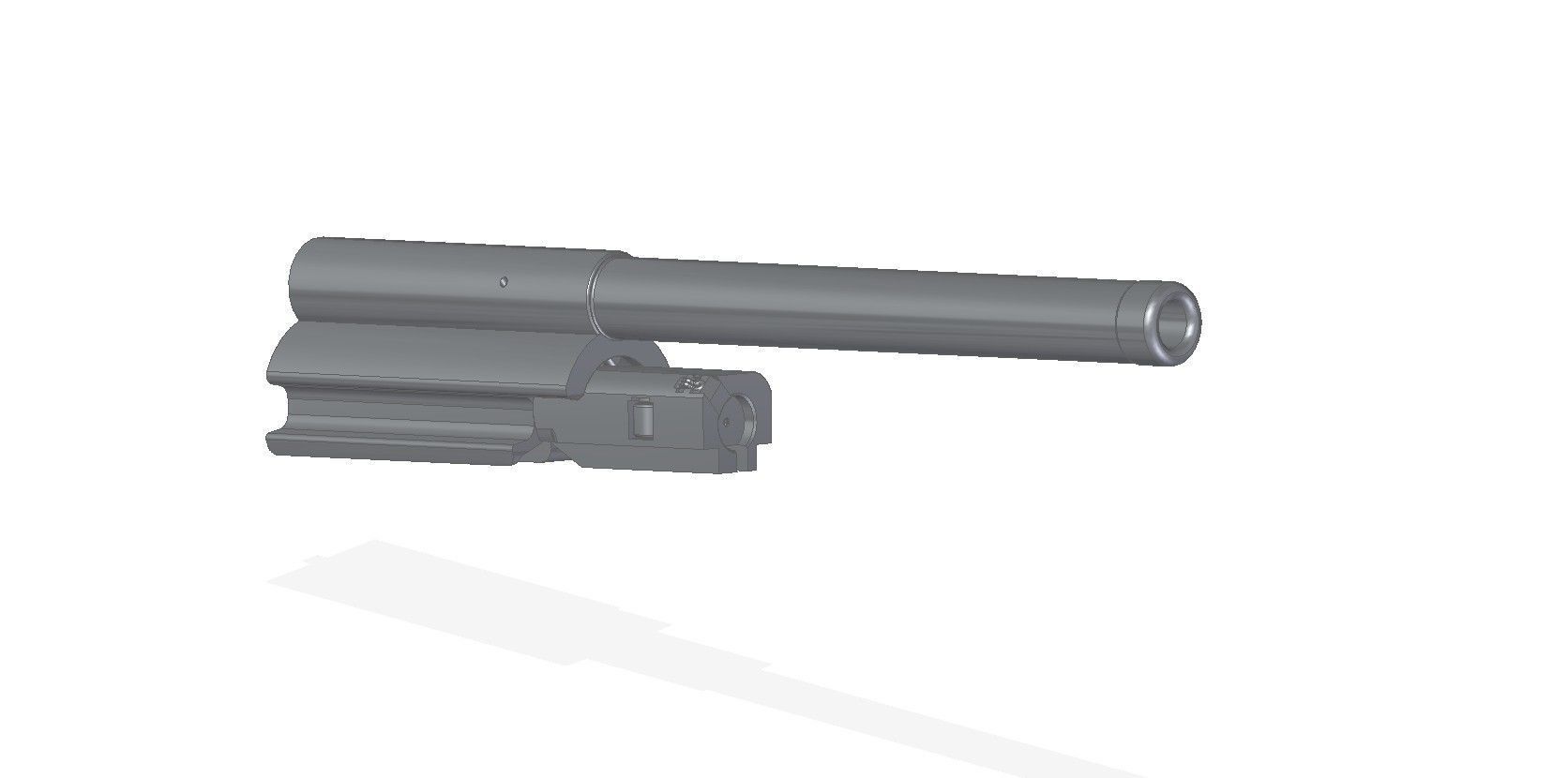

The G3 (Gewehr 3) is a 7.62×51mm NATO, select-fire battle rifle developed in the 1950s by the German armament manufacturer Heckler & Koch (H&K) in collaboration with the Spanish state-owned design and development agency CETME (Centro de Estudios Técnicos de Materiales Especiales). G3A4 entered service in 1974 for frontline infantry units. The G3A3 is a selective-fire automatic weapon that employs a roller-delayed blowback operating system. The two-piece bolt assembly consists of a breech (bolt head) and bolt carrier. The bolt is held in battery by two sliding cylindrical rollers that engage locking recesses in the barrel extension. The breech is opened when both rollers are compressed inward against camming surfaces driven by the rearward pressure of the expanding gases upon the bolt head. As the rollers move inward, recoil energy is transferred to the locking piece and bolt carrier which begin to withdraw while the bolt head slowly moves rearward in relation to the bolt carrier. As the bolt carrier clears the rollers, pressure in the bore drops to a safe level, the bolt head is caught by the bolt carrier and moves to the rear as one unit, continuing the operating cycle. The bolt features an anti-bounce mechanism that prevents the bolt from bouncing off the barrel's breech surface. The bolt head locking lever is a spring-loaded claw mounted on the bolt carrier that grabs the bolt head as the bolt carrier group goes into battery. The lever essentially ratchets into place with friction, providing enough resistance to being re-opened that the bolt carrier does not rebound. The spring-powered claw extractor is also contained inside the bolt while the lever ejector is located inside the trigger housing (actuated by the recoiling bolt).
