68x51mm 277 Sig Fury NGSW Cartridge Low-poly 3D model

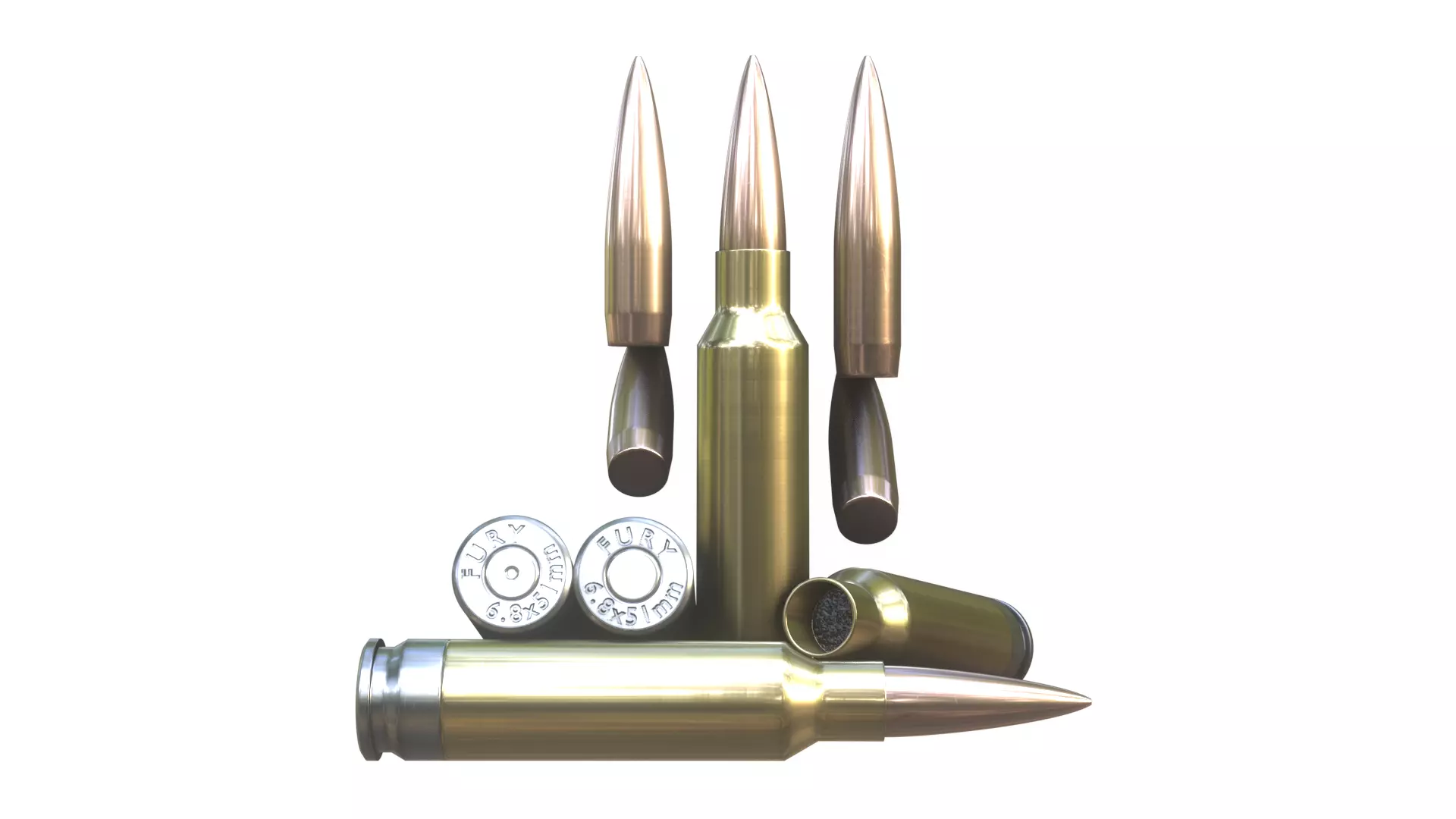

6.8x51mm 277 Sig Fury NGSW Cartridge

Cartridge dimensions modelled after real world data with max. manufacturing tolerances in order to maintain compatibility between Weapon models of same Caliber and as reference for proper scaling of parts like Magazines, Barrels and Bolts.

Textures
Texture Types:
Albedo
Normal
Roughness
Gloss
Metalness
Ambient Occlusion

Texture Sets:
Zinc Primer Cup / Steel Base / Brass Casing / Copper Projectile
Zinc Primer Cup / Steel Base / Brass Casing / Copper Projectile / Steel Tip (Yellow)
Zinc Primer Cup / Steel Base / Brass Casing / Zinc Projectile
Zinc Primer Cup / Steel Base / Brass Casing / Zinc Projectile / Steel Tip (Yellow)
Resolution: 4096x4096 Pixel
Includes base texture set with a Material ID Texture to create custom Texture Sets in Texturing Softwares like Quixel Mixer, Z-Brush, ArmorPaint...

Level of Detail
LOD 0:
Cartridge: 10752Tris
Casing: 2816 Tris
Projectile Long: 8960 Tris
Projectile Short: 8960 Tris
LOD 1:
Cartridge: 3328 Tris
Casing: 1408 Tris
Projectile Long: 2432 Tris
Projectile Short: 2432 Tris
LOD 2:
Cartridge: 1152 Tris
Casing: 704 Tris
Projectile Long: 704 Tris
Projectile Short: 704 Tris
LOD 3:
Cartridge: 448 Tris
Casing: 352 Tris
Projectile Long: 224 Tris
Projectile Short: 224 Tris
LOD 4:
Cartridge: 192 Tris
Casing: 176 Tris
Projectile Long: 48 Tris
Projectile Short: 48 Tris

Different FBX files are prerotated to fit common Coordinate System Orientations:

• fbx => X-Right, Y-Forward, Z-Up

• fbx Unreal => X-Forward, Y-Right, Z-Up

• fbx Unity => X-Right, Y-Up, Z-Forward

  Changes:
  V1.0
  V1.01

• fixed normal bake issue on cartridge base
• upped texture resolutions to 4k for larger downscaling range
• added Arrowhead Tip texture sets
