37 mm automatic air defense gun M1939 61-K

37 mm automatic air defense gun M1939 61-K Low-poly 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

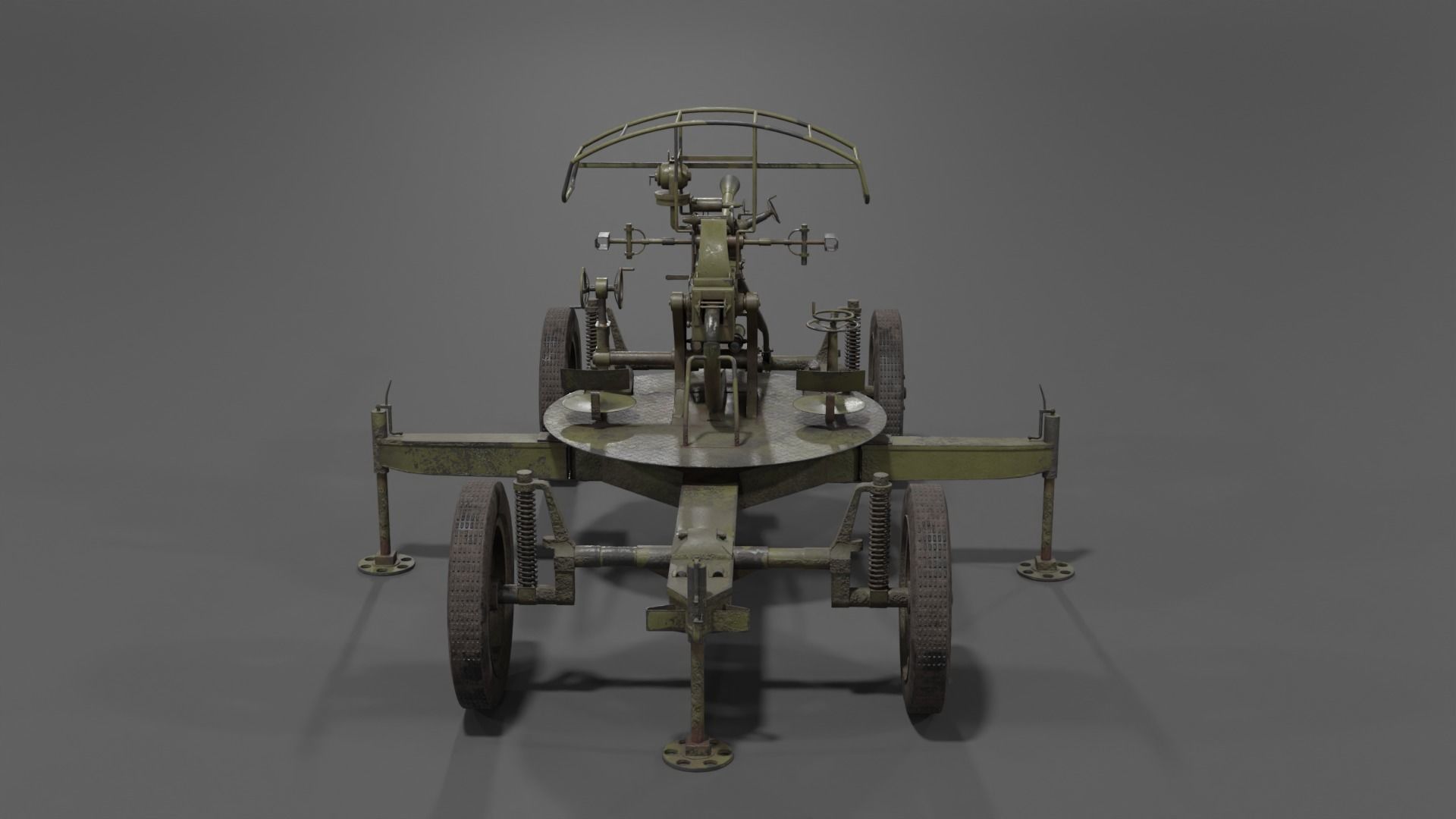

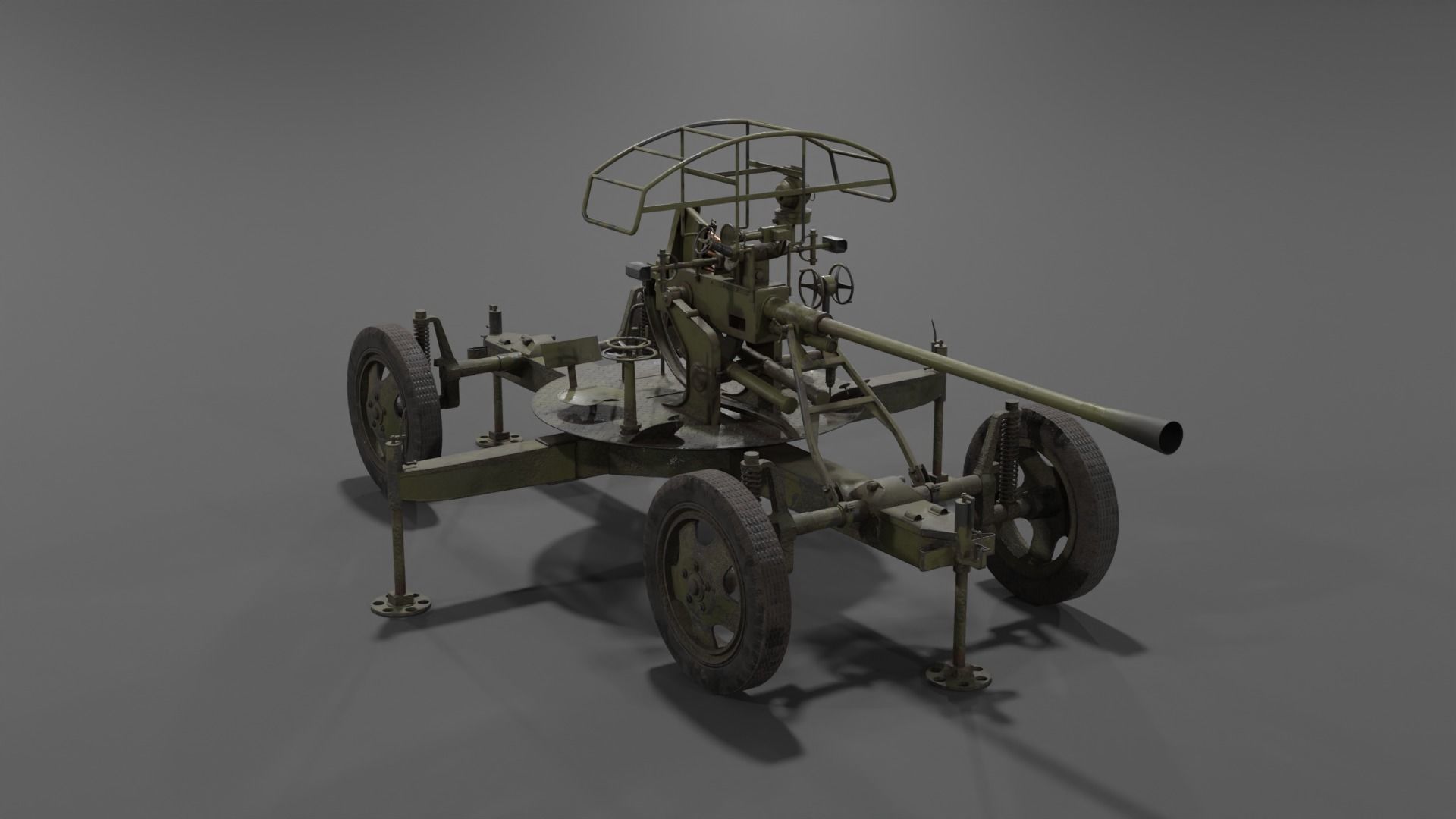

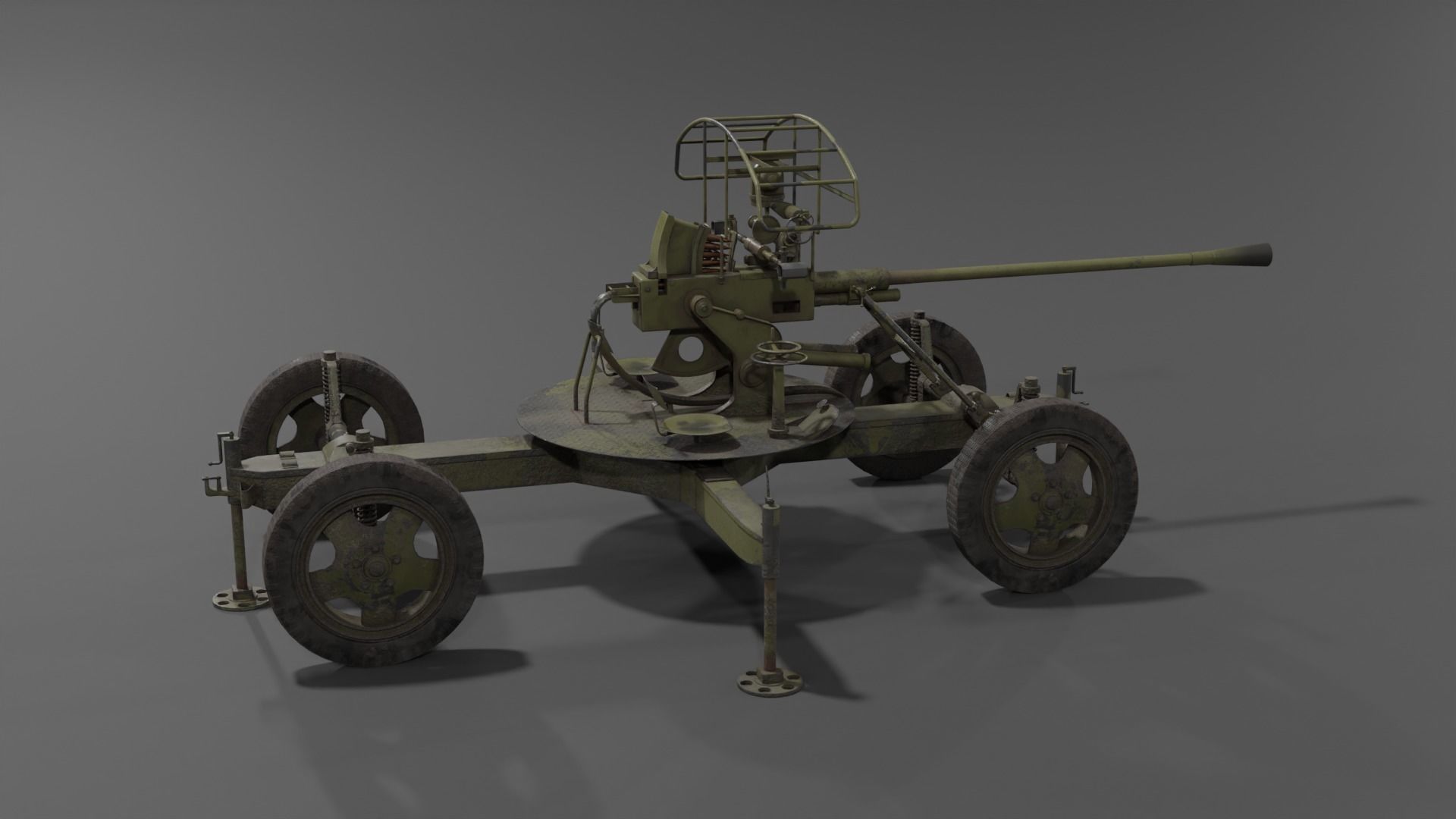

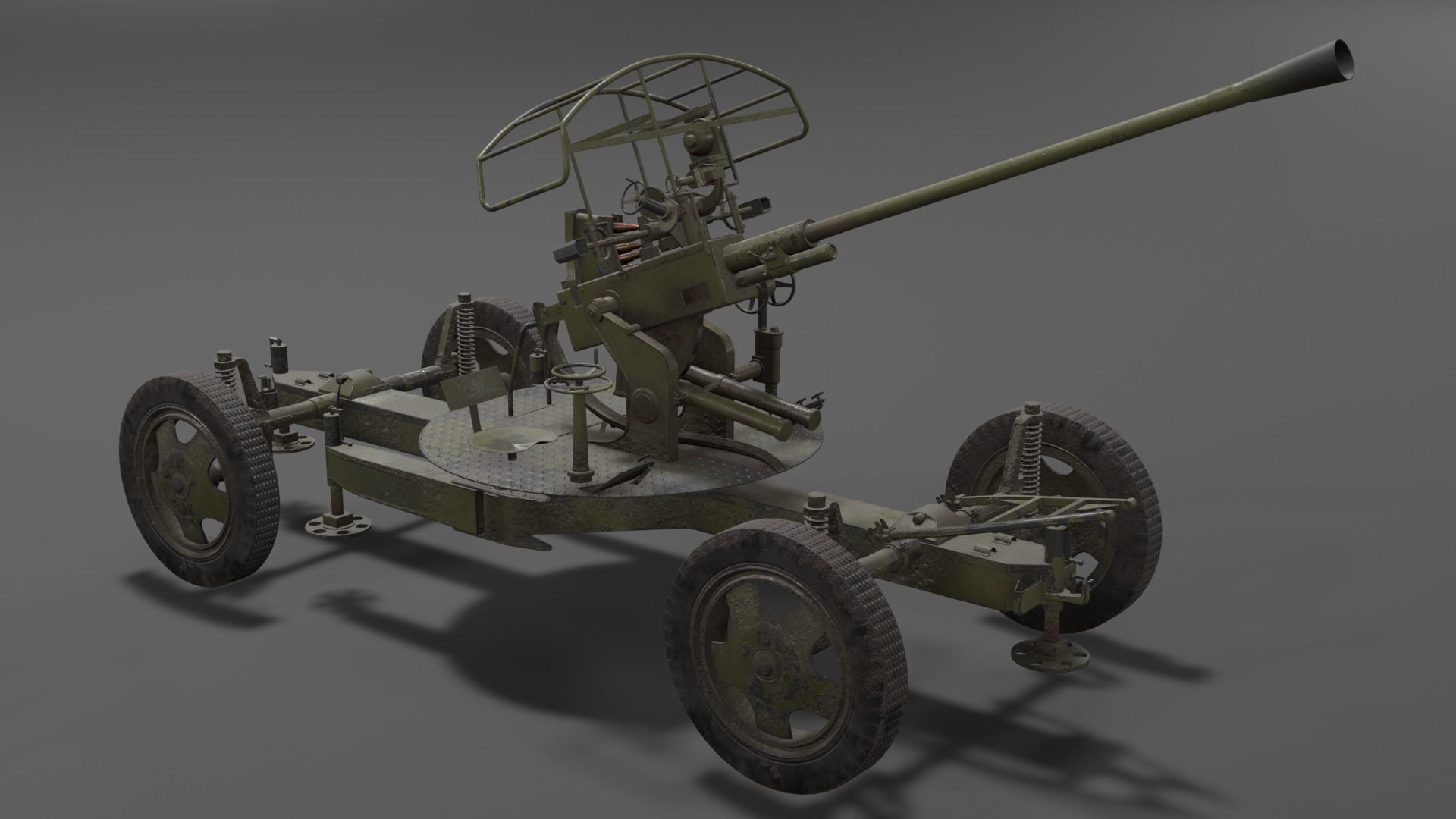

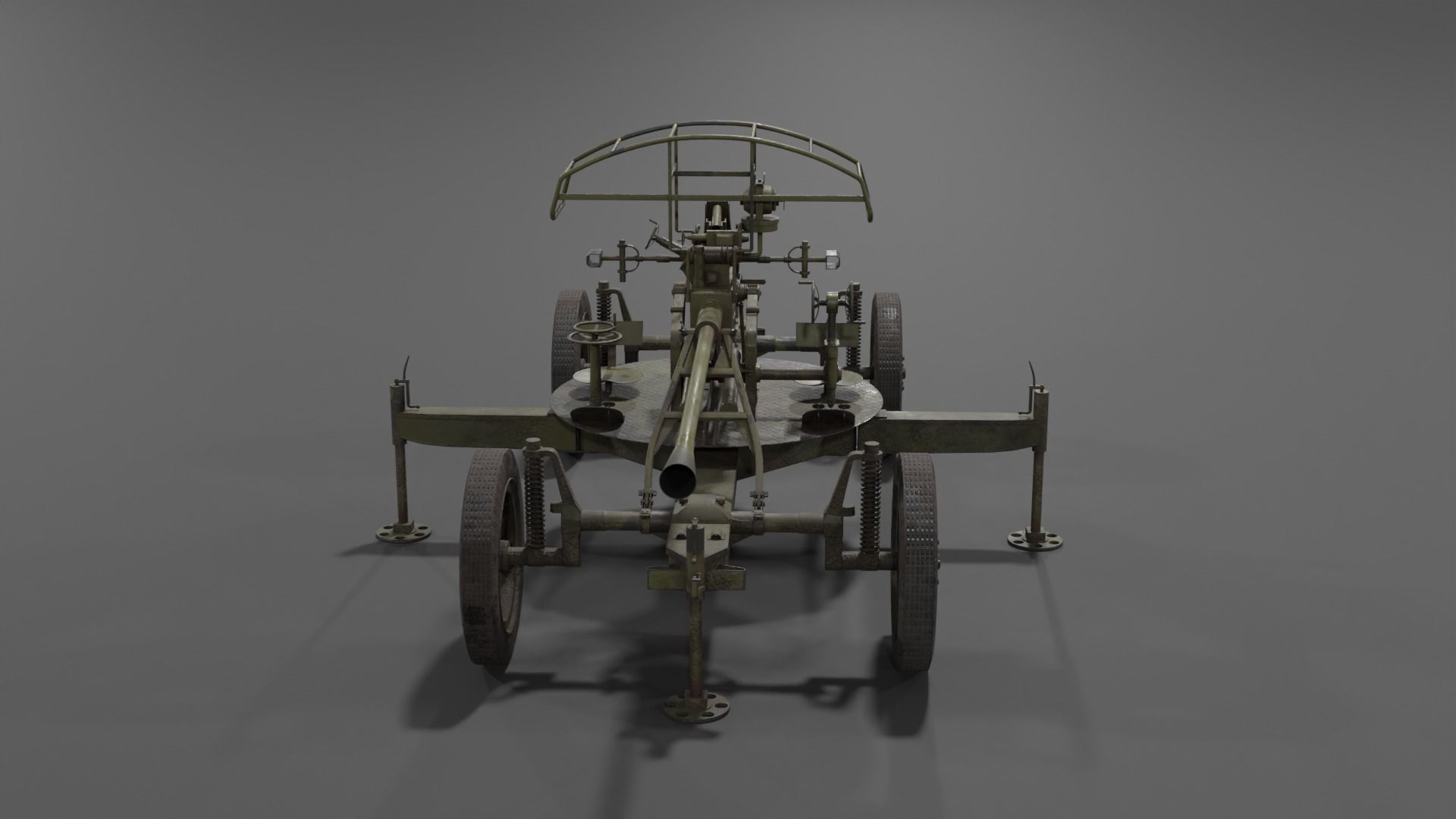

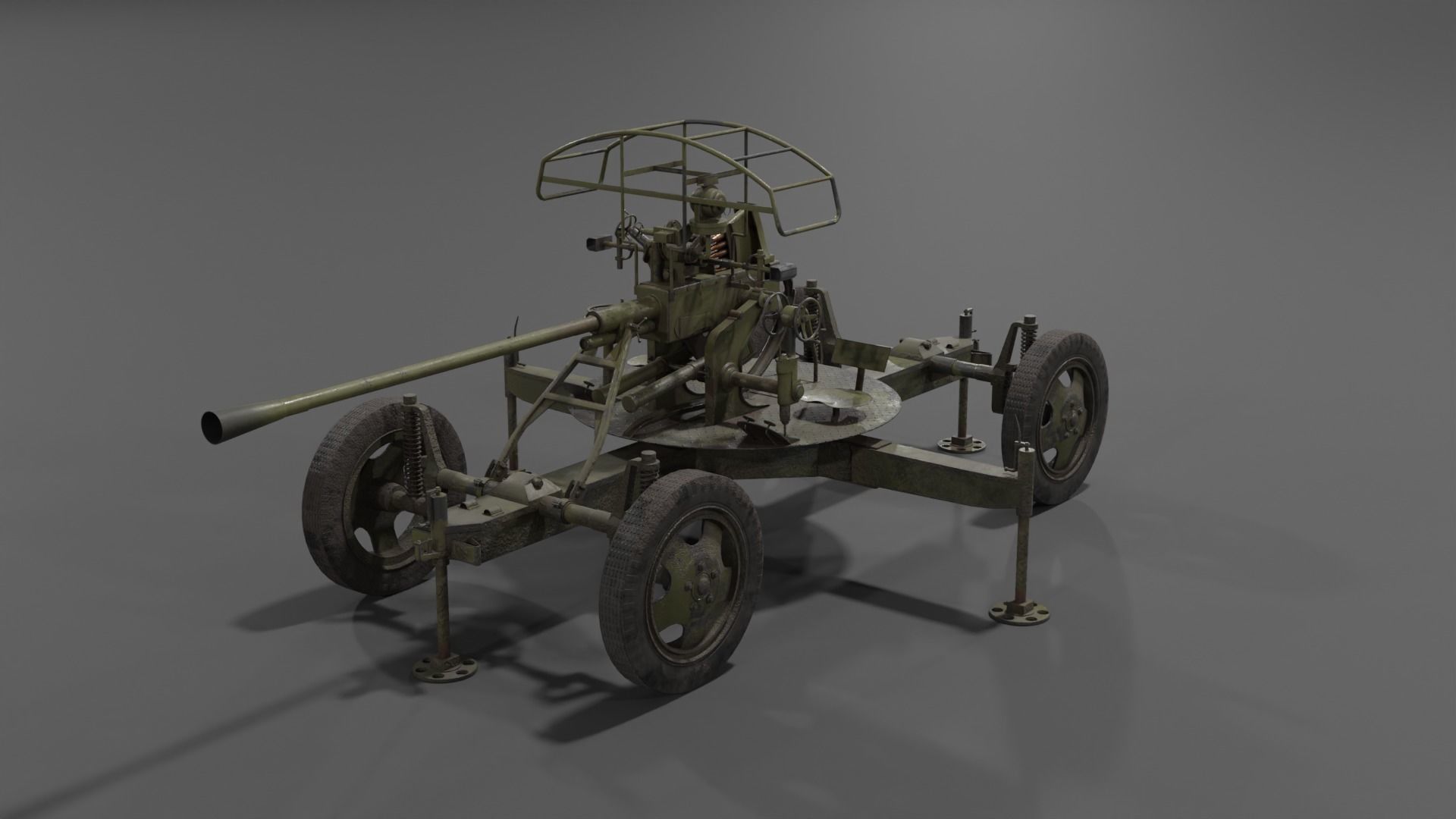

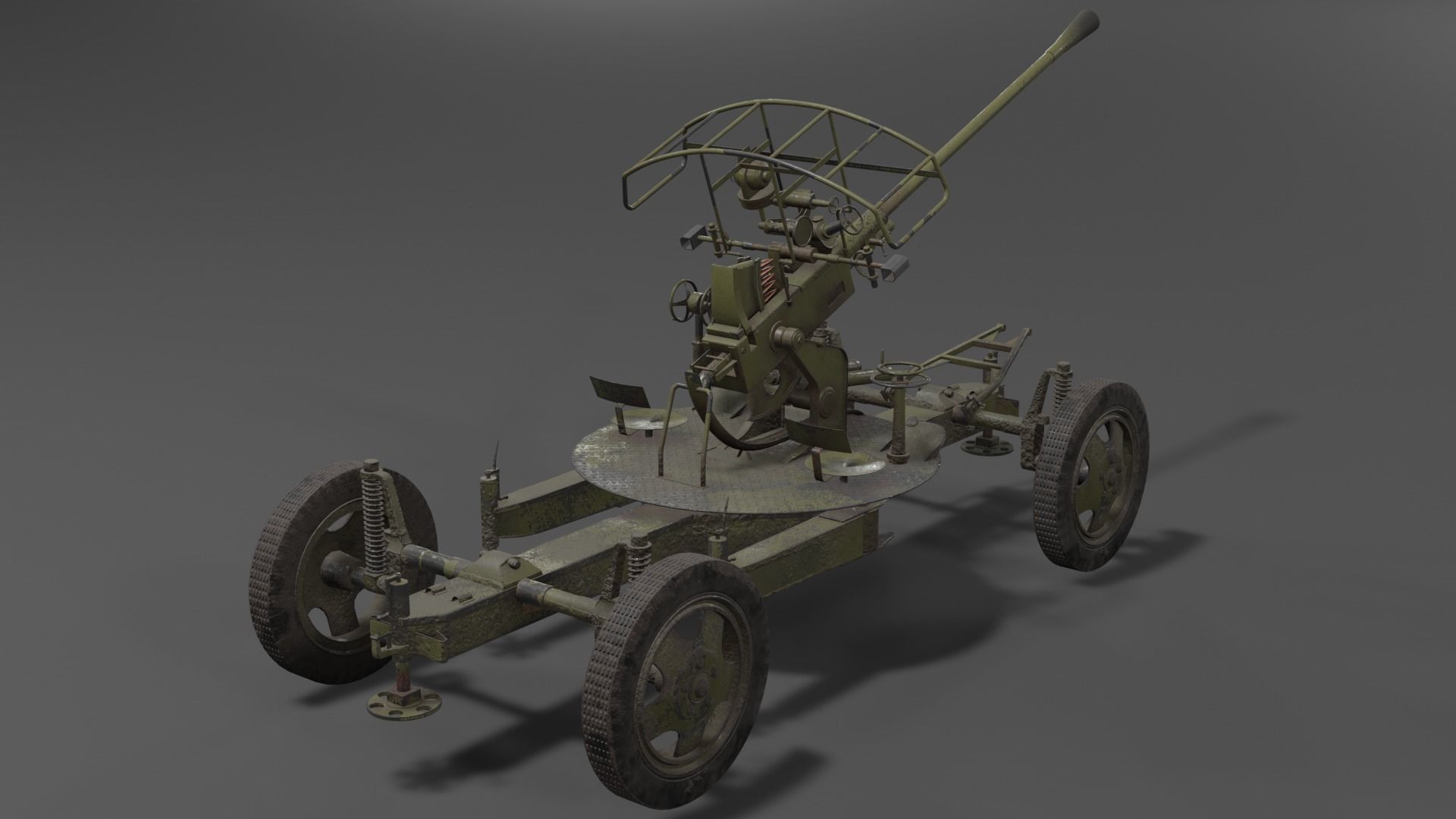

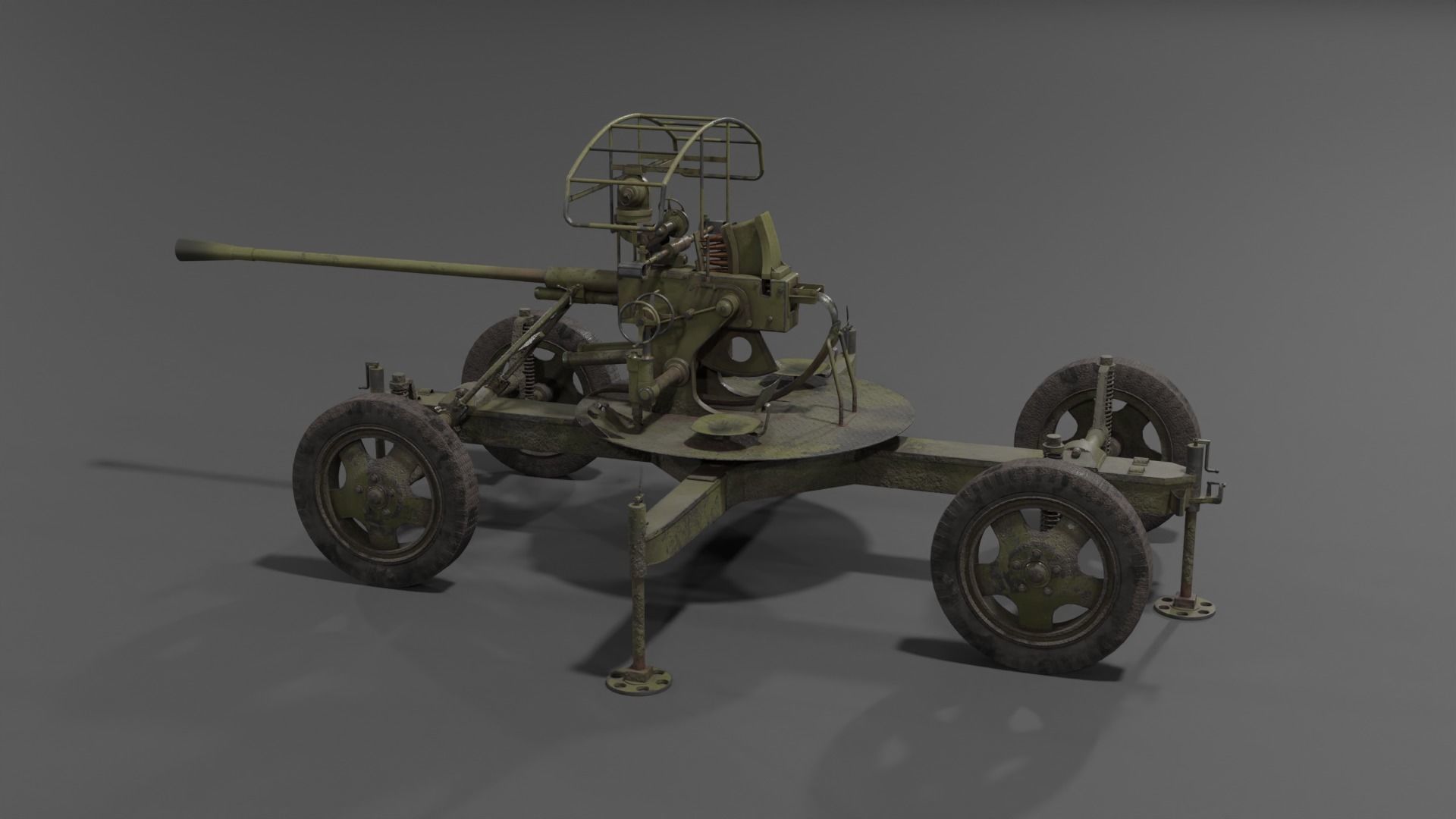

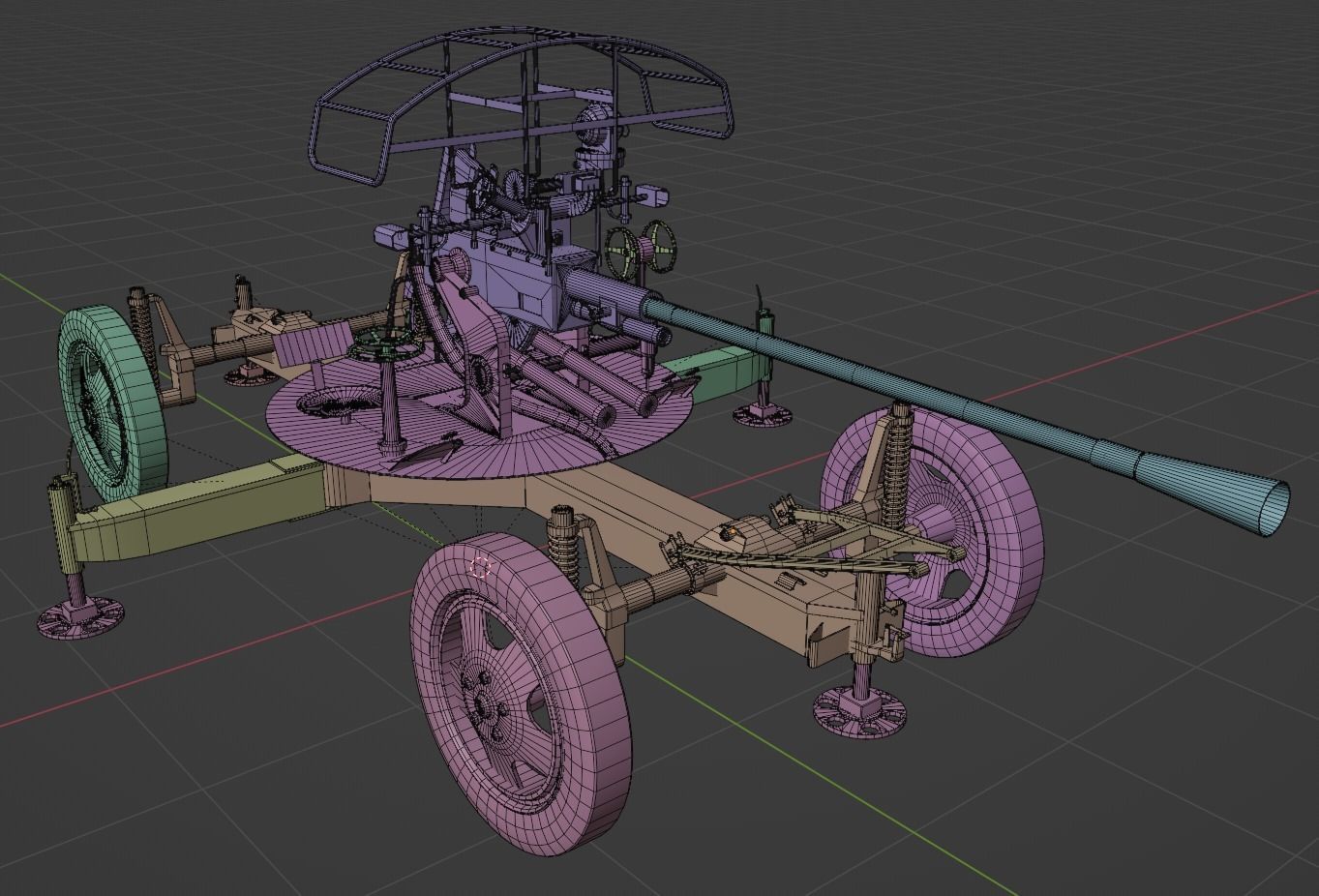

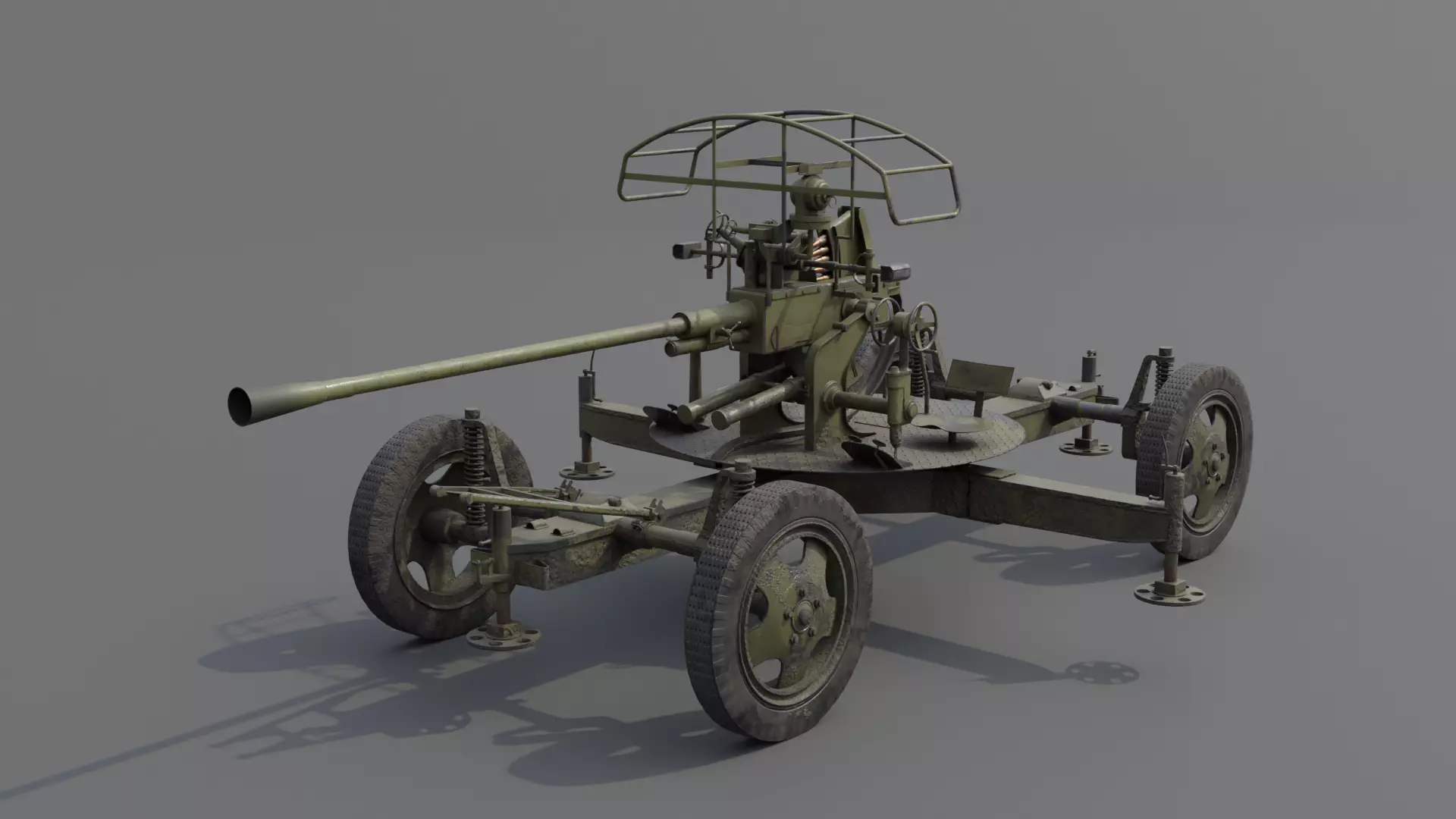

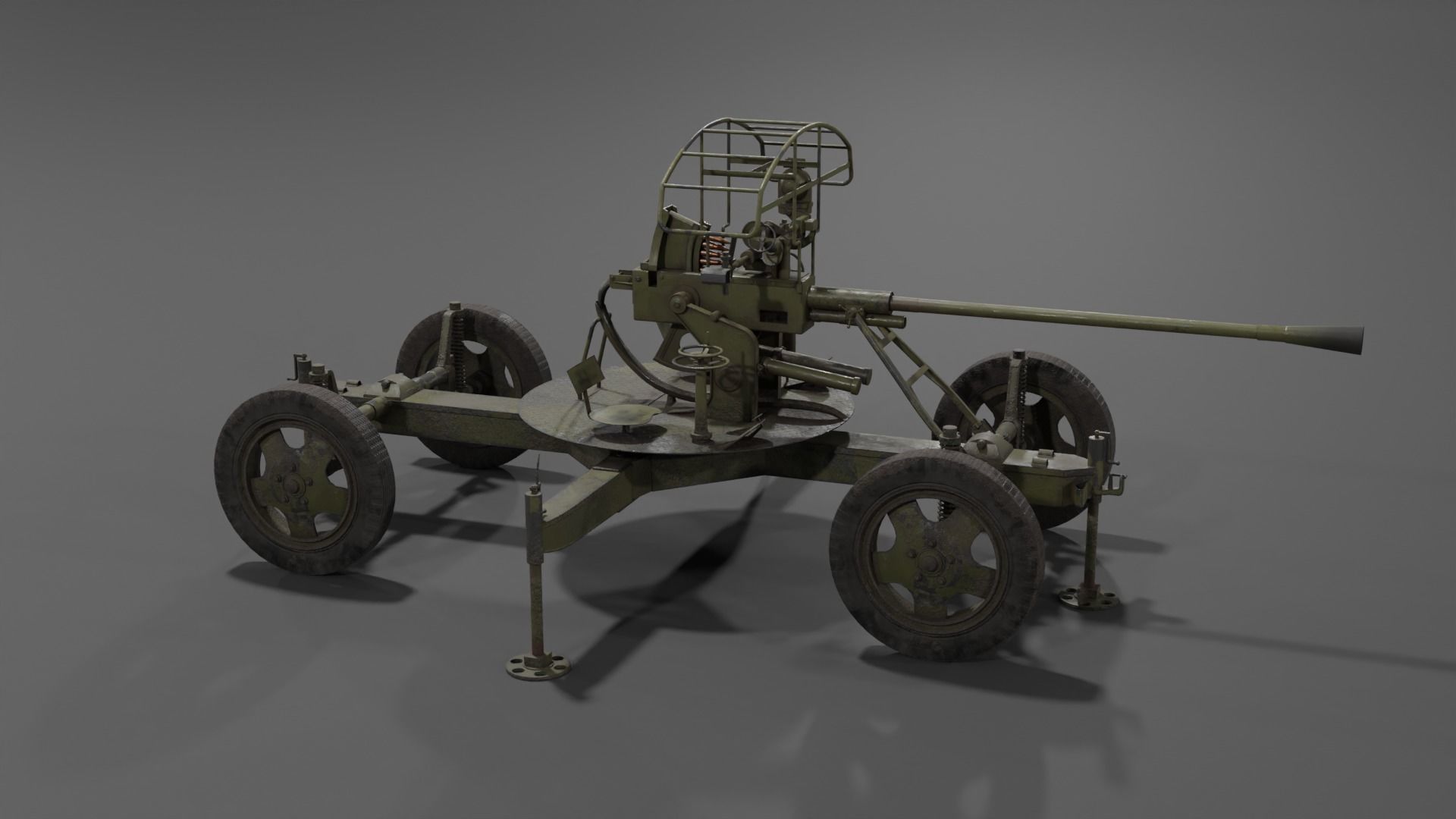

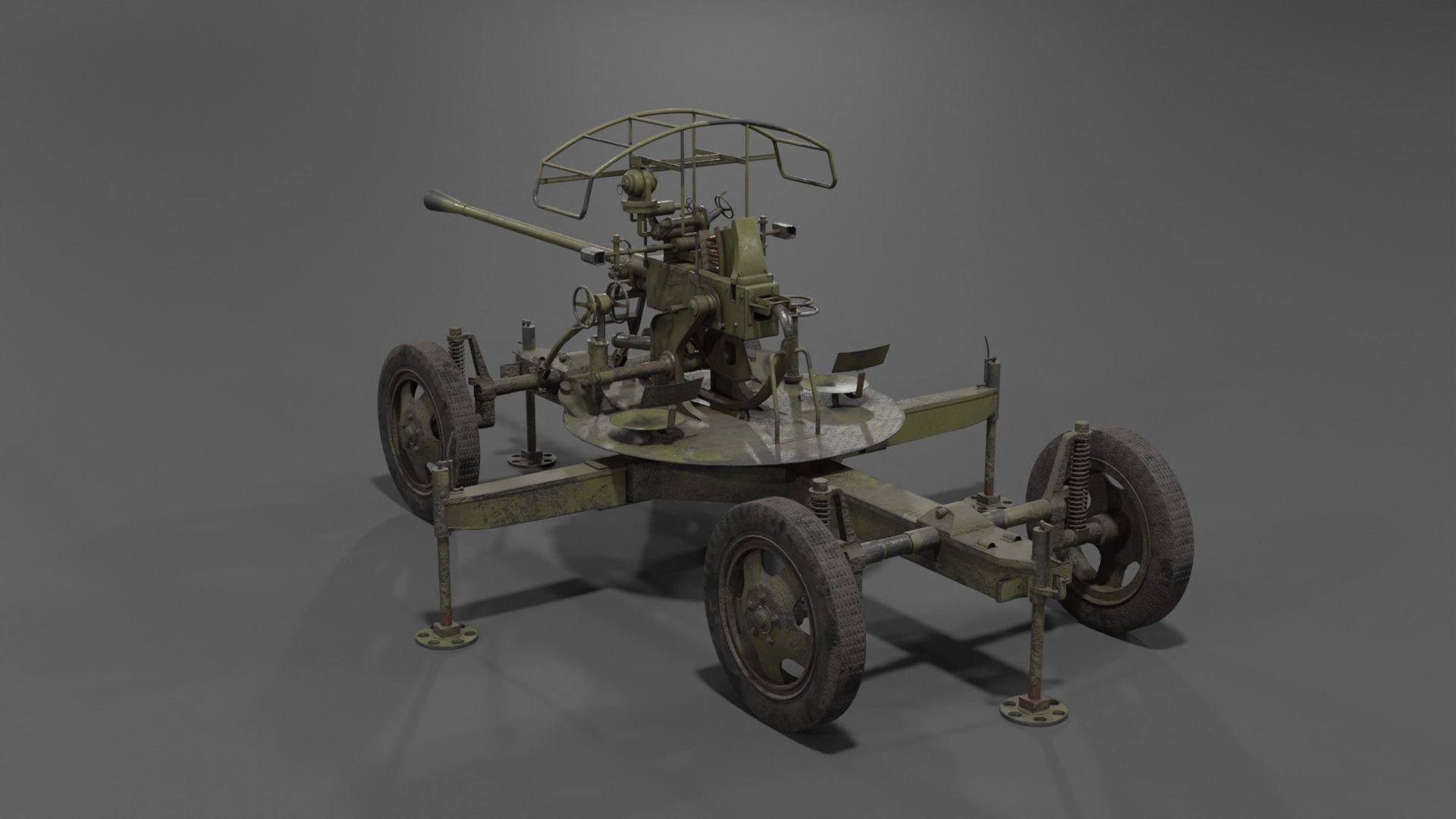

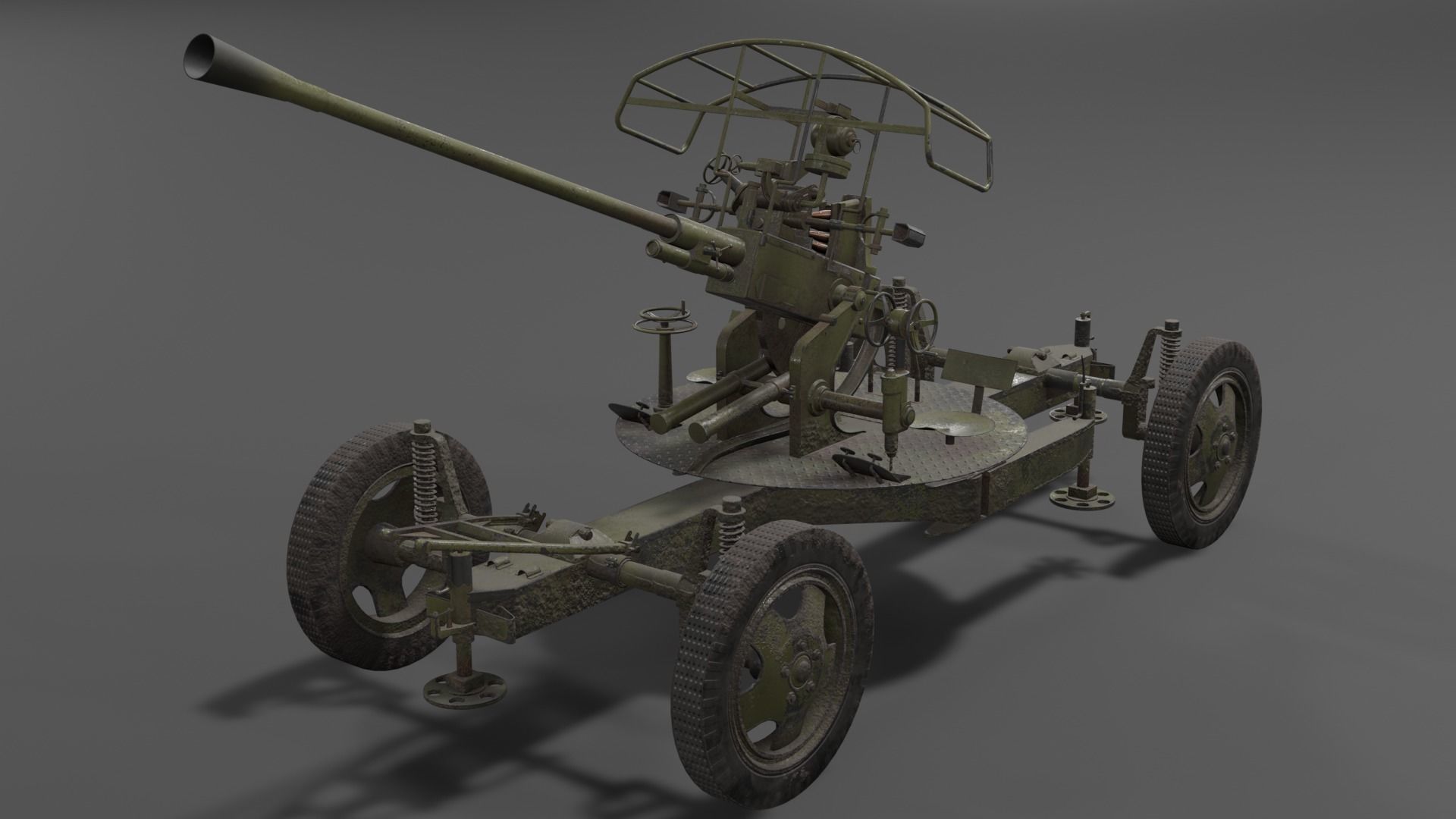

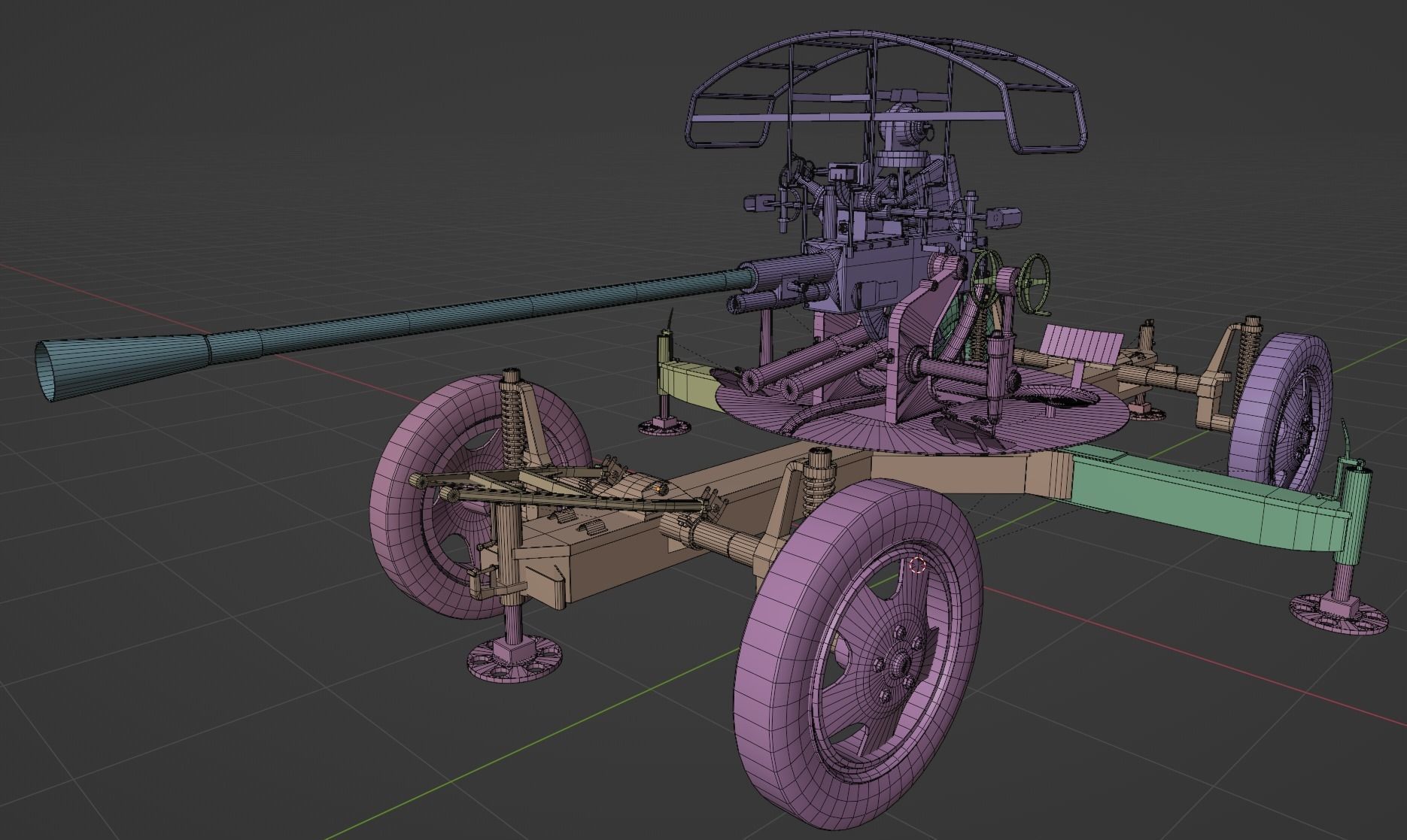

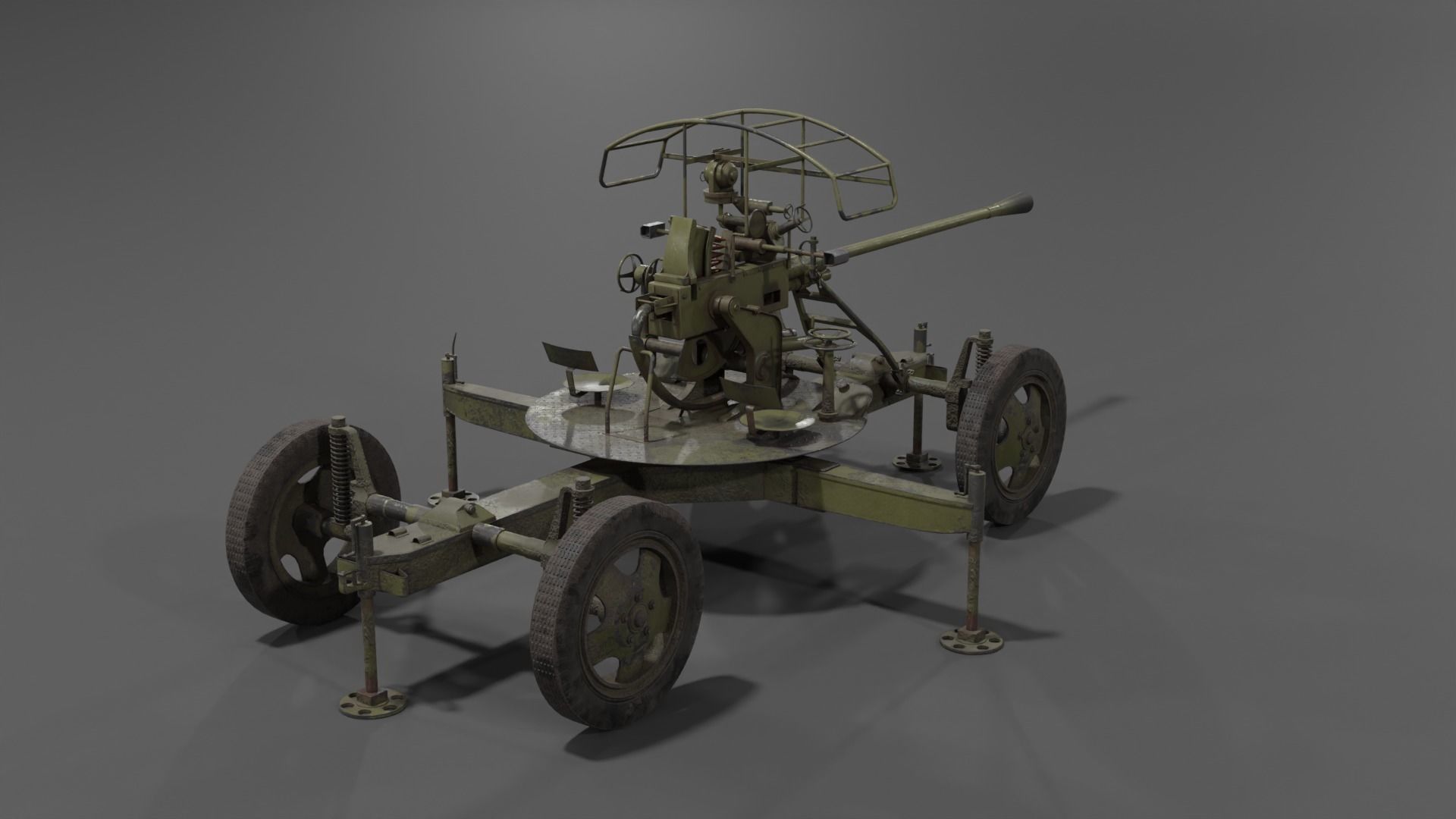

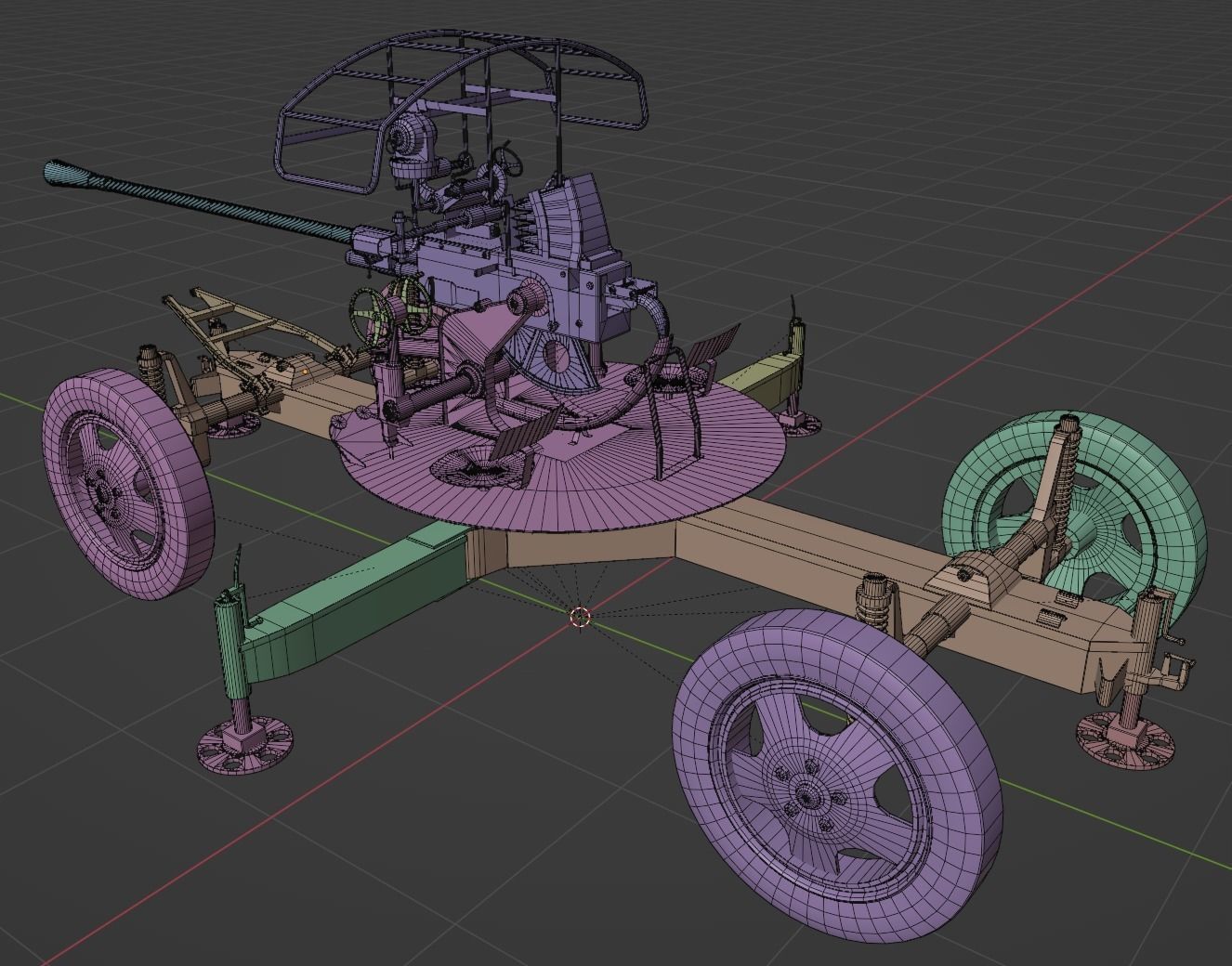

37 mm automatic air defense gun M1939 (61-K) Lowpoly 3D model

Rar file contain Blendfile, Texture folder , FBX , Obj mtl

Centered (in right place) and Seperated parts

Blender 3.0.0

Textured with substance painter

2 Set of material and Texture(Base,Wheels)

2k textures (also 4k textures are available)

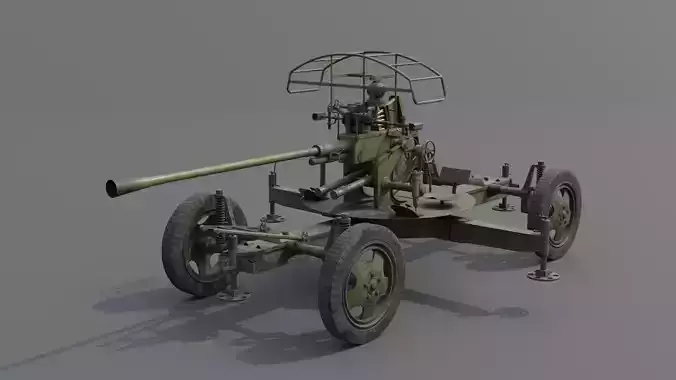

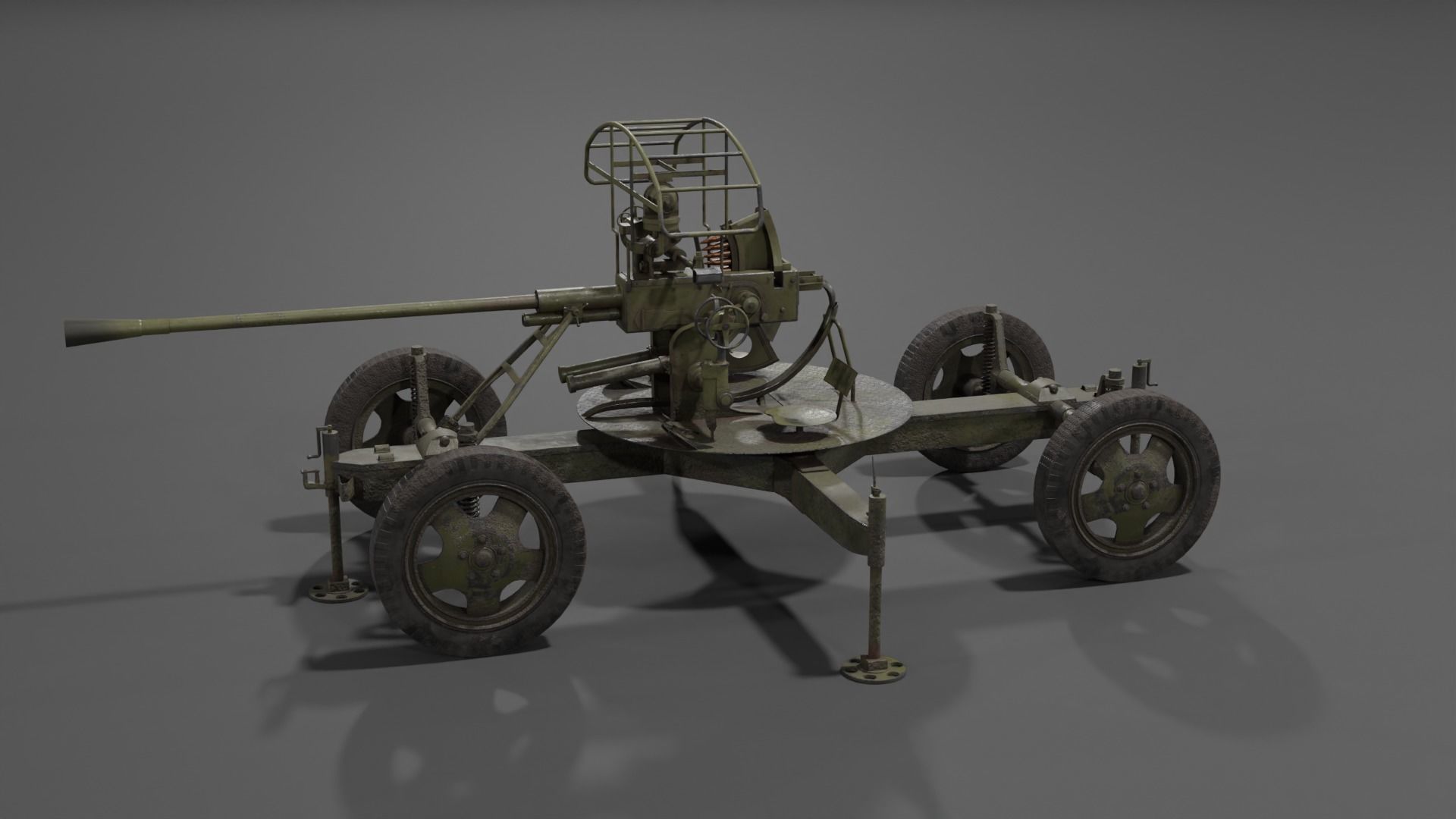

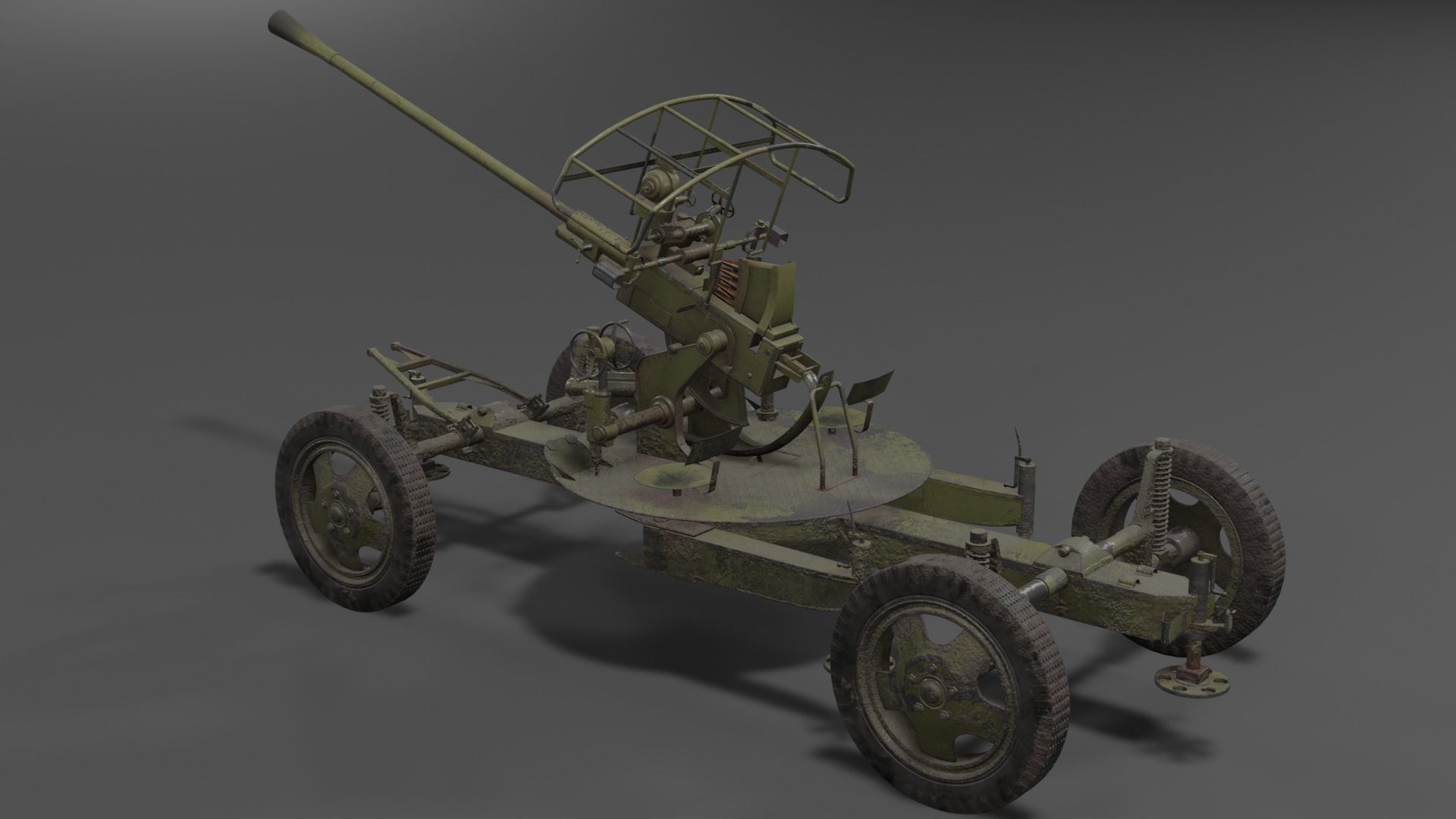

Pictures rendered in Eevee and Cycles engine

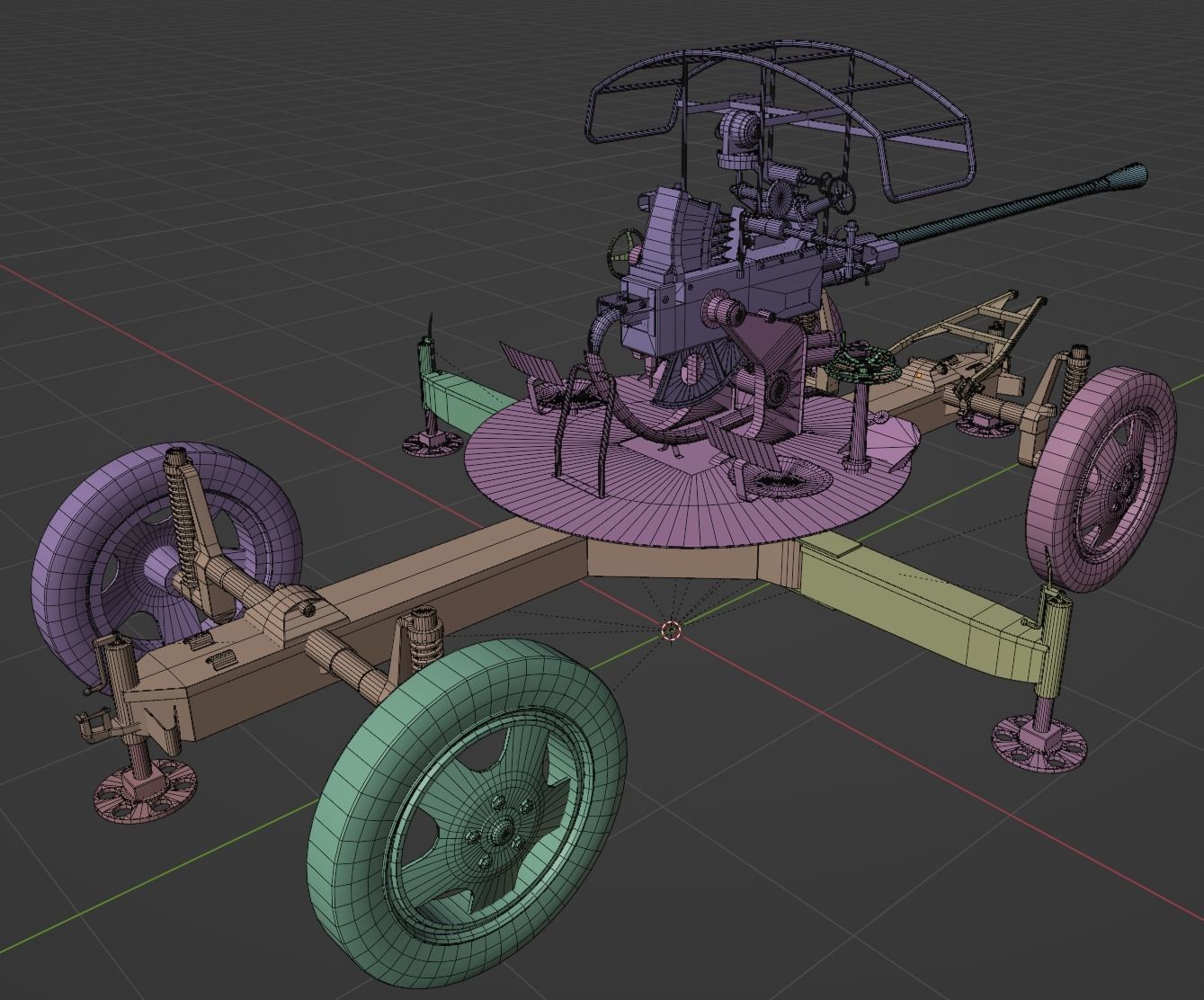

Vertices:59,892

Faces:56,078

Tris: 105,758

Description: The 37 mm automatic air defense gun M1939 (61-K) (Russian: 37-мм автоматическая зенитная пушка образца 1939 года (61-К)) is a Soviet 37 mm calibre anti-aircraft gun developed during the late 1930s and used during World War II. The land-based version was replaced in Soviet service by the AZP S-60 during the 1950s. Guns of this type were successfully used throughout the Eastern Front against dive bombers and other low- and medium-altitude targets. It also had some usefulness against lightly armoured ground targets. Contents The Soviet Navy purchased a number of Bofors 25 mm Model 1933 guns in 1935, trials of the weapon were successful and it was decided to develop a 45 mm version of the weapon designated the 49-K. The development under the guidance of leading Soviet designers M. N. Loginov, I. A. Lyamin and L. V. Lyuliev was successful, but the army thought that the 45 mm calibre was a little too large for an automatic field weapon. In January 1938 the Artillery Factory Number 8 in Sverdlovsk was ordered to develop a 37 mm weapon based on the same design. The task was fulfilled by the chief designer of the factory, Mikhail Loginov, and his assistant Lev Loktev. Firing trials of the new 61-K were conducted in October 1938.

Competitive firing trials were conducted in 1940 between the 61-K and the Bofors 40 mm/56. There were no substantial differences found between them. The weapon was initially installed as a single-barrel weapon on a four-wheeled ZU-7 carriage, and was soon ready for service. An initial order for 900 units was placed. The gun was operated by a crew of eight men. A total of 200 rounds of ammunition were carried which were fed into the gun in five-round clips. Total Soviet production was around 20,000 units, ending in 1945. However, it has also been produced in Poland, China and North Korea.

Armour penetration of the armour-piercing (AP) rounds is reported as 37 millimetres of rolled homogeneous armour (RHA) at 60°at 500 metres range and 28 millimetres of RHA at 90° at 1,500 metres range.

OK3D
OK3D 2024-11-12 22:34:42 UTC
Thanks!
OK3D
OK3D 2023-04-01 18:58:47 UTC
Thank you!
OK3D
OK3D 2022-05-28 20:15:21 UTC
Thank you!
Item rating
2 0
37 mm automatic air defense gun M1939 61-K
$40.00

Royalty Free License
37 mm automatic air defense gun M1939 61-K
$40.00

Royalty Free License
Response 100% in 0.4h
3D Modeling
Low-poly Modeling
UV mapping
Texturing
PBR modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Blender 3.0.0 (.blend)34.9 MBVersion: 3.0.0Renderer: Cycles
Exchange
  • Textures 111 MB
  • Autodesk FBX (.fbx)34.9 MB
  • OBJ (.obj, .mtl)34.9 MB

3D Model details

  • Publish date2022-04-30
  • Model ID#3730226
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 56,078
  • Vertices 59,892
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Non-overlapping
  • Plugins used
  • Ready for 3D Printing
