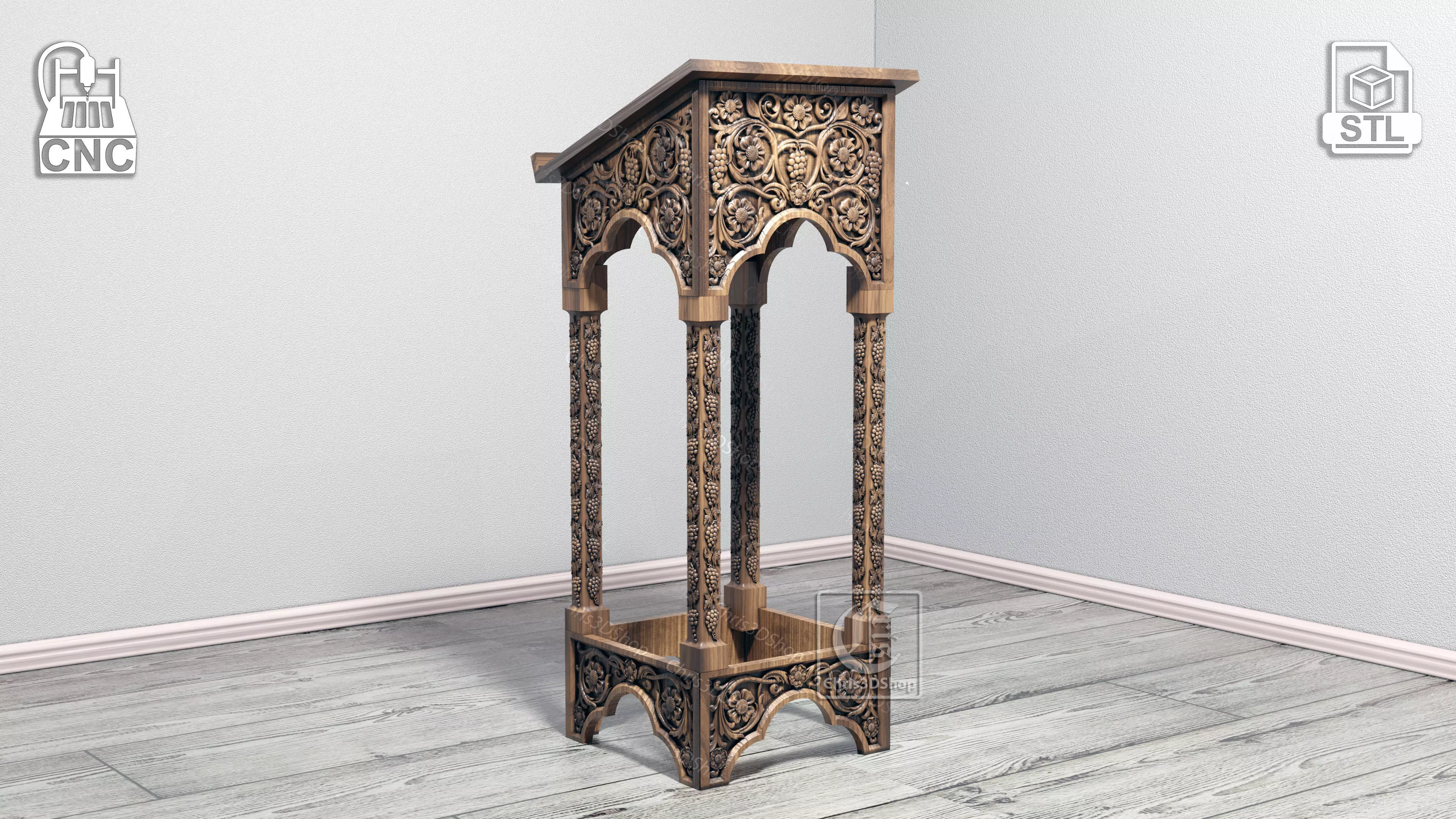

Analogion Lectern V3 - Digital files for CNC Router 3D model

Analogion - lectern to read from liturgical books during religious services. In Orthodox Christianity this type of stand is specifically used for supporting religious books, icons, or scriptures. You can use this model to create a wooden version with a CNC Router, utilizing the CAD/CAM software of your choice, such as Vectric's Aspire, Vcarve, Artcam, Carveco, or any software capable of importing STL files.

Dimensions:○ Height with legs V1 1582mm front and 1410 back○ Height with legs V2 1342mm 1195 backDefault Dimensions of the Pieces○ Top Front Panel: 520mm x 435mm x 25mm (20.47x 17.01 x 1)○ Top Side Panels: 520mm x 435mm x 25mm (20.47 x 17.13x 1)○ Top Back and Bottom Panels: 520mm x 250mm x 25mm (20.47x 9.84 x1)Note: You will need to carve five of this piece—four for the bottom and one for theTop Back panel.○ Top Panel: 603mm x 570mm x 25mm (23.74 x 22.44x1)○ Book/Icon Support Edge: 570mm x 35mm x 25mm (22.44x 1.38 x 1)○ Legs V1: 875mm x 74mm x 74mm (34.45 x 2.9x 2.9)○ Legs V2: 660mm x 74mm x 74mm (25.98x 2.9 x 2.9")

This purchase includes:

• An instructions file in PDF format containing information about carving this with a CNC Router.
• The 6 pieces for this model in STL format.
• Auxiliary vectors in SVG, DXF, EPS, AI, and PDF formats that might assist you in the process.

Please note that these are digital files available for download after your purchase is processed.No physical item will be delivered.Copyright is not transferable upon sale, and it is illegal to sell, share, or distribute digital designs purchased from this shop.

Thank you for respecting my work.
