WINCH CRANE HOIST DRUM BARREL VERTICAL LIFTING CLAMP GRAB JIB 3D model

The model contains the most popular formats:

1. 3DS MAX: *.max
2. Blender: *.blend
3. Rhinoceros: *.3dm
4. SketchUp: *.skp
5. Wavefront OBJ: *.obj *.mtl (Multi Format)
6. FBX: *.fbx (Multi Format)
7. STEP: *.step *.stp (NURBS)
8. IGES: *.iges *.igs (NURBS)
9. ACIS: *.sat (NURBS)
10. 3DS MAX all ver.: *.3ds (Multi Format)
11. Stereolithography: *.stl
12. AutoCAD: *.dwg

• Each file was checked for opening and full content by the model.
• The 3D model was created on real base. It’s created accurately, in real units of measurement, qualitatively and maximally close to the original.
• Renders Are made in Luxion Keyshot
• “WE PROVIDE 3D MODEL CHEAP PRICE BUT WITH GOOD QUALITY”
• If you need any other formats we are more than happy to make them for you. Contact me for any question :)

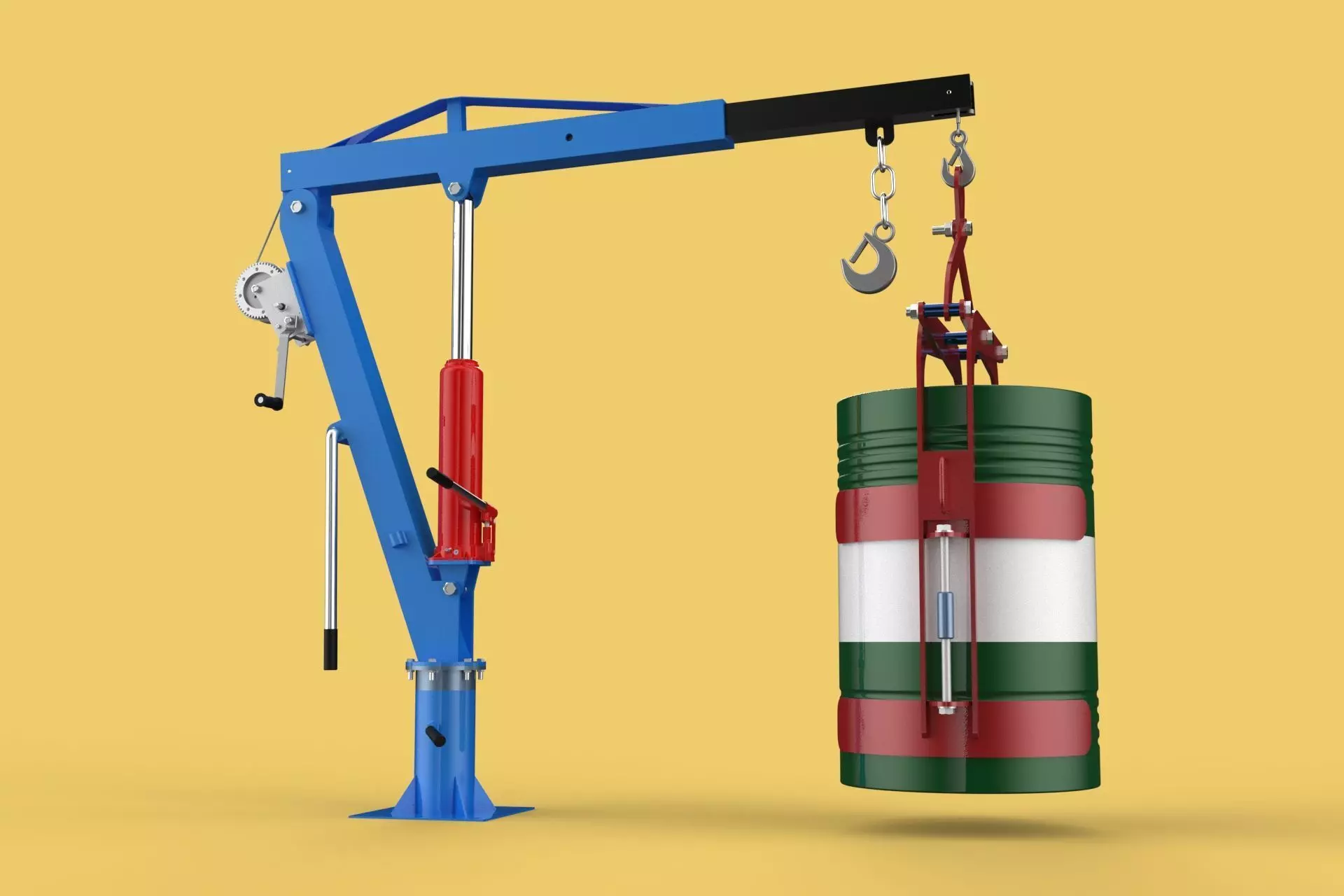

Sincerely Your, SURF3DMORE INFORMATION ABOUT 3D MODELS :DRUM/BARREL LIFTER CRANE WITH HAND WINCH HOIST & VERTICAL CLAMP GRAB: Secure and Controlled Vertical Drum Handling

This describes a specialized lifting device designed for the safe and controlled vertical lifting and movement of drums and barrels. It features a lifting crane structure, a manual hand winch hoist for vertical lifting, and a vertical clamp grab mechanism specifically engineered to securely grip drums from their top rim or sides for vertical orientation.

Key Features and Functionality:

Lifting Crane Structure: A robust frame (often a gantry, jib, or overhead style, though typically smaller and more localized for drum handling) designed to support the lifting mechanism and provide a stable lifting point.Manual Hand Winch Hoist: A hand-operated winch mechanism that uses a cable or strap to provide controlled vertical lifting and lowering of the drum. The manual operation allows for precise positioning and is ideal for situations where power is unavailable or for delicate movements.   Vertical Clamp Grab: The key feature – a specialized lifting attachment designed to grip a drum or barrel vertically. This mechanism typically uses jaws or arms that securely clamp onto the top rim or the sides of the drum, ensuring a vertical lifting orientation.   Secure Vertical Lift: The vertical clamp grab ensures a firm and stable hold on the drum in a vertical position, preventing tipping or slippage during lifting and movement.Manual or Mechanical Engagement: The clamp grab mechanism can be engaged and disengaged manually using levers or handles, or it may feature a semi-automatic or fully mechanical engagement triggered by lifting or lowering onto the drum.Load Capacity: Engineered with a specific safe working load (SWL) rated for lifting the weight of filled drums/barrels.Durable Construction: Built with robust materials to withstand the weight and stresses of lifting and moving drums.Safety Features: Includes safety mechanisms such as locking mechanisms on the clamp grab to prevent accidental release, and potentially a brake on the hand winch to control lowering.Versatile Drum Compatibility: Designed to handle standard-sized steel or plastic drums/barrels within its specified capacity range. Some models may offer adjustability for different drum diameters and rim types.Benefits:

Safe Vertical Lifting: The vertical clamp grab provides a secure and stable method for lifting drums in their standard upright orientation.Controlled Manual Operation: The hand winch offers precise control over the vertical movement of the drum.Reduced Risk of Damage: The clamp grab design, when properly used, minimizes the risk of denting or puncturing the drum.Ergonomic Handling: Facilitates easier and safer handling of heavy drums compared to manual lifting.Accessibility: Suitable for lifting drums from the top for stacking or placement onto pallets.Power Independence: The manual winch requires no external power source.Potential Applications:

Vertical Drum Storage and Retrieval: Lifting drums for stacking or removing them from stacks.Loading and Unloading: Lifting drums onto and off pallets or vehicles.Manufacturing Processes: Integrating vertical drum lifting into production lines.Chemical Handling: Safely manipulating drums of chemicals in an upright position.Waste Management: Handling drums of waste materials vertically.Any environment where controlled vertical lifting and movement of drums/barrels is required.In summary, a drum/barrel lifter crane with a hand winch hoist featuring a vertical clamp grab provides a safe, controlled, and manually operated solution for lifting and moving drums and barrels in a vertical orientation, ideal for stacking, loading, and general handling tasks.
