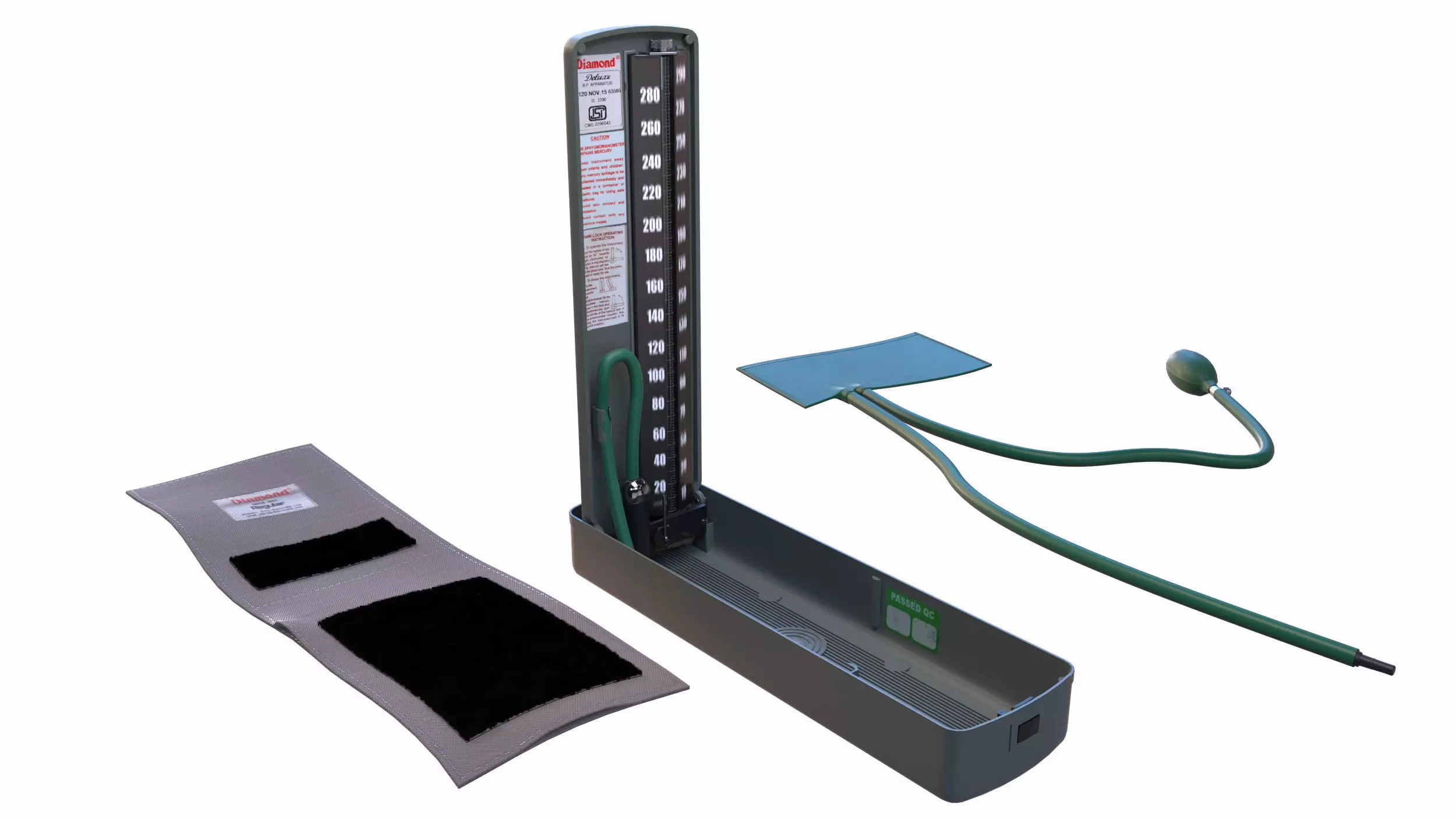

Mercury Sphygmomanometer 3D model

A sphygmomanometer a.k.a. a blood pressure monitor is a device used to measure blood pressure.

Composed of an inflatable cuff to collapse and then release the artery under the cuff in a controlled manner,and a mercury manometer to measure the pressure. Manual sphygmomanometers are used with a stethoscope when using the auscultatory technique.

The sphygmomanometer was invented by Samuel Siegfried Karl Ritter von Basch in the year 1881.Scipione Riva-Rocci introduced a more easily used version in 1896.

Sphygmomanometer.mp4 has one sound clip comes under

Comfortable Mystery 3 - Film Noire by Kevin MacLeod is licensed under a Creative Commons Attribution 4.0 license. https://creativecommons.org/licenses/by/4.0/

Source: http://incompetech.com/music/royalty-free/index.html?isrc=USUAN1100536

Artist: http://incompetech.com/

and allowed to use in this clip......

Hi

This Sphygmomanometeris made in Autodesk 3ds max 2018

High poly mesh

GRP_Cuff_Bulb_Assembly Polys 88656Verts 88997

GRP_Base , Glass Tube , GRPLid ,GRP_Mercury_Assembly

Polys 944332Verts 933358

Real World Scale Size

System units = InchesDisplay units = Centimeters

Open sub division and Tubosmooth modifiers used inthe process of smoothing........

All parts applied with Unwrap UVW modifier..

non overlapping.......

Final product grouped..........GRP_Cuff_Bulb_Assembly ,GRP_Base , GRP_Glass_Tube , GRPLid ,GRP_Mercury_Assembly

Vray next is used as a render

One vray dome light with HDRI used for lights...(Provided in downloads)One vray plane light as an additional light..

Total 5 cameras used for set up

Max scene containing all set up is provided in the downloads....

POINT_LID_HELPER to assists the rotation of the lid

Animated.........Rigged...........for display purpose

Not provided in the downloads........

Final texture provided in the downloads..........

Back_Side_Metal_Shade (Diffuse 4096*4096 Roughness 4096*4096 Metalness 4096*4096 Normal 4096*4096 Height 4096*4096 AO 4096*4096 )Bag_Bulb_Connectors (Diffuse 4096*4096 Roughness 4096*4096 Metalness 4096*4096 Normal 4096*4096 Height 4096*4096 AO 4096*4096 )BP_Apparatus_Export_Textures (Diffuse 4096*4096 Roughness 4096*4096 Metalness 4096*4096 Normal 4096*4096 Height 4096*4096 AO 4096*4096 )Cuff (Diffuse 4096*4096 Roughness 4096*4096 Metalness 4096*4096 Normal 4096*4096 Height 4096*4096 AO 4096*4096 )Numbers_10_290 (Diffuse 4096*4096 Roughness 4096*4096 Metalness 4096*4096 Normal 4096*4096 Height 4096*4096 AO 4096*4096 )Numbers_20_280 (Diffuse 4096*4096 Roughness 4096*4096 Metalness 4096*4096 Normal 4096*4096 Height 4096*4096 AO 4096*4096 )

GLASS IS USED AS VRAY GLASS MATERIAL.........

Rendered in Adobe substance 3 D painter andtextures exported to 3d max Vray Next (Metalness_Roughness)format........

Files provided in the downloads....

Sphygmomanometer Max 44.8 mbSphygmomanometerFbx 42.9 mbSphygmomanometerABC 64 mbSphygmomanometerOBJ 122 mbSphygmomanometer3DS 12.5 mb

Image previews...

Final renders....RGB 2500*1406........ 22 picsGrey renders.... 1920*1080......... 05 PicsWireframe renders.. 1920*1080......... 16 pics
UVW 1920*1080......... 07 pics

Ready to used......

Not rigged....Not animated.......

2 DOLLORS

I HOPE YOU LIKE IT
