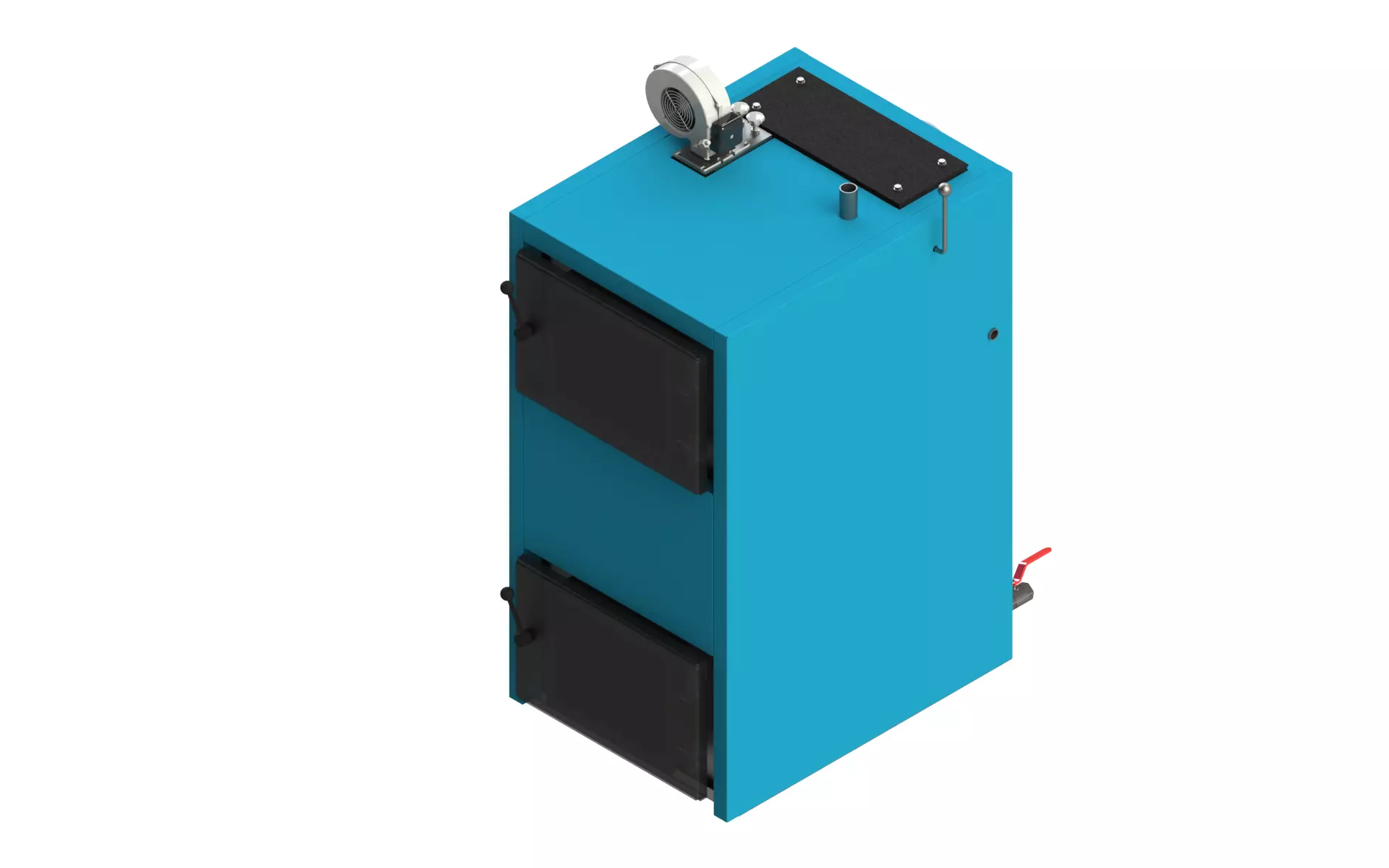

Solid fuel pyrolysis boiler SOLIDWORKS Flow Simulation 3D model

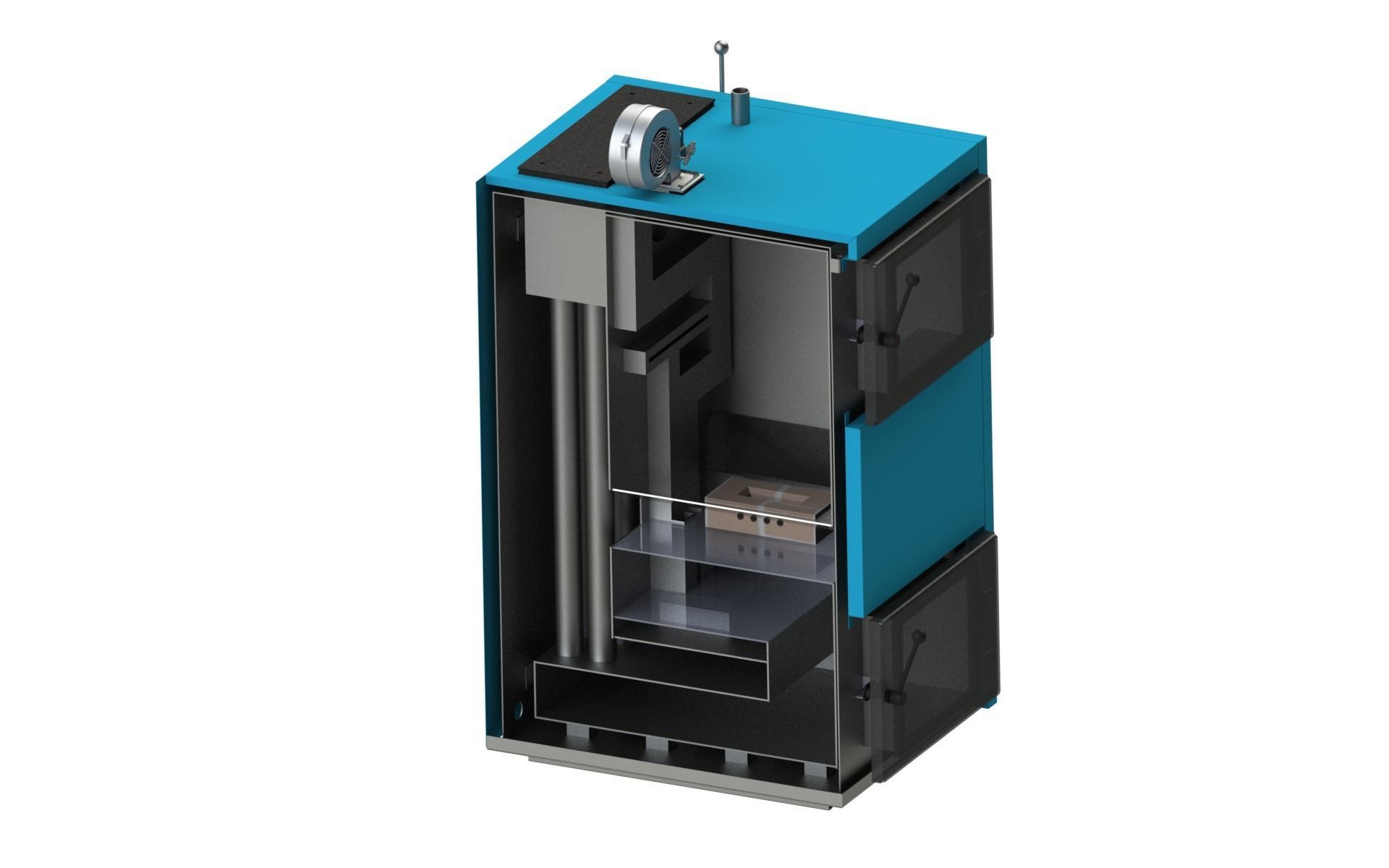

The pyrolysis boiler consists of two chambers: the first is a combustion chamber (firewood, coal, wood chips) in conditions of high temperature and lack of oxygen, carbon monoxide CO is released. Next, carbon monoxide enters the second chamber (nozzle) and is oxidized, thereby forming a jet of flame. Combustion products pass through the heat exchanger, heating the water.
