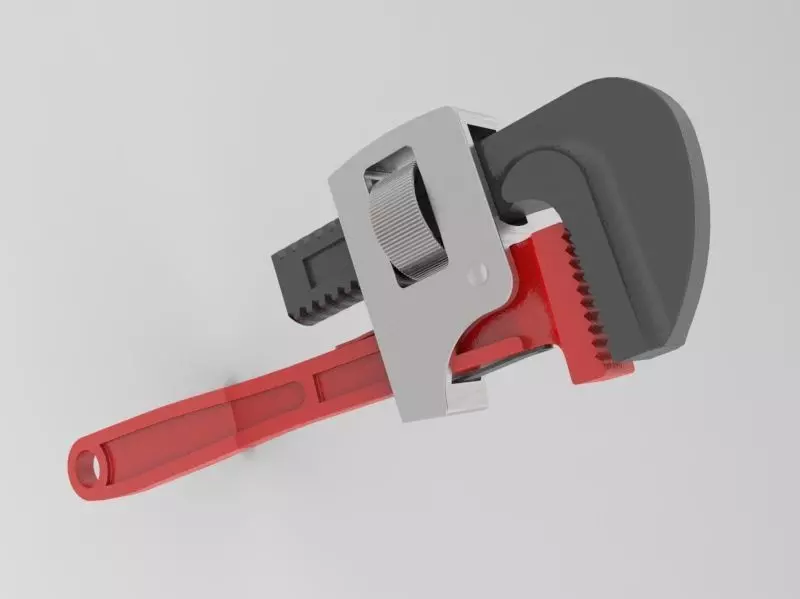

Pipe Wrench 3D model

This project is done with SOLIDWORKS software. The Pipe Wrench designed in this project consists of 5 individual parts which are explained alongside their materials:

=======================================

1 - Fixed Jaw (Material - Cast Iron)

============================

2- Cage (Material - Stainless Steel)

============================

3- Movable Jaw (Material - Cast Iron)

============================

4- Adjustment Nut (Material - Stainless Steel)

============================

5- Rivet (Material - Stainless Steel)

======================================

Formats of the files consist of: (.sldprt), (.sldasm), (.stp), (.stl), (.igs), (.amf), (.obj), (.mtl), (.3ds) & (.pdf). The model is then rendered in Keyshot 10 software with the relevent materials and the relevent file for executing changes has been also uploaded.All of the individual parts are designed with the part design section and assembled together in the end by using the assembly section of the software.The materials chosen for the parts, are based of the usual materials which are generally used for manufacturing this product in the industry.
