PIN and BOX NC50

PIN and BOX NC50 3D model

Description

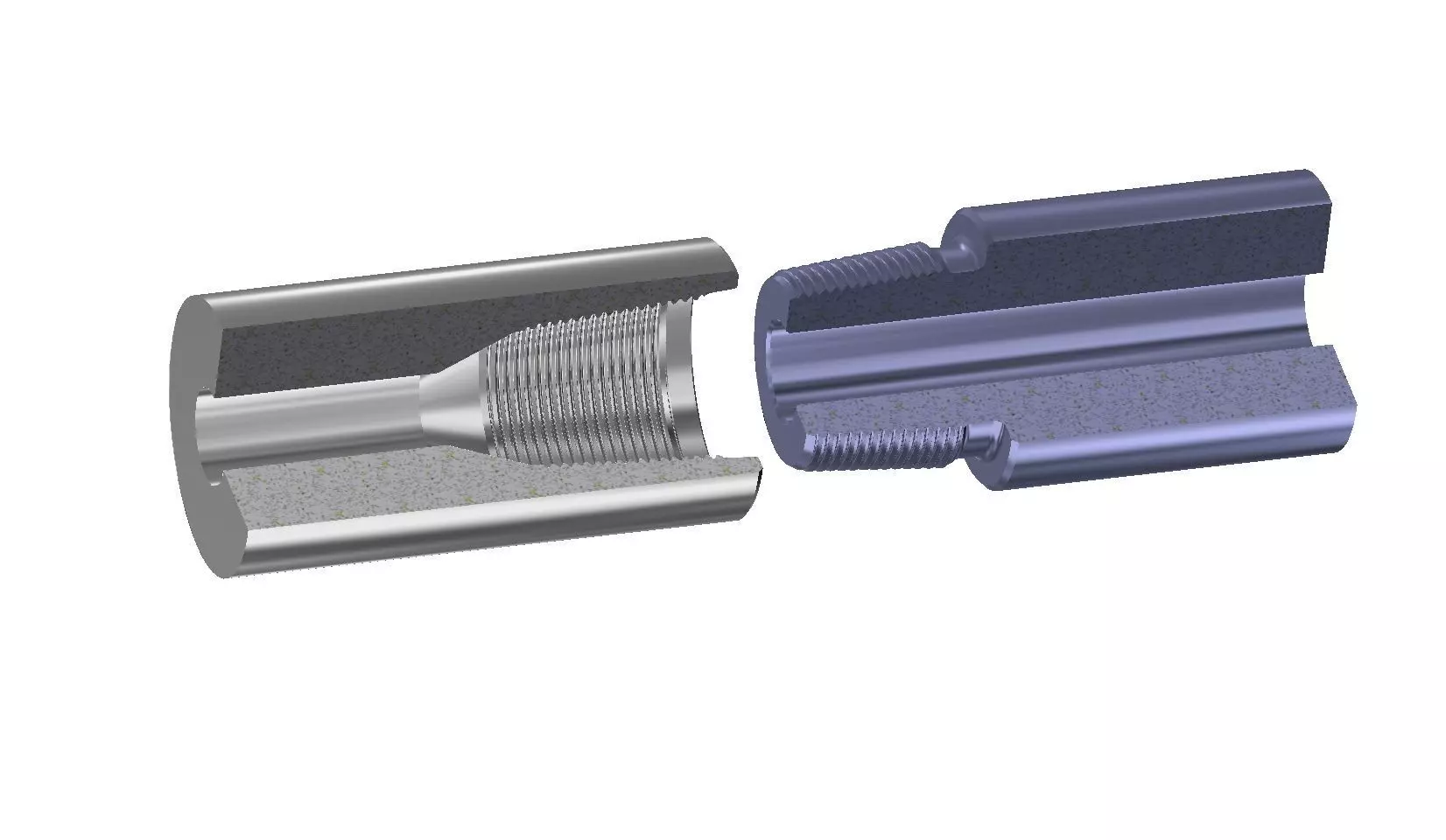

API NC50. The set offers seven files in iges format to choose from.

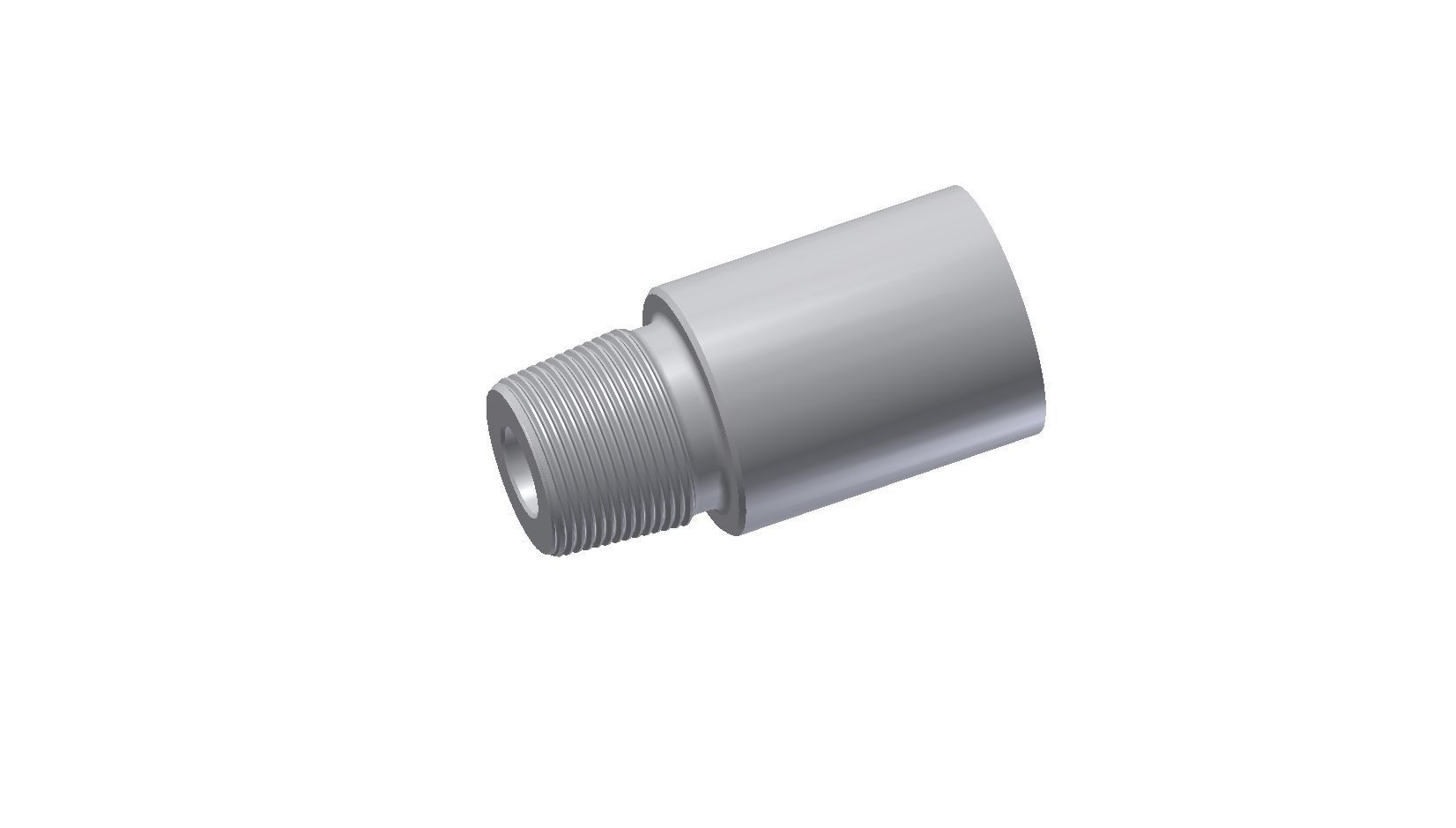

Four files (pin), differing in configuration of the base of the pin:

  • File PIN NC50 cone.igs - 3D model with a conical shape of the nipple base
  • File PIN NC50 cyl.igs - 3D model with cylindrical shape of the nipple base
  • File PIN NC50 narrow relief groove.igs - 3D model with a discharge groove width of ¾ inch (API recommendation)
  • File PIN NC50 wide relief groove.igs - 3D model with a 1-inch wide discharge groove (API standard)

Three files (box), differing in the shape of the relief elements:

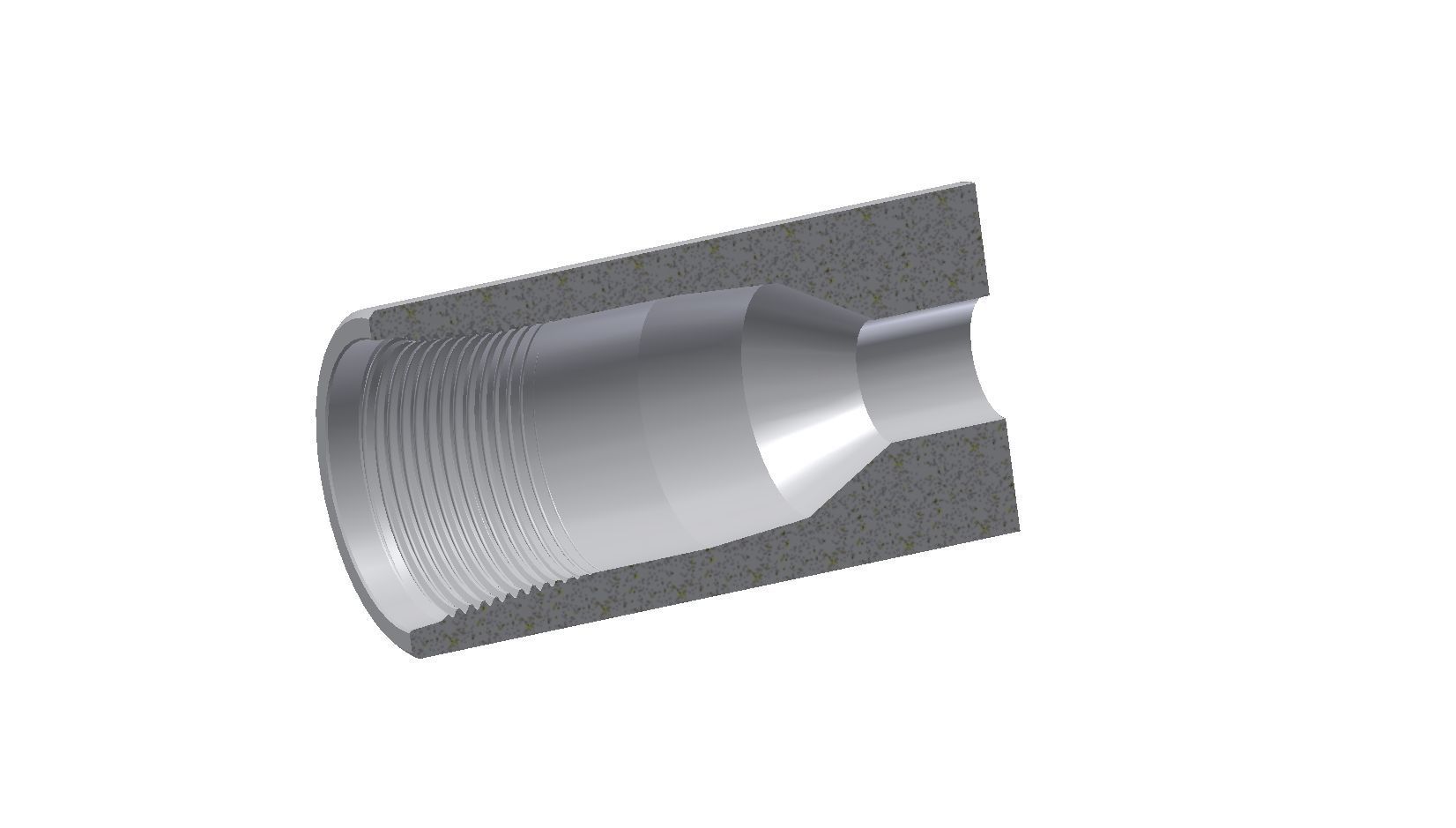

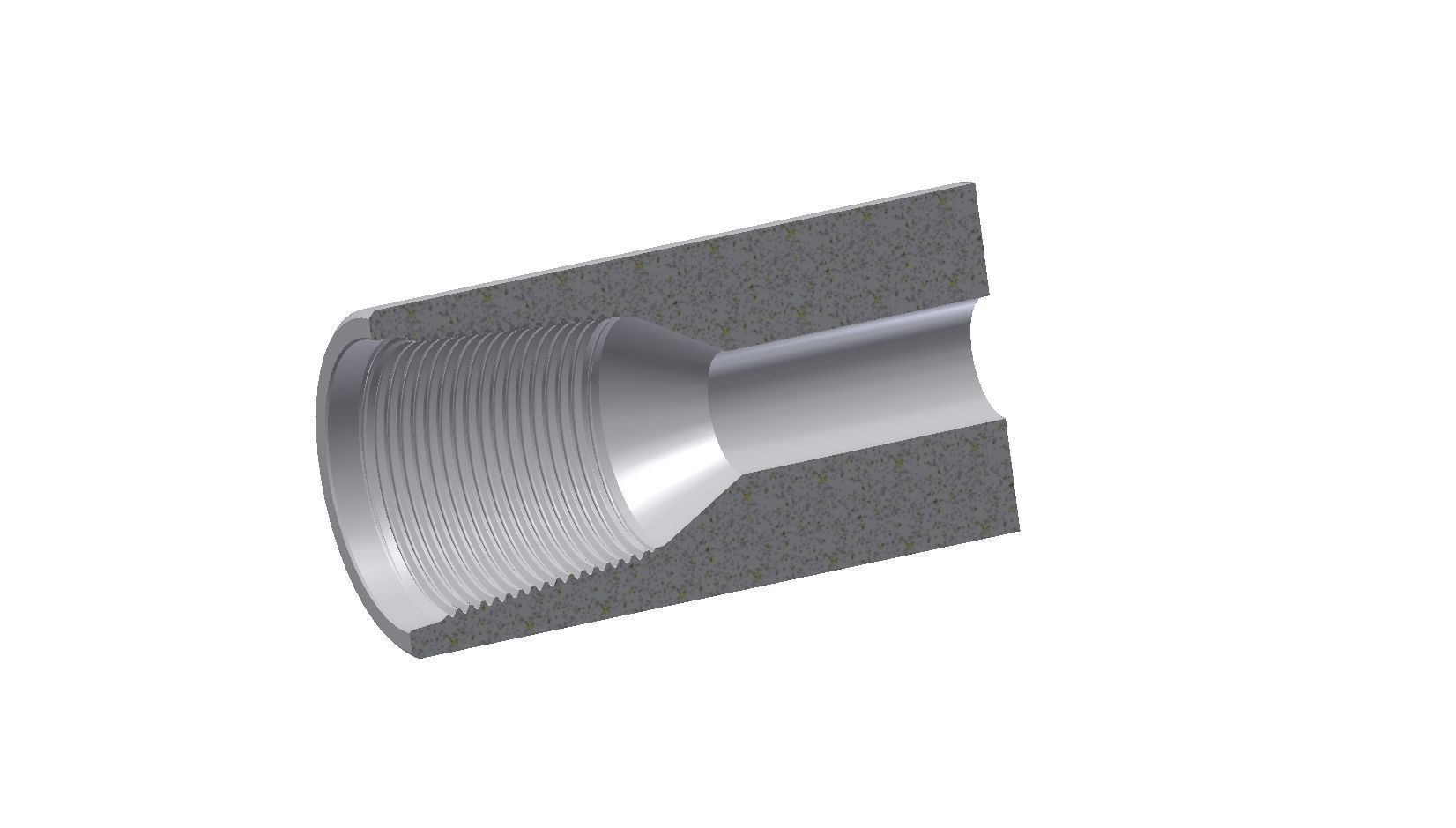

  • File BOX NC50 cone.igs - 3D model without relief elements
  • File BOX NC50 boring.igs - 3D model with relief boring
  • File BOX NC50 groove.igs - 3D model with relief groove
