Medieval castle gate winch

Medieval castle gate winch Low-poly 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

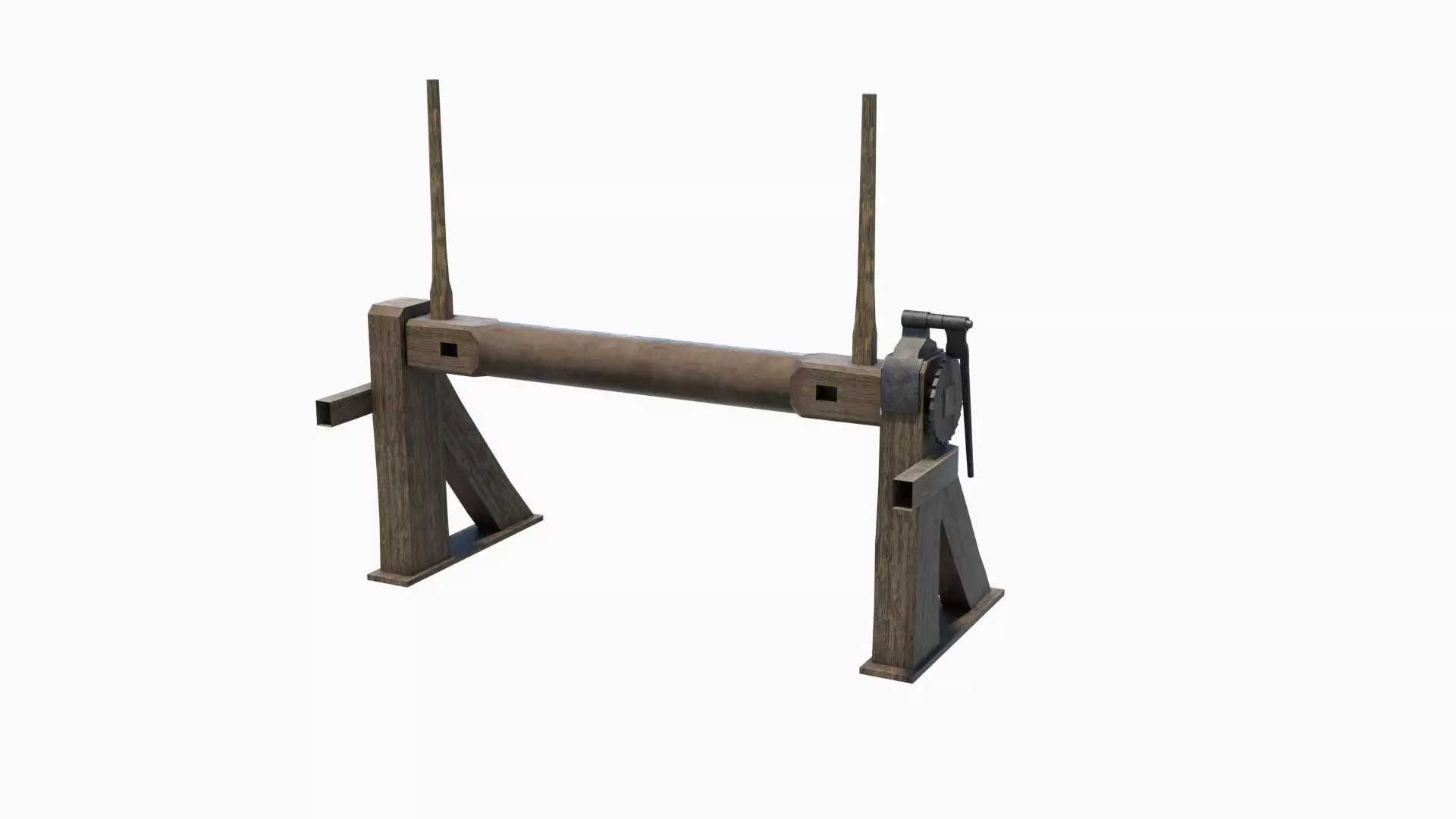

Low-poly historical accurate reconstruction of an medieval winch for rope or chain. This kind of winch could be used inside a gate house or gate tower for a portcullis or drawbridge. It is mainly made from massive wooden beams. Metal fittings help keeping it together and provide additional strength. It is operated by two handheld levers that have to be repositioned after each ¼ turn. A metal latch prevents movable parts from unwinding during this process.

You can get the whole mechanism including a functioning portcullis with animations here: https://www.cgtrader.com/3d-models/exterior/historic/medieval-portcullis-gate-and-winch-animated

The file includes:

  • An axle pivoted between two frames
  • Frames with ground and wall mountings
  • Latching system with cogwheel
  • Two levers

Polys/Verts

  • Winch (810/908)
  • Each lever (26/32)

Further Information

Models are:

  • Fully mapped and textured with PBR maps (4k).
  • In real world scale (meters).
  • Logically grouped, attached and named.
  • Pivots placed for correct movements.
